Page 321 of 492

GMC CANYON 2007  Owners Manual The tethered fuel cap is located behind a hinged
fuel door on the driver’s side of the vehicle.
To remove the fuel cap, turn it slowly
counterclockwise.
While refueling, hang the tethered fuel cap f

Page 322 of 492

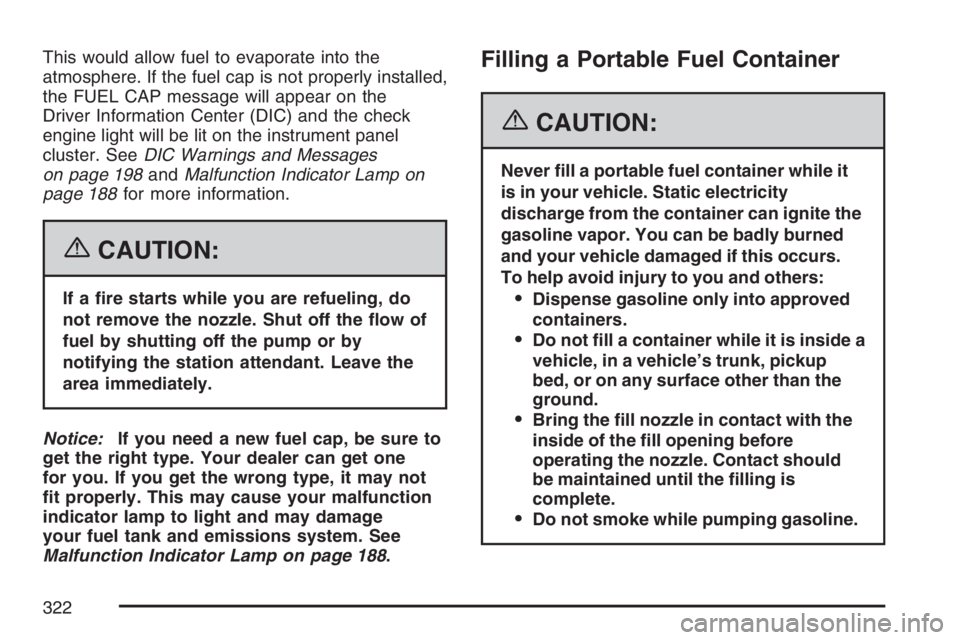

GMC CANYON 2007  Owners Manual This would allow fuel to evaporate into the
atmosphere. If the fuel cap is not properly installed,
the FUEL CAP message will appear on the
Driver Information Center (DIC) and the check
engine light wi

Page 323 of 492

GMC CANYON 2007  Owners Manual Checking Things Under
the Hood
{CAUTION:
Things that burn can get on hot engine
parts and start a �re. These include
liquids like fuel, oil, coolant, brake �uid,
windshield washer and other �uids, and

Page 324 of 492

GMC CANYON 2007  Owners Manual Engine Compartment Overview
When you open the hood on the 2.9L engine (3.7L engine similar), you will see the following:
324

Page 325 of 492

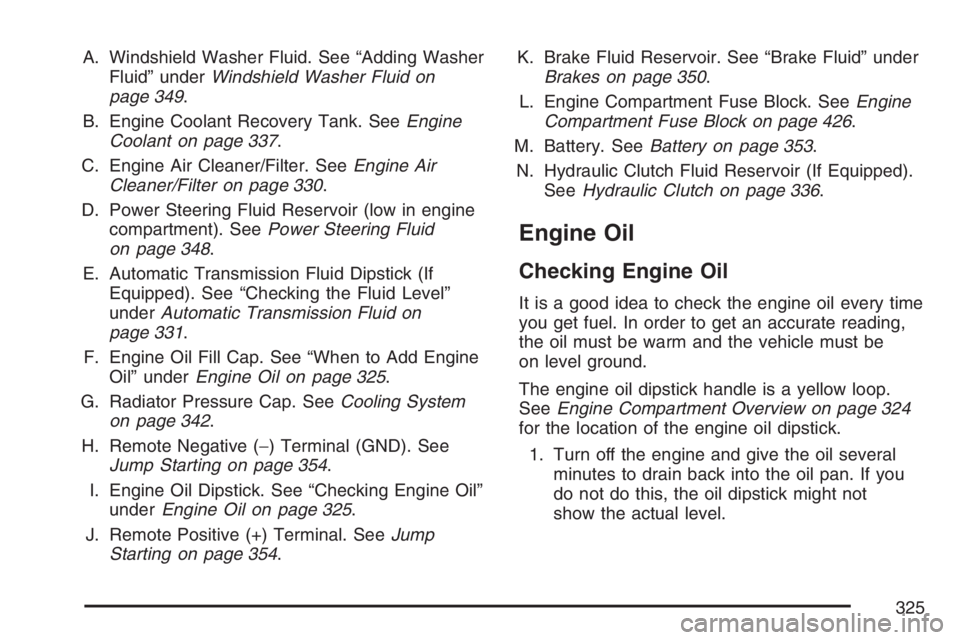

GMC CANYON 2007  Owners Manual A. Windshield Washer Fluid. See “Adding Washer
Fluid” underWindshield Washer Fluid on
page 349.
B. Engine Coolant Recovery Tank. SeeEngine
Coolant on page 337.
C. Engine Air Cleaner/Filter. SeeEng

Page 326 of 492

GMC CANYON 2007  Owners Manual 2. Pull out the dipstick and clean it with a paper
towel or cloth, then push it back in all the
way. Remove it again, keeping the tip down,
and check the level.
When to Add Engine Oil
If the oil is be

Page 327 of 492

GMC CANYON 2007  Owners Manual What Kind of Engine Oil to Use
Look for two things:
GM6094M
Your vehicle’s engine requires oil meeting GM
Standard GM6094M. You should look for and
use only an oil that meets GM Standard
GM6094M.


Page 328 of 492

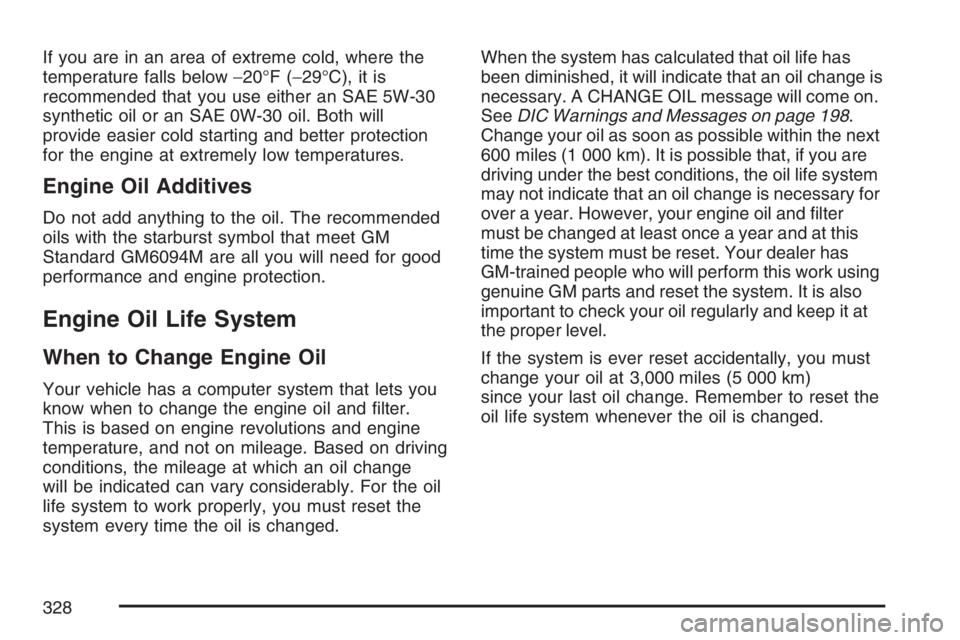

GMC CANYON 2007  Owners Manual If you are in an area of extreme cold, where the
temperature falls below−20°F (−29°C), it is
recommended that you use either an SAE 5W-30
synthetic oil or an SAE 0W-30 oil. Both will
provide eas

Page 329 of 492

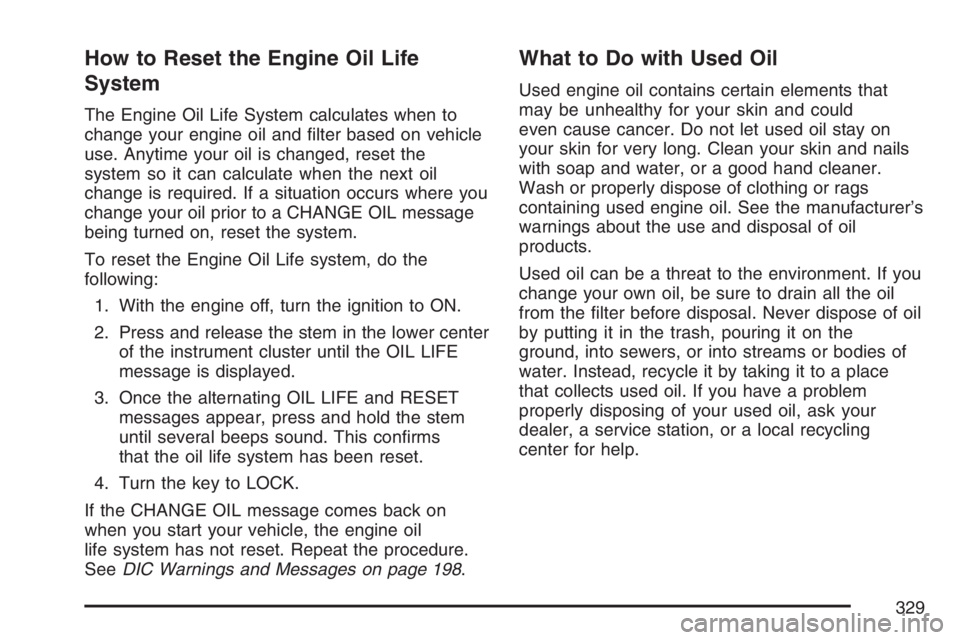

GMC CANYON 2007  Owners Manual How to Reset the Engine Oil Life
System
The Engine Oil Life System calculates when to
change your engine oil and �lter based on vehicle
use. Anytime your oil is changed, reset the
system so it can cal

Page 330 of 492

GMC CANYON 2007  Owners Manual Engine Air Cleaner/Filter
The engine air cleaner/�lter is located in the
engine compartment on the passenger’s side of
the vehicle. SeeEngine Compartment Overview on
page 324for more information on
