GMC CANYON 2007 Owner's Manual

3. Attach the wheel wrench and extensions
together as shown.4. Insert the hoist end of the extension through
the hole in the rear bumper and into the
funnel-shaped guide.
5. Turn the wheel wrench clockwise to raise the
tire part way up. Make sure the retainer is
seated in the wheel opening and the
valve stem is pointed down.
6. Raise the tire fully against the underside of
the vehicle by turning the wheel wrench
clockwise until you feel it skip twice. You
cannot overtighten the cable.
411

7. Make sure the tire is stored securely. Push,
pull (A), and then try to turn (B) the tire. If the
tire moves, check to make sure the tire
valve stem is pointing down, then use the
wheel wrench to loosen and then tighten
the cable.To store the tools, do the following:
1. Return the wheel wrench, jack extensions and
the storage bag to the locations described
underRemoving the Spare Tire and Tools on
page 395.
2. Install the wheel blocks rst. Then install
the jack.
3. Secure the items in the vehicle as shown next.
A. Jack
B. Wheel Blocks
C. Wing Nut
Crew Cab
412

A. Jack
B. Wheel Blocks
C. Wing Nut
Spare Tire
Compact Spare Tire
Your vehicle may have a compact spare tire.
Although the compact spare tire was fully inated
when your vehicle was new, it can lose air over
time. Check the ination pressure regularly. It
should be 60 psi (420 kPa).
Notice:If your vehicle has four-wheel drive
and the compact spare tire is installed on your
vehicle, do not drive in four-wheel drive until
you can have your at tire repaired and/orreplaced. You could damage your vehicle, and
the repair costs would not be covered by your
warranty. Never use four-wheel drive when the
compact spare tire is installed on your vehicle.
After installing the compact spare on your vehicle,
you should stop as soon as possible and make sure
your vehicle’s spare tire is correctly inated. The
compact spare is made to perform well at speeds
up to 62 mph (100 km/h) for distances up to
500 miles (804 km).For heavy payloads or towing,
and for low traction or four-wheel-drive conditions,
repair or replace the full-size tire. Of course, it is
best to replace your vehicle’s spare with a full-size
tire as soon as you can. The spare tire will last
longer and be in good shape in case you need it
again.
Notice:When the compact spare is installed,
do not take your vehicle through an automatic
car wash with guide rails. The compact
spare can get caught on the rails. That can
damage the tire and wheel, and maybe
other parts of your vehicle.
Do not use your compact spare on other vehicles.
Regular/Extended Cab
413

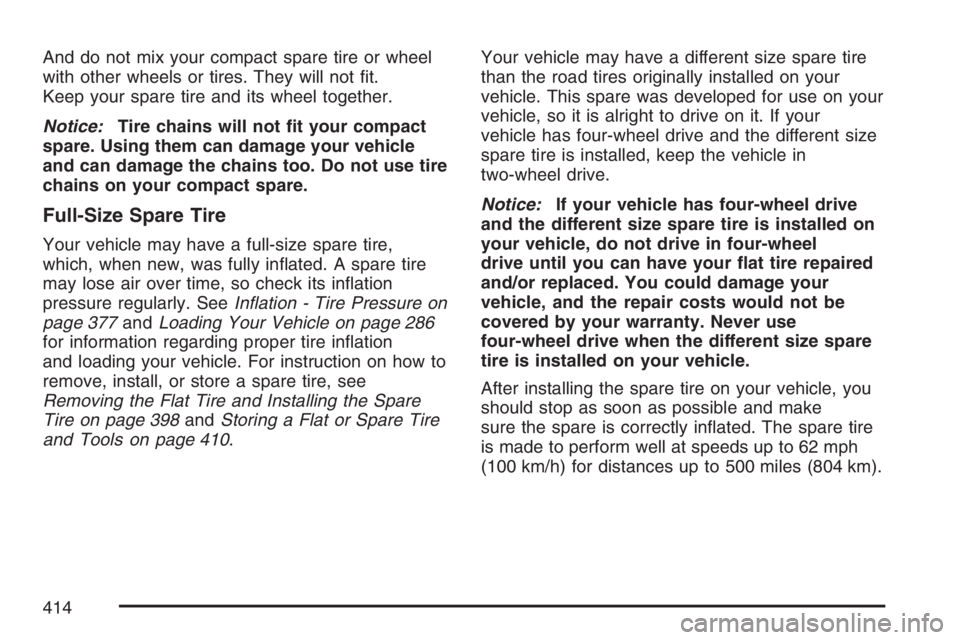

And do not mix your compact spare tire or wheel
with other wheels or tires. They will not t.
Keep your spare tire and its wheel together.
Notice:Tire chains will not t your compact
spare. Using them can damage your vehicle
and can damage the chains too. Do not use tire
chains on your compact spare.
Full-Size Spare Tire
Your vehicle may have a full-size spare tire,
which, when new, was fully inated. A spare tire
may lose air over time, so check its ination
pressure regularly. SeeInation - Tire Pressure on
page 377andLoading Your Vehicle on page 286
for information regarding proper tire ination
and loading your vehicle. For instruction on how to
remove, install, or store a spare tire, see
Removing the Flat Tire and Installing the Spare
Tire on page 398andStoring a Flat or Spare Tire
and Tools on page 410.Your vehicle may have a different size spare tire
than the road tires originally installed on your
vehicle. This spare was developed for use on your
vehicle, so it is alright to drive on it. If your
vehicle has four-wheel drive and the different size
spare tire is installed, keep the vehicle in
two-wheel drive.
Notice:If your vehicle has four-wheel drive
and the different size spare tire is installed on
your vehicle, do not drive in four-wheel
drive until you can have your at tire repaired
and/or replaced. You could damage your
vehicle, and the repair costs would not be
covered by your warranty. Never use
four-wheel drive when the different size spare
tire is installed on your vehicle.
After installing the spare tire on your vehicle, you
should stop as soon as possible and make
sure the spare is correctly inated. The spare tire
is made to perform well at speeds up to 62 mph
(100 km/h) for distances up to 500 miles (804 km).
414

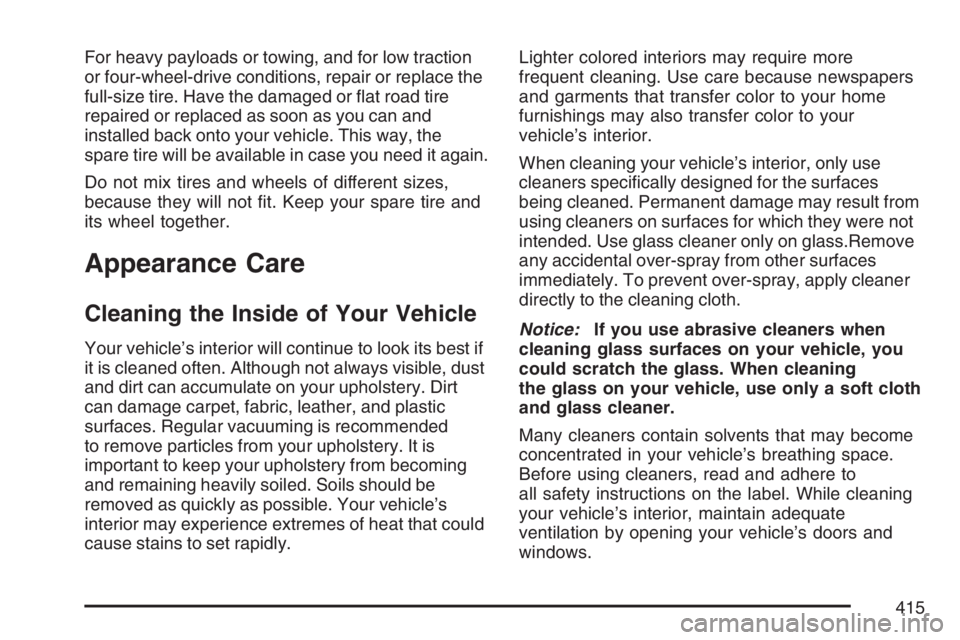

For heavy payloads or towing, and for low traction
or four-wheel-drive conditions, repair or replace the
full-size tire. Have the damaged or at road tire
repaired or replaced as soon as you can and
installed back onto your vehicle. This way, the
spare tire will be available in case you need it again.
Do not mix tires and wheels of different sizes,
because they will not t. Keep your spare tire and
its wheel together.
Appearance Care
Cleaning the Inside of Your Vehicle
Your vehicle’s interior will continue to look its best if
it is cleaned often. Although not always visible, dust
and dirt can accumulate on your upholstery. Dirt
can damage carpet, fabric, leather, and plastic
surfaces. Regular vacuuming is recommended
to remove particles from your upholstery. It is
important to keep your upholstery from becoming
and remaining heavily soiled. Soils should be
removed as quickly as possible. Your vehicle’s
interior may experience extremes of heat that could
cause stains to set rapidly.Lighter colored interiors may require more
frequent cleaning. Use care because newspapers
and garments that transfer color to your home
furnishings may also transfer color to your
vehicle’s interior.
When cleaning your vehicle’s interior, only use
cleaners specically designed for the surfaces
being cleaned. Permanent damage may result from
using cleaners on surfaces for which they were not
intended. Use glass cleaner only on glass.Remove
any accidental over-spray from other surfaces
immediately. To prevent over-spray, apply cleaner
directly to the cleaning cloth.
Notice:If you use abrasive cleaners when
cleaning glass surfaces on your vehicle, you
could scratch the glass. When cleaning
the glass on your vehicle, use only a soft cloth
and glass cleaner.
Many cleaners contain solvents that may become
concentrated in your vehicle’s breathing space.
Before using cleaners, read and adhere to
all safety instructions on the label. While cleaning
your vehicle’s interior, maintain adequate
ventilation by opening your vehicle’s doors and
windows.
415

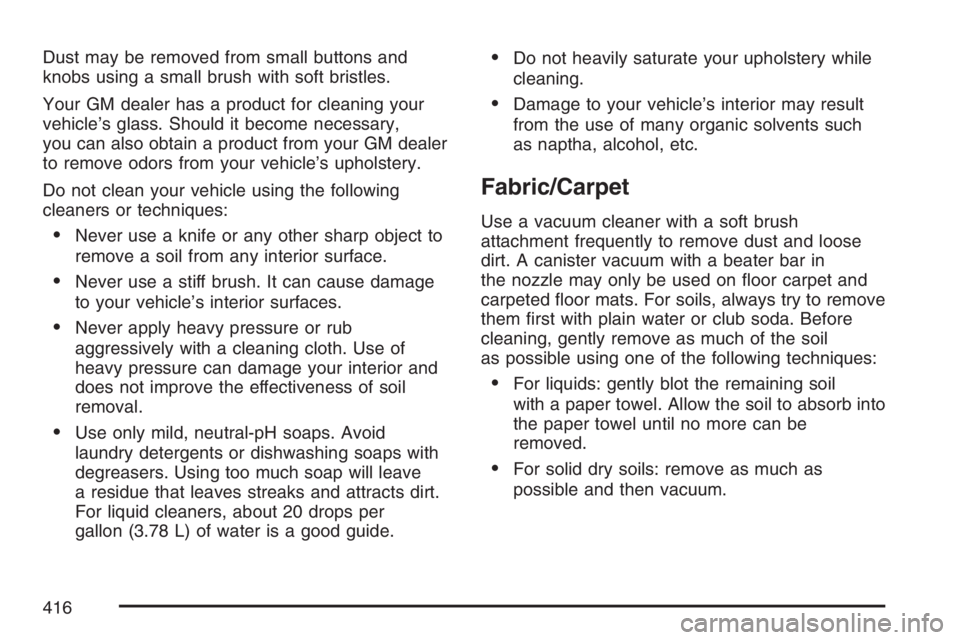

Dust may be removed from small buttons and
knobs using a small brush with soft bristles.
Your GM dealer has a product for cleaning your
vehicle’s glass. Should it become necessary,
you can also obtain a product from your GM dealer
to remove odors from your vehicle’s upholstery.
Do not clean your vehicle using the following
cleaners or techniques:
Never use a knife or any other sharp object to
remove a soil from any interior surface.
Never use a stiff brush. It can cause damage
to your vehicle’s interior surfaces.
Never apply heavy pressure or rub
aggressively with a cleaning cloth. Use of
heavy pressure can damage your interior and
does not improve the effectiveness of soil
removal.
Use only mild, neutral-pH soaps. Avoid
laundry detergents or dishwashing soaps with
degreasers. Using too much soap will leave
a residue that leaves streaks and attracts dirt.
For liquid cleaners, about 20 drops per
gallon (3.78 L) of water is a good guide.
Do not heavily saturate your upholstery while
cleaning.
Damage to your vehicle’s interior may result
from the use of many organic solvents such
as naptha, alcohol, etc.
Fabric/Carpet
Use a vacuum cleaner with a soft brush
attachment frequently to remove dust and loose
dirt. A canister vacuum with a beater bar in
the nozzle may only be used on oor carpet and
carpeted oor mats. For soils, always try to remove
them rst with plain water or club soda. Before
cleaning, gently remove as much of the soil
as possible using one of the following techniques:
For liquids: gently blot the remaining soil
with a paper towel. Allow the soil to absorb into
the paper towel until no more can be
removed.
For solid dry soils: remove as much as
possible and then vacuum.
416

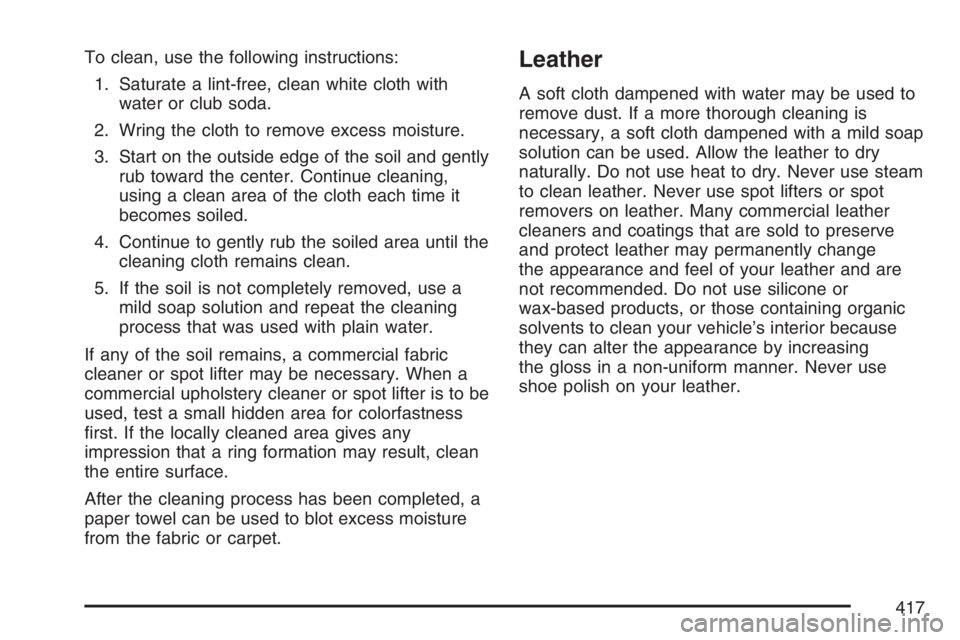

To clean, use the following instructions:
1. Saturate a lint-free, clean white cloth with
water or club soda.
2. Wring the cloth to remove excess moisture.
3. Start on the outside edge of the soil and gently
rub toward the center. Continue cleaning,
using a clean area of the cloth each time it
becomes soiled.
4. Continue to gently rub the soiled area until the
cleaning cloth remains clean.
5. If the soil is not completely removed, use a
mild soap solution and repeat the cleaning
process that was used with plain water.
If any of the soil remains, a commercial fabric
cleaner or spot lifter may be necessary. When a
commercial upholstery cleaner or spot lifter is to be
used, test a small hidden area for colorfastness
rst. If the locally cleaned area gives any
impression that a ring formation may result, clean
the entire surface.
After the cleaning process has been completed, a
paper towel can be used to blot excess moisture
from the fabric or carpet.Leather
A soft cloth dampened with water may be used to
remove dust. If a more thorough cleaning is
necessary, a soft cloth dampened with a mild soap
solution can be used. Allow the leather to dry
naturally. Do not use heat to dry. Never use steam
to clean leather. Never use spot lifters or spot
removers on leather. Many commercial leather
cleaners and coatings that are sold to preserve
and protect leather may permanently change
the appearance and feel of your leather and are
not recommended. Do not use silicone or
wax-based products, or those containing organic
solvents to clean your vehicle’s interior because
they can alter the appearance by increasing
the gloss in a non-uniform manner. Never use
shoe polish on your leather.
417

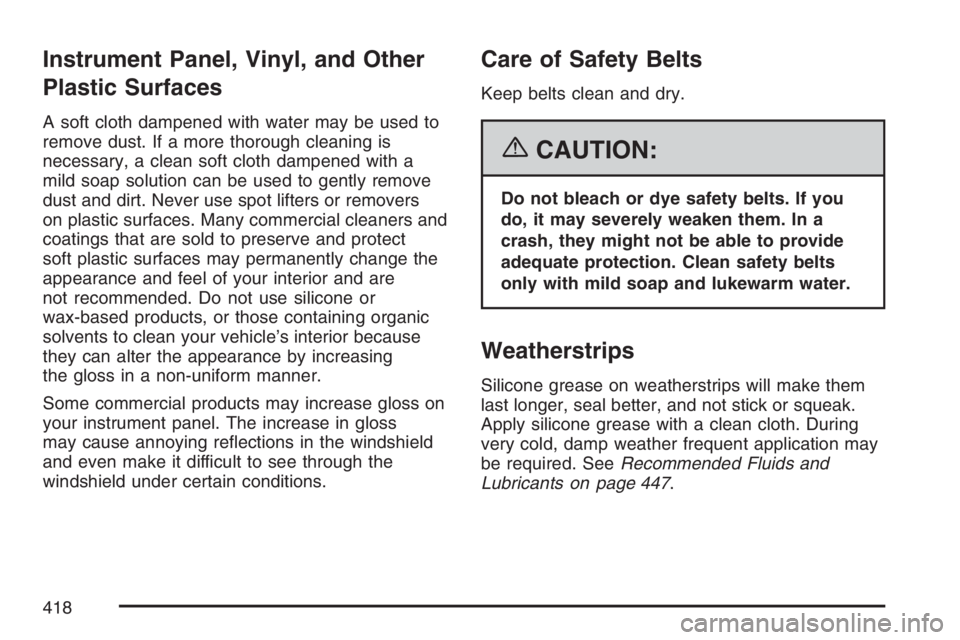

Instrument Panel, Vinyl, and Other
Plastic Surfaces
A soft cloth dampened with water may be used to
remove dust. If a more thorough cleaning is
necessary, a clean soft cloth dampened with a
mild soap solution can be used to gently remove
dust and dirt. Never use spot lifters or removers
on plastic surfaces. Many commercial cleaners and
coatings that are sold to preserve and protect
soft plastic surfaces may permanently change the
appearance and feel of your interior and are
not recommended. Do not use silicone or
wax-based products, or those containing organic
solvents to clean your vehicle’s interior because
they can alter the appearance by increasing
the gloss in a non-uniform manner.
Some commercial products may increase gloss on
your instrument panel. The increase in gloss
may cause annoying reections in the windshield
and even make it difficult to see through the
windshield under certain conditions.
Care of Safety Belts
Keep belts clean and dry.
{CAUTION:
Do not bleach or dye safety belts. If you
do, it may severely weaken them. In a
crash, they might not be able to provide
adequate protection. Clean safety belts
only with mild soap and lukewarm water.
Weatherstrips
Silicone grease on weatherstrips will make them
last longer, seal better, and not stick or squeak.
Apply silicone grease with a clean cloth. During
very cold, damp weather frequent application may
be required. SeeRecommended Fluids and
Lubricants on page 447.
418

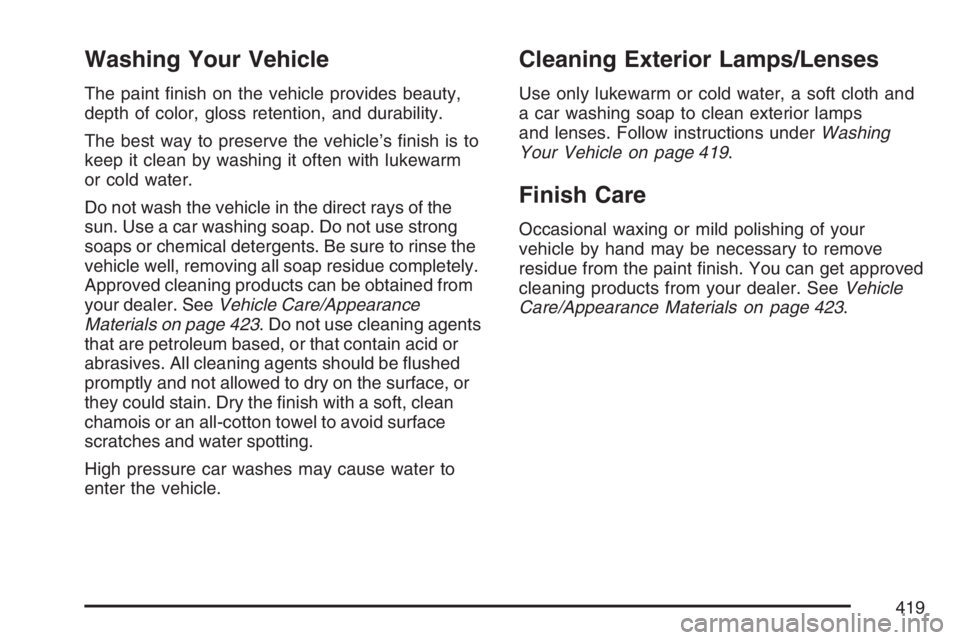

Washing Your Vehicle
The paint nish on the vehicle provides beauty,
depth of color, gloss retention, and durability.
The best way to preserve the vehicle’s nish is to
keep it clean by washing it often with lukewarm
or cold water.
Do not wash the vehicle in the direct rays of the
sun. Use a car washing soap. Do not use strong
soaps or chemical detergents. Be sure to rinse the
vehicle well, removing all soap residue completely.
Approved cleaning products can be obtained from
your dealer. SeeVehicle Care/Appearance
Materials on page 423. Do not use cleaning agents
that are petroleum based, or that contain acid or
abrasives. All cleaning agents should be ushed
promptly and not allowed to dry on the surface, or
they could stain. Dry the nish with a soft, clean
chamois or an all-cotton towel to avoid surface
scratches and water spotting.
High pressure car washes may cause water to
enter the vehicle.
Cleaning Exterior Lamps/Lenses
Use only lukewarm or cold water, a soft cloth and
a car washing soap to clean exterior lamps
and lenses. Follow instructions underWashing
Your Vehicle on page 419.
Finish Care
Occasional waxing or mild polishing of your
vehicle by hand may be necessary to remove
residue from the paint nish. You can get approved
cleaning products from your dealer. SeeVehicle
Care/Appearance Materials on page 423.
419

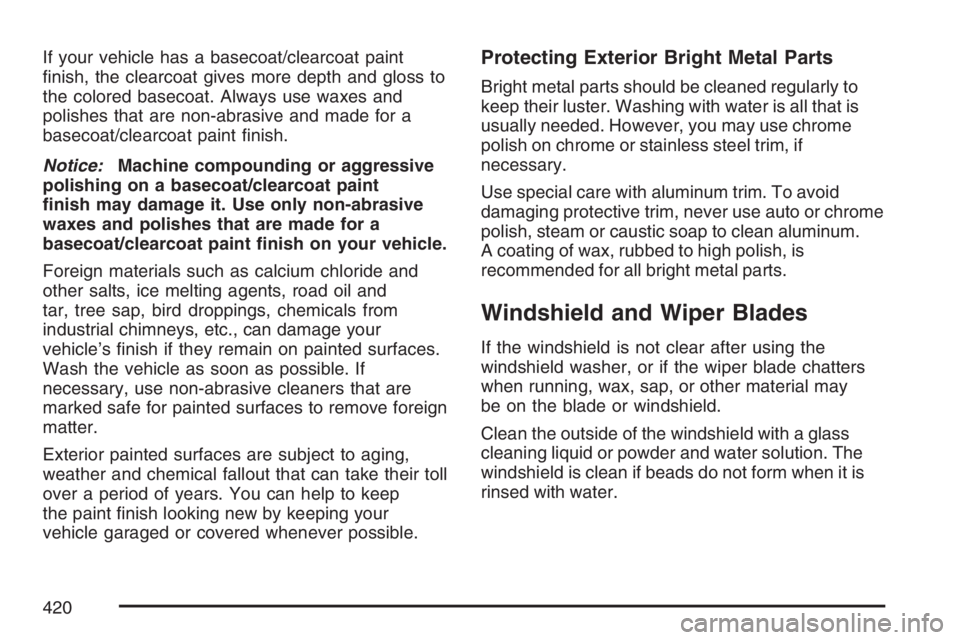

If your vehicle has a basecoat/clearcoat paint
nish, the clearcoat gives more depth and gloss to
the colored basecoat. Always use waxes and
polishes that are non-abrasive and made for a
basecoat/clearcoat paint nish.
Notice:Machine compounding or aggressive
polishing on a basecoat/clearcoat paint
nish may damage it. Use only non-abrasive
waxes and polishes that are made for a
basecoat/clearcoat paint nish on your vehicle.
Foreign materials such as calcium chloride and
other salts, ice melting agents, road oil and
tar, tree sap, bird droppings, chemicals from
industrial chimneys, etc., can damage your
vehicle’s nish if they remain on painted surfaces.
Wash the vehicle as soon as possible. If
necessary, use non-abrasive cleaners that are
marked safe for painted surfaces to remove foreign
matter.
Exterior painted surfaces are subject to aging,
weather and chemical fallout that can take their toll
over a period of years. You can help to keep
the paint nish looking new by keeping your
vehicle garaged or covered whenever possible.Protecting Exterior Bright Metal Parts
Bright metal parts should be cleaned regularly to
keep their luster. Washing with water is all that is
usually needed. However, you may use chrome
polish on chrome or stainless steel trim, if
necessary.
Use special care with aluminum trim. To avoid
damaging protective trim, never use auto or chrome
polish, steam or caustic soap to clean aluminum.
A coating of wax, rubbed to high polish, is
recommended for all bright metal parts.
Windshield and Wiper Blades
If the windshield is not clear after using the
windshield washer, or if the wiper blade chatters
when running, wax, sap, or other material may
be on the blade or windshield.
Clean the outside of the windshield with a glass
cleaning liquid or powder and water solution. The
windshield is clean if beads do not form when it is
rinsed with water.
420
