GMC CANYON 2012 Owner's Manual

Black plate (15,1)GMC Canyon Owner Manual - 2012

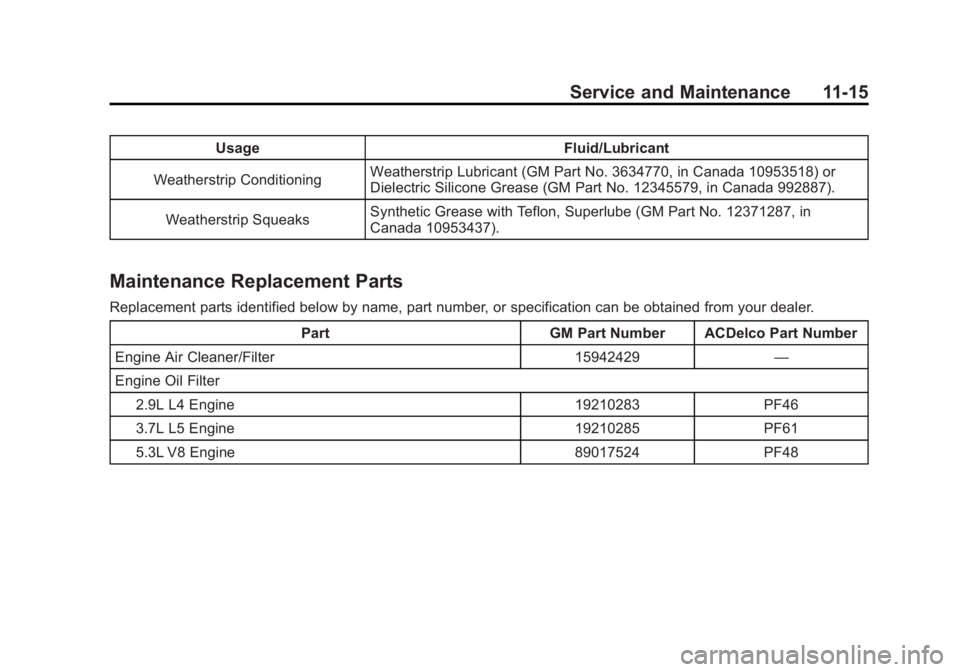

Service and Maintenance 11-15
UsageFluid/Lubricant
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. 3634770, in Canada 10953518) or
Dielectric Silicone Grease (GM Part No. 12345579, in Canada 992887).
Weatherstrip Squeaks Synthetic Grease with Teflon, Superlube (GM Part No. 12371287, in
Canada 10953437).
Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.
Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 15942429 —
Engine Oil Filter 2.9L L4 Engine 19210283 PF46
3.7L L5 Engine 19210285 PF61
5.3L V8 Engine 89017524 PF48

Black plate (16,1)GMC Canyon Owner Manual - 2012

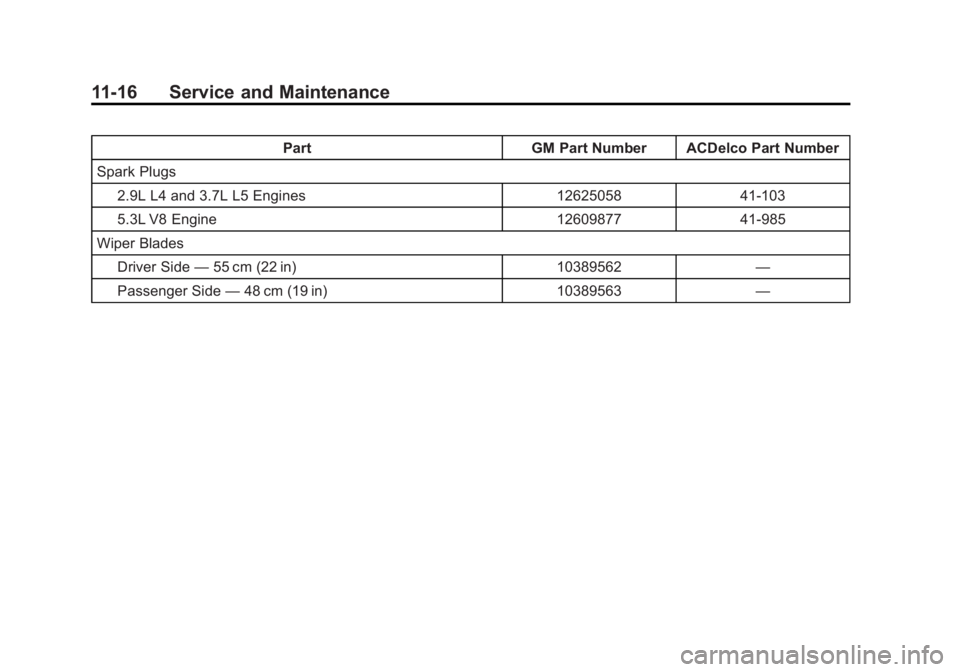

11-16 Service and Maintenance
PartGM Part Number ACDelco Part Number
Spark Plugs 2.9L L4 and 3.7L L5 Engines 1262505841-103
5.3L V8 Engine 1260987741-985
Wiper Blades Driver Side —55 cm (22 in) 10389562—
Passenger Side —48 cm (19 in) 10389563—

Black plate (17,1)GMC Canyon Owner Manual - 2012
Service and Maintenance 11-17

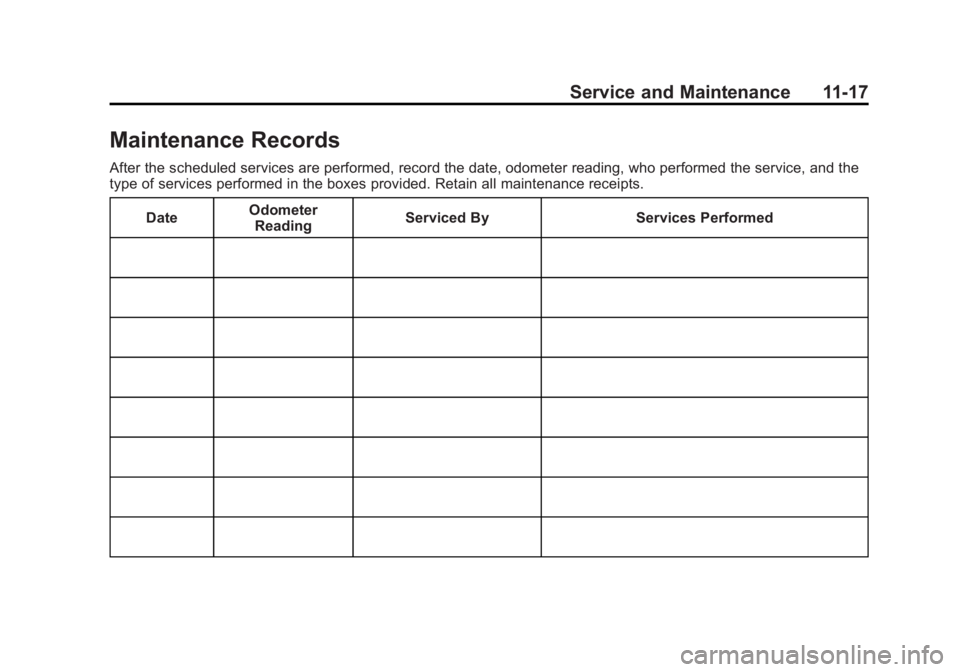

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.Date Odometer
Reading Serviced By Services Performed

Black plate (18,1)GMC Canyon Owner Manual - 2012
11-18 Service and Maintenance
DateOdometer
Reading Serviced By Services Performed

Black plate (19,1)GMC Canyon Owner Manual - 2012
Service and Maintenance 11-19
DateOdometer
Reading Serviced By Services Performed

Black plate (20,1)GMC Canyon Owner Manual - 2012
11-20 Service and Maintenance
DateOdometer
Reading Serviced By Services Performed

Black plate (1,1)GMC Canyon Owner Manual - 2012
Technical Data 12-1
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . 12-1
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . 12-1
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . 12-2
Engine Drive Belt Routing . . . 12-4
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
on page 12‑2 for the vehicle's
engine code.
Service Parts
Identification Label
This label, on the inside of the glove
box, has the following information:
.Vehicle Identification
Number (VIN).
.Model designation.
.Paint information.
.Production options and special
equipment.
Do not remove this label from the
vehicle.

Black plate (2,1)GMC Canyon Owner Manual - 2012
12-2 Technical Data

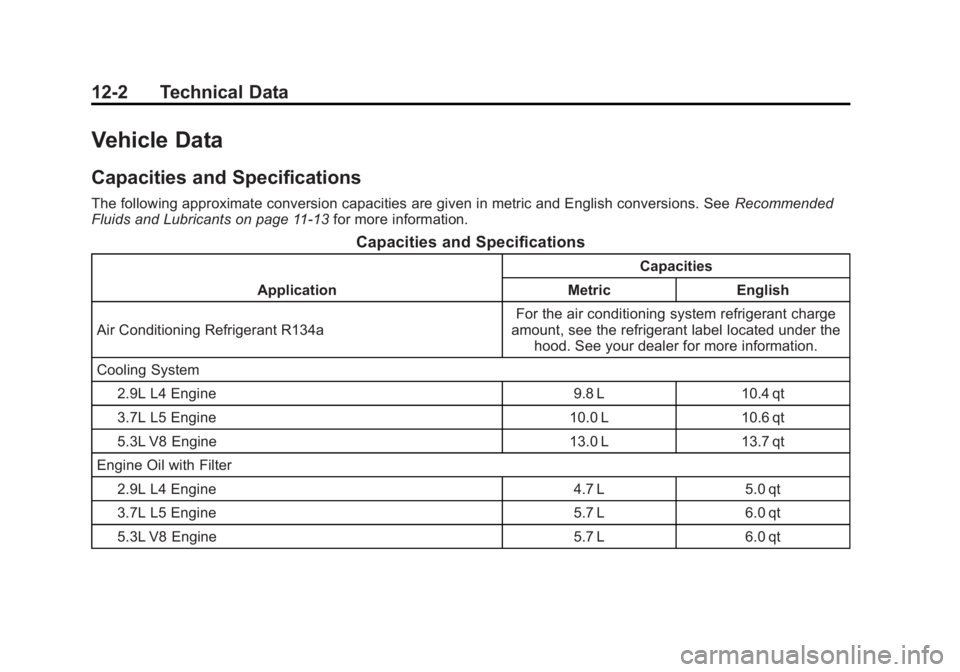

Vehicle Data
Capacities and Specifications
The following approximate conversion capacities are given in metric and English conversions. SeeRecommended
Fluids and Lubricants on page 11‑13 for more information.
Capacities and Specifications
Application Capacities
Metric English
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant label located under the hood. See your dealer for more information.
Cooling System
2.9L L4 Engine 9.8 L 10.4 qt
3.7L L5 Engine 10.0 L 10.6 qt
5.3L V8 Engine 13.0 L 13.7 qt
Engine Oil with Filter 2.9L L4 Engine 4.7 L 5.0 qt
3.7L L5 Engine 5.7 L 6.0 qt
5.3L V8 Engine 5.7 L 6.0 qt

Black plate (3,1)GMC Canyon Owner Manual - 2012
Technical Data 12-3

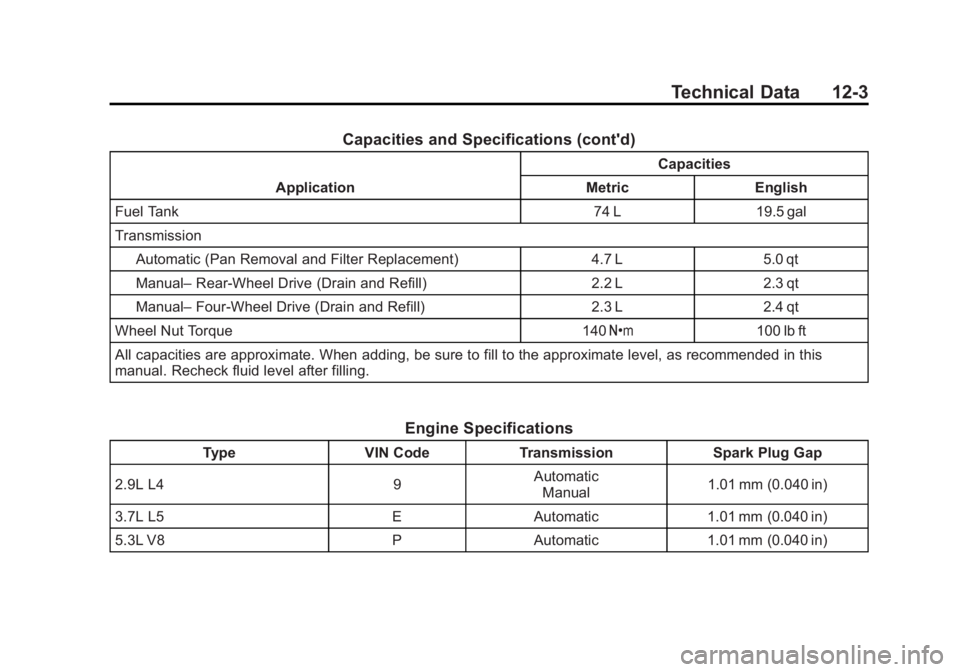

Capacities and Specifications (cont'd)
ApplicationCapacities
Metric English
Fuel Tank 74 L 19.5 gal
Transmission Automatic (Pan Removal and Filter Replacement) 4.7 L 5.0 qt
Manual– Rear-Wheel Drive (Drain and Refill) 2.2 L 2.3 qt
Manual– Four-Wheel Drive (Drain and Refill) 2.3 L 2.4 qt
Wheel Nut Torque 140 Y100 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
Engine Specifications
Type VIN CodeTransmission Spark Plug Gap
2.9L L4 9Automatic
Manual 1.01 mm (0.040 in)
3.7L L5 EAutomatic 1.01 mm (0.040 in)
5.3L V8 PAutomatic 1.01 mm (0.040 in)

Black plate (4,1)GMC Canyon Owner Manual - 2012
12-4 Technical Data

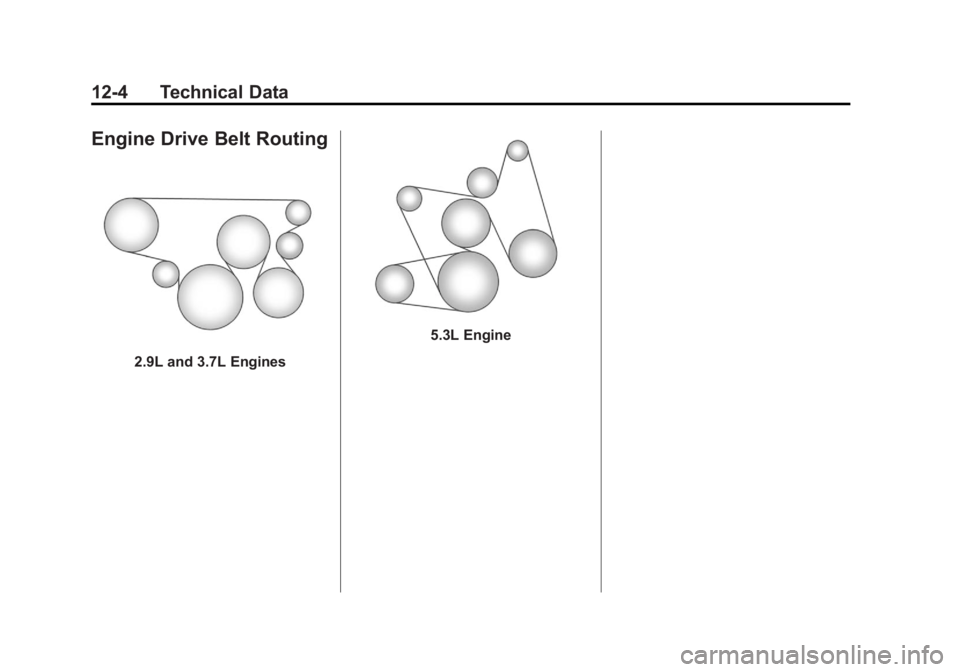

Engine Drive Belt Routing
2.9L and 3.7L Engines
5.3L Engine
