Vehicle Care 249
1. Remove the two screws and liftoff the lamp assembly.
2. Turn the bulb socket counterclockwise and pull it
straight out.
3. Pull the bulb straight out from the socket.
4. Replace the bulb and reverse Steps 1-3 to reinstall.
Electrical System
Electrical System
Overload
The vehicle has fuses to protect
against an electrical system
overload. Fuses also protect power
devices in the vehicle.
Replace a bad fuse with a new one
of the identical size and rating.
If there is a problem on the road and
a fuse needs to be replaced, there
is a fuse puller in the Engine
Compartment Fuse Block. Replace
the fuse as soon as possible with
one of the same amperage rating.
Headlamp Wiring
An electrical overload may cause
the lamps to go on and off, or in
some cases to remain off. Have the
headlamp wiring checked right away
if the lamps go on and off or
remain off.
Windshield Wipers
If the wiper motor overheats due to
heavy snow or ice, the windshield
wipers will stop until the motor cools
and will then restart.
Although the circuit is protected
from electrical overload, overload
due to heavy snow or ice may
cause wiper linkage damage.
Always clear ice and heavy snow
from the windshield before using the
windshield wipers.
If the overload is caused by an
electrical problem and not snow or
ice, be sure to get it fixed.
Fuses and Circuit
Breakers
The wiring circuits in the vehicle are
protected from short circuits by
fuses. This greatly reduces the
chance of fires caused by electrical
problems.

GMC Canyon/Canyon Denali Owner Manual (GMNA-Localizing-U.S./Canada-
13566643) - 2020 - CRC - 10/4/19
252 Vehicle Care
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.Fuses Usage
F1 Traction control module power
F2 Engine control module power
F3 Air conditioning clutch
F4 –
F5 Engine control module ignition/
Integrated chassis
control module/
Fuel pump power
module
F6 Wipers
F7 Cargo lamp/Bed lighting
F8 Fuel injectors –
even
F9 Fuel injectors –odd
F10 Engine control module 1 Fuses Usage
F11 Oxygen/Mass air flow/Humidity/
Induction air
temperature/
Throttle inlet
pressure sensors
F12 Starter
F13 Traction control module
F14 –
F15 –
F16 –
F17 Front axle actuator
F18 –
F19 Aeroshutters
F20 –
F21 Front blower
F22 Antilock brake system valves
F23 –
F24 Trailer Fuses Usage
F25 Transfer case electronic control
F26 Antilock brake system pump
F27 Trailer brake control module/
Trailer wiring
provisions
F28 Rear window defogger
F29 –
F30 Driver heated seat
F31 –
F32 Passenger heated seat
F33 Right headlamp low beam/Front
right park lamp/
Right front side
marker/Right rear
side marker
F34 Fuel pump power module

GMC Canyon/Canyon Denali Owner Manual (GMNA-Localizing-U.S./Canada-
13566643) - 2020 - CRC - 10/4/19
Vehicle Care 253

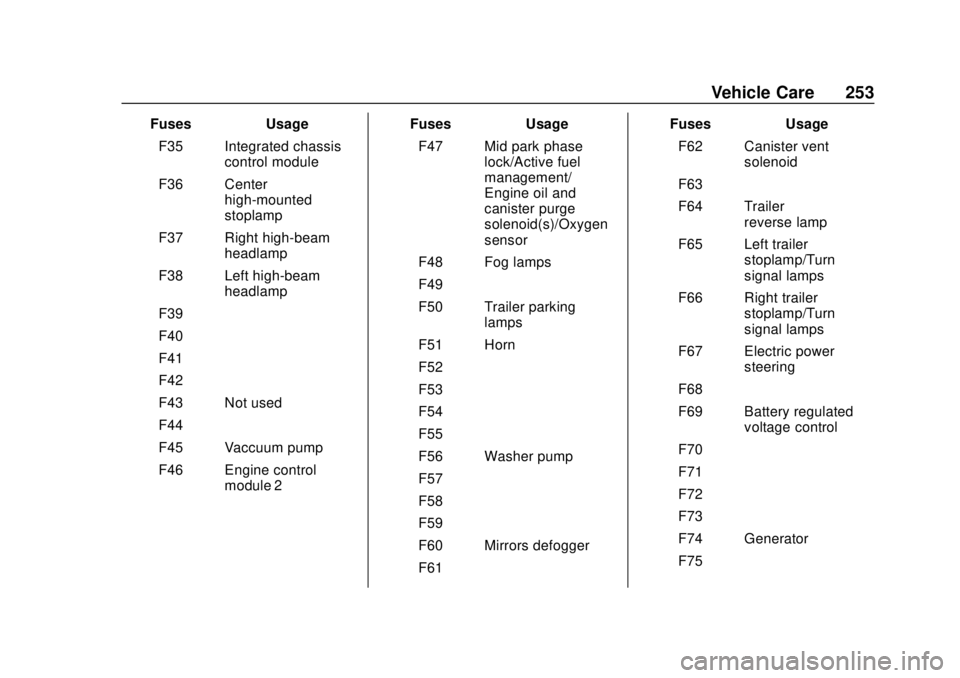

FusesUsage
F35 Integrated chassis control module
F36 Center high-mounted
stoplamp
F37 Right high-beam headlamp
F38 Left high-beam headlamp
F39 –
F40 –
F41 –
F42 –
F43 Not used
F44 –
F45 Vaccuum pump
F46 Engine control module 2 Fuses
Usage
F47 Mid park phase lock/Active fuel
management/
Engine oil and
canister purge
solenoid(s)/Oxygen
sensor
F48 Fog lamps
F49 –
F50 Trailer parking lamps
F51 Horn
F52 –
F53 –
F54 –
F55 –
F56 Washer pump
F57 –
F58 –
F59 –
F60 Mirrors defogger
F61 – Fuses
Usage
F62 Canister vent solenoid
F63 –
F64 Trailer reverse lamp
F65 Left trailer stoplamp/Turn
signal lamps
F66 Right trailer stoplamp/Turn
signal lamps
F67 Electric power steering
F68 –
F69 Battery regulated voltage control
F70 –
F71 –
F72 –
F73 –
F74 Generator
F75 –

GMC Canyon/Canyon Denali Owner Manual (GMNA-Localizing-U.S./Canada-
13566643) - 2020 - CRC - 10/4/19
Vehicle Care 255
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.Fuses Usage
F1 Run/Crank relay control/Horn switch/
Dome lamps
F2 –
F3 –
F4 Steering wheel controls
F5 Left headlamp low beam/Front left park
lamp/Left front side
marker/Left rear side
marker
F6 –
F7 –
F8 Mirror window module
F9 Instrument panel cluster
F10 –
F11 Door latches
F12 –

GMC Canyon/Canyon Denali Owner Manual (GMNA-Localizing-U.S./Canada-
13566643) - 2020 - CRC - 10/4/19
Vehicle Care 277
Wheel Replacement
Replace any wheel that is bent,
cracked, or badly rusted or
corroded. If wheel nuts keep coming
loose, the wheel, wheel bolts, and
wheel nuts should be replaced.
If the wheel leaks air, replace it.
Some aluminum wheels can be
repaired. See your dealer if any of
these conditions exist.
Your dealer will know the kind of
wheel that is needed.
Each new wheel should have the
same load-carrying capacity,
diameter, width, offset, and be
mounted the same way as the one it
replaces.
Replace wheels, wheel bolts, wheel
nuts, or Tire Pressure Monitor
System (TPMS) sensors with new
GM original equipment parts.{Warning
Using the wrong replacement
wheels, wheel bolts, or wheel
nuts can be dangerous. It could
affect the braking and handling of
the vehicle. Tires can lose air,
and cause loss of control, causing
a crash. Always use the correct
wheel, wheel bolts, and wheel
nuts for replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake
cooling, speedometer or
odometer calibration, headlamp
aim, bumper height, vehicle
ground clearance, and tire or tire
chain clearance to the body and
chassis.
Used Replacement Wheels
{Warning
Replacing a wheel with a used
one is dangerous. How it has
been used or how far it has been
driven may be unknown. It could
fail suddenly and cause a crash.
When replacing wheels, use a
new GM original equipment
wheel.
Tire Chains
{Warning
If the vehicle has 255/55R20,
255/65R17 AT, 265/60R18,
265/65R17, or 265/70R16 size
tires, do not use tire chains.
There is not enough clearance.
Tire chains used on a vehicle
without the proper amount of
clearance can cause damage to
the brakes, suspension, or other(Continued)

GMC Canyon/Canyon Denali Owner Manual (GMNA-Localizing-U.S./Canada-
13566643) - 2020 - CRC - 10/4/19
Service and Maintenance 319
Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
.Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage.
The brake lamps need to be
checked periodically to ensure
that they light when braking.
. With a multi-point inspection,
your dealer can check the lamps
and note any concerns.
Shocks and Struts
Shocks and struts help aid in control
for a smoother ride.
. Signs of wear may include
steering wheel vibration, bounce/
sway while braking, longer
stopping distance, or uneven
tire wear.
. As part of the multi-point
inspection, trained dealer
technicians can visually inspect
the shocks and struts for signs of leaking, blown seals,
or damage, and can advise
when service is needed.
Tires
Tires need to be properly inflated,
rotated, and balanced. Maintaining
the tires can save money and fuel,
and can reduce the risk of tire
failure.
. Signs that the tires need to be
replaced include three or more
visible treadwear indicators; cord
or fabric showing through the
rubber; cracks or cuts in the
tread or sidewall; or a bulge or
split in the tire.
. Trained dealer technicians can
inspect and recommend the right
tires. Your dealer can also
provide tire/wheel balancing
services to ensure smooth
vehicle operation at all speeds.
Your dealer sells and services
name brand tires. Vehicle Care
To help keep the vehicle looking like
new, vehicle care products are
available from your dealer. For
information on how to clean and
protect the vehicle’s interior and
exterior, see
Interior Care 0304 and
Exterior Care 0299.
Wheel Alignment
Wheel alignment is critical for
ensuring that the tires deliver
optimal wear and performance.
. Signs that the alignment may
need to be adjusted include
pulling, improper vehicle
handling, or unusual tire wear.
. Your dealer has the required
equipment to ensure proper
wheel alignment.
Windshield
For safety, appearance, and the
best viewing, keep the windshield
clean and clear.
. Signs of damage include
scratches, cracks, and chips.

GMC Canyon/Canyon Denali Owner Manual (GMNA-Localizing-U.S./Canada-
13566643) - 2020 - CRC - 10/4/19
352 Index
IndexA
Accessories andModifications . . . . . . . . . . . . . . . . . . 221
Accessory Power . . . . . . . . . . . . . . . 165
Active Fuel Management . . . . . . . 168
Add-On Electrical Equipment . . . 217
Additional Information OnStar . . . . . . . . . . . . . . . . . . . . . . . 345
Additional Maintenance and Care . . . . . . . . . . . . . . . . . . . . . . 318
Adjustments Lumbar, Front Seats . . . . . . . . . . . . 30
Air Cleaner/Filter, Engine . . . . . . . 231
Air Conditioning . . . . . . . . . . . 134, 136
Air Filter, Passenger Compartment . . . . . . . . . . . . . . . . . 140
Air Vents . . . . . . . . . . . . . . . . . . . . . . . 139
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . 55
How Does an Airbag
Restrain? . . . . . . . . . . . . . . . . . . . . . 48
Passenger Sensing System . . . . 50
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 48
What Will You See after an Airbag Inflates? . . . . . . . . . . . . . . . 48
When Should an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 47 Airbag System (cont'd)
Where Are the Airbags? . . . . . . . . 45
Airbags Adding Equipment to theVehicle . . . . . . . . . . . . . . . . . . . . . . . . 54
Passenger Status Indicator . . . 105
Readiness Light . . . . . . . . . . . . . . 105
Servicing Airbag-Equipped Vehicles . . . . . . . . . . . . . . . . . . . . . . . 54
System Check . . . . . . . . . . . . . . . . . . 44
Alarm Vehicle Security . . . . . . . . . . . . . . . . 19
All-Season Tires . . . . . . . . . . . . . . . . 258
All-Terrain Tires . . . . . . . . . . . . . . . . . 259
Antilock Brake System (ABS) . . . 181 Warning Light . . . . . . . . . . . . . . . . . 109
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . 299
Interior . . . . . . . . . . . . . . . . . . . . . . . . 304
Assistance Program, Roadside . . . . . . . . . . . . . . . . . . . . . . 333
Assistance Systems for Parking and Backing . . . . . . . . . . 189
Automatic Climate Control System . . . . . . . 136
Door Locks . . . . . . . . . . . . . . . . . . . . . 17
Headlamp System . . . . . . . . . . . . 127
Transmission . . . . . . . . . . . . . . . . . 169

GMC Canyon/Canyon Denali Owner Manual (GMNA-Localizing-U.S./Canada-
13566643) - 2020 - CRC - 10/4/19
Index 353
Automatic (cont'd)Transmission Fluid . . . . . . . . . . . 231
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 172
Shift Lock Control FunctionCheck . . . . . . . . . . . . . . . . . . . . . . . 242
Axle, Front . . . . . . . . . . . . . . . . . . . . . . 242
Axle, Rear . . . . . . . . . . . . . . . . . . . . . . 242
B
Battery Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . 132
Load Management . . . . . . . . . . . . 131
Power Protection . . . . . . . . . . . . . 132
Battery - North America . . . . 240, 291
Blade Replacement, Wiper . . . . . 243
Blind Spot Mirrors . . . . . . . . . . . . . . . 22
Brake System Warning Light . . . . . . . . 109
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 239 Antilock . . . . . . . . . . . . . . . . . . . . . . . 181
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 182
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Parking . . . . . . . . . . . . . . . . . . . . . . . 181
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 144
Break-In, New Vehicle . . . . . . . . . . 160 Bulb Replacement
Center High-Mounted
Stoplamp (CHMSL) and
Cargo Lamp . . . . . . . . . . . . . . . . . 248
Halogen Bulbs . . . . . . . . . . . . . . . . 246
Headlamp Aiming . . . . . . . . . . . . . 246
Headlamps . . . . . . . . . . . . . . . . . . . 246
Headlamps, Front Turn Signal, Sidemarker, and
Parking Lamps . . . . . . . . . . . . . . 246
Taillamps, Turn Signal,
Stoplamps, and Back-up
Lamps . . . . . . . . . . . . . . . . . . . . . . 247
Buying New Tires . . . . . . . . . . . . . . . 273
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . 93
California Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 221
California
Proposition
65 Warning . . . . . . . . . .220, 240, 291, Back Cover
Canadian Vehicle Owners . . . . . . . . 2
Capacities and Specifications . . . . . . . . . . . . . . . . . 326 Carbon Monoxide
Engine Exhaust . . . . . . . . . . . . . . . 168
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . 18
Winter Driving . . . . . . . . . . . . . . . . 152
Caution, Danger, and Warning . . . . 3
Center Console Storage . . . . . . . . . 89
Center High-Mounted Stoplamp (CHMSL) and
Cargo Lamp . . . . . . . . . . . . . . . . . . . 248
Chains, Tire . . . . . . . . . . . . . . . . . . . . 277
Charging Wireless . . . . . . . . . . . . . . . . . . . . . . . . 94
Charging System Light . . . . . . . . . 106
Check Engine Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . 107
Ignition Transmission Lock . . . 243
Child Restraints Infants and Young Children . . . . . 58
Lower Anchors and Tethersfor Children . . . . . . . . . . . . . . . . . . . 63
Older Children . . . . . . . . . . . . . . . . . . 56
Securing . . . . . . . . . . . . . . . . . . . . 79, 84
Systems . . . . . . . . . . . . . . . . . . . . . . . . 60
Circuit Breakers . . . . . . . . . . . . . . . . 249
Cleaning
Exterior Care . . . . . . . . . . . . . . . . . 299
Interior Care . . . . . . . . . . . . . . . . . . 304

GMC Canyon/Canyon Denali Owner Manual (GMNA-Localizing-U.S./Canada-
13566643) - 2020 - CRC - 10/4/19
356 Index
Fuel (cont'd)Recommended . . . . . . . . . . . . . . . 196
Top Tier . . . . . . . . . . . . . . . . . . . . . . 195
Full-Size Spare Tire . . . . . . . . . . . . 290
Fuses Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 250
Fuses and Circuit Breakers . . . 249
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 254
G
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 244
GaugesEngine CoolantTemperature . . . . . . . . . . . . . . . . 104
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Odometer . . . . . . . . . . . . . . . . . . . . . 102
Speedometer . . . . . . . . . . . . . . . . . 102
Tachometer . . . . . . . . . . . . . . . . . . . 102
Trip Odometer . . . . . . . . . . . . . . . . 102
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . . . 97
General Information Service and Maintenance . . . . . 309
Towing . . . . . . . . . . . . . . . . . . . . . . . . 199
Vehicle Care . . . . . . . . . . . . . . . . . . 220
Glove Box . . . . . . . . . . . . . . . . . . . . . . . 88 GM Mobility Reimbursement
Program . . . . . . . . . . . . . . . . . . . . . . . 332
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 246
Hazard Warning Flashers . . . . . . . 128
Head Restraints . . . . . . . . . . . . . . . . . 28
Headlamps
Aiming . . . . . . . . . . . . . . . . . . . . . . . . 246
Automatic . . . . . . . . . . . . . . . . . . . . . 127
Bulb Replacement . . . . . . . . . . . . 246
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . 127
Flash-to-Pass . . . . . . . . . . . . . . . . . 126
Headlamps, Front Turn Signal, Sidemarker, and
Parking Lamps . . . . . . . . . . . . . . 246
High-Beam On Light . . . . . . . . . . .113
High/Low Beam Changer . . . . . 126
Lamps On Reminder . . . . . . . . . .114
Heated
Steering Wheel . . . . . . . . . . . . . . . . . 91
Heated and Ventilated Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Heated Mirrors . . . . . . . . . . . . . . . . . . . 22
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . 164
Heating . . . . . . . . . . . . . . . . . . . . 134, 136 High-Beam On Light . . . . . . . . . . . . 113
Hill and Mountain Roads . . . . . . . . 151
Hill Descent Control (HDC) . . . . . 184
Hill Descent Control Light . . . . . . . 110
Hill Start Assist (HSA) . . . . . . . . . . 182
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
How to Wear Seat Belts
Properly . . . . . . . . . . . . . . . . . . . . . . . . 37
HVAC . . . . . . . . . . . . . . . . . . . . . . 134, 136
I
Ignition Positions . . . . . . . . . . . . . . . 161
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . . . . . 243
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 20
Indicator Vehicle Ahead . . . . . . . . . . . . . . . . .110
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . 58
Information
Publication Ordering . . . . . . . . . . 338
Infotainment . . . . . . . . . . . . . . . . . . . . 133
Infotainment System . . . . . . . . . . . . 342
Instrument Cluster . . . . . . . . . . 98, 100
Instrument Panel Overview . . . . . . . 5
Interior Rearview Mirrors . . . . . . . . . 23
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
