Turn and Lane Change Signals
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow
you to signal a turn or a lane change.
To signal a turn, move the lever all the way up
or down. When the turn
is finished, the lever
will return automatically.
I 1 I An arrow on the instrument
panel will flash
in the
direction of the turn or
lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.
The signal indicator will flash even if a turn signal bulb
is burned out. Check the front and rear turn signal lamps
regularly
to make sure they are working. If
a bulb is burned out, replace it to help avoid an
accident. If the
arrows don’t go on at all when you
signal a turn, check the fuse (see “Fuses and Circuit
Breakers”
in the Index) and for burned-out bulbs.
Turn Signal On Chime
If your turn signal is left on for more than 3/4 of a mile
(1.2 km), a chime will sound at each flash of the turn
signal.
To turn off the chime, move the turn signal lever
to the off position.
Headlamp High/Low Beam Changer
To change the headlamps from low beam to high or high
to low, pull the multifunction lever all the way toward
you. Then release
it.
When the high beams are
on, this indicator light on
the instrument panel will
also be on.
2-31
ProCarManuals.com

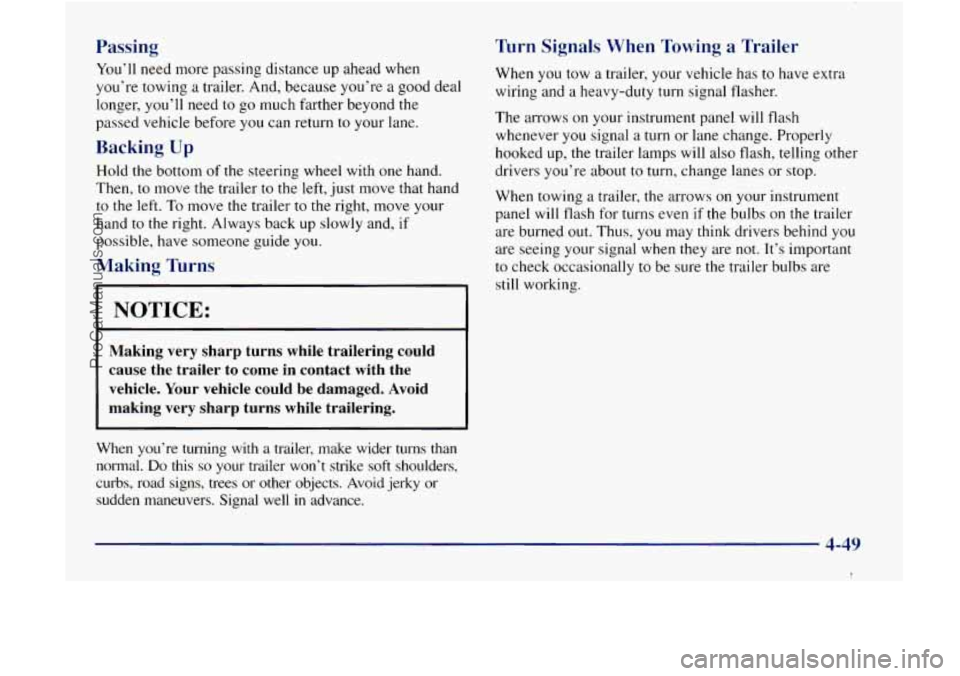

Passing
You’ll need more passing distance up ahead when
you’re towing a trailer. And, because you’re
a good deal
longer,
you’ll need to go much farther beyond the
passed vehicle before you can return to your lane.
Backing Up
Hold the bottom of the steering wheel with one hand.
Then,
to move the trailer to the left, just move that hand
to the left. To move the trailer to the right, move your
hand to the right. Always back up slowly and,
if
possible, have someone guide you.
Making Turns
NOTICE:
~~
Making very sharp turns while trailering could
cause the trailer to come in contact with the
vehicle. Your vehicle could be damaged. Avoid
making very sharp turns while trailering.
When you’re turning with a trailer, make wider turns than
normal.
Do this so your trailer won’t strike soft shoulders,
curbs, road signs, trees or other objects.
Avoid jerky or
sudden maneuvers. Signal well
in advance.
Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle has to have extra
wiring and a heavy-duty turn signal flasher.
The arrows on your instrument panel will flash
whenever you signal a
turn or lane change. Properly
hooked up,
the trailer lamps will also flash, telling other
drivers you’re about to
turn, change lanes or stop.
When towing a trailer, the arrows
on your instrument
panel will flash for turns even
if the bulbs on the trailer
are burned out. Thus, you may think drivers behind you
are seeing your signal when
they are not. It’s important
to check occasionally
to be sure the trailer bulbs are
still working.
4-49
I
ProCarManuals.com

Section 6 Service and Appearance Care
Here you will find information about the care of your vehicle. This section begins with service and fuel information,
and then
it shows how to check important fluid and lubricant levels. There is also technical information about your
vehicle, and a part devoted
to its appearance care.
6-2
6-3
6-5
6-5
6-7
6-8
6-
10
6-14
6- 15
6-19
6-20
6-2
1
6- 24
6-25
6-25
6-26
6-
2’7
Service
Fuel
Fuels in Foreign Countries
Filling Your Tank
Filling a Portable
Fuel Container
Checking Things Under the Hood
Engine Oil
Air Cleaner
Automatic Transmission Fluid
Rear Axle
Four- Wheel Drive
Engine Coolant
Radiator Pressure Cap
Thermostat
Power Steering Fluid
Windshield Washer Fluid
Brakes Battery
Bulb Replacement
Windshield Wiper Blade Replacement
Tires
Appearance Care
Cleaning the Inside
of Your Vehicle
Care of Safety Belts
Cleaning the Outside of Your Vehicle
Appearance Care Materials Chart
Vehicle Identification Number (VIN)
Service Parts Identification Label
Electrical System
Replacement Bulbs
Capacities and Specifications
Air Conditioning Refrigerants
6-30
6-3
1
6-34
6-36
6-45
6-46
6-48
6-50
6-53
6-54
6-54
6-54
6- 60
6- 60
6-62
6-1
ProCarManuals.com

If you’re not going to drive your vehicle for 25 days
or more, remove the black, negative
(-) cable from
the battery. This will help keep your battery from
running down.
A CAUTION:
Bulb Replacement
Before you replace any bulbs, be sure that all the lamps
are off and the engine isn’t running. See “Replacement
Bulbs”
in the Index.
For any bulb changing procedure not listed
in this
section, contact your GM dealer’s service department.
High Intensity Discharge (HID) Lighting
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if you
aren’t careful. See “Jump Starting” in the Index
for tips on working around
a battery without
getting hurt.
Contact your dealer to learn how to prepare your vehicle
for longer storage periods.
Also, for your audio system, see “Theft-Deterrent
Feature”
in the Index.
I A CAUTION: I
The low beam High Intensity Discharge lighting
system operates at a very high voltage.
If you try
to service
any of the system components, you
could be injured. Have your dealer or
a qualified
technician service them.
6-31
ProCarManuals.com

5. Turn the bulb assembly to the left to remove it.
6. Put the new bulb assembly into the headlamp
assembly and turn it to the right until it is tight.
7. Plug in the electrical connector.
8. Put the headlamp lens assembly back into the
vehicle. Install the two retaining clips.
Front Turn Signal Lamp Assembly
1. Remove the headlamp assembly as shown under
“Composite Headlamp System” earlier
in this section.
2. Twist the bulb socket to remove it from the
3. Pull the bulb straight out to remove it from the socket.
4. Push the new bulb into the socket until it snaps
5. Put the bulb socket into the lamp assembly and twist
headlamp
assembly.
into place.
it to the right until it is tight.
6. Put the headlamp assembly back into the vehicle.
Install the two retaining clips.
6-33
ProCarManuals.com

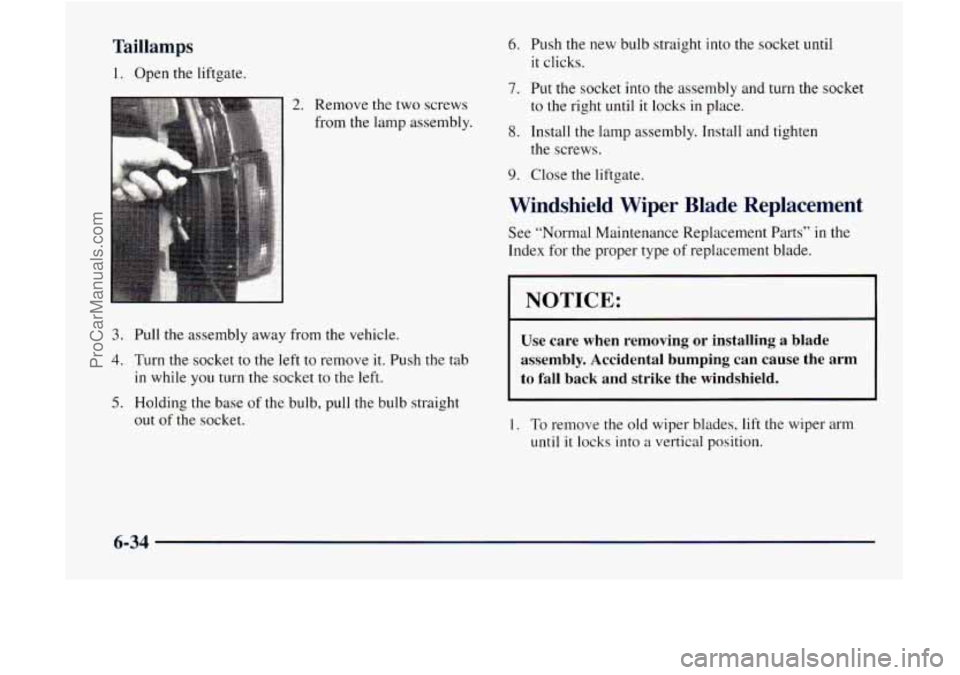

Taillamps
1. Open the liftgate.
2. Remove the two screws
from the lamp assembly.
6.
1
8.
9.
Push the new bulb straight into the socket until
it clicks.
Put the socket into the assembly and turn the socket
to the right until
it locks in place.
Install the lamp assembly. Install and tighten
the screws.
Close the liftgate.
Windshield Wiper Blad eplacement
See “Normal Maintenance Replacement Parts” in the
Index
for the proper type of replacement blade.
I NOTICE: I
3. Pull the assembly away from the vehicle.
4. Turn the socket to the left to remove it. Push the tab
in while you turn the socket to the left.
Use care when removing or installing a blade
assembly. Accidental bumping can cause the arm
to fall back and strike the windshield.
5. Holding the base of the bulb, pull the bulb straight
out of the socket.
I. To remove the old wiper blades, lift the wiper arm
until it locks into a vertical position.
6-34
ProCarManuals.com

Replacement Bulbs
Lamps
Halogen Headlamps, Composite High Beam
Tail and Stoplamps
Front Sidemarker Lamps
Front Turn Signal Lamps
Turn Signal Lamps
Quantity Number
2 9005 HB3
4 3057
2 194 NA
2 3 157
2 3157 NA
Capacities and Specifications
Type .................................... V6
Firing Order ...................... 1-6-5-4-3-2
Horsepower
................... 190 at 4,400 rpm
Thermostat Specification ........... 195°F (91 “C)
Spark
Plug Gap .......... 0.045 inches (0.114 cm)
Engine Description
............ “VORTEC”
4300
VINCode
.................................W
Wheels and Tires
Wheel Nut Torque ........... 100 lb-ft (140 N-m)
Tire Pressure ...... See the CertificatiodTire label.
See “Loading Your Vehicle” in
the Index.
6-60
ProCarManuals.com

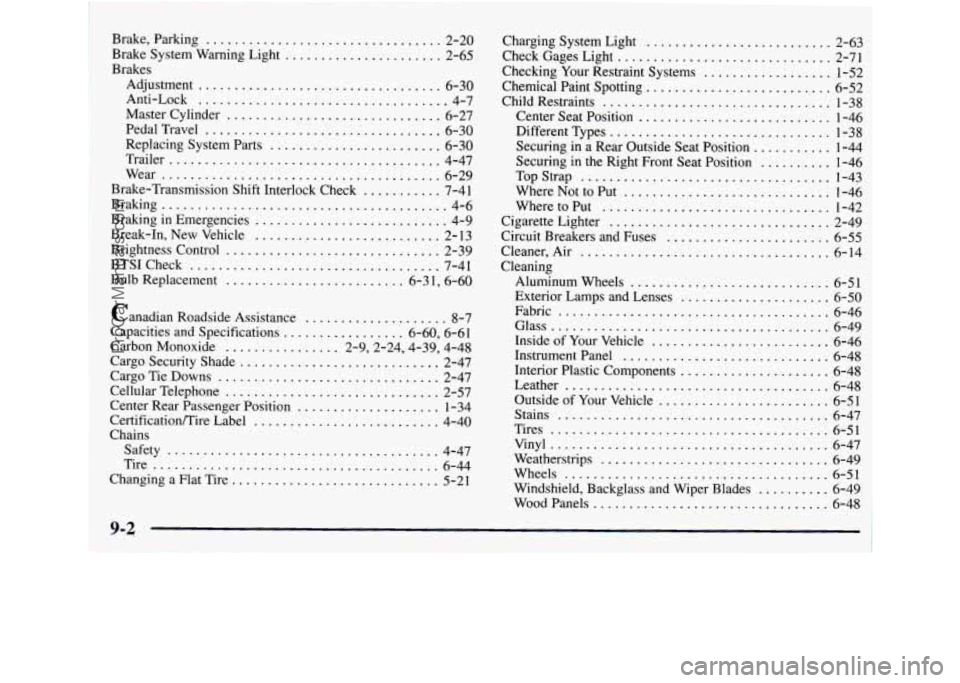

Brake. -Parking ................................. 2-20
Brake System Warning Light
...................... 2-65
Brakes Adjustment
.................................. 6-30
Anti-Lock
................................... 4-7
PedalTravel
................................. 6-30
Master
Cylinder
.............................. 6-27
Replacing System
Parts ........................ 6-30
Trailer
...................................... 4-47
Brake-Transmission Shift Interlock Check
........... 7-41
Braking
........................................ 4-6
Braking in Emergencies
........................... 4-9
Break-In, New Vehicle
.......................... 2- 13
Brightness Control
.............................. 2-39
Bulb Replacement ......................... 6-3 1, 6-60
Wear
....................................... 6-29
BTSICheck
................................... 7-41
Canadian Roadside Assistance
.................... 8-7
Capacities and Specifications
................. 6.60. 6.61
Carbon Monoxide
................ 2.9.2.24.4.39. 4.48
Cargo Tie Downs
............................... 2-47
Cellular Telephone
.............................. 2-57
Center Rear Passenger Position
.................... 1-34
Certificationnire Label
.......................... 4-40
Cargo
Security Shade
............................ 2-47
Chains Safety
...................................... 4-47
Tire
........................................ 6-44
Changing a Flat Tire
............................. 5-21
Charging System Light .......................... 2-63
Check Gages Light
.............................. 2-71
Checking Your Restraint Systems
.................. 1-52
Chemical Paint Spotting .......................... 6-52
Child Restraints
................................ 1-38
Center Seat Position
........................... 1-46
Different Types
............................... 1-38
Securing in a Rear Outside Seat Position ........... 1-44
Securing in the Right Front Seat Position
.......... 1-46
Where Not to
Put ............................. 1-46
Cigarette Lighter
............................... 2-49
Circuit Breakers and Fuses
....................... 6-55
Aluminum Wheels
............................ 6-51
Exterior Lamps and Lenses
..................... 6-50
Glass
....................................... 6-49
Inside
of Your Vehicle ......................... 6-46
Instrument Panel
............................. 6-48
Interior Plastic Components
..................... 6-48
Outside of Your Vehicle
........................ 6-51
Vinyl
....................................... 6-47
Weatherstrips
................................ 6-49
Windshield. Backglass and Wiper Blades
.......... 6-49
WoodPanels
................................. 6-48
TopStrap
................................... 1-43
WheretoPut
.......................,........ l-42
................................... Cleaner, Air 6-14
Cleaning
Fabric
...................................... 6-46
Leather
..................................... 6-48
Stains
...................................... 6-47
Tires
....................................... 6-51
Wheels
..................................... 6-51
9-2
.. ~ , ... . ~ .. . -.A-LL---.~~ -. ... ..,.. .... ..... -. ...... -- .
ProCarManuals.com

Engine (Continued) .............................. 6-9
Exhaust
..................................... 2-24
FanNoise
................................... 5-20
Identification
................................ 6-54
OilLevelCheck
.............................. 7-39
Overheating
................................. 5-11
Specifications
................................ 6-60
Engine Compartment Fuse Block
.................. 6-58
Engineoil
.................................... 6-10
Adding
..................................... 6-11
Additives
................................... 6-13
Checking
................................... 6-11
Kindtouse
................................. 6-12
Pressure Gage
................................ 2-69
Used
....................................... 6-14
When to Change
.............................. 6- I3
Exhaust, Engine
................................ 2-24
Exit Lighting
.................................. 2-39
Express-Down Window
.......................... 2-29
Fabric Cleaning
............................... 6-46
Filling
a Portable Fuel Container .................... 6-7
FillingYourTank
................................ 6-5
Fi 1 ter
Air
........................................ 6-14
Remote Oil .................................. 6- 14
Finish Care .................................... 6-5 1
Finish Damage ................................. 6-52
Running While
Parked
......................... 2-25
Starting
..................................... 2-15
Engine Coolant
................................. 6-2 1
FirstGear ..................................... 2-20
Flashers. Hazard Warning
......................... 5-2
Flat Tire. Changing
............................. 5-21
Fluids and Lubricants
............................ 7-4.5
FogLampSwitch ............................... 2-38
Foreign Countries. Fuel ........................... 6-5
Four-wheel Drive
......................... 2-26. 6-20
French Language Manual 11
FrontAxle .................................... 6-21
Front Reading Lamps
....................... 2.39. 2.43
Front Storage Area .............................. 2-45
FrontTowing
................................... 5-9
Filling a Portable Container
...................... 6-7
Filling Your Tank
.............................. 6-5
Foreign Countries .............................. 6-5
Engine Compartment
.......................... 6-58
Instrument Panel
............................. 6-56
Fuses and Circuit Breakers
....................... 6-55
Gages
.. ...........................
Front Turn Signal Lamp Bulb Replacement .......... 6-33
Fuel
.......................................... 6-3
Cage
....................................... 2-72
Fuse Block
Engine Coolant Temperature
.................... 2-66
Fuel
....................................... 2-72
Engine Oil Pressure ........................... 2-69
GasCap
....................................... 6-5
Gate A-jar Light ................................ 2-71
GAWR
....................................... 4-40
Gear
Positions ................................. 2-18
9-4
ProCarManuals.com

GloveBox .................................... 2-42
Gross Axle Weight Rating ........................ 4-40
Gross Vehicle Weight Rating ...................... 4-40
Guide en Franpis
11 .. .................................
GVWR ....................................... 4-40
Halogen Bulbs
................................ 6-32
Hazard Warning Flashers
.......................... 5-2
Head Restraints
................................. 1-5
Headlamps .................................... 2-36
Bulb Replacement
............................ 6-32
HighLow Beam Changer
...................... 2-3 1
On Reminder ................................ 2-37
Hearing Impaired. Customer Assistance
.............. 8-4
Heated Front Seats
............................... 1-3
Heated Outside Rearview Mirror ................... 2-42
High Intensity Discharge Lighting
.................. 6-3 1
Highway Hypnosis .............................. 4-34
Hill and Mountain Roads
......................... 4-34
Hitches. Trailer
................................. 4-46
Hood
.......................................... 6-8
Horn ......................................... 2-29
Hydroplaning
.................................. 4-30
Heating
........................................ 3-5
Ignition Positions
.................................... 2-14
Transmission Lock Check
...................... 7-42
Ignition Transmission Lock Check
................. 7-42
Illuminated Entry
............................... 2-39
Inflation. Tire
............................. 6-37. 7-39 Inflator
. Accessory .............................. 2-50
Inspections
Brakesystem
................................ 7-44
Engine Cooling Systetn
........................ 7-43
Exhaust Systems
............................. 7-43
Front Drive Axle Boot Seal
..................... 7-43
Steering
.................................... 7-43
Suspension
.................................. 7-43
Throttle System
.............................. 7-44
Transfer
Case ................................ 7-44
Instrument Panel
............................... 2-58
Cleaning
.................................... 6-48
Cluster
..................................... 2-60
FuseBlock
.................................. 6-56
Interior Lamps ................................. 2-39
Jacking Equipment
............................. 5-24
Jump Starting
................................... 5-3
Key
in the Ignition ............................. 2-11
Key Lock Cylinders Service
...................... 7-40
Keyless Entry System
............................ 2-6
Keys
.......................................... 2-2
Labels
Certification/Tire
............................. 4-40
Fuse
.................................. 6.56. 6.58
Safety Belt
.................................. 1-53
Service Parts Identification ..................... 6-54
Vehicle Identification Number
................... 6-54
ProCarManuals.com
