GMC ENVOY 2007 Get To Know Guide
Manufacturer: GMC, Model Year: 2007, Model line: ENVOY, Model: GMC ENVOY 2007Pages: 20, PDF Size: 0.38 MB
Page 11 of 20
11
ENTERTAINMENT
Audio SystemsLoad one CD into the Six Disc
CD Player
1. With the ignition on, press andrelease the LOAD side of the LOAD
CD button.
2. Wait for the indicator light at the right side of the slot to turn green.
3. Insert the disc partway into the slot, label side up; the player will pull the
disc in.
Multiple Disc CD Player
(if equipped)
• Press the H or HR button until the correct hour appears on the display.
• Press and hold the M or MIN button until the correct minute appears on
the display.
The time may be set with the ignition on
or off.
Set the time with an FM station’s
Radio Data System (RDS) setting
(if equipped)
• Press and hold both HR and MN for two seconds until UPDATED and the
clock symbol appear on the display.
• If the time is not available from the station, NO UPDAT appears in the
display.
Program radio station presets
1. Turn the radio on.
2. Press the BAND button to select theband (AM/FM1/FM2/XM1/XM2).
3. Use the seek or tune knob to tune in the desired station.
4. Press AUTO EQ to select the equalization that best suits the type
of station selected.
5. Press and hold one of the six numbered pushbuttons until a beep
sounds; release the button.
6. Repeat these steps for each station preset, using a different numbered
button for each station.
Display a station’ s INFO message
when INFO appears on the display
• Press INFO to see the message.
Once the complete message has been displayed, INFO disappears
from the display.
Tune to an RDS broadcast of a
selected program type
1. Press the TYPE button to select the
Program Type you want to listen to.
2. Press the or button.
Access one of the two available XM
Satellite Radio bands (if equipped)
• Press the BAND button until XM1 or XM2 appears on the display.
MP3 Radio (if equipped)
A CD R or CD RW containing MP3
audio tracks will play automatically when
inserted into the CD/MP3 player.
See Section 3 of your Owner Manual.
Page 12 of 20
Getting to Know YourEnvoy12
CONVENIENCE
Headlamp Controls
The exterior lamps knob is located on
the instrument panel, to the left of thesteering wheel.
Turn off the Daytime Running Lamps
(DRL) and automatic headlamp
system
•Move the knob to the Off ( )
position.
The automatic headlamp system auto
matically reactivates at the next key on.
Activate the Daytime Running Lamps
(DRL) and automatic headlamp system
• Move the knob to the Auto ( )
position.
•The automatic headlamp system will
turn on all exterior lamps and theinstrument panel/radio lights whenthey are needed during the day orwhen the vehicle is shifted out ofPark at night.
Load multiple CDs
1. With the ignition on, press and hold
the LOAD button for two seconds.The unit beeps and the light to theright of the slot begins to flash.
2. When the light stops flashing and
turns green, insert a disc partway,label side up.
3. The indicator light will begin blinking
and then turn green. Load anotherdisc at this time.
4. When loading more than one but
fewer than six CDs, press the LOADbutton again to signal that loading iscomplete.
When more than one disc is loaded,
a number for each disc is displayed.
5. To play a specific CD, press the CD
AUX button and then the number of
the CD you want to hear.
Asmall bar appears under the CD
number that is playing, and the tracknumber appears.
See Section 3 of your Owner Manual.
Note:CDs with any affixed labels may
jam in the CD player. Label a CD using
a permanent marker. If more than oneCD is inserted into the slot at one time,or if scratched or damaged CDs are
played, the CD player could be dam
aged. When using the CD player, useonly CDs in good condition withoutlabels; load one CD at a time; and keepthe CD player and the loading slot freeof foreign materials, liquids or debris.
Page 13 of 20
13
Headlamp Washers
(if equipped)
Spray the headlamps with washer
fluid
• Press the headlamp washer button
(see “A” above) located on the
instrument panel to the left of thesteering wheel.
See Section 3 of your Owner Manual.
A
Manually activate the parking lamps,
side marker lamps, taillamps, instru ment panel/radio lights and licenseplate lamps
• Move the knob to the parking lamp
( ) position.
Manually activate the headlamps, all
exterior tail/marker lamps and theinstrument panel/radio lights
• Move the knob to the On ( )
position.
Activate the fog lamps
• Press the button (see “A” below)
located on the instrument panel to
the right of the exterior lamps switchonce.
• An indicator lamp will illuminate.
•To turn them off, press the button
again.
See Section 3 of your Owner Manual.
A
Page 14 of 20
Getting to Know YourEnvoy14
Heated, Power Outside Mirrors
(if equipped)
Activate heat feature on the power
outside mirrors
• Press the rear window defogger
button on the climate control panel.
See Section 2 of your Owner Manual.
Outside Mirror with Curb View
Assist (if equipped)
This feature automatically adjusts the
passenger side mirror downward to apreset tilt position when the vehicle is in
Reverse gear. The mirror returns to itsnormal position when the vehicle ismoved out of Reverse. See your OwnerManual to activate this system for thefirst time.
See Sections 2 and 3 of your Owner Manual.
Interior Lamps
Your vehicle is equipped with illuminated
entry and exit lighting as well as domelamps.
Activate illuminated entry feature
• Open a door or press the Unlock
button on your Remote Keyless Entry
transmitter.
• With all doors closed, the dome
lamps stay illuminated briefly and turn
off automatically.
Disable entry and exit lighting
•Push in the Dome Lamp Override
button located below the exteriorlamps switch (see “A” above). This
will override the illuminated entry fea ture unless the Remote Keyless Entrytransmitter is used to unlock the
vehicle. The Dome Lamp Overridefeature is useful when the vehicledoors need to be open for a longperiod of time.
See Section 3 of your Owner Manual.
A
Page 15 of 20
15
Luggage Carrier (if equipped)
Slide the crossrails to desired
position
1. Pull up the lever on each side of the
crossrail. This will release the cross rail and allow you to slide it.
2. When the crossrail is where you want
it, press down on the levers to lock itin place.
Reduce wind noise when the roof
luggage carrier is not in use
• Position the rear crossrail at the
rearmost position and the front crossrail above the rearmost portionof the rear door opening (above the C pillar).
See Section 2 of your Owner Manual.
Note:Never carry anything on the vehi
cle roof that is longer or wider than theluggage carrier itself. (Examples: ply
wood, paneling, a mattress.) The load
could be violently torn off, causing you
or others to have a collision.
Loading cargo that weighs more than
220 pounds (100 kg) on the luggagecarrier may damage your vehicle.
Universal Home Remote
(if equipped)
The Universal Home Remote is a com
bined universal transmitter and receiverthat can activate up to three devices,such as garage door openers, entrydoor locks, gates and security systems.
It’s recommended that you read the
instructions in your Owner Manual com
pletely before attempting to program any
of the three channels on the Universal
Home Remote. The engine should beturned off when programming the
remote.
See Section 2 of your Owner Manual.
Note:Do not use the Universal Home
Remote with any garage door openerthat does not have the “stop and
reverse” feature or any opener manu
factured before April 1, 1982.
Sun Visors
Block glare
• To help block the sun’s glare, rotate
the sun visor down.
• Block the driver or passenger front
side window glare by turning the sunvisor to the side window.
• Pull out the sun visor extender (if
equipped) for additional window coverage.
See Section 2 of your Owner Manual.
Page 16 of 20
Getting to Know YourEnvoy16
PERFORMANCE & MAINTENANCE
Malfunction Indicator Lamp
(Service Engine Soon Lamp)
This instrument panel cluster lamp
illuminates under a variety of conditionswhen the On Board Diagnostics II (OBDII) system detects a malfunction in the
vehicle’s emission controls.
If the Malfunction Indicator Lamp
is lit steadily, check the gas cap toensure it is present and securely fastened
• Turn the cap clockwise until a ratch
eting sound is heard, signaling that itis secure.
•If this is the cause of the condition, a
few driving trips with the cap installedproperly should turn the light off.
See Section 3 of your Owner Manual.
Electronically Controlled
Air Suspension (if equipped)
Occasional whirring and/or hissing
sound under the rear of the vehicle
• This sound indicates that the sys
tem’s air compressor is operating to
provide a level ride height, and is normal.
See Section 4 of your Owner Manual.
Air Inflator System (if equipped)
Locate the air
inflator unit and kit
The inflator unit is in
the rear compart
ment on the pas senger side of thevehicle, behind an
access cover.
An inflator kit, with a
22 foot hose and three nozzle adapters,is located in the glove box.
Use the air inflator
1. Open the access cover.
2. Attach the appropriate nozzle adapter
to the end of the hose (if required).
3. Attach that end of the hose to the
object you are inflating. Attach theother end of the hose to the inflatoroutlet.
4. Press and release the on/off switch
to turn the air inflator on. An indicator
light verifies that the inflator is
running.
5. When inflation is complete, press and
release the on/off switch again.
6.Remove the hose from the outlet
(load leveling will not operate when
the hose is attached to the outlet).
See Section 5 of your Owner Manual.
Page 17 of 20
17
StabiliTrak®– Stability Control
System
StabiliTrak combines antilock brake,
traction control, and stability control sys
tems that help the driver maintain direc
tional control of the vehicle in most driv
ing conditions. The system is designedto help keep the vehicle on the driver’s
intended path by using throttle andbrake intervention.
When activated, the system will apply
braking to individual wheels and mayreduce engine power as necessary tohelp you maintain directional control of
the vehicle. You may also hear a noise
or vibration, or feel a reduction in accel
eration, while the system is active. This
is normal.
StabiliTrak is automatically turned on
when the vehicle is started and does not require any driver input. It is recom
mended to leave the system on at all
times for normal driving. It may be necessary to turn off the traction control
portion of the system if the vehicle is
stuck in sand, mud or snow.
To turn off the traction control portion
of StabiliTrak, press and release the
(StabiliTrak) button located on the
transmission shift lever. TRACTION
CONTROLOFF will be displayed on the
DIC. Press the button again to turn thesystem back on.
To turn off StabiliTrak, which includes
traction control and stability control functions, press and hold the
(StabiliTrak) button for five seconds.STABILITRAK OFF will be displayed on
the DIC. Press the button again to turn
the system back on.
See Section 4 of your Owner Manual.
Four Wheel Drive (if equipped)
Envoy’s four
wheel drivesystem rotarycontrols arelocated on theinstrument panel.
Shift into 4 (4 high) or AUTO
• Turn the knob to 4 or AUTO.
This can be done at any speed
except when shifting from 4
(4 low).
Shift into 2 (2 high)
•Turn the knob to 2 . This can be
done at any speed except whenshifting from 4
.
Shift into or out of 4
• With the ignition in Run and the
vehicle stopped or moving less than
3 mph (4.8 km/h), shift the transmis sion into Neutral.
• Turn the knob to 4
,2 , 4 or
AUTO, preferably with the vehicle
moving 1 to 2 mph (1.6 to 3.2 km/h).
• Wait for the indicator lamp to stop
flashing and remain illuminated; then
shift your transmission into gear.
Shift into Neutral (N)
• Place the transfer case in Neutral
only when towing your vehicle. See Section 4 of your Owner Manual for towing information.
See Sections 2, 4 and 5 of your Owner Manual.
Page 18 of 20
Getting to Know YourEnvoy18
Tire Pressure Monitor
(if equipped)
The Tire Pressure Monitor alerts you
when a significant reduction in pressure
occurs in one or more of your vehicle’s
tires by illuminating the (low tire pres
sure) warning light on the instrument
panel. The low tire pressure warning
light will remain on until you correct thetire pressure.
You may also have a CHECK TIRE
PRESSURE message appear on theDIC (if equipped).
Correcting the Tire Pressure
When the low tire pressure warning light
illuminates, you must fill the tire to the
proper tire inflation pressure. The Tireand Loading Information label shows thecorrect inflation pressure for the tireswhen they’re cold. “Cold” means yourvehicle has been sitting for at least threehours or driven no more than one mile.
You can temporarily remove the DIC
message by acknowledging it with yourDIC controls. However, at the next vehi
cle startup, the DIC message will reap
pear if the tire pressure has not been
corrected.
You may notice during cooler conditions
that the low tire pressure warning lightwill appear when the vehicle is first start
ed and then turn off as you start to drive
the vehicle. This could be an early indi cator that your tire pressures are gettinglow and need to be inflated to the properpressure.
See Section 5 of your Owner Manual.
Note: The Tire Pressure Monitor can
alert you about low tire pressure, but itdoesn’t replace normal monthly tiremaintenance.
Page 19 of 20
19

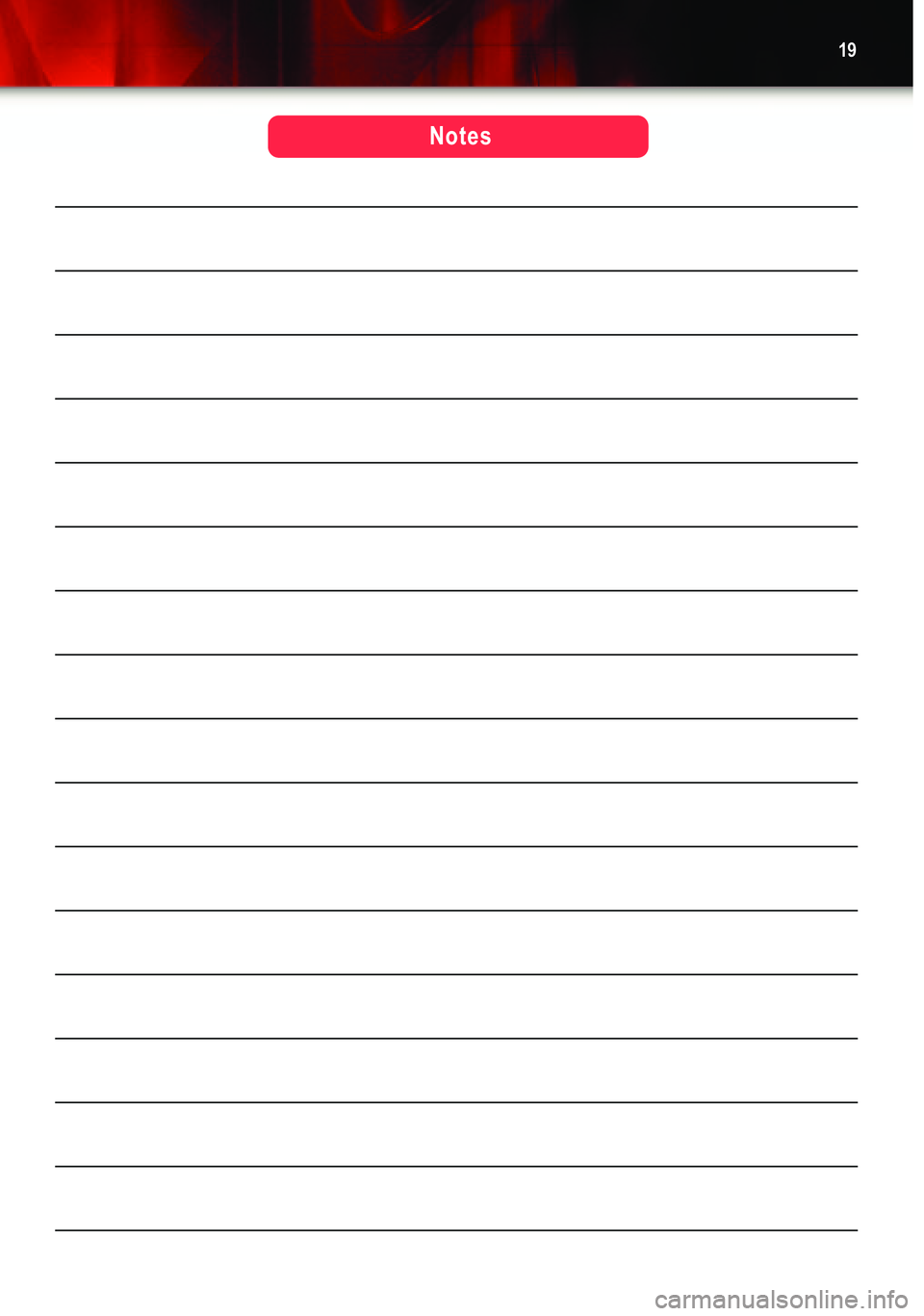

Notes
Page 20 of 20
Getting to Know YourEnvoy20
Roadside Assistance
My GMLink
1 800 GMC 8782 (1 800 462 8782)
TTY Users: 1 888 889 2438
As the proud owner of a new GMC vehicle,
you are automatically enrolled in the GMC
Roadside Assistance program. This value
added service is intended to provide you withpeace of mind as you drive in the city or
travel the open road.
GMC’s Roadside Assistance toll free number
is staffed by a team of technically trained
advisors, who are available 24 hours a day,
365 days a year. The advisors can provide
minor repair information or make arrange
ments to tow your vehicle to the nearest
GMC dealer.
GMC will provide the following services for
3 years/36,000 miles (60,000 km), at noexpense to you:
• Fuel delivery
•Lockout service (identification required)
• Tow to nearest dealership for warranty
service
• Flat tire assistance
• Jump startsIn many instances, mechanical failures are
covered under GMC’s comprehensive war ranty. However, when other services are
utilized, our advisors will explain any
payment obligations you might incur.
The GMC Owner Center at My GMLink is a
complimentary service for GMC owners, a
one stop resource to enhance your GMC
ownership experience. Exclusive member
benefits include online service reminders,
vehicle maintenance tips, online owner man ual, special privileges and more. Sign up
today at www.mygmlink.com. For prompt and efficient assistance when
calling, please provide the following informa tion to the advisor:
• Location of the vehicle
• Telephone number and your location
• Vehicle model, year and color
• Vehicle mileage
• Vehicle Identification Number (VIN)
• Vehicle license plate number
GMC reserves the right to limit services
or reimbursement to an owner or driver
when, in GMC’s judgment, the claimsbecome excessive in frequency or type
of occurrence.
Roadside Assistance and OnStar®
(if equipped)
If your vehicle is OnStar equipped, when you
press the blue OnStar button, the vehicle will
send your current GPS location to an OnStarAdvisor who will speak to you, assess your
problem, contact Roadside Assistance andrelay your exact location so you will get the
help you need.
Certain restrictions, precautions and safety procedures apply to your vehicle. Please read your Owner
Manual for complete instructions. All information contained herein is based on information available atthe time of printing and is subject to change without notice. Copyright 2006 by GM Corp.All rights reserved.
15863679 A
!15863679=A!
OWNER INFORMATION
