SERVICE AIR BAG
This message displays if there is a problem with
the airbag system. Have your dealer inspect
the system for problems. SeeAirbag Readiness
Light on page 201andAirbag System on page 71
for more information. Press any of the DIC
buttons, or the trip stem, to acknowledge this
message and clear it from the DIC display.
SERVICE BRAKE SYSTEM
This message displays if a problem occurs with
the brake system. If this message appears, stop as
soon as possible and turn off the vehicle. Restart
the vehicle and check for the message on the
DIC display. If the message is still displayed, or
appears again when you begin driving, the
brake system needs service. See your dealer.
SERVICE CHARGING SYS (System)
This message displays if there is a problem with the
battery charging system. Under certain conditions,
the charging system light may also turn on in the
instrument panel cluster. SeeCharging System
Light on page 205. The battery will not be charging
at an optimal rate and the vehicle will lose the ability
to enter the fuel economy mode. The vehicle is safe
to drive, however you should have the electrical
system checked by your dealer. Press any of the
DIC buttons, or the trip stem, to acknowledge this
message and clear it from the DIC display.
SERVICE STABILITRAK
If this message displays, it means there may be a
problem with the StabiliTrak®system. If this
message appears, try to reset the system by
performing the following: stop; turn off the engine;
then start the engine again. If this message still
comes on, it means there is a problem. You should
see your dealer for service. The vehicle is safe to
drive, however, you do not have the benet of
StabiliTrak
®, so reduce your speed and drive
accordingly. Press any of the DIC buttons, or the
trip stem, to acknowledge this message and clear it
from the DIC display.
226

Avoid needless heavy braking. Some people drive
in spurts — heavy acceleration followed by heavy
braking — rather than keeping pace with traffic.
This is a mistake. The brakes may not have time to
cool between hard stops. The brakes will wear out
much faster if you do a lot of heavy braking. If you
keep pace with the traffic and allow realistic
following distances, you will eliminate a lot of
unnecessary braking. That means better braking
and longer brake life.
If your vehicle’s engine ever stops while you are
driving, brake normally but do not pump the
brakes. If you do, the pedal may get harder to
push down. If the engine stops, you will still have
some power brake assist. But you will use it
when you brake. Once the power assist is used
up, it may take longer to stop and the brake pedal
will be harder to push.
Adding non-GM accessories can affect your
vehicle’s performance. SeeAccessories and
Modications on page 380.Anti-Lock Brake System (ABS)
Your vehicle has the Anti-Lock Brake System
(ABS), an advanced electronic braking system that
will help prevent a braking skid.
When you start your engine and begin to drive
away, ABS will check itself. You may hear a
momentary motor or clicking noise while this test
is going on. This is normal.
If there is a problem
with ABS, this warning
light will stay on.
SeeAnti-Lock Brake
System Warning
Light on page 207.
Along with ABS, your vehicle has a Dynamic Rear
Proportioning (DRP) system. If there is a DRP
problem, both the brake and ABS warning lights will
come on accompanied by a 10-second chime.
The lights and chime will come on each time the
ignition is turned on until the problem is repaired.
See your dealer for service.
307

{CAUTION:
Snow can trap exhaust gases under your
vehicle. This can cause deadly CO
(carbon monoxide) gas to get inside.
CO could overcome you and kill you.
You cannot see it or smell it, so you might
not know it is in your vehicle. Clear away
snow from around the base of your
vehicle, especially any that is blocking
your exhaust pipe. And check around
again from time to time to be sure snow
does not collect there.
Open a window just a little on the side of
the vehicle that is away from the wind.
This will help keep CO out.Run your engine only as long as you must.
This saves fuel. When you run the engine, make it
go a little faster than just idle. That is, push the
accelerator slightly. This uses less fuel for the heat
that you get and it keeps the battery charged.
You will need a well-charged battery to restart the
vehicle, and possibly for signaling later on with
your headlamps. Let the heater run for a while.
Then, shut the engine off and close the window
almost all the way to preserve the heat. Start
the engine again and repeat this only when you
feel really uncomfortable from the cold. But do it
as little as possible. Preserve the fuel as long
as you can. To help keep warm, you can get out
of the vehicle and do some fairly vigorous
exercises every half hour or so until help comes.
347

Engine Oil Life System
When to Change Engine Oil
Your vehicle has a computer system that lets you
know when to change the engine oil and lter.
This is based on engine revolutions and engine
temperature, and not on mileage. Based on driving
conditions, the mileage at which an oil change
will be indicated can vary considerably. For the oil
life system to work properly, you must reset the
system every time the oil is changed.
When the system has calculated that oil life has
been diminished, it will indicate that an oil change is
necessary. A change engine oil light will come on,
and, if your vehicle has a Driver Information Center
(DIC), a CHANGE ENGINE OIL message will
come. SeeChange Engine Oil Light on page 214
andDIC Warnings and Messages on page 222.
Change your oil as soon as possible within the next
600 miles (1 000 km). It is possible that, if you are
driving under the best conditions, the oil life system
may not indicate that an oil change is necessary for
over a year. However, the engine oil and lter must
be changed at least once a year and at this time the
system must be reset.Your dealer has GM-trained people who will
perform this work using genuine GM parts and reset
the system. It is also important to check the oil
regularly and keep it at the proper level.
If the system is ever reset accidentally, you must
change your oil at 3,000 miles (5 000 km)
since the last oil change. Remember to reset the
oil life system whenever the oil is changed.
How to Reset the Engine Oil Life
System
The Engine Oil Life System calculates when to
change your engine oil and lter based on vehicle
use. Anytime your oil is changed, reset the
system so it can calculate when the next oil
change is required. If a situation occurs where you
change your oil prior to a change engine oil light
or CHANGE ENGINE OIL message being
turned on, reset the system.
398

Notice:Use of the incorrect automatic
transmission uid may damage your vehicle,
and the damages may not be covered by
your warranty. Always use the automatic
transmission uid listed inRecommended
Fluids and Lubricants on page 517.
After adding uid, recheck the uid level as
described under “How to Check Automatic
Transmission Fluid,” earlier in this section.
When the correct uid level is obtained, push
the dipstick back in all the way; then ip the
handle down to lock the dipstick in place.
Engine Coolant
The cooling system in your vehicle is lled with
DEX-COOL®engine coolant. This coolant is
designed to remain in your vehicle for ve years or
150,000 miles (240 000 km), whichever occurs
rst, if you add only DEX-COOL
®extended
life coolant.
The following explains your cooling system and
how to add coolant when it is low. If you have
a problem with engine overheating, seeEngine
Overheating on page 408.A 50/50 mixture of clean, drinkable water and
DEX-COOL
®coolant will:
Give freezing protection down to
−34°F (−37°C).
Give boiling protection up to 265°F (129°C).
Protect against rust and corrosion.
Help keep the proper engine temperature.
Let the warning lights and gages work as
they should.
Notice:Using coolant other than DEX-COOL
®
may cause premature engine, heater core, or
radiator corrosion. In addition, the engine
coolant may require changing sooner,
at the rst maintenance service after each
30,000 miles (50 000 km) or 24 months,
whichever occurs rst. Any repairs would
not be covered by your warranty. Always use
DEX-COOL
®(silicate-free) coolant in your
vehicle.
405

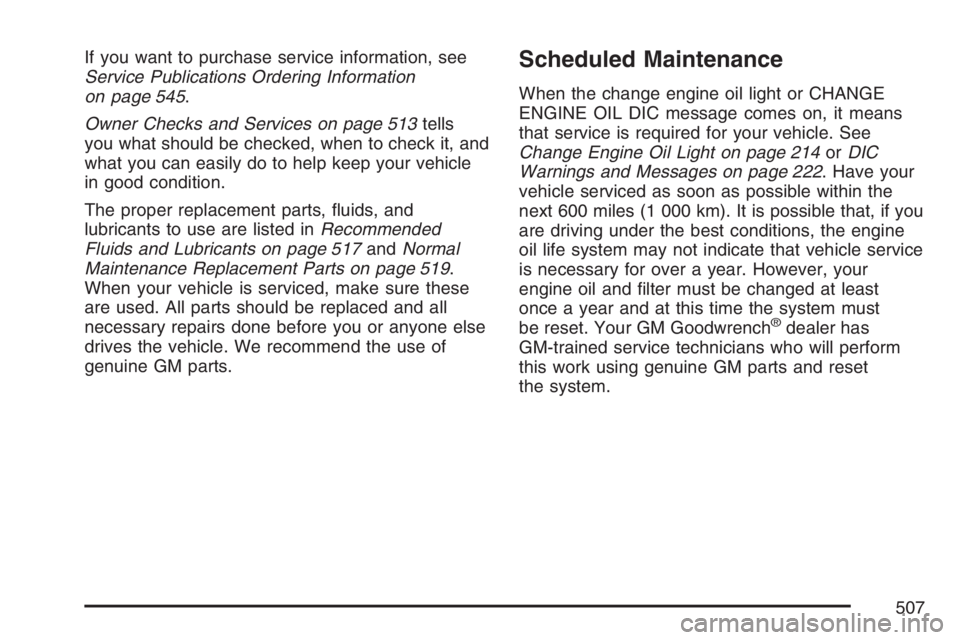

If you want to purchase service information, see
Service Publications Ordering Information
on page 545.
Owner Checks and Services on page 513tells
you what should be checked, when to check it, and
what you can easily do to help keep your vehicle
in good condition.
The proper replacement parts, uids, and
lubricants to use are listed inRecommended
Fluids and Lubricants on page 517andNormal
Maintenance Replacement Parts on page 519.
When your vehicle is serviced, make sure these
are used. All parts should be replaced and all
necessary repairs done before you or anyone else
drives the vehicle. We recommend the use of
genuine GM parts.Scheduled Maintenance
When the change engine oil light or CHANGE
ENGINE OIL DIC message comes on, it means
that service is required for your vehicle. See
Change Engine Oil Light on page 214orDIC
Warnings and Messages on page 222. Have your
vehicle serviced as soon as possible within the
next 600 miles (1 000 km). It is possible that, if you
are driving under the best conditions, the engine
oil life system may not indicate that vehicle service
is necessary for over a year. However, your
engine oil and lter must be changed at least
once a year and at this time the system must
be reset. Your GM Goodwrench
®dealer has
GM-trained service technicians who will perform
this work using genuine GM parts and reset
the system.
507

If the engine oil life system is ever reset
accidentally, you must service your vehicle within
3,000 miles (5 000 km) since your last service.
Remember to reset the oil life system whenever
the oil is changed. SeeEngine Oil Life System
on page 398for information on the Engine Oil Life
System and resetting the system.
When the change engine oil light or CHANGE
ENGINE OIL DIC message appears, certain
services, checks, and inspections are required.
Required services are described in the following
for “MaintenanceI” and “MaintenanceII.”
Generally, it is recommended that your rst
service be MaintenanceI, your second service
be MaintenanceII, and that you alternate
MaintenanceIand MaintenanceIIthereafter.
However, in some cases, MaintenanceIImay
be required more often.MaintenanceI— Use MaintenanceIif the light
or message comes on within 10 months since
the vehicle was purchased or MaintenanceIIwas
performed.
MaintenanceII— Use MaintenanceIIif the
previous service performed was MaintenanceI.
Always use MaintenanceIIwhenever the light
or message comes on 10 months or more since
the last service or if the light or message has
not come on at all for one year.
508

(e)Make sure the safety belt reminder light and all
your belts, buckles, latch plates, retractors, and
anchorages are working properly. Look for
any other loose or damaged safety belt system
parts. If you see anything that might keep a safety
belt system from doing its job, have it repaired.
Have any torn or frayed safety belts replaced. Also
look for any opened or broken airbag coverings,
and have them repaired or replaced. The
airbag system does not need regular maintenance.
(f)Lubricate all key lock cylinders, hood latch
assembly, secondary latch, pivots, spring anchor,
release pawl, rear compartment hinges, outer
liftgate handle pivot points, rear door detent link,
roller mechanism, liftgate handle pivot points, latch
bolt, fuel door hinge, cargo door hinge, locks,
and folding seat hardware. More frequent
lubrication may be required when exposed to a
corrosive environment. Applying silicone grease on
weatherstrips with a clean cloth will make them
last longer, seal better, and not stick or squeak.
(g)Inspect hoses for cracks, chang, leaks, kinks,
and proper installation.(h)Change automatic transmission uid and lter
if the vehicle is mainly driven under one or
more of these conditions:
In heavy city traffic where the outside
temperature regularly reaches 90°F (32°C)
or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police, or delivery
service.
(i)Drain, ush, and rell cooling system. This
service can be complex; you should have
your dealer perform this service. See Engine
Coolant on page 405 for what to use. Inspect
hoses. Clean radiator, condenser, pressure cap,
and ller neck. Pressure test the cooling
system and pressure cap.
(j)A uid loss in any vehicle system could indicate
a problem. Have the system inspected and
repaired and the uid level checked. Add uid if
needed.
512

C
Calibration........................134, 136, 138, 140
California Fuel............................................. 383
California Proposition 65 Warning................ 381
Canadian Owners........................................... 3
Capacities and Specications...................... 502
Carbon Monoxide..............106, 131, 344, 362
Care of
Safety Belts............................................. 485
Your CD and DVD Player........................ 299
Your CDs and DVDs................................ 299
Cargo Cover............................................... 163
Cargo Tie Downs........................................ 164
CD, MP3 ..................................................... 271
Center Console Storage Area...................... 160
Chains, Tire................................................. 461
Charging System Light................................ 205
Check
Engine Light............................................ 210
Gages Warning Light............................... 216
Check Gas Cap Light.................................. 217
Checking Things Under the Hood................ 388
Chemical Paint Spotting.............................. 489Child Restraints
Child Restraint Systems............................. 49
Infants and Young Children........................ 45
Lower Anchors and Tethers for Children..... 56
Older Children........................................... 42
Securing a Child Restraint in a Rear
Outside Seat Position............................. 63
Securing a Child Restraint in the Center
Rear Seat Position................................. 66
Securing a Child Restraint in the Right
Front Seat Position................................. 66
Where to Put the Restraint........................ 54
Chime Level Adjustment .............................. 300
Cigarette Lighter.......................................... 186
Cleaning
Aluminum Wheels.................................... 488
Exterior Lamps/Lenses............................. 486
Fabric/Carpet........................................... 483
Finish Care.............................................. 486
Inside of Your Vehicle .............................. 482
Instrument Panel, Vinyl, and Other Plastic
Surfaces............................................... 485
Leather.................................................... 484
Tires........................................................ 488
Underbody Maintenance........................... 489
Washing Your Vehicle .............................. 486
549

Driver
Position, Safety Belt................................... 26
Driver Information Center (DIC)................... 218
DIC Operation and Displays..................... 219
DIC Vehicle Customization....................... 229
DIC Warnings and Messages................... 222
Driving
At Night................................................... 334
City.......................................................... 338
Defensive................................................. 302
Drunken................................................... 303
Freeway................................................... 339
Hill and Mountain Roads.......................... 342
In Rain and on Wet Roads...................... 335
Off-Road.................................................. 319
Rocking Your Vehicle to Get it Out.......... 348
Winter...................................................... 344
Dual Automatic Climate Control System....... 189
Dual Climate Control System....................... 186
DVD
Rear Seat Entertainment System............. 280E
Electric Power Management........................ 184
Electrical System
Add-On Equipment................................... 492
Engine Compartment Fuse Block............. 493
Fuses and Circuit Breakers...................... 493
Headlamps............................................... 492
Power Windows and Other Power
Options................................................. 492
Rear Underseat Fuse Block..................... 499
Windshield Wiper Fuses........................... 492
Electronically Controlled Air Suspension
System.................................................... 360
Engine
Air Cleaner/Filter...................................... 400
Battery..................................................... 422
Change Engine Oil Light.......................... 214
Check and Service Engine Soon Light..... 210
Coolant.................................................... 405
Coolant Heater......................................... 116
Coolant Temperature Gage...................... 208
551
