Relays Usage
37 Blank
38 Rear Window Washer
39 Fog Lamps
40 Horn
41 Fuel Pump
42 Windshield Washer
43 High-Beam Headlamp
44 Air Conditioning
45 Cooling FanRelays Usage
46 Headlamp Driver Module
47 Starter
49 Electric Adjustable Pedal
55 Air Injection Reactor (AIR) Solenoid
Miscellaneous Usage
48 Instrument Panel Battery
5-101

V8 Engine
5-102

Fuses Usage
1Electrically-Controlled Air
Suspension
2Passenger’s Side High-Beam
Headlamp
3Passenger’s Side Low-Beam
Headlamp
4 Back-Up-Trailer Lamps
5Driver’s Side High-Beam
Headlamp
6Driver’s Side Low-Beam
Headlamp
7 Rear Window Washer
8 Automatic Transfer CaseFuses Usage
9 Windshield Washer
10 Powertrain Control Module B
11 Fog Lamps
12 Stoplamp
13 Cigarette Lighter
14 Ignition Coils
15 Canister Vent
16 Body Controller, Ignition 1
17 Crank
18 Airbag
5-103

Fuses Usage
19 Trailer Electric Brake
20 Cooling Fan
21 Horn
22 Ignition E
23 Electronic Throttle Control
24Instrument Panel Cluster, Driver
Information Center
25Automatic Shift Lock Control
System
26 Engine 1
27 Back-Up
28 Powertrain Control Module 1
29 Powertrain Control ModuleFuses Usage
30 Air Conditioning
31 Injector Bank A
32 Trailer
33 Anti-lock Brakes (ABS)
34 Ignition A
35 Blower Motor
36 Ignition B
50 Passenger’s Side Trailer Turn
51 Driver’s Side Trailer Turn
52 Hazard Flashers
53 Transmission
54 Oxygen Sensor Bank B
5-104

Fuses Usage
55 Oxygen Sensor Bank A
56 Injector Bank B
57 Headlamp Driver Module
58 Truck Body Controller 1
59 Electric Adjustable Pedal
Relays Usage
37 Headlamp Washer
38 Rear Window Washer
39 Fog Lamps
40 Horn
41 Fuel Pump
42 Windshield Washer
Relays Usage
43 High-Beam Headlamp
44 Air Conditioning
45 Cooling Fan
46 Headlamp Driver Module
47 Starter
49 Electric Adjustable Pedal
60 Powertrain
Miscellaneous Usage
48 Instrument Panel Battery
5-105

Rear Underseat Fuse Block
5-106

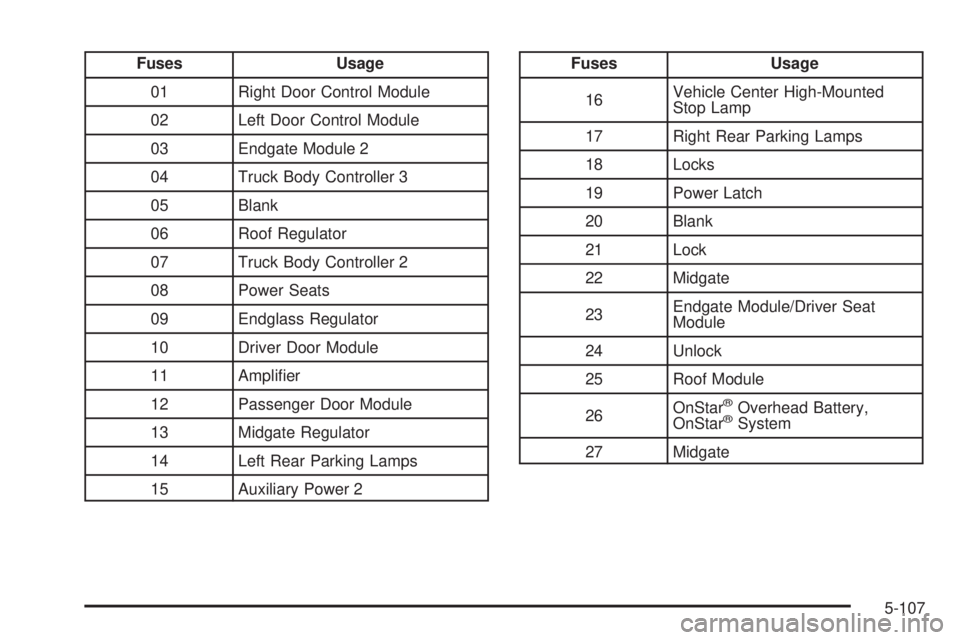

Fuses Usage
01 Right Door Control Module
02 Left Door Control Module
03 Endgate Module 2
04 Truck Body Controller 3
05 Blank
06 Roof Regulator
07 Truck Body Controller 2
08 Power Seats
09 Endglass Regulator
10 Driver Door Module
11 Amplier
12 Passenger Door Module
13 Midgate Regulator
14 Left Rear Parking Lamps
15 Auxiliary Power 2Fuses Usage
16Vehicle Center High-Mounted
Stop Lamp
17 Right Rear Parking Lamps
18 Locks
19 Power Latch
20 Blank
21 Lock
22 Midgate
23Endgate Module/Driver Seat
Module
24 Unlock
25 Roof Module
26OnStar
®Overhead Battery,
OnStar®System
27 Midgate
5-107

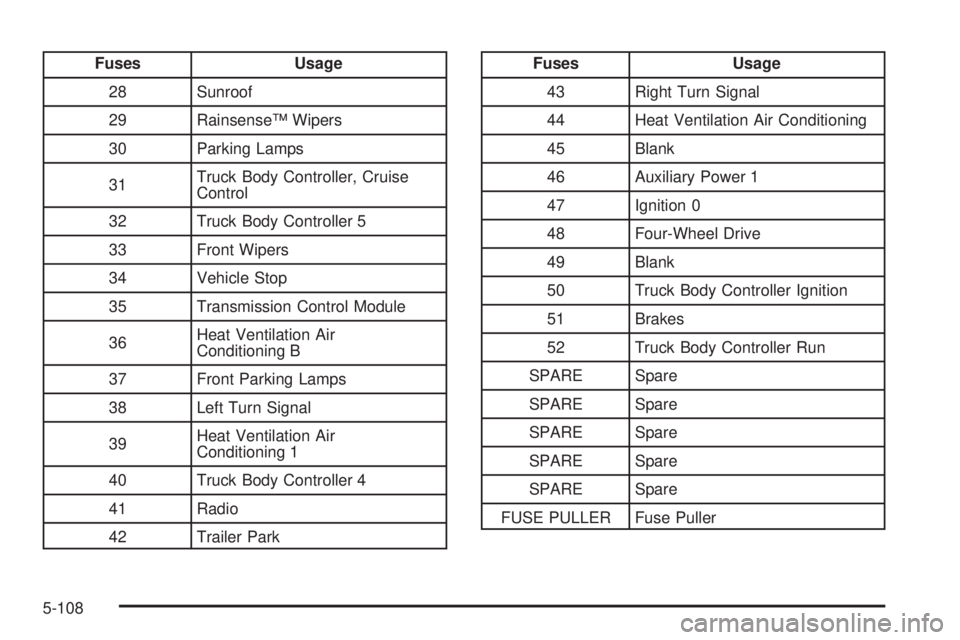

Fuses Usage
28 Sunroof
29 Rainsense™ Wipers
30 Parking Lamps
31Truck Body Controller, Cruise
Control
32 Truck Body Controller 5
33 Front Wipers
34 Vehicle Stop
35 Transmission Control Module
36Heat Ventilation Air
Conditioning B
37 Front Parking Lamps
38 Left Turn Signal
39Heat Ventilation Air
Conditioning 1
40 Truck Body Controller 4
41 Radio
42 Trailer ParkFuses Usage
43 Right Turn Signal
44 Heat Ventilation Air Conditioning
45 Blank
46 Auxiliary Power 1
47 Ignition 0
48 Four-Wheel Drive
49 Blank
50 Truck Body Controller Ignition
51 Brakes
52 Truck Body Controller Run
SPARE Spare
SPARE Spare
SPARE Spare
SPARE Spare
SPARE Spare
FUSE PULLER Fuse Puller
5-108

Capacities and Specications
The following approximate capacities are given in English and metric conversions. SeeRecommended Fluids and
Lubricants on page 6-13for more information.
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134a 1.9 lbs. 0.85 kg
Cooling System
4200 L6
5300 V810.8 quarts
12.2 quarts10.2 L
11.6 L
Differential Fluid – Front 1.7 pints 0.8 L
Differential Fluid – Rear
4200 L6
5300 V83.6 pints
4.3 pints1.7 L
2.0 L
Engine Oil with Filter
4200 L6
5300 V87.0 quarts
6.0 quarts6.6 L
5.7 L
Fuel Tank 25.0 gallons 95.8 L
Transmission (Drain and Rell) 5.0 quarts 4.7 L
Wheel Nut Torque 100 ft lb 140Y
All capacities are approximate. When adding, be sure to ll to the appropriate level, as recommended in this
manual. Recheck the uid level after lling.
5-109

Engine Specications
Engine VIN Code Transmission Spark Plug Gap
VORTEC™ 4200 L6 S Automatic 0.042 inches (1.07 mm)
VORTEC™ 5300 V8 M Automatic 0.040 inches (1.01 mm)
5-110
