GMC ENVOY XUV 2005 Owner's Manual

Seats and Restraint Systems........................... 1-1
Front Seats
............................................... 1-2
Rear Seats
............................................... 1-6
Safety Belts
.............................................. 1-7
Child Restraints
.......................................1-25
Airbag System
.........................................1-46
Restraint System Check
............................1-61
Features and Controls..................................... 2-1
Keys
........................................................ 2-3
Doors and Locks
....................................... 2-8
Windows
.................................................2-20
Theft-Deterrent Systems
............................2-22
Starting and Operating Your Vehicle
...........2-24
Mirrors
....................................................2-42
OnStar
®System
......................................2-52
HomeLink®Transmitter
.............................2-54
Storage Areas
.........................................2-58
Sunroof
..................................................2-62
Vehicle Personalization
.............................2-63
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-20
Warning Lights, Gages, and Indicators
........3-30
Driver Information Center (DIC)
..................3-48
Audio System(s)
.......................................3-63Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and Your Vehicle
........ 4-2
Towing
...................................................4-50
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
...............5-10
Rear Axle
...............................................5-47
Four-Wheel Drive
.....................................5-48
Front Axle
...............................................5-49
Bulb Replacement
....................................5-50
Windshield Wiper Blade Replacement
.........5-53
Tires
......................................................5-55
Appearance Care
.....................................5-86
Vehicle Identication
.................................5-95
Electrical System
......................................5-96
Capacities and Specications
...................5-109
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance and Information.............. 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-10
Index.................................................................1
2005 GMC Envoy XUV Owner ManualM

GENERAL MOTORS, GM, the GM Emblem, GMC,
the GMC Truck Emblem, and the name ENVOY
are registered trademarks; and XUV is a trademark of
General Motors Corporation.
This manual includes the latest information at the time
it was printed. We reserve the right to make changes after
that time without further notice. For vehicles rst sold in
Canada, substitute the name “General Motors of Canada
Limited” for GMC whenever it appears in this manual.
Keep this manual in the vehicle, so it will be there if it
is needed while you are on the road. If the vehicle
is sold, leave this manual in the vehicle.
Canadian Owners
A French language copy of this manual can be obtained
from your dealer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
How to Use This Manual
Many people read the owner manual from beginning to
end when they rst receive their new vehicle. If this
is done, it can help you learn about the features
and controls for the vehicle. Pictures and words work
together in the owner manual to explain things.
Index
A good place to quickly locate information about the
vehicle is the Index in the back of the manual. It is an
alphabetical list of what is in the manual and the
page number where it can be found.
Litho in U.S.A.
Part No. 05ENVOYXUV A First Edition
©2004 General Motors Corporation. All Rights Reserved.
ii

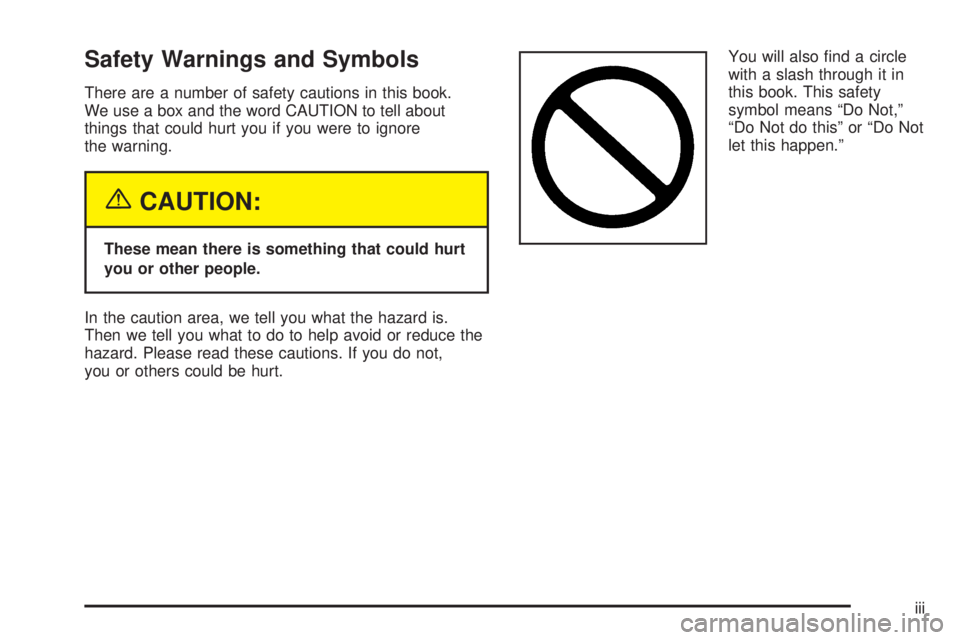

Safety Warnings and Symbols
There are a number of safety cautions in this book.
We use a box and the word CAUTION to tell about
things that could hurt you if you were to ignore
the warning.
{CAUTION:
These mean there is something that could hurt
you or other people.
In the caution area, we tell you what the hazard is.
Then we tell you what to do to help avoid or reduce the
hazard. Please read these cautions. If you do not,
you or others could be hurt.You will also nd a circle
with a slash through it in
this book. This safety
symbol means “Do Not,”
“Do Not do this” or “Do Not
let this happen.”
iii

Vehicle Damage Warnings
Also, in this manual you will nd these notices:
Notice:These mean there is something that could
damage your vehicle.
A notice tells about something that can damage the
vehicle. Many times, this damage would not be covered
by your vehicle’s warranty, and it could be costly.
But the notice will tell what to do to help avoid
the damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different colors
or in different words.
There are also warning labels on the vehicle.
They use the same words, CAUTION or NOTICE.
Vehicle Symbols
The vehicle has components and labels that use
symbols instead of text. Symbols are shown along
with the text describing the operation or information
relating to a specic component, control, message,
gage, or indicator.
If you need help guring out a specic name of a
component, gage, or indicator, reference the
following topics:
Seats and Restraint Systems in Section 1
Features and Controls in Section 2
Instrument Panel Overview in Section 3
Climate Controls in Section 3
Warning Lights, Gages, and Indicators in Section 3
Audio System(s) in Section 3
Engine Compartment Overview in Section 5
iv

These are some examples of symbols that may be found on the vehicle:
v

✍NOTES
vi

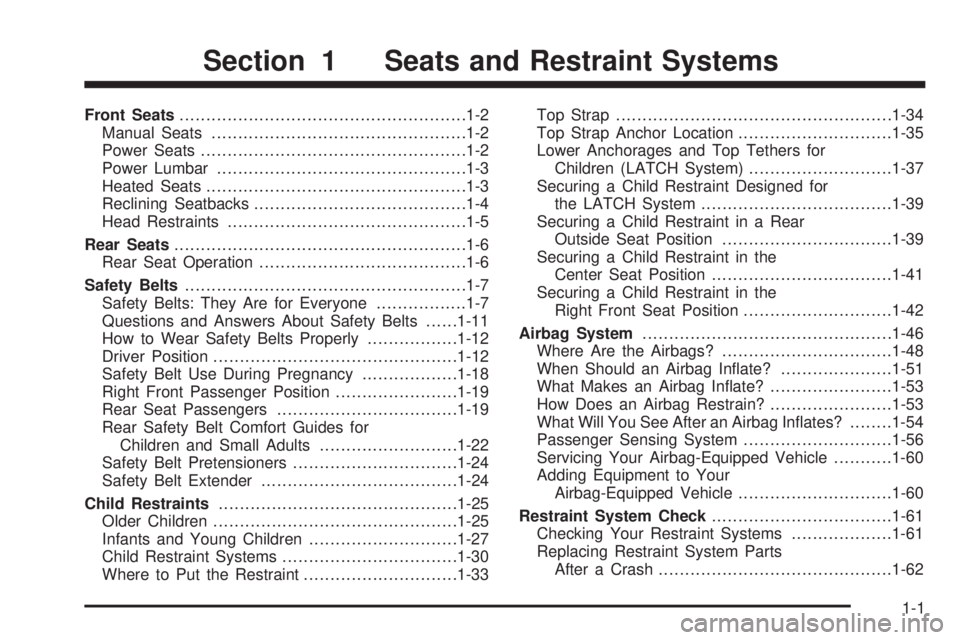

Front Seats......................................................1-2
Manual Seats................................................1-2
Power Seats..................................................1-2
Power Lumbar...............................................1-3
Heated Seats.................................................1-3
Reclining Seatbacks........................................1-4
Head Restraints.............................................1-5
Rear Seats.......................................................1-6
Rear Seat Operation.......................................1-6
Safety Belts.....................................................1-7
Safety Belts: They Are for Everyone.................1-7
Questions and Answers About Safety Belts......1-11
How to Wear Safety Belts Properly.................1-12
Driver Position..............................................1-12
Safety Belt Use During Pregnancy..................1-18
Right Front Passenger Position.......................1-19
Rear Seat Passengers..................................1-19
Rear Safety Belt Comfort Guides for
Children and Small Adults..........................1-22
Safety Belt Pretensioners...............................1-24
Safety Belt Extender.....................................1-24
Child Restraints.............................................1-25
Older Children..............................................1-25
Infants and Young Children............................1-27
Child Restraint Systems.................................1-30
Where to Put the Restraint.............................1-33Top Strap....................................................1-34
Top Strap Anchor Location.............................1-35
Lower Anchorages and Top Tethers for
Children (LATCH System)...........................1-37
Securing a Child Restraint Designed for
the LATCH System....................................1-39
Securing a Child Restraint in a Rear
Outside Seat Position................................1-39
Securing a Child Restraint in the
Center Seat Position..................................1-41
Securing a Child Restraint in the
Right Front Seat Position............................1-42
Airbag System...............................................1-46
Where Are the Airbags?................................1-48
When Should an Airbag Inate?.....................1-51
What Makes an Airbag Inate?.......................1-53
How Does an Airbag Restrain?.......................1-53
What Will You See After an Airbag Inates?........1-54
Passenger Sensing System............................1-56
Servicing Your Airbag-Equipped Vehicle...........1-60
Adding Equipment to Your
Airbag-Equipped Vehicle.............................1-60
Restraint System Check..................................1-61
Checking Your Restraint Systems...................1-61
Replacing Restraint System Parts
After a Crash............................................1-62
Section 1 Seats and Restraint Systems
1-1

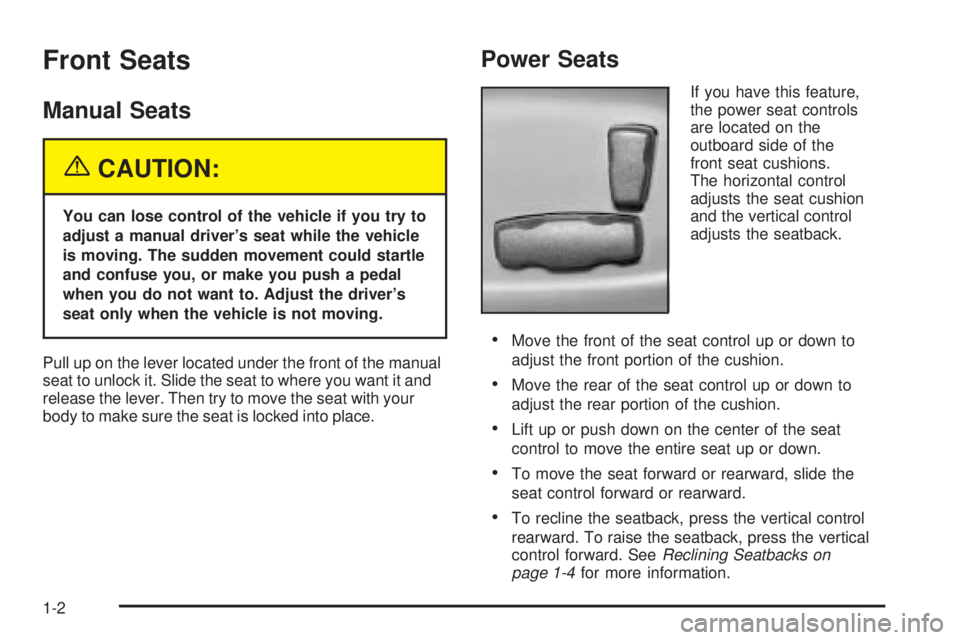

Front Seats
Manual Seats
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
Pull up on the lever located under the front of the manual
seat to unlock it. Slide the seat to where you want it and
release the lever. Then try to move the seat with your
body to make sure the seat is locked into place.
Power Seats
If you have this feature,
the power seat controls
are located on the
outboard side of the
front seat cushions.
The horizontal control
adjusts the seat cushion
and the vertical control
adjusts the seatback.
Move the front of the seat control up or down to
adjust the front portion of the cushion.
Move the rear of the seat control up or down to
adjust the rear portion of the cushion.
Lift up or push down on the center of the seat
control to move the entire seat up or down.
To move the seat forward or rearward, slide the
seat control forward or rearward.
To recline the seatback, press the vertical control
rearward. To raise the seatback, press the vertical
control forward. SeeReclining Seatbacks on
page 1-4for more information.
1-2

Power Lumbar
Your vehicle may have this feature. The driver’s and
passenger’s seatback lumbar support can be adjusted
by moving a single control located on the outboard
side of the seat cushions. To increase or decrease
support, hold the control forward or rearward.
Keep in mind that as your seating position changes,
as it may during long trips, so should the position of
your lumbar support. Adjust the seat as needed.
Heated Seats
Your vehicle may have
heated front seats.
The buttons used to control
this feature are located
on the front door armrests.
The engine must be
running for the heated seat
feature to work.To heat the entire seat, press the horizontal button with
the heated seat symbol. Press the button repeatedly
to cycle through the temperature settings of high,
medium, low and off. The indicator lights will glow to
designate the level of heat selected: three for high,
two for medium and one for low. The low setting warms
the seatback and cushion until the seat temperature
is near body temperature. The medium and high settings
heat the seatback and seat cushion to a slightly
higher temperature. You will be able to feel heat in
about two minutes.
To heat only the seatback, press the button with the
words BACK ONLY. An indicator light on the switch will
glow to designate that only the seatback is being
heated. Additional presses will cycle through the heat
levels for the seatback only. Press the horizontal button
again to heat the whole seat.
The feature will shut off automatically when the ignition
is turned off.
1-3

Reclining Seatbacks
If your vehicle has a manual recliner, lift the lever
located on the outboard side of the seat and push the
seatback rearward to recline the seatback. To return the
seatback to the normal position, lift the lever without
pushing rearward on the seatback and the seatback will
move forward.
If your vehicle has power seat controls, the vertical
power seat control described earlier allows the
seatback to recline.

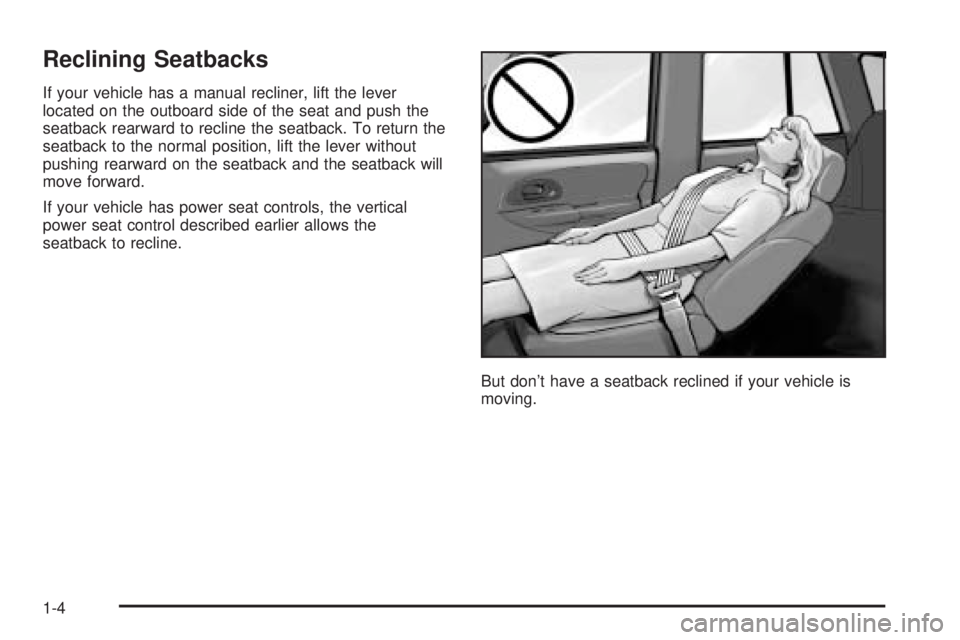

But don’t have a seatback reclined if your vehicle is
moving.
1-4
