check engine GMC JIMMY 1997 Service Manual

Short Trip/City Maintenance Schedule
63,000 Miles (105 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An EII1i.Ysion Corltml Set-\lic*c).
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote #.)
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals
for leaking.
(See footnote
‘?)
DATE SERVICED BY ACTUAL MILEAGE
66,000 Miles (110 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emissiot2 Cofltrol Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add
fluid
as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
‘M .)
0 Rotate tires. See “Tire Inspection and
Rotation”
in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
I DATE I ACTUAL MILEAGE ISERVICED BY
7-21

I Short TripKity Maintenance Schedule I
49,000 Miles (115 000 kt)
Change engine oil and filter (or every
3 months, whichever occurs first).
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add
fluid
as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
*?)
72,000 Miles (120 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
AH Eruixvioll Control Service.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle
seals for leaking.
(See footnote
0 Rotate tires. See “Tire Inspection and
Rotation”
in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
DATE SERVICED BY ACTUAL MILEAGE
7-22

75,000 Miles (125 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
AII Emissiotl Control Service.
Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
For Two-Wheel-Drive vehicles only: Clean
and repack the front wheel bearings
(or at
each brake relining, whichever occurs first).
driving
in dusty conditions. Replace filter
if necessary.
An Emission Com-ol Sel-\+c*r. (See footnote?.)
0 Inspect air cleaner filter if you are
El Check readfront axle fluid level and add
fluid
as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
?)
Short TripKity Maintenance Schedule
SERVICED BY I
7-23

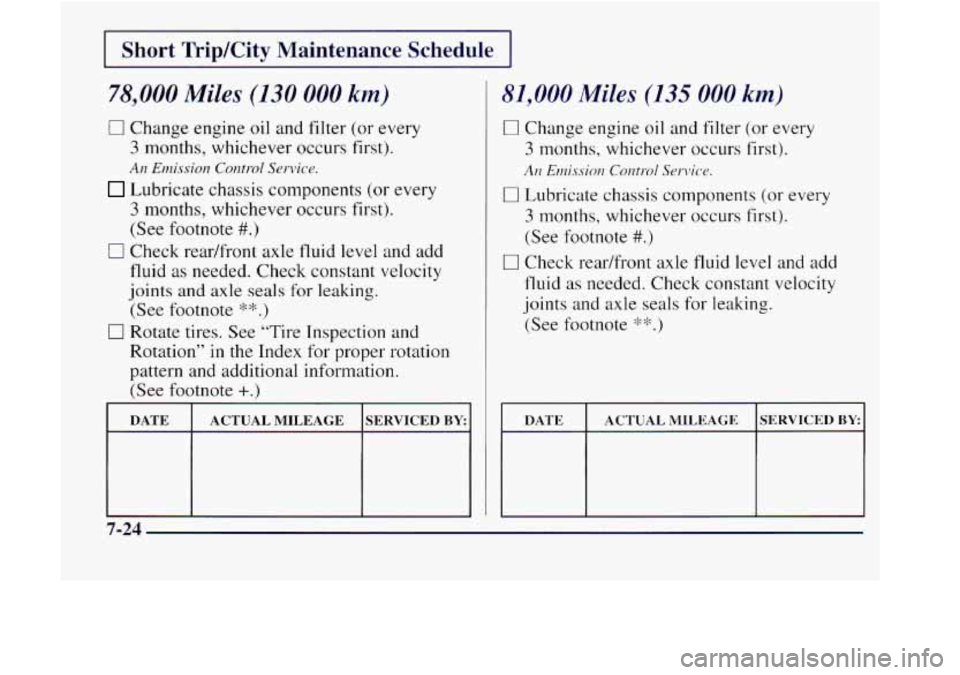

Short TripKity Maintenance Schedule
78,000 Miles (130 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints
and axle seals for leaking.
(See footnote
** .)
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
81,000 Miles (135 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add
fluid
as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
‘V)
DATE SERVICED BY ACTUAL MILEAGE
7-24

I Short Trip/City Maintenance Schedule I
___~~~ ~ ~
84,000 Miles (140 000 km)
Change engine oil and filter (or every
3 months, whichever occurs first).
A 11 Ev1i.vsiou Co17trol Sel-\.icc.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals
for leaking.
(See footnote
‘?)
Rotate tires. See ‘‘Til-e Inspection and
Rotation”
in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
87,000 Miles (145 000 km)
Change engine oil and filter (or every
3 months, whichever occurs first).
AII Emi.wiol1 Control Ser-l~ict~.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.>
[I1 Check readfront axle fluid level and add
fluid
as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
-I+-.) .< .!.
7-25

I Short TripKity Maintenance Schedule I
90,000 Miles (150 000 km)
0 Change engine oil and filter (or every
3 months, whkhever occurs first).
An Emissiorz Contr-ol Scr.1)ic.c.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add
fluid
as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
a‘i:.>
0 For Two-Wheel-Drive vehicles only: Clean
and repack
the front wheel bearings (or at
each brake relining, whichever occurs first).
0 Replace fuel filter.
0 Replace air cleaner filter.
0 Rotate tires. See “Tire Inspection and
Rotation”
in the Index for proper rotation
pattern and additional information.
(See footnote
+.)
A}! Emissioll com.c>/ Surljic*c. (See footnote?.)
Ai1 Emissiorl Corlfr.01 Senkc).
DATE SERVICED BY
ACTUAL R/III,EAGE
7-26

Short TripKity Maintenance Schedule
93,000 Miles (155 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
Arr EuliL~sior~ Corltrnl .Sor- ic.c).
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote #.)
0 Check rear/front axle fluid level and add
fluid
as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
‘?)
96,000 Miles (160 000 km)
0 Change engine oil and filter (or every
3 months. whichever occurs first).
An Eu/issior1 Cofztrwl Ser-ljice.
0 Lubricate chassis components (or every
3 months. whichever occurs first).
(See footnote
#.)
0 Check rear/front axle fluid level and add
fluid
as needed. Check constant velocity
joints and axle seals
for leaking.
(See footnote
’V)
0 Rotate tires. See “Tire Inspection and
Rotation”
in the Index .for proper rotation
pattern and additional information.
(See footnote
+.)
DATE
ACTUAL NIII,EAG;E SERVICED BY

I Short TripKity Maintenance Schedule I
99,OP‘ “fles (165 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
AH Emissiotl Control Sc-’t*vic*c-’.
0 Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
‘Y)
DATE SERVICED BY ACTUAL MILEAGE
100,000 Miles (1 66 000 kin)
0 Inspect spark plug wires.
AI] E1uissiorl Cmd Sewic*o.
0 Replace spark plugs.
0 Change automatic transmission fluid and
filter
if the vehicle is mainly driven under
one or more
of these conditions:
- In heavy city traffic where the outside
temperature regularly reaches
90 O F
(32°C) or higher.
Au Emissio~~ Co~1trol Serl7ic-e.
- In hilly or mountainous terrain.
7-28

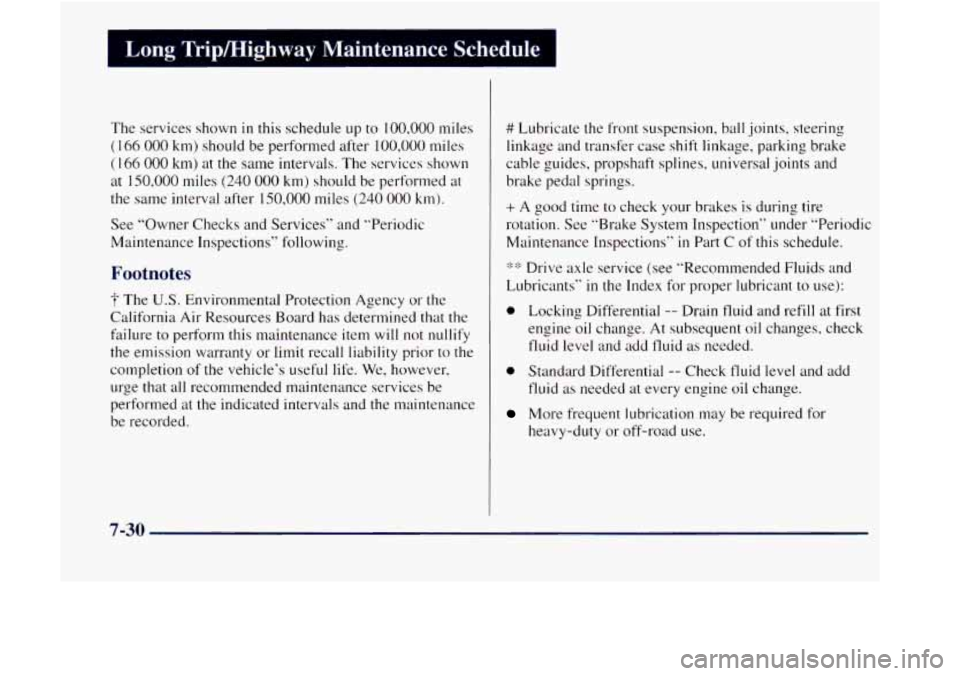

I Long Trip/Highway Maintenance Schedule
The services shown in this schedule up to 100,000 miles
( I66 000 km) should be performed after 100,000 miles
( 166 000 km) at the same intervals. The services shown
at
150,000 miles (240 000 km) should be performed at
the same interval after
150,000 miles (240 000 km).
See "Owner Checks and Services" and "Periodic
Maintenance Inspections'' following.
Footnotes
3' The U.S. Environmental Protection Agency 01- the
California Air Resources Board has determined that the
failure to perform this maintenance item
will not nullify
the emission warranty or limit recall liability prior to the
completion
of the vehicle's useful life. We, however,
urge that
all recommended maintenance services be
performed at the indicated intervals and the maintenance
be recorded.
# Lubricate Ihe front suspension, ball joints, steering
linkage and transfer case
shift linkage, parking brake
cable guides, propshaft splines, universal
joints and
brake pedal springs.
+ A good time to check your brakes is during tire
rotation. See "Brake System Inspection'' under "Periodic
Maintenance Inspections"
in Part C of this schedule.
Drive axle service (see "Recommended Fluids and
Lubricants"
in the Index for proper lubricant to use):
0 Locking Differential -- Drain fluid and refill at first
engine oil change.
At subsequent oil changes, check
fluid level and
add fluid as needed.
0 Standard Differential -- Check fluid level and add
fluid as needed at every engine
oil change.
More frequent lubrication may be required for
heavy-duty or off-road use.
7-30

I Long Tripmighway Maintenance Schedule I
7,500 Miles (12 500 km)
Change engine oil and filter (or every
12 months, whichever occurs first).
0 Lubricate chassis components (or every
I2 months, whichever occurs first).
(See footnote
#.)
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
(See footnote
*+.)
AH E~llission Cor?trol Serviw.
0 Rotate tires. See “Tire Inspection and
Rotation”
in the Index for proper rotation
pattern
and additional information.
(See footnote
+.)
7-31
