Page 301 of 410
I NOTICE: (Continued) I
If your tires have too much air (overinflation),
you
can get the following:
0 Unusual wear
0 Bad handling
0 Rough ride
Needless damage from road hazards.
When to Check
Check your tires once a month or n101-e. Also. check the
tire pressure
of the spare tire.
I! you have a compact spare tire. it should be at 60 psi
(420
k Pa).
How to Check
Use a good quality pocket-type gage to check tire
pressure. You can't tell
if your tires are properly inflated
simply
by looking at thcm. Radial tires may look
properly inflated even when they're underintlatecl.
Be sure to put the valve caps back on the valve stems.
They help prevent leaks
by keeping out dirt and moisture.
Tire Inspection and Rotation
Tires s11o111d be rotated every 6,000 to 8,000 miles
( IO 000 to 13 000 km). Any time you notice unusual
we;^. rotate your tires as soon as possible and check
wheel alignment.
Also check for damaged tires or
wheels. See "When 1t.s Time for New Tires" and
"Wheel Replacement" later
in this section for
more information.
Thc purpose
of' reg~~lar rotation is to achieve more
uniform wear
fur all tires on the vehicle. The first
rotation
is thu most important. See "Schecluled
Maintenance Services"
in the Index for scheduled
rotation intervals.
r --
6-42
Page 324 of 410
Section 7 Maintenance Schedule
This section covers the maintenance required for ~OLI~ vehicle. Your vehicle needs these services to retairl its safety,
dependability and emission control performance.
7-2
7-4
7-5 7-5
7-6
7-6
Introduction Part
A: Scheduled Maintenance Services
Short Trip/City Definition
Short Trip/City Intervals
Long Trip/Highway Definition
Long Trip/Highway Intervals 7-7
7-30
7-46
7-50
7-52
7-55 Short Trip/City Maintenance
Schedule
Long Trip/Highway Maintenance Schedule
Part
B: Owner Checks and Services
Part
C: Periodic Maintenance Inspections
Part
D: Recommended Fluids and Lubricants
Part
E: Maintenance Record
7-1
Page 328 of 410
Maintenance Schedule
Short TripKity Definition
Follow the Short Trip/City Maintenance Schedule if any
one
of' these conditions is true for your
ehick:
0 Most trips are less than 5 to 10 miles (8 to 16 km).
This is particularly important when outside
temperatures are below freezing.
driving
in stop-and-go traffic).
off-road frequently.
your vehicle.
or other comnwcial application.
0 Most trips include extensive idling (such as frequent
0 You operate your vehicle in dusty areas or
0 You I-'recluently tow a trailer or use a carrier on top of
0 If the vehicle is used for delivery service, police, taxi
OII~? of'the 1-ec1,son.s !*OLL .sho~rl~l,fi,ll~~t~~ this .sc*Iwdulc~ if you
optute !mrr \vl?ic*le L~OI- elq* of' thesc c-oditiorzs is tlwt
those cwclitior1.v
(YILIS~ e~lgiw oil to h~wk lloc
SOOIIOK
Short Trip/City Intervals
Every 3,000 Miles (5 000 km): Engine Oil and Filter
Change
(or 3 months, whichever occurs first). Chassis
Lubrication (or
3 months. whichever occurs first). Drive
Axle Service (or 3 months, whichever occurs first).
Short TripKity Intervals
Every 6,000 Miles (10 000 km): Tire Rotation.
Every 15,000 Miles (25 000 km): Air Cleaner Filter
Inspection.
if' driving in dusty conditions. Front
Wheel Bearing Repack (2WD only) (or at each brake
relining, whichever occurs
first).
Every 30,000 Miles (50 000 km): Air Cleaner Filter
Replacement. Fuel Filter Replacement.
Every 50,000 Miles (83 000 km): Automatic
Transmission Service (severe conditions only).
Every 60,000 Miles (100 000 km): Engine
Accessory Drive Belt Inspection. Fuel Tank, Cap
and Lines Inspection.
Every 100,000 Miles (166 000 km): Spark Plug Wire
Inspection. Spark Plug Replacement. Positive
Crankcase Ventilation (PCV
j Valve Inspection.
Every 150,000 Miles (240 000 km): Cooling System
Service (or every
60 months. whichever occ~lrs first).
Thc>,vt> if?ter~ul.s o~l~- .swwncrri:o 1uc1intemtlce ser\!ic:t>s.
He ,s11t-~3 to folloct- the c-omplote mrlirztencrnc'cJ .sc*he,dult?
on tl~~~.~~)ll~)~~,i~l~~ pclgr.s.
7-5
Page 329 of 410
Maintenance Schedule
I Long Trip/Hiahway Definition
Follow this maintenance schedule only if none of the
conditions from the Short Trip/City Maintenance
Schedule
is true. Do not use this schedule if the vehicle
is used
for trailer towing, driven in a dusty area or used
off paved roads. Use the Short Trip/City schedule for
these conditions.
Lone TridHiehwav Intervals
Every 7,500 Miles (12 500 km): Engine Oil and Filter
Change (or every
12 months, whichever C)CCLI~S first).
Chassis Lubrication (or every
I2 months, whichever
occ~~rs first). Drive Axle Service. Tire Rotation.
Every 30,000 Miles (50 000 km): Fuel Filter
Replacement.
Air Cleaner Filter Replacement. Front
Wheel Bearing Repack (2WD only) (or at each brake
relining, whichever occurs first).
Transmission Service (severe conditions only).
Drive Belt Inspection. Fuel
Tank, Cap and
Lines Inspection.
Inspection. Spark Plug Replacement. Positive
Crankcase Ventilation (PCV) Valve Inspection.
Every 150,000 Miles (240 000 km): Cooling System
Service
(or every 60 months. whichever occurs first).
Every 50,000 NIiles (83 000 km): Automatic
Every 60,000 Miles (100 000 km): Engine Accessory
Every 100,000 Miles (166 000 km): Spark Plug Wire
7-6
Page 330 of 410
Short Trip/City Maintenance Schedule
The services shown in this schedule LIP to 100.000 miles
( I66 000 km) should be performed after 100,000 miles
( 166 000 km) at the same intervals. The services shown
at 150.000 miles (240
000 km) should be performed at
the
same interval after 150.000 miles (240 000 km).
See "Owner Checks and Services" and "Periodic
Maintenance Inspections" following.
Footnotes
-f The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not
nullify
the emission warranty or limit recall liability prior to the
completion
of the vehicle's useful life. We. however,
urge that
all recommended maintenance services be
performed at the indicated intervals and
the maintenance
be recorded.
## Lubricate the front suspension. ball joints. steering
linkage and transfer case shift linkage. parking brake
cable guides, propshaft splines. Lulivel-sal joints and
brake
pedal springs.
+ A good time to check your brakes is during tire
rotation. See "Brake System Inspection" under "Periodic
Maintenance Inspection"
in Part C of this schedule.
'i::k Drive axle service (see "Recommended Fluids and
Lubricants"
in the Index for proper lubricant to use):
0
0
0
Locking Differential -- Drain fluid and refill at first
engine oil change. At subsequent oil changes, check
fluid level and add fluid as needed.
If driving in
dusty areas or towing a trailer, drain tluid and refil
every 15,000 miles
(25 000 km).
Standard Differential
-- Check fluid level and add
tluid
as needed at every oil change. If driving in
dusty areas or towing a trailer, drain fluid and refil
every
15,000 miles (25 000 km).
More frequent lubrication may be required
for
heavy-duty or off-road use.
1
1
7-7
Page 353 of 410
I Long Trip/Highway Maintenance Schedule
The services shown in this schedule up to 100,000 miles
( I66 000 km) should be performed after 100,000 miles
( 166 000 km) at the same intervals. The services shown
at
150,000 miles (240 000 km) should be performed at
the same interval after
150,000 miles (240 000 km).
See "Owner Checks and Services" and "Periodic
Maintenance Inspections'' following.
Footnotes
3' The U.S. Environmental Protection Agency 01- the
California Air Resources Board has determined that the
failure to perform this maintenance item
will not nullify
the emission warranty or limit recall liability prior to the
completion
of the vehicle's useful life. We, however,
urge that
all recommended maintenance services be
performed at the indicated intervals and the maintenance
be recorded.
# Lubricate Ihe front suspension, ball joints, steering
linkage and transfer case
shift linkage, parking brake
cable guides, propshaft splines, universal
joints and
brake pedal springs.
+ A good time to check your brakes is during tire
rotation. See "Brake System Inspection'' under "Periodic
Maintenance Inspections"
in Part C of this schedule.
Drive axle service (see "Recommended Fluids and
Lubricants"
in the Index for proper lubricant to use):
0 Locking Differential -- Drain fluid and refill at first
engine oil change.
At subsequent oil changes, check
fluid level and
add fluid as needed.
0 Standard Differential -- Check fluid level and add
fluid as needed at every engine
oil change.
More frequent lubrication may be required for
heavy-duty or off-road use.
7-30
Page 369 of 410
Part B: Owner Checks and Services
Listed below are owner checks and services which
should be performed at the intervals specified
to help
ensure the safety, dependability and emission control
nerft.
- .nance of your vehicle.
~e sure any necessary repairs are completed at once.
Whenever
any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in
Part D.
At Each Fuel Fill
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. See "Engine Oil" in the Index for
further details.
Engine Coolant Level Check
Check the emgine coolant level and add DEX-COOL@
coolant mix if necessary. See "Engine Coolant" in the
Index for further details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid le\:el in the
winclshield washer tank and
acid the proper fluid if
necessary. See "Windshield Washer Fluid" in the Index
for further details.
At Least Once a Month
Tire Inflation Check
Make sure tires are inflated to the correct pressures. See
"Tires"
in the Index for further details.
Cassette Deck Service
Clean cassette deck. Cleaning slwuld be done every
SO hours of tape play. See "Audio Systems" in the
Index
for further details.
7-46
Page 374 of 410

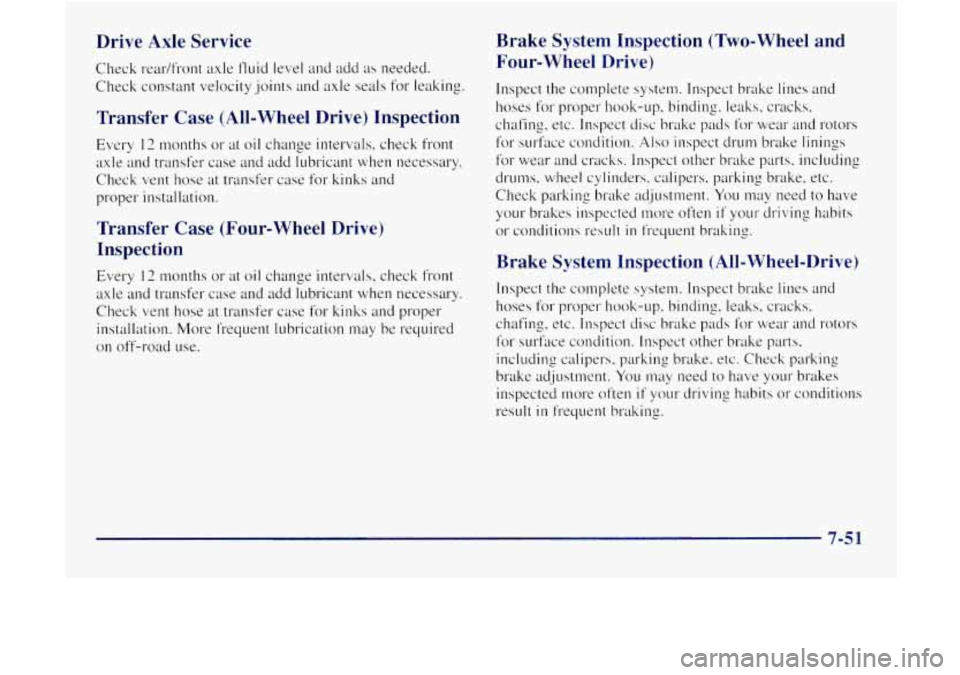

Drive Axle Service
Check rear/front axle fluid le~~el and add as needed.
Check constant velocity .joints and axle seals for leaking.
Transfer Case (All-Wheel Drive) Inspection
Every 12 months or at oil cl~ange intervals. check front
axle and transfer case and add lubricant when necessary.
Check vent hose at transfer case for kinks and
proper installation.
Transfer Case (Four-wheel Drive)
Inspection
Every 12 months or at oil change intervals, check front
axle and transfer case and add lubricant when necessary.
Check vent hose at transfer case for kinks and proper
installation. More frequent lubrication may
be required
on
off-~-oad use.
Brake System Inspection (Two-Wheel and
Four-wheel Drive)
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding. leaks. cracks.
chafing. etc. Inspect disc brake pads for
wear and rotors
for surface condition.
Also inspect drum brake linings
for wear and cracks. Inspect
other brake parts, including
drums.
wl~eel cylinders. calipers. parking brake, etc.
Check parking brake adjustment.
You may need to have
your brakes inspected more often
if your driving habits
or conditions result in freq~~ent braking.
Brake System Inspection (All-Wheel-Drive)
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding. leaks, cracks.
chafing. etc. Inspect disc brake pads for
wear and rotors
for surface condition. Inspect other brake parts,
including calipers. parking brake. etc. Check parking
brake adjustment.
You n~ay need to have your brakes
inspected more often if yo11r driving habits or conditions
result
in freyuent braking.
Page 378 of 410
Part E: Maintenance Record
After the scheduled services are performed, record the
date, odo~neter reading and wlm performed the service
in the boxes provided after the maintenance interval.
Any additional information from "Owner Checks and Services" or
"Periodic Maintenance" can be added
on
the following record pages. Also. you should retain all
maintenance receipts. Your owner information portfolio
is
a convenient place to store them.
~ ~ ~~~~
Maintenance Record - . __
ODOMETER
DATE MAINTENANCE PERFORMED
SERVICED
BY READING
7-55
