GMC JIMMY 2005 Owner's Manual

2. Remove the
underbody-mounted
spare by inserting the
chisel end of the wheel
wrench, on an angle,
into the hoist shaft hole
in the rear bumper.
Be sure the chisel end
of the wheel wrench
connects into the
hoist shaft.
3. Turn the wheel wrench counterclockwise to lower
the spare tire. Keep turning the wheel wrench until
the spare tire has been completely lowered.
4. Tilt the retainer at the end of the cable and pull it
through the wheel opening.
5. Pull the tire out from under the vehicle.
Notice:If you drive away before the spare tire
cable has been reinstalled, you could damage your
vehicle. Always reinstall this cable before driving
your vehicle.
If you have an inside-mounted spare tire, the tire must be
removed in order to have access to the jack storage.To remove an inside-mounted spare tire, reach into your
tire’s cover and unscrew the wing nut at the center of
the wheel. Remove it and the retainer. Unhook the
tire from the mounting bracket and remove the cover.
To remove a rear-mounted spare tire, rst make
sure that the carrier arm is fully-latched to the tailgate.
Then remove the spare tire cover.
If you have this feature,
the locking wheel nut can
be removed by snapping
the rubber weather
cover off the face of the
lock case.
5-69

Insert the key and pull the
lock case straight off. It is
not necessary to turn
the key.
Put the spare tire near the at tire.
The tools you’ll be using include the jack (A) and wheel
wrench (B). Your vehicle may also have an optional
hub cap removal tool.
5-70

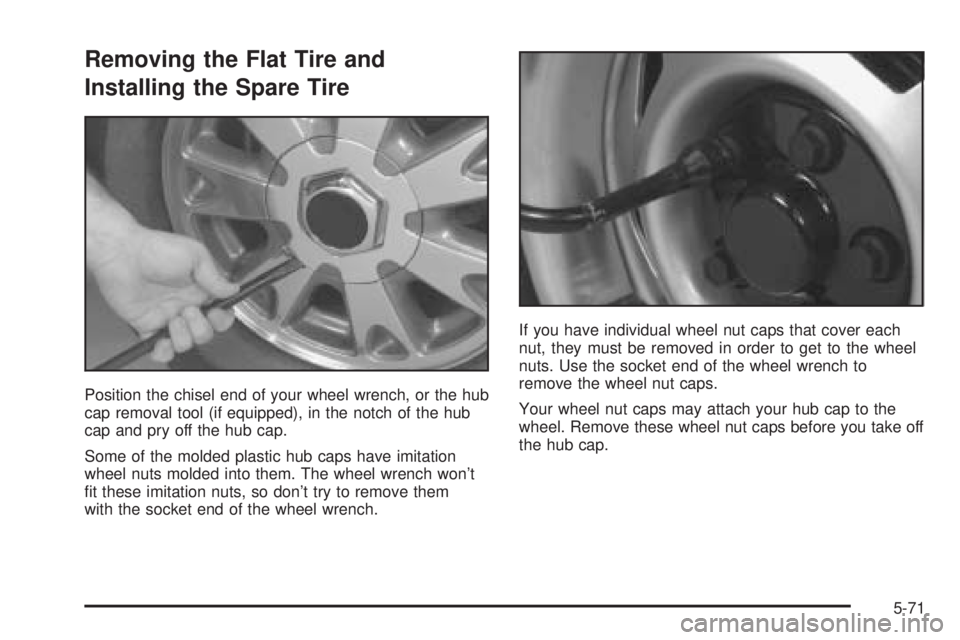

Removing the Flat Tire and
Installing the Spare Tire
Position the chisel end of your wheel wrench, or the hub
cap removal tool (if equipped), in the notch of the hub
cap and pry off the hub cap.
Some of the molded plastic hub caps have imitation
wheel nuts molded into them. The wheel wrench won’t
t these imitation nuts, so don’t try to remove them
with the socket end of the wheel wrench.If you have individual wheel nut caps that cover each
nut, they must be removed in order to get to the wheel
nuts. Use the socket end of the wheel wrench to
remove the wheel nut caps.
Your wheel nut caps may attach your hub cap to the
wheel. Remove these wheel nut caps before you take off
the hub cap.
5-71

1. Using the wheel wrench, loosen all the wheel nuts.
Don’t remove them yet.
2. Turn the jack handle clockwise to raise the
jack lift head.
3. Fit the jack into the appropriate hole nearest
the at tire.A. Front Frame Hole
B. Rear Frame Hole (2-Door) or Spring
Hanger Hole (4-Door)
5-72

{CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack you
could be badly injured or killed. Never get under
a vehicle when it is supported only by a jack.
{CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even
make the vehicle fall. To help avoid personal
injury and vehicle damage, be sure to t the
jack lift head into the proper location before
raising the vehicle.4. Raise the vehicle by turning the jack handle
clockwise. Raise the vehicle far enough off the
ground so there is enough room for the spare tire to
t underneath the wheel well.
5. Remove all the wheel nuts and take off the at tire.
5-73

{CAUTION:
Rust or dirt on the wheel, or on the parts to
which it is fastened, can make the wheel nuts
become loose after a time. The wheel could
come off and cause an accident. When you
change a wheel, remove any rust or dirt from
the places where the wheel attaches to the
vehicle. In an emergency, you can use a cloth
or a paper towel to do this; but be sure to use
a scraper or wire brush later, if you need to, to
get all the rust or dirt off.
6. Remove any rust or dirt
from the wheel bolts,
mounting surfaces
and spare wheel.
7. Place the spare on the wheel mounting surface.
{CAUTION:
Never use oil or grease on studs or nuts.
If you do, the nuts might come loose.
Your wheel could fall off, causing a serious
accident.
8. Put the nuts on by
hand. Make sure the
rounded end is
toward the wheel.
Tighten each nut by hand until the wheel is held against
the hub. If a nut can’t be turned by hand, use the
wheel wrench and see your dealer as soon as possible.
5-74

9. Lower the vehicle by turning the jack handle
counterclockwise. Lower the jack completely.
{CAUTION:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to come loose
and even come off. This could lead to an
accident. Be sure to use the correct wheel
nuts. If you have to replace them, be sure to
get new GM original equipment wheel nuts.
Stop somewhere as soon as you can and have
the nuts tightened with a torque wrench to the
proper torque specication. SeeCapacities
and Specifications on page 5-95for wheel nut
torque specication.
Notice:Improperly tightened wheel nuts can lead
to brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specication. SeeCapacities and
Specifications on page 5-95for the wheel nut torque
specication.
5-75

10. Use the wrench to
tighten the wheel nuts
rmly in a crisscross
sequence as shown.
Storing a Flat or Spare Tire
and Tools
Store the at tire in the same location as
your spare tire.
{CAUTION:
Storing a jack, a tire, or other equipment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision,
loose equipment could strike someone. Store
all these in the proper place.
Notice:An aluminum wheel with a at tire should
always be stored under the vehicle with the
hoist. However, storing it that way for an extended
period could damage the wheel. To avoid this,
have the tire repaired as soon as possible.
5-76

A. Retainer
B. Valve Stem
(Pointed Down)
C. Spare or Flat Tire
D. Spring
E. Wheel Wrench
F. Lower
G. Raise
H. Hoist Arm
To store the underbody-mounted spare, use the
previous diagram along with the directions below.
1. Put the tire on the ground at the rear of the vehicle,
with the valve stem pointed down and to the rear.
2. Pull the retainer through the wheel.
3. Put the chisel end of the wheel wrench, on an
angle, through the hole in the rear bumper and
into the hoist shaft.
4. Raise the tire fully against the underside of the
vehicle by turning the wrench clockwise until you
hear two clicks or feel it skip twice. The spare
tire hoist cannot be overtightened.5. Make sure the tire is stored securely. Push, pull (A),
and then try to rotate or turn (B) the tire. If the tire
moves, use the wheel wrench to tighten the cable.
Follow this diagram for the inside-mounted spare.
5-77

A. Spare or Flat Tire
B. Retainer
C. NutD. Wheel Carrier
E. HookA. Wheel Carrier
B. Spare or Flat Tire
C. Wheel Nut and Locking Nut Cylinder
(If Equipped)
6. Reinstall the locking wheel nut using the wheel
wrench. Then push the lock case onto the lug
nut until it stops. The key does not have to
be inserted into the lock. Push the lock case to be
sure it is secured. The special lug nut and lock
case is not intended to be used on any road wheel,
only on the spare wheel carrier. Inside-Mounted Tire Storage
Rear-Mounted Tire Storage
5-78
