GMC SAFARI 2005 Owner's Manual

Seats and Restraint Systems........................... 1-1
Front Seats
............................................... 1-2
Rear Seats
............................................... 1-6
Safety Belts
.............................................1-12
Child Restraints
.......................................1-33
Airbag System
.........................................1-58
Restraint System Check
............................1-65
Features and Controls..................................... 2-1
Keys
........................................................ 2-2
Doors and Locks
....................................... 2-6
Windows
.................................................2-14
Theft-Deterrent Systems
............................2-15
Starting and Operating Your Vehicle
...........2-16
Mirrors
....................................................2-28
HomeLink
®Transmitter
.............................2-29
Storage Areas
.........................................2-33
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-21
Warning Lights, Gages, and Indicators
........3-25
Driver Information Center (DIC)
..................3-39
Audio System(s)
.......................................3-41Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
...................................................4-32
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
...............5-10
All-Wheel Drive
........................................5-47
Rear Axle
...............................................5-48
Front Axle
...............................................5-49
Bulb Replacement
....................................5-50
Windshield Wiper Blade Replacement
.........5-56
Tires
......................................................5-57
Appearance Care
.....................................5-84
Vehicle Identication
.................................5-93
Electrical System
......................................5-94
Capacities and Specications
...................5-101
Normal Maintenance Replacement Parts
....5-102
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance and Information.............. 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-10
Index................................................................ 1
2005 GMC Safari Owner ManualM

GENERAL MOTORS, GM, the GM Emblem, GMC, the
GMC Truck Emblem, and the name SAFARI are
registered trademarks of General Motors Corporation.
This manual includes the latest information at the time it
was printed. We reserve the right to make changes
after that time without further notice. For vehicles rst
sold in Canada, substitute the name “General Motors
of Canada Limited” for GMC whenever it appears in
this manual.
Keep this manual in the vehicle, so it will be there if it is
needed while you are on the road. If the vehicle is
sold, leave this manual in the vehicle.
Canadian Owners
A French language copy of this manual can be obtained
from your dealer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
How to Use This Manual
Many people read the owner manual from beginning to
end when they rst receive their new vehicle. If this
is done, it can help you learn about the features
and controls for the vehicle. Pictures and words work
together in the owner manual to explain things.
Index
A good place to quickly locate information about the
vehicle is the Index in the back of the manual. It is an
alphabetical list of what is in the manual and the
page number where it can be found.
Litho in U.S.A.
Part No. 05SAFARI A First Edition
©2004 General Motors Corporation. All Rights Reserved.
ii

Safety Warnings and Symbols
There are a number of safety cautions in this book. We
use a box and the word CAUTION to tell about things
that could hurt you if you were to ignore the warning.
{CAUTION:
These mean there is something that could hurt
you or other people.
In the caution area, we tell you what the hazard is.
Then we tell you what to do to help avoid or reduce the
hazard. Please read these cautions. If you do not,
you or others could be hurt.You will also nd a circle
with a slash through it in
this book. This safety
symbol means “Do Not,”
“Do Not do this” or “Do Not
let this happen.”
iii

Vehicle Damage Warnings
Also, in this manual you will nd these notices:
Notice:These mean there is something that could
damage your vehicle.
A notice tells about something that can damage the
vehicle. Many times, this damage would not be covered
by your vehicle’s warranty, and it could be costly. But
the notice will tell what to do to help avoid the damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different colors
or in different words.
There are also warning labels on the vehicle. They use
the same words, CAUTION or NOTICE.
Vehicle Symbols
The vehicle has components and labels that use
symbols instead of text. Symbols are shown along with
the text describing the operation or information
relating to a specic component, control, message,
gage, or indicator.
If you need help guring out a specic name of a
component, gage, or indicator, reference the
following topics:
Seats and Restraint Systems in Section 1
Features and Controls in Section 2
Instrument Panel Overview in Section 3
Climate Controls in Section 3
Warning Lights, Gages, and Indicators in Section 3
Audio System(s) in Section 3
Engine Compartment Overview in Section 5
iv

These are some examples of symbols that may be found on the vehicle:
v

✍NOTES
vi

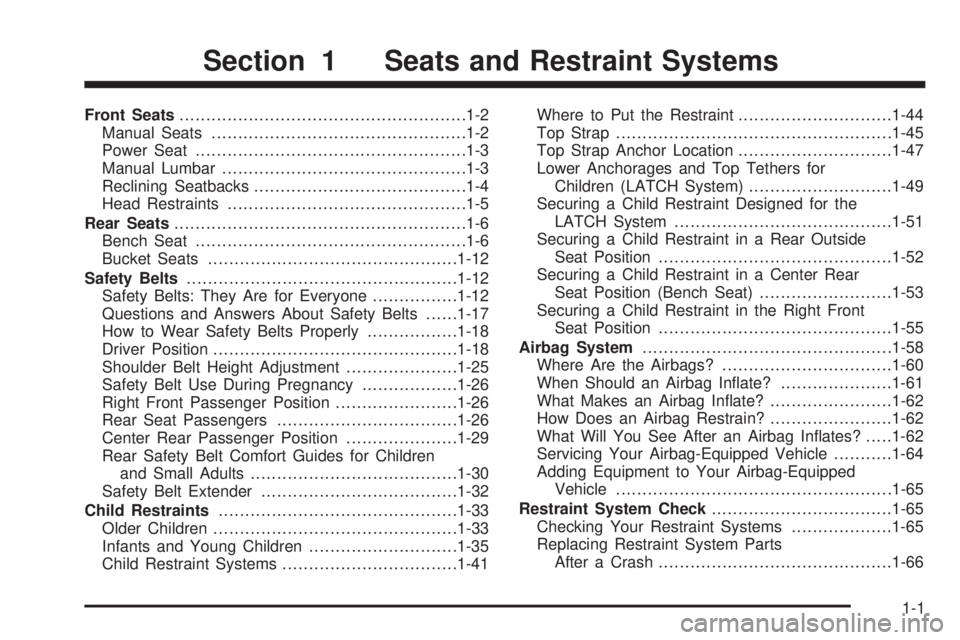

Front Seats......................................................1-2
Manual Seats................................................1-2
Power Seat...................................................1-3
Manual Lumbar..............................................1-3
Reclining Seatbacks........................................1-4
Head Restraints.............................................1-5
Rear Seats.......................................................1-6
Bench Seat...................................................1-6
Bucket Seats...............................................1-12
Safety Belts...................................................1-12
Safety Belts: They Are for Everyone................1-12
Questions and Answers About Safety Belts......1-17
How to Wear Safety Belts Properly.................1-18
Driver Position..............................................1-18
Shoulder Belt Height Adjustment.....................1-25
Safety Belt Use During Pregnancy..................1-26
Right Front Passenger Position.......................1-26
Rear Seat Passengers..................................1-26
Center Rear Passenger Position.....................1-29
Rear Safety Belt Comfort Guides for Children
and Small Adults.......................................1-30
Safety Belt Extender.....................................1-32
Child Restraints.............................................1-33
Older Children..............................................1-33
Infants and Young Children............................1-35
Child Restraint Systems.................................1-41Where to Put the Restraint.............................1-44
Top Strap....................................................1-45
Top Strap Anchor Location.............................1-47
Lower Anchorages and Top Tethers for
Children (LATCH System)...........................1-49
Securing a Child Restraint Designed for the
LATCH System.........................................1-51
Securing a Child Restraint in a Rear Outside
Seat Position............................................1-52
Securing a Child Restraint in a Center Rear
Seat Position (Bench Seat).........................1-53
Securing a Child Restraint in the Right Front
Seat Position............................................1-55
Airbag System...............................................1-58
Where Are the Airbags?................................1-60
When Should an Airbag Inate?.....................1-61
What Makes an Airbag Inate?.......................1-62
How Does an Airbag Restrain?.......................1-62
What Will You See After an Airbag Inates?.....1-62
Servicing Your Airbag-Equipped Vehicle...........1-64
Adding Equipment to Your Airbag-Equipped
Vehicle....................................................1-65
Restraint System Check..................................1-65
Checking Your Restraint Systems...................1-65
Replacing Restraint System Parts
After a Crash............................................1-66
Section 1 Seats and Restraint Systems
1-1

Front Seats
Manual Seats
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.If your vehicle has manual
seats, they can be
adjusted forward or
rearward using the lever
located under the front
of the seat(s).
1. Move the seat adjustment lever toward the outboard
side of the seat to unlock it.
2. Slide the seat to where you want it.
3. Release the lever and try to move the seat with
your body, to make sure that the seat is locked
into place.
1-2

Power Seat
If your vehicle has this feature, there will be controls
located on the inboard side of the driver’s seat.
To raise or lower the front of the seat cushion, raise or
lower the lever located toward the front of the vehicle.
To raise or lower the rear of the seat cushion, raise
or lower the lever located toward the rear of the vehicle.
To move the entire seat backwards, forward, or up or
down, move the center knob.
Manual Lumbar
If your vehicle has this feature, there will be a knob
located on the inboard side of the driver’s and
passenger’s bucket seats.
Turn the knob toward the front of the vehicle to increase
lumbar support. Turn the knob toward the rear of the
vehicle to decrease lumbar support.
1-3

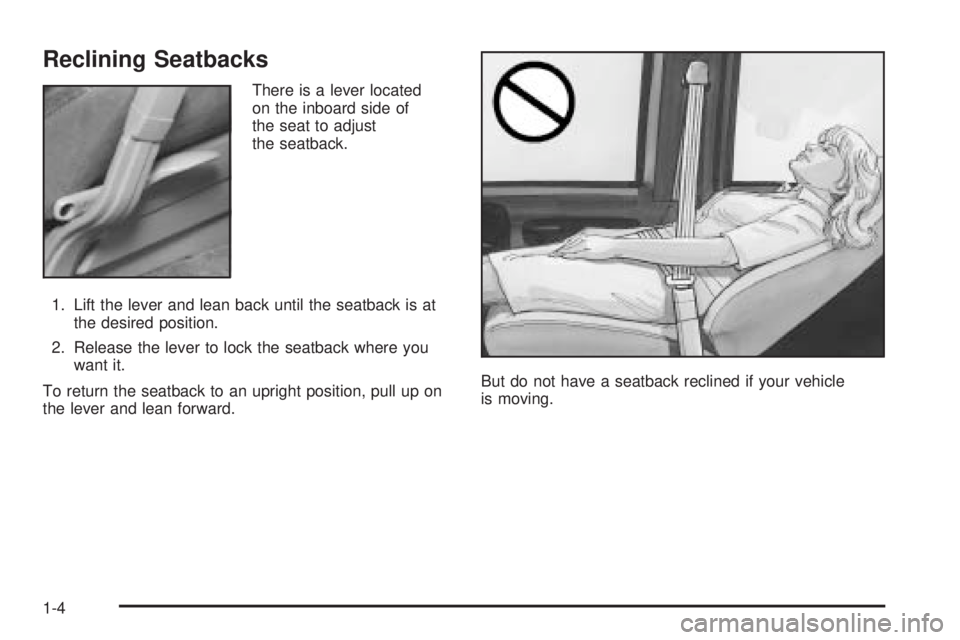

Reclining Seatbacks
There is a lever located
on the inboard side of
the seat to adjust
the seatback.
1. Lift the lever and lean back until the seatback is at
the desired position.
2. Release the lever to lock the seatback where you
want it.
To return the seatback to an upright position, pull up on
the lever and lean forward.But do not have a seatback reclined if your vehicle
is moving.
1-4
