GMC SAVANA 1996 Owners Manual

Checking Brake Fluid
You can check the brake fluid without taking off the cap.
Just
look at the windows on the brake fluid reservoir.
The
fluid levels should be above MIN. If they aren’t,
have your brake system checked
to see if there is a leak.
After work
is done on the brake hydraulic system,
make sure the levels are above
MIN and below the top
of each window.
What to I
When you do need brake fluid, use only DOT-3 brake
fluid
-- such as Delco Supreme 11 @ (GM Part
No. 1052535). Use new brake fluid from a sealed
container only, and always clean the brake fluid
reservoir cap before removing it.
With the wrong kind of fluid in your brake
system, your brakes may not work well, or they
may not even work
at all. This could cause a
crash. Always use the proper brake fluid.
6-27
ProCarManuals.com

Brake Wear
NOTICE:
Using the wrong fluid can badly damage
brake system parts. For example, just a few
drops
of mineral-based oil, such as engine
oil, in your brake system can damage brake
system parts
so badly that they’ll have to be
replaced. Don’t let someone put in the
wrong kind
of fluid.
If you spill brake fluid on your vehicle’s
painted surfaces, the paint finish can be
damaged.
Be careful not to spill brake fluid
on your vehicle. If you do, wash it off
immediately. See “Appearance Care” in
the Index.
Your vehicle has front disc brakes and rear drum brakes.
Disc brake pads have built-in wear indicators that make a
high-pitched warning sound when the brake pads are worn
and new pads are needed.
The sound may come and go or
be heard all the time
your vehicle is moving (except when
you
are pushing on the brake pedal firmly).
L
The brake wear warning sound means that
sooner or later your brakes won’t work well.
That could lead to an accident. When you hear
the brake wear warning sound, have your vehicle serviced.
I NOTICE: I
Continuing to drive with worn-out brake pads
could result
in costly brake repair.
6-28
ProCarManuals.com

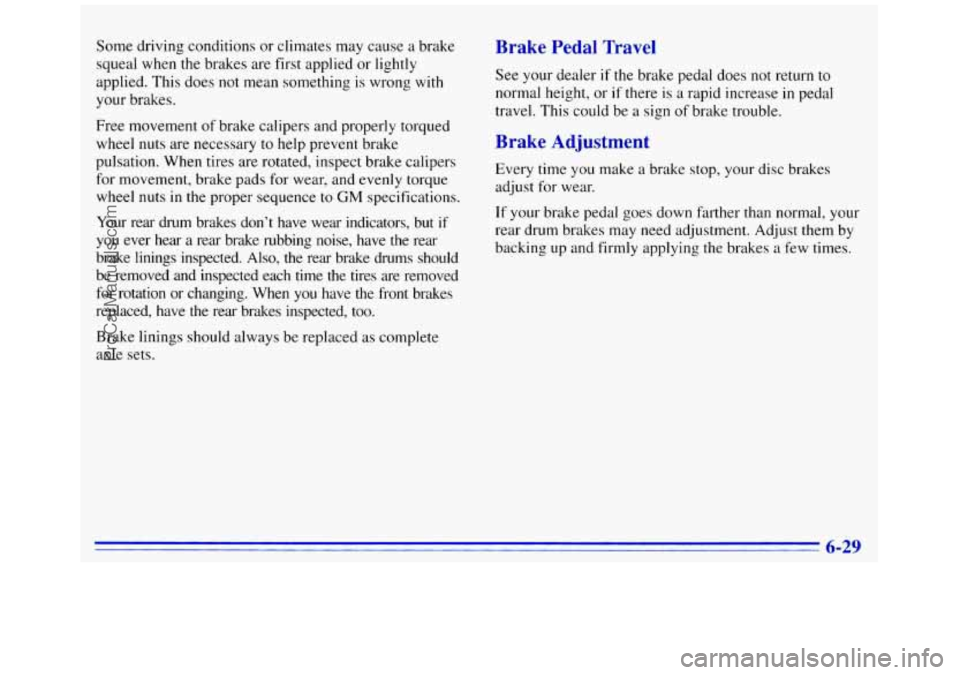

Some driving conditions or climates may cause a brake
squeal when the brakes are first applied or lightly
applied. This does not mean something is wrong with
your brakes.
Free movement
of brake calipers and properly torqued
wheel
nuts are necessary to help prevent brake
pulsation. When tires are rotated, inspect brake calipers
for movement, brake pads for wear, and evenly torque
wheel
nuts in the proper sequence to GM specifications.
Your rear drum brakes don’t have wear indicators, but if
you ever hear
a rear brake rubbing noise, have the rear
brake linings inspected. Also,
the rear brake drums should
be removed and inspected each time the tires are removed
for rotation or changing. When
you have the front brakes
replaced, have
the rear brakes inspected, too.
Brake linings should always be replaced
as complete
axle sets.
:a1 ~ Pedal Travel
see your dealer if the brake pedal does not return to
normal height, or
if there is a rapid increase in pedal
travel. This could be
a sign of brake trouble.
Brake Adjustment
Every time you make a brake stop, your disc brakes
adjust for wear.
If your brake pedal goes down farther than normal, your
rear drum brakes may need adjustment. Adjust them by
backing up and firmly applying the brakes a few times.
6-29
ProCarManuals.com

Replacing Brake System Parts
The braking system on a modern vehicle is complex. Its
many parts have to be of top quality and work well
together
if the vehicle is to have really good braking.
Vehicles we design and test have top-quality
GM brake
parts in them, as your vehicle does when
it is new. When
you replace parts
of your braking system -- for example,
when your brake linings wear down and you have to
have
new ones put in -- be sure you get new genuine
GM replacement parts. If you don’t, your brakes may
no longer work properly. For example, if someone
puts
in brake linings that are wrong for your vehicle,
the balance between your front and rear brakes can
change
-- for the worse. The braking performance
you’ve come to expect can change
in many other ways if
someone puts in the wrong replacement brake parts.
Battery
Every new vehicle has a Delco Freedom@ battery. You
never have to add water to one of these. When it’s time
for a new battery,
we recolnmend a Delco Freedom
battery. Get one that has the replacement number shown
on the original battery’s label.
Vehicle Storage
If you’re not going to drive your vehicle for 25 days
or more, take off the black, negative
(-) cable from
the battery.
This will help keep your battery from
running down.
6-30
ProCarManuals.com

Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if you
aren’t careful. See “Jump Starting” in the Index
for tips on working around a battery without
getting hurt.
Halwen Bulbs
Contact your dealer to learn how to prepare your vehicle
for longer storage periods.
Also, for your audio system, see ”Theft-Deterrent
Feature’’
in the Index.
Bulb Replacement
Before you replace any bulbs, be sure that all the lamps
are
off and the engine isn’t running. See “Replacement
Bulbs”
in the index for the proper types of bulbs to use.
A CAUTIO
Halogen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb. You or
others could be injured. Be sure to read and
follow the instructions on the bulb package.
Headlamps
You have either a sealed beam ‘headlamp system or a
composite system.
6-31
ProCarManuals.com

Sealed Beam Headlamps
1. Remove the four screws from the headlamp retainer.
Pull the retainer out and set it aside.
2. Unplug the lamp assembly from the connector.
3. Install a new headlamp.
4. Reverse Steps 2 through 3 to reinstall the headlamp.
.
6-32
ProCarManuals.com

Composite Headlamps
1. Open the hood.
2. Locate the rear side of each of the headlamps.
3. Without removing the headlamp assembly itself,
remove the bulb assembly from the
back of the
headlamp
on the driver’s side by turning the bulb
counterclockwise one quarter turn.
4. On the passenger side, turn the bulb clockwise
one-quarter turn.
Also, to remove the bulb on the
passenger side,
you will need to move the battery.
5. Install a new bulb. Do not handle the glass part of
the bulb.
6. Reverse Steps 3 through 4 to reinstall the headlamp.
6-33
ProCarManuals.com

Trent Parkinglnrn Signal Lamps
To replace the front parking/turn signal lamps:
2. Remove the lamp from the grille.
1. Remove the outer screws from the parking/turn
signal
lamp lens assembly. (There are either two or
four screws, depending on your vehicle’s trim level.)
6-34
ProCarManuals.com

Sidemarker Lamps
I. Remove the screw from the top of the lens.
6-35
ProCarManuals.com

2. Un-clip the bottom of the lamp from the grille.
3. Remove the bulb by twisting it out of the socket.
Turn
the bulb to remove it. Install the new bulb.
4. Reverse these steps to reinstall the lamp.
Taillamps
1. Open the rear door.
2. Push the socket protector until you can see
the fasteners.
6-36
