GMC SAVANA 1996 Owners Manual

Fuel Tank Capacity
TYPE
Standard Tank
Cutaway Standard Tdnk
Cutaway Optional Tank
All quantities are approximate.
QUANTITY
3 I gallons (I 17.3 L)
35 gallons (132 L)
55 gallons (208.2 L)
Normal Rc --' :ermt Parts
Engine "VORTEC" 4300
VIN W
Oil Filter PFS2
Air Cleaner Filter'l'
A9 17C
PCV Valve CV789C
Spark Plugs
4 1-932
Fuel Filter GF48 1
Radiator Cap RC36 VORTEC"
5000
M
PF1218
A9 17C
cv774c
4 1-932
CF48
1
RC36
'"For severe dusty conditions, use AC Air Filter, Part No. 1236C. "VORTEC"
5700 "VORTEC" 7400
R J
PF1218
PF1218
A9 17C A917C
cv774c cv774c
4 1-932 4 1-932
GF48
1 GF48 I
RC36 RC36
6-67
ProCarManuals.com

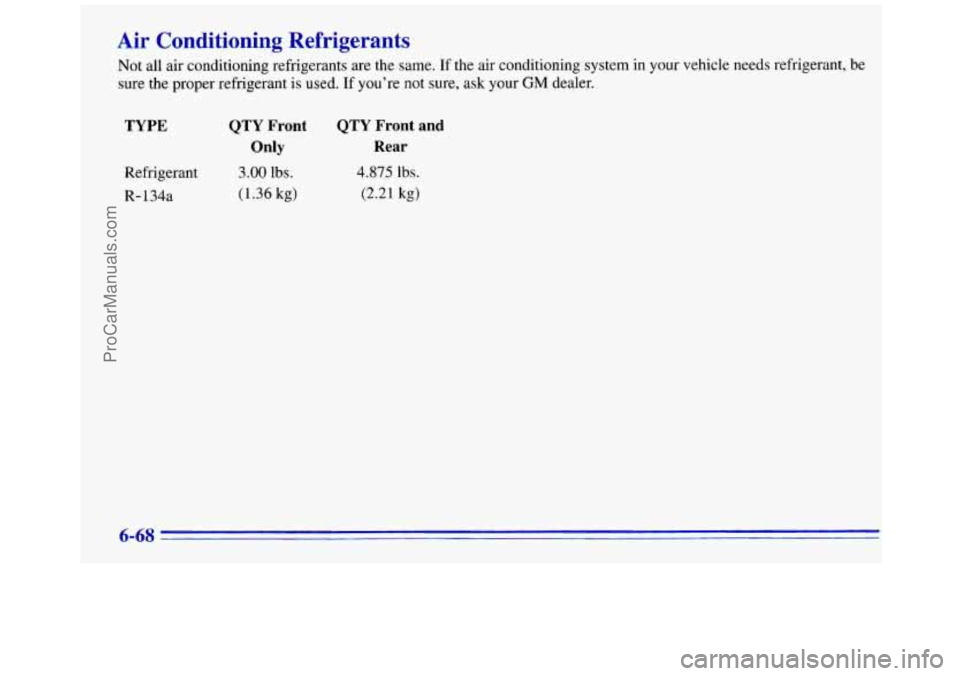

Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same. If the air conditioning system in your vehicle needs refrigerant, be
sure the proper refrigerant
is used. If you’re not sure, ask your GM dealer.
TYPE
Refrigerant
R- 134a
QTY Front QTY Front and
Only Rear
3.00 Ibs. 4.875 lbs.
(1.36 kg) (2.21 kg)
6-68
ProCarManuals.com

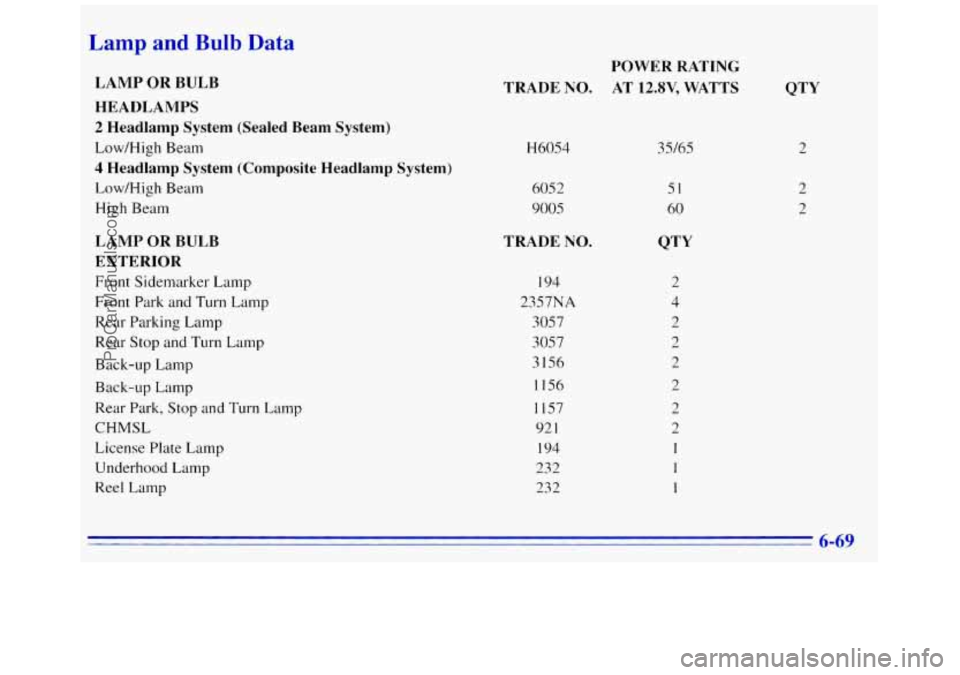

Lamp and Bulb Data
LAMP OR BULB
HEADLAMPS
2 Headlamp System (Sealed Beam System)
Low/High Beam
4 Headlamp System (Composite Headlamp System)
Low/High Beam
High Beam
LAMP OR BULB
EXTERIOR
Front Sidemarker Lamp
Front Park and Turn Lamp
Rear Parking Lamp
Rear Stop and Turn Lamp
Back-up Lamp
Back-up Lamp
Rear Park, Stop and Turn Lamp
CHMSL
License Plate Lamp
Underhood Lamp
Reel Lamp
POWER RATING
TRADE
NO. AT 12.8V, WATTS
H6054
6052
9005
TRADE NO.
194
2357NA
3057
3057
3156
1 IS6
1157
92 1
194
232
232
35/65
51
BO
2
2
2
6-69
ProCarManuals.com

LAMP OR BULB
INTERIOR
Dome Lamps
Reading Lamps
IP Courtesy Lamp
Stepwell Lamp Instrument Panel Compartment Lamp
Ashtray Lamp
Sunshade Vanity Mirror
LAMP OR BULB
INSTRUMENT PANEL
Daytime Running Lamps Indicator
Charging System Indicator Lamp
Instrument Cluster Illumination
Headlamp Beam Indicator
Turn Signal Indicator Brake Warning Indicator
SIR (Air Bag)
Safety Belt Warning
Check Gages Indicator
Malfunction Indicator
("Service Engine Soon") Lamp
TRADE NO.
21 1-2
21 1-2
194
194
194
194 74
TRADE NO.
74
74
194 74
74
74
74
74
74
74
3
6
2
214
1
I
4
1
1
6
1
2
I
I
1
1
1
6-70
ProCarManuals.com

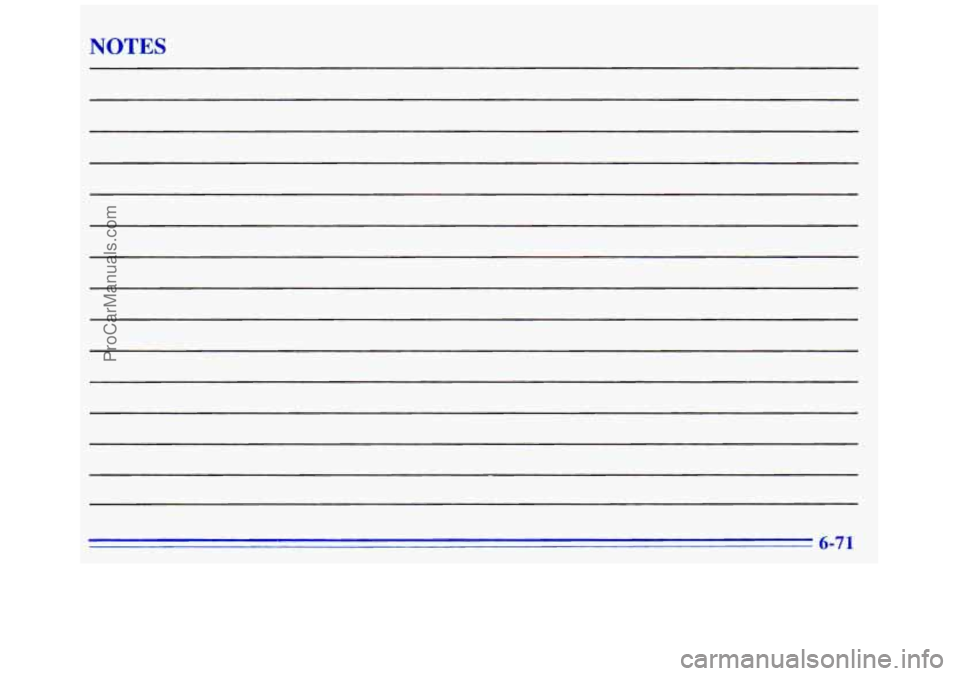

NOTES
ProCarManuals.com

NOTES
6-72
ProCarManuals.com

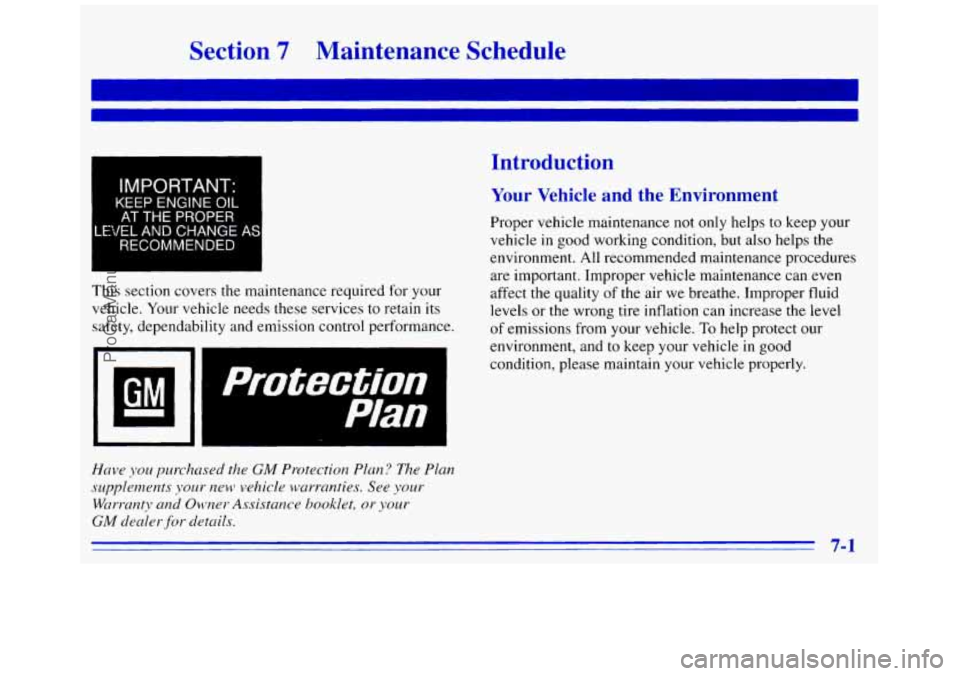

Section 7 Maintenance Schedule
IMPORTANT.
KEEP ENGINE OIL
AT THE PROPER
LEVEL AND CHANGE AS
RECOMMENDED
This section covers the maintenance required for your
vehicle. Your vehicle needs these services to retain its
safety, dependability and emission control performance.
Have you purchased the GM Protection Plan? The Plan
supple~nents your new vehicle warranties. See your
Warranty
and Owner Assistance hooklet, or your
GM deuler for detuils.
Introduction
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle
in good working condition, but also helps the
environment. All recommended maintenance procedures
are important. Improper vehicle maintenance can even
affect the quality
of the air we breathe. Improper fluid
levels or the wrong tire inflation can increase
the level
of emissions from your vehicle. To help protect our
environment, and to keep your vehicle in good
condition, please maintain your vehicle properly.
7-1
ProCarManuals.com

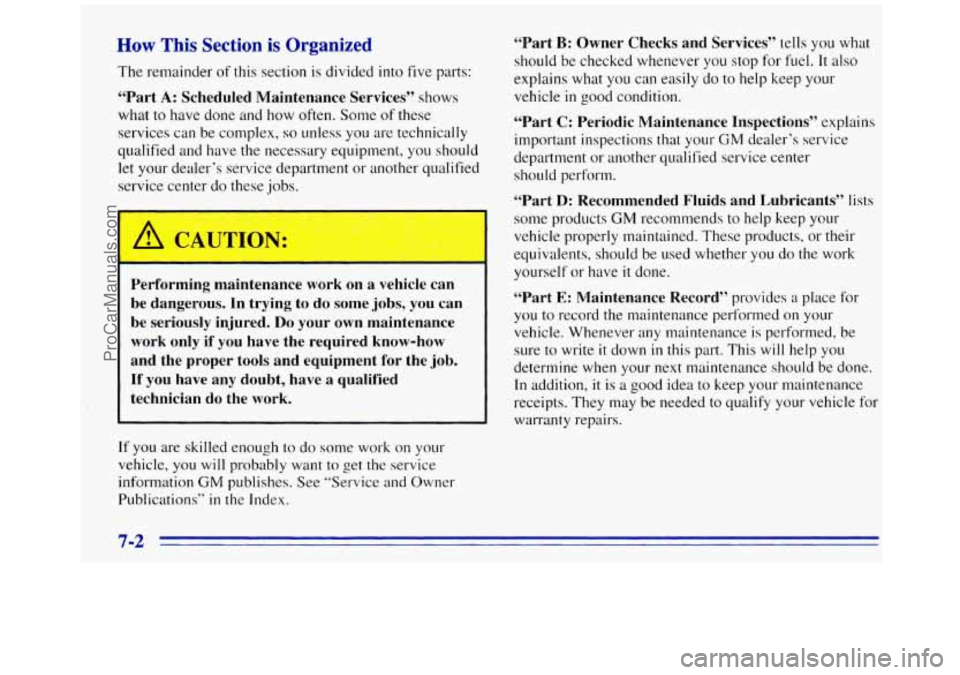

How This Section is Organized
The remainder of this section is divided into five parts:
“Part A: Scheduled Maintenance Services” shows
what to have done and how often. Some
of these
services can be complex,
so unless you are technically
qualified and have
the necessary equipment, you should
let your dealer’s service department or another qualified
service center do these
jobs.
Performing maintenance work on a vehicle can
be dangerous. In trying to do
some jobs, you can
be seriously injured.
Do your own maintenance
work only
if you have the required know-how
and the proper tools and equipment for the
job.
If you have any doubt, have a qualified
technician do the work.
If you are. skilled enough to do some work on your
vehicle, you
will probably want to get the service
information
GM publishes. See “Service and Owner
Publications”
in the Index.
“Part B: Owner Checks and Services” tells you what
should
be checked whenever you stop for fuel. It also
explains what
you can easily do to help keep your
vehicle
in good condition.
“Part C: Periodic Maintenance Inspections” explains
important inspections that your
GM dealer’s service
department or another qualified service center
should perform.
“Part D: Recommended $hias and Lubricants’’ lists
some products GM recommends to help keep your
vehicle properly maintained. These products, or their
equivalents, should be used whether you do the work
yourself or have
it done.
“Part E: Maintenance Record” provides a place for
you to record the maintenance performed on your
vehicle. Whenever any maintenance
is performed, be
sure
to write it down in this part. This will help you
determine when your next maintenance should be done.
In addition, it is a good idea to keep your maintenance
receipts. They may be needed to qualify your vehicle. for
warranty repairs.
7-2
ProCarManuals.com

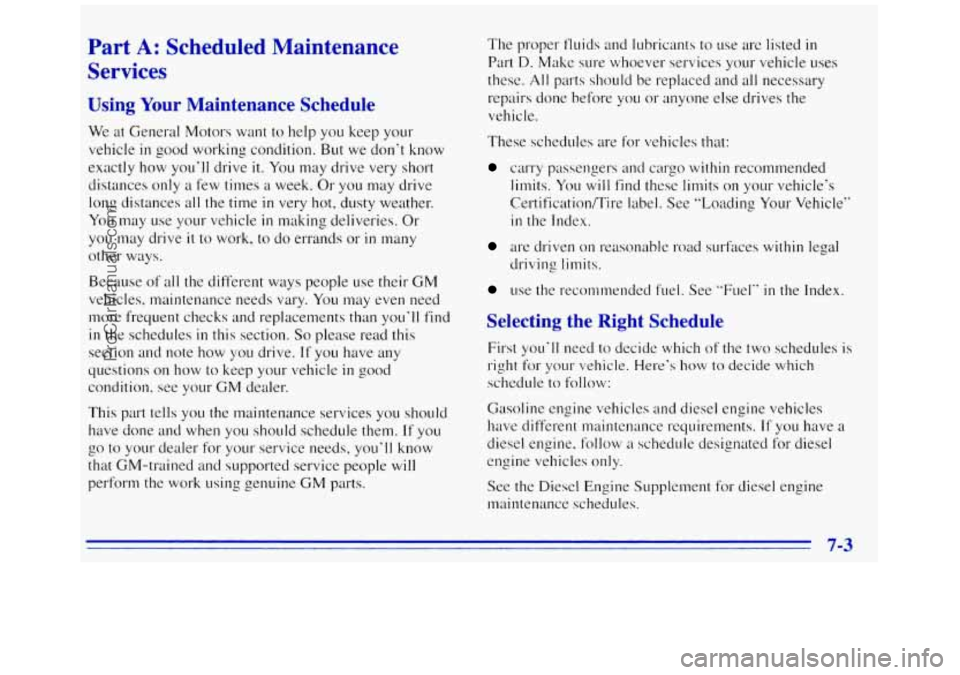

Part A: Scheduled Maintenance
Services
Using Your Maintenance Schedule
We at General Motors want to help you keep your
vehicle
in good working condition. But we don‘t know
exactly how you‘ll drive
it. You may drive very short
distances only
a few times a week. Or you may drive
long distances
all the time in very hot, dusty weather.
You may use your vehicle
in making deliveries. Or
you may drive it to work, to do errands or in many
other ways.
Because of all the different ways people use their GM
vehicles, maintenance needs vary. You may even need
more frequent checks and replacements than you’ll
find
in the schedules in this section. So please read this
section and note how you drive.
If you have any
questions
on how to keep your vehicle in good
condition, see your
GM dealer.
This part tells you the maintenance services you should
have done and when you should schedule them.
If you
go to your dealer for
your service needs, you’ll know
that GM-trained and supported service people
will
perform the work using genuine GM parts. The proper fluids
and lubricants
to use are listed in
Part D. Make sure whoever services your vehicle uses
these.
All parts should be replaced and all necessary
repairs done before you
or anyone else drives the
vehicle.
These schedules are for vehicles that:
carry passengers and cargo within reconmended
limits. You will find these limits on your vehicle’s
Certification/Tire label. See “Loading
Your Vehicle”
in the Index.
are driven on reasonable road surfaces within legal
driving limits.
use the reconmended fuel. See “Fuel“ in the Index.
Selecting the Right Schedule
First you‘ll need to decide which of the two schedules is
right for your vehicle. Here‘s
how to decide which
schedule to follow:
Gasoline engine vehicles and diesel engine vehicles
have different maintenance requirements.
IC you have a
diesel engine.
follow a schedule designated for diesel
engine vehicles only.
See the Diesel Engine Supplement for diesel engine
maintenance schedules.
7-3
ProCarManuals.com

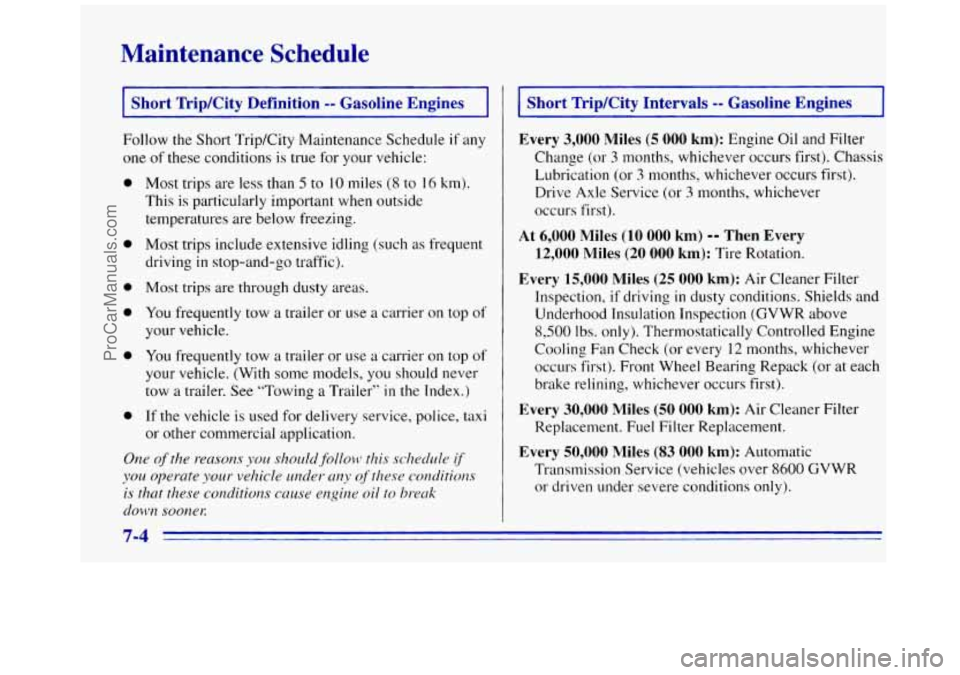

Maintenance Schedule
Short TripKity Definition -- Gasoline Engines i
Follow the Short Trip/City Maintenance Schedule if any
one of these conditions is true for your vehicle:
0
0
0
0
0
e
Most trips are less than 5 to 10 miles (8 to 16 km).
This is particularly important when outside
temperatures are below freezing.
Most trips include extensive idling (such as frequent
driving
in stop-and-go traffic j.
Most trips are through dusty areas.
You frequently tow
a trailer or use a carrier on top of
your vehicle.
You frequently tow
a trailer or us-e a carrier on top of
your vehicle. (With some models, you should never
tow
a trailer. See “Towing a Trailer” in the Index.)
If the vehicle is used for delivery service, police, taxi
or other commercial application.
Short Trip/City Intervals -- Gasoline Engines
Every 3,000 Miles (5 000 km): Engine Oil and Filter
Change (or
3 months, whichever occurs first). Chassis
Lubrication (or
3 months, whichever occurs first).
Drive Axle Service (or
3 months, whichever
occurs first).
At 6,000 Miles (10 000 km) -- Then Every
12,000 Miles (20
000 km): Tire Rotation.
Every 15,000 Miles (25 000 km): Air Cleaner Filter
Inspection,
if driving in dusty conditions. Shields and
Underhood Insulation Inspection (GVWR above
8,500 Ibs. only). Thermostatically Controlled Engine
Cooling Fan Check (or every
12 months, whichever
occurs first). Front Wheel Bearing Repack (or at each
brake relining, whichever occurs first).
Every 30,000 Miles (50 000 km): Air Cleaner Filter
Replacement. Fuel Filter Replacement.
Every 50,000 Miles (83 000 km): Automatic
Transmission Service (vehicles over
8600 GVWR
or driven under severe conditions only).
7-4
