GMC SAVANA 1996 Owners Manual

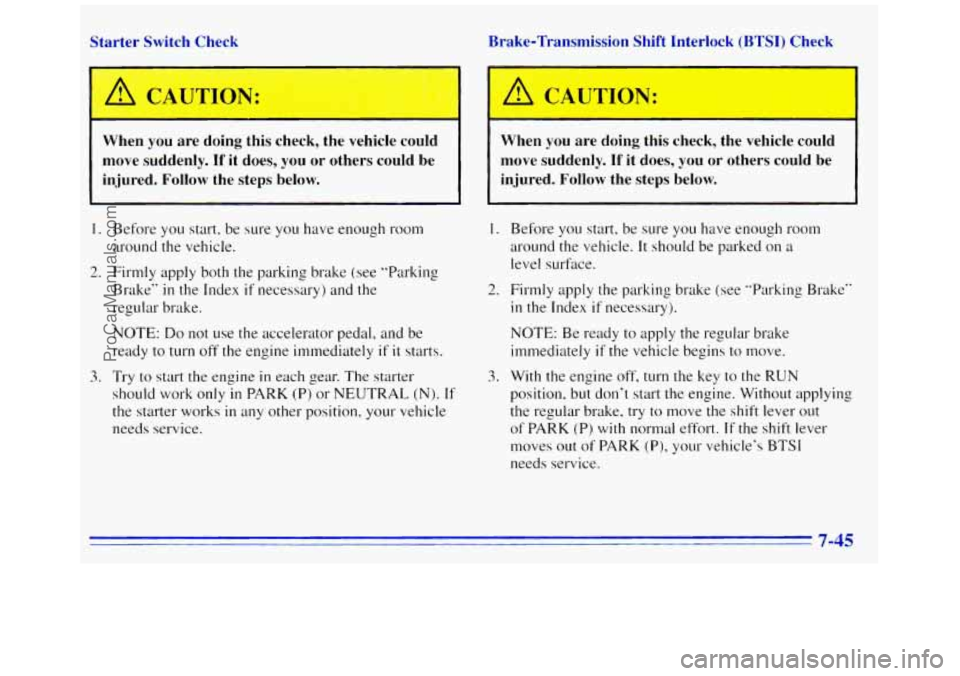

Starter Switch Check
When
you are doing this check, the vehicle could
move suddenly.
If it does, you or others could be
injured. Follow the steps below.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake (see “Parking
Brake”
in the Index if necessary) and the
regular brake.
NOTE:
Do not use the accelerator pedal, and be
ready to
turn off the engine immediately if it starts.
should work only
in PARK (P) or NEUTRAL (N). If
the starter works in any other position, your vehicle
needs service.
3. Try to start the engine in each gear. The starter
Brake-Transmission Shift Interlock (BTSI) Check
When you are doing this check, the vehicle could
move suddenly.
If it does, you or others could be
injured. Follow the steps below.
1.
2.
3.
Before you start, be sure you have enough room
around the vehicle.
It should be parked on a
level surface.
Firmly apply the parking brake (see ”Parking Brake’‘
in the Index if necessary).
NOTE: Be ready to apply the regular brake
immediately
if the vehicle begins to move.
With the engine
off, turn the key to the RUN
position, but don’t start the engine. Without applying
the regular brake.
try to move the shift lever out
of PARK (P)
with normal effort. If the shift lever
moves out of PARK
(P), your vehicle’s BTSI
needs service.
7-45
ProCarManuals.com

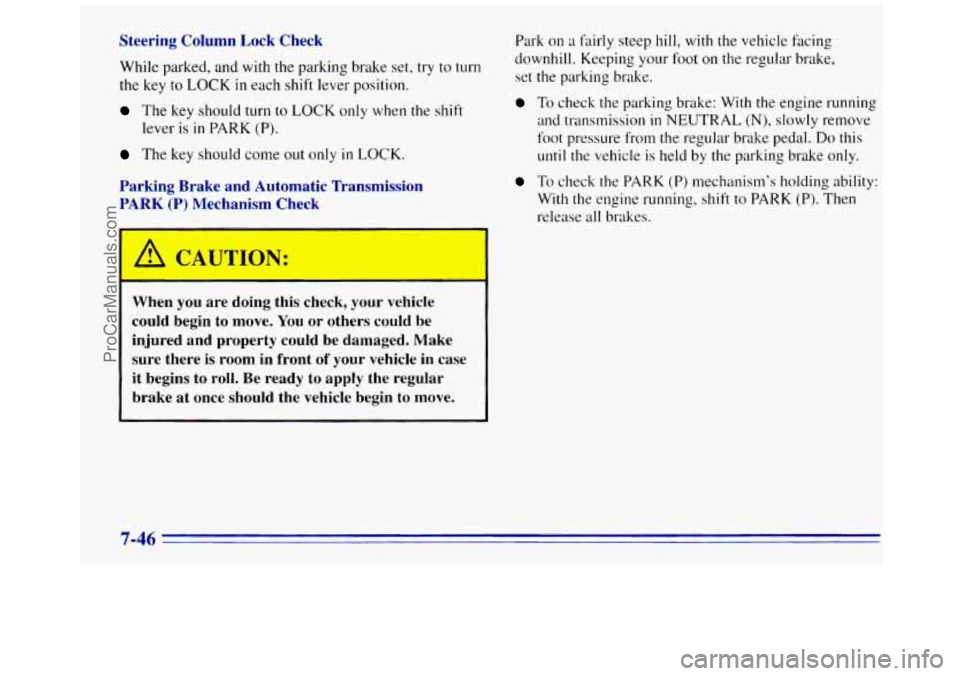

Steering Column Lock Check
While parked, and with the parking brake set, try to turn
the key
to LOCK in each shift lever position.
The key should turn to LOCK only when the shift
lever is
in PARK (P).
The key should come out only in LOCK.
Parking Brake and Automatic Transmission
PARK
(P) Mechanism Check
Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot
on the regular brake,
set the parking brake.
To check the parking brake: With the engine running
and transmission
in NEUTRAL (N), slowly remove
foot pressure from
the regular brake pedal. Do this
until the vehicle is held by the parking brake only.
To check the PARK (P) mechanism’s holding ability:
With the engine running, shift
to PARK (P). Then
release all brakes.
When you are doing this check, your vehicle
could begin to move. You
or others could be
injured and property could be damaged. Make
sure there is room in front of your vehicle in case
it begins to roll. Be ready to apply the regular
~ brake at once should the vehicle begin to move.
~
7-46
ProCarManuals.com

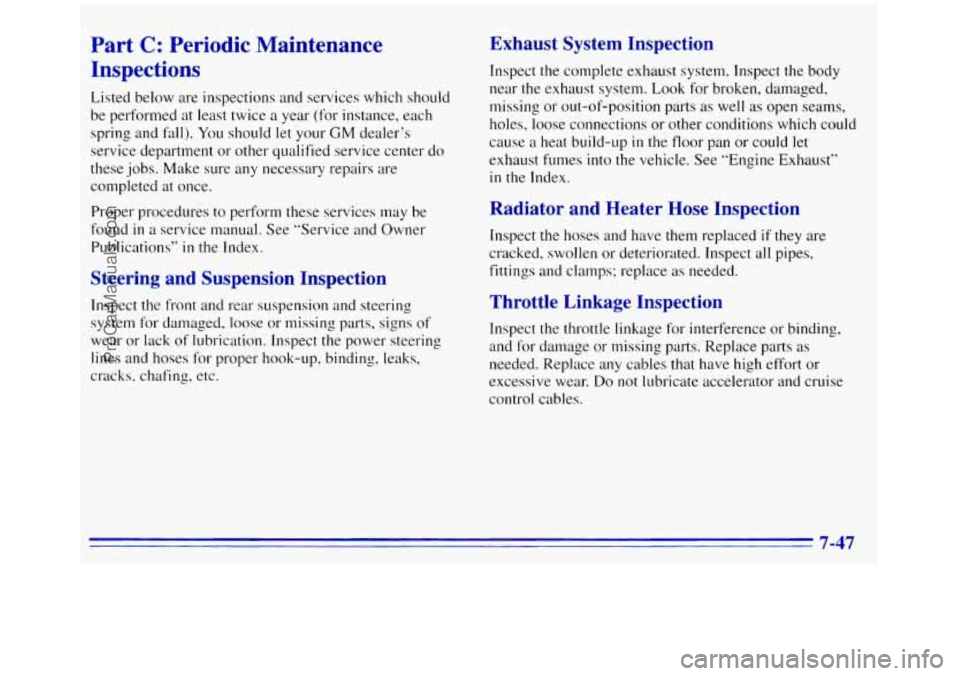

Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed at least twice a year (for instance, each
spring and fall).
You should let your GM dealer’s
service department or other qualified service center do
these
jobs. Make sure any necessary repairs are
completed at once.
Proper procedures to perform these services may be
found
in a service manual. See “Service and Owner
Publications”
in the Index.
Steering and Suspension Inspection
Inspect the front and rear suspension and steering
system for damaged,
loose or missing parts, signs of
wear or lack of lubrication. inspect the power steering
lines and hoses for proper hook-up, binding, leaks,
cracks, chafing, etc.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system. Look for broken, damaged,
missing or out-of-position parts as well as open seams,
holes, loose connections or other conditions which could
cause
a heat build-up in the floor pan or could let
exhaust fumes into the vehicle. See “Engine Exhaust”
in the Index.
Radiator and Heater Hose Inspection
Inspect the hoses and have them replaced if they are
cracked, swollen or deteriorated. Inspect all pipes,
fittings and clamps; replace as needed.
Throttle Linkage Inspection
Inspect the throttle linkage for interference or binding,
and for damage or missing parts. Replace parts as
needed. Replace
any cables that have high effort or
excessive wear. Do not lubricate accelerator and cruise
control cables.
7-47
ProCarManuals.com

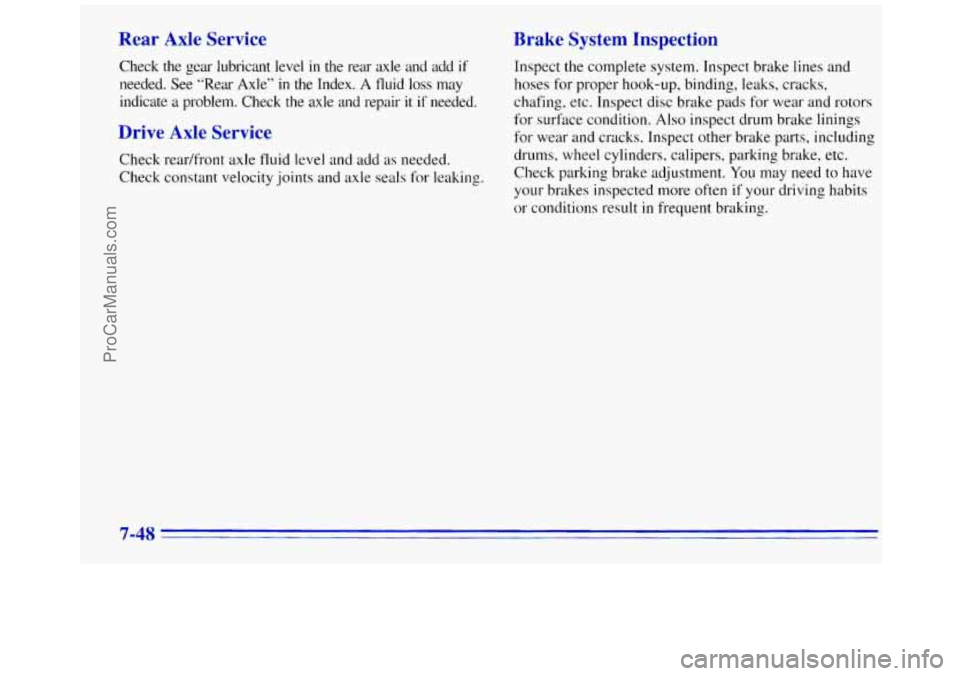

Rear Axle Service
Check t.he gear lubricant level in the rear axle and add if
needed. See ”Rear Axle” in the Index. A fluid loss may
indicate
a problem. Check the axle and repair it if needed.
Drive Axle Service
Check readfront axle fluid level and add as needed.
Check constant velocity joints and axle seals for leaking.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and rotors
for surface condition. Also inspect drum brake linings
for wear and cracks. Inspect other brake parts, including
drums, wheel cylinders, calipers, parking brake, etc.
Check parking brake adjustment.
You may need to have
your brakes inspected more often if your driving habits
or conditions result
in frequent braking.
7-48
ProCarManuals.com

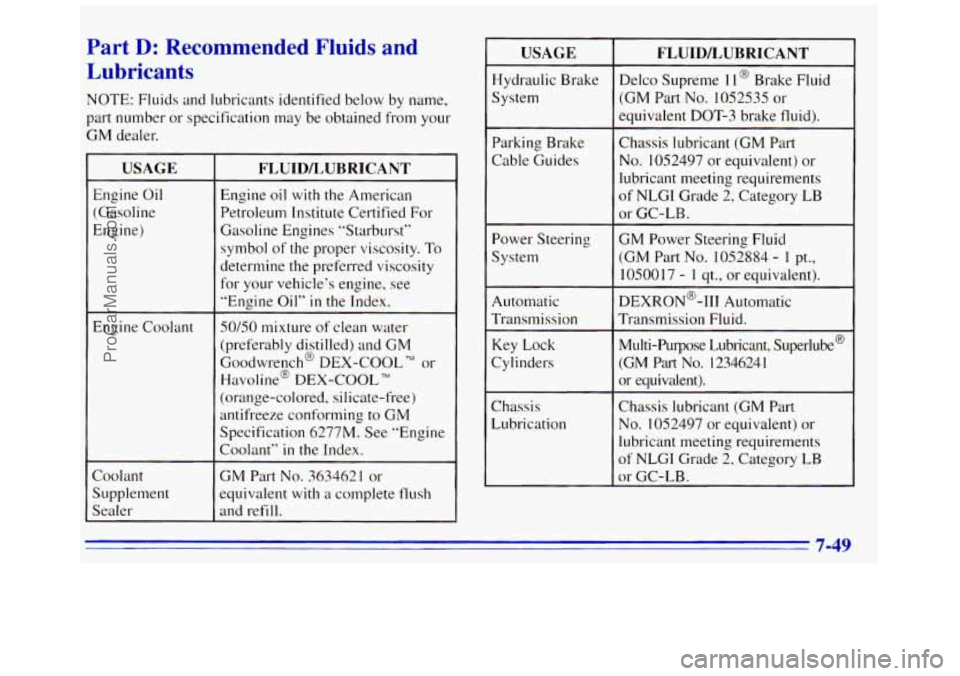

Part D: Recommended Fluids and
Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from your
GM dealer.
USAGE
Engine Oil
(Gasoline
Engine)
Engine Coolant
Coolant
Supplement
Sealer
FLUID/LUBRICANT
~~ ~
~~
Engine oil with the American
Petroleum Institute Certified For
Gasoline Engines “Starburst“
symbol
of the proper viscosity. To
determine the preferred viscosity
for your vehicle’s engine, see
“Engine Oil”
in the Index.
50150 mixture of clean water
(preferably distilled) and GM
Goodwrench@ DEX-COOL
TM or
Havo line@
DEX-COOL TM
(orange-colored, silicate-free)
antifreeze conforming to GM
Specification 6277M. See “Engine
Coolant”
in the Index.
GM Part No. 3634621 or
equivalent with
a complete flush
and refill.
USAGE
Hydraulic Brake
System
Parking Brake
Cable Guides
~~
Power Steering
System
Automatic
Transmission
Key Lock
Cylinders
Chassis
Lubrication
FLUIDLUBRICANT
Delco Supreme 1 1 @ Brake Fluid
(GM Part No. 1052535 or
equivalent DOT-3 brake fluid).
Chassis lubricant (GM Part
No. 1052497 or equivalent) or
lubricant meeting requirements
of NLGI Grade 2, Category LB
or GC-LB.
GM Power Steering Fluid
(GM Part
No. 1052884 - 1 pt.,
1050017
- 1 qt., or equivalent).
DEXRON@-111 Automatic
Transmission
Fluid.
Multi-Purpose Lubricant, Superlube@
(GM
Pd-t No. 1234624 1
or equivalent).
Chassis lubricant
(GM Part
No. 1052497 or equivalent) or
lubricant meeting requirements
of NLGI Grade 2, Category
LB
or GC-LB.
7-49
ProCarManuals.com

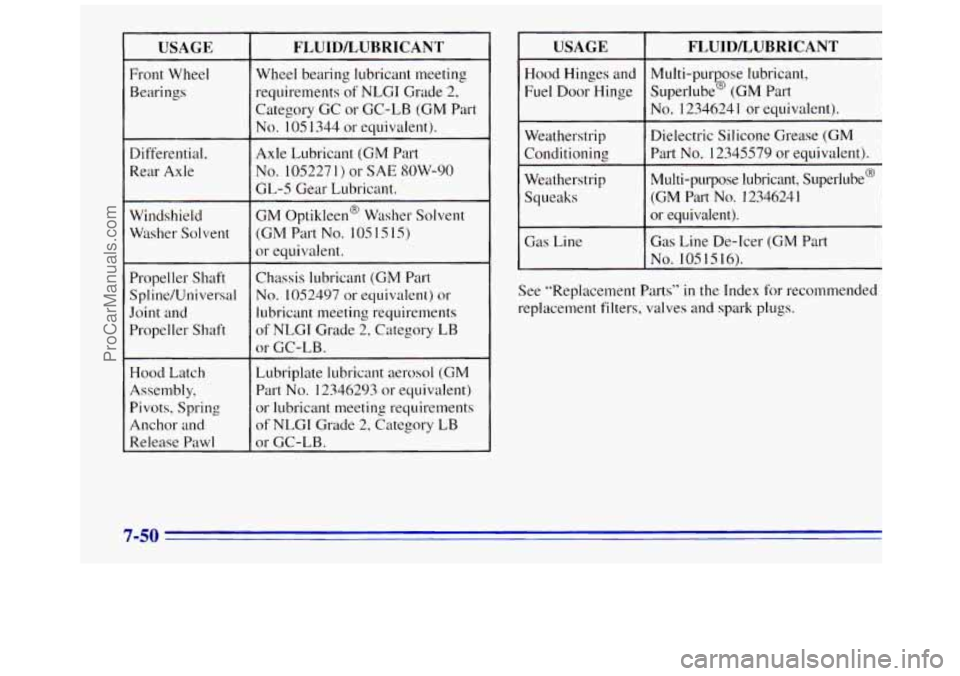

USAGE
Front Whee.1
Bearings
Differmtial,
Rear Axle
-~
Windshield
Washer Solvent
__~ ~~~~
Propeller Shaft
Spline/Universal
Joint
and
Propeller Shaft
Hood Latch
Assembly,
Pivots, Spring
Anchor and
Release
Pawl
FLUIDLUBRICANT
Wheel bearing lubricant meeting
requirements
of NLGI Grade 2,
Category GC or GC-LB
(GM Part
No. 105 1344 or equivalent).
Axle Lubricant (GM Part
GL-5 Gear Lubricant.
GM Optikleen@ Washer Solvent
(GM Part No. 105 15 15)
or equivalent.
Cl~assis lubricant (GM Part
No. 1052497 or equivalent) or
lubricant meeting requirements
of NLGI Grade 2, Category LB
NO. 1052271) o~SAE SOW-90
OT GC-LB.
Lubriplate lubricant aerosol
(GM
Part No. 12346293 or equivalent)
or lubricant meeting requirements
of NLGI Grade
2, Category LB
01- GC-LB.
USAGE FLUIDLLUBRICANT
Hood
Hinges and
Superlube@
(,GM Part
Fuel Door Hinge Multi-purpose lubricant,
No. 1234624 1 or
equivalent).
Weatherstrip
Weatherstrip Part No.
12345579 or equivalent).
Conditioning Dielectric
Silicone Grease
(GM
or equivalent).
(GM Part No. 12346241
Squeaks Multi-purpose lubricant, Superlube@
Gas Line
Gas Line De-Icer (GM Part
No. 1051516).
See “Replacement Parts”
in the Index for recommended
replacement filters, valves
and spark plugs.
7-50
ProCarManuals.com

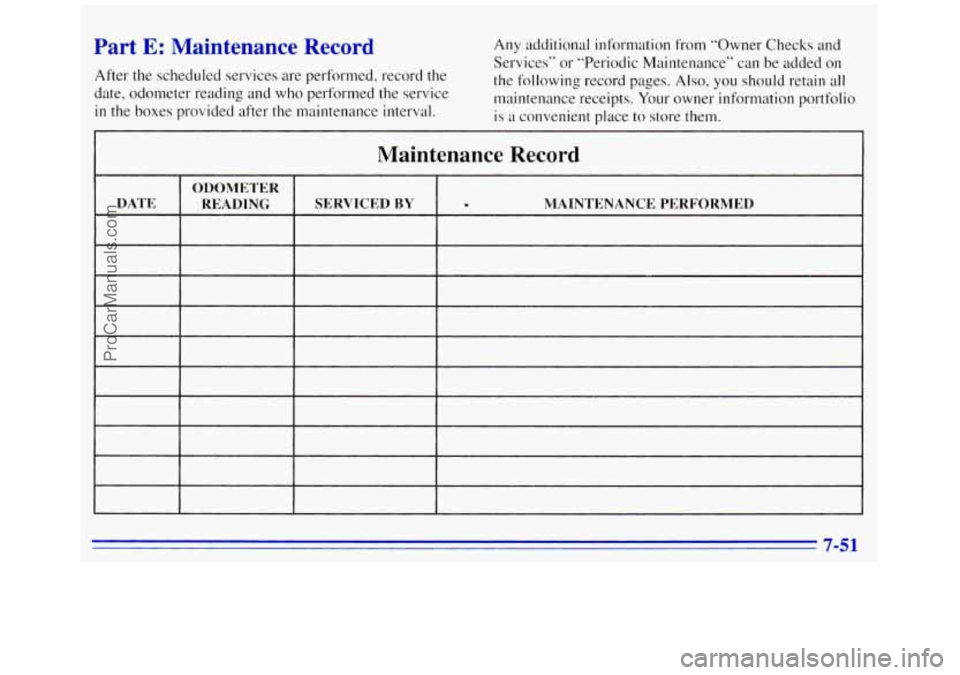

Part E: Maintenance Record
After the scheduled services are performed, record the
date, odometer reading and who performed the service
in the boxes provided after the maintenance interval.
Any additional information from "Owner Checks and
Services" or "Periodic Maintenance" can be added on
the following record pages. Also, you should retain all
maintenance receipts. Your owner information portfolio
is
a convenient place to store them.
7-51
ProCarManuals.com

Maintenance Record
I ODOMETER 1 I
DATE READING SERVICED BY MAINTENANCE PERFORMED
7-52
ProCarManuals.com

Maintenance Record
ODOMETER
DATE READING SERVICED
BY MAINTENANCE PERFORMED
I I I I I
ProCarManuals.com

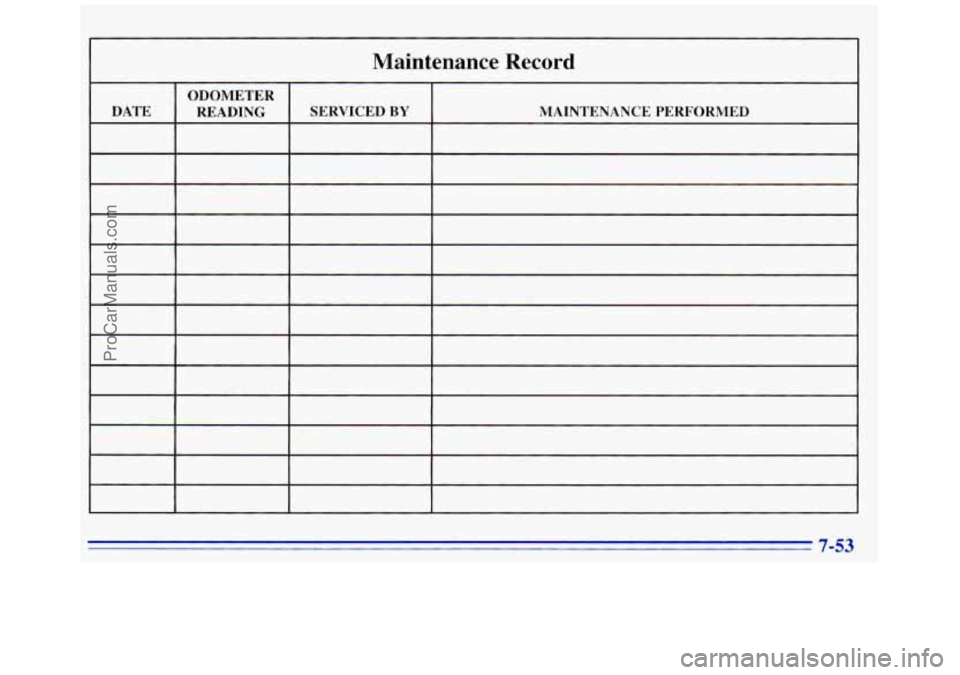

Maintenance Record
ITL I READING I SERVICED BY
ODOMETER MAINTENANCE PERFORMED
I
