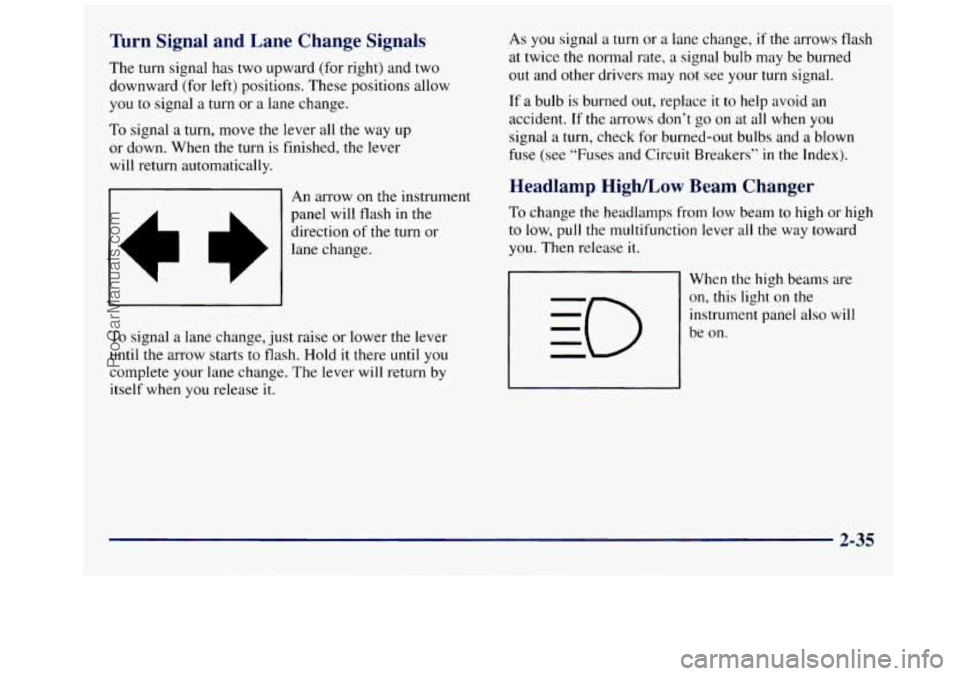

Turn Signal and Lane Change Signals
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow
you to signal a turn or a lane change.
To signal a turn, move the lever all the way up
or down. When the turn is finished, the lever
will return automatically.
&I An arrow on the instrument
II
panel will flash in the
direction
of the turn or
lane change.
I I
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there
until you
complete your lane change. The lever will return by
itself when you release it. As you signal
a turn or a
lane change, if the arrows flash
at twice the normal rate, a signal bulb may be burned
out and other drivers may not see your turn signal.
If a bulb is burned out, replace
it to help avoid an
accident. If the arrows don’t
go on at all when you
signal a turn, check for burned-out bulbs and a blown
fuse (see “Fuses and Circuit Breakers”
in the Index).
Headlamp High/Low Beam Changer
To change the headlamps from low beam to high or high
to low, pull the multifunction lever all the way toward
you. Then release it.
When the high beams are
on, this light on the
instrument panel also will
be
on.
2-35
ProCarManuals.com
Page 199 of 388

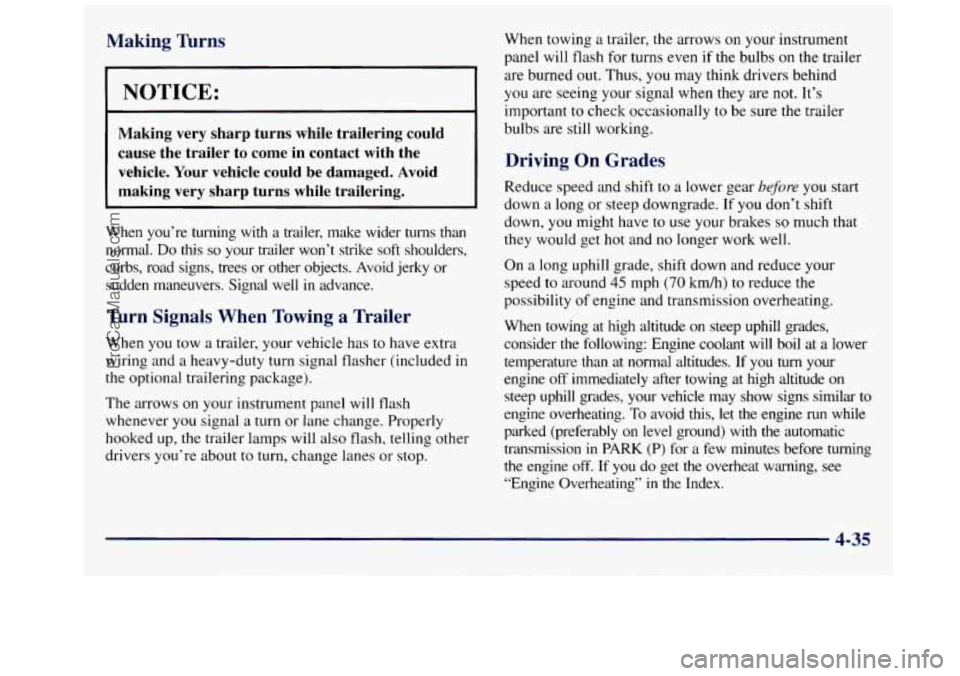

Making Turns
NOTICE:
Making very sharp turns while trailering could cause the trailer to come in contact with the vehicle. Your vehicle could be damaged. Avoid
making very sharp turns while trailering.
When you’re turning with a trailer, make wider turns than
normal.
Do this so your trailer won’t strike soft shoulders,
curbs, road signs, trees or other objects. Avoid jerky or
sudden maneuvers. Signal well
in advance.
Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle has to have extra
wiring and a heavy-duty turn signal flasher (included in
the optional trailering package).
The arrows on your instrument panel will flash
whenever you signal
a turn or lane change. Properly
hooked up, the trailer lamps will also flash, telling other
drivers you’re about
to turn, change lanes or stop. When towing
a trailer,
the arrows on your instrument
panel
will flash for turns even if the bulbs on the trailer
are burned out. Thus, you may think drivers behind
you are seeing your signal when they are not. It’s
important to check occasionally
to be sure the trailer
bulbs are still working.
Driving On Grades
Reduce speed and shift to a lower gear before you start
down a long or steep downgrade. If you don’t shift
down, you might have
to use your brakes so much that
they would get hot and
no longer work well.
On a long uphill grade, shift down and reduce your
speed to around
45 mph (70 km/h) to reduce the
possibility of engine and transmission overheating.
When towing at high altitude on steep uphill grades,
consider the following: Engine coolant will boil at a lower
temperature than at normal altitudes. If you turn your
engine
off immediately after towing at high altitude on
steep uphill grades, your vehicle may show signs similar to
engine overheating.
To avoid this, let the engine run while
parked (preferably
on level ground) with the automatic
transmission
in PARK (P) for a few minutes before turning
the engine off. If you do get
the overheat warning, see
“Engine Overheating” in
the Index.
4-35
ProCarManuals.com
Page 241 of 388
Section 6 Service and Appearance Care
Here you will find information about the care of your vehicle. This section begins with service and fuel information,
and then it shows how to check important fluid and lubricant levels. There is also technical information about your
6-2
6-3
6-5
6-5
6-7
6-8
6- 11
6- 12
6- 16
6-
17
6-2 1
6-2 1
6-24
6-25
6-25
6-26
6-27
6-3
1
vehicle, and a part devoted to its appearance care.
Service
Fuel (Gasoline Engine)
Fuels in Foreign Countries (Gasoline Engines)
Filling Your Tank (Gasoline Engine)
Filling a Portable Fuel Container
Checking Things Under the Hood
Noise Control System Engine Oil (Gasoline Engine)
Air Cleaner (Gasoline Engines)
Automatic Transmission Fluid
Rear Axle
Engine Coolant
Radiator Pressure Cap
Thermostat
Power Steering Fluid
Windshield Washer Fluid
Brakes
Battery
6-32
6-32
6-40
6-4
1
6-5 1
6-5 1
6-55
6-56
6-57
6-57
6-57
6-59
6-60
6-6
1
6-66
6-67
6-69 Bulb
Replacement
Halogen Bulbs
Windshield Wiper Blade Replacement
Tires Appearance Care
Cleaning the Inside
of Your Vehicle
Cleaning the Outside of Your Vehicle
Cleaning Aluminum Wheels (If Equipped)
Cleaning Tires
Sheet Metal Damage
Finish Damage
Appearance Care Materials Chart
Vehicle Identification Number (VJN)
Electrical System
Replacement Bulbs
Capacities and Specifications
Normal Maintenance Replacement Parts
6-1
ProCarManuals.com
Page 272 of 388
I A CAUTION:
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if you
aren’t careful. See “Jump Starting’’ in the Index
for tips on working around a battery without
getting hurt.
Contact your dealer to learn how to prepare
your vehicle
for longer storage periods.
Also, for your audio system, see “Theft-Deterrent
Feature”
in the Index.

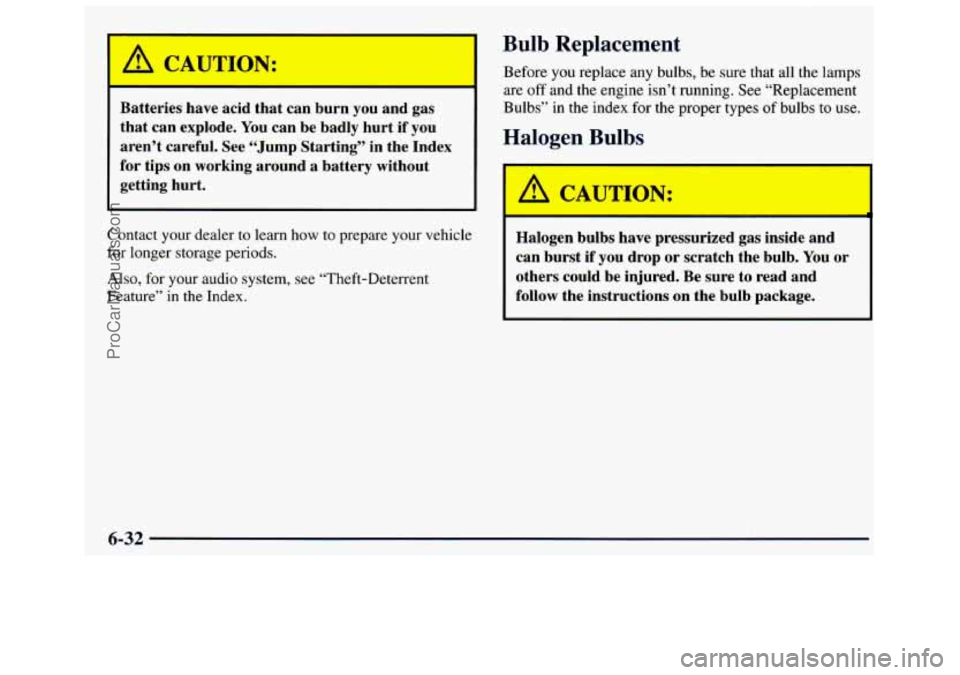

Bulb Replacement
Before you replace any bulbs, be sure that all the lamps
are off and the engine isn’t running. See “Replacement
Bulbs” in the index for the proper types of bulbs to use.
Halogen Bulbs
I A CAUTION:
Halogen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb. You or
others could be injured. Be sure to read and
follow the instructions on the bulb package.
6-32
ProCarManuals.com
Page 274 of 388
Composite Headlamps
1. Open the hood.
2. Locate the rear side of each of the headlamps.
3. Without removing the headlamp assembly itself,
remove the bulb assembly from the back
of the
headlamp on the driver’s side by turning the bulb
to the left one quarter
of a turn.
4. On the passenger’s side, turn the bulb to the right
one quarter
of a turn. Also, to remove the bulb on the
passenger’s side,
you will need to move the battery.
5. Install a new bulb. Do not handle the glass part
of the bulb.
6. Reverse the previous steps to reinstall the headlamp.
ProCarManuals.com
Page 276 of 388
3. Squeeze the tab on the side of the bulb assembly
while turning it to the left. Remove the bulb
assembly from the back
of the lens and replace
the bulb.
Reverse Steps
2 and 3 to replace the bulb. Turn
the socket to the right to replace
it in the lens
assembly. Replace the screws
on the parkingkurn
signal lamp assembly.
Sidemarker Lamps
1. Remove the screw from the top of the lens.
6-36
ProCarManuals.com
Page 277 of 388

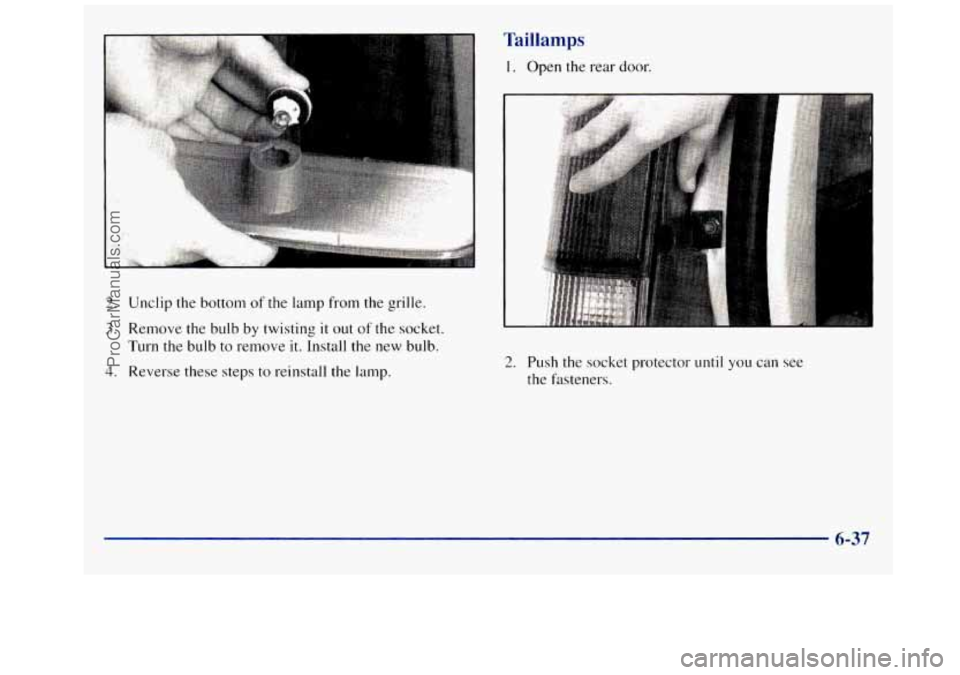

2. Unclip the bottom of the lamp from the grille.
3. Remove the bulb by twisting it out of the socket.
Turn
the bulb to remove it. Install the new bulb.
4. Reverse these steps to reinstall the lamp.
Taillamps
1. Open the rear door.
2. Push the socket protector until you can see
the fasteners.
6-37
ProCarManuals.com
Page 280 of 388
Windshield Wiper
Blade Replacement

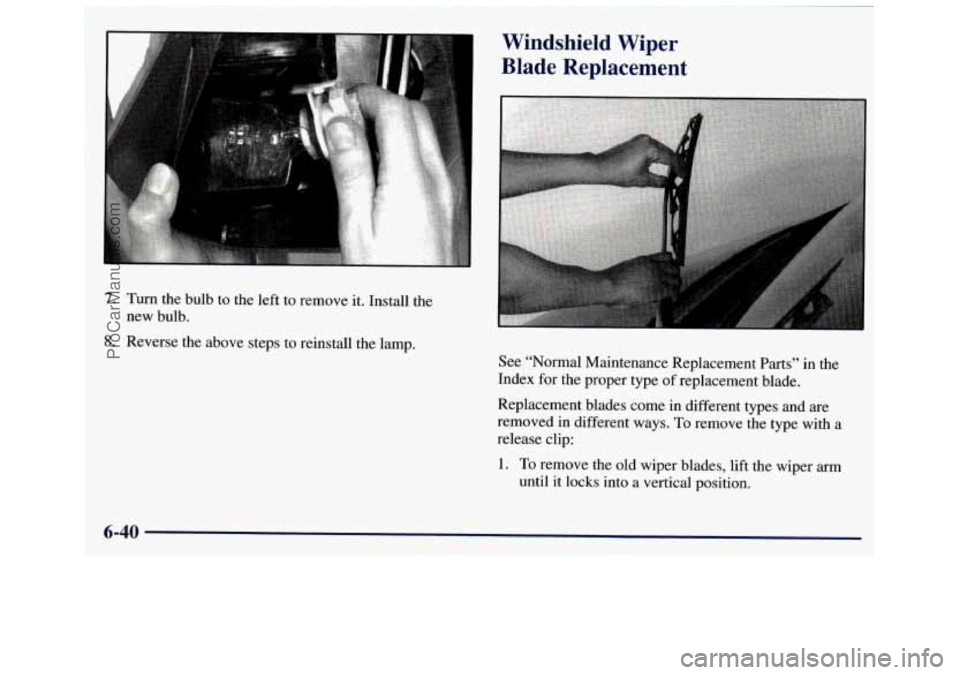

7. Turn the bulb to the left to remove it. Install the
8. Reverse the above steps to reinstall the lamp.
new bulb.
See “Normal Maintenance Replacement Parts” in the
Index for the proper type of replacement blade.
Replacement blades come in different types and are
removed in different ways.
To remove the type with a
release clip:
1. To remove the old wiper blades, lift the wiper arm
until
it locks into a vertical position.
ProCarManuals.com
Page 306 of 388
NAME
RH-HIBM
ECM-I
HORN
LH-HDLP
LH-HIBM
FUEL SOL
IGN-E
ECM-B
CIRCUITS PROTECTED
Right-hand High-beam Headlamp
(Export only)
Ignition Coil, Camshaft Position
Sensor,
VCM, Fuel Injectors, Coil
Driver
Horn Relay, Underhood Lamp( s)
Left-hand Headlamp (Export
only)
Left-hand High-beam Headlamp
(Export only)
PCM,
Fuel Solenoid Driver, Engine
Shutoff Solenoid
Air Conditioning Clutch Relay
Fuel Pump Relay, VCM, PCM, Fuel
Pump and Engine Oil Pressure
Switch
Replacement Bulbs
LAMP OR BULB
Sealed Beam Headlamps
Composite Low-Beam
Headlamps
Composite High-Beam
Headlamps
Front Sidemarker Lamp
Front Parking and Turn Lamp
Rear Parking Lamp
Rear Stop and Turn Lamp
Back- up Lamp
Back-up Lamp
Rear Parking, Stop, and
Turn Lamp
CHMSL
License Plate Lamp
Underhood Lamp
Reel Lamp
Reading Lamps
Sunshade Vanity Mirror
QTY NUMBER
2 H6054
2 6052
2
2
4
2
1
1
1
6
4
9005
194
2357NA
3057
3057
3156
1156 1157
92
1
194
232
232
211-2
74
6-66
ProCarManuals.com
Page 376 of 388

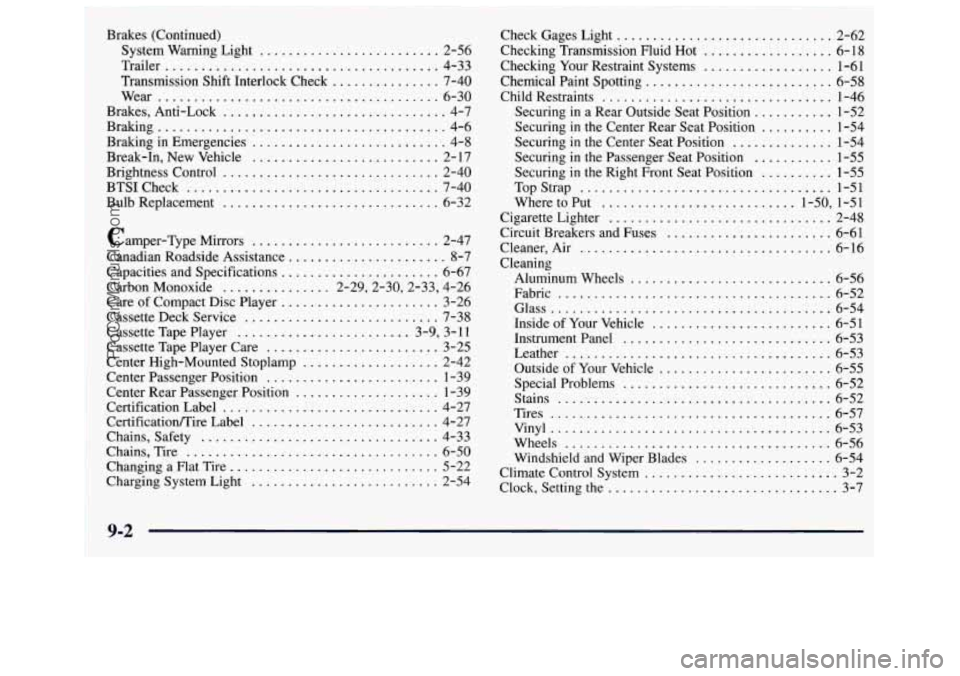

Brakes (Continued) System Warning Light
......................... 2-56
Trailer
...................................... 4-33
Transmission Shift Interlock Check
............... 7-40
Wear
....................................... 6-30
Brakes. Anti-Lock
............................... 4-7
Braking in Emergencies
........................... 4-8
Break-In. New Vehicle
.......................... 2- 17
BTSICheck
................................... 7-40
Braking
........................................ 4-6
Brightness Control
.............................. 2-40
Bulb Replacement
.............................. 6-32
Camper-Type Mirrors
.......................... 2-47
Canadian Roadside Assistance
...................... 8-7
Capacities and Specifications
...................... 6-67
Carbon Monoxide
............... 2.29.2.30.2.33. 4.26
Cassette Deck Service
........................... 7-38
Cassette Tape Player Care
........................ 3-25
Center High-Mounted Stoplamp
................... 2-42
Center Passenger Position
........................ 1-39
Center Rear Passenger Position
.................... 1-39
Certification Label
.............................. 4-27
Certificatioflire Label
.......................... 4-27
Chains. Safety
................................. 4-33
Chains. Tire
................................... 6-50
Changing a Flat Tire
............................. 5-22
Care
of Compact Disc
Player ...................... 3-26
Cassette Tape Player
........................ 3.9. 3. 11
Charging System Light
.......................... 2-54 Check Gages
Light
.............................. 2-62
Checking Transmission Fluid Hot
.................. 6-18
Checking Your Restraint Systems
.................. 1-61
Chemical Paint Spotting
.......................... 6-58
Child Restraints
................................ 1-46
Securing
in a Rear Outside Seat Position ........... 1-52
Securing
in the Center Rear Seat Position .......... 1-54
Securing
in the Center Seat Position .............. 1-54
Securing in the Passenger Seat Position
........... 1-55
Securing in the Right Front Seat Position .......... 1-55
TopStrap
................................... 1-51
Where to Put
........................... 1-50. 1-51
Circuit Breakers and Fuses
....................... 6-61
Cleaner. Air
................................... 6-16
Cleaning Aluminum Wheels
............................ 6-56
Fabric
...................................... 6-52
Glass ....................................... 6-54
Inside
of Your Vehicle ......................... 6-51
Instrumentpanel
............................. 6-53
Leather
..................................... 6-53
Outside of Your Vehicle ........................ 6-55
Special Problems
............................. 6-52
Stains
...................................... 6-52
Tires
....................................... 6-57
Wheels
..................................... 6-56
Windshield and Wiper Blades
................... 6-54
Climate Control System
........................... 3-2
Clock. Setting the ................................ 3-7
Cigarette Lighter ............................... 2-48
Vinyl
....................................... 6-53
9-2
ProCarManuals.com
