Page 61 of 452

{CAUTION:
Children can be seriously injured or
strangled if a shoulder belt is wrapped
around their neck and the safety belt
continues to tighten. Secure any unused
safety belts behind the child restraint so
children cannot reach them. Pull the
shoulder belt all the way out of the
retractor to set the lock, if your vehicle
has one, after the child restraint has
been installed. Be sure to follow the
instructions of the child restraint
manufacturer.
Notice:Contact between the child restraint or
the LATCH attachment parts and the vehicle’s
safety belt assembly may cause damage to
these parts. Make sure when securing unused
safety belts behind the child restraint that
there is no contact between the child restraint
or the LATCH attachment parts and the
vehicle’s safety belt assembly.Folding an empty rear seat with the safety
belts secured may cause damage to the safety
belt or the seat. When removing the child
restraint, always remember to return the safety
belts to their normal, stowed position before
folding the rear seat.
1. Attach and tighten the lower attachments to
the lower anchors. If the child restraint does
not have lower attachments or the desired
seating position does not have lower anchors,
secure the child restraint with the top tether
and the safety belts. Refer to your child
restraint manufacturer instructions and the
instructions in this manual.
1.1. Find the lower anchors for the desired
seating position.
1.2. Put the child restraint on the seat.
1.3. Attach and tighten the lower
attachments on the child restraint to
the lower anchors.
61
Page 62 of 452

2. If the child restraint manufacturer recommends
that the top tether be attached, attach and
tighten the top tether to the top tether anchor,
if equipped. Refer to the child restraint
instructions and the following steps:
2.1. Find the top tether anchor.
2.2. For the second row only, in the left
outboard seating position, use anchor
point (A). For the right outboard seating
position, use anchor point (B). For
the center seating position, use either
anchor point (A) or (B). Never install
two top tethers using the same
top tether anchor.2.3. Route and tighten the top tether
according to your child restraint
instructions and the following
instructions:
If the position you
are using does not
have a head restraint
and you are using
a single tether, route
the tether over the
seatback.
If the position you
are using does not
have a head restraint
and you are using
a dual tether, route
the tether over
the seatback.
62
Page 63 of 452

If the position you are
using has an integrated
headrest and you
are using a dual tether,
route the tether
around the headrest.
If the position you are
using has an integrated
headrest and you
are using a single
tether, route the tether
over the headrest.
3. Push and pull the child restraint in different
directions to be sure it is secure.Securing a Child Restraint in a
Rear Outside Seat Position or the
Second Row Center Seat Position
If your child restraint has the LATCH system, see
Lower Anchors and Tethers for Children (LATCH)
on page 54.
For vehicles with a third, fourth, or fifth row, there
are no top tether anchors in the rear outside seat
positions of the third, fourth, or fifth row. Do not
secure a child seat in these positions if a national or
local law requires that the top tether be anchored,
or if the instructions that come with the child
restraint say that the top tether must be anchored.
If your child restraint does not have the LATCH
system, you will be using the lap-shoulder belt to
secure the child restraint in this position. Be
sure to follow the instructions that came with the
child restraint. Secure the child in the child restraint
when and as the instructions say.
1. Put the child restraint on the seat.
2. Pick up the latch plate, and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.
63
Page 64 of 452

3. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.4. Pull the rest of the shoulder belt all the way
out of the retractor to set the lock.
64
Page 65 of 452

5. To tighten the belt, pull the shoulder portion of
the belt to tighten the lap portion of the belt
and feed the shoulder belt back into the
retractor. If you are using a forward-facing
child restraint, you may find it helpful to
use your knee to push down on the child
restraint as you tighten the belt.6. If your child restraint manufacturer
recommends using a top tether and the
position you are using has a top tether anchor,
attach and tighten the top tether to the
top tether anchor. Refer to the instructions
that came with the child restraint and toLower
Anchors and Tethers for Children (LATCH)
on page 54.
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, if the top tether is
attached to the top tether anchor, disconnect
it. Unbuckle the vehicle’s safety belt and let it
go back all the way. The safety belt will move
freely again and be ready to work for an adult or
larger child passenger. When the safety belt is
not in use, slide the latch plate up the safety belt
webbing. The latch plate should rest on the
stitching on the safety belt, near the guide loop
on the side wall.
65
Page 66 of 452

Securing a Child Restraint in a
Center Seat Position
(3rd, 4th, and 5th Row)
If your child restraint has the LATCH system, see
Lower Anchors and Tethers for Children (LATCH)
on page 54.
There are no top strap anchors in any
four-passenger bench seat positions, if your
vehicle has this type of seat. Do not secure a child
seat in these positions if a national or local law
requires that the top strap must be anchored.
If your child restraint does not have the LATCH
system, you will be using the lap belt to secure
the child restraint in this position.
Be sure to follow the instructions that came with
the child restraint. Secure the child in the child
restraint when and as the instructions say.1. Make the belt as long as possible by tilting
the latch plate and pulling it along the belt.
2. Put the child restraint on the seat.
3. Run the vehicle’s safety belt through or
around the restraint. The child restraint
instructions will show you how.
66
Page 67 of 452

4. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.
5. To tighten the belt, pull its free end while you
push down on the child restraint. If you are
using a forward-facing child restraint, you may
find it helpful to use your knee to push down on
the child restraint as you tighten the belt.6. If your child restraint manufacturer
recommends using a top tether and the
position you are using has a top tether anchor,
attach and tighten the top tether to the top
tether anchor. Refer to the instructions
that came with your child restraint and to
Lower Anchors and Tethers for Children
(LATCH) on page 54.
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, if the top tether is
attached to the top tether anchor, disconnect
it. Unbuckle the vehicle’s safety belt. It will
be ready to work for an adult or larger child
passenger.
67

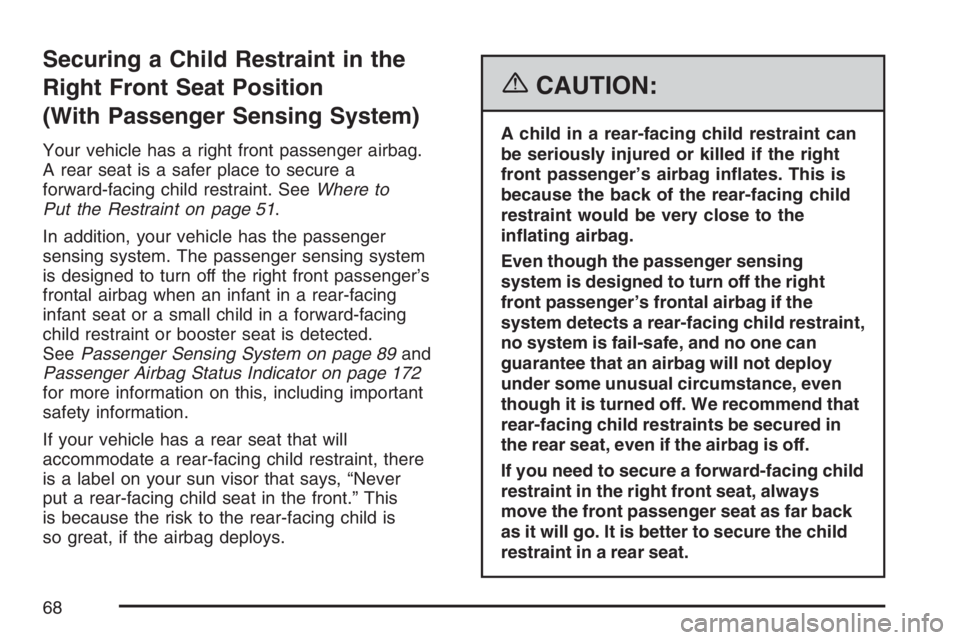

Page 68 of 452

Securing a Child Restraint in the
Right Front Seat Position
(With Passenger Sensing System)
Your vehicle has a right front passenger airbag.
A rear seat is a safer place to secure a
forward-facing child restraint. SeeWhere to
Put the Restraint on page 51.
In addition, your vehicle has the passenger
sensing system. The passenger sensing system
is designed to turn off the right front passenger’s
frontal airbag when an infant in a rear-facing
infant seat or a small child in a forward-facing
child restraint or booster seat is detected.
SeePassenger Sensing System on page 89and
Passenger Airbag Status Indicator on page 172
for more information on this, including important
safety information.
If your vehicle has a rear seat that will
accommodate a rear-facing child restraint, there
is a label on your sun visor that says, “Never
put a rear-facing child seat in the front.” This
is because the risk to the rear-facing child is
so great, if the airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag in ates. This is
because the back of the rear-facing child
restraint would be very close to the
in ating airbag.
Even though the passenger sensing
system is designed to turn off the right
front passenger’s frontal airbag if the
system detects a rear-facing child restraint,
no system is fail-safe, and no one can
guarantee that an airbag will not deploy
under some unusual circumstance, even
though it is turned off. We recommend that
rear-facing child restraints be secured in
the rear seat, even if the airbag is off.
If you need to secure a forward-facing child
restraint in the right front seat, always
move the front passenger seat as far back
as it will go. It is better to secure the child
restraint in a rear seat.
68

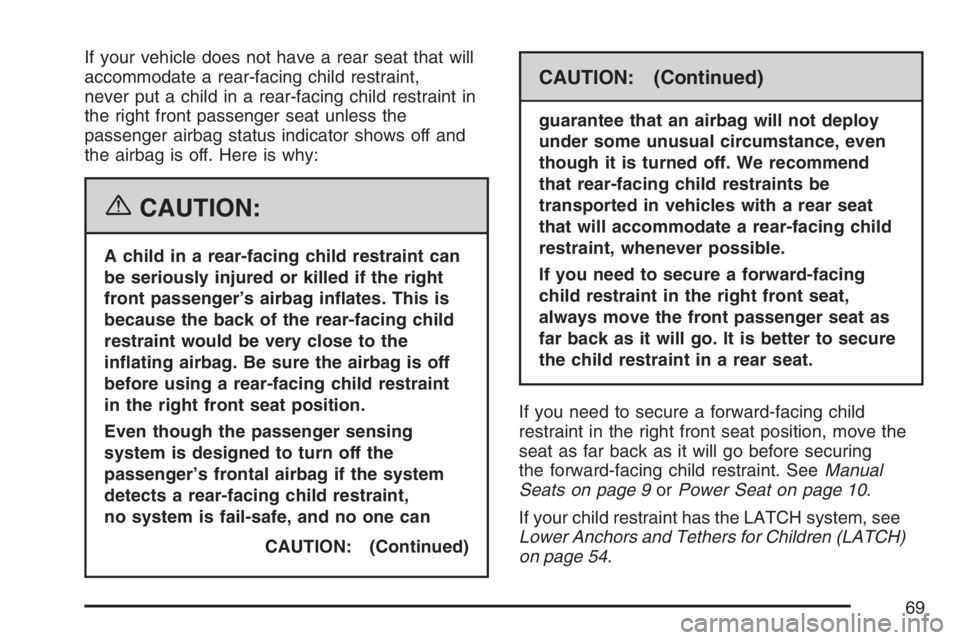

Page 69 of 452

If your vehicle does not have a rear seat that will
accommodate a rear-facing child restraint,
never put a child in a rear-facing child restraint in
the right front passenger seat unless the
passenger airbag status indicator shows off and
the airbag is off. Here is why:
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag in ates. This is
because the back of the rear-facing child
restraint would be very close to the
in ating airbag. Be sure the airbag is off
before using a rear-facing child restraint
in the right front seat position.
Even though the passenger sensing
system is designed to turn off the
passenger’s frontal airbag if the system
detects a rear-facing child restraint,
no system is fail-safe, and no one can
CAUTION: (Continued)
CAUTION: (Continued)
guarantee that an airbag will not deploy
under some unusual circumstance, even
though it is turned off. We recommend
that rear-facing child restraints be
transported in vehicles with a rear seat
that will accommodate a rear-facing child
restraint, whenever possible.
If you need to secure a forward-facing
child restraint in the right front seat,
always move the front passenger seat as
far back as it will go. It is better to secure
the child restraint in a rear seat.
If you need to secure a forward-facing child
restraint in the right front seat position, move the
seat as far back as it will go before securing
the forward-facing child restraint. SeeManual
Seats on page 9orPower Seat on page 10.
If your child restraint has the LATCH system, see
Lower Anchors and Tethers for Children (LATCH)
on page 54.
69
Page 70 of 452

You will be using the lap-shoulder belt to secure
the child restraint in this position. Be sure to follow
the instructions that came with the child restraint.
Secure the child in the child restraint when and as
the instructions say.
1. Your vehicle has a right front passenger’s
frontal airbag. SeePassenger Sensing System
on page 89. We recommend that rear-facing
child restraints be secured in a rear seat,
even if the airbag is off. If your child restraint
is forward-facing, move the seat as far back as
it will go before securing the child restraint in
this seat. SeeManual Seats on page 9or
Power Seat on page 10.
When the passenger sensing system has turned
off the right front passenger’s frontal airbag, the
off indicator in the passenger airbag status
indicator should light and stay lit when you turn
the ignition to RUN or START. SeePassenger
Airbag Status Indicator on page 172.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.4. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.
70
