GMC SAVANA 2007 Owner's Manual

Keys............................................................ 102
Remote Keyless Entry (RKE) System........ 104
Remote Keyless Entry (RKE)
System Operation.................................. 105
Doors and Locks........................................ 108
Door Locks................................................ 108
Power Door Locks..................................... 109
Cargo Door Relocking............................... 109
Rear Door Security Locks......................... 110
Lockout Protection..................................... 110
Sliding Side Door...................................... 111
60/40 Swing-Out Side Door....................... 112
Rear Doors............................................... 114
Windows...................................................... 116
Manual Windows....................................... 116
Power Windows........................................ 117
Swing-Out Windows.................................. 118
Sun Visors................................................ 119
Theft-Deterrent Systems............................. 119
Passlock
®.................................................. 119
Starting and Operating Your Vehicle......... 120
New Vehicle Break-In................................ 120
Ignition Positions....................................... 121Retained Accessory Power (RAP)............. 122
Starting the Engine.................................... 122
Fuel Regulator........................................... 124
Engine Coolant Heater.............................. 124
Automatic Transmission Operation............. 125
Parking Brake........................................... 128
Shifting Into Park (P) ................................. 129
Shifting Out of Park (P)............................. 130
Parking Over Things That Burn................. 131
Engine Exhaust......................................... 132
Running the Engine While Parked............. 133
Mirrors......................................................... 134
Manual Rearview Mirror............................. 134
Automatic Dimming Rearview Mirror with
Compass and Temperature Display........ 134
Outside Manual Mirror............................... 136
Outside Camper-Type Mirrors.................... 137
Outside Power Mirrors............................... 138
Outside Convex Mirror............................... 138
Outside Heated Mirrors............................. 139
Storage Areas............................................. 139
Section 2 Features and Controls
101

Keys
{CAUTION:
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons. They could operate the power
windows or other controls or even make
the vehicle move. The children or others
could be badly injured or even killed.
Do not leave the keys in a vehicle with
children.
102

This vehicle has one
double-sided key for the
ignition and door
locks. It will fit with
either side up.
When a new vehicle is delivered, the dealer
provides the owner with a pair of identical keys
and a bar-coded tag.The bar-coded tag has a code on it that tells your
dealer or a qualified locksmith how to make
extra keys. Keep this tag in a safe place. If you
lose your keys, you’ll be able to have new
ones made easily using this tag.
Notice:If you ever lock your keys in your
vehicle, you may have to damage the vehicle
to get in. Be sure you have spare keys.
If you ever do get locked out of your vehicle, call
GM Roadside Assistance Center. SeeRoadside
Assistance Program on page 424.
103

Remote Keyless Entry (RKE)
System
If the vehicle has a Remote Keyless Entry (RKE)
system operates on a radio frequency subject
to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1. This device may not cause interference, and
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference, and
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.Changes or modifications to this system by other
than an authorized service facility could void
authorization to use this equipment.
At times you may notice a decrease in range. This
is normal for any RKE system. If the transmitter
does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:
•Check the distance. You may be too far
from your vehicle. You may need to stand
closer during rainy or snowy weather.
•Check the location. Other vehicles or objects
may be blocking the signal. Take a few steps
to the left or right, hold the transmitter
higher, and try again.
•Check to determine if battery replacement or
resynchronization is necessary. See “Battery
Replacement” and “Resynchronization”
underRemote Keyless Entry (RKE) System
Operation on page 105.
•If you are still having trouble, see your dealer
or a qualified technician for service.
104

Remote Keyless Entry (RKE)
System Operation
Your vehicle may have this feature.
Q(Lock):Press this
button once to lock all of
the doors. The parking
lamps will flash and
the interior lamps
will turn on briefly. Press
the lock button again
within five seconds and
the parking lamps
will flash and the horn
will chirp briefly.
W(Unlock):Press this button once to unlock the
driver’s door. The parking lamps will flash twice
and the interior lamps will turn on. Press the
unlock button again within five seconds to unlock
the remaining doors. The parking lamps will
flash.
L(Panic Alarm):The remote keyless entry
transmitter comes equipped with an instant panic
alarm. To use the alarm, press the horn symbol
while the ignition is turned off. The horn will sound
and both the interior and exterior lamps will
flash for up to thirty seconds. To stop the instant
panic alarm, press the panic button again,
wait for thirty seconds, or start the vehicle.
j(Cargo Door):Press this button to unlock the
cargo doors only.
Matching Transmitter(s) to Your
Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your
vehicle. If a transmitter is lost or stolen, a
replacement can be purchased through your dealer.
Remember to bring any remaining transmitters with
you when you go to your dealer. When the dealer
matches the replacement transmitter to your
vehicle, any remaining transmitters must also be
matched. Once your dealer has coded the new
transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have a maximum of four
transmitters matched to it.
105

Resynchronization
Resynchronization may be necessary due to the
security method used by this system. The
transmitter does not send the same signal twice to
the receiver. The receiver will not respond to a
signal that has been sent previously. This prevents
anyone from recording and playing back the
signal from the transmitter.
To resynchronize your transmitter, stand close to
your vehicle and press and hold the lock and
unlock buttons on the transmitter at the same time
for seven seconds. The door locks should cycle
to confirm synchronization. If the locks do not
cycle, see your dealer for service.
Battery Replacement
Under normal use, the battery in your remote
keyless entry transmitter should last about
four years.
You can tell the battery is weak if the transmitter
won’t work at the normal range in any location.
If you have to get close to your vehicle before the
transmitter works, it’s probably time to change
the battery.
Notice:When replacing the battery, use care
not to touch any of the circuitry. Static
from your body transferred to these surfaces
may damage the transmitter.
106

To replace the battery in the keyless entry
transmitter, do the following:
1. Use an object like a coin to pry open the
transmitter.
2. Once the transmitter is separated, use an
object like a pencil to remove the old
battery. Do not use a metal object.3. Remove and replace the battery, positive (+)
side down.
4. Snap the transmitter back together tightly to
be sure no moisture can enter.
5. Press and hold the lock and unlock buttons
on the remote keyless entry transmitter for
seven seconds to resynchronize the
transmitter.
6. Check the operation of the transmitter.
107

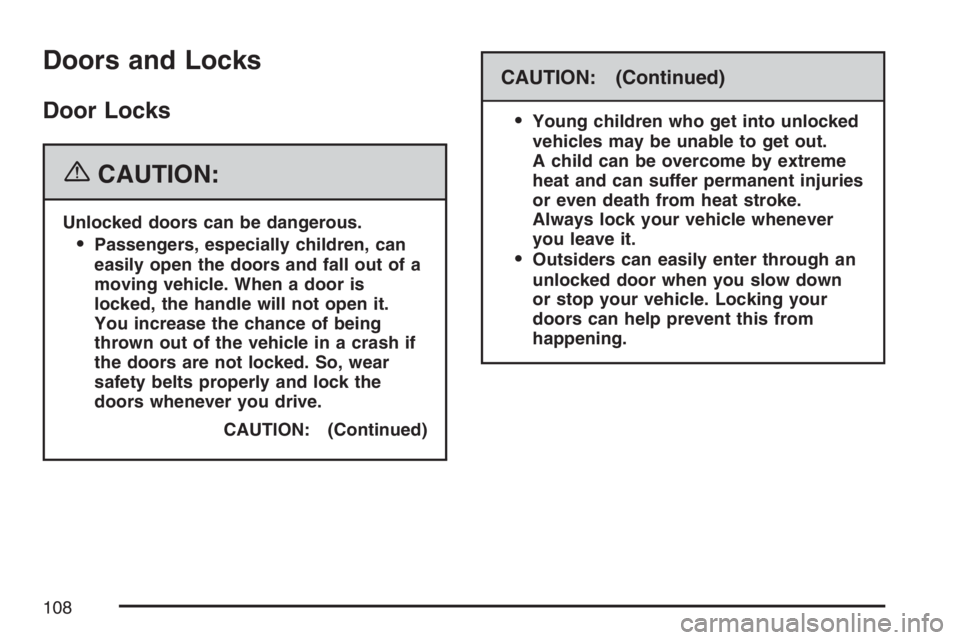

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children, can
easily open the doors and fall out of a
moving vehicle. When a door is
locked, the handle will not open it.
You increase the chance of being
thrown out of the vehicle in a crash if
the doors are not locked. So, wear
safety belts properly and lock the
doors whenever you drive.
CAUTION: (Continued)
CAUTION: (Continued)

Young children who get into unlocked
vehicles may be unable to get out.
A child can be overcome by extreme
heat and can suffer permanent injuries
or even death from heat stroke.
Always lock your vehicle whenever
you leave it.
Outsiders can easily enter through an
unlocked door when you slow down
or stop your vehicle. Locking your
doors can help prevent this from
happening.
108

There are several ways to lock and unlock your
vehicle.
If your vehicle is equipped with keyless entry, see
Remote Keyless Entry (RKE) System on
page 104for more information.
From the outside, use your key.
To lock the door from the
inside, slide the manual
lever on your door down.
To unlock the door, slide
the manual lever up.Power Door Locks
Press the bottom side of
the power door lock
switch to lock all
the doors at once. Press
the top side of the
power door lock switch
to unlock all the
doors at once.
When a door is locked, the inside door handle will
not work.
Cargo Door Relocking
This feature protects against having an unsecured
side cargo door. If the side cargo door is open
when the lock button is pressed on the door or the
remote keyless entry transmitter, all doors will
lock and then relock again after the cargo door is
closed. If the cargo door is not closed within
several minutes, the relock will not occur.
109

Rear Door Security Locks
Security locks are located on the front portion of
the 60/40 side swing-out door, or the side
sliding door.
For the 60/40 side
swing-out door, move
the button to the right for
the driver’s side door
or to the left for
the passenger’s side
door to engage
the security feature.
Move the button to the left for the driver’s side
door or to the right for the passenger’s side door
to return the door locks to normal operation.For the side sliding
door, move the button
up to engage the
security feature. Move
the button down to
return the door locks to
normal operation.
Lockout Protection
This feature protects you from locking your key in
the vehicle when the key is in the ignition and
a door is open.
If the power lock switch is pressed when either the
driver’s, passenger’s, or rear door is open, all
the doors will lock and then the driver’s door will
unlock. This feature does not include the side
cargo door.
60/40 Swing-Out Side
Door; Driver’s Side
Shown, Passenger’s
Side Similar
Side Sliding Door
110
