fuel filter GMC SAVANA 2007 Owner's Manual

Service........................................................ 286
Accessories and Modifications................... 286
California Proposition 65 Warning.............. 286
Doing Your Own Service Work.................. 287
Adding Equipment to the Outside
of Your Vehicle...................................... 287
Fuel............................................................. 288
Gasoline Octane........................................ 288
Gasoline Specifications.............................. 288
California Fuel........................................... 289
Additives................................................... 289
Fuel E85 (85% Ethanol)............................ 290
Fuels in Foreign Countries........................ 291
Filling the Tank......................................... 292
Filling a Portable Fuel Container............... 294
Checking Things Under the Hood.............. 294
Hood Release........................................... 295
Engine Compartment Overview.................. 296
Engine Oil (Gasoline Engine).................... 297Engine Oil Life System
(Gasoline Engine).................................. 300
Engine Air Cleaner/Filter............................ 302
Automatic Transmission Fluid.................... 303
Engine Coolant.......................................... 306
Radiator Pressure Cap.............................. 309
Engine Overheating................................... 309
Cooling System......................................... 311
Engine Fan Noise..................................... 317
Power Steering Fluid ................................. 317
Windshield Washer Fluid........................... 318
Brakes...................................................... 319
Battery...................................................... 323
Jump Starting............................................ 324
All-Wheel Drive........................................... 330
Rear Axle.................................................... 331
Front Axle................................................... 331
Section 5 Service and Appearance Care
283

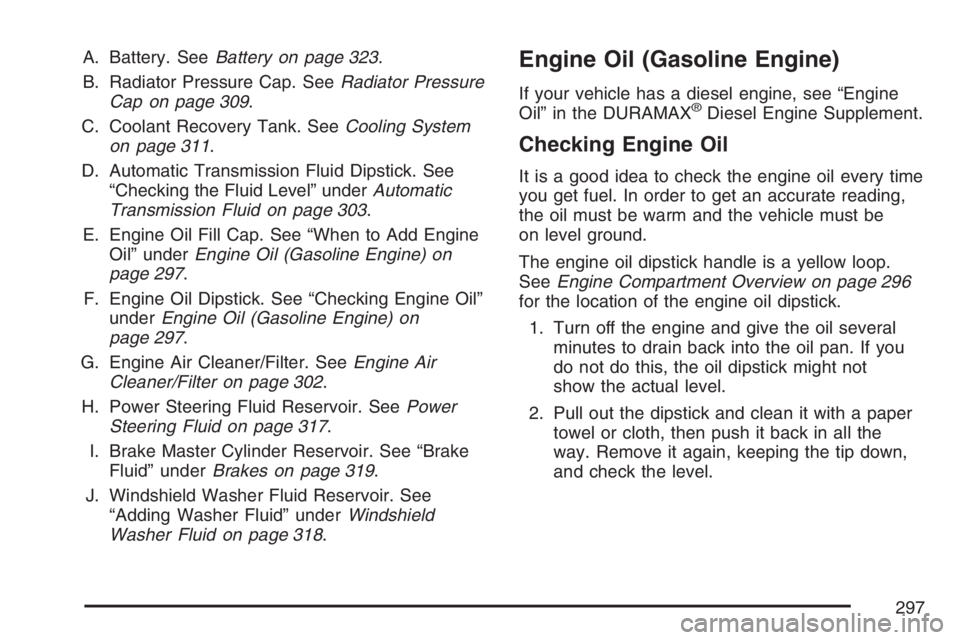

A. Battery. SeeBattery on page 323.
B. Radiator Pressure Cap. SeeRadiator Pressure
Cap on page 309.
C. Coolant Recovery Tank. SeeCooling System
on page 311.
D. Automatic Transmission Fluid Dipstick. See
“Checking the Fluid Level” underAutomatic
Transmission Fluid on page 303.
E. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil (Gasoline Engine) on
page 297.
F. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil (Gasoline Engine) on
page 297.
G. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 302.
H. Power Steering Fluid Reservoir. SeePower
Steering Fluid on page 317.
I. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 319.
J. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 318.Engine Oil (Gasoline Engine)
If your vehicle has a diesel engine, see “Engine
Oil” in the DURAMAX®Diesel Engine Supplement.
Checking Engine Oil
It is a good idea to check the engine oil every time
you get fuel. In order to get an accurate reading,
the oil must be warm and the vehicle must be
on level ground.
The engine oil dipstick handle is a yellow loop.
SeeEngine Compartment Overview on page 296
for the location of the engine oil dipstick.
1. Turn off the engine and give the oil several
minutes to drain back into the oil pan. If you
do not do this, the oil dipstick might not
show the actual level.
2. Pull out the dipstick and clean it with a paper
towel or cloth, then push it back in all the
way. Remove it again, keeping the tip down,
and check the level.
297

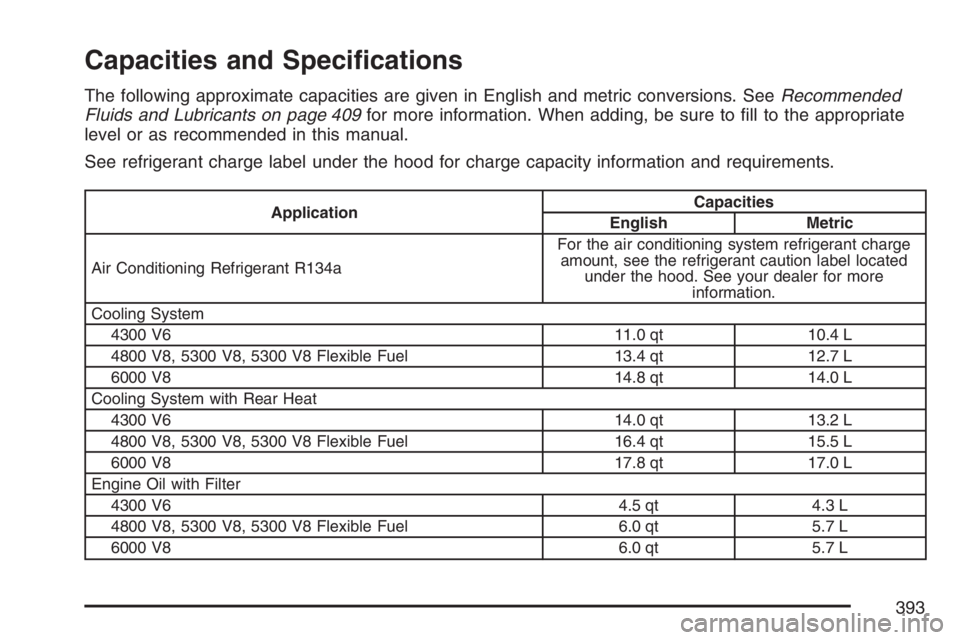

Capacities and Specications
The following approximate capacities are given in English and metric conversions. SeeRecommended
Fluids and Lubricants on page 409for more information. When adding, be sure to fill to the appropriate
level or as recommended in this manual.
See refrigerant charge label under the hood for charge capacity information and requirements.
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134aFor the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer for more
information.
Cooling System
4300 V6 11.0 qt 10.4 L
4800 V8, 5300 V8, 5300 V8 Flexible Fuel 13.4 qt 12.7 L
6000 V8 14.8 qt 14.0 L
Cooling System with Rear Heat
4300 V6 14.0 qt 13.2 L
4800 V8, 5300 V8, 5300 V8 Flexible Fuel 16.4 qt 15.5 L
6000 V8 17.8 qt 17.0 L
Engine Oil with Filter
4300 V6 4.5 qt 4.3 L
4800 V8, 5300 V8, 5300 V8 Flexible Fuel 6.0 qt 5.7 L
6000 V8 6.0 qt 5.7 L
393

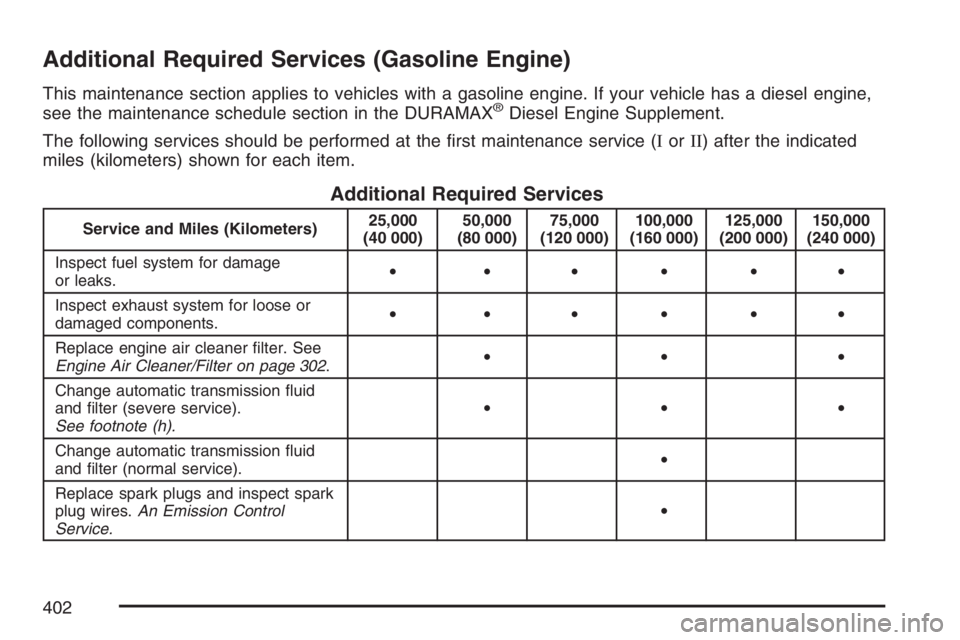

Additional Required Services (Gasoline Engine)
This maintenance section applies to vehicles with a gasoline engine. If your vehicle has a diesel engine,
see the maintenance schedule section in the DURAMAX®Diesel Engine Supplement.
The following services should be performed at the first maintenance service (IorII) after the indicated
miles (kilometers) shown for each item.
Additional Required Services
Service and Miles (Kilometers)25,000
(40 000)50,000
(80 000)75,000
(120 000)100,000
(160 000)125,000
(200 000)150,000
(240 000)
Inspect fuel system for damage
or leaks.• •••••
Inspect exhaust system for loose or
damaged components.• •••••
Replace engine air cleaner filter. See
Engine Air Cleaner/Filter on page 302.•••
Change automatic transmission fluid
and filter (severe service).
See footnote (h).•••
Change automatic transmission fluid
and filter (normal service).•
Replace spark plugs and inspect spark
plug wires.An Emission Control
Service.•
402

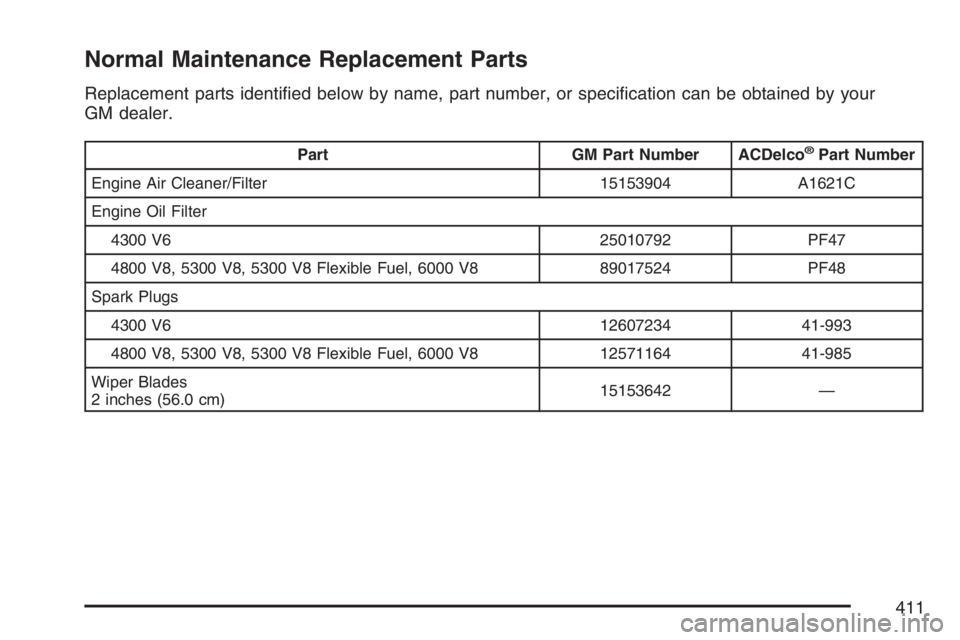

Normal Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained by your
GM dealer.
Part GM Part Number ACDelco®Part Number
Engine Air Cleaner/Filter 15153904 A1621C
Engine Oil Filter
4300 V6 25010792 PF47
4800 V8, 5300 V8, 5300 V8 Flexible Fuel, 6000 V8 89017524 PF48
Spark Plugs
4300 V6 12607234 41-993
4800 V8, 5300 V8, 5300 V8 Flexible Fuel, 6000 V8 12571164 41-985
Wiper Blades
2 inches (56.0 cm)15153642 —
411

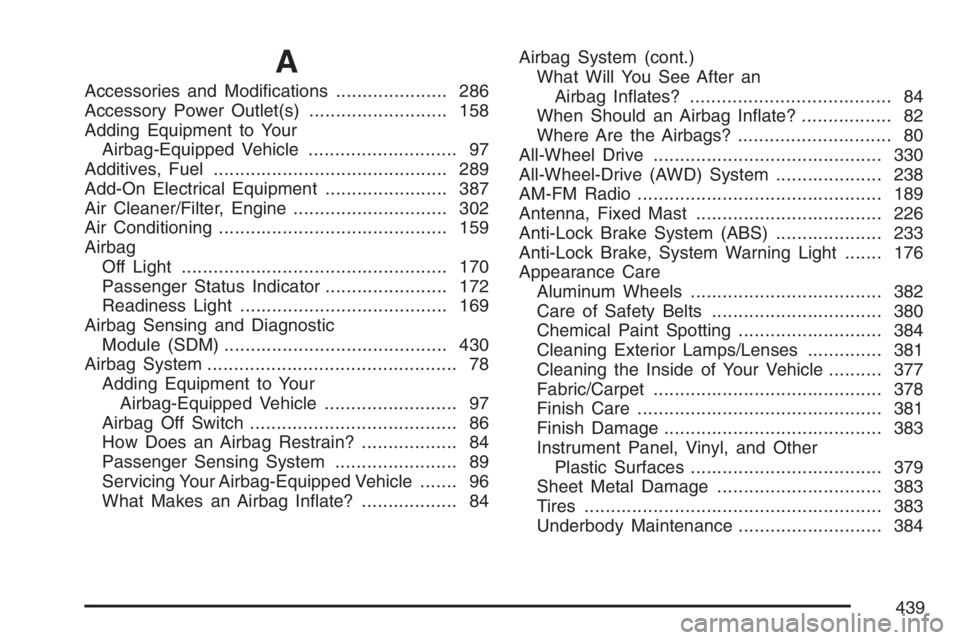

A
Accessories and Modifications..................... 286
Accessory Power Outlet(s).......................... 158
Adding Equipment to Your
Airbag-Equipped Vehicle............................ 97
Additives, Fuel............................................ 289
Add-On Electrical Equipment....................... 387
Air Cleaner/Filter, Engine............................. 302
Air Conditioning........................................... 159
Airbag
Off Light.................................................. 170
Passenger Status Indicator....................... 172
Readiness Light....................................... 169
Airbag Sensing and Diagnostic
Module (SDM).......................................... 430
Airbag System............................................... 78
Adding Equipment to Your
Airbag-Equipped Vehicle......................... 97
Airbag Off Switch....................................... 86
How Does an Airbag Restrain?.................. 84
Passenger Sensing System....................... 89
Servicing Your Airbag-Equipped Vehicle....... 96
What Makes an Airbag Inflate?.................. 84Airbag System (cont.)
What Will You See After an
Airbag Inflates?...................................... 84
When Should an Airbag Inflate?................. 82
Where Are the Airbags?............................. 80
All-Wheel Drive........................................... 330
All-Wheel-Drive (AWD) System.................... 238
AM-FM Radio.............................................. 189
Antenna, Fixed Mast................................... 226
Anti-Lock Brake System (ABS).................... 233
Anti-Lock Brake, System Warning Light....... 176
Appearance Care
Aluminum Wheels.................................... 382
Care of Safety Belts................................ 380
Chemical Paint Spotting........................... 384
Cleaning Exterior Lamps/Lenses.............. 381
Cleaning the Inside of Your Vehicle.......... 377
Fabric/Carpet........................................... 378
Finish Care.............................................. 381
Finish Damage......................................... 383
Instrument Panel, Vinyl, and Other
Plastic Surfaces.................................... 379
Sheet Metal Damage............................... 383
Tires........................................................ 383
Underbody Maintenance........................... 384
439

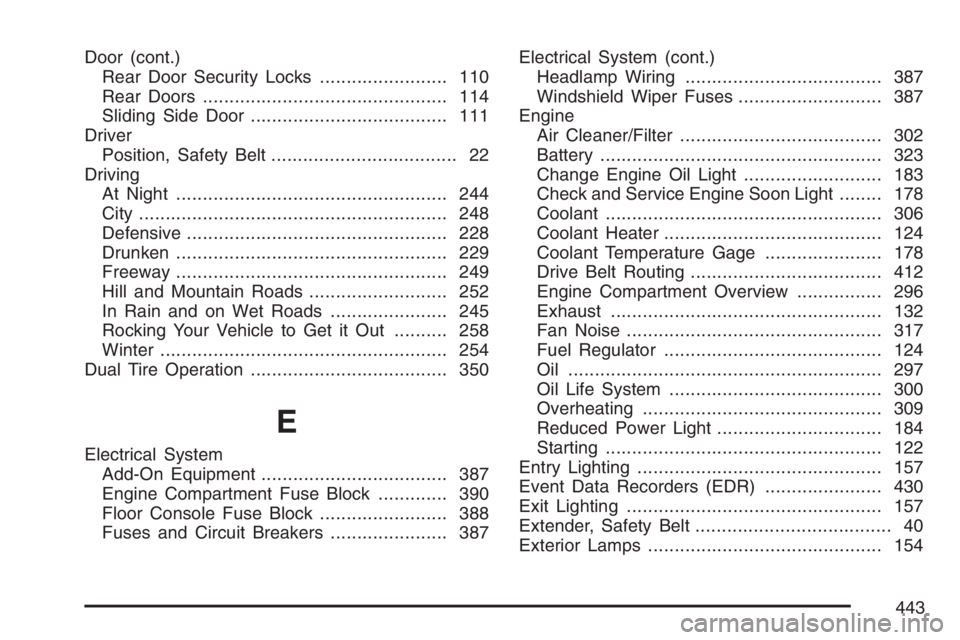

Door (cont.)
Rear Door Security Locks........................ 110
Rear Doors.............................................. 114
Sliding Side Door..................................... 111
Driver
Position, Safety Belt................................... 22
Driving
At Night................................................... 244
City.......................................................... 248
Defensive................................................. 228
Drunken................................................... 229
Freeway................................................... 249
Hill and Mountain Roads.......................... 252
In Rain and on Wet Roads...................... 245
Rocking Your Vehicle to Get it Out.......... 258
Winter...................................................... 254
Dual Tire Operation..................................... 350
E
Electrical System
Add-On Equipment................................... 387
Engine Compartment Fuse Block............. 390
Floor Console Fuse Block........................ 388
Fuses and Circuit Breakers...................... 387Electrical System (cont.)
Headlamp Wiring..................................... 387
Windshield Wiper Fuses........................... 387
Engine
Air Cleaner/Filter...................................... 302
Battery..................................................... 323
Change Engine Oil Light.......................... 183
Check and Service Engine Soon Light........ 178
Coolant.................................................... 306
Coolant Heater......................................... 124
Coolant Temperature Gage...................... 178
Drive Belt Routing.................................... 412
Engine Compartment Overview ................ 296
Exhaust................................................... 132
Fan Noise................................................ 317
Fuel Regulator......................................... 124
Oil ........................................................... 297
Oil Life System........................................ 300
Overheating............................................. 309
Reduced Power Light............................... 184
Starting.................................................... 122
Entry Lighting.............................................. 157
Event Data Recorders (EDR)...................... 430
Exit Lighting................................................ 157
Extender, Safety Belt..................................... 40
Exterior Lamps............................................ 154
443

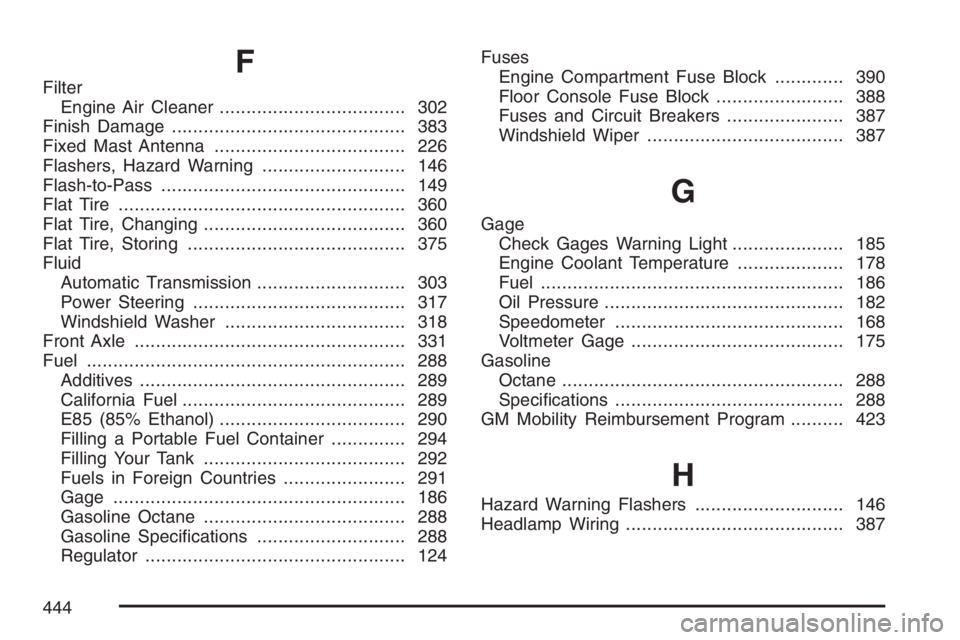

F
Filter
Engine Air Cleaner................................... 302
Finish Damage............................................ 383
Fixed Mast Antenna.................................... 226
Flashers, Hazard Warning........................... 146
Flash-to-Pass.............................................. 149
Flat Tire...................................................... 360
Flat Tire, Changing...................................... 360
Flat Tire, Storing......................................... 375
Fluid
Automatic Transmission............................ 303
Power Steering........................................ 317
Windshield Washer.................................. 318
Front Axle................................................... 331
Fuel............................................................ 288
Additives.................................................. 289
California Fuel.......................................... 289
E85 (85% Ethanol)................................... 290
Filling a Portable Fuel Container.............. 294
Filling Your Tank...................................... 292
Fuels in Foreign Countries....................... 291
Gage....................................................... 186
Gasoline Octane...................................... 288
Gasoline Specifications............................ 288
Regulator................................................. 124Fuses
Engine Compartment Fuse Block............. 390
Floor Console Fuse Block........................ 388
Fuses and Circuit Breakers...................... 387
Windshield Wiper..................................... 387
G
Gage
Check Gages Warning Light..................... 185
Engine Coolant Temperature.................... 178
Fuel......................................................... 186
Oil Pressure............................................. 182
Speedometer........................................... 168
Voltmeter Gage........................................ 175
Gasoline
Octane..................................................... 288
Specifications........................................... 288
GM Mobility Reimbursement Program.......... 423
H
Hazard Warning Flashers............................ 146
Headlamp Wiring......................................... 387
444
