GMC SIERRA 1995 Owners Manual

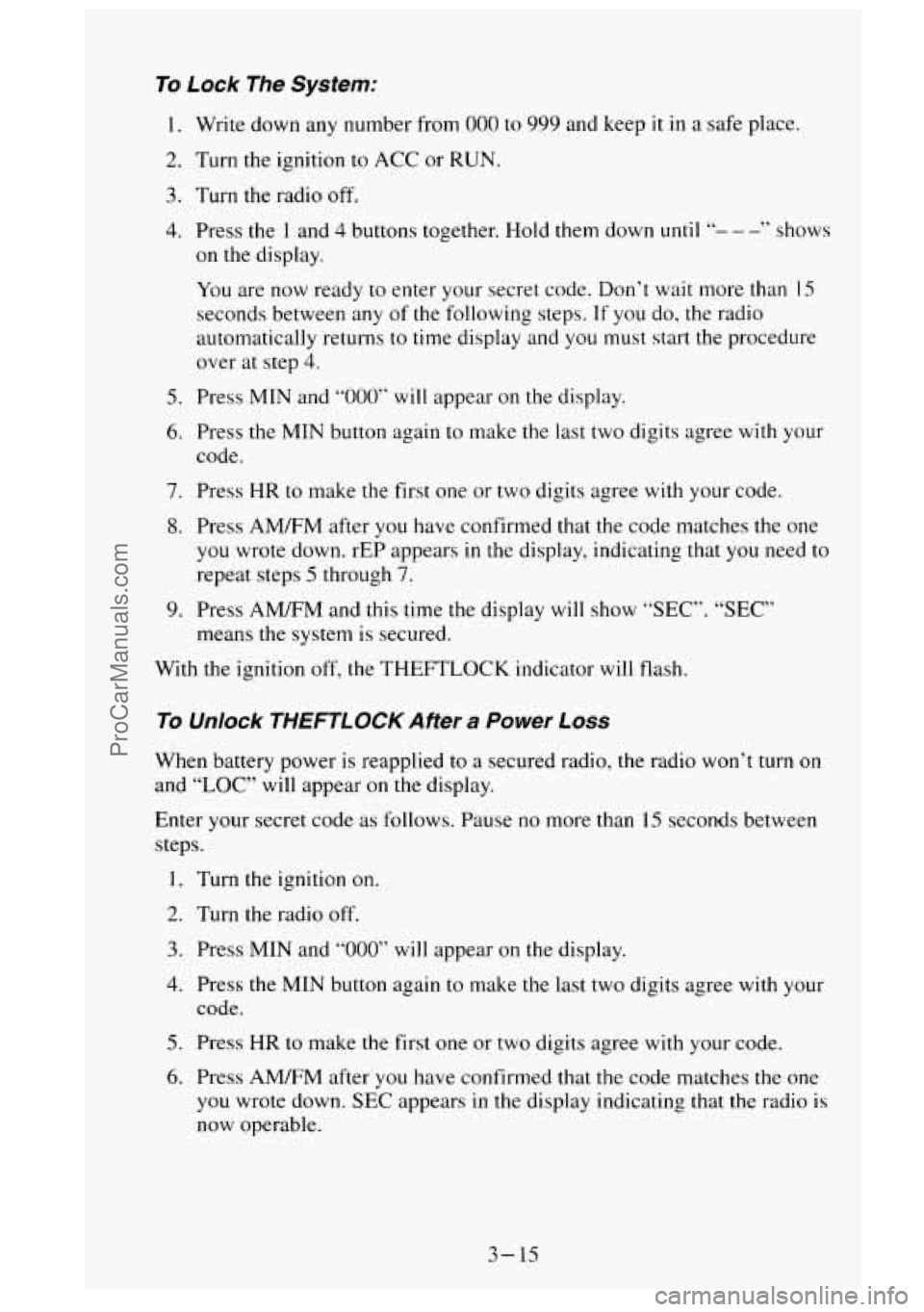

To Lock The System:
1.
2.
3.
4.
5.
6.
7.
8.
9.
Write down any number from 000 to 999 and keep it in a safe place.
Turn the ignition to ACC or RUN.
Turn the radio off.
Press the
1 and 4 buttons together. Hold them down until “- - -” shows
on the display.
You are now ready
to enter your secret code. Don’t wait more than 15
seconds between any of the following steps. If you do, the radio
automatically returns
to time display and you must start the procedure
over at step
4.

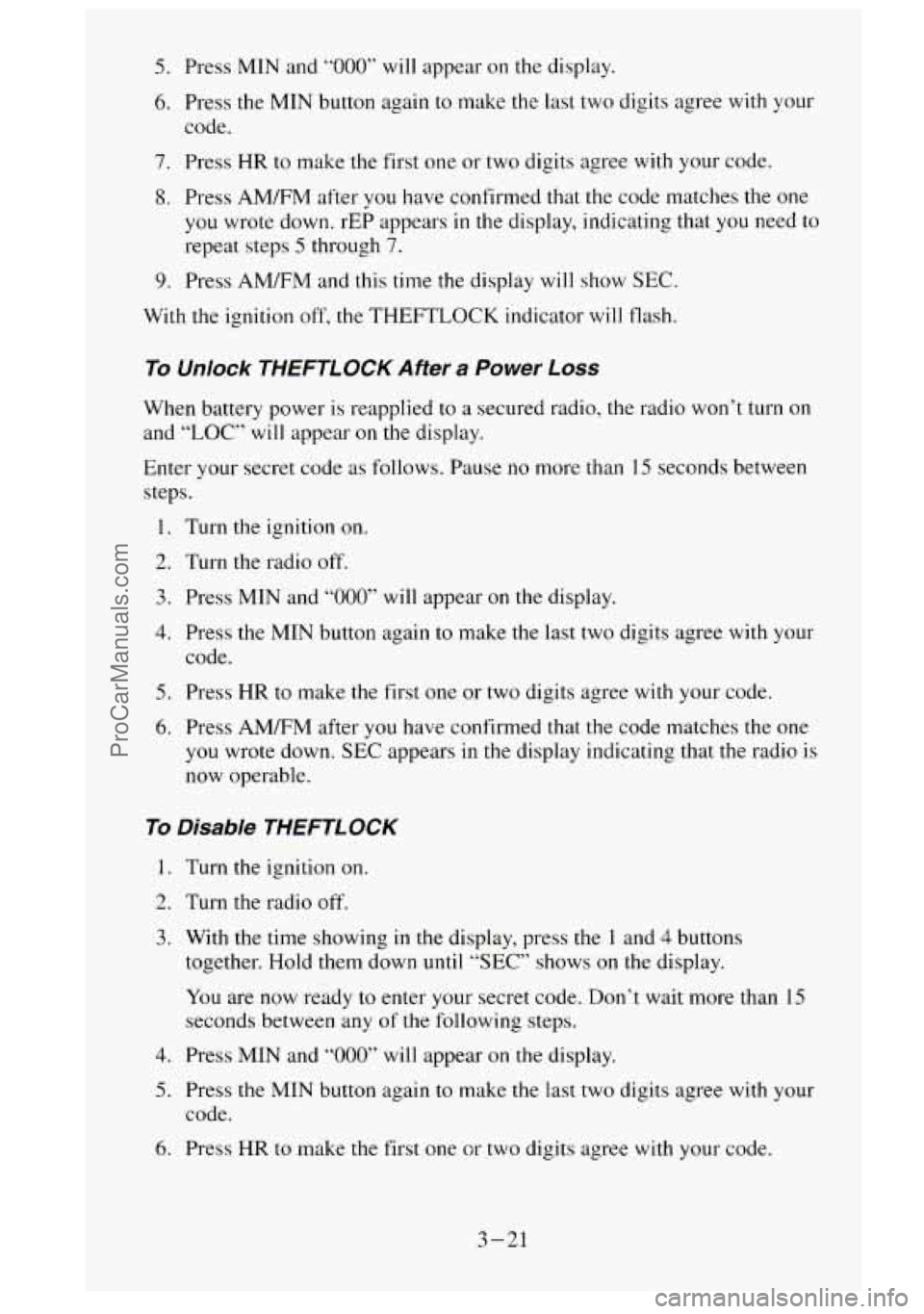

Press MIN and “000” will appear on the display.
Press the
MIN button again to make the last two digits agree with your
code.
Press HR to make the first one or two digits agree
with your code.
Press AM/FM after you have confirmed that the code matches the one
you wrote down. rEP appears in the display, indicating that you need to
repeat steps
5 through 7.
Press AMEM and this time the display will show “SEC”. “SEC”
means the system is secured.
With the ignition
off, the THEFTLOCK indicator will flash.
To Unlock THEFTLOCK After a Power Loss
When battery power is reapplied to a secured radio, the radio won’t turn on
and “LOC” will appear on
the display.
Enter your secret code as follows. Pause no more than
15 seconds between
steps.
1. Turn the ignition on.
2. Turn the radio off.
3. Press MIN and “000” will appear on the display.
4. Press the MIN button again to make the last two digits agree with your
code.
5. Press HR to make the first one or two digits agree with your code.
6. Press AM/FM after you have confirmed that the code matches the one
you wrote down. SEC appears
in the display indicating that the radio is
now operable.
3- 15
ProCarManuals.com

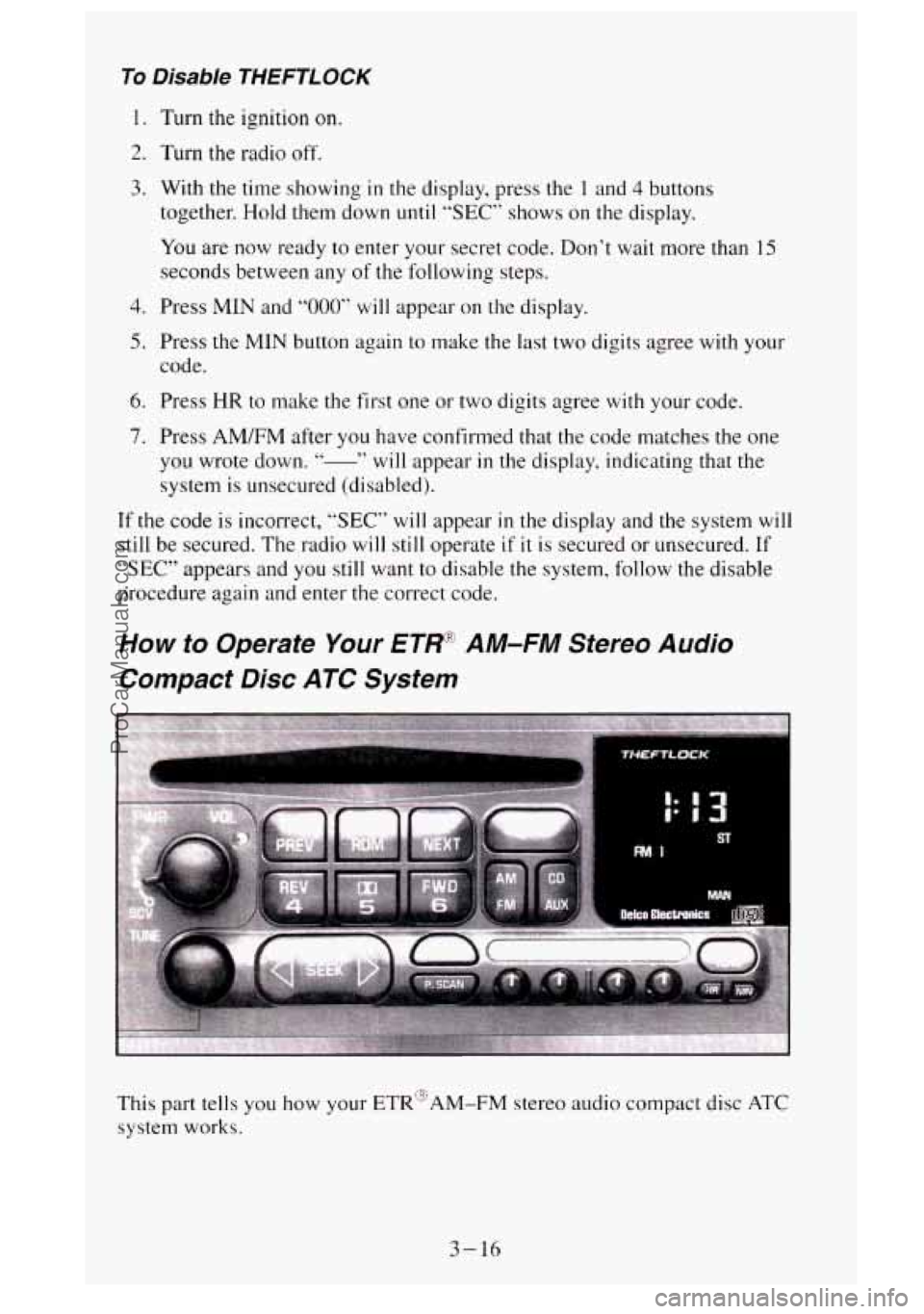

To Disable THEFTLOCK
1. Turn the ignition on.
2, Turn the radio off.
3. With the time showing in th e display, press th e 1 and 4 buttons
together. Hold them down
until “SEC” shows on the display.
You are now ready to enter your secret code. Don’t wait more than
15
seconds between any of the following steps.
4. Press MIN and “000” will appear on the display.
5. Press the MIN button again to make the last two digits agree with your
code.
6. Press HR to make the first one or two digits agree with your code,
7. Press AMFM after you have confirmed that the code matches the one
you wrote down. “- ” will appear in the display, indicating that the
system is unsecured (disabled).
If the code is incorrect, “SEC” will appear in the display and the system will
still be secured. The radio will still operate if it is secured or unsecured. If
“SEC” appears and you still want to disable the system, follow the disable
procedure again and enter the correct code.
How to Operate Your ETRq AM-FM Stereo Audio
Compact Disc ATC System
This part tells you how your ETR“AM-FM stereo audio compact disc ATC
system works.
3-16
ProCarManuals.com

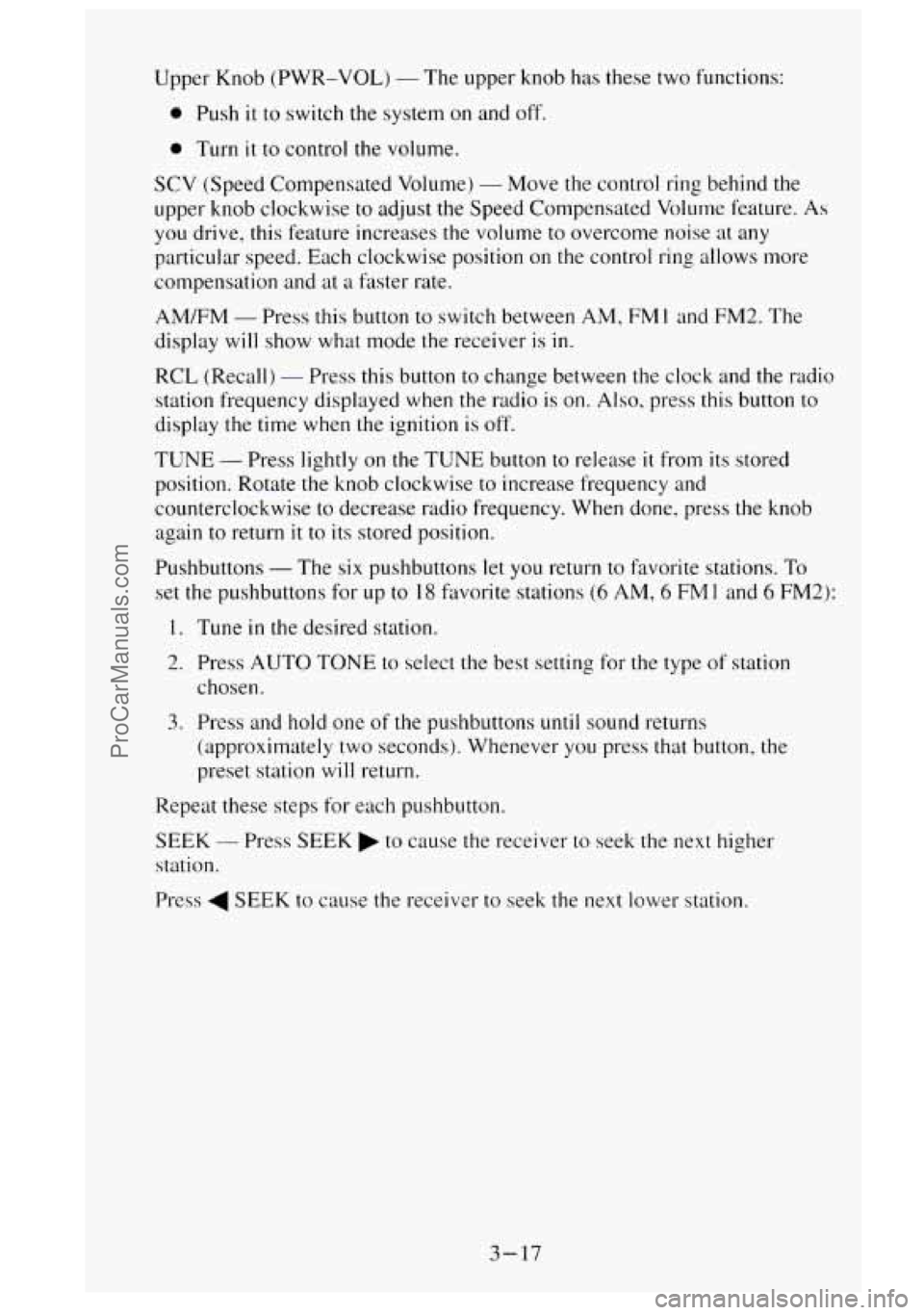

Upper Knob (PWR-VOL) - The upper knob has these two functions:
0 Push it to switch the system on and off.
0 Turn it to control the volume.
SCV (Speed Compensated Volume)
- Move the control ring behind the
upper knob clockwise
to adjust the Speed Compensated Volume feature. As
you drive, this feature increases the volume to overcome noise at any
particular speed. Each clockwise position on the control ring allows more
compensation and at a faster rate.
AM/FM
- Press this button to switch between AM, FM I and FM2. The
display will show what mode the receiver
is in.
RCL (Recall) - Press this button to change between the clock and the radio
station frequency displayed when the radio
is on. Also, press this button to
display the time when the ignition is off.
TUNE
- Press lightly on the TUNE button to release it from its stored
position. Rotate the knob clockwise to increase frequency and
counterclockwise to decrease radio frequency. When done, press
the knob
again to return
it to its stored position.
Pushbuttons
- The six pushbuttons let you return to favorite stations. To
set the pushbuttons for up to 18 fworite stations (6 AM, 6 FM 1 and 6 FM2):
1. Tune in the desired station.
2. Press AUTO TONE to select the best setting for the type of station
chosen.
3. Press and hold one of the pushbuttons until sound returns
(approximately two seconds). Whenever you press that button, the
preset station
will return.
Repeat these steps for each pushbutton.
SEEK
- Press SEEK to cause the receiver to seek the next higher
station.
rress
4 SEEK to cause the receiver to seek the next lower station.
3-17
ProCarManuals.com

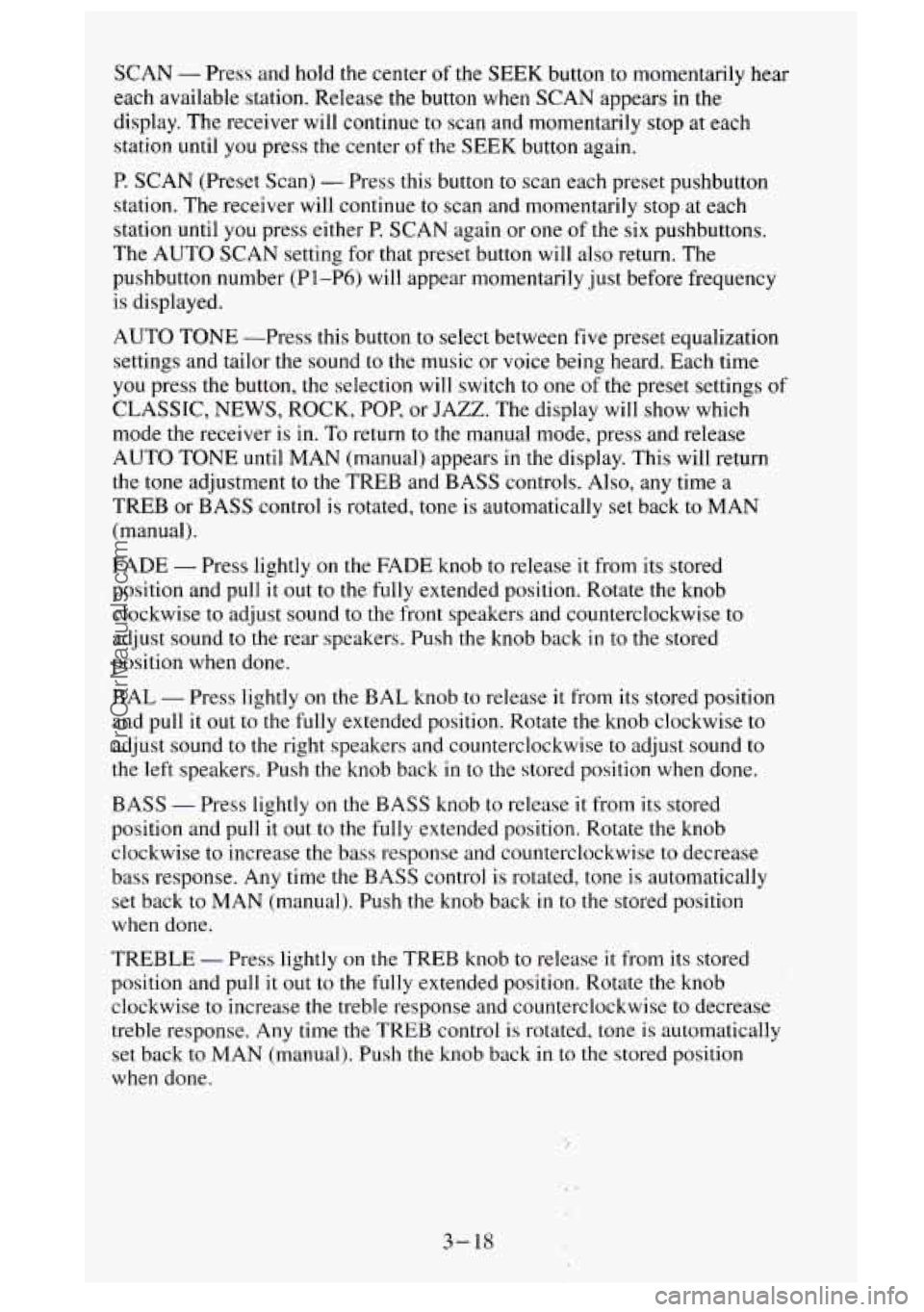

SCAN - Press and hold the center of the SEEK button to momentarily hear
each available station. Release the button when SCAN appears in the
display. The receiver will continue to scan and momentarily stop at each
station until you press
the center of the SEEK button again.
p. SCAN (Preset Scan) - Press this button to scan each preset pushbutton
station. The receiver
will continue to scan and momentarily stop at each
station until
you press either P. SCAN again or one of the six pushbuttons.
The AUTO SCAN setting for that preset button will also return. The
pushbutton number (Pl-P6) will appear momentarily just before frequency
is displayed.
AUTO TONE -Press this button to select between five preset equalization
settings and tailor the sound to the music or voice being heard. Each time
you press the button, the selection will switch to one
of the preset settings of
CLASSIC, NEWS, ROCK, POP, or JAZZ. The display will show which
mode the receiver is in.
To return to the manual mode, press and release
AUTO TONE
until MAN (manual) appears in the display. This will return
the
tone adjustment to the TREB and BASS controls. Also, any time a
TREB
or BASS control is rotated, tone is automatically set back to MAN
(manual).
FADE
- Press lightly on the FADE knob to release it from its stored
position and pull it
out to the fully extended position. Rotate the knob
clockwise to adjust sound
to the front speakers and counterclockwise to
adjust sound
to the rear speakers. Push the knob back in to the stored
position when done.
BAL
- Press lightly on the BAL knob to release it from its stored position
and pull
it out to the fully extended position. Rotate the knob clockwise to
adjust sound to the right speakers and counterclockwise to adjust sound
to
the left speakers. Push the knob back in to the stored position when done.
BASS
- Press lightly on the BASS knob to release it from its stored
position and pull
it out to the fully extended position. Rotate the knob
clockwise
to increase the bass response and counterclockwise to decrease
bass response. Any time the
BASS control is rotated, tone is automatically
set back to MAN (manual). Push
the knob back in to the stored position
when done.
TREBLE
- Press lightly on the TREB knob to release it from its stored
position and pull it out to the
fully extended position. Rotate the knob
clockwise to increase the treble response and counterclockwise to decrease
treble response. Any time the TREB control
is rotated, tone is automatically
set back
to MAN (manual). Push the knob back in to the stored position
when done.
3-18
ProCarManuals.com

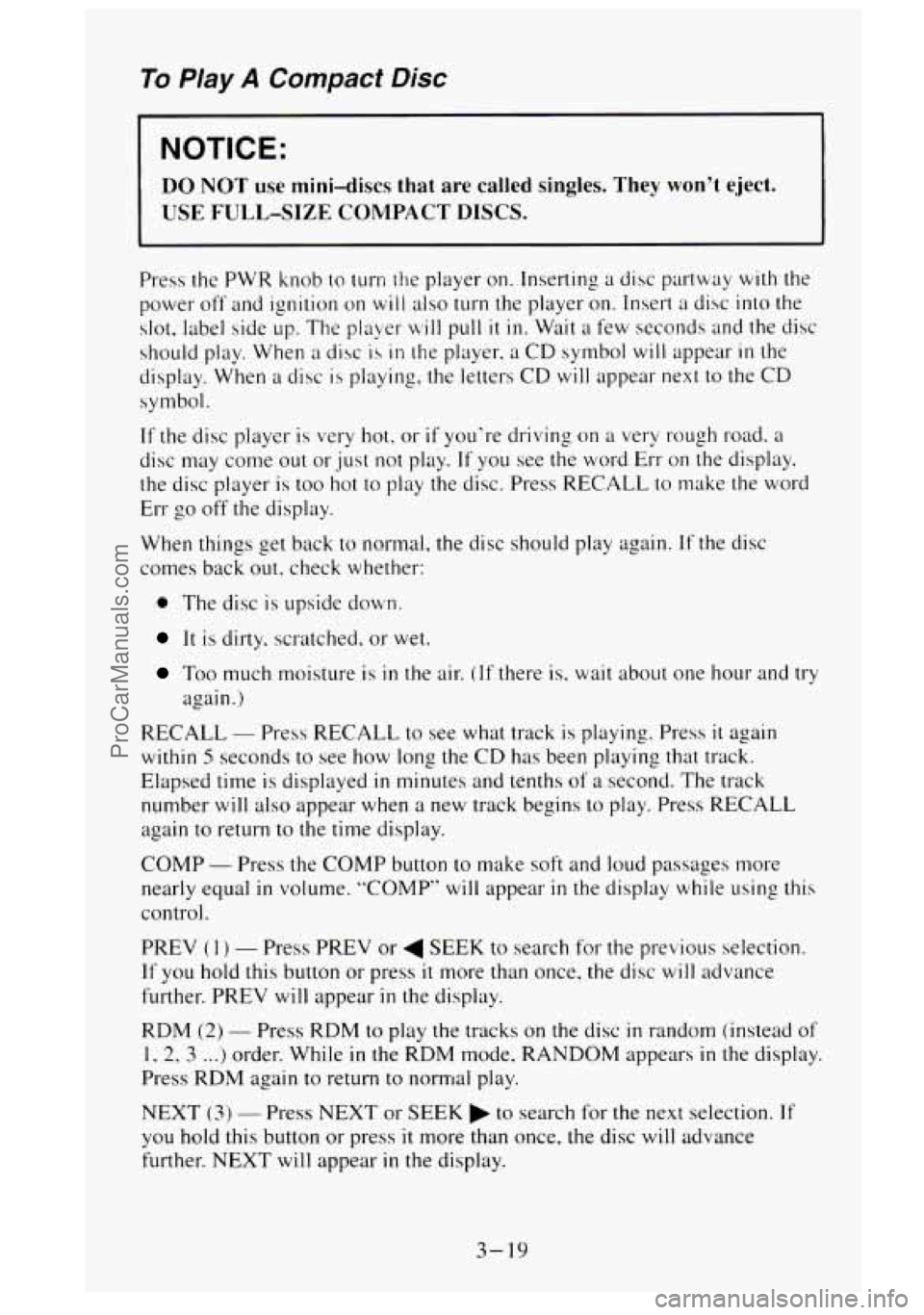

To Play A Compact Disc
NOTICE:
DO NOT use mini-discs that are called singles. They won’t. eject.
USE FULL-SIZE COMPACT DISCS.
Press the PWR knob to turn {he player on. Inserting a disc partway with the
power
off and ignition on will also turn the player on. Insert a disc into the
slot, label side
up. The player will pull it in. Wait a few seconds and the disc
should play. When
a disc is in the player, a CD symbol will appear in the
display. When
a disc is playing, the letters CD will appear next to the CD
symbol.
If the disc player is very hot, or if you’re driving on a very rough road. a
disc may come out or just not play. If you see the word Err on the display.
the disc player is too hot to play the disc. Press RECALL to make the word
Err go off the display.
When things get back to normal. the disc should play again. If the disc
comes back
out. check whether:
0 The disc is upside doM;n.
It is dirty. scratched. or wet.
Too much moisture is in the air. (If there is, wait about one hour and try
again.)
RECALL
- Press RECALL to see what track is playing. Press it again
within 5 seconds to see how long the CD has been playing that track.
Elapsed time is displayed
in minutes and tenths of a second. The track
number will
also appear when a new track begins to play. Press RECALL
again
to return to the time display.
COMP
- Press the COMP button to make soft and loud passages more
nearly equal
in volume. “COMP” will appear in the display while using this
control.
PREV
( 1) - Press PREV or 4 SEEK to search for the previous selection.
If you hold this button or press it more than once, the disc will advance
further. PREV
will appear in the display.
RDM
(2) - Press RDM to play the tracks on the disc in random (instead of
1. 2, 3 ...) order. While in the RDM mode, RANDOM appears in the display.
Press RDM again
to return to normal play.
NEXT
(3) - Press NEXT or SEEK to search for the next selection. If
you hold this button or press it more than once, the disc will advance
further. NEXT will appear
in the display.
3-19
ProCarManuals.com

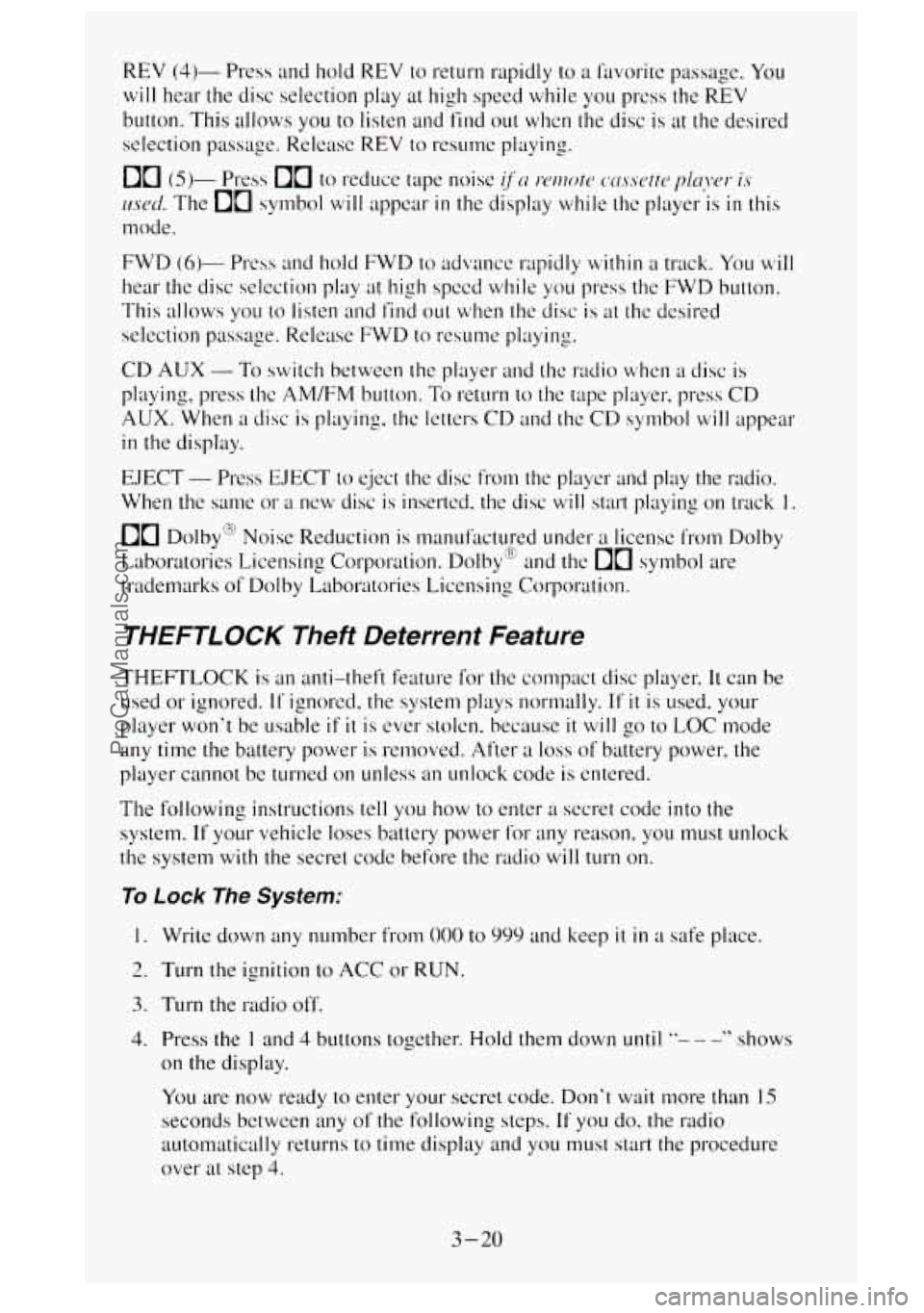

REV (4)- Press and hold REV to return rapidly to a I'avorite passage. You
will hear the disc selection play at high speed while you press the REV
button. This allows you to listen and find out when the disc is at the desired
selection passage. Release
REV to reslmle playing.
00 (5)- Press 00 to reduce tape noise (fez Iwrotc ctr.s.smc picy~~r is
rrscci. The 00 symbol will appear in the display while thc player is in this
mode.
FWD
(6)- Press and hold FWD to adc.ance rapidly within a track. You will
hear the disc selection play
at high speed while you press the FWD button.
This allows
you to listen and find out when the disc is at the desired
selection passage. Release FWD
to resume playing.
CD AUX
- To switch between the player and thc radio whcn a disc is
pluying, press the AMEM button. To return to the tape player. press CD
AUX. When
a disc is plqing. thc letters CD and the CD symbol will appear
in the display.
EJECT - Press EJECT to eject the disc from the plnycr and play the radio.
When
the same or a new disc is inserted. the disc will start playing on track I.
00 Dolby'"' Noise Reduction is manufactured under a license from Dolby
Laboratories Licensing Corporation. Dolby" and the
00 symbol are
trademarks
of Dolby Laboratories Licensing Corporation.
THEFTLOCK Theft Deterrent Feature
THEFTLOCK is an anti-theft feature for the compact disc player. It can be
used or ignored.
If igno~-c=d, the system plays normally. If it is used. your
player
won't be usable if it is ever stolen. because it will go to LOC mode
any time
the battery power is removed. After a loss of battery power, the
player cannot
be turned on unless an unlock code is entered.
The following instructions
tell you how to enter II secret code into the
system. If your vehicle loses battery power for any reason. you must unlock
the system with
the secret code before the radio will turn on.
To Lock The System:
1. Write down any number from 000 to 999 and keep it in a safe place
2. Turn the ignition to ACC or RUN.
3. Turn the radio off.
4. Press the I and 4 buttons together. Hold them down until .'- - -" shows
on the display.
You are 11ow ready to enter your secret code. Don't wait more than 15
seconds bctween any of the following steps. If you do, the radio
automatically returns to time display
and you must start the procedure
over at step
4.
3-20
ProCarManuals.com

5. Press MIN and “000” will appear on the display.
6. Press the MIN button again to make the last two digits agree with your
code.
7. Press HR to make the first one or two digits agree with your code.
8. Press AM/FM after you have confirmed that the code matches the one
you wrote down. rEP appears
in the display, indicating that you need to
repeat steps
5 through 7.
9. Press AM/FM and this time the display will show SEC.
With the ignition off, the THEFTLOCK indicator will flash.
To Unlock THEFTLOCK After a Power Loss
When battery power is reapplied to a secured radio, the radio won’t turn on
and
“LOC” will appear on the display.
Enter your secret code as follows. Pause no more than
15 seconds between
steps.
1. Turn the ignition on.
2. Turn the radio off.
3. Press MIN and “000” will appear on the display.
4. Press the MIN button again to make the last two digits agree with your
code.
5. Press HR to make the first one or two digits agree with your code.
6. Press AM/FM after you have confirmed that the code matches the one
you wrote down.
SEC appears in the display indicating that the radio is
now operable.
To Disable THEFTLOCK
1.
2.
3.
4.
5.
6.
Turn the ignition on.
Turn the radio off.
With the time showing
in the display, press the 1 and 4 buttons
together. Hold them down until
“SEC” shows on the display.
You are now ready
to enter your secret code. Don’t wait more than 15
seconds between any of the following steps.
Press MIN and
“000” will appear on the display.
Press the MIN button again
to make the last two digits agree with your
code.
Press
HR to make the first one or two digits agree with your code.
3-21
ProCarManuals.com

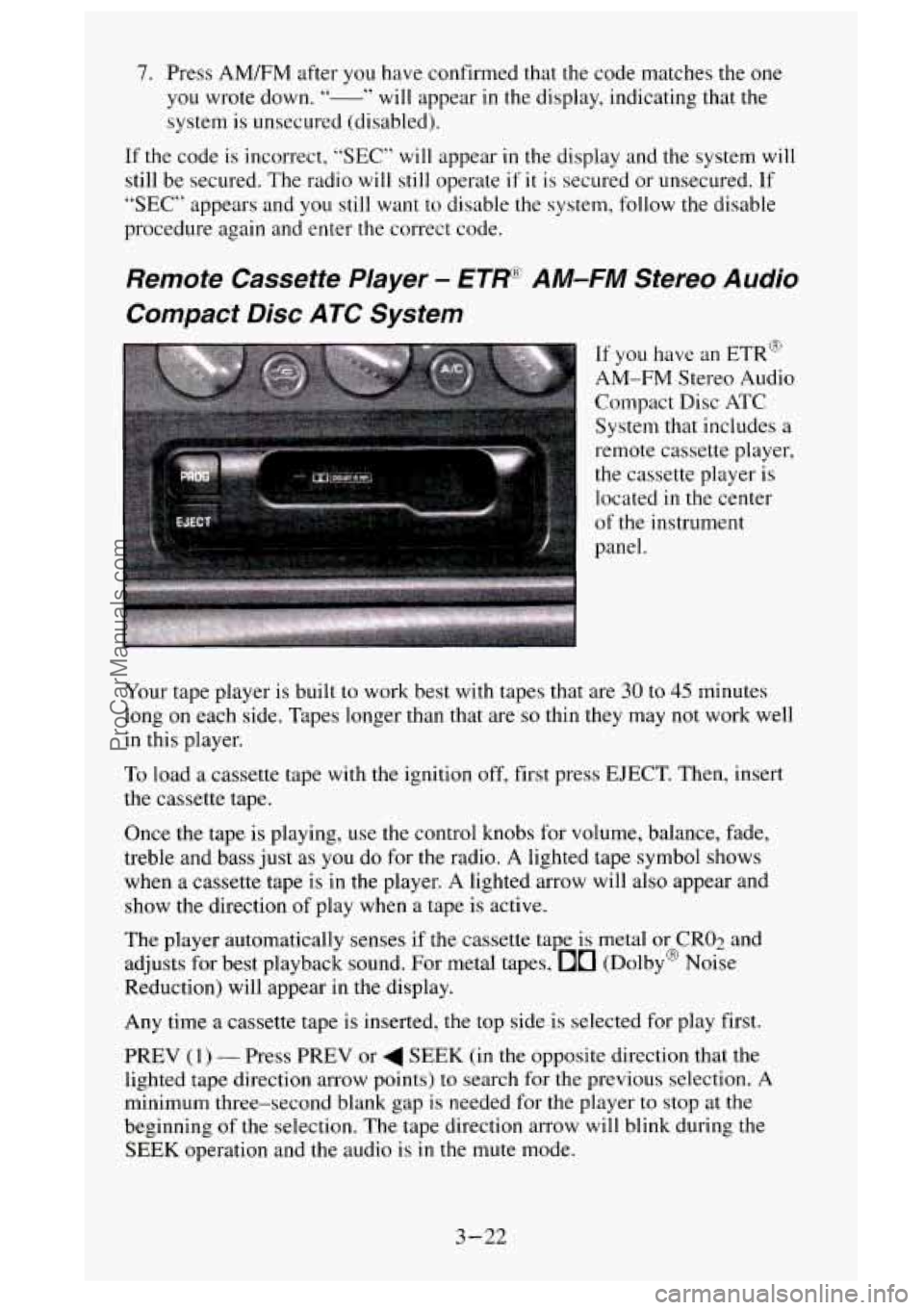

7. Press AM/FM after you have confirmed that the code matches the one
you wrote down. -
system is unsecured (disabled).
id ’‘ will appear in the display, indicating that the
If the code is incorrect,
“SEC” will appear in the display and the system will
still be secured. The radio will still operate
if it is secured or unsecured. If
“SEC” appears and you still want to disable the system, follow the disable
procedure again and enter the correct code.
Remote Cassette Player - ETRR AM-FM Stereo Audio
Compact Disc ATC System
System that includes a
remote cassette player,
the cassette player
is
located in the center
of the instrument
panel.
Your tape player is built to work best with tapes that are
30 to 45 minutes
long on each side. Tapes longer than that are
so thin they may not work well
in this player.
To load a cassette tape with the ignition off, first press EJECT. Then, insert
the cassette tape.
Once the tape is playing,
use the control knobs for volume, balance, fade,
treble and bass just as
you do for the radio. A lighted tape symbol shows
when a cassette tape
is in the player. A lighted arrow will also appear and
show the direction of play when a tape is active.
The player automatically senses if the cassette tape
is metal or CRO;! and
adjusts for best playback sound. For metal tapes,
00 (Dolby@ Noise
Reduction) will appear
in the display.
Any time a cassette tape
is inserted, the top side is selected for play first.
PREV
(1) - Press PREV or 4 SEEK (in the opposite direction that the
lighted tape direction arrow points) to search for the previous selection.
A
minimum three-second blank gap is needed for the player to stop at the
beginning of the selection. The tape direction arrow will blink during
the
SEEK operation and the audio is in the mute mode.
3-22
ProCarManuals.com

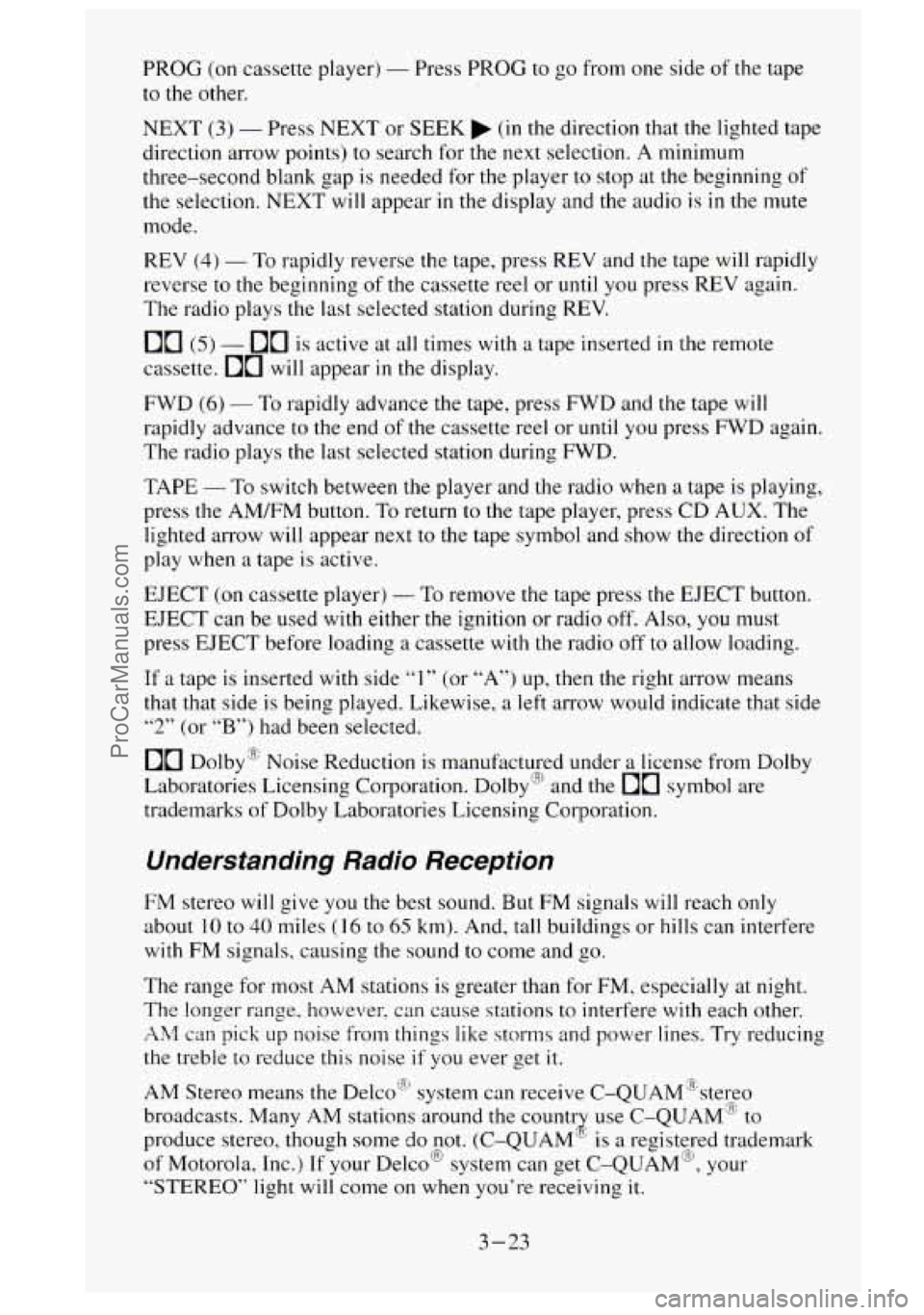

PROG (on cassette player) - Press PROG to go from one side of the tape
to the other.
NEXT
(3) - Press NEXT or SEEK (in the direction that the lighted tape
direction arrow points) to search for the next selection. A minimum
three-second blank gap is needed for the player to stop at the beginning of
the selection. NEXT will appear
in the display and the audio is in the mute
mode.
REV
(4) - To rapidly reverse the tape, press REV and the tape will rapidly
reverse to the beginning of
the cassette reel or until you press REV again.
The radio plays the last selected station during REV.
00 (5) - 00 is active at all times with a tape inserted in the remote
cassette.
00 will appear in the display.
FWD (6) - To rapidly advance the tape, press FWD and the tape will
rapidly advance to the end of the cassette reel or until you press FWD again.
The radio plays the last selected station during
FWD.
TAPE - To switch between the player and the radio when a tape is playing,
press the AM/FM button.
To return to the tape player, press CD AUX. The
lighted arrow
will appear next to the tape symbol and show the direction of
play when a tape is active.
EJECT (on cassette player)
- To remove the tape press the EJECT button.
EJECT can be used with either the ignition or radio off. Also, you must
press EJECT before loading
a cassette with the radio off to allow loading.
If a tape is inserted with side
“1” (or “A”) up, then the right arrow means
that that side is being played. Likewise,
a left arrow would indicate that side
b‘2“ (or “B”) had been selected.
00 Dolby” Noise Reduction is manufactured under a lice-nse from Dolby
Laboratories Licensing Corporation. DolbyB and the
00 symbol are
trademarks of Dolby Laboratories Licensing Corporation.
Understanding Radio Reception
FM stereo will give you the best sound. But FM signals will reach only
about
10 to 40 miles (I 6 to 65 km). And, tall buildings or hills can interfere
with FM signals, causing the sound to come and go.
The range for most AM stations is greater than for FM, especially at night.
The longer range, however, can cause stations to interfere with each other.
AM can pick up noise from things like stornx and power lines. Try reducing
the treble
to reduce this noise if you ever get it.
AM Stereo means the Delco‘ system can receive C-QUAM“stereo
broadcasts. Many AM stations around the county use C-QUAM“ to
produce stereo, though some
do not. (C-QUAM& is a registered trademark
of Motorola, Inc.)
If your Delco@ system can get C-QUAMa, your
“STEREO” light will come on when you’re receiving it.
3-23
ProCarManuals.com

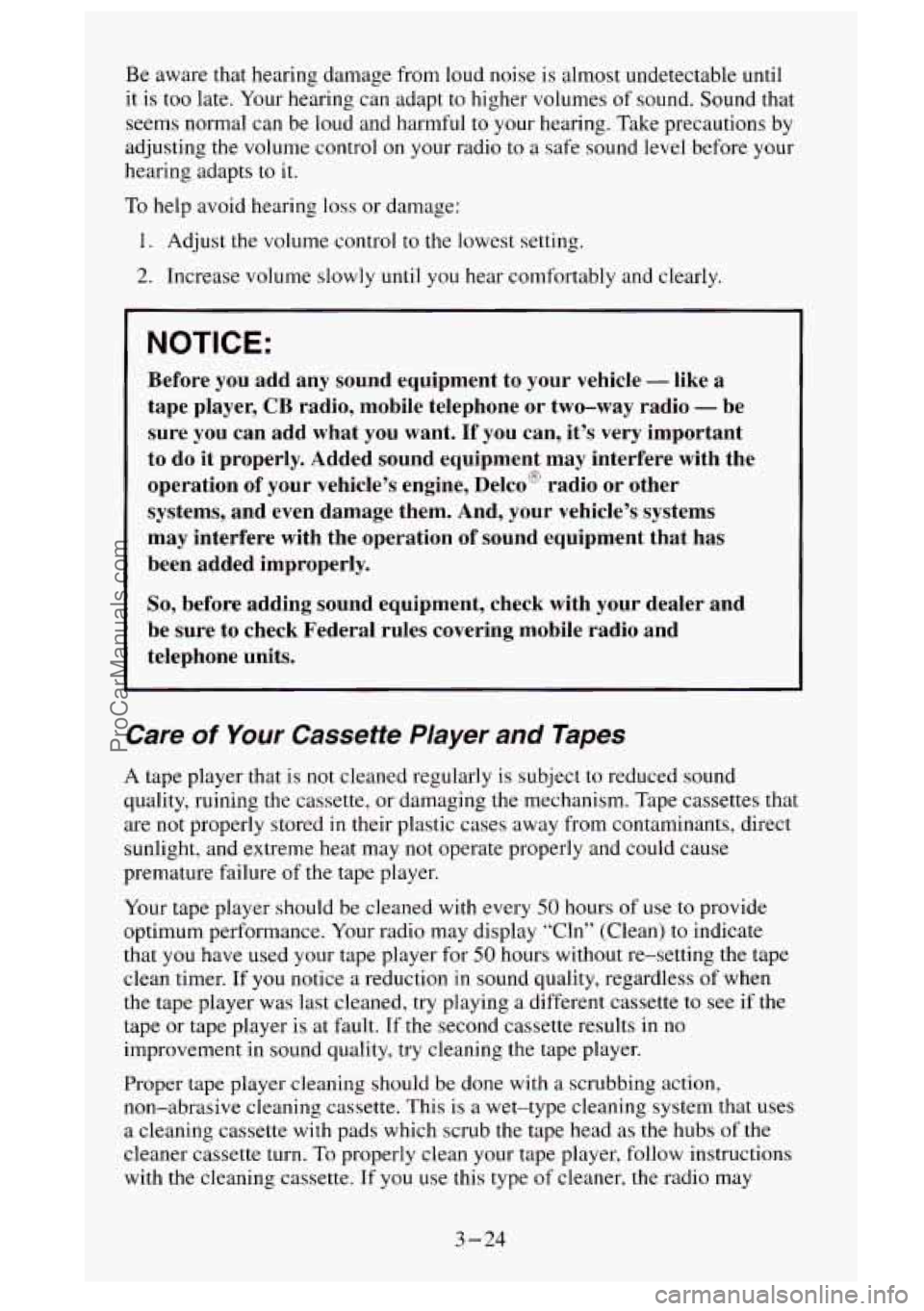

Be aware that hearing damage from loud noise is almost undetectable until
it is
too late. Your hearing can adapt to higher volumes of sound. Sound that
seems normal can be loud and harmful to your hearing. Take precautions by
adjusting the volume control on your radio to a safe sound level before your
hearing adapts
to it.
To help avoid hearing loss or damage:
1. Adjust the volume control to the lowest setting.
2. Increase volume slowly until you hear comfortably and clearly.
NOTICE:
Before you add any sound equipment to your vehicle - like a
tape player, CB radio, mobile telephone or two-way radio - be
sure you can add what you want.
If you can, it’s very important
to do it properly. Added sound equipment may interfere with th\
e operation
of your vehicle’s engine, Delcoa radio or other
systems, and even damage them. And, your vehicle’s systems
may interfere with the operation of sound equipment that has
been added improperly.
So, before adding sound equipment, check with your dealer and
be sure to check Federal rules covering mobile radio and
telephone units.
Care of Your Cassette Player and Tapes
A tape player that is not cleaned regularly is subject to reduced sound
quality, ruining the cassette, or damaging the mechanism. Tape cassettes that
are not properly stored
in their plastic cases away from contaminants, direct
sunlight, and extreme heat may not operate properly and could cause
premature failure of the tape player.
Your tape player should be cleaned with every
50 hours of use to provide
optimum performance. Your radio may display “Cln” (Clean)
to indicate
that you have used your tape player for
50 hours without re-setting the tape
clean timer. If
you notice a reduction in sound quality, regardless of when
the tape player was last cleaned, try playing a different cassette to see if the
tape or tape player is at fault. If the second cassette results in
no
improvement in sound quality, try cleaning the tape player.
Proper tape player cleaning should be done with a scrubbing action,
non-abrasive cleaning cassette. This
is a wet-type cleaning system that uses
a cleaning cassette with pads which scrub the tape head as the hubs of the
cleaner cassette turn.
To properly clean your tape player, follow instructions
with
the cleaning cassette. If you use this type of cleaner, the radio may
3-24
ProCarManuals.com
