GMC SIERRA 1996 Owners Manual

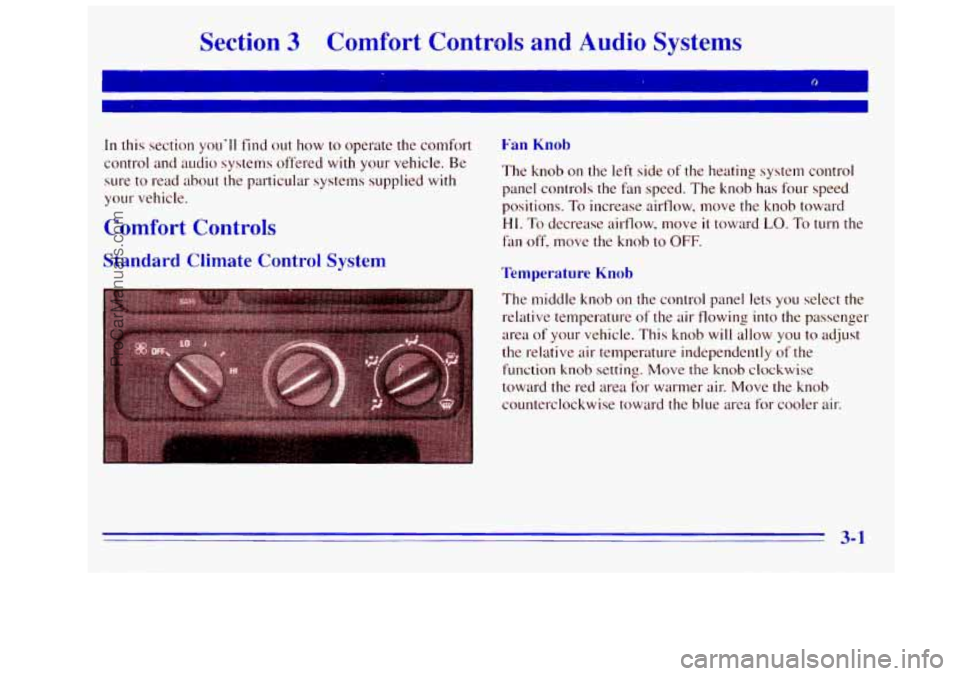

Section 3 Comfort Controls and Audio Systems
In this section you’ll find out how to operate the comfort
control and audio systems offered
with your vehicle. Be
sure
to read about the particular systems supplied with
your vehicle.
Comfort Controls
Standard Climate Control System
Fan Knob
The knob on the left side of the heating system control
panel controls the fan speed.
The knob has four speed
positions. To increase airflow, move
the knob toward
HI. To decrease airtlow, move it toward LO. To turn the
fan
off, move the knob to OFF.
Temperature Knob
The middle knob on the control panel lets you select the
relative temperature
of the air flowing into the passenger
area of your vehicle. This knob will allow you to adjust
the relative air temperature independently
of the
function
knob setting. Move the knob clockwise
toward the red area for warmer air. Move the knob
counterclockwise toward the
blue area for cooler air.
3-1
ProCarManuals.com

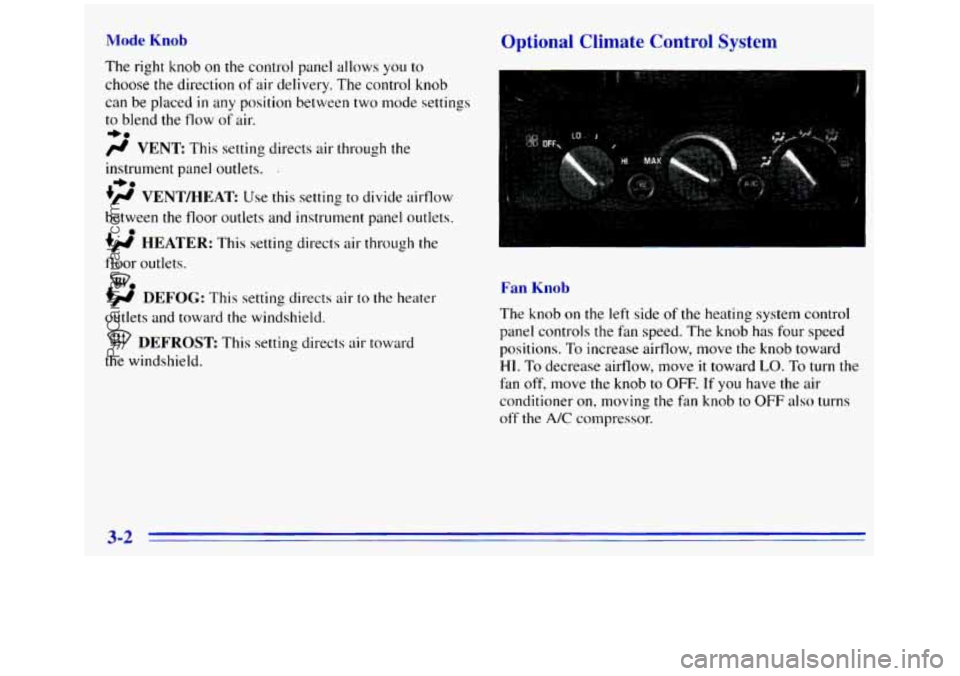

Mode Knob Optional Climate Control System
The right knob on the control panel allows you to
choose
the direction of air delivery. The control knob
can be placed in any position between two mode settings
to blend the
flow of air.
+e
/J VENT: This setting directs air through the
instrument panel outlets.
+’ VENT/HEAT Use this setting to divide airflow
between
the floor outlets and instrument panel outlets.
+iJ HEATB; This setting directs air through the
floor outlets.
6fl DEFOG: This setting directs air to the heater
outlets and toward the windshield.
9 DEFROST: This setting directs air toward
the windshield.
+*
e
(ii3, Fan Knob
The knob on the left side of the heating system control
panel controls the fan speed. The knob has four speed
positions. To increase airflow, move the knob toward
HI. To decrease airflow, move it toward LO. To turn the
fan off, move the knob to
OFF. If you have the air
conditioner on. moving
the fan knob to OFF also turns
off the A/C compressor.
3-2
ProCarManuals.com

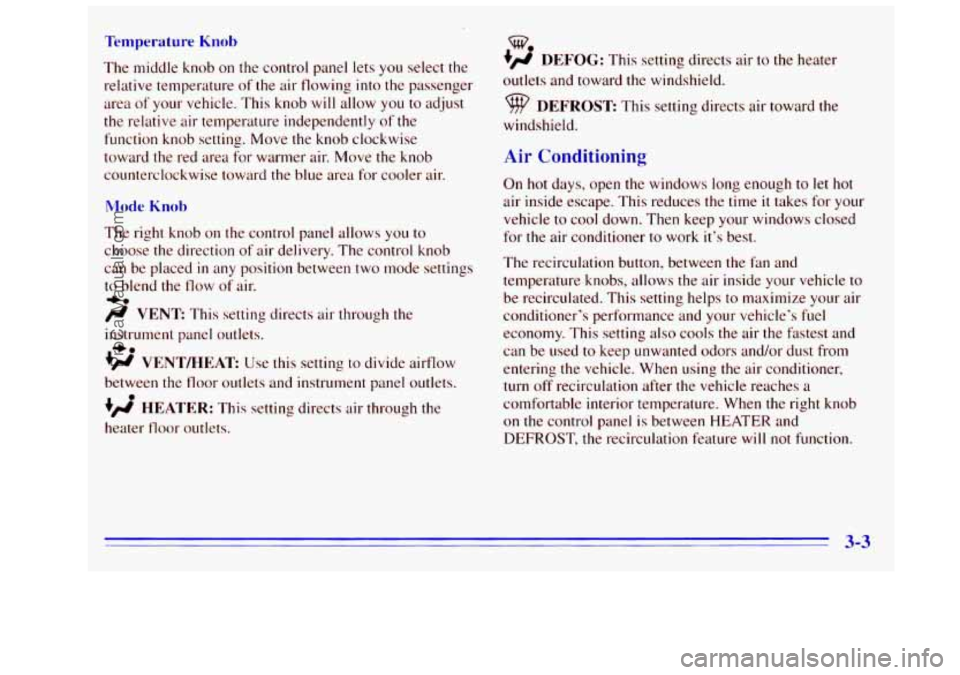

Temperature Knob
The middle knob on the control panel lets you select the
relative temperature
of the air flowing into the passenger
area of your vehicle. This knob will allow you to adjust
the relative air temperature independently
of the
function knob setting. Move the knob clockwise
toward
the red area for warmer air. Move the knob
counterclockwise toward the blue area for cooler air.
The right knob on the control panel allows you to
choose the direction of air delivery. The control knob
can be placed
in any position between two mode settings
to blend the flow of air.
/J VENT: This setting directs air through the
instrument panel outlets.
+H VENT/HEAT Use this setting to divide airflow
between the floor outlets and instrument panel outlets.
+’ HEATER: This setting directs air through the
heater floor outlets.
+e
+.
0
Qe
+’ DEFOG: This setting directs air to the heater
outlets and toward
the windshield.
DEFROST This setting directs air toward the
windshield.
Air Conditioning
On hot days, open the windows long enough to let hot
air inside escape. This reduces the time it takes for your
vehicle
to cool down. Then keep your windows closed
for
the air conditioner to work it’s best.
The recirculation button, between the fan and
temperature knobs, allows the air inside your vehicle to
be recirculated. This setting helps
to maximize your air
conditioner’s performance and your vehicle’s fuel
economy. This setting also
cools the air the fastest and
can be used
to keep unwanted odors and/or dust from
entering the vehicle. When using the air conditioner,
turn off recirculation after the vehicle reaches a
comfortable interior temperature. When the right knob
on the control panel is between HEATER and
DEFROST, the recirculation feature will
not function.
ProCarManuals.com

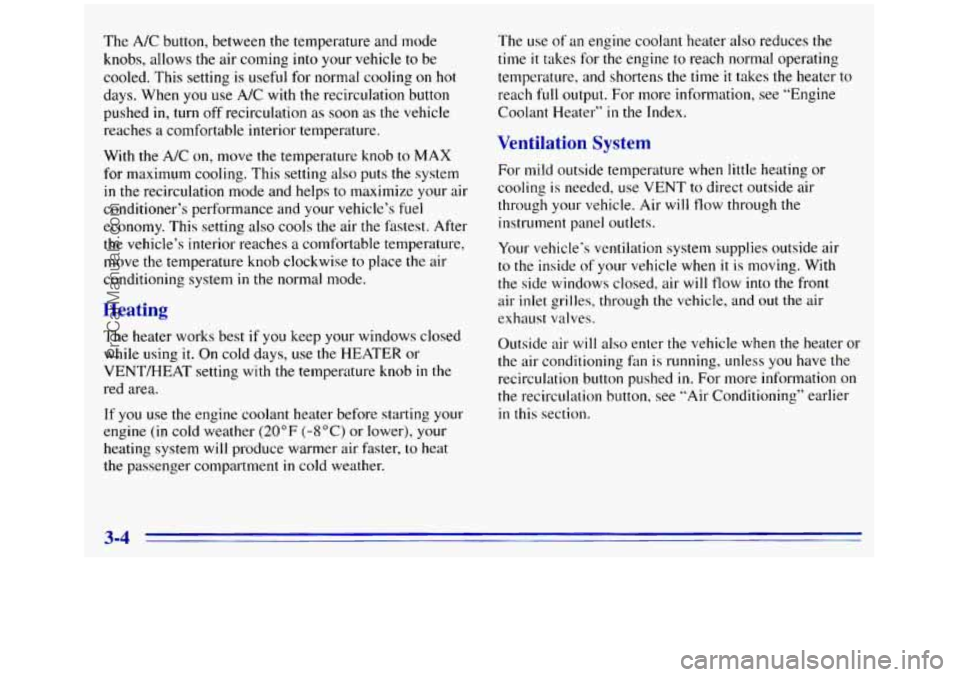

The A/C button, between the temperature and mode
knobs, allows
the air coming into your vehicle to be
cooled. This setting
is useful for normal cooling on hot
days. When
you use A/C with the recirculation button
pushed
in, turn off recirculation as soon as the vehicle
reaches a comfortable interior temperature.
With the
A/C on, move the temperature knob to MAX
for maximum cooling.
This setting also puts the system
in the recirculation mode and helps
to maximize your air
conditioner’s performance and your vehicle’s fuel
economy. This setting also cools the air the fastest. After
the vehicle’s interior reaches a comfortable temperature,
move the temperature knob clockwise to place the air
conditioning system
in the normal mode.
Heating
The heater works best if you keep your windows closed
while using
it. On cold days, use the HEATER or
VENT/HEAT setting with the temperature knob in the
red area.
If you use the engine coolant heater before starting your
engine (in cold weather (20°F (-8°C) or lower), your
heating system
will produce warmer air faster, to heat
the passenger compartment
in cold weather. The
use
of an engine coolant heater also reduces the
time
it takes for the engine to reach normal operating
temperature, and shortens the time
it takes the heater to
reach full output. For more information, see “Engine
Coolant Heater”
in the Index.
Ventilation System
For mild outside temperature when little heating or
cooling
is needed, use VENT to direct outside air
through
your vehicle. Air will flow through the
instrument panel outlets.
Your vehicle’s ventilation systeril supplies outside air
to the inside of your vehicle when it is moving. With
the side windows closed, air will flow into the front
air inlet grilles, through the vehicle, and out the air
exhaust valves.
Outside air will
also enter the vehicle when the heater or
the air conditioning fan is running, unless you have
the
recirculation button pushed in. For more information on
the recirculation button, see “Air Conditioning” earlier
in this section.
3-4
ProCarManuals.com

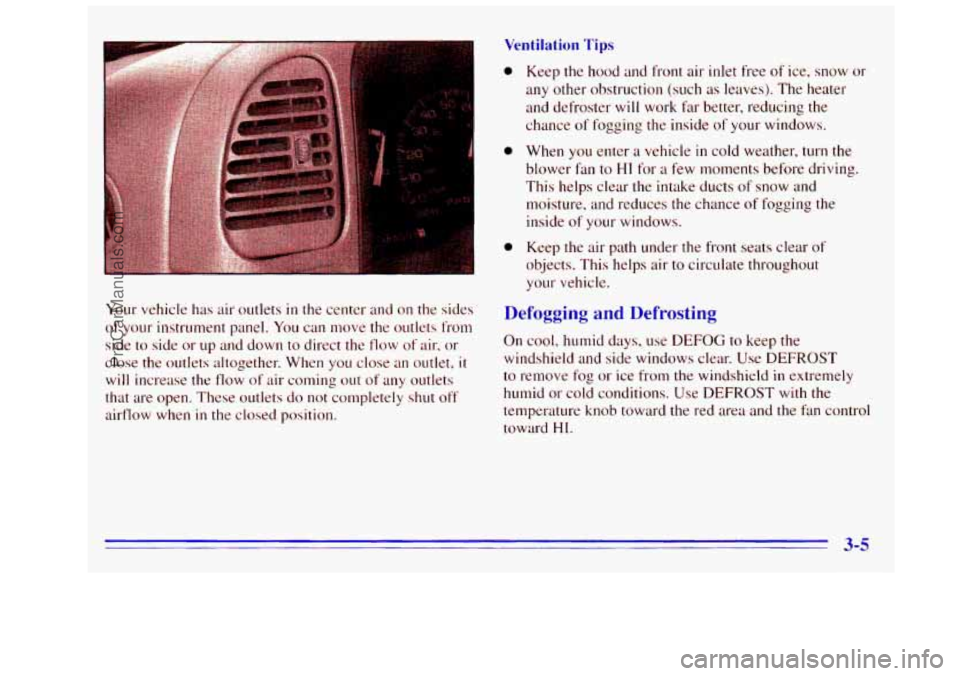

Ventilation Tips
Your vehicle has air outlets in the center and on the sides
of your instrument panel. You can move the outlets from
side to side or up and down to direct the
flow of air, or
close the outlets altogether. When
you close an outlet, it
will increase the flow of air coming out of any outlets
that are open. These outlets do not completely
shut off
airflow when
in the closed position.
0
0
0
Keep the hood and front air inlet free of ice, snow or
any other obstruction (such
as leaves). The heater
and defroster
will work far better, reducing the
chance of fogging the inside
of your windows.
When you enter
a vehicle in cold weather, turn the
blower fan to HI for a few moments before driving.
This helps clear the intake ducts
of snow and
moisture, and reduces the chance
of fogging the
inside
of your windows.
Keep the air path under the front seats clear
of
objects. This helps air to circulate throughout
your vehicle.
Defogging and Defrosting
On cool, humid days, use DEFOG to keep the
windshield and side windows clear.
Use DEFROST
to remove fog or ice from the windshield in extremely
humid or cold conditions. Use DEFROST
with the
temperature knob toward
the red area and the fan control
toward
HI.
ProCarManuals.com

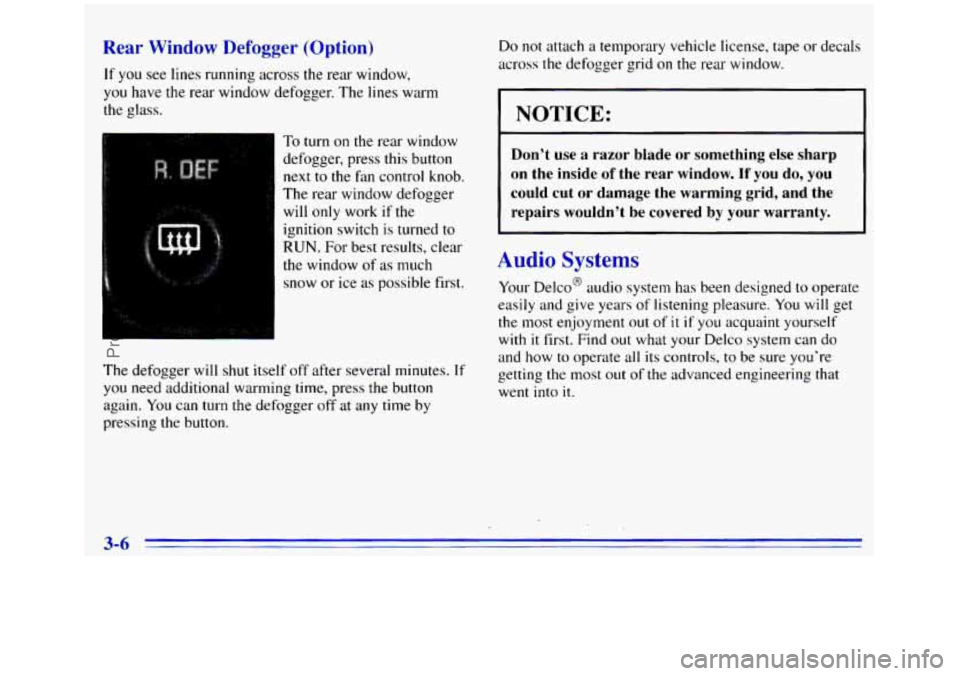

Rear Window Defogger (Option)
If you see lines running across the rear window,
you have the rear window defogger. The lines warm
the glass.
- To turn on the rear window
defogger, press this button next
to the fan control knob.
The rear window defogger
will only work
if the
ignition switch
is turned to
RUN. For best results, clear
the window of as much
snow or ice as possible first.
The defogger will shut itself
off after several minutes. If
you need additional warming time, press the button
again.
You can turn the defogger off at any time by
pressing the button. Do not
attach a temporary vehicle license, tape
or decals
across the defogger grid
on the rear window.
LOTICE:
Don’t use a razor blade or something else sharp
on the inside
of the rear window. If you do, you
could cut or damage the warming grid, and the
repairs wouldn’t be covered by your warranty.
Audio Systems
Your Delco@ audio system has been designed to operate
easily and give years of listening pleasure.
You will get
the most enjoyment out of
it if you acquaint yourself
with
it first. Find out what your Delco system can do
and how to operate all its controls, to be sure you’re
getting the most
out of the advanced engineering that
went into
it.
3-6
ProCarManuals.com

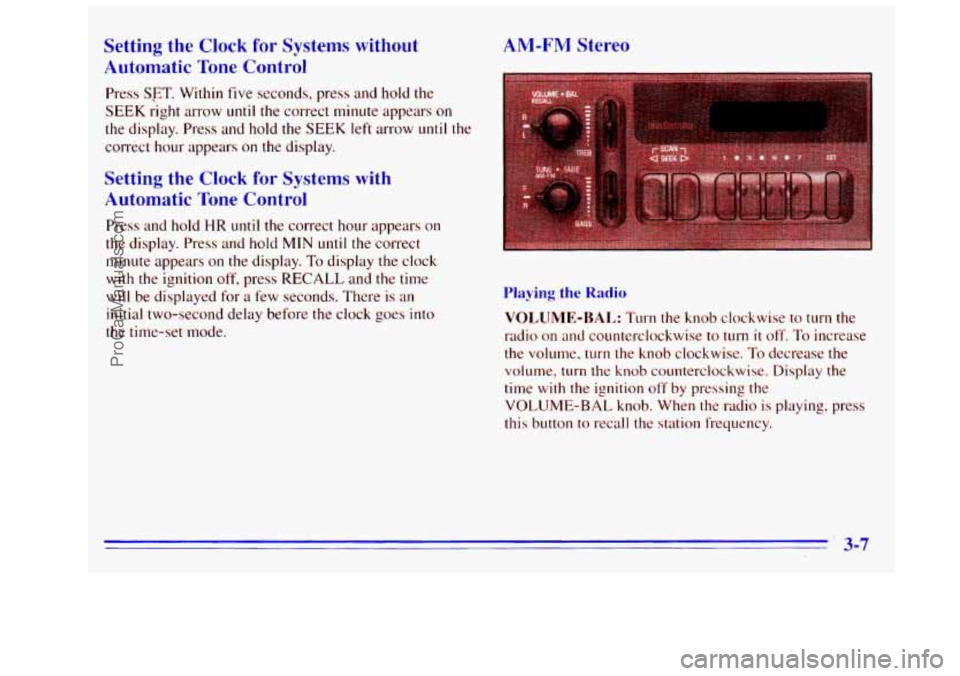

Setting the Clock for Systems without
Automatic Tone Control
Press SFT. Within five seconds, press and hold the
SEEK right arrow
until the correct minute appears on
the display. Press and hold the SEEK left arrow until the
correct hour appears
on the display.
Setting the Clock for Systems with
Automatic Tone Control
Press and hold HR until the correct hour appears on
the display. Press and hold
MIN until the correct
minute appears
on the display. To display the clock
with
the ignition off, press RECALL and the time
will
be displayed for a few seconds. There is an
initial two-second delay before the clock goes into
the time-set mode.
AM-FM Stereo
Playing the Radio
VOLUME-BAL: Turn the knob clockwise to turn the
radio on and counterclockwise
to turn it off. To increase
the volume, turn
the knob clockwise. To decrease the
volume, turn the knob counterclockwise. Display the
time
with the ignition off by pressing the
VOLUME-BAL knob. When the radio
is playing, press
this button
to recall the station frequency.
. 3-7
ProCarManuals.com

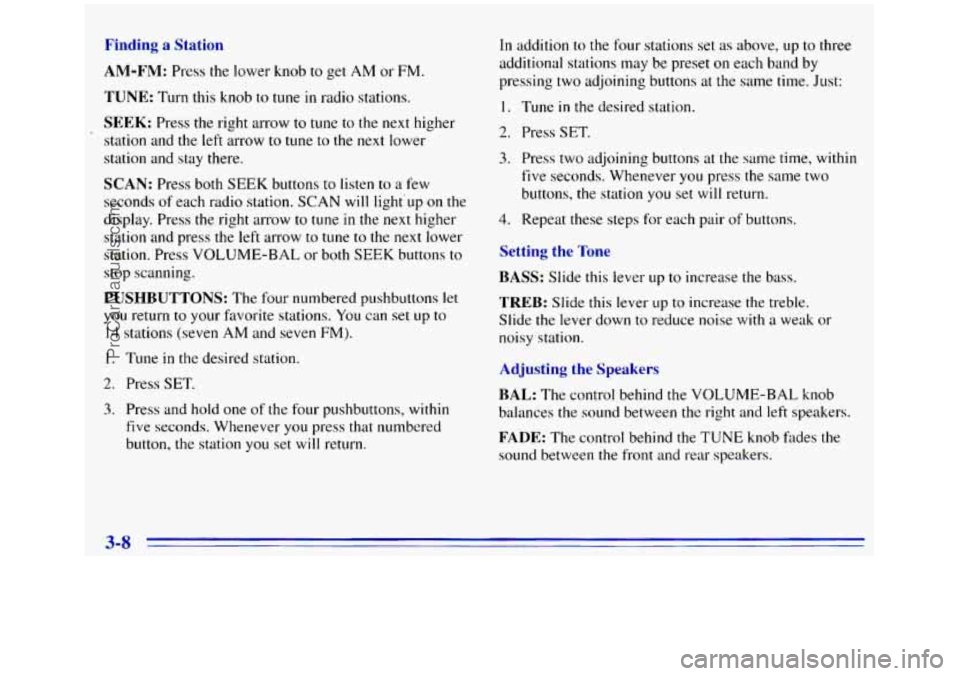

Finding a Station
AM-FM: Press the lower knob to get AM or FM.
TUNE: Turn this knob to tune in radio stations.
SEEK: Press the right amow to tune to the next higher
station and the left arrow
to tune to the next lower
station and stay there.
SCAN: Pre.ss both SEEK buttons to listen to a few
seconds
of each radio station. SCAN will light’up on the
display. Press
the right arrow to tune in the next higher
station and press the left arrow to tune
to the next lower
station. Press VOLUME-BAL
or both SEEK buttons to
stop scanning.
PUSHBUTTONS: The four numbered pushbuttons let
you return to your favorite stations. You can set up to
14 stations (seven AM and seven FM).
1. Tune in the desired station.
2. Press SET.
3. Press and hold one of the four pushbuttons, within
five seconds. Whenever
you press that numbered
button, the station
you set will return.
In addition to the four stations set as above, up to three
additional stations may be preset
on each band by
pressing two adjoining buttons at the same time. Just:
1. Tune in the desired station.
2. Press SET.
3. Press two adjoining buttons at the same time, within
five seconds. Whenever you press the same
two
buttons, the station.you set will return.
4. Repeat these steps for each pair of buttons.
Setting the Tone
BASS: Slide this lever up to increase the bass.
TREB: Slide this lever up to increase the treble.
Slide the lever down to reduce noise with
a weak or
noisy station.
Adjusting the Speakers
BAL: The control behind the VOLUME-BAL knob
balances the sound between the right and left speakers.
FADE: The control behind the TUNE knob fades the
sound between the front and rear speakers.
3-8
ProCarManuals.com

ANI-FM Stereo with Cassette Tape Player
(Option)
Playing the Radio
VOLUME-BAL: Turn the knob clockwise to turn the
radio on and counterclockwise to turn it off. To increase
the volume, turn the knob clockwise.
To decrease the
volume, turn the knob counterclockwise.
RECALL: Display the time with the ignition off by
pressing
the RECALL knob. When the radio is playing,
press this button to recall
the station frequency.
Find.ing a Station
AM-FM: Press the lower knob to get AM or FM.
TUNE: Turn this knob to tune in radio stations.
SEEK: Press this button and the radio will tune to the
next higher or lower station and stay there.
PUSHBUTTONS: The four numbered pushbuttons let
you return to your favorite stations. You can set up to
14 stations (seven AM and seven FM).
1. Tune in the desired station.
2. Press SET.
3. Press and hold one of the four pushbuttons, within
five seconds. Whenever you press that numbered
button, the station you set will return.
In addition to the four stations set
as above, up to three
additional stations may be preset on each band by
pressing two adjoining buttons
at the same time. Just:
1. Tune in the desired station.
2. Press SET.
3. Press two adjoining buttons at the same time,
within five seconds. Whenever you press the same
two buttons,
the station you set will return.
4, Repeat these steps for each pair of buttons.
ProCarManuals.com

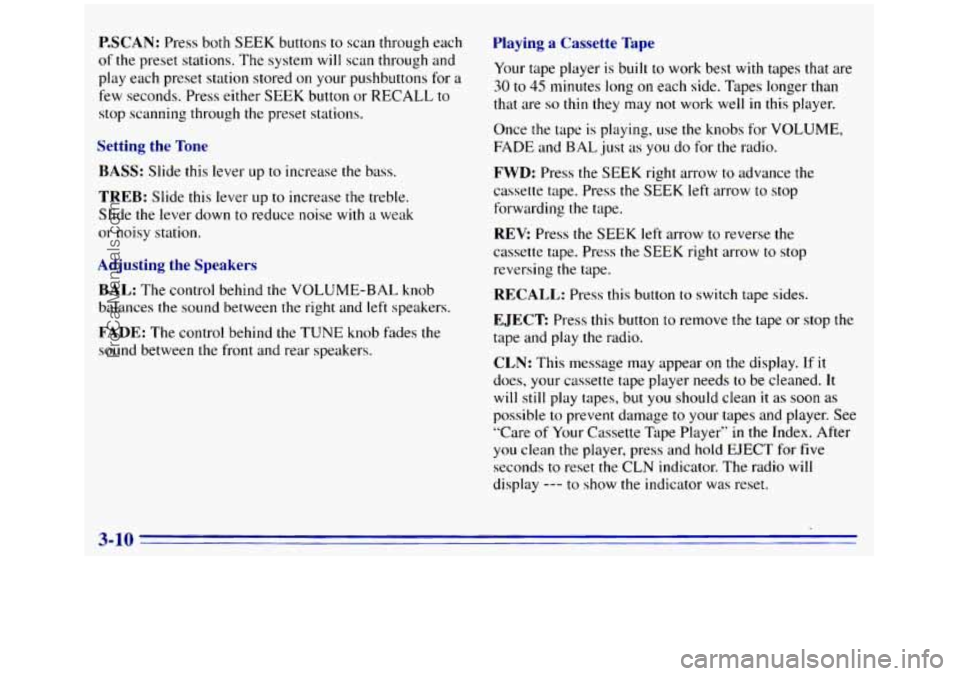

P.SCAN: Press both SEEK buttons to scan through each
of the preset stations. The system will scan through and
play each preset station stored
on your pushbuttons for a
few seconds. Press either SEEK button or RECALL to
stop scanning through
the preset stations.
Setting the Tone
BASS: Slide this lever up to increase the bass.
TREB: Slide this lever up to increase the treble.
Slide the lever down
to reduce noise with a weak
or noisy station.
Adjusting the Speakers
BAL: The control behind the VOLUME-BAL knob
balances the sound between the right and left speakers.
FADE: The control behind the TUNE knob fades the
sound between the front and rear speakers.
Playing a Cassette Tape
Your tape player is built to work best with tapes that are
30 to 45 minutes long on each side. Tdpes longer than
that are
so thin they may not work well in this player.
Once the tape is playing, use the knobs for VOLUME,
FADE and BAL just as you do for the radio.
FWD: Press the SEEK right arrow to advance the
cassette tape. Press the SEEK left arrow to
stop
forwarding the tape.
REV: Press the SEEK left arrow to reverse the
cassette tape. Press the SEEK right arrow to stop
reversing
the tape.
RECALL: Press this button to switch tape sides.
EJECT Press this button to remove the tape or stop the
tape and play the radio.
CLN: This message may appear on the display. If it
does, your cassette tape player needs to be cleaned. It
will still play tapes, but you should clean it as soon as
possible
to prevent damage to your tapes and player. See
“Care of Your Cassette Tdpe Player’’
in the Index. After
you clean the player, press and hold EJECT for five
seconds to reset the CLN indicator. The radio will
display
--- to show the indicator was reset.
3-10
ProCarManuals.com
