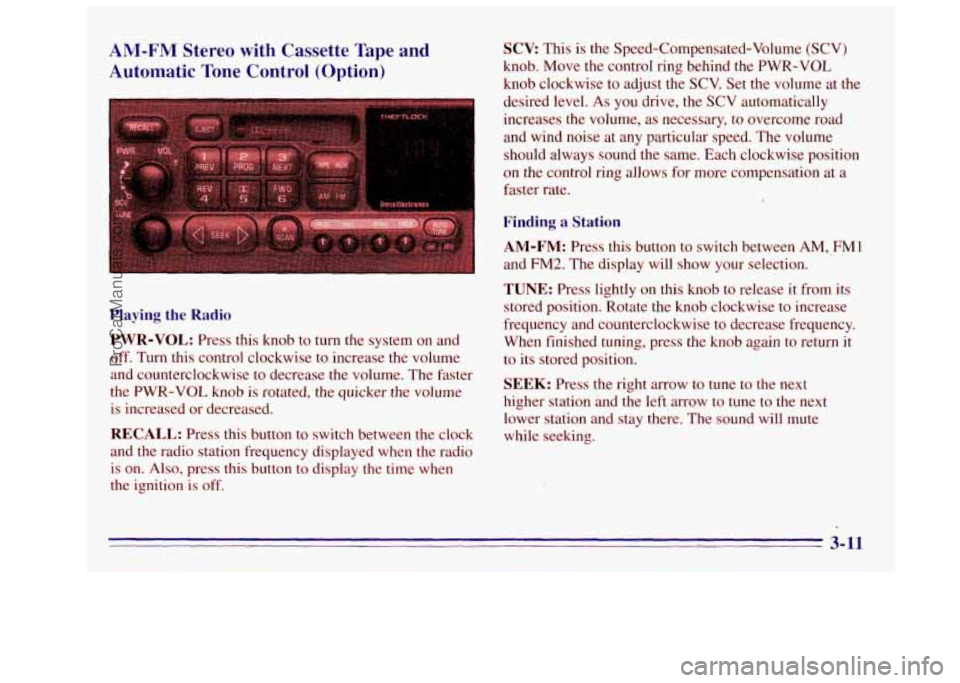

GMC SIERRA 1996 Owners Manual

AM-FM Stereo with Cassette Tape and
Automatic Tone Control (Option)
Playing the Radio
PWR-VOL:
Press this knob to turn the system on and
off. Turn this control clockwise to increase the volume
and counterclockwise
to decrease the volume. The faster
the PWR-VOL
knob is rotated, the quicker the volume
is increased or decreased.
RECALL: Press this button to switch between the clock
and the radio station frequency displayed when the radio
is on. Also, press this button
to display the time when
the ignition is off.
SCV This is the Speed-Compensated-Volume (SCV)
knob. Move the control ring behind the PWR-VOL
knob clockwise
to adjust the SCV. Set the volume at the
desired level.
As you drive, the SCV automatically
increases the volume, as necessary, to overcome road
and wind noise at
any particular speed. The volume
should always sound the same. Each clockwise position
on the control ring allows for more compensation at a
faster rate.
Finding a Station
AM-FM: Press this button to switch between AM, FM1
and FM2. The display will show your selection.
TUNE: Press lightly on this knob to release it from its
stored position. Rotate the
knob clockwise to increase
frequency and counterclockwise to decrease frequency.
When finished tuning, press the knob again
to return it
to its stored position.
SEEK: Press the right arrow to tune to the next
higher station and the left
mow to tune to the next
lower station and stay there, The sound will mute
while seeking.
3-11
~~
ProCarManuals.com

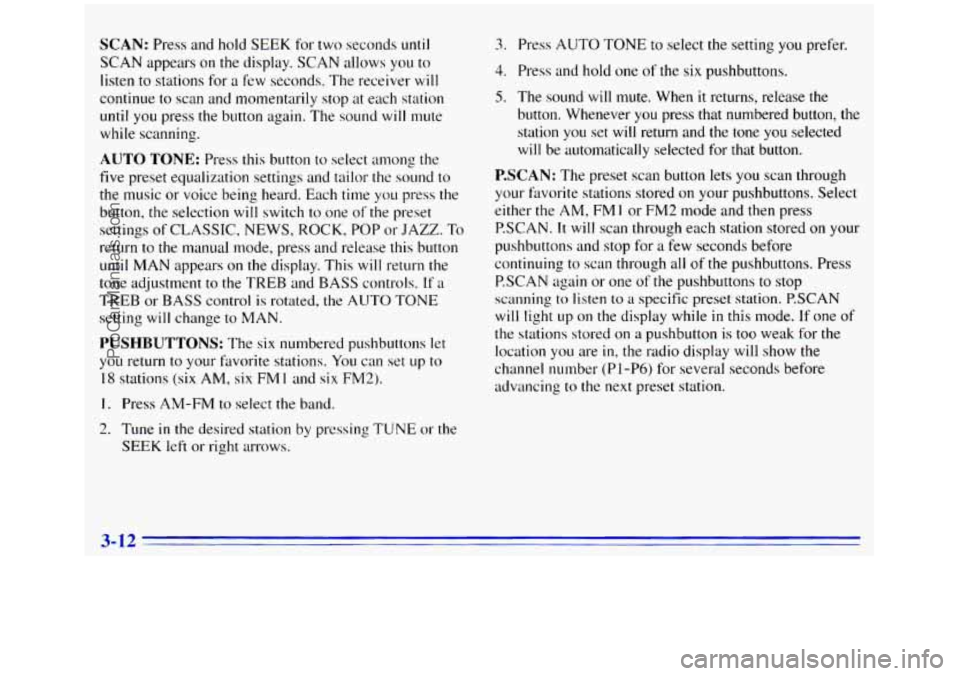

SCAN: Press and hold SEEK for two seconds until
SCAN appears on the display. SCAN allows you to
listen to stations for
a few seconds. The receiver will
continue to scan and momentarily stop at each station
until you press the button again. The sound will mute
while scanning.
AUTO TONE: Press this button to select among the
five preset equalization settings and tailor the sound to
the music or voice being heard. Each time
you press the
button, the selection
will switch to one of the preset
settings of CLASSIC, NEWS, ROCK, POP or JAZZ.
To
return to the manual mode, press and release this button
until MAN appears on the display. This will return the
tone adjustment to the TREB and BASS controls. If a
TREB or BASS control
is rotated, the AUTO TONE
setting will change to MAN.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six AM, six FM 1 and six FMZ).
1. Press AM-FM to select the band.
2. Tune in the desired station by pressing TUNE or the
SEEK left or right arrows.
3. Press AUTO TONE to select the setting you prefer.
4. Press and hold one of the six pushbuttons.
5. The sound will mute. When it returns, release the
button. Whenever you press that numbered button, the
station you set will return and the
tone you selected
will be automatically selected for that button.
PSCAN: The preset scan button lets you scan through
your hvorite stations stored on your pushbuttons. Select
either the AM,
FMI or FM2 mode and then press
P.SCAN. It will scan through each station stored on your
pushbuttons and stop for a few seconds before
continuing to scan through all
of the pushbuttons. Press
P.SCAN again
or one of the pushbuttons to stop
scanning to listen
to a specific preset station. P.SCAN
will light up
on the display while in this mode. If one of
the stations stored on a pushbutton
is too weak for the
location you are in, the radio display will show the
channel number
(P 1 -P6) for several seconds before
advancing
to the next preset station.
3-12
ProCarManuals.com

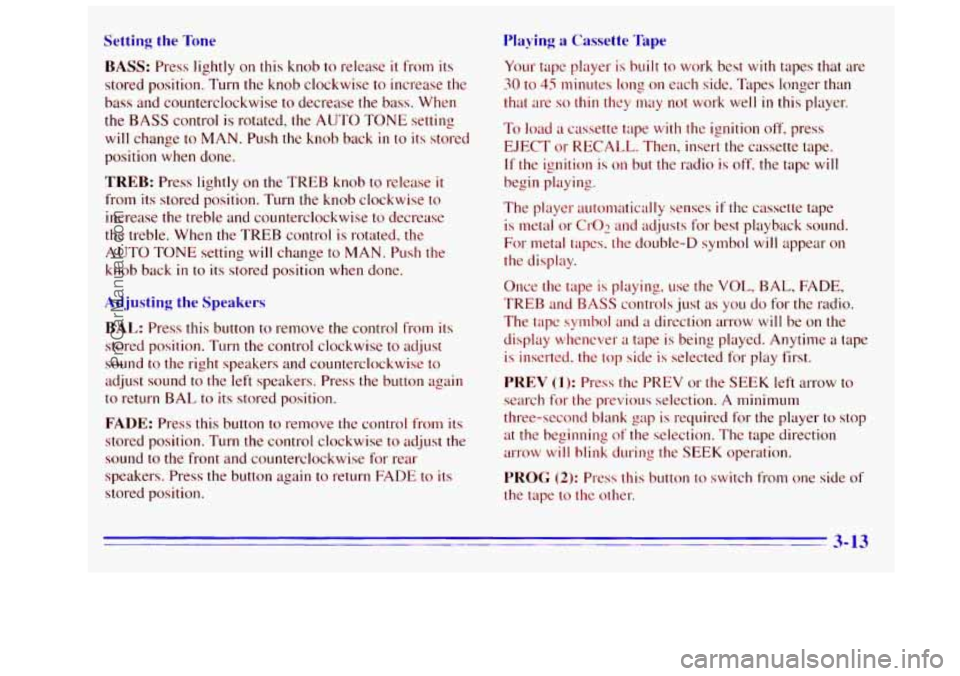

Setting the Tone Playing a
Cassette Tape

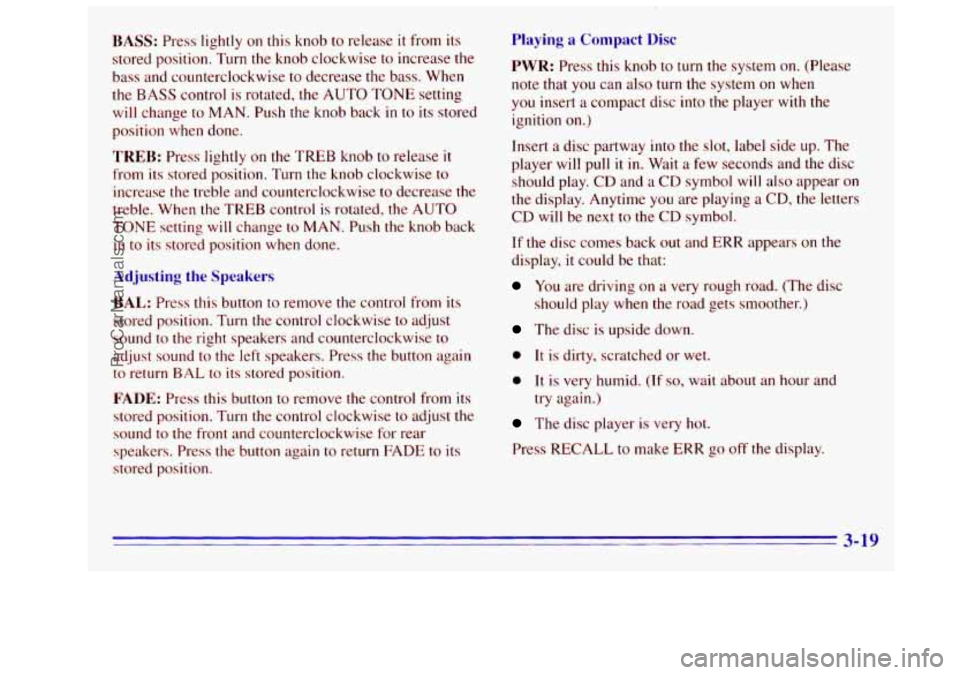

BASS: Press lightly on this knob to release it from its
stored position. Turn the knob clockwise
to increase the
bass and counterclockwise to decrease the bass. When
the BASS control is rotated, the AUTO TONE setting
will change to
MAN. Push the knob back in to its stored
position when done.
TREB: Press lightly on the TREB knob to release it
from its stored position. Turn the knob clockwise to
increase the treble and counterclockwise to decrease
the treble. When the
TREB control is rotated, the
AUTO TONE setting will change to MAN. Push the
knob back
in to its stored position when done.
Adjusting the Speakers
BAL: Press this button to remove the control from its
stored position. Turn the control clockwise to adjust
sound to the right speakers and counterclockwise to
adjust sound
to the left speakers. Press the button again
to return BAL to its stored position.
FADE: Press this button to remove the control from its
stored position. Turn the control clockwise to adjust the
sound to the front and counterclockwise for rear
speakers. Press the button again to return
FADE to its
stored position.
Your tape player is built to work best with tapes that are
30 to 45 minutes long on each side. Tapes longer than
that are
so thin they may not work well in this player.
To load a cassette tape with the ignition off. press
EJECT or RECALL. Then, insert the cassette tape.
If the ignition is on but the radio is off, the tape will
begin playing.
The player automatically senses
if the cassette tape
is metal or CI-02 and adjusts for best playback sound.
For metal tapes, the double-D symbol will appear on
the display.
Once
the tape is playing. use the VOL, BAL, FADE,
TREB and BASS controls just as you do for the radio.
The tape symbol and
a direction arrow will be on the
display whenever
a tape is being played. Anytime a tape
is inserted. the top side is selected for play first.
PREV (1): Press the PREV or the SEEK left arrow to
search for the previous selection. A minitnurn
three-second blank pap
is required for the player to stop
at the beginning of the selection. The tape direction
arrow will blink during the
SEEK operation.
PROG (2): Press this button to switch frotn one side of
the tape to the other.
3-13
ProCarManuals.com

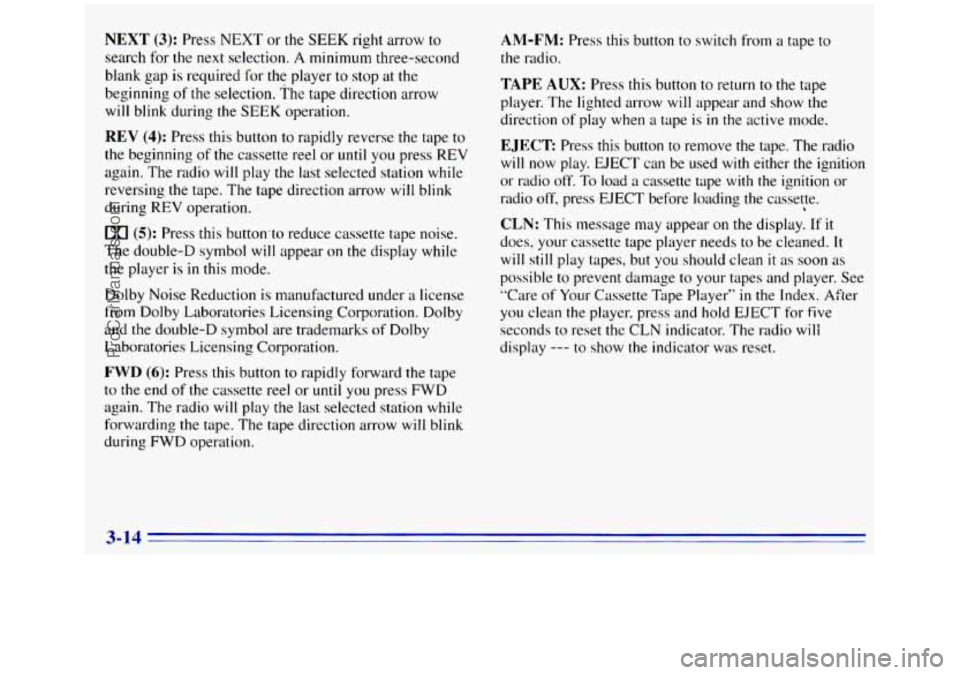

NEXT (3): Press NEXT or the SEEK right arrow to
search for the next selection.
A minimum three-second
blank gap
is required for the player to stop at the
beginning of the selection. The tape direction arrow
will blink during the
SEEK operation.
REV (4): Press this button to rapidly reverse the tape to
the beginning of the cassette reel or until you press REV
again. The radio will play the last selected station while
reversing the tape.
The tape direction arrow will blink
during REV operation.
(5): Press this button'to reduce cassette tape noise.
The double-D symbol will appear
on the display while
the player
is in this mode.
Dolby
Noise Reduction is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby
and the double-D symbol
are trademarks of Dolby
Laboratories Licensing Corporation.
FWD (6): Press this button to rapidly forward the tape
to the end of the cassette reel or
until you press FWD
again.
The radio will play the last selected station while
forwarding the tape. The tape direction arrow will blink
during
FWD operation.
AM-FM: Press this button to switch from a tape to
the radio.
TAPE AUX: Press this button to return to the tape
player. The lighted arrow will appear and show the
direction of play when a tape
is in the active mode.
EJECT Press this button to remove the tape. The radio
will now play. EJECT can be used with either the ignition
or radio
off. To load a cassette tape with the ignition or
radio off, press
EJECT before loading the cassette. t
CLN: This message may appear on the display. If it
does, your cassette tape player needs to be cleaned. It
will still play tapes, but you should clean it as soon as
possible
to prevent damage to your tapes and player. See
"Care of
Your Cassette Tape Player" in the 1nde.x. After
you clean the player? press and hold EJECT for five
seconds
to reset the CLN indicator. The radio will
display
--- to show the indicator was reset.
3-14
ProCarManuals.com

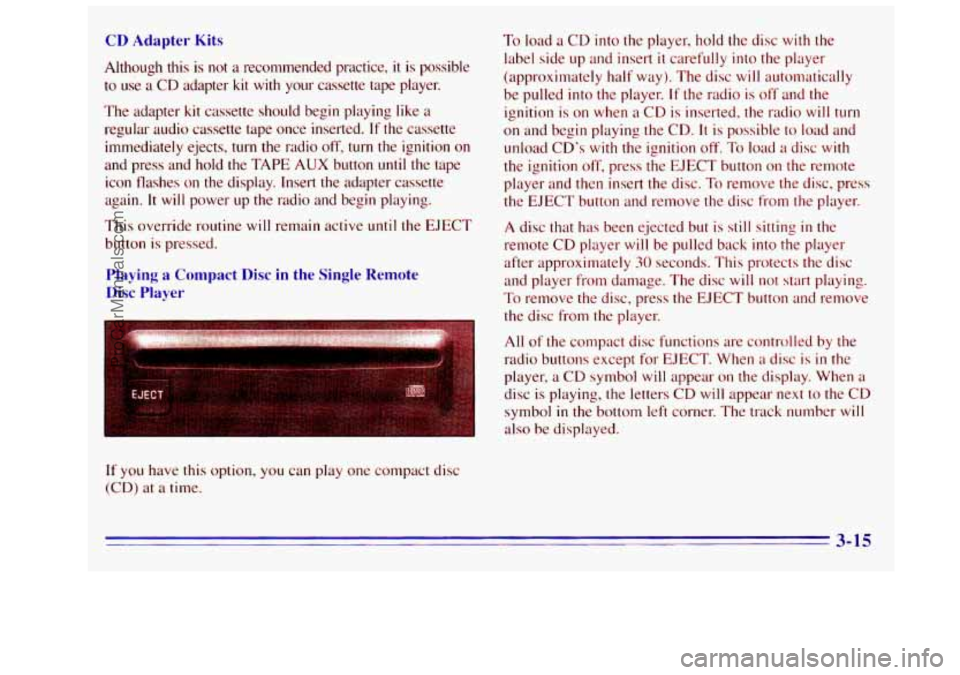

CD Adapter Kits
Although this is not a recommended practice, it is possible
to use a CD adapter kit with your cassette tape player.
The adapter
kit cassette should begin playing like a
regular audio cassette tape once inserted.
If the cassette
immediately ejects, turn the radio
off, turn the ignition on
and press and hold the TAPE AUX button until the tape
icon flashes
on the display. Insert the adapter cassette
again.
It will power up the radio and begin playing.
This override routine will remain active until the EJECT
button is pressed.
Playing a Compact Disc in the Single Remote
Disc Player
If you have this option, you can play one compact disc
(CD) at a time.
To load a CD into the player, hold the disc with the
label side up and insert it carefully into the player
(approximately half way). The disc will autolnatically
be pulled into the player.
If the radio is off and the
ignition is
on when a CD is inserted, the radio will turn
on and begin playing the CD. It is possible to load and
unload
CD's with the ignition off. To load a disc with
the ignition off, press the EJECT button on the remote
player and then insert the disc.
To remove the disc, press
the EJECT button and remove the disc from the player.
A disc that has been ejected but is still sitting in the
remote CD player
will be pulled back into the player
after approximately
30 seconds. This protects the disc
and player
from damage. The disc will not start playing.
To remove the disc, press the EJECT button and remove
the disc from
the player.
All
of the compact disc functions are controlled by the
radio buttons except for EJECT. When
a disc is in the
player, a
CD symbol will appear on the display. When a
disc is playing, the letters CD will appear next to the CD
symbol in the bottom left corner. The track number will
also be displayed.
3-15
ProCarManuals.com

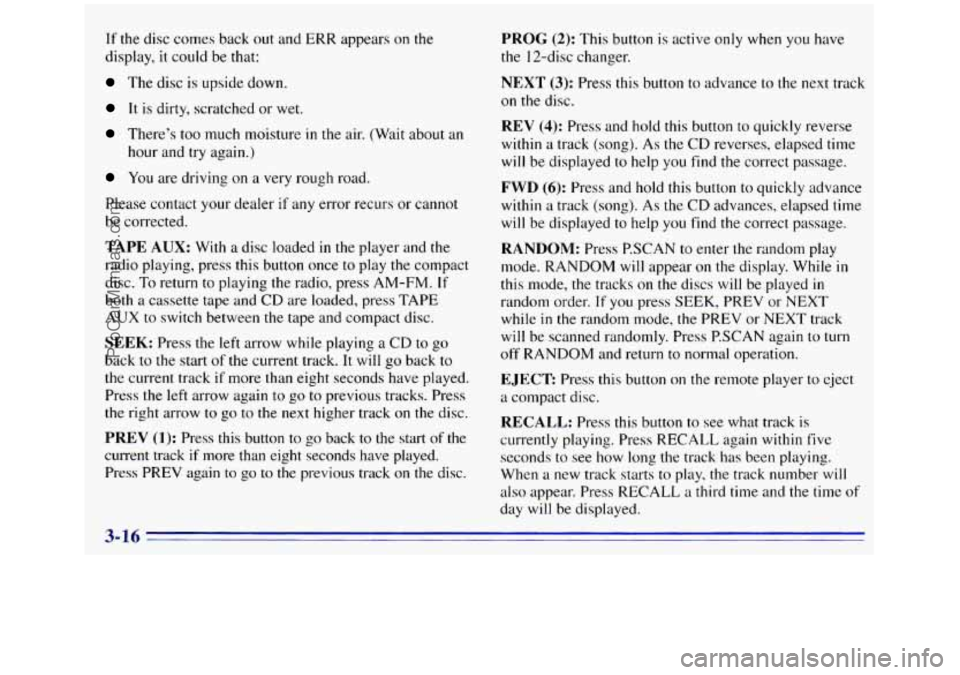

If the disc comes back out and ERR appears on the
display, it could be that:
The disc is upside down.
It is dirty, scratched or wet.
There’s too much moisture in the air. (Wait about an
hour and try again.)
You are driving on a very rough road.
Please contact your dealer
if any error recurs or cannot
be corrected.
TAPE AUX: With a disc loaded in the player and the
radio playing, press this button once to play the compact
disc.
To return to playing the radio, press AM-FM. If
both a cassette tape and CD are loaded, press TAPE
AUX to switch between the tape and compact disc.
SEEK: Press the left arrow while playing a CD to go
back to the start of the current track. It will go back to
the current track if more than eight seconds have played.
Press
the left arrow again to go to previous tracks. Press
the right arrow
to go to the next higher track on the disc.
PREV (1): Press this button to go back to the start of the
current track if more than eight seconds have played.
Press PREV again to
go to the previous track on the disc.
PROG (2): This button is active only when you have
the 12-disc changer.
NEXT (3): Press this button to advance to the next track
on the disc.
REV (4): Press and hold this button to quickly reverse
within a track (song). As the CD reverses, elapsed time
will be displayed
to help you find the correct passage.
FWD (6): Press and hold this button to quickly advance
within a track (song). As the CD advances, elapsed time
will be displayed to help you find the correct passage.
RANDOM: Press P.SCAN to enter the random play
mode. RANDOM
will appear on the display. While in
this mode, the tracks on the discs will be played in
random order. If you press SEEK, PREV or NEXT
while
in the random mode, the PREV or NEXT track
will be scanned randomly. Press P.SCAN again
to turn
off RANDOM and return to normal operation.
EJECT: Press this button on the remote player to eject
a compact disc.
RECALL: Press this button to see what track is
currently playing. Press RECALL again within
five
seconds to see how long the track has been playing.
When
a new track starts to play, the track number will
also appear. Press RECALL
a third time and the time of
day will be displayed.
3-16
ProCarManuals.com

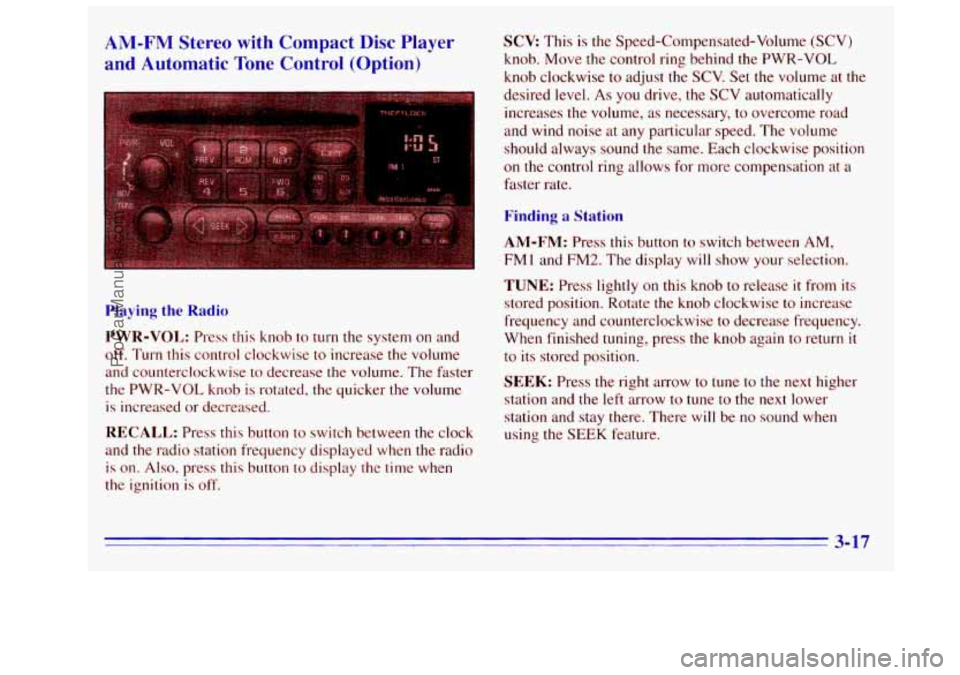

AM-FM Stereo with Compact Disc Player
and Automatic Tone Control (Option)
Playing the Radio
PWR-VOL: Press this knob to turn the system on and
off.
Turn this control clockwise to increase the volume
and counterclockwise
to decrease the volume. The faster
the PWR-VOL knob is rotated, the quicker the volume
is increased or decreased.
RECALL: Press this button to switch between the clock
and the radio station frequency displayed when
the radio
is
on. Also, press this button to display the time when
the ignition
is off.
S ~ J: This is the Speed-Compensated-Volume (SCV)
knob. Move the control ring behind the PWR-VOL
knob clockwise to adjust the SCV. Set the volume at the
desired level.
As you drive, the SCV automatically
increases the volume, as necessary, to overcome road
and wind
noise at any particular speed. The volume
should always sound the same. Each clockwise position
on the control ring allows for more compensation at a
faster rate.
Finding a Station
AM-FM: Press this button to switch between AM,
FMl and FM2. The display will show your selection.
TUNE: Press lightly on this knob to release it from its
stored position. Rotate the knob clockwise to increase
frequency and counterclockwise
to decrease frequency.
When finished tuning, press
the knob again to return it
to its stored position.
SEEK: Press the right arrow to tune to the next higher
station and the left arrow to tune
to the next lower
station and stay there. There will be
no sound when
using
the SEEK feature.
3- 17
ProCarManuals.com

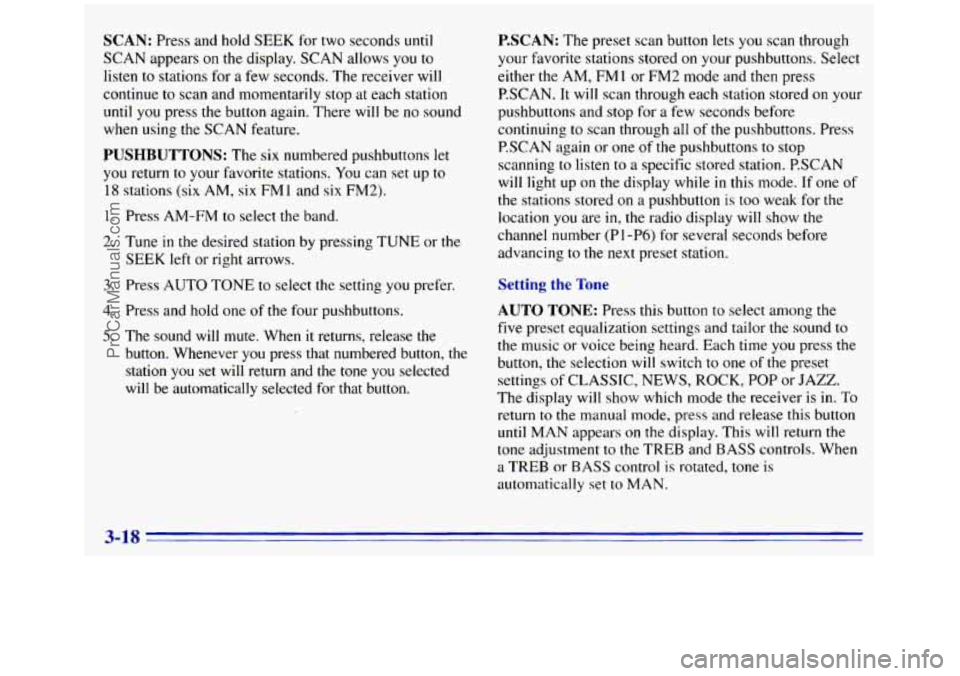

SCAN: Press and hold SEEK for two seconds until
SCAN appears on the display. SCAN allows you to
listen to stations for a few seconds. The receiver will
continue to scan and momentarily stop at each station
until you press the button again. There will be no sound
when using
the SCAN feature.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six AM, six FM 1 and six FM2).
1. Press AM-FM to select the band.
2. Tune in the desired station by pressing TUNE or the
3. Press AUTO TONE to select the setting you prefer.
4. Press and hold one of the four pushbuttons.
5. The sound will mute. When it returns, release the
SEEK
left or right arrows.
button. Whenever
you press that numbered button, the
station you set will return and the tone you selected
will
be automatically selected for that button.
P.SCAN: The preset scan button lets you scan through
your favorite stations stored
on your pushbuttons. Select
either
the AM, FMI or FM2 mode and then press
P.SCAN.
It will scan through each station stored on your
pushbuttons and stop for a few seconds before
continuing
to scan through all of the pushbuttons. Press
P.SCAN again
or one of the pushbuttons to stop
scanning
to listen to a specific stored station. P.SCAN
will light up on the display while
in this mode. If one of
the stations stored on a pushbutton is too weak for the
location you are in, the radio display will show the
channel number
(PI-P6) for several seconds before
advancing to the next preset station.
Setting the Tone
AUTO TONE: Press this button to select among the
five preset equalization settings and tailor the sound to
the music or voice being heard. Each time you press the
button,
the selection will switch to one of the preset
settings
of CLASSIC, NEWS, ROCK, POP or JAZZ.
The display will show which mode the receiver is in. To
return to the manual mode, press and release this button
until MAN appears on the display. This will return the
tone adjustment to the TREB and
BASS controls. When
a TREB or BASS control
is rotated, tone is
automatically set
to MAN.
3-18
ProCarManuals.com

BAS Press'lightly on this knob to release it from its
stored position. Turn the knob clockwise to increase the
bass and counterclockwise to decrease the bass. When
the
BASS control is rotated, the AUTO TONE setting
will change to
MAN. Push the knob back in to its stored
position when done.
TREB: Press lightly on the TREB knob to release it
from its stored position. Turn the knob clockwise to
increase the treble and counterclockwise
to decrease the
treble. When the TREB control is rotated, the AUTO
TONE setting will change to MAN. Push the knob back
in to its stored position when done.
Adjusting the Speakers
BAL: Press this button to remove the control from its
stored position. Turn the control clockwise
to adjust
sound
to the right speakers and counterclockwise to
adjust sound to the left speakers. Press the button again
to return BAL to its stored position.
FADE: Press this button to remove the control from its
stored position. Turn
the control clockwise to adjust the
sound to
the front and counterclockwise for rear
speakers.
Press the button again to return FADE to its
stored position.
Playing a Compact Disc
PWR: Press this knob to turn the system on. (Please
note that
you can also turn the system on when
you insert a compact disc into the player with the
ignition on.)
Insert
a disc partway into the slot, label side up. The
player will pull it
in. Wait a few seconds and the disc
should play. CD and
a CD symbol will also appear on
the display. Anytime you are playing a
CD, the letters
CD will be
next to the CD symbol.
If the disc comes back out and ERR appears on the
display,
it could be that:
You are driving on a very rough road. (The disc
should play when the road gets smoother.)
The disc is upside down.
0 It is dirty, scratched or wet.
0 It is very humid. (If so, wait about an hour and
try again.)
The disc player is very hot.
Press RECALL
to make ERR go off the display.
3-19
ProCarManuals.com

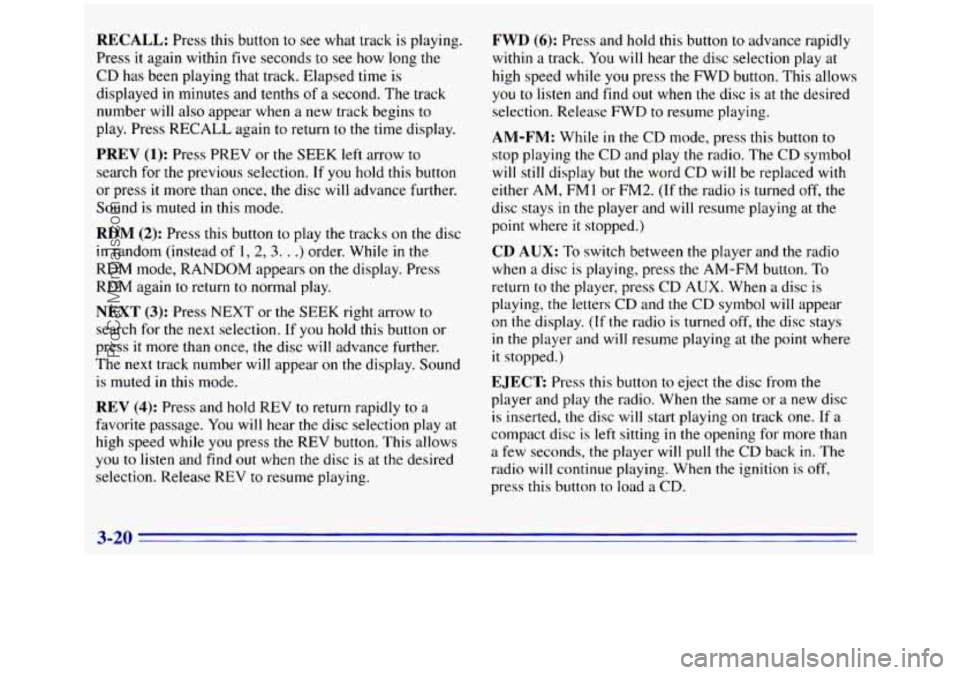

RECALL: Press this button to see what track is playing.
Press
it again within five seconds to see how long the
CD has been playing that track. Elapsed time is
displayed
in minutes and tenths of a second. The track
number will also appear when
a new track begins to
play. Press RECALL again
to return to the time display.
PREV (1): Press PREV or the SEEK left arrow to
search for the previous selection.
If you hold this button
or press
it more than once, the disc will advance further.
Sound is muted in this mode.
RDM (2): Press this button to play the tracks on the disc
in random (instead of I, 2,3. . .) order. While in the
RDM mode, RANDOM appears
on the display. Press
RDM again to return
to normal play.
NEXT (3): Press NEXT or the SEEK right arrow to
search for the next selection.
If you hold this button or
press
it more than once, the disc will advance further.
The
next track number will appear on the display. Sound
is muted in this mode.
REV (4): Press and hold REV to return rapidly to a
favorite passage.
You will hear the disc selection play at
high speed while
you press the REV button. This allows
you to listen and find
out when the disc is at the desired
selection. Release
REV to resume playing.
FWD (6): Press and hold this button to advance rapidly
within a track.
You will hear the disc selection play at
high speed while you press
the FWD button. This allows
you
to listen and find out when the disc is at the desired
selection. Release FWD to resume playing.
AM-FM: While in the CD mode, press this button to
stop playing the CD and play the radio. The CD symbol
will still display but the word CD will be replaced with
either
AM, FM 1 or FM2. (If the radio is turned off, the
disc stays
in the player and will resume playing at the
point where it stopped.)
CD AUX: To switch between the player and the radio
when a disc is playing, press the AM-FM button. To
return to the player, press CD AUX. When a disc is
playing, the letters CD and the CD symbol will appear
on the display.
(If the radio is turned off, the disc stays
in the player and will resume playing at the point where
it stopped.)
EJECT Press this button to eject the disc from the
player and play the radio. When
the same or a new disc
is inserted,
the disc will start playing on track one. If a
compact disc is left sitting
in the opening for more than
a few seconds, the player will pull the CD back in. The
radio will continue playing. When the ignition
is off,
press this button
to load a CD.
3-20
ProCarManuals.com
