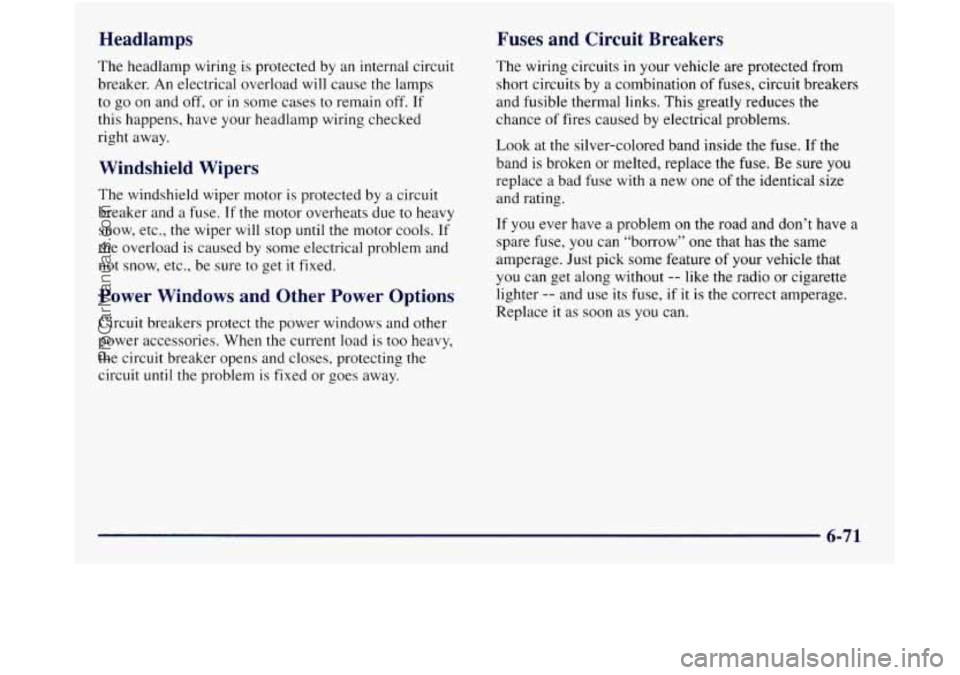

Headlamps Fuses and Circuit Breakers
The headlamp wiring is protected by an internal circuit
breaker. An electrical overload will cause
the lamps
to go on and off, or
in some cases to remain off. If
this happens, have your headlamp wiring checked
right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and
a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop
until the motor cools. If
the overload is caused by some electrical problem and
not snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When the current load is too heavy,
the circuit breaker opens and closes, protecting the
circuit
until the problem is fixed or goes away. The wiring circuits
in your vehicle are protected from
short circuits by
a combination of fuses, circuit breakers
and fusible thermal links.
This greatly reduces the
chance
of fires caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace
a bad fuse with a new one of the identical size
and rating.
If you ever have
a problem on the road and don’t have a
spare fuse, you can “borrow” one that has the same
amperage. Just pick some feature
of your vehicle that
you can get along without
-- like the radio or cigarette
lighter
-- and use its fuse, if it is the correct amperage.
Replace
it as soon as you can.
6-7 1
ProCarManuals.com

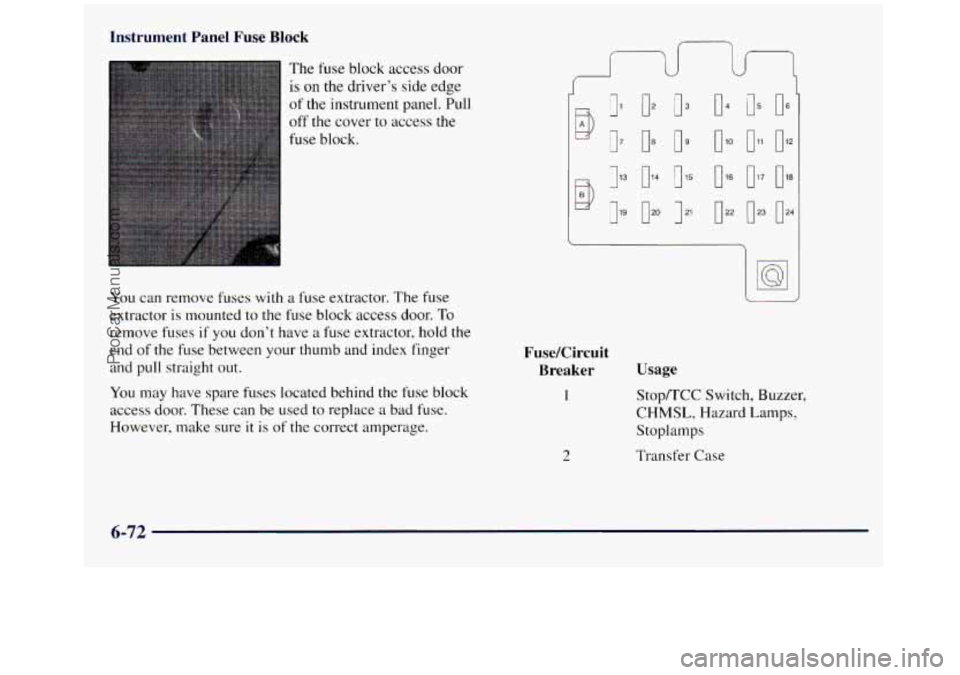

Instrument Panel Fuse Block
The fuse block access door
is on the driver’s side edge
of the instrument panel. Pull
off the cover to access the
fuse block.
You can remove
fuses with a fuse extractor. The fuse
extractor
is mounted to the fuse block access door. To
remove fuses if you don’t have a fuse extractor, hold the
end
of the fuse between your thumb and index finger
and
pull straight out.
You may have spare fuses located behind the fuse block
access door. These can be used to replace a bad fuse.
However, make
sure it is of the correct amperage.
J
D
13
ug
7 I
FuseKircuit
Breaker
1
2
Usage
Stop/TCC Switch, Buzzer,
CHMSL, Hazard Lamps,
S toplamps
Transfer
Case
6-72
ProCarManuals.com

FuseKircuit Breaker
3
4
Usage
Courtesy Lamps, Cargo Lamp,
Glove Box Lamp, Dome/Reading
Lamps, Vanity Mirrors,
Power Mirrors
Instrument Cluster, DRL Relay,
Lamp Switch, Keyless Entry,
Low Coolant Module, Illuminated Entry Module,
DRAC (Diesel Engine)
Not Used
Cruise Control
Auxiliary Power Outlet
Crank
License Lamp, Parking Lamps,
Taillamps,
Roof Marker Lamps,
Tailgate Lamps, Front
Sidemarkers, Fog Lamp Relay,
Door Switch Illumination,
Fender Lamps, Headlamp Switch Illumination
FuseKircuit
Breaker
10
11
12
13
14
15
I6
17
18
19
Usage
Air Bag System
Wiper Motor, Washer Pump
A/C,
A/C Blower,
High Blower Relay
Power
Amp, Cigarette Lighter,
Door Lock Relay,
Power Lumbar Seat
4WD Indicator, Cluster, Comfort
Controls, Instrument Switches,
Radio Illumination,
Chime Module
DRL Relay,
Fog Lamp Relay
Front and Rear Turn Signals,
Back-up Lamps, BTSl Solenoid
Radio (Ignition)
4WAL/VCM, ABS. Cruise Control
Radio (Batterv)
6-73
ProCarManuals.com

Fuse/Circuit Breaker Usage
20
21
22
23
24
A
B
PRNDL, Automatic Transmission,
Speedometer, Check Gages
Warning Light
Security/Steering
Not Used
Not Used
Front Axle,
4WD Indicator Lamp,
TP2 Relay (Gasoline Engine)
Power Door Lock, Six-Way Power Seat, Keyless Entry Module
Power Windows
Underhood Fuse/Relay Center
The underhood fusehelay center is located in the rear of
the engine compartment near the brake fluid reservoir.
Move the retainer clips
for the cover to access the
fuse block.
You can remove fuses with a fuse extractor. The fuse
extractor
is mounted to the interior fuse block. TO
remove fuses
if you don’t have a fuse extractor, hold the
end of the fuse between your thumb and index finger
and pull straight out.
6-74
ProCarManuals.com

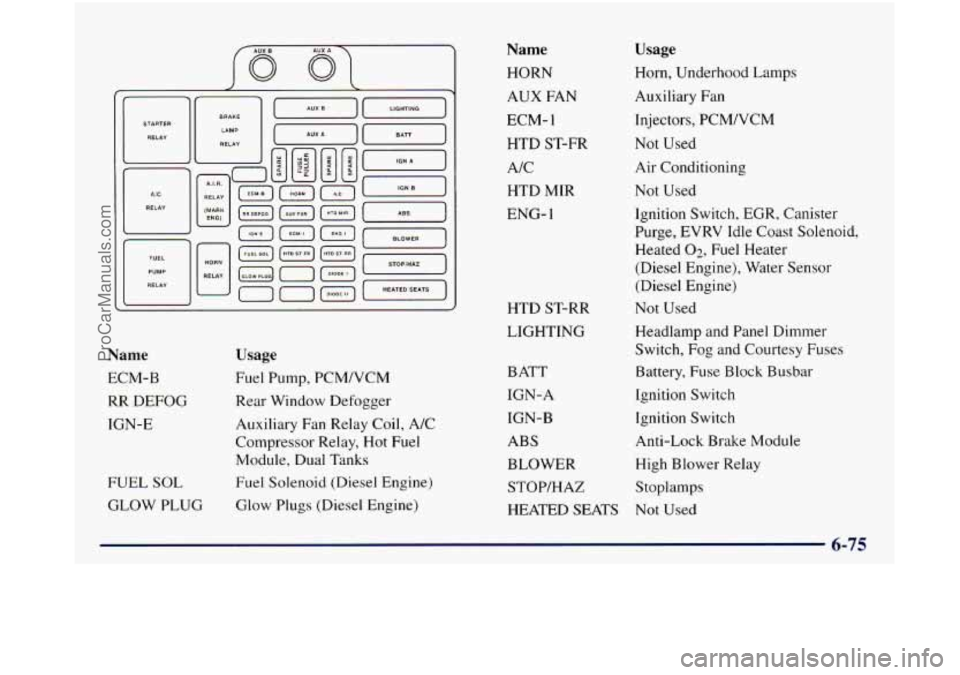

STARTER RELAY
[-I
[-I
[T)
I BLOWER
n STOPiHAZ
Name
ECM-B RR DEFOG
IGN-E
FUEL
SOL
GLOW PLUG
Usage
Horn, Underhood Lamps
Auxiliary Fan
Injectors, PCM/VCM
Not Used
Air Conditioning
Not Used
Ignition Switch, EGR, Canister
Purge, EVRV Idle Coast Solenoid,
Heated
02, Fuel Heater
(Diesel Engine), Water Sensor
(Diesel Engine)
HTD ST-RR Not Used
LIGHTING Headlamp and Panel Dimmer
BATT Battery, Fuse Block Busbar
IGN-A Ignition Switch
IGN-B Ignition Switch Switch,
Fog and Courtesy Fuses
ABS Anti-Lock Brake Module
BLOWER High Blower Relay
STOP/HAZ Stoplamps
HEATED SEATS Not Used
6-75
Usage
Fuel Pump, PCM/VCM
Rear Window Defogger
Auxiliary Fan Relay Coi
il, AIC
Compressor Relay, Hot Fuel
Module, Dual Tanks
Fuel Solenoid (Diesel Engine)
Glow Plugs (Diesel Engine)
Name
HORN
AUX FAN
ECM- 1
HTD ST-FR
AIC HTD MIR
ENG-
1
ProCarManuals.com

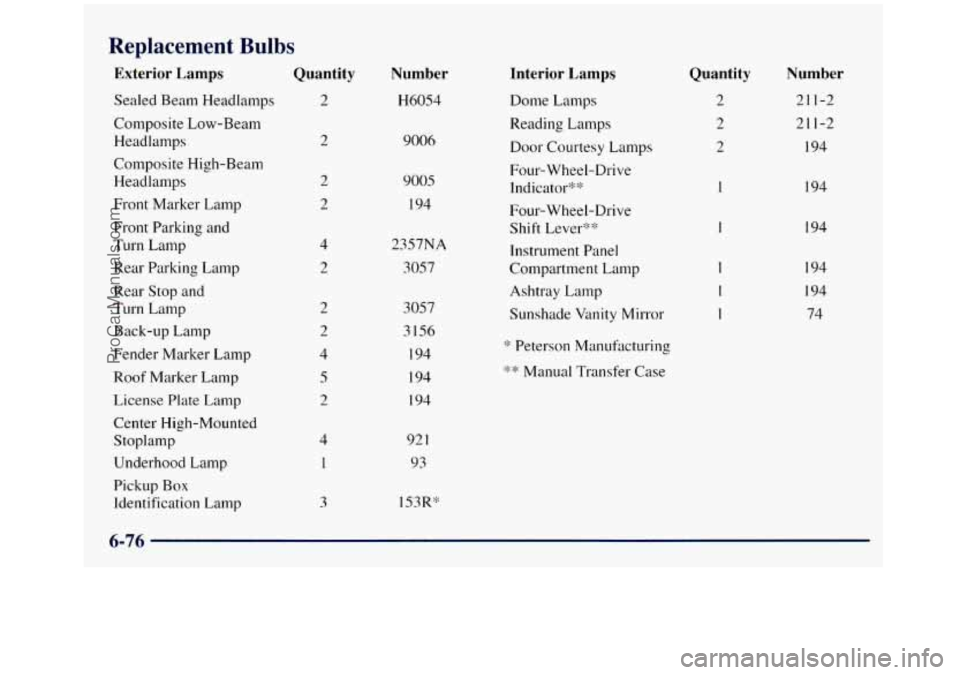

Replacen- - --:
Exterior Lamps
.-
Quantity Number
H6054
Interior Lamps Quantity Number
21 1-2
21 1-2
194
Sealed
Beam Headlamps
Composite Low-Beam
Headlamps
Composite High-Beam
Headlamps
Front Marker Lamp
Front Parking and
Turn Lamp
Rear Parking Lamp
Rear Stop and
Turn Lamp
Back-up Lamp
Fender Marker Lamp
Roof Marker Lamp
License Plate Lamp
Center High-Mounted
Stoplamp
Underhood Lamp
Pickup
Box
Identification Lamp
2 Dome Lamps
Reading Lamps Door Courtesy Lamps
Four-Wheel-Drive
Indicator**
Four-Wheel-Drive Shift Lever4:
:P
Instrument Panel
Compartment Lamp
2 9006
2
2 9005
194 1 194
1 194
4
2
2357NA
3057 194
194
74
Ashtray Lamp
Sunshade Vmity Mirror
3057
3156 I94
194
194
'@ Peterson Manufacturing
*'k Manual Transfer Case
4
1
92 1
93
3
6-76
ProCarManuals.com

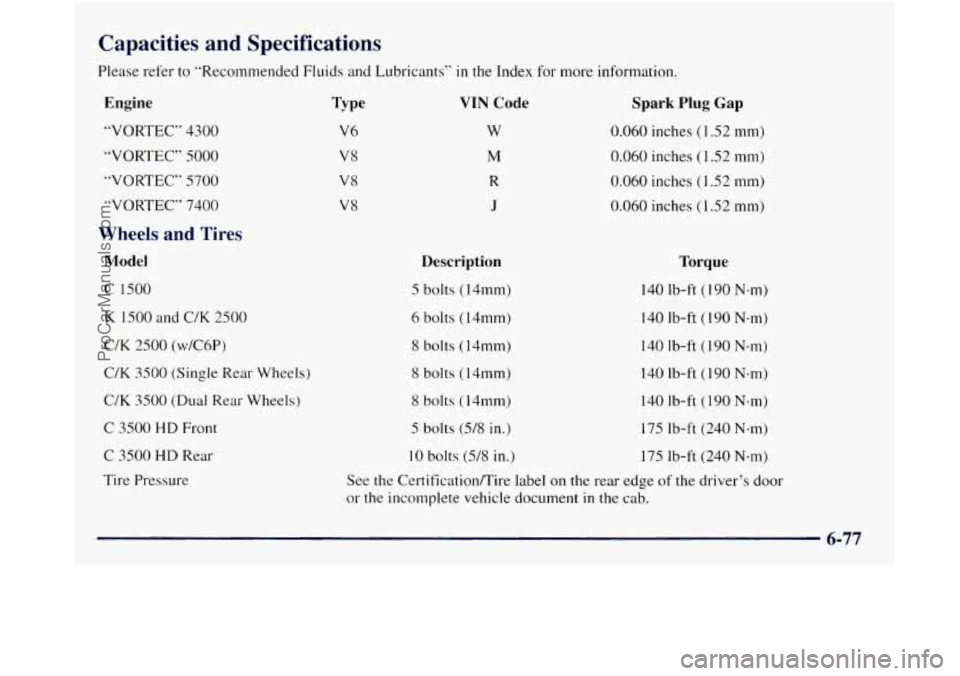

Capacities and Specifications
Please refer to ”Recommended Fluids and Lubricants” in the Index for more information.
Engine
“VORTEC” 4300
“VORTEC” 5000
”VORTEC“ 5700
“VORTEC“ 7400
Wheels and Tires
Model
C 1500
K 1500 and C/K 2500
C/K 2500 (w/C6P)
C/K
3500 (Single Rear Wheels)
C/K 3500 (Dual Rear Wheels)
C 3500 HD Front
C 3500 HD Rear
Tire Pressure
Type
V6
V8
V8
V8
VIN Code
w
M
R
J
Spark Plug Gap
0.060 inches ( 1.52 mm)
0.060 inches
(I .52 mm)
0.060 inches (1.52 mm)
0.060 inches (1 32 mm)
Description Torque
5 bolts (14mm) 140 lb-ft ( 190 Nem)
6 bolts
(14mm) 140 Ib-ft (190 N-m)
8 bolts (14mm) 140 lb-ft ( 190 N-m)
8 bolts
(14mm) 140 lb-ft ( 190 N-m)
8 bolts
(14mm) 140 lb-ft (190 Nsm)
5 bolts (5/8 in.) 175 Ib-ft (240 N-m)
10 bolts (5/8 in.)
175 lb-ft (240 Nem)
See the Certificationflire label on the rear edge of the driver’s door
or the incomplete vehicle document
in the cab.
6-77
ProCarManuals.com

Normal Maintenance Replacement Parts
Replacement part numbers listed in this section are based on the latest information available at the time of printing,
and are subject to change. If a part listed
in this manual is not the same as the part used in your vehicle when it was
built, or
if you have any questions, please contact your GM truck dealer.
These specifications are for information only.
If you have any questions, see the service manual for the chassis or
refer
to the body manufacturer's publications.
VIN Code
Oil Filter';"
Air Cleaner Filter*
PCV Valve*
Spark Plugs*
Fuel Filter*
Wiper Blades**
Wiper Blade Type
Wiper Blade Length
w M
PF52 PF12 18.1
A 1300C??
A 1300C??
CV746C CV796C
4 1-932 4 1-932
GF626 GF626
22154886 22 154886
Trico Trico
18 inches (45.0 cm) 18 inches
(45.0 cm)
"AC part number
**GM part number
?Use
a PF52 oil filter if your vehicle has four-wheel drive.
??A1301C high-capacity air cleaner filter.
R J
PF1218? PF1218
A 1300C?? A 1300C??
CV796C cv774c
4 1-932 4 1-932
GF626 GF626
22 154886 22154886
Trico Trico
18 inches (45.0 cm) I8
inches (45.0 cm)
6-78
ProCarManuals.com

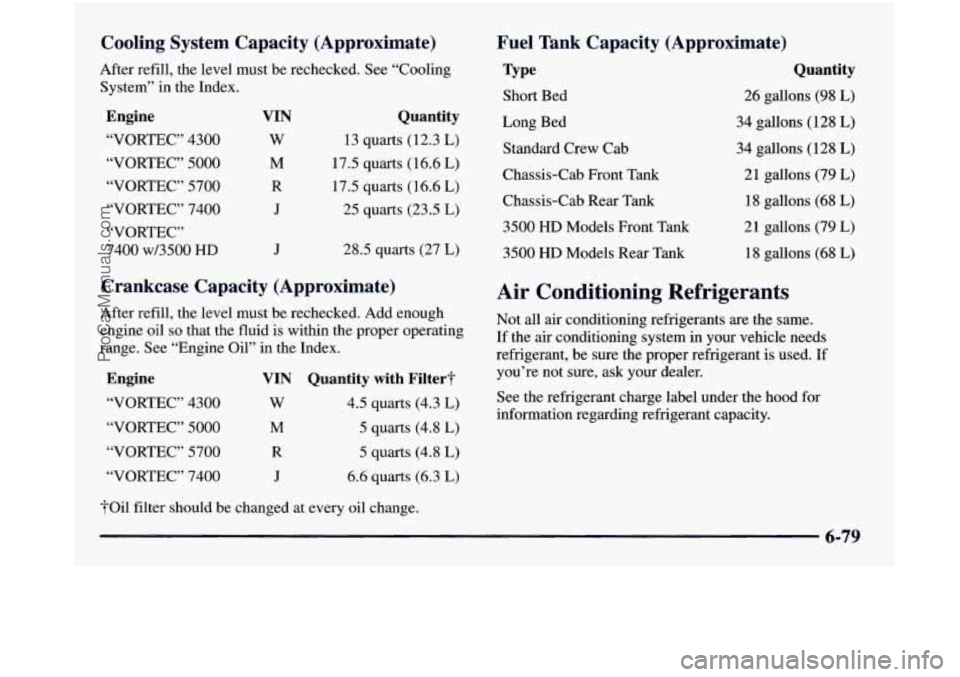

Cooling System Capacity (Approximate)
After refill, the level must be rechecked. See “Cooling
System” in the Index.
Engine
“VORTEC” 4300
“VORTEC” 5000
“VORTEC” 5700
“VORTEC” 7400
“VORTEC”
7400 w/3500 HD
VLN
w
M
R
J
J
Quantity
13 quarts (12.3 L)
17.5 quarts (16.6 L)
17.5 quarts (16.6
L)
25 quarts (23.5 L)
28.5 quarts (27
L)
Crankcase Capacity (Approximate)
After refill, the level must be rechecked. Add enough
engine oil
so that the fluid is within the proper operating
range. See “Engine Oil” in the Index.
Engine
“VORTEC” 4300
“VORTEC” 5000
“VORTEC” 5700
“VORTEC” 7400
VIN Quantity with Filter?
w 4.5 quarts (4.3 L)
M 5 quarts (4.8 L)
R 5 quarts (4.8 L)
J 6.6 quarts (6.3 L)
foil filter should be changed at every oil change.
Fuel Tank Capacity (Approximate)
PPe Quantity
Short Bed
26 gallons (98 L)
Long Bed
34 gallons (128
L)
Standard Crew Cab 34 gallons (128 L)
Chassis-Cab Front Tank 2 1 gallons (79 L)
Chassis-Cab Rear Tank
18 gallons (68
L)
3500 HD Models Front Tank
21 gallons (79 L)
3500 HD Models Rear Tank
18 gallons (68
L)
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used. If
you’re not sure, ask your dealer.
See the refrigerant charge label under the
hood for
information regarding refrigerant capacity.
6-79
ProCarManuals.com

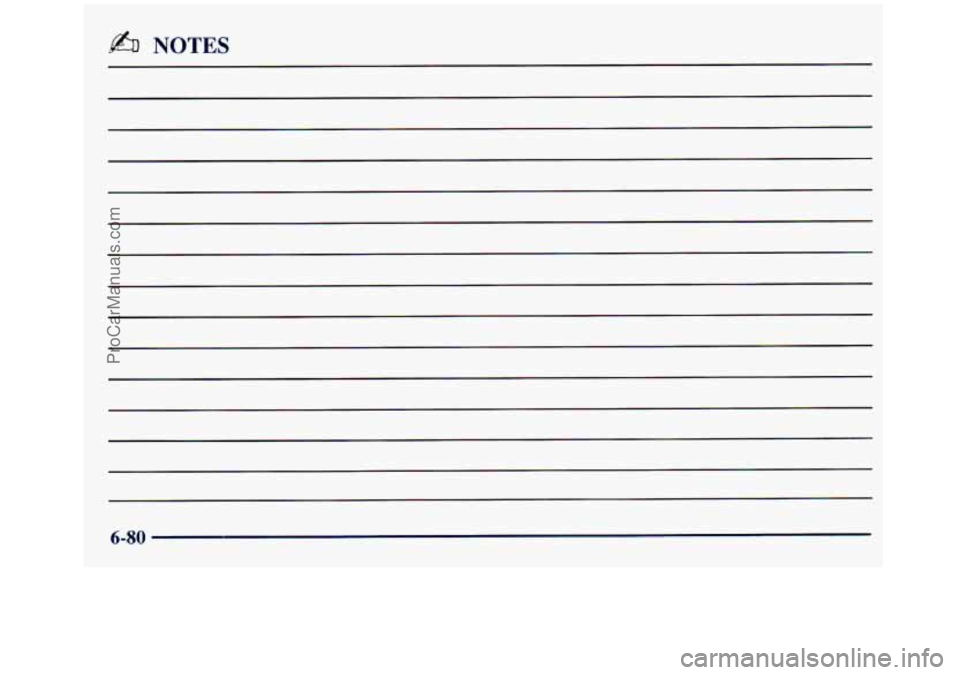

NOTES
