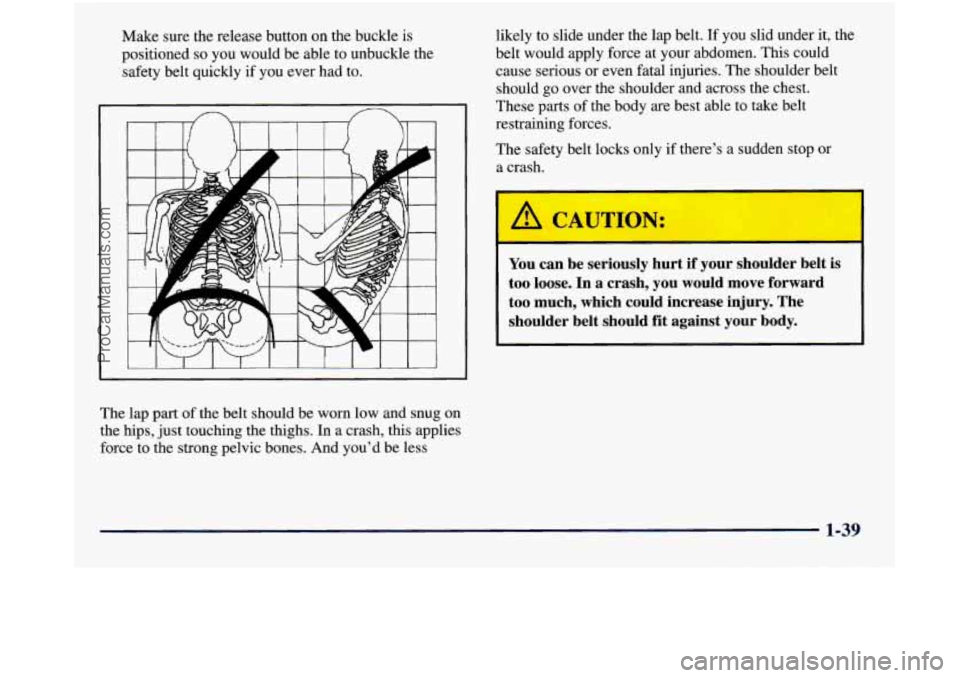

Make sure the release button on the buckle is
positioned
so you would be able to unbuckle the
safety belt quickly if you ever had to.
1
The lap part of the belt should be worn low and snug on
the hips, just touching the thighs.
In a crash, this applies
force to the strong pelvic bones. And you’d be less likely
to slide under the lap belt. If you slid under it, the
belt would apply force at your abdomen. This could
cause serious or even fatal injuries. The shoulder belt
should go over the shoulder and across the chest.
These parts of the body are best able to take belt
restraining forces.
The safety belt locks only if there’s a sudden stop or
a crash.
You can be seriously hurt if your shoulder belt is
too loose. In a crash, you would move forward
too much, which could increase injury. The
shoulder belt should
fit against your body.
I
1-39
ProCarManuals.com

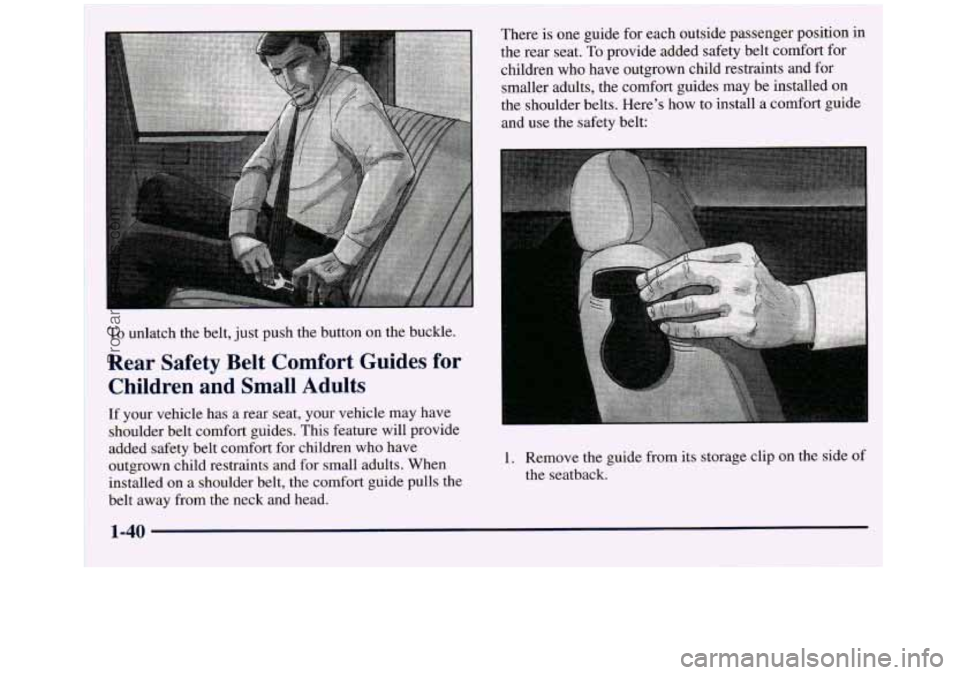

To unlatch the belt, just push the button on the buckle.
Rear Safety Belt Comfort Guides for
Children and Small Adults
If your vehicle has a rear seat, your vehicle may have
shoulder belt comfort guides. This feature will provide
added safety belt comfort for children who have
outgrown child restraints and for small adults. When
installed on a shoulder belt, the comfort guide pulls the
belt away from the neck and head. There is one guide for each outside passenger position
in
the rear seat. To provide added safety belt comfort for
children who have outgrown child restraints and for
smaller adults, the comfort guides may be installed on
the shoulder belts. Here’s how
to install a comfort guide
and use the safety belt:
1. Remove the guide from its storage clip on the side of
the seatback.
1-40
ProCarManuals.com

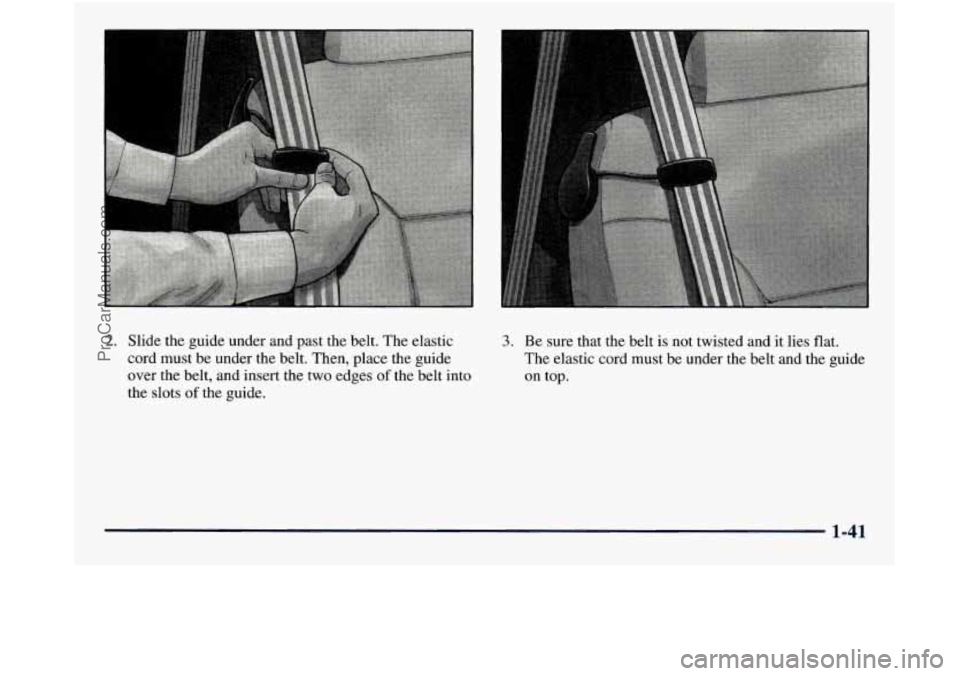

2. Slide the guide under and past the belt. The elastic
cord must be under the belt. Then, place the guide
over the belt, and insert the two edges
of the belt into
the slots
of the guide.
3. Be sure that the belt is not twisted and it lies flat.
The elastic cord must be under the belt and the guide
on top.
1-41
ProCarManuals.com

I

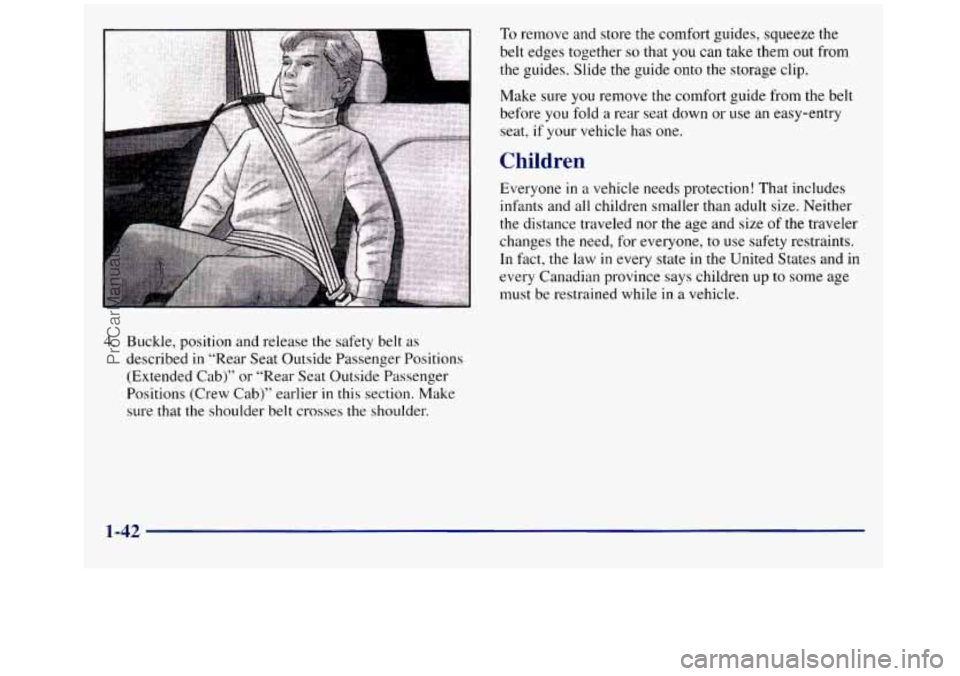

4. Buckle, position and release the safety belt as
described in “Rear Seat Outside Passenger Positions
(Extended Cab)” or “Rear Seat Outside Passenger
Positions (Crew Cab)” earlier
in this section. Make
sure that the shoulder belt
crosses the shoulder.
To remove and store the comfort guides, squeeze the
belt edges together
so that you can take them out from
the guides. Slide the guide onto the storage clip.
Make sure
you remove the comfort guide from the belt
before
you fold a rear seat down or use an easy-entry
seat, if your vehicle has one.
Children
Everyone in a vehicle needs protection! That includes
infants and all children smaller than adult size. Neither
the distance traveled nor the age and
size of the traveler
changes the need, for everyone,
to use safety restraints.
In fact, the law
in every state in the United States and in
every Canadian province
says children up to some age
must be restrained while in a vehicle.
1-42
ProCarManuals.com

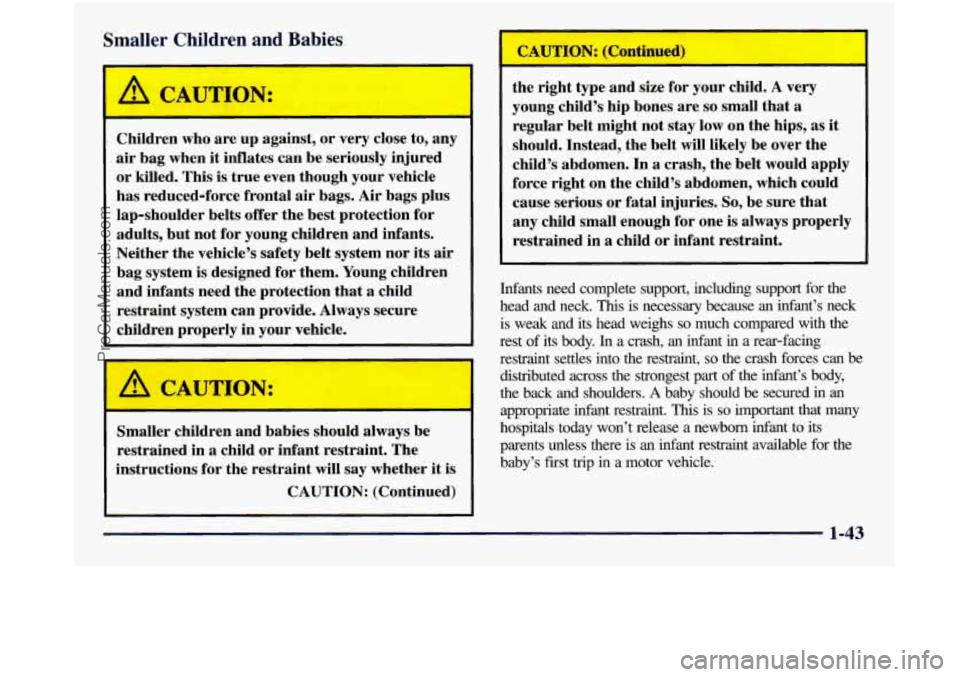

Smaller Children and Babies
Children who are up against, or very close to, any
air bag when it inflates can be seriously injured
or killed. This is true even though your vehicle
has reduced-force frontal air bags.
Air bags plus
lap-shoulder belts offer the best protection for
adults, but not for young children and infants.
Neither the vehicle’s safety belt system nor its air
bag system is designed for them. Young children
and infants need the protection that a child
restraint system can provide.
Always secure
children properly in your vehicle. the
right type and size for your child.
A very
young child’s hip bones are
so small that a
regular belt might not stay low on the hips, as
should. Instead, the belt will likely be over the
it
child’s abdomen. In a crash, the belt would apply
force right on the child’s abdomen, which could
cause serious or fatal injuries.
So, be sure that
any child small enough for one is always properly
restrained in
a child or infant restraint.
Infants need complete support, including support for the
head and neck.
This is necessary because an infant’s neck
is weak and its head weighs
so much compared with the
rest of its body.
In a crash, an infant in a rear-facing
restraint settles into
the restraint, so the crash forces can be
distributed across the strongest part
of the infant’s body,
the back and shoulders.
A baby should be secured in an
appropriate infant restraint.
This is so important that many
hospitals today won’t release a newborn infant to its
parents unless there is an infant restraint available for the
baby’s first trip in a motor vehicle. I
Smaller children and babies should always be
restrained in a child or infant restraint. The
instructions for the restraint will say whether it is
CAUTION: (Continued)
1-43
ProCarManuals.com

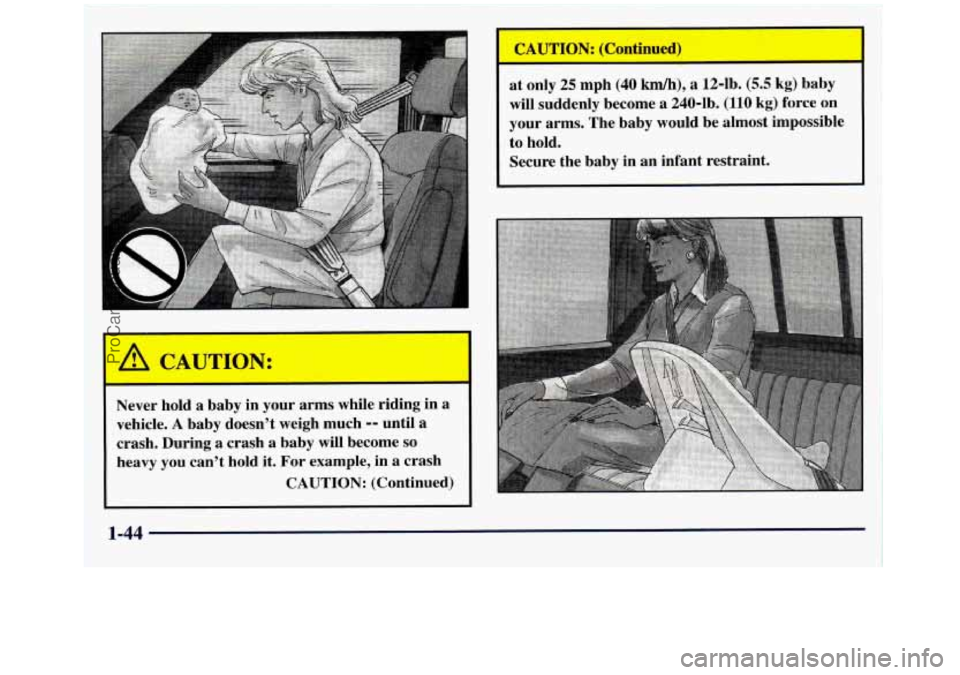

at only 25 mph (40 km/h), a 12-1b. (5.5 kg) baby
will suddenly become a 240-lb.
(110 kg) force on
your arms. The baby would be almost impossible
to hold.
Secure the baby in an infant restraint.
Never hold a baby in your arms while riding in a
vehicle.
A baby doesn’t weigh much -- until a
crash. During a crash a baby will become
so
heavy you can’t hold it. For example, in a crash
CAUTION: (Continued)
I
1-44
ProCarManuals.com

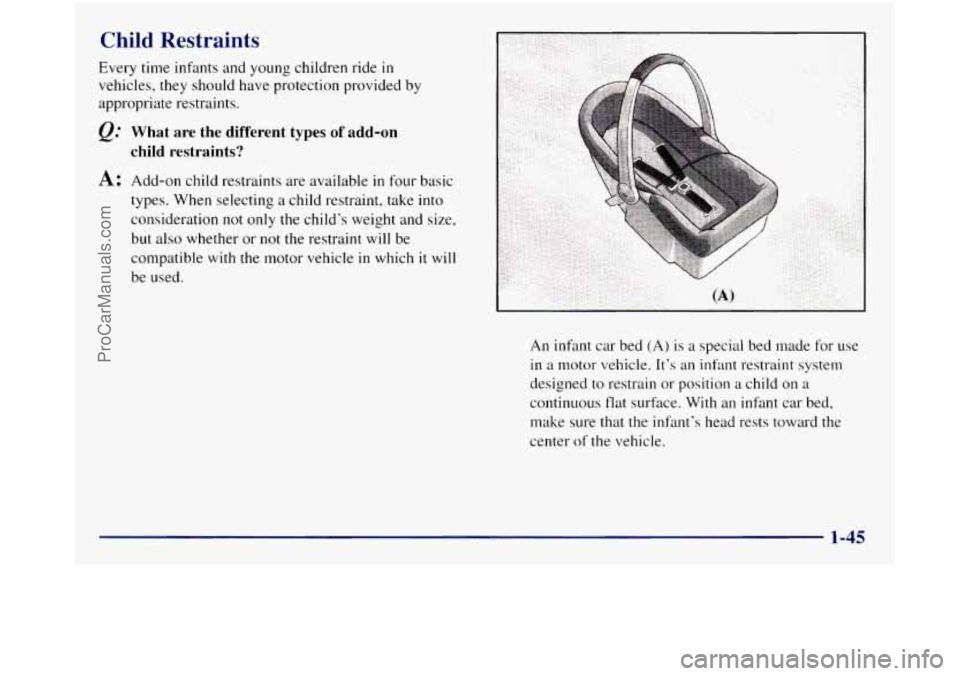

Child Restraints
Every time infants and young children ride in
vehicles, they should have protection provided by
appropriate restraints.
Q.’ What are the different types of add-on
child restraints?
A: Add-on child restraints are available in four basic
types. When selecting a child restraint, take into
consideration not
only the child’s weight and size,
but also whether or not the restraint will be
compatible
with the motor vehicle in which it will
be used.
An
inhnt car bed (A) is a special bed made for use
in a motor vehicle. It’s an infmt restraint system
designed to restrain
or position a child on a
continuous flat surface. With an
infmt car bed,
make sure that the infant’s head rests toward the
center of the vehicle.
1-45
ProCarManuals.com

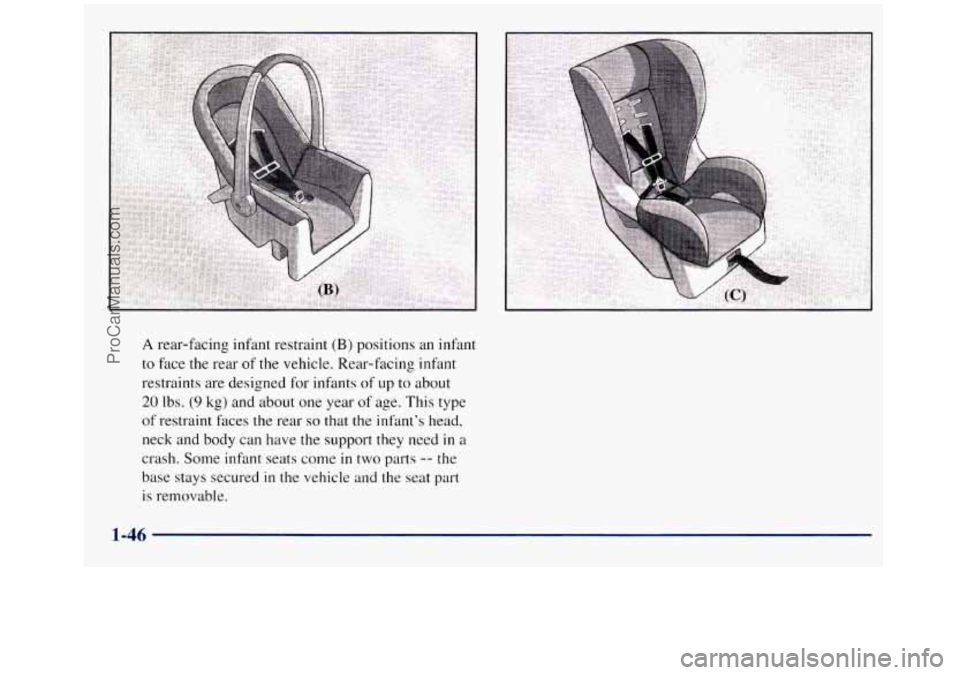

A rear-facing infant restraint (B) positions an infant
to face the rear of
the vehicle. Rear-facing infant
restraints are designed for infants of
up to about
20 Ibs. (9 kg) and about one year of age. This type
of restraint faces the rear so that the infant’s head,
neck and body can have the support they need
in a
crash. Some infant seats come in two parts -- the
base stays secured in the vehicle and the seat part
is removable.
ProCarManuals.com

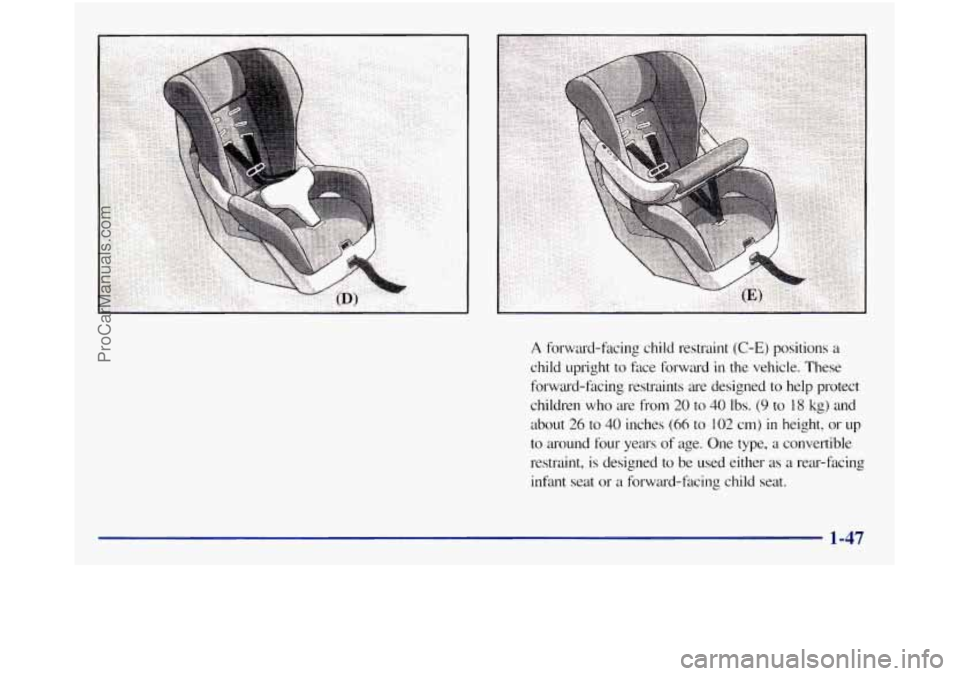

A forward-facing child restraint (C-E) positions a
child upright to fxe folwa-d in the vehicle. These
forward-facing restraints
a-e designed to help protect
children
who are from 20 to 40 Ibs. (9 to 18 kg) and
about
26 to 40 inches (66 to 102 cm) in height, or up
to around four years of age. One type, a convertible
restraint, is designed to be used either
as a rear-facing
infant seat or
a forwa-d-facing child seat.
1-47
ProCarManuals.com

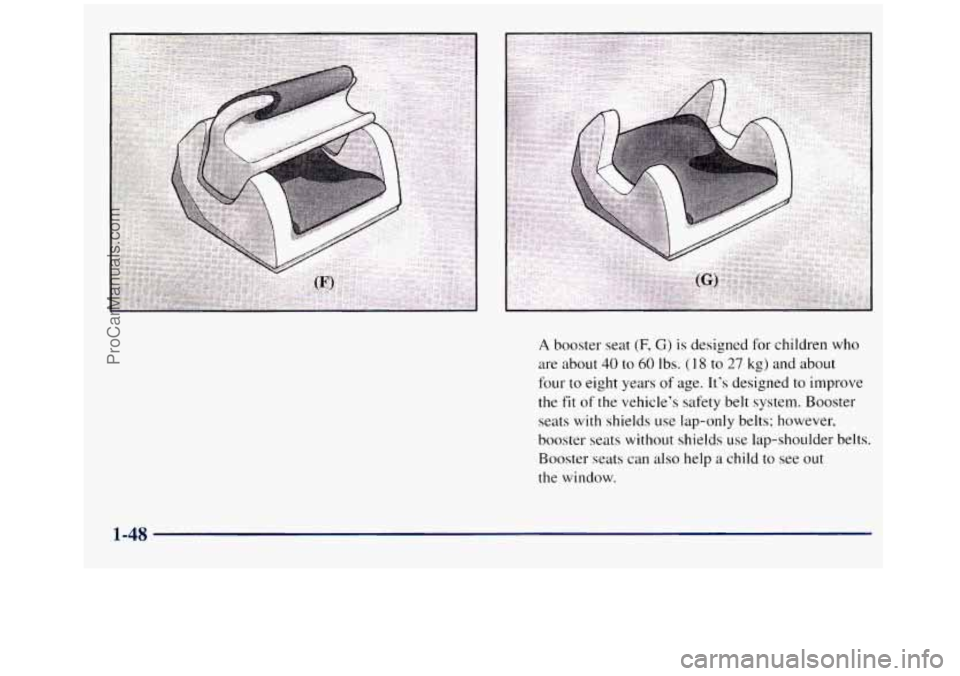

A booster seat (F, G) is designed for children who
are about
40 to 60 Ibs. (1 8 to 27 kg) and about
four to eight years of age. It's designed to improve
the
fit of the vehicle's safety belt system. Booster
seats with shields use lap-only belts; however,
booster seats without shields use lap-shoulder belts.
Booster seats can also help a child to see out
the window.
