GMC SIERRA 2007 Owner's Manual

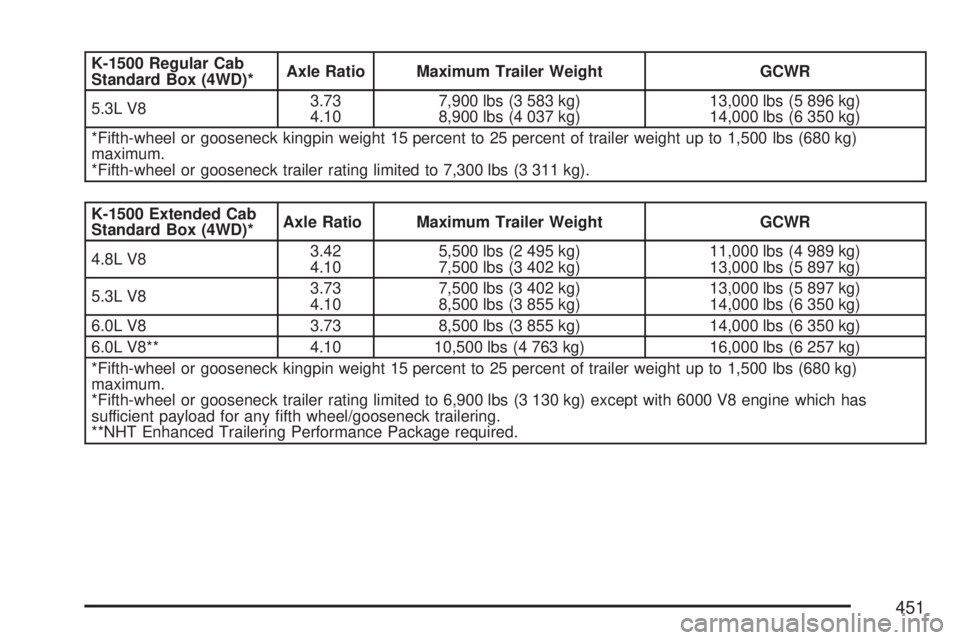

K-1500 Regular Cab
Standard Box (4WD)*Axle Ratio Maximum Trailer Weight GCWR
5.3L V83.73
4.107,900 lbs (3 583 kg)
8,900 lbs (4 037 kg)13,000 lbs (5 896 kg)
14,000 lbs (6 350 kg)
*Fifth-wheel or gooseneck kingpin weight 15 percent to 25 percent of trailer weight up to 1,500 lbs (680 kg)
maximum.
*Fifth-wheel or gooseneck trailer rating limited to 7,300 lbs (3 311 kg).
K-1500 Extended Cab
Standard Box (4WD)*Axle Ratio Maximum Trailer Weight GCWR
4.8L V83.42
4.105,500 lbs (2 495 kg)
7,500 lbs (3 402 kg)11,000 lbs (4 989 kg)
13,000 lbs (5 897 kg)
5.3L V83.73
4.107,500 lbs (3 402 kg)
8,500 lbs (3 855 kg)13,000 lbs (5 897 kg)
14,000 lbs (6 350 kg)
6.0L V8 3.73 8,500 lbs (3 855 kg) 14,000 lbs (6 350 kg)
6.0L V8** 4.10 10,500 lbs (4 763 kg) 16,000 lbs (6 257 kg)
*Fifth-wheel or gooseneck kingpin weight 15 percent to 25 percent of trailer weight up to 1,500 lbs (680 kg)
maximum.
*Fifth-wheel or gooseneck trailer rating limited to 6,900 lbs (3 130 kg) except with 6000 V8 engine which has
sufficient payload for any fth wheel/gooseneck trailering.
**NHT Enhanced Trailering Performance Package required.
451

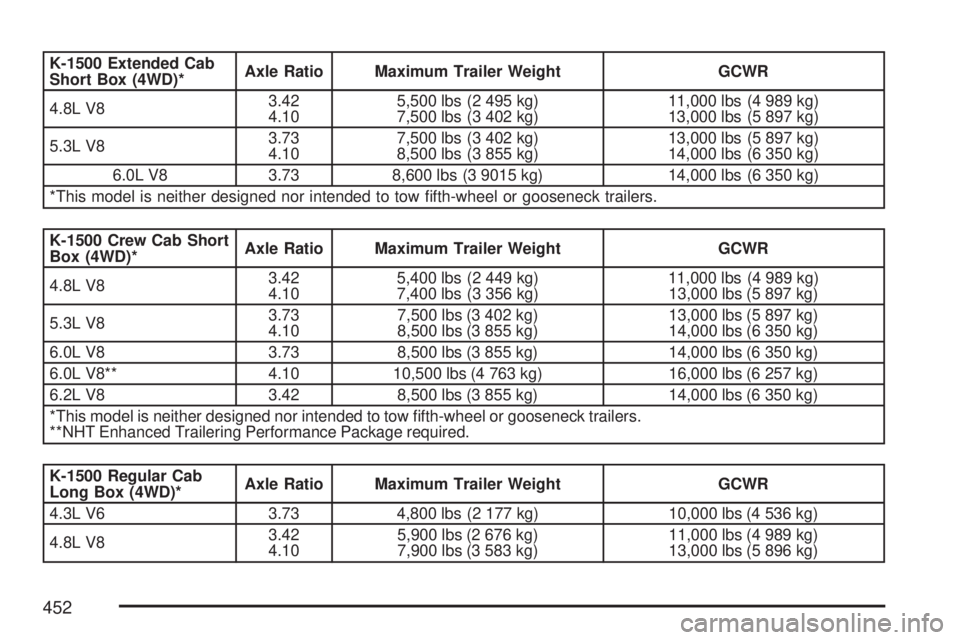

K-1500 Extended Cab
Short Box (4WD)*Axle Ratio Maximum Trailer Weight GCWR
4.8L V83.42
4.105,500 lbs (2 495 kg)
7,500 lbs (3 402 kg)11,000 lbs (4 989 kg)
13,000 lbs (5 897 kg)
5.3L V83.73
4.107,500 lbs (3 402 kg)
8,500 lbs (3 855 kg)13,000 lbs (5 897 kg)
14,000 lbs (6 350 kg)
6.0L V8 3.73 8,600 lbs (3 9015 kg) 14,000 lbs (6 350 kg)
*This model is neither designed nor intended to tow fth-wheel or gooseneck trailers.
K-1500 Crew Cab Short
Box (4WD)*Axle Ratio Maximum Trailer Weight GCWR
4.8L V83.42
4.105,400 lbs (2 449 kg)
7,400 lbs (3 356 kg)11,000 lbs (4 989 kg)
13,000 lbs (5 897 kg)
5.3L V83.73
4.107,500 lbs (3 402 kg)
8,500 lbs (3 855 kg)13,000 lbs (5 897 kg)
14,000 lbs (6 350 kg)
6.0L V8 3.73 8,500 lbs (3 855 kg) 14,000 lbs (6 350 kg)
6.0L V8** 4.10 10,500 lbs (4 763 kg) 16,000 lbs (6 257 kg)
6.2L V8 3.42 8,500 lbs (3 855 kg) 14,000 lbs (6 350 kg)
*This model is neither designed nor intended to tow fth-wheel or gooseneck trailers.
**NHT Enhanced Trailering Performance Package required.
K-1500 Regular Cab
Long Box (4WD)*Axle Ratio Maximum Trailer Weight GCWR
4.3L V6 3.73 4,800 lbs (2 177 kg) 10,000 lbs (4 536 kg)
4.8L V83.42
4.105,900 lbs (2 676 kg)
7,900 lbs (3 583 kg)11,000 lbs (4 989 kg)
13,000 lbs (5 896 kg)
452

K-1500 Regular Cab
Long Box (4WD)*Axle Ratio Maximum Trailer Weight GCWR
5.3L V83.73
4.107,900 lbs (3 583 kg)
8,900 lbs (4 037 kg)13,000 lbs (5 896 kg)
14,000 lbs (6 350 kg)
*Fifth-wheel or gooseneck kingpin weight 15 percent to 25 percent of trailer weight up to 1,500 lbs (680 kg)
maximum.
*Fifth-wheel or gooseneck trailer rating limited to 8,300 lbs (3 765 kg).
K-1500 Extended Cab
Long Box (4WD)*Axle Ratio Maximum Trailer Weight GCWR
5.3L V83.73
4.107,300 lbs (3 311 kg)
8,300 lbs (3 765 kg)13,000 lbs (5 896 kg)
14,000 lbs (6 350 kg)
*This vehicle has insufficient payload for fth-wheel or gooseneck trailering.
C-2500 Extended
Cab Standard Box
HD (2WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,700 lbs (5 761 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin tongue weight should be 15 percent to 25 percent of trailer weight up to
3,000 lbs (1 361 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
453

C-2500 Crew
Cab Standard Box
HD (2WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,500 lbs (5 670 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,000 lbs
(1 361 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
C-2500 Regular Cab
Long Box HD (2WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,900 lbs (5 851 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin tongue weight should be 15 percent to 25 percent of trailer weight up to
3,000 lbs (1 361 kg) maximum.
*Trailer ratings above 13,000 lbs (5 897 kg) require a fth-wheel or gooseneck hitch.
C-2500 Extended Cab
Long Box HD (2WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,500 lbs (5 670 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,000 lbs
(1 361 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
454

C-2500 Crew Cab Long
Box HD (2WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,400 lbs (5 624 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,000 lbs
(1 361 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
K-2500 Extended
Cab Standard Box
HD (4WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,400 lbs (5 624 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,000 lbs
(1 361 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
K-2500 Crew
Cab Standard Box
HD (4WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,300 lbs (5 579 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,000 lbs
(1 361 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
455

K-2500 Regular Cab
Long Box HD (4WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,700 lbs (5 761 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,000 lbs
(1 361 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
K-2500 Extended Cab
Long Box HD (4WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,200 lbs (5 534 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,000 lbs
(1 361 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
K-2500 Crew Cab Long
Box HD (4WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,100 lbs (5 488 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,000 lbs
(1 361 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
C-3500 Regular
Cab (2WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,600 lbs (5 715 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,500 lbs
(1 587 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
456

C-3500 Extended
Cab (2WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,200 lbs (5 534 kg) 18,500 lbs (8 391 kg)
6.0L V8 (Dual Rear
Wheels)3.73 12,000 lbs (5 443 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,500 lbs
(1 587 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
C-3500 Crew
Cab (2WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,100 lbs (5 488 kg) 18,500 lbs (8 391 kg)
6.0L V8 (Dual Rear
Wheels)3.73 11,800 lbs (5 352 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,500 lbs
(1 587 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
K-3500 Regular
Cab (4WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 12,400 lbs (5 624 kg) 18,500 lbs (8 391 kg)
6.0L V8 (Dual Rear
Wheels)3.73 12,200 lbs (5 534 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,500 lbs
(1 587 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
457

K-3500 Extended
Cab (4WD)* Axle RatioMaximum Trailer Weight GCWR
6.0L V8 3.73 12,000 lbs (5 443 kg) 18,500 lbs (8 391 kg)
6.0L V8 (Dual Rear
Wheels)3.73 11,700 lbs (5 307 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,500 lbs
(1 587 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
K-3500 Crew
Cab (4WD)*Axle Ratio Maximum Trailer Weight GCWR
6.0L V8 3.73 11,800 lbs (5 352 kg) 18,500 lbs (8 391 kg)
6.0L V8 (Dual Rear
Wheels)3.73 11,600 lbs (5 262 kg) 18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 3,500 lbs
(1 587 kg) maximum.
*Trailer rating limited to 13,000 lbs (5 897 kg) with weight distributing hitch.
458

The Gross Combination Weight Rating (GCWR) is
the total allowable weight of the completely
loaded vehicle and trailer including any
passengers, cargo, equipment and conversions.
The GCWR for your vehicle should not be
exceeded.
You can ask your dealer for our trailering
information or advice, or you can write us at our
Customer Assistance Offices. SeeCustomer
Assistance Offices on page 648for more
information.Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important
weight to measure because it affects the total
or gross weight of your vehicle. The Gross Vehicle
Weight (GVW) includes the curb weight of the
vehicle, any cargo you may carry in it, and
the people who will be riding in the vehicle. If you
have a lot of options, equipment, passengers
or cargo in your vehicle, it will reduce the tongue
weight your vehicle can carry, which will also
reduce the trailer weight your vehicle can tow. And
if you will tow a trailer, you must add the tongue
load to the GVW because your vehicle will be
carrying that weight, too. SeeLoading Your
Vehicle on page 425for more information about
your vehicle’s maximum load capacity.
459

The trailer tongue weight (A) should be 10 percent
to 15 percent of the total loaded trailer weight, up to
a maximum of 600 lbs (272 kg) for the 1500 or
2500 series, and up to a maximum of 750 lbs
(340 kg) for the 2500 HD or 3500 series with a
weight carrying hitch. The trailer tongue weight (A)
should be 10 percent to 15 percent of the total
loaded trailer weight, up to a maximum of 1,000 lbs
(453 kg) for the 1500 series and up to a maximum
of 1,500 lbs (680 kg) for the 2500, 2500 HD or
3500 series with a weight distributing hitch.Fifth wheel or gooseneck kingpin weight should be
15 to 25 percent of the trailer weight up to the
maximum amount specied in the trailering chart
for your vehicle. See “Weight of the Trailer”,
and “Fifth-Wheel and Gooseneck Trailering” in this
section.
Do not exceed the maximum allowable tongue
weight for your vehicle. Choose the shortest hitch
extension that will position the hitch ball closest
to the vehicle. This will help reduce the effect
of trailer tongue weight on the rear axle.
After you have loaded the trailer, weigh the trailer
and then the tongue separately, to see if the
weights are proper. If they are not, you may be
able to get them right by moving some items
around in the trailer.
Trailering may be limited by the vehicle’s ability to
carry tongue weight. Tongue weight cannot
cause the vehicle to exceed the GVWR (Gross
Vehicle Weight Rating) or the RGAWR (Rear
Gross Axle Weight Rating). The effect of additional
weight may reduce your trailering capacity more
than the total of the additional weight.
460
