rear view mirror GMC SIERRA 2007 Owner's Manual

Seats and Restraint Systems
....................... 7
Front Seats
.............................................. 9
Rear Seats
............................................. 20
Safety Belts
............................................ 22
Child Restraints
...................................... 45
Airbag System
........................................ 83
Restraint System Check
....................... 104
Features and Controls
.............................. 107
Keys
..................................................... 109
Doors and Locks
.................................. 118
Windows
............................................... 124
Theft-Deterrent Systems
....................... 127
Starting and Operating Your Vehicle
..... 132
Mirrors
.................................................. 169
OnStar
®System
................................... 180
Universal Home Remote System
.......... 184
Storage Areas
...................................... 196
Sunroof
................................................ 200Instrument Panel
....................................... 203
Instrument Panel Overview
................... 206
Climate Controls
................................... 234
Warning Lights, Gages, and
Indicators
.......................................... 246
Driver Information Center (DIC)
............ 267
Audio System(s)
................................... 300
Driving Your Vehicle
................................. 373
Your Driving, the Road, and
Your Vehicle
..................................... 374
Towing
................................................. 439
Service and Appearance Care
.................. 483
Service
................................................. 486
Fuel
...................................................... 488
Checking Things Under the Hood
......... 496
Rear Axle
............................................. 538
Four-Wheel Drive
.................................. 539
Front Axle
............................................ 541
2007 GMC Sierra Owner ManualM
1

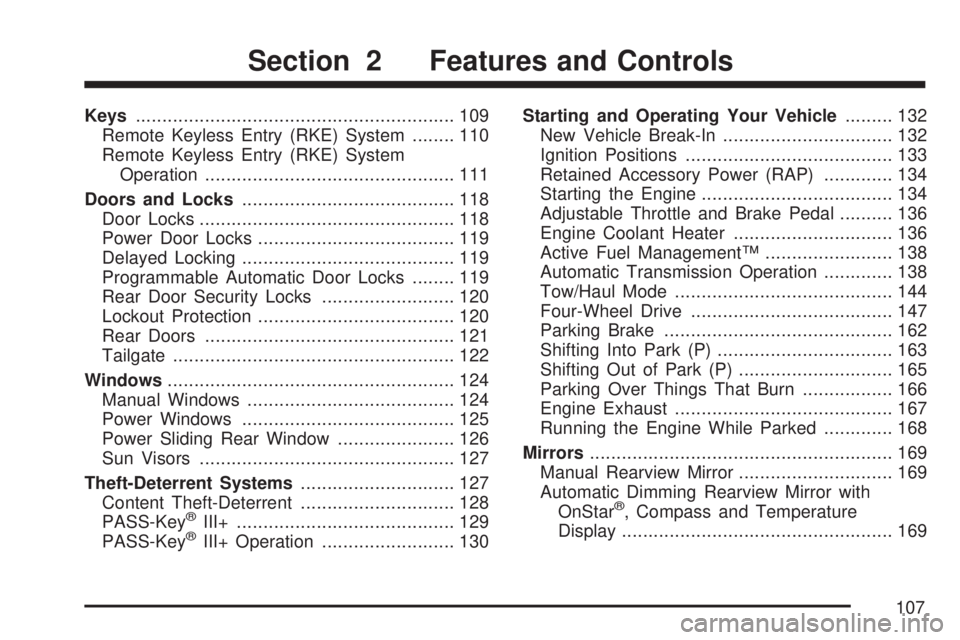

Keys............................................................ 109
Remote Keyless Entry (RKE) System........ 110
Remote Keyless Entry (RKE) System
Operation............................................... 111
Doors and Locks........................................ 118
Door Locks................................................ 118
Power Door Locks..................................... 119
Delayed Locking........................................ 119
Programmable Automatic Door Locks........ 119
Rear Door Security Locks......................... 120
Lockout Protection..................................... 120
Rear Doors............................................... 121
Tailgate..................................................... 122
Windows...................................................... 124
Manual Windows....................................... 124
Power Windows........................................ 125
Power Sliding Rear Window...................... 126
Sun Visors................................................ 127
Theft-Deterrent Systems............................. 127
Content Theft-Deterrent............................. 128
PASS-Key
®III+......................................... 129
PASS-Key®III+ Operation......................... 130Starting and Operating Your Vehicle......... 132
New Vehicle Break-In................................ 132
Ignition Positions....................................... 133
Retained Accessory Power (RAP)............. 134
Starting the Engine.................................... 134
Adjustable Throttle and Brake Pedal.......... 136
Engine Coolant Heater.............................. 136
Active Fuel Management™........................ 138
Automatic Transmission Operation............. 138
Tow/Haul Mode......................................... 144
Four-Wheel Drive...................................... 147
Parking Brake........................................... 162
Shifting Into Park (P)................................. 163
Shifting Out of Park (P)............................. 165
Parking Over Things That Burn................. 166
Engine Exhaust......................................... 167
Running the Engine While Parked............. 168
Mirrors......................................................... 169
Manual Rearview Mirror............................. 169
Automatic Dimming Rearview Mirror with
OnStar
®, Compass and Temperature
Display................................................... 169
Section 2 Features and Controls
107

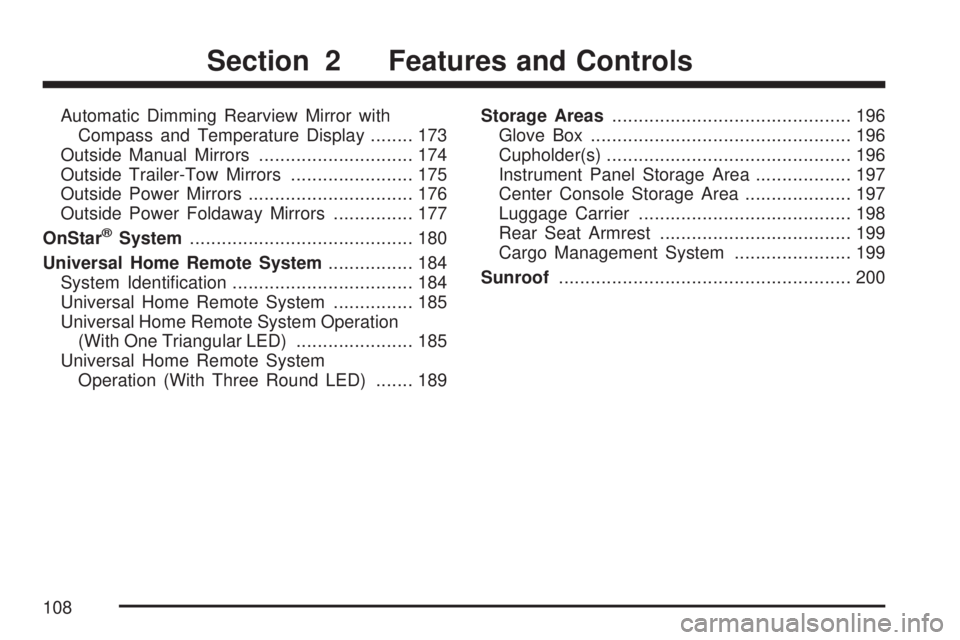

Automatic Dimming Rearview Mirror with
Compass and Temperature Display........ 173
Outside Manual Mirrors............................. 174
Outside Trailer-Tow Mirrors....................... 175
Outside Power Mirrors............................... 176
Outside Power Foldaway Mirrors............... 177
OnStar
®System.......................................... 180
Universal Home Remote System................ 184
System Identication.................................. 184
Universal Home Remote System............... 185
Universal Home Remote System Operation
(With One Triangular LED)...................... 185
Universal Home Remote System
Operation (With Three Round LED)....... 189Storage Areas............................................. 196
Glove Box................................................. 196
Cupholder(s).............................................. 196
Instrument Panel Storage Area.................. 197
Center Console Storage Area.................... 197
Luggage Carrier........................................ 198
Rear Seat Armrest.................................... 199
Cargo Management System...................... 199
Sunroof....................................................... 200
Section 2 Features and Controls
108

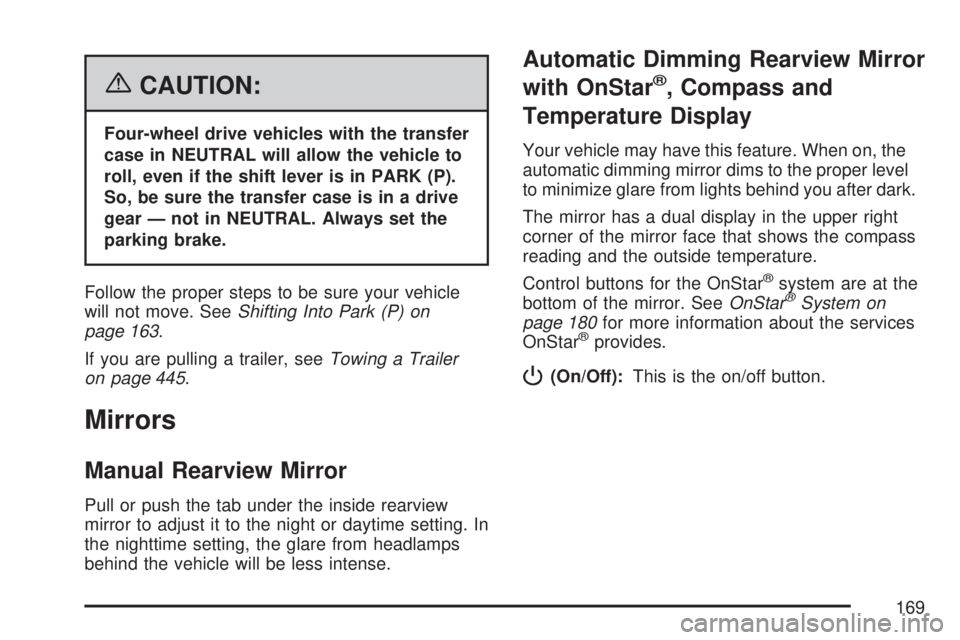

{CAUTION:
Four-wheel drive vehicles with the transfer
case in NEUTRAL will allow the vehicle to
roll, even if the shift lever is in PARK (P).
So, be sure the transfer case is in a drive
gear — not in NEUTRAL. Always set the
parking brake.
Follow the proper steps to be sure your vehicle
will not move. SeeShifting Into Park (P) on
page 163.
If you are pulling a trailer, seeTowing a Trailer
on page 445.
Mirrors
Manual Rearview Mirror
Pull or push the tab under the inside rearview
mirror to adjust it to the night or daytime setting. In
the nighttime setting, the glare from headlamps
behind the vehicle will be less intense.
Automatic Dimming Rearview Mirror
with OnStar
®, Compass and
Temperature Display
Your vehicle may have this feature. When on, the
automatic dimming mirror dims to the proper level
to minimize glare from lights behind you after dark.
The mirror has a dual display in the upper right
corner of the mirror face that shows the compass
reading and the outside temperature.
Control buttons for the OnStar
®system are at the
bottom of the mirror. SeeOnStar®System on
page 180for more information about the services
OnStar
®provides.
P(On/Off):This is the on/off button.
169

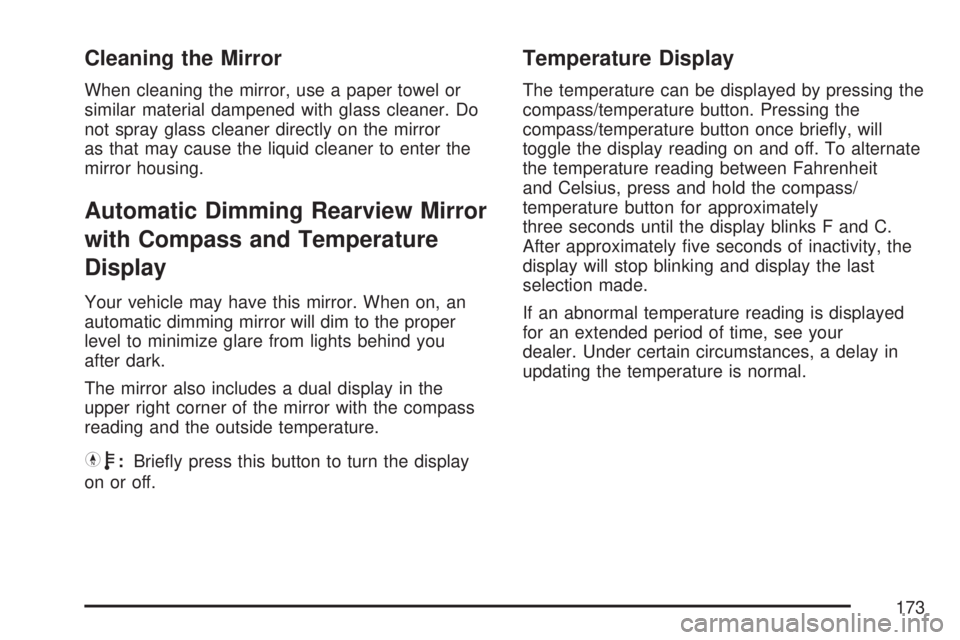

Cleaning the Mirror
When cleaning the mirror, use a paper towel or
similar material dampened with glass cleaner. Do
not spray glass cleaner directly on the mirror
as that may cause the liquid cleaner to enter the
mirror housing.
Automatic Dimming Rearview Mirror
with Compass and Temperature
Display
Your vehicle may have this mirror. When on, an
automatic dimming mirror will dim to the proper
level to minimize glare from lights behind you
after dark.
The mirror also includes a dual display in the
upper right corner of the mirror with the compass
reading and the outside temperature.
Yb:Briey press this button to turn the display
on or off.
Temperature Display
The temperature can be displayed by pressing the
compass/temperature button. Pressing the
compass/temperature button once briey, will
toggle the display reading on and off. To alternate
the temperature reading between Fahrenheit
and Celsius, press and hold the compass/
temperature button for approximately
three seconds until the display blinks F and C.
After approximately ve seconds of inactivity, the
display will stop blinking and display the last
selection made.
If an abnormal temperature reading is displayed
for an extended period of time, see your
dealer. Under certain circumstances, a delay in
updating the temperature is normal.
173

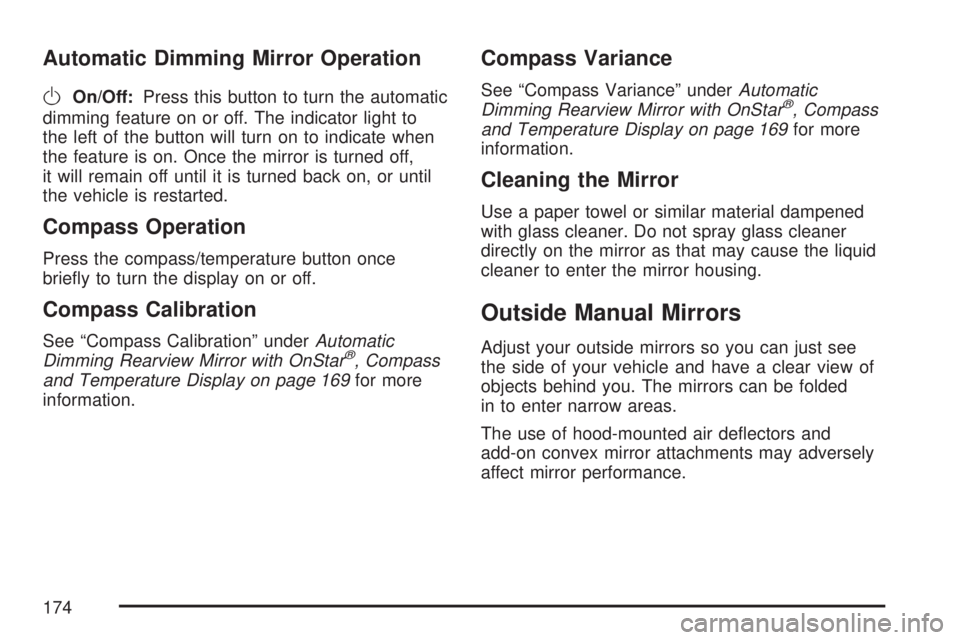

Automatic Dimming Mirror Operation
O
On/Off:Press this button to turn the automatic
dimming feature on or off. The indicator light to
the left of the button will turn on to indicate when
the feature is on. Once the mirror is turned off,
it will remain off until it is turned back on, or until
the vehicle is restarted.
Compass Operation
Press the compass/temperature button once
briey to turn the display on or off.
Compass Calibration
See “Compass Calibration” underAutomatic
Dimming Rearview Mirror with OnStar®, Compass
and Temperature Display on page 169for more
information.
Compass Variance
See “Compass Variance” underAutomatic
Dimming Rearview Mirror with OnStar®, Compass
and Temperature Display on page 169for more
information.
Cleaning the Mirror
Use a paper towel or similar material dampened
with glass cleaner. Do not spray glass cleaner
directly on the mirror as that may cause the liquid
cleaner to enter the mirror housing.
Outside Manual Mirrors
Adjust your outside mirrors so you can just see
the side of your vehicle and have a clear view of
objects behind you. The mirrors can be folded
in to enter narrow areas.
The use of hood-mounted air deectors and
add-on convex mirror attachments may adversely
affect mirror performance.
174

Outside Trailer-Tow Mirrors
If your vehicle has trailer towing type mirrors, they
can be adjusted so you can have a clear view
of the objects behind you. Manually pull out
the mirror head to extend it for better visibility
when towing a trailer.These mirrors can be manually folded forward or
rearward. The lower portion of the mirror is
convex. A convex mirror’s surface is curved so
you can see more from the driver’s seat. The
convex mirror can be adjusted manually to the
driver’s preferred position for better vision.
Your vehicle may have outside heated mirrors
which help clear them of condensation, snow, and
ice. When the rear window defogger button is
pressed, the heated mirrors are also turned on.
Only the upper glass of the mirror is heated.
The lower convex part of the mirror is not heated.
Your mirror may also have a turn signal arrow
that will ash in the direction of the turn or
lane change.
175

Outside Power Mirrors
If your vehicle is
equipped with outside
power mirrors, the
controls are located on
the driver’s door
armrest.
Press (A) to select the driver’s side mirror.
Then press the arrows located on the
four-way control pad to adjust the mirror.
Press (A) again to deselect the mirror.
Press (B) to select the passenger’s side
mirror. Then press the arrows located on the
four-way control pad to adjust the mirror.
Press (B) again to deselect the mirror.
This mirror has the following features.
Manual Folding
The mirrors can be manually folded inward to
prevent damage when going through an automatic
car wash. To fold, push the mirror toward the
vehicle. To return the mirror to its original position,
push outward. Be sure to return both mirrors to
their original unfolded position before driving.
Heated Mirrors
The button to turn the heated mirrors on or off is
located on the climate control panel. Press
this button to warm the driver’s and passenger’s
outside rearview mirrors to help clear them of
ice, snow, and condensation.
See “Rear Window Defogger” underDual
Automatic Climate Control System on page 238
for more information.
176

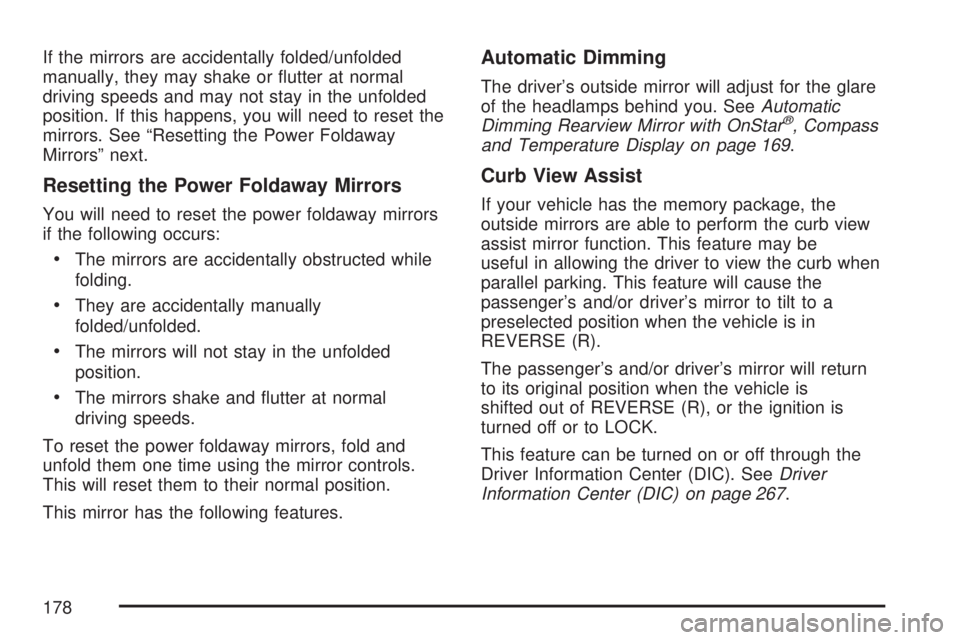

If the mirrors are accidentally folded/unfolded
manually, they may shake or utter at normal
driving speeds and may not stay in the unfolded
position. If this happens, you will need to reset the
mirrors. See “Resetting the Power Foldaway
Mirrors” next.
Resetting the Power Foldaway Mirrors
You will need to reset the power foldaway mirrors
if the following occurs:
The mirrors are accidentally obstructed while
folding.
They are accidentally manually
folded/unfolded.
The mirrors will not stay in the unfolded
position.
The mirrors shake and utter at normal
driving speeds.
To reset the power foldaway mirrors, fold and
unfold them one time using the mirror controls.
This will reset them to their normal position.
This mirror has the following features.
Automatic Dimming
The driver’s outside mirror will adjust for the glare
of the headlamps behind you. SeeAutomatic
Dimming Rearview Mirror with OnStar
®, Compass
and Temperature Display on page 169.
Curb View Assist
If your vehicle has the memory package, the
outside mirrors are able to perform the curb view
assist mirror function. This feature may be
useful in allowing the driver to view the curb when
parallel parking. This feature will cause the
passenger’s and/or driver’s mirror to tilt to a
preselected position when the vehicle is in
REVERSE (R).
The passenger’s and/or driver’s mirror will return
to its original position when the vehicle is
shifted out of REVERSE (R), or the ignition is
turned off or to LOCK.
This feature can be turned on or off through the
Driver Information Center (DIC). SeeDriver
Information Center (DIC) on page 267.
178

Heated Mirrors
The button to turn the heated mirrors on or off is
located on the climate control panel. Press
this button to warm the driver’s and passenger’s
outside rearview mirrors to help clear them of
ice, snow, and condensation.
See “Rear Window Defogger” underDual
Automatic Climate Control System on page 238
for more information.
Convex Mirror
{CAUTION:
A convex mirror can make things (like
other vehicles) look farther away than
they really are. If you cut too sharply into
the right lane, you could hit a vehicle on
your right. Check your inside mirror or
glance over your shoulder before
changing lanes.
The passenger’s side mirror may have convex
glass. A convex mirror’s surface is curved so more
can be seen from the driver’s seat.
Your vehicle may also have a turn signal indicator
on the mirror. An arrow on the mirror will ash
in the direction of the turn or lane change.
179
