GMC SIERRA 2007 Owner's Manual

Center Instrument Panel Fuse Block
The center instrument panel fuse block is
located underneath the instrument panel, to the
left of the steering column.
Top View
Harness
ConnectorUsage
BODY 2 Body Harness Connector 2
BODY 1 Body Harness Connector 1
BODY 3 Body Harness Connector 3
HEADLINER 3 Headliner Harness Connector 3
HEADLINER 2 Headliner Harness Connector 2
HEADLINER 1 Headliner Harness Connector 1
BRAKE
CLUTCHBrake Clutch Harness Connector
SEO/UPFITTERSpecial Equipment Option Uptter
Harness Connector
Circuit Breaker Usage
CB1Passenger’s Side Power Window
Circuit Breaker
CB2 Passenger’s Seat Circuit Breaker
CB3 Driver’s Seat Circuit Breaker
CB4 Not Used
611

Underhood Fuse Block
The underhood fuse block is located in the engine
compartment, on the driver’s side of the vehicle.
Lift the cover to access
the fuse block.To remove fuses, hold the end of the fuse
between your thumb and index nger and pull
straight out.
612

Fuses Usage
1 Right Trailer Stop/Turn Lamp
2 Not Used
3Electronic Stability Suspension Control,
Automatic Level Control Exhaust
4 Left Trailer Stop/Turn LampFuses Usage
5 Engine Controls
6 Engine Control Module, Throttle Control
7 Trailer Brake Controller
8 Front Washer
613

Fuses Usage
9 Oxygen Sensors
10 Anti-lock Brakes System 2
11 Trailer Back-up Lamps
12 Driver’s Side Low-Beam Headlamp
13 Engine Control Module (Battery)
14 Fuel Injectors, Ignition Coils (Right Side)
15 Transmission Control Module (Battery)
16 Vehicle Back-up Lamps
17 Passenger’s Side Low-Beam Headlamp
18 Air Conditioning Compressor
19 Oxygen Sensors
20 Transmission Controls (Ignition)
21 Fuel Pump
22 Fuel System Control Module
23 Not Used
24 Not Used
25 Fuel Injectors, Ignition Coils (Left Side)
26 Trailer Park Lamps
27 Driver’s Side Park Lamps
28 Passenger’s Side Park Lamps
29 Fog Lamps
30 Horn
31 Passenger’s Side High-Beam HeadlampFuses Usage
32 Daytime Running Lamps
33 Driver’s Side High-Beam Headlamp
34 Not Used
35 Sunroof
36Key Ignition System, Theft Deterrent
System
37 Windshield Wiper
38 SEO B2 Uptter Usage (Battery)
39 Electric Adjustable Pedals
40 Climate Controls (Battery)
41 Airbag System (Ignition)
42 Amplier
43 Audio System
44 Miscellaneous (Ignition), Cruise Control
45 Tailgate Open/Close Assist
46 Airbag System (Battery)
47OnStar
®, Rear Seat Entertainment
Display
48 Instrument Panel Cluster
49 Power Take-Off
50Auxiliary Climate Control (Ignition),
Compass-Temperature Mirror
51Center High-Mounted Stoplamp
(CHMSL)
614

Fuses Usage
52 Rear Defogger
53 Heated Mirrors
54 SEO B1 Uptter Usage (Battery)
55 Cigarette Lighter, Auxiliary Power Outlet
56Automatic Level Control Compressor
Relay, SEO Uptter Usage
57 Climate Controls (Ignition)
58Engine Control Module, Secondary Fuel
Pump (Ignition)
J-Case Fuses Usage
59 Cooling Fan 1
60 Automatic Level Control Compressor
61 Heavy Duty Anti-lock Brake System
62 Cooling Fan 2
63 Anti-lock Brake System 1
64 Starter
65 Stud 2 (Trailer Brakes)
66 Left Bussed Electrical Center 1
67 Not Used
68 Heated Windshield Washer System
69 Four-Wheel Drive System
J-Case Fuses Usage
70Stud 1 (Trailer Connector Battery
Power) (Optional - 40A Fuse
Required)
71 Mid-Bussed Electrical Center 1
72 Climate Control Blower
73 Tailgate Open/Close Assist
74 Left Bussed Electrical Center 2
Relays Usage
FAN HI Cooling Fan High Speed
FAN LO Cooling Fan Low Speed
ENG EXH VLV Not Used
FAN CNTRL Cooling Fan Control
HDLP LO/HID Low-Beam Headlamp
FOG LAMP Front Fog Lamps
A/C CMPRSR Air Conditioning Compressor
STRTR Starter
PWR/TRN Powertrain
FUEL PMP Fuel Pump
PRK LAMP Parking Lamps
REAR DEFOG Rear Defogger
RUN/CRANK Switched Power
615

Capacities and Specications
The following approximate capacities are given in English and metric conversions. SeeRecommended
Fluids and Lubricants on page 635for more information.
If your vehicle has the DURAMAX
®Diesel engine, see the DURAMAX®Diesel manual for more
information.
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134aFor the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer for more
information.
Cooling System
4.3L V6 ** 16.5 qt 15.6 L
4.8L V8 ** 16.9 qt 16.0 L
5.3L V8 ** 16.9 qt 16.0 L
6.0L V8 * 16.4 qt 15.5 L
6.0L V8 ** 16.8 qt 15.9 L
* 2500, 3500 series
** 1500 series
Engine Oil with Filter
4.3L V6 4.5 qt 4.3 L
4.8L V8; 5.3L V8; 6.0L V8 6.0 qt 5.7 L
616

ApplicationCapacities
English Metric
Fuel Tank
1500 Series Standard and Short Box 26.0 gal 98.0 L
1500 Series Long Box 34.0 gal 128.7 L
2500 Series and 3500 Series 34.0 gal 128.7 L
3500 Series Chassis Cab 50.0 gal 189.0 L
3500 Chassis Cab – Front Tank 27.0 gal 102.0 L
3500 Chassis Cab – Rear Tank 23.0 gal (if equipped) 87.0 L
Transmission Fluid (Pan Removal and Filter Replacement)
Auto 4-Speed Transmission 4L60-E Electronic
Transmission5.0 qt 4.7 L
Auto 4-Speed Transmission 4L70-E Super Duty
Transmission5.0 qt 4.7 L
Auto 6-Speed Transmission 6L80-E 6.0 qt 5.7 L
Auto 6-Speed Transmission 6L90-E 6.3 qt 6.0 L
Auto 6-Speed Transmission Allison 7.4 qt 7.0 L
Transfer Case Fluid 1.6 qt 1.5 L
Wheel Nut Torque 140 ft lb
190Y
After rell, the level must be rechecked. Add enough engine coolant so that the uid is within the proper operating
range.
617

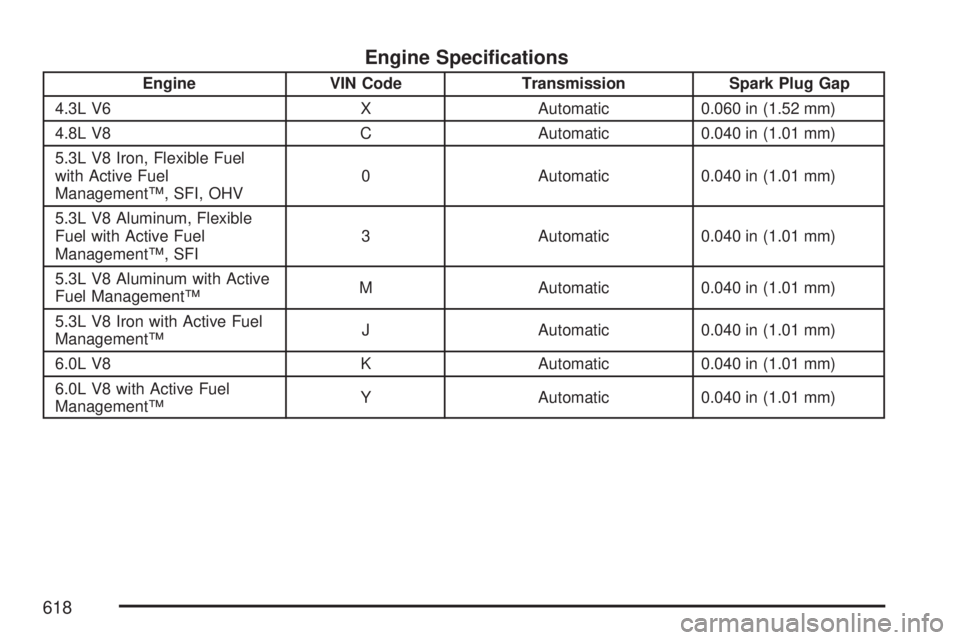

Engine Specications
Engine VIN Code Transmission Spark Plug Gap
4.3L V6 X Automatic 0.060 in (1.52 mm)
4.8L V8 C Automatic 0.040 in (1.01 mm)
5.3L V8 Iron, Flexible Fuel
with Active Fuel
Managementâ„¢, SFI, OHV0 Automatic 0.040 in (1.01 mm)
5.3L V8 Aluminum, Flexible
Fuel with Active Fuel
Managementâ„¢, SFI3 Automatic 0.040 in (1.01 mm)
5.3L V8 Aluminum with Active
Fuel Managementâ„¢M Automatic 0.040 in (1.01 mm)
5.3L V8 Iron with Active Fuel
Managementâ„¢J Automatic 0.040 in (1.01 mm)
6.0L V8 K Automatic 0.040 in (1.01 mm)
6.0L V8 with Active Fuel
Managementâ„¢Y Automatic 0.040 in (1.01 mm)
618

Maintenance Schedule................................ 620
Introduction............................................... 620
Maintenance Requirements........................ 620
Your Vehicle and the Environment............ 621
Using the Maintenance Schedule............... 621
Scheduled Maintenance
(Gasoline Engine).................................. 623
Additional Required Services
(Gasoline Engine).................................. 627
Maintenance Footnotes
(Gasoline Engine).................................. 629Owner Checks and Services..................... 631
At the First 100, 1,000 and 6,000 Miles
(160, 1 600 and 10 000 km).................. 631
At Each Fuel Fill....................................... 632
At Least Once a Month............................. 632
At Least Once a Year............................... 633
Recommended Fluids and Lubricants........ 635
Normal Maintenance Replacement
Parts...................................................... 638
Engine Drive Belt Routing......................... 639
Maintenance Record.................................. 640
Section 6 Maintenance Schedule
619

Maintenance Schedule
Introduction
This maintenance section applies to vehicles with
a gasoline engine. If your vehicle has a diesel
engine, see the maintenance schedule section in
the DURAMAX
®Diesel Engine Supplement.
Important: Keep engine oil at the proper level
and change as recommended.
Have you purchased the GM Protection Plan? The
Plan supplements your new vehicle warranties.
See your Warranty and Owner Assistance booklet
or your dealer for details.
Maintenance Requirements
Notice:Maintenance intervals, checks,
inspections, replacement parts, and
recommended uids and lubricants as
prescribed in this manual are necessary to
keep your vehicle in good working condition.
Any damage caused by failure to follow
scheduled maintenance might not be covered
by warranty.
620
