GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 4/18/17
170 Instruments and Controls
Climate and Air Quality
Select and the following may
display:
.Auto Fan Max Speed
. Auto Rear Defog
Auto Fan Max Speed
This feature will set the maximum
auto fan speed.
Select Low, Medium, or High.
Auto Rear Defog
This feature will automatically turn
on the rear defogger when it is cold
outside.
Select Off or On.
Collision/Detection Systems
Select and the following may
display:
. Alert Type
. Forward Collision System
. Park Assist Alert Type
This feature will set crash alerts to
beeps or seat vibrations. This
setting affects all crash alerts
including Forward Collision, Lane
Departure Warning, and Parking
Assist alerts.
Select Beeps or Safety Alert Seat.
Forward Collision System
This feature will turn on or off
Forward Collision Alert (FCA) and
Forward Automatic Braking (FAB).
The Off setting disables all FCA and
FAB functions. With the Alert and
Brake setting, both FCA and FAB
are available. The Alert setting
disables FAB. See
Forward
Automatic Braking (FAB) 0310.
Select Off, Alert and Brake, or Alert.
Park Assist
If equipped, this feature can assist
in backing up and parking the
vehicle. See Assistance Systems for
Parking or Backing 0306.
Select Off, On, or On with Towbar. Comfort and Convenience
Select and the following may
display:
.
Auto Memory Recall
. Easy Exit Options
. Chime Volume
. Reverse Tilt Mirror
. Auto Mirror Folding
Auto Memory Recall
This feature automatically recalls
the current driver ’s previously stored
1 or 2 button positions when
entering the vehicle. See Memory
Seats 060.
Select On orOff.
Easy Exit Options
This feature automatically recalls
the previously stored Exit button
position when exiting the vehicle.
See Memory Seats 060.
Select On or Off.
Chime Volume
This allows the selection of the
chime volume level.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 4/18/17

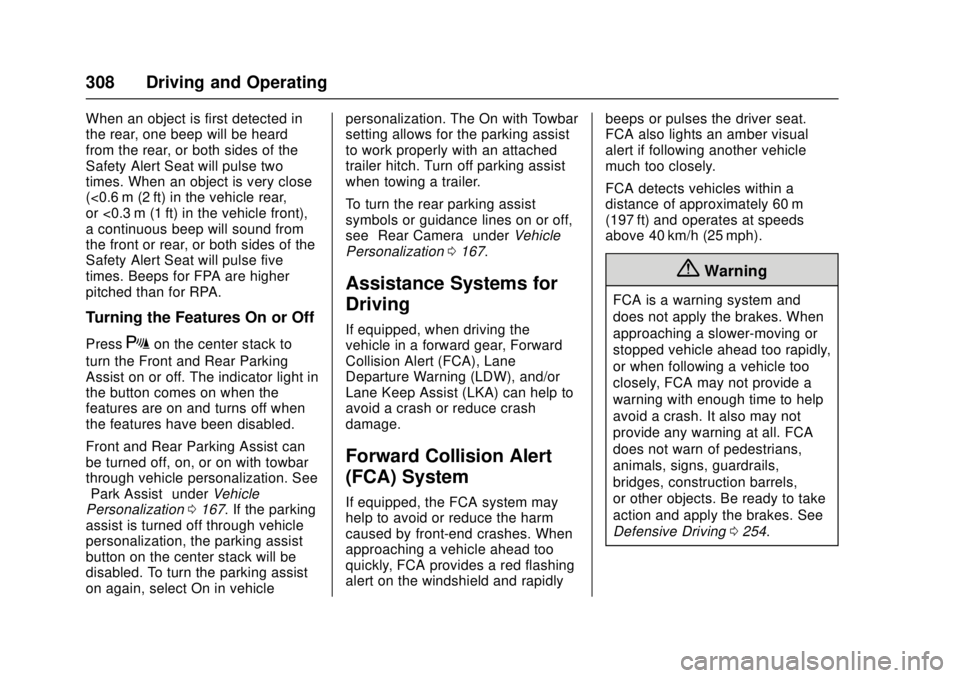

308 Driving and Operating
When an object is first detected in
the rear, one beep will be heard
from the rear, or both sides of the
Safety Alert Seat will pulse two
times. When an object is very close
(<0.6 m (2 ft) in the vehicle rear,
or <0.3 m (1 ft) in the vehicle front),
a continuous beep will sound from
the front or rear, or both sides of the
Safety Alert Seat will pulse five
times. Beeps for FPA are higher
pitched than for RPA.
Turning the Features On or Off
PressXon the center stack to
turn the Front and Rear Parking
Assist on or off. The indicator light in
the button comes on when the
features are on and turns off when
the features have been disabled.
Front and Rear Parking Assist can
be turned off, on, or on with towbar
through vehicle personalization. See
“Park Assist” underVehicle
Personalization 0167. If the parking
assist is turned off through vehicle
personalization, the parking assist
button on the center stack will be
disabled. To turn the parking assist
on again, select On in vehicle personalization. The On with Towbar
setting allows for the parking assist
to work properly with an attached
trailer hitch. Turn off parking assist
when towing a trailer.
To turn the rear parking assist
symbols or guidance lines on or off,
see
“Rear Camera” underVehicle
Personalization 0167.
Assistance Systems for
Driving
If equipped, when driving the
vehicle in a forward gear, Forward
Collision Alert (FCA), Lane
Departure Warning (LDW), and/or
Lane Keep Assist (LKA) can help to
avoid a crash or reduce crash
damage.
Forward Collision Alert
(FCA) System
If equipped, the FCA system may
help to avoid or reduce the harm
caused by front-end crashes. When
approaching a vehicle ahead too
quickly, FCA provides a red flashing
alert on the windshield and rapidly beeps or pulses the driver seat.
FCA also lights an amber visual
alert if following another vehicle
much too closely.
FCA detects vehicles within a
distance of approximately 60 m
(197 ft) and operates at speeds
above 40 km/h (25 mph).
{Warning
FCA is a warning system and
does not apply the brakes. When
approaching a slower-moving or
stopped vehicle ahead too rapidly,
or when following a vehicle too
closely, FCA may not provide a
warning with enough time to help
avoid a crash. It also may not
provide any warning at all. FCA
does not warn of pedestrians,
animals, signs, guardrails,
bridges, construction barrels,
or other objects. Be ready to take
action and apply the brakes. See
Defensive Driving
0254.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 4/18/17

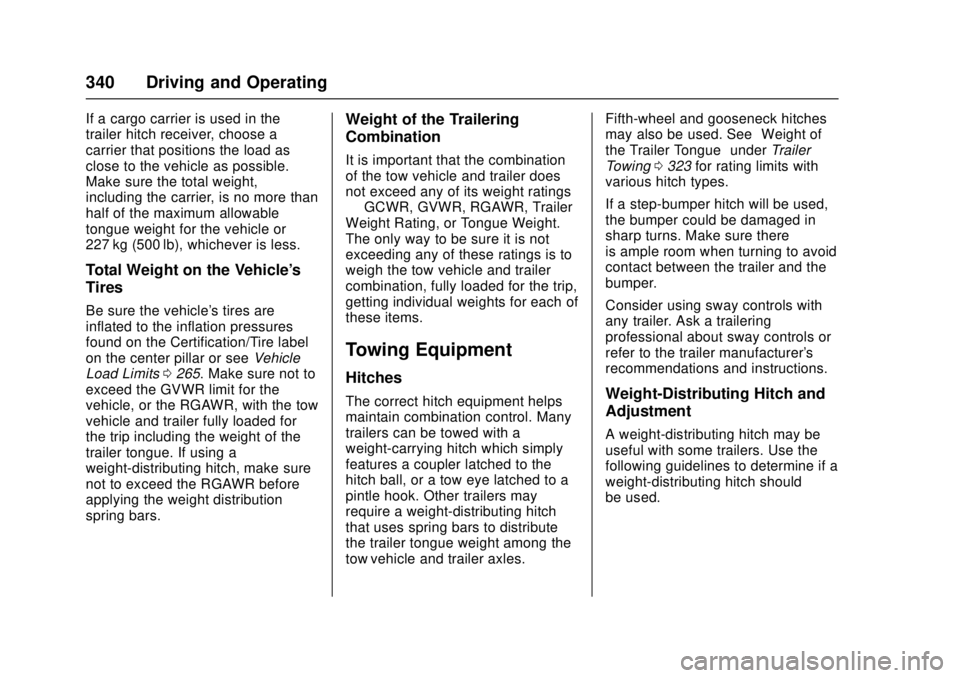

340 Driving and Operating
If a cargo carrier is used in the
trailer hitch receiver, choose a
carrier that positions the load as
close to the vehicle as possible.
Make sure the total weight,
including the carrier, is no more than
half of the maximum allowable
tongue weight for the vehicle or
227 kg (500 lb), whichever is less.
Total Weight on the Vehicle's
Tires
Be sure the vehicle's tires are
inflated to the inflation pressures
found on the Certification/Tire label
on the center pillar or seeVehicle
Load Limits 0265. Make sure not to
exceed the GVWR limit for the
vehicle, or the RGAWR, with the tow
vehicle and trailer fully loaded for
the trip including the weight of the
trailer tongue. If using a
weight-distributing hitch, make sure
not to exceed the RGAWR before
applying the weight distribution
spring bars.
Weight of the Trailering
Combination
It is important that the combination
of the tow vehicle and trailer does
not exceed any of its weight ratings
— GCWR, GVWR, RGAWR, Trailer
Weight Rating, or Tongue Weight.
The only way to be sure it is not
exceeding any of these ratings is to
weigh the tow vehicle and trailer
combination, fully loaded for the trip,
getting individual weights for each of
these items.
Towing Equipment
Hitches
The correct hitch equipment helps
maintain combination control. Many
trailers can be towed with a
weight-carrying hitch which simply
features a coupler latched to the
hitch ball, or a tow eye latched to a
pintle hook. Other trailers may
require a weight-distributing hitch
that uses spring bars to distribute
the trailer tongue weight among the
tow vehicle and trailer axles. Fifth-wheel and gooseneck hitches
may also be used. See
“Weight of
the Trailer Tongue” underTrailer
Towing 0323 for rating limits with
various hitch types.
If a step-bumper hitch will be used,
the bumper could be damaged in
sharp turns. Make sure there
is ample room when turning to avoid
contact between the trailer and the
bumper.
Consider using sway controls with
any trailer. Ask a trailering
professional about sway controls or
refer to the trailer manufacturer's
recommendations and instructions.Weight-Distributing Hitch and
Adjustment
A weight-distributing hitch may be
useful with some trailers. Use the
following guidelines to determine if a
weight-distributing hitch should
be used.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 4/18/17

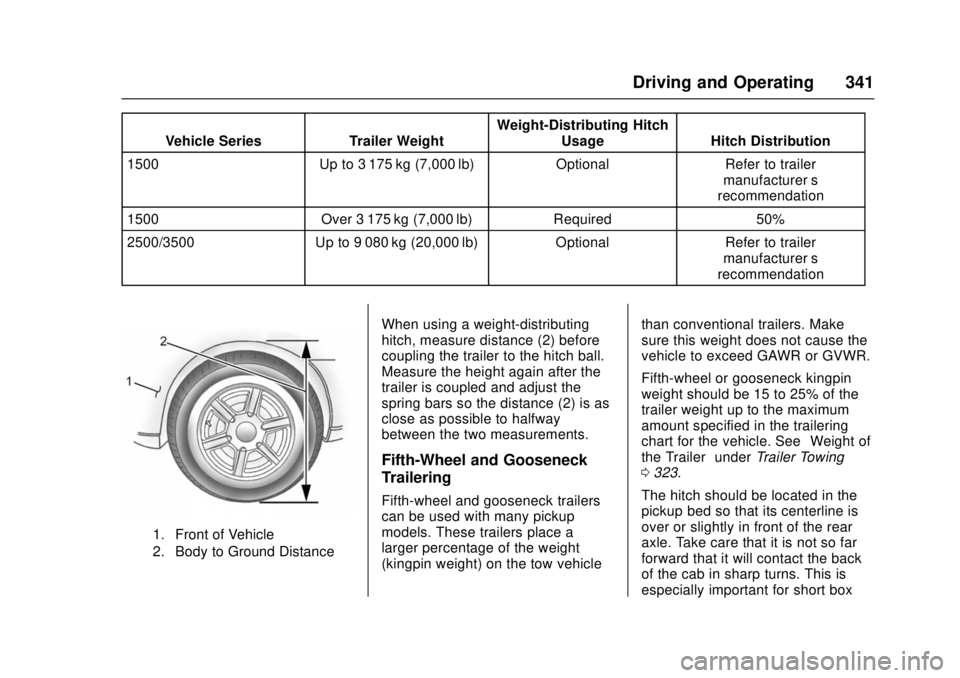

Driving and Operating 341
Vehicle SeriesTrailer WeightWeight-Distributing Hitch
Usage Hitch Distribution
1500 Up to 3 175 kg (7,000 lb) OptionalRefer to trailer
manufacturer ’s
recommendation
1500 Over 3 175 kg (7,000 lb) Required50%
2500/3500 Up to 9 080 kg (20,000 lb) OptionalRefer to trailer
manufacturer ’s
recommendation
1. Front of Vehicle
2. Body to Ground Distance
When using a weight-distributing
hitch, measure distance (2) before
coupling the trailer to the hitch ball.
Measure the height again after the
trailer is coupled and adjust the
spring bars so the distance (2) is as
close as possible to halfway
between the two measurements.
Fifth-Wheel and Gooseneck
Trailering
Fifth-wheel and gooseneck trailers
can be used with many pickup
models. These trailers place a
larger percentage of the weight
(kingpin weight) on the tow vehicle than conventional trailers. Make
sure this weight does not cause the
vehicle to exceed GAWR or GVWR.
Fifth-wheel or gooseneck kingpin
weight should be 15 to 25% of the
trailer weight up to the maximum
amount specified in the trailering
chart for the vehicle. See
“Weight of
the Trailer” underTrailer Towing
0 323.
The hitch should be located in the
pickup bed so that its centerline is
over or slightly in front of the rear
axle. Take care that it is not so far
forward that it will contact the back
of the cab in sharp turns. This is
especially important for short box

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 4/18/17
504 Index
Lamps (cont'd)Exterior Controls . . . . . . . . . . . . . . 178
Exterior Lamps Off
Reminder . . . . . . . . . . . . . . . . . . . 180
Malfunction Indicator (Check Engine) . . . . . . . . . . . . . 144
Messages . . . . . . . . . . . . . . . . . . . . 160
On Reminder . . . . . . . . . . . . . . . . . 151
Reading . . . . . . . . . . . . . . . . . . . . . . 185
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 312
Lane Departure Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Lane Keep Assist (LKA) . . . . . . . . 313
Lane Keep Assist Light . . . . . . . . . 148
Lap Belt . . . . . . . . . . . . . . . . . . . . . . . . . 71
Lap-Shoulder Belt . . . . . . . . . . . . . . . 67
LATCH System
Replacing Parts after aCrash . . . . . . . . . . . . . . . . . . . . . . . 106
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . 95
LED Lighting . . . . . . . . . . . . . . . . . . . . 390
Light
Hill Descent Control . . . . . . . . . . 147
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . 186
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 186 Lighting (cont'd)
Illumination Control . . . . . . . . . . . 184
LED . . . . . . . . . . . . . . . . . . . . . . . . . . 390
Lights . . . . . . . . . . . . . . . . . . . . . . 147, 148
Airbag On-Off . . . . . . . . . . . . . . . . . 141
Airbag Readiness . . . . . . . . . . . . . 141
Antilock Brake System(ABS) Warning . . . . . . . . . . . . . . 146
Brake System Warning . . . . . . . 145
Charging System . . . . . . . . . . . . . 143
Check Engine (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . 144
Cruise Control . . . . . . . . . . . . . . . . 152
Door Ajar . . . . . . . . . . . . . . . . . . . . . 152
Engine Coolant Temperature Warning . . . . . . . 149
Engine Oil Pressure . . . . . . . . . . 150
Flash-to-Pass . . . . . . . . . . . . . . . . . 181
Four-Wheel-Drive . . . . . . . . . . . . . 147
Front Fog Lamp . . . . . . . . . . . . . . 151
High-Beam On . . . . . . . . . . . . . . . . 151
High/Low Beam Changer . . . . . 180
Lane Departure Warning . . . . . . 147
Low Fuel Warning . . . . . . . . . . . . 150
Safety Belt Reminders . . . . . . . . 140
Security . . . . . . . . . . . . . . . . . . . . . . 151
StabiliTrak
®OFF . . . . . . . . . . . . . 148
Tire Pressure . . . . . . . . . . . . . . . . . 150 Lights (cont'd)
Tow/Haul Mode . . . . . . . . . . . . . . . 147
Traction Control System
(TCS)/StabiliTrak
®. . . . . . . . . . 149
Traction Off . . . . . . . . . . . . . . . . . . . 148
Locking Rear Axle . . . . . . . . . . . . . . 302
Locks Automatic Door . . . . . . . . . . . . . . . . . 40
Delayed Locking . . . . . . . . . . . . . . . . 40
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Lockout Protection . . . . . . . . . . . . . . 41
Power Door . . . . . . . . . . . . . . . . . . . . . 40
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Loss of Control . . . . . . . . . . . . . . . . . 256
Low Fuel Warning Light . . . . . . . . . 150
Low-Profile Tires . . . . . . . . . . . . . . . . 402
Lower Anchors and Tethers for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . . . . . 95
Lumbar Adjustment . . . . . . . . . . . . . . 58 Front Seats . . . . . . . . . . . . . . . . . . . . . 58
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . 468
Maintenance and Care Additional . . . . . . . . . . . . . . . . . . . . . 461
Maintenance Schedule . . . . . . . . . 455

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 4/18/17
Index 507
RecordsMaintenance . . . . . . . . . . . . . . . . . . 468
Recreational Vehicle Towing . . . . 440
Reimbursement Program, GM Mobility . . . . . . . . . . . . . . . . . . . 478
Remote Keyless Entry (RKE) System . . . . . . . . . . . . . . . . . . . . . . . . . 36
Remote Vehicle Start . . . . . . . . . . . . 38
Replacement Glass . . . . . . . . . . . . . . . . . . . . . . . . . 389
Replacement Bulbs . . . . . . . . . . . . . 392
Replacement Parts
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . 87
Maintenance . . . . . . . . . . . . . . . . . . 466
Replacing Airbag System . . . . . . . . 87
Replacing LATCH System Parts after a Crash . . . . . . . . . . . . 106
Replacing Safety Belt System Parts after a Crash . . . . . . . . . . . . . 72
Reporting Safety Defects Canadian Government . . . . . . . . 485
General Motors . . . . . . . . . . . . . . . 485
U.S. Government . . . . . . . . . . . . . 484
Restraints Where to Put . . . . . . . . . . . . . . . . . . . 93
Retained Accessory Power (RAP) . . . . . . . . . . . . . . . . . . 277
Reverse Tilt Mirrors . . . . . . . . . . . . . . 50 Ride Control Systems
Messages . . . . . . . . . . . . . . . . . . . . 161
Roads Driving, Wet . . . . . . . . . . . . . . . . . . 261
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . . . . 478
Roof
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 53
Rotation, Tires . . . . . . . . . . . . . . . . . . 415
Routing, Engine Drive Belt . . . . . . 473
Running the Vehicle While Parked . . . . . . . . . . . . . . . . . . . . . . . . 282
S
Safety Belts . . . . . . . . . . . . . . . . . . . . . 65Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Extender . . . . . . . . . . . . . . . . . . . . . . . . 71
How to Wear Safety BeltsProperly . . . . . . . . . . . . . . . . . . . . . . . 66
Lap Belt . . . . . . . . . . . . . . . . . . . . . . . . 71
Lap-Shoulder Belt . . . . . . . . . . . . . . 67
Messages . . . . . . . . . . . . . . . . . . . . 163
Reminders . . . . . . . . . . . . . . . . . . . . 140
Replacing after a Crash . . . . . . . . 72
Use During Pregnancy . . . . . . . . . . 70
Safety Defects Reporting
Canadian Government . . . . . . . . 485
General Motors . . . . . . . . . . . . . . . 485 Safety Defects Reporting (cont'd)
U.S. Government . . . . . . . . . . . . . 484
Safety Locks . . . . . . . . . . . . . . . . . . . . . 41
Safety System Check . . . . . . . . . . . . 71
Satellite Radio . . . . . . . . . . . . . 200, 201
Scheduling Appointments . . . . . . . 480
Seats Adjustment, Front . . . . . . . . . . . . . . . 57
Center Seat . . . . . . . . . . . . . . . . . . . . 57
Head Restraints . . . . . . . . . . . . . . . . 56
Heated and Ventilated Front . . . . 62
Lumbar Adjustment, Front . . . . . . 58
Memory . . . . . . . . . . . . . . . . . . . . . . . . . 60
Power Adjustment, Front . . . . . . . 58
Rear . . . . . . . . . . . . . . . . . . . . . . . . 63, 64
Reclining Seatbacks . . . . . . . . . . . . 59
Securing Child Restraints . . . . . . . . . . . . . . . . 106, 110
Security Light . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Messages . . . . . . . . . . . . . . . . . . . . 163
OnStar
®. . . . . . . . . . . . . . . . . . . . . . 489
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 43
Vehicle Alarm . . . . . . . . . . . . . . . . . . . 43
Service . . . . . . . . . . . . . . . . . . . . . . . . . 251 Accessories andModifications . . . . . . . . . . . . . . . . 357
