GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 4/18/17

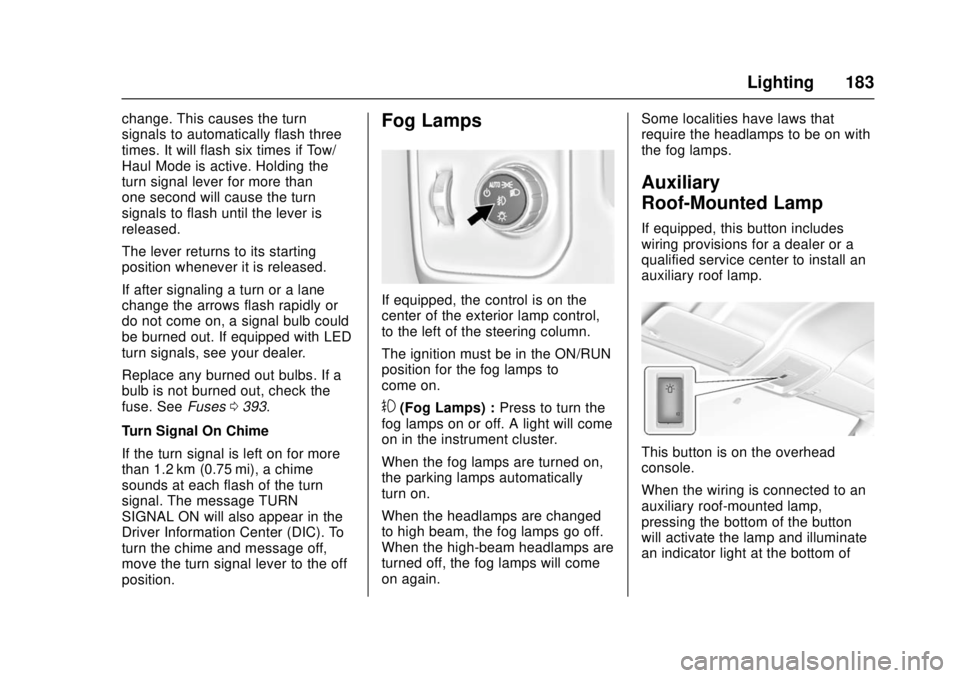

Lighting 183
change. This causes the turn
signals to automatically flash three
times. It will flash six times if Tow/
Haul Mode is active. Holding the
turn signal lever for more than
one second will cause the turn
signals to flash until the lever is
released.
The lever returns to its starting
position whenever it is released.
If after signaling a turn or a lane
change the arrows flash rapidly or
do not come on, a signal bulb could
be burned out. If equipped with LED
turn signals, see your dealer.
Replace any burned out bulbs. If a
bulb is not burned out, check the
fuse. SeeFuses0393.
Turn Signal On Chime
If the turn signal is left on for more
than 1.2 km (0.75 mi), a chime
sounds at each flash of the turn
signal. The message TURN
SIGNAL ON will also appear in the
Driver Information Center (DIC). To
turn the chime and message off,
move the turn signal lever to the off
position.Fog Lamps
If equipped, the control is on the
center of the exterior lamp control,
to the left of the steering column.
The ignition must be in the ON/RUN
position for the fog lamps to
come on.
#(Fog Lamps) : Press to turn the
fog lamps on or off. A light will come
on in the instrument cluster.
When the fog lamps are turned on,
the parking lamps automatically
turn on.
When the headlamps are changed
to high beam, the fog lamps go off.
When the high-beam headlamps are
turned off, the fog lamps will come
on again. Some localities have laws that
require the headlamps to be on with
the fog lamps.
Auxiliary
Roof-Mounted Lamp
If equipped, this button includes
wiring provisions for a dealer or a
qualified service center to install an
auxiliary roof lamp.
This button is on the overhead
console.
When the wiring is connected to an
auxiliary roof-mounted lamp,
pressing the bottom of the button
will activate the lamp and illuminate
an indicator light at the bottom of

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 4/18/17

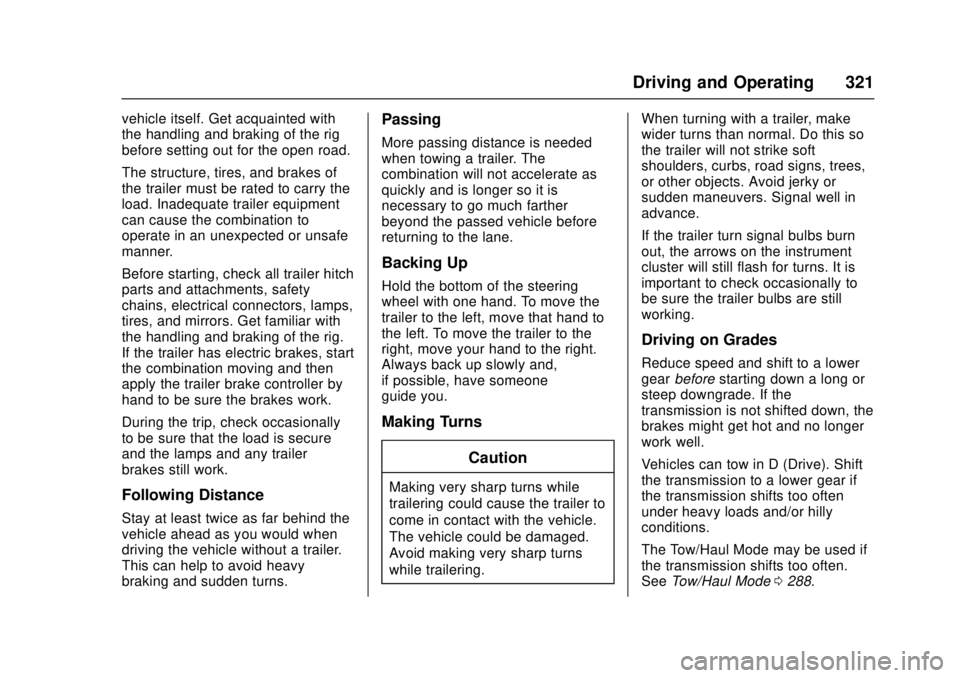

Driving and Operating 321
vehicle itself. Get acquainted with
the handling and braking of the rig
before setting out for the open road.
The structure, tires, and brakes of
the trailer must be rated to carry the
load. Inadequate trailer equipment
can cause the combination to
operate in an unexpected or unsafe
manner.
Before starting, check all trailer hitch
parts and attachments, safety
chains, electrical connectors, lamps,
tires, and mirrors. Get familiar with
the handling and braking of the rig.
If the trailer has electric brakes, start
the combination moving and then
apply the trailer brake controller by
hand to be sure the brakes work.
During the trip, check occasionally
to be sure that the load is secure
and the lamps and any trailer
brakes still work.
Following Distance
Stay at least twice as far behind the
vehicle ahead as you would when
driving the vehicle without a trailer.
This can help to avoid heavy
braking and sudden turns.
Passing
More passing distance is needed
when towing a trailer. The
combination will not accelerate as
quickly and is longer so it is
necessary to go much farther
beyond the passed vehicle before
returning to the lane.
Backing Up
Hold the bottom of the steering
wheel with one hand. To move the
trailer to the left, move that hand to
the left. To move the trailer to the
right, move your hand to the right.
Always back up slowly and,
if possible, have someone
guide you.
Making TurnsCaution
Making very sharp turns while
trailering could cause the trailer to
come in contact with the vehicle.
The vehicle could be damaged.
Avoid making very sharp turns
while trailering. When turning with a trailer, make
wider turns than normal. Do this so
the trailer will not strike soft
shoulders, curbs, road signs, trees,
or other objects. Avoid jerky or
sudden maneuvers. Signal well in
advance.
If the trailer turn signal bulbs burn
out, the arrows on the instrument
cluster will still flash for turns. It is
important to check occasionally to
be sure the trailer bulbs are still
working.
Driving on Grades
Reduce speed and shift to a lower
gear
before starting down a long or
steep downgrade. If the
transmission is not shifted down, the
brakes might get hot and no longer
work well.
Vehicles can tow in D (Drive). Shift
the transmission to a lower gear if
the transmission shifts too often
under heavy loads and/or hilly
conditions.
The Tow/Haul Mode may be used if
the transmission shifts too often.
See Tow/Haul Mode 0288.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 4/18/17
Vehicle Care 355
Vehicle Care
General Information
General Information . . . . . . . . . . 356
California Proposition65 Warning . . . . . . . . . . . . . . . . . 357
California Perchlorate Materials Requirements . . . . . 357
Accessories and Modifications . . . . . . . . . . . . . . . . 357
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 358
Hood . . . . . . . . . . . . . . . . . . . . . . . . . 358
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . 359
Engine Oil . . . . . . . . . . . . . . . . . . . . 364
Engine Oil Life System . . . . . . . 367
Automatic Transmission Fluid (6 Speed Transmission) . . . . . 368
Automatic Transmission Fluid (8 Speed Transmission) . . . . . 371
Engine Air Cleaner/Filter . . . . . . 371
Cooling System . . . . . . . . . . . . . . 372
Engine Coolant . . . . . . . . . . . . . . . 374
Engine Overheating . . . . . . . . . . 376
Overheated Engine Protection Operating Mode . . . . . . . . . . . . . 378
Engine Fan . . . . . . . . . . . . . . . . . . . 378 Power Steering Fluid (1500
Series) . . . . . . . . . . . . . . . . . . . . . . 379
Power Steering Fluid (2500/ 3500 Series) . . . . . . . . . . . . . . . . 379
Washer Fluid . . . . . . . . . . . . . . . . . 380
Brakes . . . . . . . . . . . . . . . . . . . . . . . 381
Brake Fluid . . . . . . . . . . . . . . . . . . . 381
Battery - North America . . . . . . 383
Four-Wheel Drive . . . . . . . . . . . . . 383
Front Axle . . . . . . . . . . . . . . . . . . . . 384
Rear Axle . . . . . . . . . . . . . . . . . . . . 385
Noise Control System . . . . . . . . 386
Starter Switch Check . . . . . . . . . 387
Automatic Transmission Shift
Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 387
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . . . 388
Park Brake and P (Park) Mechanism Check . . . . . . . . . . 388
Wiper Blade Replacement . . . . 388
Glass Replacement . . . . . . . . . . 389
Headlamp Aiming
Headlamp Aiming . . . . . . . . . . . . 389
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . 389
Halogen Bulbs . . . . . . . . . . . . . . . . 389
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . . . . . . . 390 LED Lighting . . . . . . . . . . . . . . . . . 390
Taillamps, Turn Signal,
Stoplamps, and Back-Up
Lamps . . . . . . . . . . . . . . . . . . . . . . 390
Center High-Mounted
Stoplamp (CHMSL) and
Cargo Lamp . . . . . . . . . . . . . . . . . 391
Replacement Bulbs . . . . . . . . . . . 392
Electrical System
High Voltage Devices and Wiring . . . . . . . . . . . . . . . . . . . . . . . 392
Electrical System Overload . . . 392
Fuses . . . . . . . . . . . . . . . . . . . . . . . . 393
Engine Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 393
Instrument Panel Fuse Block
(Right) . . . . . . . . . . . . . . . . . . . . . . 396
Instrument Panel Fuse Block (Left) . . . . . . . . . . . . . . . . . 398
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 400
All-Season Tires . . . . . . . . . . . . . . 401
Winter Tires . . . . . . . . . . . . . . . . . . 401
Low-Profile Tires . . . . . . . . . . . . . 402
All-Terrain Tires . . . . . . . . . . . . . . . 402
Tire Sidewall Labeling . . . . . . . . 402
Tire Designations . . . . . . . . . . . . . 405
Tire Terminology andDefinitions . . . . . . . . . . . . . . . . . . 406

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 4/18/17
390 Vehicle Care
High Intensity Discharge
(HID) Lighting
{Warning
The High Intensity Discharge
(HID) lighting system operates at
a very high voltage. If you try to
service any of the system
components, you could be
seriously injured. Have your
dealer or a qualified technician
service them.
After an HID headlamp bulb has
been replaced, the beam might be a
slightly different shade than it was
originally. This is normal.
LED Lighting
This vehicle has several LED lamps.
For replacement of any LED lighting
assembly, contact your dealer.
Taillamps, Turn Signal,
Stoplamps, and Back-Up
Lamps
1. Stoplamp/Taillamp/Turn Signal Lamp
2. Back-Up Lamp
3. Sidemarker Lamp
To replace one of these bulbs:
1. Open the tailgate.
2. Remove the two rear lamp assembly screws.
3. Pull the rear lamp assembly outboard away from the box
side until the retainers release.
There will be a noise when the
retainers release.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 4/18/17
Index 499
Antilock Brake System(ABS) (cont'd)
Warning Light . . . . . . . . . . . . . . . . . 146
Appearance Care
Exterior . . . . . . . . . . . . . . . . . . . . . . . 444
Interior . . . . . . . . . . . . . . . . . . . . . . . . 449
Apple CarPlay and Android Auto . . . . . . . . . . . . . . . . . . 237
Assistance Program,
Roadside . . . . . . . . . . . . . . . . . . . . . . 478
Assistance Systems for Driving . . . . . . . . . . . . . . . . . . . . . . . . 308
Assistance Systems for
Parking and Backing . . . . . . . . . . 306
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . 215
Theft-Deterrent Feature . . . . . . . 189
Audio Players
CD . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Automatic Dimming Mirrors . . . . . . . . . . . . . . . . 49
Door Locks . . . . . . . . . . . . . . . . . . . . . 40
Forward Braking . . . . . . . . . . . . . . 310
Headlamp System . . . . . . . . . . . . 181
Transmission . . . . . . . . . . . . . . . . . 283
Transmission Fluid . . . . . . 368, 371
Automatic Transmission
Manual Mode . . . . . . . . . . . . . . . . . 286 Automatic Transmission (cont'd)
Shift Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 387
Auxiliary
Roof Mounted Lamp . . . . . . . . . . 183
Auxiliary Jack . . . . . . . . . . . . . . . . . . . 214
Axle, Front . . . . . . . . . . . . . . . . . . . . . . 384
Axle, Rear . . . . . . . . . . . . . . . . . . . . . . 385
B
Battery Load Management . . . . . . . . . . . . 186
Power Protection . . . . . . . . . . . . . 187
Voltage and ChargingMessages . . . . . . . . . . . . . . . . . . . 157
Battery - North America . . . . 383, 435
Blade Replacement, Wiper . . . . . 388
Blind Spot Mirrors . . . . . . . . . . . . . . . 49
Bluetooth Overview . . . . . . . . 222, 224, 228, 233
Bluetooth Audio . . . . . . . . . . . . . . . . 215
Brake
Pedal and AdjustableThrottle . . . . . . . . . . . . . . . . . . . . . . 273
System Warning Light . . . . . . . . 145
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 381 Antilock . . . . . . . . . . . . . . . . . . . . . . . 297
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 298 Brakes (cont'd)
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 381
Parking . . . . . . . . . . . . . . . . . . . . . . . 297
System Messages . . . . . . . . . . . . 158
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 254 Automatic Forward . . . . . . . . . . . 310
Break-In, New Vehicle . . . . . . . . . . 273
Bulb Replacement . . . . . . . . . . . . . . 392 Center High-Mounted
Stoplamp (CHMSL) and
Cargo Lamp . . . . . . . . . . . . . . . . . 391
Halogen Bulbs . . . . . . . . . . . . . . . . 389
Headlamp Aiming . . . . . . . . . . . . . 389
Headlamps . . . . . . . . . . . . . . . . . . . 389
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . 390
Taillamps, Turn Signal, Stoplamps, and Back-up
Lamps . . . . . . . . . . . . . . . . . . . . . . 390
Buying New Tires . . . . . . . . . . . . . . . 418
C
Calibration . . . . . . . . . . . . . . . . . . . . . . 126
California Fuel Requirements . . . . . . . . . . . 316

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 4/18/17
508 Index
Service (cont'd)Climate Control
System . . . . . . . . . . . . . . . . . 243, 245
Doing Your Own Work . . . . . . . . 358
Maintenance Records . . . . . . . . 468
Maintenance, General
Information . . . . . . . . . . . . . . . . . . 454
Parts Identification Label . . . . . 469
Publications Ordering Information . . . . . . . . . . . . . . . . . . 483
Scheduling Appointments . . . . . 480
Services Special Application . . . . . . . . . . . 461
Servicing the Airbag . . . . . . . . . . . . . 85
Shift Lock Control Function
Check, Automatic
Transmission . . . . . . . . . . . . . . . . . . 387
Shifting
Into Park . . . . . . . . . . . . . . . . . . . . . . 279
Out of Park . . . . . . . . . . . . . . . . . . . 280
Signals, Turn and Lane-Change . . . . . . . . . . . . . . . . . 182
Snow Plow . . . . . . . . . . . . . . . . . . . . . 350
Software Updates . . . . . . . . . . . . . . 197
Special Application Services . . . . 461
Specifications and
Capacities . . . . . . . . . . . . . . . . . . . . . 470
Speedometer . . . . . . . . . . . . . . . . . . . 136 StabiliTrak
OFF Light . . . . . . . . . . . . . . . . . . . . . 148
Start Assist, Hill . . . . . . . . . . . . . . . . . 298
Start Vehicle, Remote . . . . . . . . . . . 38
Starter Switch Check . . . . . . . . . . . 387
Starting the Engine . . . . . . . . . . . . . 275
Steering . . . . . . . . . . . . . . . . . . . . . . . . 255 Fluid, Power . . . . . . . . . . . . . . . . . . 379
Heated Wheel . . . . . . . . . . . . . . . . 125
Wheel Adjustment . . . . . . . . . . . . 124
Wheel Controls . . . . . . . . . . . . . . . 125
Steering System Messages . . . . . 163
Steps Power Assist . . . . . . . . . . . . . . . . . . . 42
Stoplamps and Back-up Lamps Bulb Replacement . . . . . . . . . . . . 390
Storage Areas Center Console . . . . . . . . . . . . . . . 120
Floor Console . . . . . . . . . . . . . . . . 121
Glove Box . . . . . . . . . . . . . . . . . . . . .119
Instrument Panel . . . . . . . . . . . . . .119
Sunglasses . . . . . . . . . . . . . . . . . . . 120
Storage Compartments . . . . . . . . . 119
Stuck Vehicle . . . . . . . . . . . . . . . . . . . 264
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . 53
Sunglass Storage . . . . . . . . . . . . . . . 120
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Switches
Airbag On-Off . . . . . . . . . . . . . . . . . . . 79
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Forward CollisionAlert (FCA) . . . . . . . . . . . . . . . . . . 308
Infotainment . . . . . . . . . . . . . 188, 487
Noise Control . . . . . . . . . . . . . . . . . 386
Systems Driver Assistance . . . . . . . . . . . . . 305
T
Tachometer . . . . . . . . . . . . . . . . . . . . . 136
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . 41
TaillampsBulb Replacement . . . . . . . . . . . . 390
Text Telephone (TTY) Users . . . . 477
Theft-Deterrent Systems . . . . . . . . . 45
Immobilizer . . . . . . . . . . . . . . . . . . . . . 45
Throttle, Adjustable . . . . . . . . . . . . . 273
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400 All-Season . . . . . . . . . . . . . . . . . . . . 401
All-Terrain . . . . . . . . . . . . . . . . . . . . 402
Buying New Tires . . . . . . . . . . . . . 418
Chains . . . . . . . . . . . . . . . . . . . . . . . . 422
Changing . . . . . . . . . . . . . . . . . . . . . 425
Designations . . . . . . . . . . . . . . . . . 405
Different Size . . . . . . . . . . . . . . . . . 419

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 4/18/17
Index 509
Tires (cont'd)Full-Size Spare . . . . . . . . . . . . . . . 434
If a Tire Goes Flat . . . . . . . . . . . . 423
Inspection . . . . . . . . . . . . . . . . . . . . 414
Low Profile . . . . . . . . . . . . . . . . . . . 402
Messages . . . . . . . . . . . . . . . . . . . . 164
Pressure . . . . . . . . . . . . . . . . . 408, 410
Pressure Light . . . . . . . . . . . . . . . . 150
Pressure Monitor Operation . . .411
Pressure Monitor System . . . . . 410
Rotation . . . . . . . . . . . . . . . . . . . . . . 415
Sidewall Labeling . . . . . . . . . . . . . 402
Terminology and Definitions . . 406
Uniform Tire Quality
Grading . . . . . . . . . . . . . . . . . . . . . 420
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 421
Wheel Replacement . . . . . . . . . . 421
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . 417
Winter . . . . . . . . . . . . . . . . . . . . . . . . 401
Tow/Haul Mode . . . . . . . . . . . . . . . . . 288
Tow/Haul Mode Light . . . . . . . . . . . 147
Towing Driving Characteristics . . . . . . . . 320
Equipment . . . . . . . . . . . . . . . . . . . . 340
General Information . . . . . . . . . . 320
Recreational Vehicle . . . . . . . . . . 440 Towing (cont'd)
Trailer . . . . . . . . . . . . . . . . . . . . . . . . 323
Trailer Sway Control (TSC) . . . 349
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 439
Traction Control System (TCS)/StabiliTrak
®Light . . . . . . . . . . . . 149
Off Light . . . . . . . . . . . . . . . . . . . . . . 148
Traction Control/Electronic
Stability Control . . . . . . . . . . . . . . . 299
Trademarks and License Agreements . . . . . . . . . . . . . . . . . . . 238
Trailer Sway Control (TSC) . . . . . . . . . . 349
Tow Mirrors . . . . . . . . . . . . . . . . . . . . . 46
Towing . . . . . . . . . . . . . . . . . . . . . . . . 323
Transfer Case . . . . . . . . . . . . . . . . . . 289
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . 283
Fluid, Automatic . . . . . . . . . 368, 371
Messages . . . . . . . . . . . . . . . . . . . . 164
Temperature Gauge . . . . . . . . . . 139
Transportation Program,
Courtesy . . . . . . . . . . . . . . . . . . . . . . 480
Trip Odometer . . . . . . . . . . . . . . . . . . 136
Truck-Camper Loading Information . . . . . . . . . . . . . . . . . . . . 271 Turn and Lane-Change
Signals . . . . . . . . . . . . . . . . . . . . . . . . 182
Turn Signal Bulb Replacement . . . . . . . . . . . . 390
U
Uniform Tire Quality Grading . . . 420
Universal Remote System . . . . . . 174Operation . . . . . . . . . . . . . . . . . . . . . 176
Programming . . . . . . . . . . . . . . . . . 174
Updates Software . . . . . . . . . . . . . . . . . . . . . . 197
USB Port . . . . . . . . . . . . . . . . . . 206, 208
Using This Manual . . . . . . . . . . . . . . . . 2
V
Vehicle Alarm System . . . . . . . . . . . . . . . . . . 43
Canadian Owners . . . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . 254
Identification Number (VIN) . . . 469
Load Limits . . . . . . . . . . . . . . . . . . . 265
Messages . . . . . . . . . . . . . . . . . . . . 157
Personalization . . . . . . . . . . . . . . . 167
Reminder Messages . . . . . . . . . . 166
Remote Start . . . . . . . . . . . . . . . . . . . 38
Security . . . . . . . . . . . . . . . . . . . . . . . . 43
Speed Messages . . . . . . . . . . . . . 167
