340 Driving and Operating
go to a weigh station and weigh the
vehicle. Your dealer can also help
with this.
The total vehicle reserve capacity
for the vehicle is in the lower right
corner of the Certification/Tire label
as shown previously.
See your dealer for additional
advice and information about using
a snow plow on the vehicle. Also,
seeVehicle Load Limits 0248.
Emergency Roof Lamp
Provisions
Vehicles with the RPO VYU snow
plow prep package also have an
emergency roof lamp provision
package, RPO TRW. Wiring for the
emergency roof lamp is provided
above the overhead console. See
Auxiliary Roof-Mounted Lamp 0182
for switch location.
Pickup Conversion to
Chassis Cab
We are aware that some vehicle
owners might consider having the
pickup box removed and a
commercial or recreational body
installed. Owners should be aware
that, as manufactured, there are
differences between a chassis cab
and a pickup with the box removed
which could affect vehicle safety.
The components necessary to adapt
a pickup to permit its safe use with
a specialized body should be
installed by the body builder.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-11349177) - 2018 - CRC - 10/17/17
Vehicle Care 341
Vehicle Care
General Information
General Information . . . . . . . . . . 342
California Proposition65 Warning . . . . . . . . . . . . . . . . . 343
California Perchlorate Materials Requirements . . . . . 343
Accessories and Modifications . . . . . . . . . . . . . . . . 343
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 344
Hood . . . . . . . . . . . . . . . . . . . . . . . . . 344
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . 345
Engine Oil . . . . . . . . . . . . . . . . . . . . 350
Engine Oil Life System . . . . . . . 353
Automatic Transmission Fluid (6-Speed Transmission) . . . . . 354
Automatic Transmission Fluid (8-Speed Transmission) . . . . . 357
Engine Air Cleaner/Filter . . . . . . 358
Cooling System . . . . . . . . . . . . . . 359
Engine Overheating . . . . . . . . . . 363
Overheated Engine Protection Operating Mode . . . . . . . . . . . . . 364
Engine Fan . . . . . . . . . . . . . . . . . . . 365 Power Steering Fluid (1500
Series) . . . . . . . . . . . . . . . . . . . . . . 365
Power Steering Fluid (2500/ 3500 Series) . . . . . . . . . . . . . . . . 365
Washer Fluid . . . . . . . . . . . . . . . . . 366
Brakes . . . . . . . . . . . . . . . . . . . . . . . 367
Brake Fluid . . . . . . . . . . . . . . . . . . . 368
Battery - North America . . . . . . 369
Four-Wheel Drive . . . . . . . . . . . . . 370
Front Axle . . . . . . . . . . . . . . . . . . . . 370
Rear Axle . . . . . . . . . . . . . . . . . . . . 371
Noise Control System . . . . . . . . 373
Starter Switch Check . . . . . . . . . 374
Automatic Transmission Shift
Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 374
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . . . 374
Park Brake and P (Park) Mechanism Check . . . . . . . . . . 375
Wiper Blade Replacement . . . . 375
Windshield Replacement . . . . . 376
Gas Strut(s) . . . . . . . . . . . . . . . . . . 376
Headlamp Aiming
Headlamp Aiming . . . . . . . . . . . . 377
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . 378
Halogen Bulbs . . . . . . . . . . . . . . . . 378 High Intensity Discharge (HID)
Lighting . . . . . . . . . . . . . . . . . . . . . 378
LED Lighting . . . . . . . . . . . . . . . . . 378
Taillamps, Turn Signal, Stoplamps, and Back-Up
Lamps . . . . . . . . . . . . . . . . . . . . . . 378
Center High-Mounted Stoplamp (CHMSL) and
Cargo Lamp . . . . . . . . . . . . . . . . . 380
Electrical System
High Voltage Devices andWiring . . . . . . . . . . . . . . . . . . . . . . . 380
Electrical System Overload . . . 380
Fuses and Circuit Breakers . . . 381
Engine Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 381
Instrument Panel Fuse Block (Right) . . . . . . . . . . . . . . . . . . . . . . 385
Instrument Panel Fuse Block (Left) . . . . . . . . . . . . . . . . . 386
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 389
All-Season Tires . . . . . . . . . . . . . . 389
Winter Tires . . . . . . . . . . . . . . . . . . 390
Low-Profile Tires . . . . . . . . . . . . . 390
All-Terrain Tires . . . . . . . . . . . . . . . 391
Tire Sidewall Labeling . . . . . . . . 391
Tire Designations . . . . . . . . . . . . . 393

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-11349177) - 2018 - CRC - 10/17/17
342 Vehicle Care
Tire Terminology andDefinitions . . . . . . . . . . . . . . . . . . 395
Tire Pressure . . . . . . . . . . . . . . . . . 397
Tire Pressure for High-Speed Operation . . . . . . . . . . . . . . . . . . . 399
Tire Pressure Monitor System . . . . . . . . . . . . . . . . . . . . . . 399
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . 400
Tire Inspection . . . . . . . . . . . . . . . . 404
Tire Rotation . . . . . . . . . . . . . . . . . 405
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 407
Buying New Tires . . . . . . . . . . . . . 408
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . 409
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . . . 410
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 411
Wheel Replacement . . . . . . . . . . 412
Tire Chains . . . . . . . . . . . . . . . . . . . 413
If a Tire Goes Flat . . . . . . . . . . . . 413
Tire Changing . . . . . . . . . . . . . . . . 415
Full-Size Spare Tire . . . . . . . . . . 425
Jump Starting
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . 426
Towing the Vehicle
Towing the Vehicle . . . . . . . . . . . 430
Recreational VehicleTowing . . . . . . . . . . . . . . . . . . . . . . 430
Appearance Care
Exterior Care . . . . . . . . . . . . . . . . . 435
Interior Care . . . . . . . . . . . . . . . . . . 441
Floor Mats . . . . . . . . . . . . . . . . . . . . 444
General Information
For service and parts needs, visit
your dealer. You will receive
genuine GM parts and GM-trained
and supported service people.
Genuine GM parts have one of
these marks:

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-11349177) - 2018 - CRC - 10/17/17
Vehicle Care 343
California Proposition
65 Warning
{Warning
Most motor vehicles, including
this one, as well as many of its
service parts and fluids, contain
and/or emit chemicals known to
the State of California to cause
cancer and birth defects or other
reproductive harm. Engine
exhaust, many parts and
systems, many fluids, and some
component wear by-products
contain and/or emit these
chemicals. For more information
go to www.P65Warnings.ca.gov/
passenger-vehicle.
See Battery - North America 0369
and Jump Starting - North America
0 426 and the back cover.
California Perchlorate
Materials Requirements
Certain types of automotive
applications, such as airbag
initiators, seat belt pretensioners,
and lithium batteries contained in
Remote Keyless Entry transmitters,
may contain perchlorate materials.
Special handling may be necessary.
For additional information, see
www.dtsc.ca.gov/hazardouswaste/
perchlorate.
Accessories and
Modifications
Adding non-dealer accessories or
making modifications to the vehicle
can affect vehicle performance and
safety, including such things as
airbags, braking, stability, ride and
handling, emissions systems,
aerodynamics, durability, and
electronic systems like antilock
brakes, traction control, and stability
control. These accessories or
modifications could even cause
malfunction or damage not covered
by the vehicle warranty. Damage to suspension components
caused by modifying vehicle height
outside of factory settings will not be
covered by the vehicle warranty.
Damage to vehicle components
resulting from modifications or the
installation or use of non-GM
certified parts, including control
module or software modifications, is
not covered under the terms of the
vehicle warranty and may affect
remaining warranty coverage for
affected parts.
GM Accessories are designed to
complement and function with other
systems on the vehicle. See your
dealer to accessorize the vehicle
using genuine GM Accessories
installed by a dealer technician.
Also, see
Adding Equipment to the
Airbag-Equipped Vehicle 090.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-11349177) - 2018 - CRC - 10/17/17
344 Vehicle Care
Vehicle Checks
Doing Your Own
Service Work
{Warning
It can be dangerous to work on
your vehicle if you do not have
the proper knowledge, service
manual, tools, or parts. Always
follow owner’s manual procedures
and consult the service manual
for your vehicle before doing any
service work.
If doing some of your own service
work, use the proper service
manual. It tells you much more
about how to service the vehicle
than this manual can. To order the
proper service manual, see Service
Publications Ordering Information
0 474.
This vehicle has an airbag system.
Before attempting to do your own
service work, see Servicing the
Airbag-Equipped Vehicle 090. Keep a record with all parts receipts
and list the mileage and the date of
any service work performed. See
Maintenance Records
0459.
Caution
Even small amounts of
contamination can cause damage
to vehicle systems. Do not allow
contaminants to contact the fluids,
reservoir caps, or dipsticks.
Hood
To open the hood:
1. Pull the handle with this symbol
on it. It is inside the vehicle
under the steering wheel.
2. Go to the front of the vehicle tofind the secondary hood
release. The handle is under
the front edge of the hood near
the center. Push the handle to
the right and at the same time
raise the hood.
Before closing the hood, be sure all
the filler caps are on properly. Then
bring the hood from full open to
within 15 cm (6 in) from the closed
position, pause, and push the front
center of the hood with a swift, firm
motion to fully close the hood.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-11349177) - 2018 - CRC - 10/17/17
Vehicle Care 345

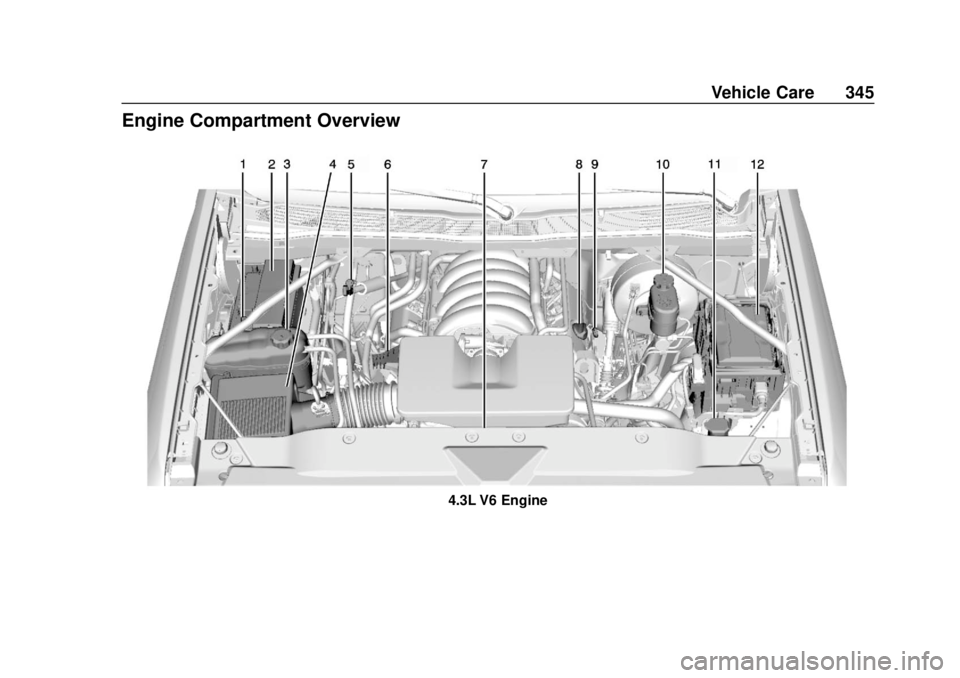

Engine Compartment Overview
4.3L V6 Engine

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-11349177) - 2018 - CRC - 10/17/17
346 Vehicle Care
1. Positive (+) Terminal. SeeJump Starting - North America
0426.
2. Battery - North America 0369.
3. Coolant Surge Tank and Pressure Cap. See Cooling
System 0359.
4. Engine Air Cleaner/Filter 0358.
5. Automatic Transmission Dipstick (If Equipped). See
“How to Check Automatic
Transmission Fluid” under
Automatic Transmission Fluid
(6-Speed Transmission) 0354
or Automatic Transmission
Fluid (8-Speed Transmission)
0 357. 6. Remote Negative (–) Location.
See Jump Starting - North
America 0426.
7. Engine Cooling Fans (Out of View). See Cooling System
0 359.
8. Engine Oil Fill Cap. See “When
to Add Engine Oil” under
Engine Oil 0350.
9. Engine Oil Dipstick. See “Checking Engine Oil” under
Engine Oil 0350. 10. Brake Fluid Reservoir. See
Brake Fluid 0368.
11. Windshield Washer Fluid Reservoir. See “Adding Washer
Fluid” under Washer Fluid
0 366.
12. Engine Compartment Fuse
Block 0381.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-11349177) - 2018 - CRC - 10/17/17
Vehicle Care 347

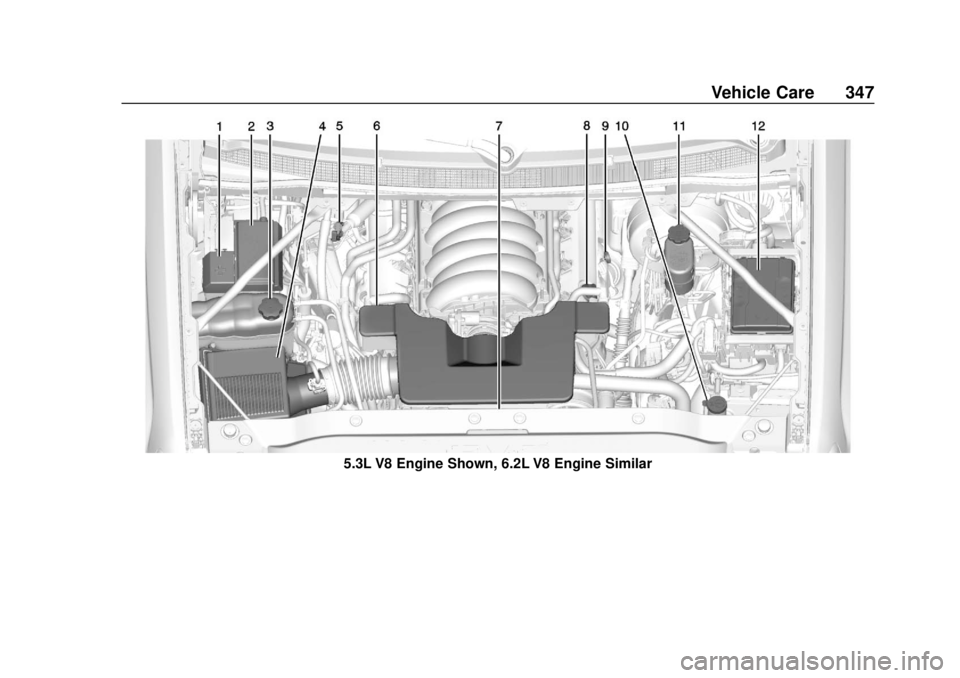

5.3L V8 Engine Shown, 6.2L V8 Engine Similar

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-11349177) - 2018 - CRC - 10/17/17
348 Vehicle Care
1. Positive (+) Terminal. SeeJump Starting - North America
0426.
2. Battery - North America 0369.
3. Coolant Surge Tank and Pressure Cap. See Cooling
System 0359.
4. Engine Air Cleaner/Filter 0358.
5. Automatic Transmission Dipstick (If Equipped). See
“How to Check Automatic
Transmission Fluid” under
Automatic Transmission Fluid
(6-Speed Transmission) 0354
or Automatic Transmission
Fluid (8-Speed Transmission)
0 357. 6. Remote Negative (–) Location
(Out of View). See Jump
Starting - North America 0426.
7. Engine Cooling Fans (Out of View). See Cooling System
0 359.
8. Engine Oil Fill Cap. See “When
to Add Engine Oil” under
Engine Oil 0350.
9. Engine Oil Dipstick. See “Checking Engine Oil” under
Engine Oil 0350. 10. Windshield Washer Fluid
Reservoir. See “Adding Washer
Fluid” under Washer Fluid
0 366.
11. Brake Fluid Reservoir. See Brake Fluid 0368.
12. Engine Compartment Fuse
Block 0381.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-11349177) - 2018 - CRC - 10/17/17
Vehicle Care 349

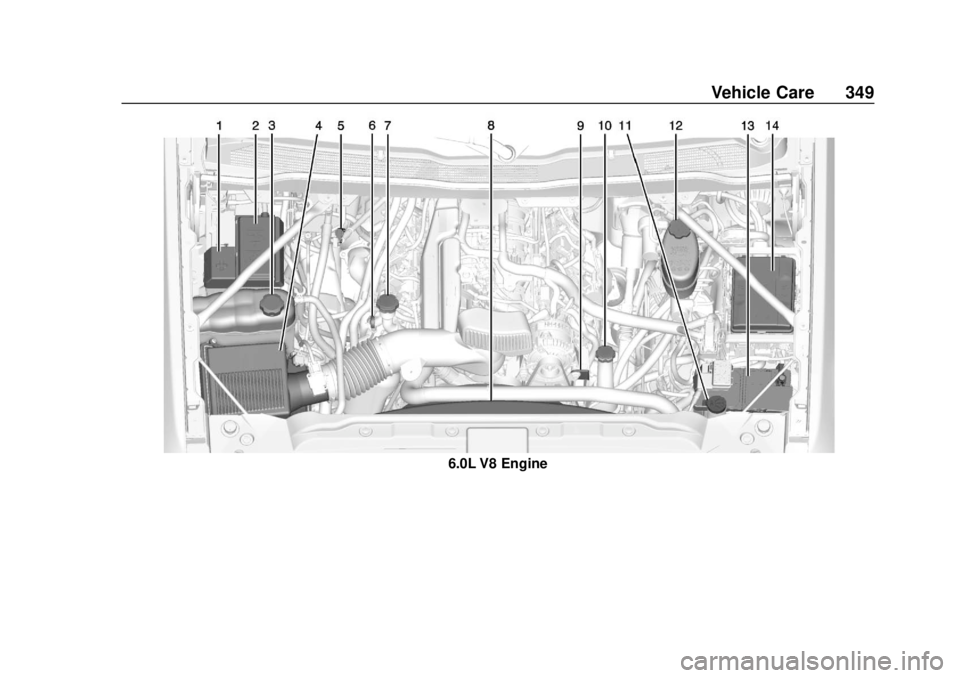

6.0L V8 Engine
