GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-15883563) - 2022 - CRC - 11/19/21
136 Instruments and Controls
All HUD views may briefly display audio
information when the driver uses the
steering wheel controls to adjust the audio
settings appearing in the instrument cluster.
Incoming phone calls appearing in the
instrument cluster, may also display in any
HUD view.
Care of the HUD
Clean the inside of the windshield to remove
any dirt or film that could reduce the
sharpness or clarity of the HUD image.
Clean the HUD lens with a soft cloth
sprayed with glass cleaner. Wipe the lens
gently, then dry it.
HUD Troubleshooting
Check that:
.Nothing is covering the HUD lens.
.The HUD brightness setting is not too
dim or too bright.
.The HUD is adjusted to the proper height.
.Polarized sunglasses are not worn.
.The windshield and HUD lens are clean.
If the HUD image is not correct, contact
your dealer. The windshield is part of the HUD system.
See
Windshield Replacement 0365.
Vehicle Messages
Messages displayed on the Driver
Information Center (DIC) indicate the status
of the vehicle or some action that may be
needed to correct a condition. Multiple
messages may appear one after another.
The messages that do not require
immediate action can be acknowledged and
cleared by pressing the thumbwheel. The
messages that require immediate action
cannot be cleared until that action is
performed.
All messages should be taken seriously;
clearing the message does not correct the
problem.
If a SERVICE message appears, see your
dealer.
Follow the instructions given in the
messages. The system displays messages
regarding the following topics:
.Service Messages
.Fluid Levels
.Vehicle Security
.Brakes
.Steering
.Ride Control Systems
.Driver Assistance Systems
.Cruise Control
.Lighting and Bulb Replacement
.Wiper/Washer Systems
.Doors and Windows
.Seat Belts
.Airbag Systems
.Engine and Transmission
.Tire Pressure
.Battery
Engine Power Messages
REDUCED ACCELERATION DRIVE
WITH CARE
This message displays when the vehicle's
propulsion power is reduced. A reduction in
propulsion power can affect the vehicle's
ability to accelerate. If this message is on,
but there is no observed reduction in
performance, proceed to your destination.
Under certain conditions the performance
may be reduced the next time the vehicle is
driven. The vehicle may be driven while this
message is on, but maximum acceleration
and speed may be reduced. Anytime this

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-15883563) - 2022 - CRC - 11/19/21

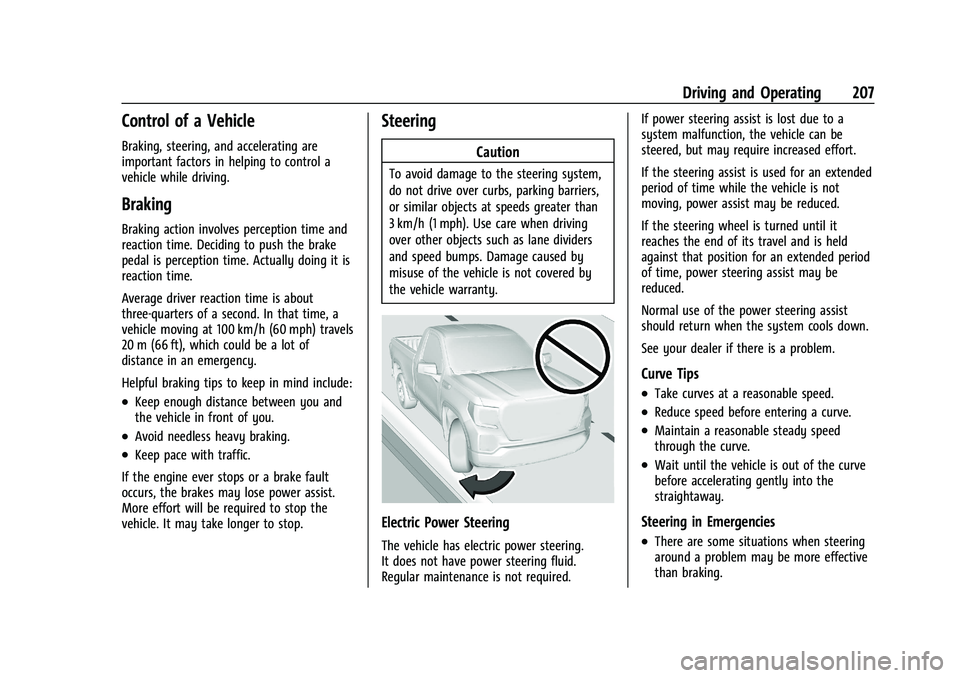

Driving and Operating 207
Control of a Vehicle
Braking, steering, and accelerating are
important factors in helping to control a
vehicle while driving.
Braking
Braking action involves perception time and
reaction time. Deciding to push the brake
pedal is perception time. Actually doing it is
reaction time.
Average driver reaction time is about
three-quarters of a second. In that time, a
vehicle moving at 100 km/h (60 mph) travels
20 m (66 ft), which could be a lot of
distance in an emergency.
Helpful braking tips to keep in mind include:
.Keep enough distance between you and
the vehicle in front of you.
.Avoid needless heavy braking.
.Keep pace with traffic.
If the engine ever stops or a brake fault
occurs, the brakes may lose power assist.
More effort will be required to stop the
vehicle. It may take longer to stop.
Steering
Caution
To avoid damage to the steering system,
do not drive over curbs, parking barriers,
or similar objects at speeds greater than
3 km/h (1 mph). Use care when driving
over other objects such as lane dividers
and speed bumps. Damage caused by
misuse of the vehicle is not covered by
the vehicle warranty.
Electric Power Steering
The vehicle has electric power steering.
It does not have power steering fluid.
Regular maintenance is not required. If power steering assist is lost due to a
system malfunction, the vehicle can be
steered, but may require increased effort.
If the steering assist is used for an extended
period of time while the vehicle is not
moving, power assist may be reduced.
If the steering wheel is turned until it
reaches the end of its travel and is held
against that position for an extended period
of time, power steering assist may be
reduced.
Normal use of the power steering assist
should return when the system cools down.
See your dealer if there is a problem.
Curve Tips
.Take curves at a reasonable speed.
.Reduce speed before entering a curve.
.Maintain a reasonable steady speed
through the curve.
.Wait until the vehicle is out of the curve
before accelerating gently into the
straightaway.
Steering in Emergencies
.There are some situations when steering
around a problem may be more effective
than braking.

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-15883563) - 2022 - CRC - 11/19/21
426 Service and Maintenance
Passenger Compartment Air Filter
The passenger compartment air filter
removes dust, pollen, and other airborne
irritants from outside air that is pulled into
the vehicle. The filter should be replaced as
part of routine scheduled maintenance.
Inspect the passenger compartment air filter
every 36 000 km/22,500 miles or two years,
whichever comes first. Replace if necessary.
More frequent replacement may be needed
if the vehicle is driven in areas with heavy
traffic, areas with poor air quality, or areas
with high dust levels. Replacement may also
be needed if there is a reduction in air flow,
excessive window fogging, or odors.
Extended Idle Use
When the vehicle is used in a way that
requires extended idle time, one hour of use
shall be deemed the same as 53 km (33 mi).
SeeDriver Information Center (DIC) (Base
Level) 0128 or
Driver Information Center (DIC) (Uplevel)
0 130 for hourmeter, if equipped.
Air Conditioning Desiccant (Replace Every
Seven Years)
The air conditioning system requires
maintenance every seven years. This service
requires replacement of the desiccant to
help the longevity and efficient operation of
the air conditioning system. This service can
be complex. See your dealer.
Tire Rotation and Required Services
Every 12 000 km/7,500 mi
Rotate the tires, if recommended for the
vehicle, and perform the following services.
See Tire Rotation 0390.
.Check engine oil level and oil
life percentage. If needed, change engine
oil and filter, and reset oil life system.
See Engine Oil 0348 and
Engine Oil Life System 0350.
.If equipped with the engine air filter life
system, check the air filter
life percentage. If necessary, replace the
engine air filter and reset the engine air
filter life system. See Engine Air Filter Life
System 0351. If the vehicle is not
equipped with the engine air filter life
system, inspect the engine air cleaner
filter. See Engine Air Cleaner/Filter 0351.
.Check engine coolant level. See Cooling
System 0352.
.Check windshield washer fluid level. See
Washer Fluid 0358.
.Check tire inflation pressures, including
the spare. See Tire Pressure0384.
.Inspect tire wear. See Tire Inspection
0 389.
.Visually check for fluid leaks.
.Inspect brake system. See Exterior Care
0 414.
.Visually inspect steering, suspension, and
chassis components for damage, including
cracks or tears in the rubber boots, loose
or missing parts, or signs of wear at least
once a year. See Exterior Care0414.
If equipped with grease fittings, lubricate
the suspension and steering components
every other oil change for normal usage
and every oil change for severe usage.
.Inspect power steering for proper
attachment, connections, binding, leaks,
cracks, chafing, etc.
.Visually inspect drive shafts for excessive
wear, lubricant leaks or damage including:
tube dents, cracks, constant velocity joint
or universal joint looseness, cracked or

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-15883563) - 2022 - CRC - 11/19/21
Index 467
Lights (cont'd)Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . 126
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Four-Wheel-Drive . . . . . . . . . . . . . . . . . . . . . . 122
Front Fog Lamp . . . . . . . . . . . . . . . . . . . . . . . . . 127
High-Beam On . . . . . . . . . . . . . . . . . . . . . . . . . . 127
High/Low Beam Changer . . . . . . . . . . . . . . 147
Hill Descent Control . . . . . . . . . . . . . . . . . . . 122
Lane Keep Assist . . . . . . . . . . . . . . . . . . . . . . . 123
Low Fuel Warning . . . . . . . . . . . . . . . . . . . . . 126
Seat Belt Reminders . . . . . . . . . . . . . . . . . . . . 117
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Service Electric Parking Brake . . . . . . . . . . . 121
StabiliTrak OFF . . . . . . . . . . . . . . . . . . . . . . . . . 124
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Tow/Haul Mode . . . . . . . . . . . . . . . . . . . . . . . 122
Traction Control System
(TCS)/StabiliTrak . . . . . . . . . . . . . . . . . . . . . 124
Traction Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Limited-Slip Differential . . . . . . . . . . . . . . . . . . 252
Lock Steering Column . . . . . . . . . . . . . . . . . . . . . . . . 32
Locking Front Axle . . . . . . . . . . . . . . . . . . . . . . . 253
Locking Rear Axle . . . . . . . . . . . . . . . . . . . . . . . . 253
Locks Automatic Door . . . . . . . . . . . . . . . . . . . . . . . . . 22
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . 22
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Locks (cont'd)
Lockout Protection . . . . . . . . . . . . . . . . . . . . . . 22
Power Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Low Fuel Warning Light . . . . . . . . . . . . . . . . . 126
Lower Anchors and Tethers for Children (LATCH System) . . . . . . . . . . . . . . . . 78
Lumbar Adjustment . . . . . . . . . . . . . . . . . . . . . . . 48 Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 437
Maintenance and Care Additional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 431
Maintenance Schedule . . . . . . . . . . . . . . . . . . . 425
Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . 434
Malfunction Indicator Lamp . . . . . . . . . . . . . . . 119
Manual Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Manual Mode . . . . . . . . . . . . . . . . . . . . . . .237, 239
Manual Windows . . . . . . . . . . . . . . . . . . . . . . . . . 40
Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Massage Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Media Avoiding Untrusted Devices . . . . . . . . . . . . 166 Memory Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Messages
Engine Power . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Mirror Rear Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Mirrors Automatic Dimming . . . . . . . . . . . . . . . . . . . . 36
Automatic Dimming Rearview . . . . . . . . . . 37
Blind Spot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Manual Rearview . . . . . . . . . . . . . . . . . . . . . . . 37
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Tilt in Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Trailer Tow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Mirrors, Interior Rearview . . . . . . . . . . . . . . . . . .37
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249 Driver Control . . . . . . . . . . . . . . . . . . . . . . . . . 249
Monitor System, Tire Pressure . . . . . . . . . . . 385
Multi-band Antenna . . . . . . . . . . . . . . . . . . . . . 166
N
Navigation Connected Services . . . . . . . . . . . . . . . . . . . . 458

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-15883563) - 2022 - CRC - 11/19/21

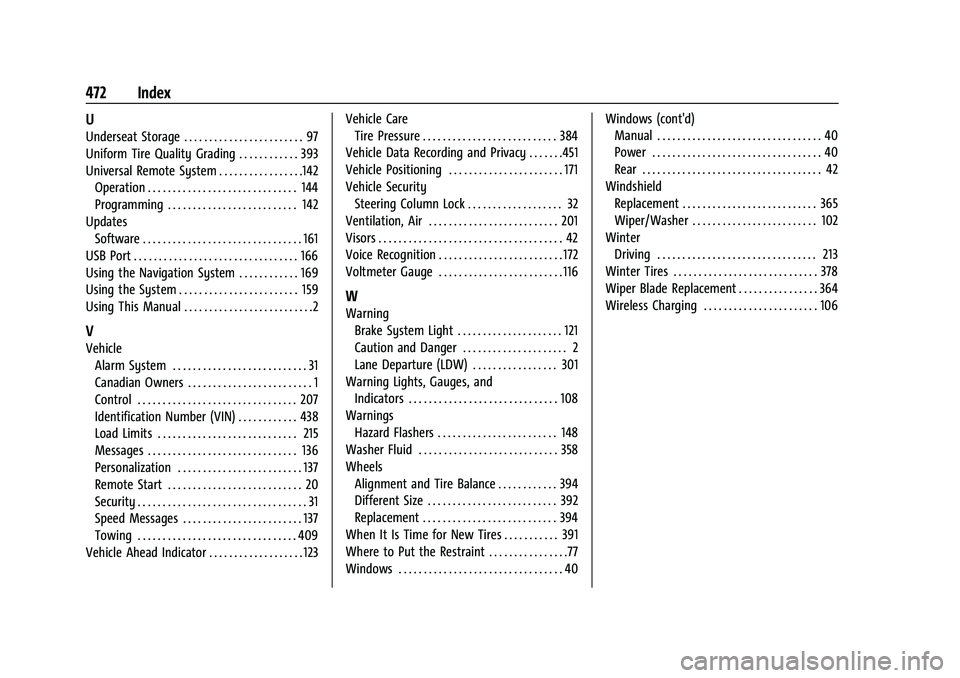

472 Index
U
Underseat Storage . . . . . . . . . . . . . . . . . . . . . . . . 97
Uniform Tire Quality Grading . . . . . . . . . . . . 393
Universal Remote System . . . . . . . . . . . . . . . . .142Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Updates Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Using the Navigation System . . . . . . . . . . . . 169
Using the System . . . . . . . . . . . . . . . . . . . . . . . . 159
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . .2
V
Vehicle Alarm System . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Canadian Owners . . . . . . . . . . . . . . . . . . . . . . . . . 1
Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Identification Number (VIN) . . . . . . . . . . . . 438
Load Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Personalization . . . . . . . . . . . . . . . . . . . . . . . . . 137
Remote Start . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Speed Messages . . . . . . . . . . . . . . . . . . . . . . . . 137
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 409
Vehicle Ahead Indicator . . . . . . . . . . . . . . . . . . . 123 Vehicle Care
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 384
Vehicle Data Recording and Privacy . . . . . . .451
Vehicle Positioning . . . . . . . . . . . . . . . . . . . . . . . 171
Vehicle Security Steering Column Lock . . . . . . . . . . . . . . . . . . . 32
Ventilation, Air . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Voice Recognition . . . . . . . . . . . . . . . . . . . . . . . . . 172
Voltmeter Gauge . . . . . . . . . . . . . . . . . . . . . . . . . 116
W
Warning
Brake System Light . . . . . . . . . . . . . . . . . . . . . 121
Caution and Danger . . . . . . . . . . . . . . . . . . . . . 2
Lane Departure (LDW) . . . . . . . . . . . . . . . . . 301
Warning Lights, Gauges, and
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Warnings Hazard Flashers . . . . . . . . . . . . . . . . . . . . . . . . 148
Washer Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 358
Wheels
Alignment and Tire Balance . . . . . . . . . . . . 394
Different Size . . . . . . . . . . . . . . . . . . . . . . . . . . 392
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 394
When It Is Time for New Tires . . . . . . . . . . . 391
Where to Put the Restraint . . . . . . . . . . . . . . . .77
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Windows (cont'd)
Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Windshield Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 365
Wiper/Washer . . . . . . . . . . . . . . . . . . . . . . . . . 102
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Winter Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 378
Wiper Blade Replacement . . . . . . . . . . . . . . . . 364
Wireless Charging . . . . . . . . . . . . . . . . . . . . . . . 106
