GMC SIERRA CLASSIC 2007 Owners Manual

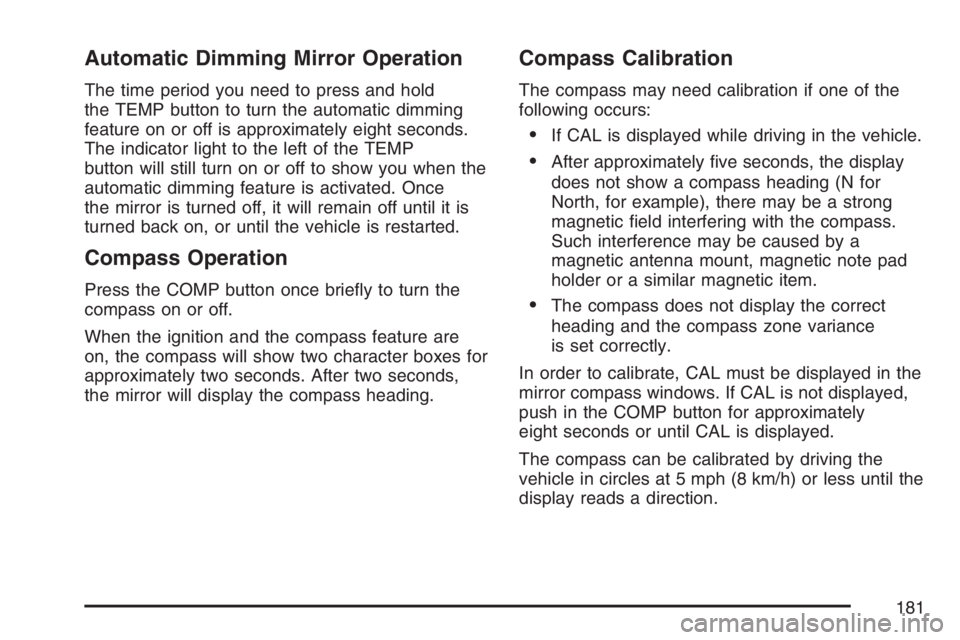

Automatic Dimming Mirror Operation
The time period you need to press and hold
the TEMP button to turn the automatic dimming
feature on or off is approximately eight seconds.
The indicator light to the left of the TEMP
button will still turn on or off to show you when the
automatic dimming feature is activated. Once
the mirror is turned off, it will remain off until it is
turned back on, or until the vehicle is restarted.
Compass Operation
Press the COMP button once briey to turn the
compass on or off.
When the ignition and the compass feature are
on, the compass will show two character boxes for
approximately two seconds. After two seconds,
the mirror will display the compass heading.
Compass Calibration
The compass may need calibration if one of the
following occurs:
If CAL is displayed while driving in the vehicle.
After approximately ve seconds, the display
does not show a compass heading (N for
North, for example), there may be a strong
magnetic eld interfering with the compass.
Such interference may be caused by a
magnetic antenna mount, magnetic note pad
holder or a similar magnetic item.
The compass does not display the correct
heading and the compass zone variance
is set correctly.
In order to calibrate, CAL must be displayed in the
mirror compass windows. If CAL is not displayed,
push in the COMP button for approximately
eight seconds or until CAL is displayed.
The compass can be calibrated by driving the
vehicle in circles at 5 mph (8 km/h) or less until the
display reads a direction.
181

Compass Variance
The mirror is set in zone eight upon leaving the
factory. It will be necessary to adjust the compass
to compensate for compass variance if you live
outside zone eight. Under certain circumstances,
as during a long distance cross-country trip, it
will be necessary to adjust for compass variance.
Compass variance is the difference between
earth’s magnetic north and true geographic north.
If not adjusted to account for compass variance,
your compass could give false readings.
To adjust for compass variance:
1. Find your current location and variance zone
number on the following zone map.
2. Press and hold the COMP button for ve
seconds until a zone number appears in
the display.3. Press the COMP button on the bottom of the
mirror until the new zone number appears in
the display. After you stop pressing the
button, the display will show a compass
direction within a few seconds.
182

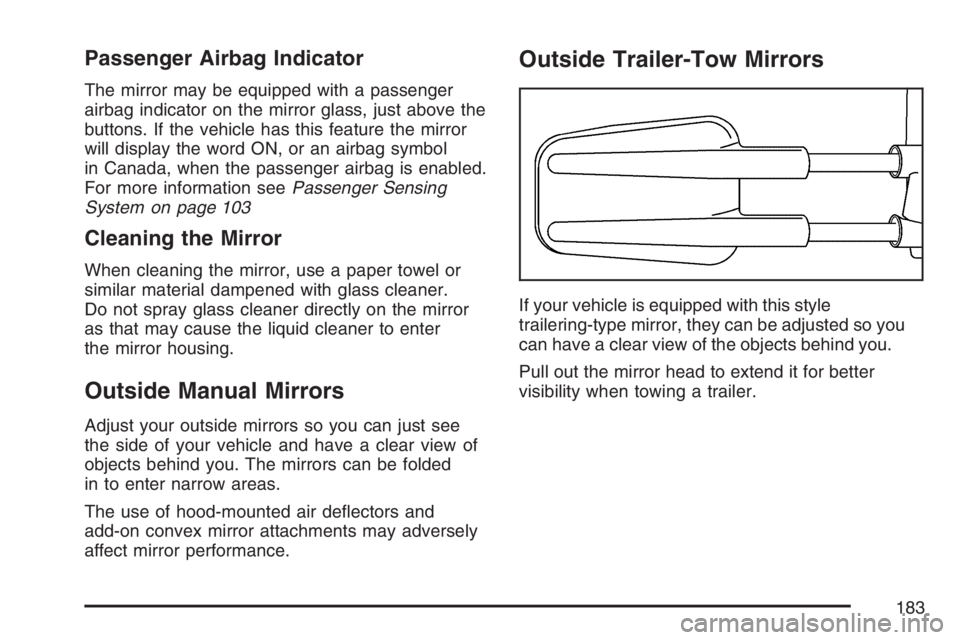

Passenger Airbag Indicator
The mirror may be equipped with a passenger
airbag indicator on the mirror glass, just above the
buttons. If the vehicle has this feature the mirror
will display the word ON, or an airbag symbol
in Canada, when the passenger airbag is enabled.
For more information seePassenger Sensing
System on page 103
Cleaning the Mirror
When cleaning the mirror, use a paper towel or
similar material dampened with glass cleaner.
Do not spray glass cleaner directly on the mirror
as that may cause the liquid cleaner to enter
the mirror housing.
Outside Manual Mirrors
Adjust your outside mirrors so you can just see
the side of your vehicle and have a clear view of
objects behind you. The mirrors can be folded
in to enter narrow areas.
The use of hood-mounted air deectors and
add-on convex mirror attachments may adversely
affect mirror performance.
Outside Trailer-Tow Mirrors
If your vehicle is equipped with this style
trailering-type mirror, they can be adjusted so you
can have a clear view of the objects behind you.
Pull out the mirror head to extend it for better
visibility when towing a trailer.
183

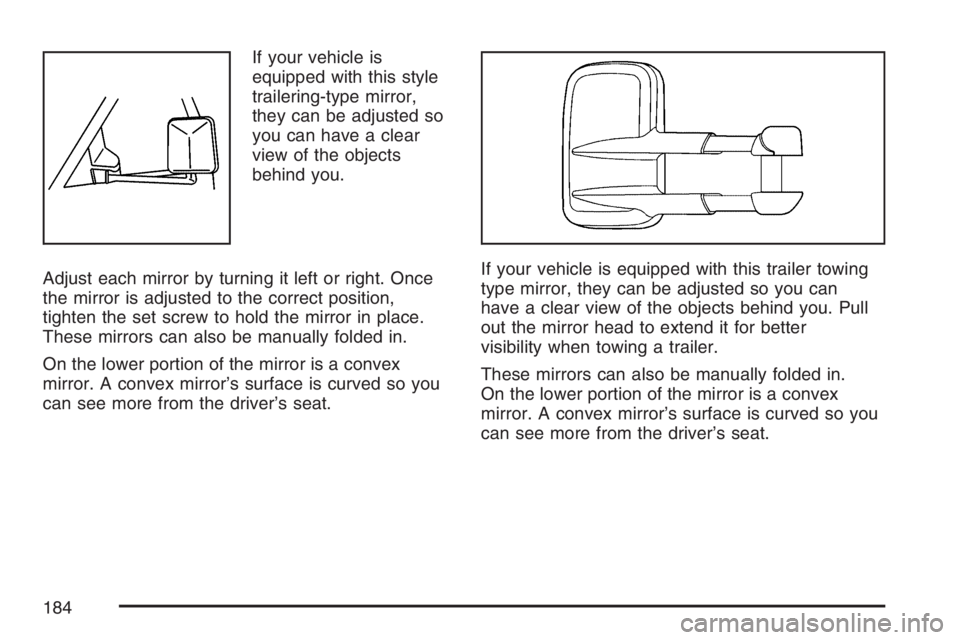

If your vehicle is
equipped with this style
trailering-type mirror,
they can be adjusted so
you can have a clear
view of the objects
behind you.
Adjust each mirror by turning it left or right. Once
the mirror is adjusted to the correct position,
tighten the set screw to hold the mirror in place.
These mirrors can also be manually folded in.
On the lower portion of the mirror is a convex
mirror. A convex mirror’s surface is curved so you
can see more from the driver’s seat.If your vehicle is equipped with this trailer towing
type mirror, they can be adjusted so you can
have a clear view of the objects behind you. Pull
out the mirror head to extend it for better
visibility when towing a trailer.
These mirrors can also be manually folded in.
On the lower portion of the mirror is a convex
mirror. A convex mirror’s surface is curved so you
can see more from the driver’s seat.
184

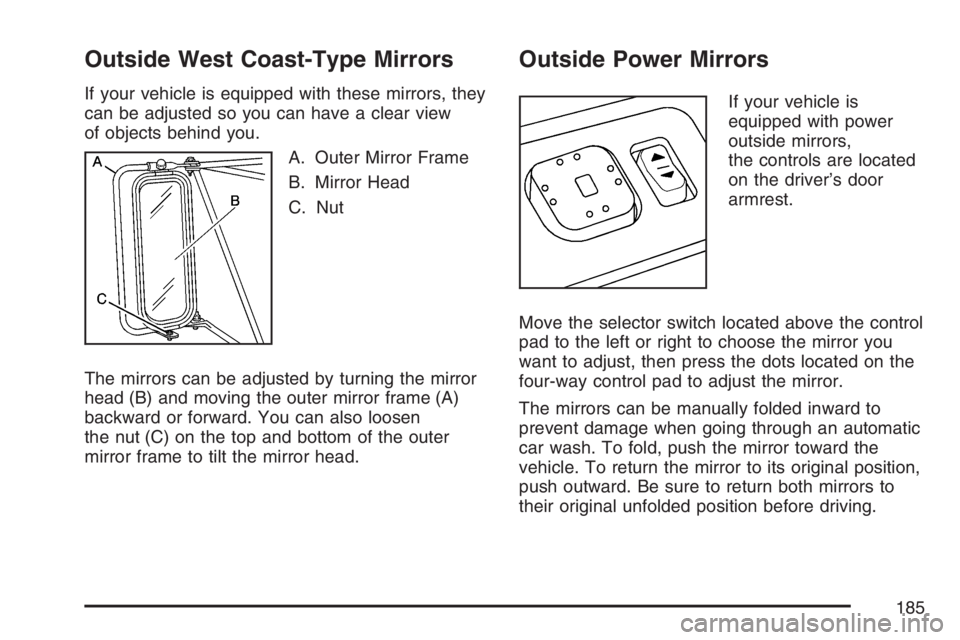

Outside West Coast-Type Mirrors
If your vehicle is equipped with these mirrors, they
can be adjusted so you can have a clear view
of objects behind you.
A. Outer Mirror Frame
B. Mirror Head
C. Nut
The mirrors can be adjusted by turning the mirror
head (B) and moving the outer mirror frame (A)
backward or forward. You can also loosen
the nut (C) on the top and bottom of the outer
mirror frame to tilt the mirror head.
Outside Power Mirrors
If your vehicle is
equipped with power
outside mirrors,
the controls are located
on the driver’s door
armrest.
Move the selector switch located above the control
pad to the left or right to choose the mirror you
want to adjust, then press the dots located on the
four-way control pad to adjust the mirror.
The mirrors can be manually folded inward to
prevent damage when going through an automatic
car wash. To fold, push the mirror toward the
vehicle. To return the mirror to its original position,
push outward. Be sure to return both mirrors to
their original unfolded position before driving.
185

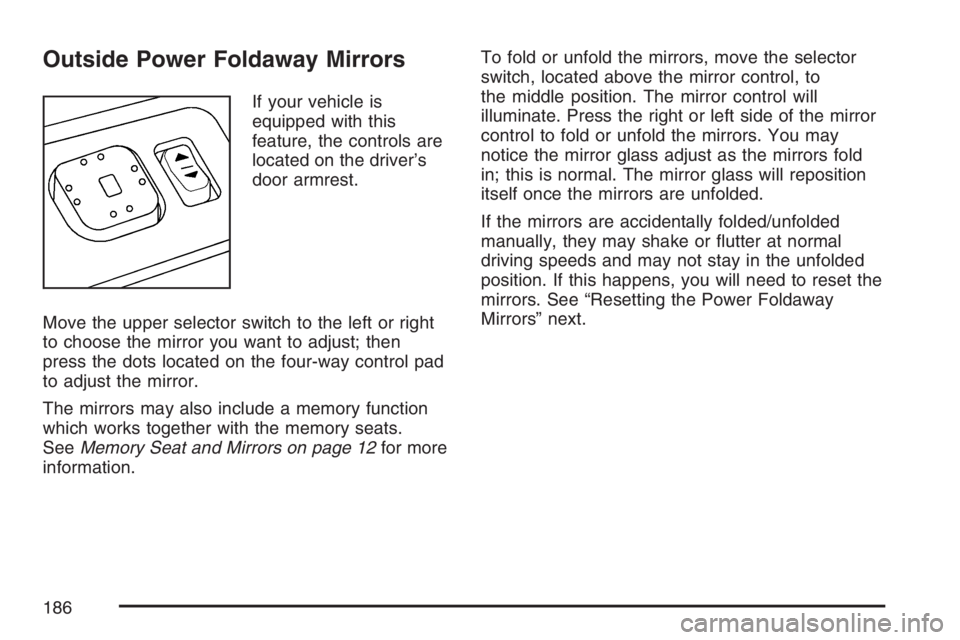

Outside Power Foldaway Mirrors
If your vehicle is
equipped with this
feature, the controls are
located on the driver’s
door armrest.
Move the upper selector switch to the left or right
to choose the mirror you want to adjust; then
press the dots located on the four-way control pad
to adjust the mirror.
The mirrors may also include a memory function
which works together with the memory seats.
SeeMemory Seat and Mirrors on page 12for more
information.To fold or unfold the mirrors, move the selector
switch, located above the mirror control, to
the middle position. The mirror control will
illuminate. Press the right or left side of the mirror
control to fold or unfold the mirrors. You may
notice the mirror glass adjust as the mirrors fold
in; this is normal. The mirror glass will reposition
itself once the mirrors are unfolded.
If the mirrors are accidentally folded/unfolded
manually, they may shake or utter at normal
driving speeds and may not stay in the unfolded
position. If this happens, you will need to reset the
mirrors. See “Resetting the Power Foldaway
Mirrors” next.
186

Resetting the Power Foldaway Mirrors
You will need to reset the power foldaway mirrors
if the following occurs:
They are accidentally manually folded/
unfolded.
The mirrors will not stay in the unfolded
position.
The mirrors shake and utter at normal driving
speeds.
To reset the power foldaway mirrors, fold and
unfold them at least three times using the mirror
controls. This will reset them to their normal
position.
Outside Automatic Dimming Mirror
If your vehicle is equipped with this feature,
the driver’s outside mirror will adjust for the glare
of headlamps behind you. This feature is
controlled by the on and off settings found on the
electrochromic inside mirror.
Outside Curb View Assist Mirrors
If the vehicle has the memory package, the outside
mirrors are able to perform the curb view assist
mirror function. This feature will cause the
passenger’s and/or driver’s mirror to tilt to a
preselected position when the vehicle is in
REVERSE (R). This feature may be useful in
allowing the driver to view the curb when parallel
parking. When the vehicle is shifted out of
REVERSE (R) and a short delay has occurred,
the passenger’s and/or driver’s mirror will return to
its original position.
To change the preselected tilt position, adjust the
mirrors to the desired position while the vehicle
is in REVERSE (R). When the vehicle is shifted
out of REVERSE (R), this new position is saved in
memory as the tilt position.
This feature can be turned on or off through the
Driver Information Center (DIC). SeeDriver
Information Center (DIC) on page 265for more
information.
187

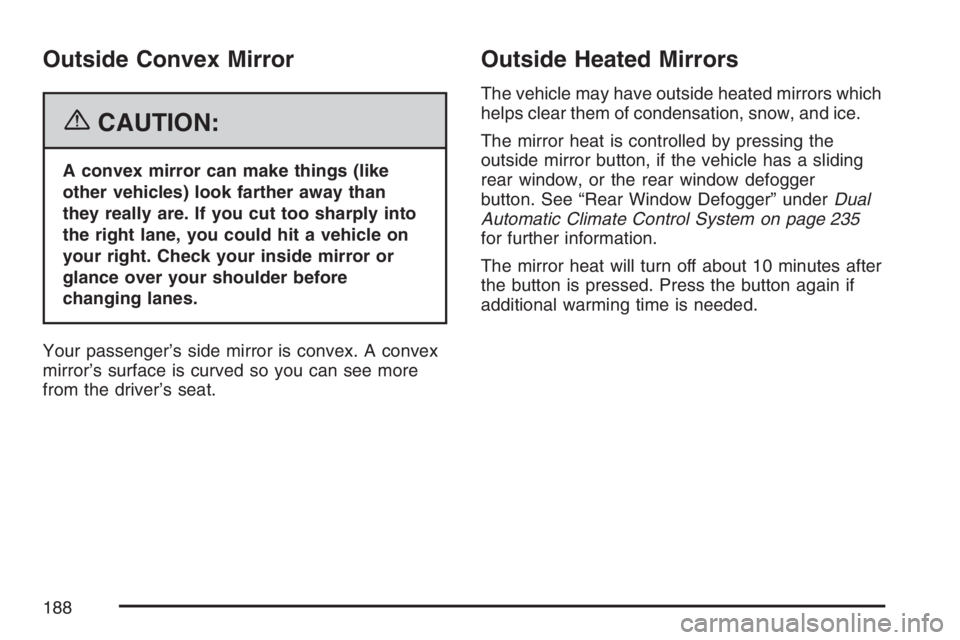

Outside Convex Mirror
{CAUTION:
A convex mirror can make things (like
other vehicles) look farther away than
they really are. If you cut too sharply into
the right lane, you could hit a vehicle on
your right. Check your inside mirror or
glance over your shoulder before
changing lanes.
Your passenger’s side mirror is convex. A convex
mirror’s surface is curved so you can see more
from the driver’s seat.
Outside Heated Mirrors
The vehicle may have outside heated mirrors which
helps clear them of condensation, snow, and ice.
The mirror heat is controlled by pressing the
outside mirror button, if the vehicle has a sliding
rear window, or the rear window defogger
button. See “Rear Window Defogger” underDual
Automatic Climate Control System on page 235
for further information.
The mirror heat will turn off about 10 minutes after
the button is pressed. Press the button again if
additional warming time is needed.
188

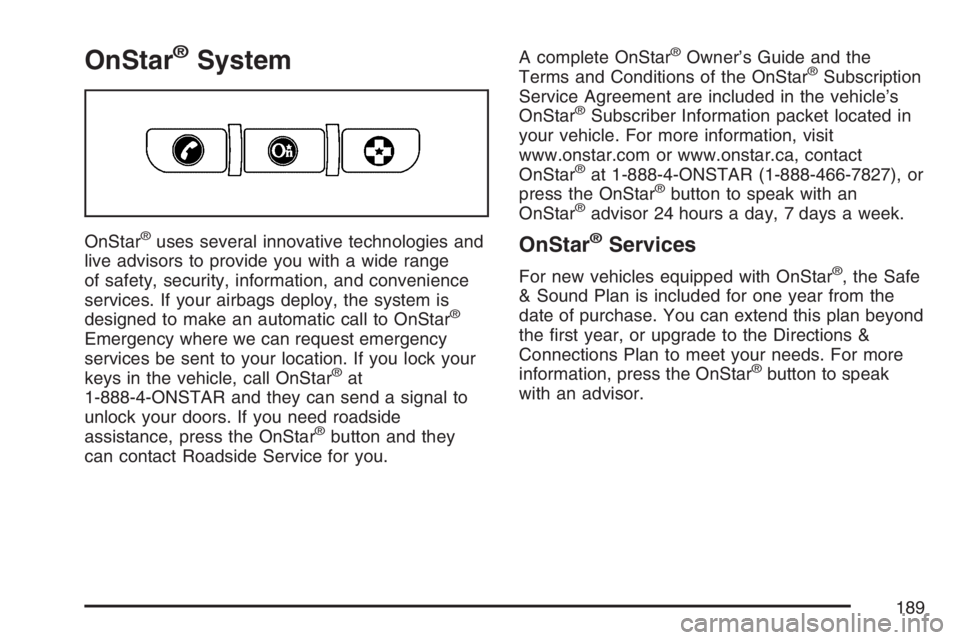

OnStar®System
OnStar®uses several innovative technologies and
live advisors to provide you with a wide range
of safety, security, information, and convenience
services. If your airbags deploy, the system is
designed to make an automatic call to OnStar
®
Emergency where we can request emergency
services be sent to your location. If you lock your
keys in the vehicle, call OnStar
®at
1-888-4-ONSTAR and they can send a signal to
unlock your doors. If you need roadside
assistance, press the OnStar
®button and they
can contact Roadside Service for you.A complete OnStar
®Owner’s Guide and the
Terms and Conditions of the OnStar®Subscription
Service Agreement are included in the vehicle’s
OnStar
®Subscriber Information packet located in
your vehicle. For more information, visit
www.onstar.com or www.onstar.ca, contact
OnStar
®at 1-888-4-ONSTAR (1-888-466-7827), or
press the OnStar®button to speak with an
OnStar®advisor 24 hours a day, 7 days a week.
OnStar®Services
For new vehicles equipped with OnStar®, the Safe
& Sound Plan is included for one year from the
date of purchase. You can extend this plan beyond
the rst year, or upgrade to the Directions &
Connections Plan to meet your needs. For more
information, press the OnStar
®button to speak
with an advisor.
189

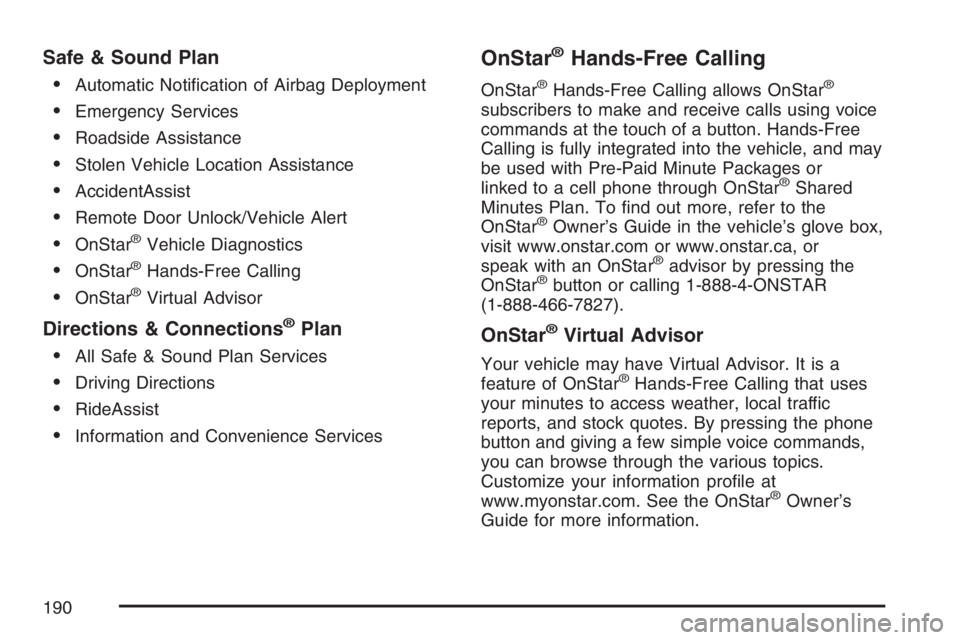

Safe & Sound Plan

Automatic Notication of Airbag Deployment
Emergency Services
Roadside Assistance
Stolen Vehicle Location Assistance
AccidentAssist
Remote Door Unlock/Vehicle Alert
OnStar®Vehicle Diagnostics
OnStar®Hands-Free Calling
OnStar®Virtual Advisor
Directions & Connections®Plan

All Safe & Sound Plan Services
Driving Directions
RideAssist
Information and Convenience Services
OnStar®Hands-Free Calling
OnStar®Hands-Free Calling allows OnStar®
subscribers to make and receive calls using voice
commands at the touch of a button. Hands-Free
Calling is fully integrated into the vehicle, and may
be used with Pre-Paid Minute Packages or
linked to a cell phone through OnStar
®Shared
Minutes Plan. To nd out more, refer to the
OnStar
®Owner’s Guide in the vehicle’s glove box,
visit www.onstar.com or www.onstar.ca, or
speak with an OnStar
®advisor by pressing the
OnStar®button or calling 1-888-4-ONSTAR
(1-888-466-7827).
OnStar®Virtual Advisor
Your vehicle may have Virtual Advisor. It is a
feature of OnStar®Hands-Free Calling that uses
your minutes to access weather, local traffic
reports, and stock quotes. By pressing the phone
button and giving a few simple voice commands,
you can browse through the various topics.
Customize your information prole at
www.myonstar.com. See the OnStar
®Owner’s
Guide for more information.
190
