4. Repeat this procedure at least two times. If
the spare tire lowers to the ground, continue
with Step 5 ofRemoving the Spare Tire
and Tools on page 566.
5. Turn the wrench counterclockwise until
approximately 6 inches (15 cm) of cable
is exposed.
6. Stand the wheel blocks on their shortest ends,
with the backs facing each other.
7. Place the bottom
edge of the jack (A)
on the wheel
blocks (B),
separating them so
that the jack is
balanced securely.8. Attach the jack handle, extension, and wheel
wrench to the jack and place it (with the
wheel blocks) under the vehicle towards the
front of the rear bumper.
581

9. Position the center lift point of the jack under
the center of the spare tire.
10. Turn the wheel wrench clockwise to raise the
jack until it lifts the end tting.11. Continue raising the jack until the spare tire
stops moving upward and is held rmly in
place. The secondary latch has released and
the spare tire is balancing on the jack.
12. Lower the jack by turning the wheel wrench
counterclockwise. Keep lowering the jack
until the spare tire slides off the jack or
is hanging by the cable.
{CAUTION:
Someone standing too close during the
procedure could be injured by the jack. If
the spare tire does not slide off the jack
completely, make sure no one is behind
you or on either side of you as you pull
the jack out from under the spare.
13. Disconnect the jack handle from the jack.
Carefully remove the jack from underneath
the vehicle.
582

14. Use one hand to push against the spare while
rmly pulling the jack out from under the
spare tire with the other hand.
If the spare tire is hanging from the cable, insert
the hoist handle, extension, and wheel wrench
into the hoist shaft hole in the bumper and turn
the wheel wrench counterclockwise to lower the
spare the rest of the way.
15. Tilt the retainer at
the end of the cable
and pull it through
the wheel opening.
Pull the tire out
from under
the vehicle.16. Turn the wheel wrench clockwise to raise the
cable back up if the cable is hanging under
the vehicle.
Have the hoist assembly inspected as soon as
you can. You will not be able to store a spare or
at tire using the hoist assembly until it has
been replaced.
To continue changing the at tire, seeRemoving
the Flat Tire and Installing the Spare Tire on
page 571.
583

Storing a Flat or Spare Tire
and Tools
{CAUTION:
Storing a jack, a tire, or other equipment
in the passenger compartment of the
vehicle could cause injury. In a sudden
stop or collision, loose equipment could
strike someone. Store all these in the
proper place.
Notice:Storing an aluminum wheel with a
at tire under your vehicle for an extended
period of time or with the valve stem pointing
up may damage the wheel. Always stow
the wheel with the valve stem pointing down
and have the wheel/tire repaired as soon
as possible.Store the tire under the rear of the vehicle in the
spare tire carrier. Use the following art and text to
assist you:
A. Spare Tire (Valve
Stem Pointed Down)
B. Hoist Assembly
C. Hoist CableD. Tire/Wheel
Retainer
E. Hoist Shaft
F. Hoist End of
Extension Tool
584

G. Hoist Shaft Access
Hole
H. Wheel WrenchI. Jack Handle
Extensions
J. Spare Tire Lock
(If Equipped)
1. Put the tire on the ground at the rear of the
vehicle with the valve stem pointed down,
and to the rear.
2. Tilt the retainer (D)
downward and
through the wheel
opening. Make
sure the retainer
is fully seated across
the underside of
the wheel.3. Attach the wheel wrench (H) and
extensions (I) as shown.
585

4. Insert the hoist
end (F) through the
hole (G) in the
rear bumper. Be
sure the hoist end of
the extension (F)
connects to the hoist
shaft (E). The
ribbed square end of
the extension is
used to lower
the spare tire.
5. Raise the tire part way upward. Make sure the
retainer (D) is seated in the wheel opening.
6. Raise the tire fully against the underside of
the vehicle by turning the wheel wrench
clockwise until you hear two clicks or feel it
skip twice. You cannot overtighten the cable.7. Make sure the tire is stored securely. Push,
pull (A), and then try to turn (B) the tire. If the
tire moves, use the wheel wrench to tighten
the cable.
8. Reinstall the spare tire lock (if equipped).
586

To store the jack and jack tools, do the following:
A. Wing Nut
B. Wheel Blocks
C. Retaining
Bracket and
Wing NutD. Wheel Wrench
and Extensions
E. Tool Bag
F. Mounting Bracket
G. Jack
H. Retaining Hook1. Put the tools (D) in the tool bag (E) and place
them in the retaining bracket (C).
2. Tighten down the wing nut (C).
3. Assemble the wheel blocks (B) and jack (G)
together with the wing nut (A) and
retaining hook (H).
4. Position the jack (G) in the mounting
bracket (F). Position the holes in the base of
the jack (G) onto the pin in the mounting
bracket (F).
5. Return them to their original location in the
vehicle. For more information, refer to
Removing the Spare Tire and Tools on
page 566for more information.
587

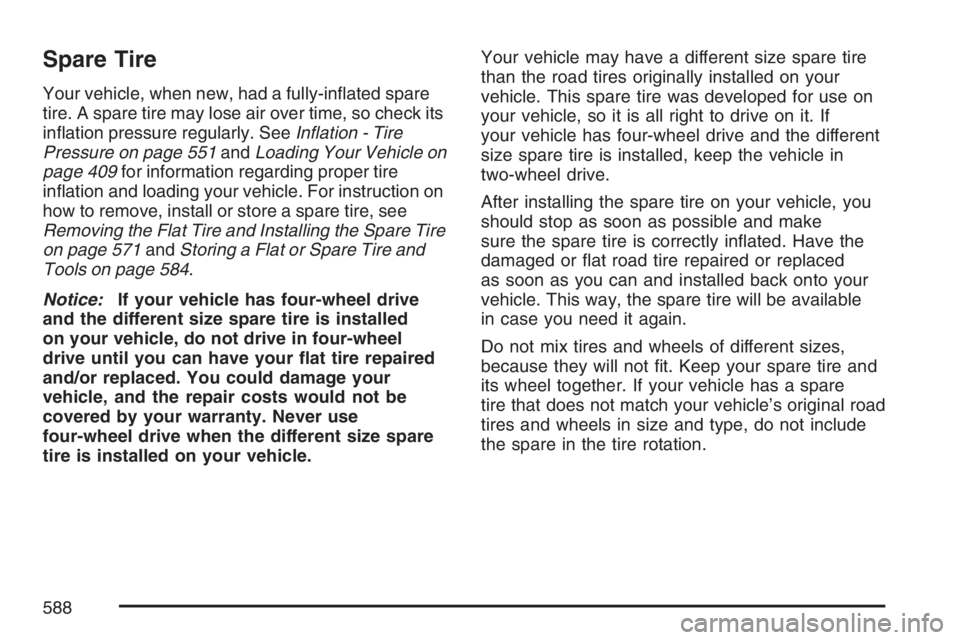

Spare Tire
Your vehicle, when new, had a fully-inated spare
tire. A spare tire may lose air over time, so check its
ination pressure regularly. SeeInation - Tire
Pressure on page 551andLoading Your Vehicle on
page 409for information regarding proper tire
ination and loading your vehicle. For instruction on
how to remove, install or store a spare tire, see
Removing the Flat Tire and Installing the Spare Tire
on page 571andStoring a Flat or Spare Tire and
Tools on page 584.
Notice:If your vehicle has four-wheel drive
and the different size spare tire is installed
on your vehicle, do not drive in four-wheel
drive until you can have your at tire repaired
and/or replaced. You could damage your
vehicle, and the repair costs would not be
covered by your warranty. Never use
four-wheel drive when the different size spare
tire is installed on your vehicle.Your vehicle may have a different size spare tire
than the road tires originally installed on your
vehicle. This spare tire was developed for use on
your vehicle, so it is all right to drive on it. If
your vehicle has four-wheel drive and the different
size spare tire is installed, keep the vehicle in
two-wheel drive.
After installing the spare tire on your vehicle, you
should stop as soon as possible and make
sure the spare tire is correctly inated. Have the
damaged or at road tire repaired or replaced
as soon as you can and installed back onto your
vehicle. This way, the spare tire will be available
in case you need it again.
Do not mix tires and wheels of different sizes,
because they will not t. Keep your spare tire and
its wheel together. If your vehicle has a spare
tire that does not match your vehicle’s original road
tires and wheels in size and type, do not include
the spare in the tire rotation.
588

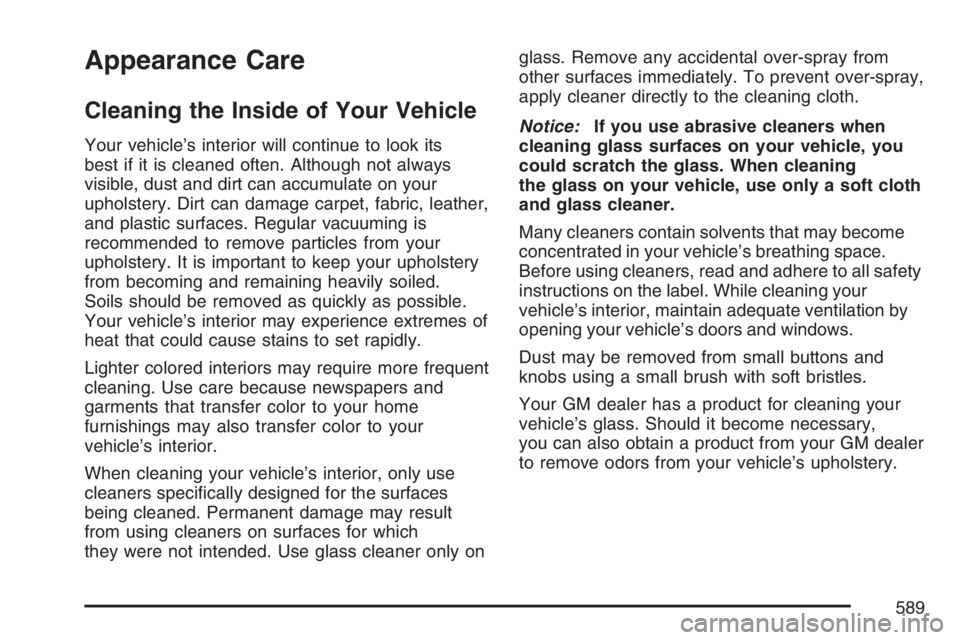

Appearance Care
Cleaning the Inside of Your Vehicle
Your vehicle’s interior will continue to look its
best if it is cleaned often. Although not always
visible, dust and dirt can accumulate on your
upholstery. Dirt can damage carpet, fabric, leather,
and plastic surfaces. Regular vacuuming is
recommended to remove particles from your
upholstery. It is important to keep your upholstery
from becoming and remaining heavily soiled.
Soils should be removed as quickly as possible.
Your vehicle’s interior may experience extremes of
heat that could cause stains to set rapidly.
Lighter colored interiors may require more frequent
cleaning. Use care because newspapers and
garments that transfer color to your home
furnishings may also transfer color to your
vehicle’s interior.
When cleaning your vehicle’s interior, only use
cleaners specically designed for the surfaces
being cleaned. Permanent damage may result
from using cleaners on surfaces for which
they were not intended. Use glass cleaner only onglass. Remove any accidental over-spray from
other surfaces immediately. To prevent over-spray,
apply cleaner directly to the cleaning cloth.
Notice:If you use abrasive cleaners when
cleaning glass surfaces on your vehicle, you
could scratch the glass. When cleaning
the glass on your vehicle, use only a soft cloth
and glass cleaner.
Many cleaners contain solvents that may become
concentrated in your vehicle’s breathing space.
Before using cleaners, read and adhere to all safety
instructions on the label. While cleaning your
vehicle’s interior, maintain adequate ventilation by
opening your vehicle’s doors and windows.
Dust may be removed from small buttons and
knobs using a small brush with soft bristles.
Your GM dealer has a product for cleaning your
vehicle’s glass. Should it become necessary,
you can also obtain a product from your GM dealer
to remove odors from your vehicle’s upholstery.
589

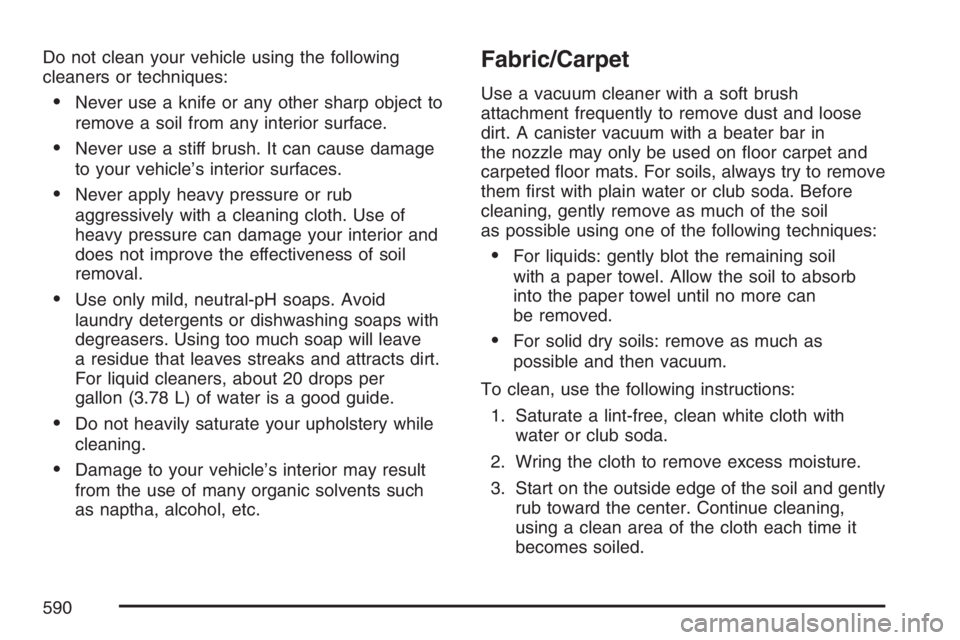

Do not clean your vehicle using the following
cleaners or techniques:
Never use a knife or any other sharp object to
remove a soil from any interior surface.
Never use a stiff brush. It can cause damage
to your vehicle’s interior surfaces.
Never apply heavy pressure or rub
aggressively with a cleaning cloth. Use of
heavy pressure can damage your interior and
does not improve the effectiveness of soil
removal.
Use only mild, neutral-pH soaps. Avoid
laundry detergents or dishwashing soaps with
degreasers. Using too much soap will leave
a residue that leaves streaks and attracts dirt.
For liquid cleaners, about 20 drops per
gallon (3.78 L) of water is a good guide.
Do not heavily saturate your upholstery while
cleaning.
Damage to your vehicle’s interior may result
from the use of many organic solvents such
as naptha, alcohol, etc.
Fabric/Carpet
Use a vacuum cleaner with a soft brush
attachment frequently to remove dust and loose
dirt. A canister vacuum with a beater bar in
the nozzle may only be used on oor carpet and
carpeted oor mats. For soils, always try to remove
them rst with plain water or club soda. Before
cleaning, gently remove as much of the soil
as possible using one of the following techniques:
For liquids: gently blot the remaining soil
with a paper towel. Allow the soil to absorb
into the paper towel until no more can
be removed.
For solid dry soils: remove as much as
possible and then vacuum.
To clean, use the following instructions:
1. Saturate a lint-free, clean white cloth with
water or club soda.
2. Wring the cloth to remove excess moisture.
3. Start on the outside edge of the soil and gently
rub toward the center. Continue cleaning,
using a clean area of the cloth each time it
becomes soiled.
