GMC SIERRA CLASSIC 2007 Owners Manual

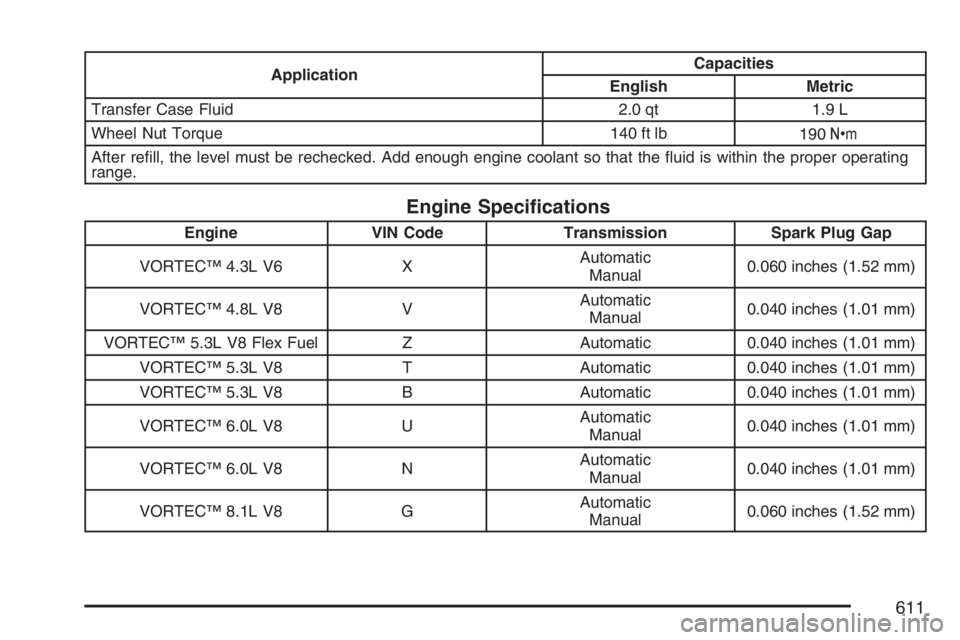

ApplicationCapacities
English Metric
Transfer Case Fluid 2.0 qt 1.9 L
Wheel Nut Torque 140 ft lb
190Y
After rell, the level must be rechecked. Add enough engine coolant so that the uid is within the proper operating
range.
Engine Specications
Engine VIN Code Transmission Spark Plug Gap
VORTEC™ 4.3L V6 XAutomatic
Manual0.060 inches (1.52 mm)
VORTEC™ 4.8L V8 VAutomatic
Manual0.040 inches (1.01 mm)
VORTEC™ 5.3L V8 Flex Fuel Z Automatic 0.040 inches (1.01 mm)
VORTEC™ 5.3L V8 T Automatic 0.040 inches (1.01 mm)
VORTEC™ 5.3L V8 B Automatic 0.040 inches (1.01 mm)
VORTEC™ 6.0L V8 UAutomatic
Manual0.040 inches (1.01 mm)
VORTEC™ 6.0L V8 NAutomatic
Manual0.040 inches (1.01 mm)
VORTEC™ 8.1L V8 GAutomatic
Manual0.060 inches (1.52 mm)
611

✍NOTES
612

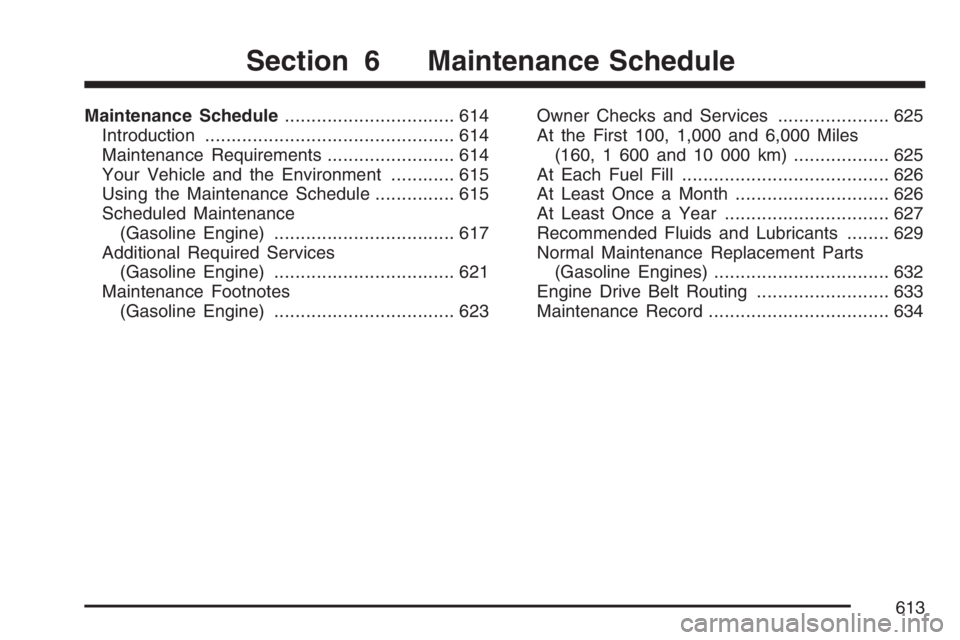

Maintenance Schedule................................ 614
Introduction............................................... 614
Maintenance Requirements........................ 614
Your Vehicle and the Environment............ 615
Using the Maintenance Schedule............... 615
Scheduled Maintenance
(Gasoline Engine).................................. 617
Additional Required Services
(Gasoline Engine).................................. 621
Maintenance Footnotes
(Gasoline Engine).................................. 623Owner Checks and Services..................... 625
At the First 100, 1,000 and 6,000 Miles
(160, 1 600 and 10 000 km).................. 625
At Each Fuel Fill....................................... 626
At Least Once a Month............................. 626
At Least Once a Year............................... 627
Recommended Fluids and Lubricants........ 629
Normal Maintenance Replacement Parts
(Gasoline Engines) ................................. 632
Engine Drive Belt Routing......................... 633
Maintenance Record.................................. 634
Section 6 Maintenance Schedule
613

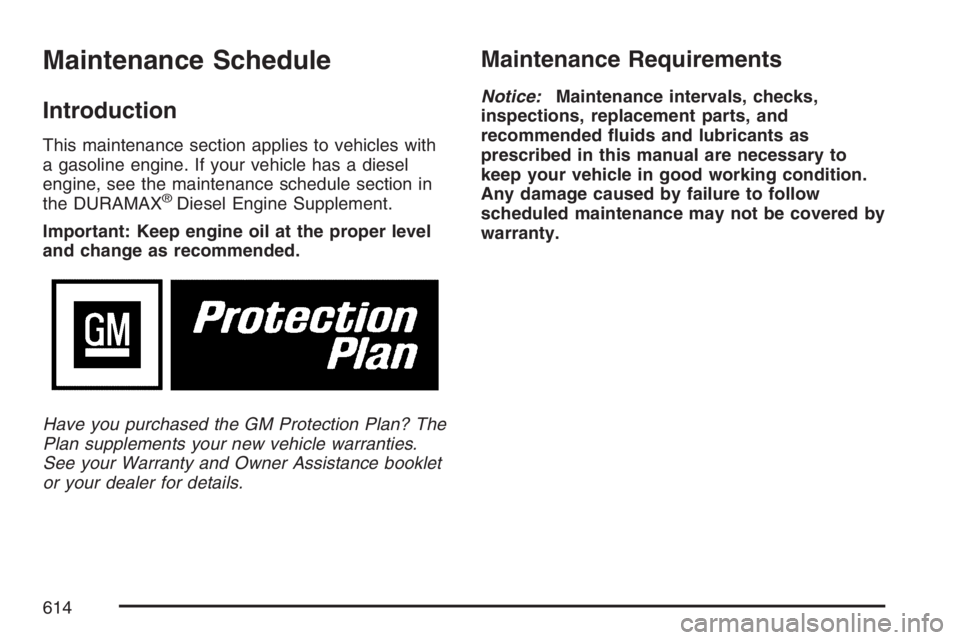

Maintenance Schedule
Introduction
This maintenance section applies to vehicles with
a gasoline engine. If your vehicle has a diesel
engine, see the maintenance schedule section in
the DURAMAX
®Diesel Engine Supplement.
Important: Keep engine oil at the proper level
and change as recommended.
Have you purchased the GM Protection Plan? The
Plan supplements your new vehicle warranties.
See your Warranty and Owner Assistance booklet
or your dealer for details.
Maintenance Requirements
Notice:Maintenance intervals, checks,
inspections, replacement parts, and
recommended uids and lubricants as
prescribed in this manual are necessary to
keep your vehicle in good working condition.
Any damage caused by failure to follow
scheduled maintenance may not be covered by
warranty.
614

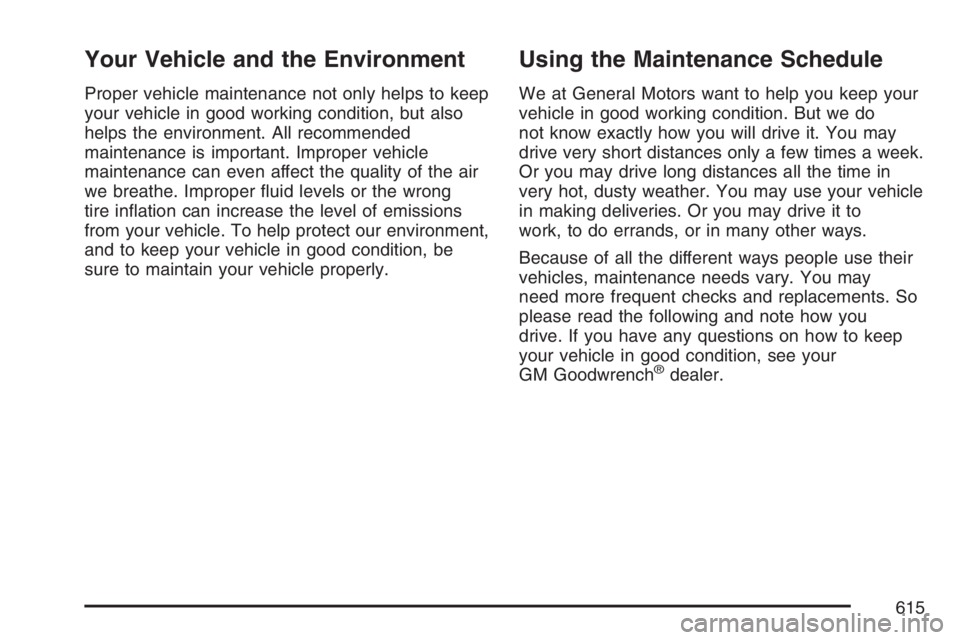

Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep
your vehicle in good working condition, but also
helps the environment. All recommended
maintenance is important. Improper vehicle
maintenance can even affect the quality of the air
we breathe. Improper uid levels or the wrong
tire ination can increase the level of emissions
from your vehicle. To help protect our environment,
and to keep your vehicle in good condition, be
sure to maintain your vehicle properly.
Using the Maintenance Schedule
We at General Motors want to help you keep your
vehicle in good working condition. But we do
not know exactly how you will drive it. You may
drive very short distances only a few times a week.
Or you may drive long distances all the time in
very hot, dusty weather. You may use your vehicle
in making deliveries. Or you may drive it to
work, to do errands, or in many other ways.
Because of all the different ways people use their
vehicles, maintenance needs vary. You may
need more frequent checks and replacements. So
please read the following and note how you
drive. If you have any questions on how to keep
your vehicle in good condition, see your
GM Goodwrench
®dealer.
615

This schedule is for vehicles that:
carry passengers and cargo within
recommended limits. You will nd these limits
on the Tire and Loading Information label.
SeeLoading Your Vehicle on page 409.
are driven on reasonable road surfaces within
legal driving limits.
are driven off-road in the recommended
manner. SeeOff-Road Driving on page 372.
use the recommended fuel. SeeGasoline
Octane on page 470.
The services inScheduled Maintenance (Gasoline
Engine) on page 617should be performed
when indicated. SeeAdditional Required Services
(Gasoline Engine) on page 621andMaintenance
Footnotes (Gasoline Engine) on page 623for
further information.
{CAUTION:
Performing maintenance work on a vehicle
can be dangerous. In trying to do some
jobs, you can be seriously injured. Do your
own maintenance work only if you have the
required know-how and the proper tools
and equipment for the job. If you have any
doubt, see your GM Goodwrench
®dealer to
have a qualied technician do the work.
SeeDoing Your Own Service Work on
page 469.
Some maintenance services can be complex. So,
unless you are technically qualied and have
the necessary equipment, you should have your
GM Goodwrench
®dealer do these jobs.
When you go to your GM Goodwrench
®dealer for
your service needs, you will know that GM-trained
and supported service technicians will perform
the work using genuine GM parts.
616

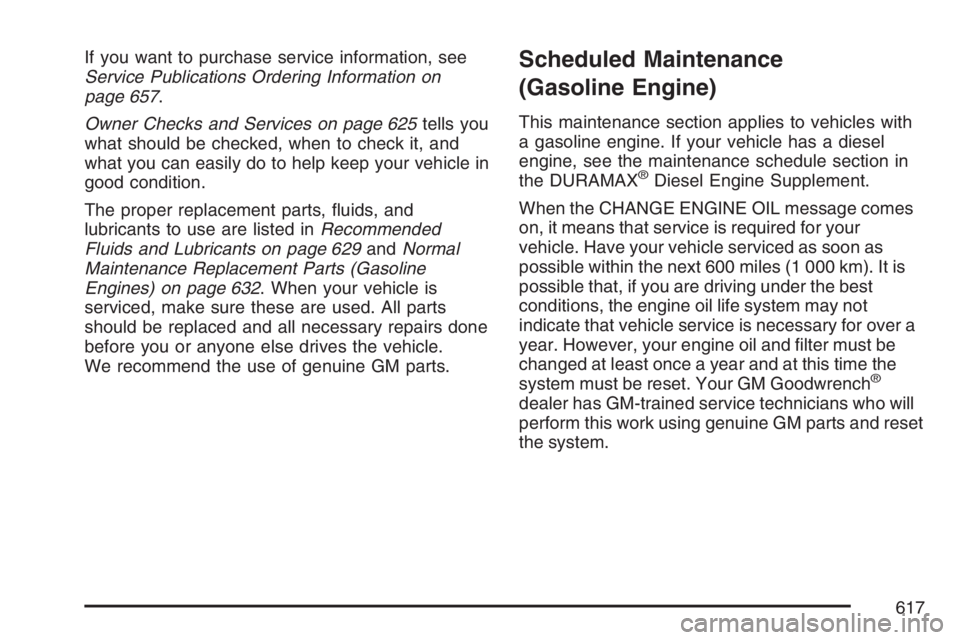

If you want to purchase service information, see
Service Publications Ordering Information on
page 657.
Owner Checks and Services on page 625tells you
what should be checked, when to check it, and
what you can easily do to help keep your vehicle in
good condition.
The proper replacement parts, uids, and
lubricants to use are listed inRecommended
Fluids and Lubricants on page 629andNormal
Maintenance Replacement Parts (Gasoline
Engines) on page 632. When your vehicle is
serviced, make sure these are used. All parts
should be replaced and all necessary repairs done
before you or anyone else drives the vehicle.
We recommend the use of genuine GM parts.Scheduled Maintenance
(Gasoline Engine)
This maintenance section applies to vehicles with
a gasoline engine. If your vehicle has a diesel
engine, see the maintenance schedule section in
the DURAMAX
®Diesel Engine Supplement.
When the CHANGE ENGINE OIL message comes
on, it means that service is required for your
vehicle. Have your vehicle serviced as soon as
possible within the next 600 miles (1 000 km). It is
possible that, if you are driving under the best
conditions, the engine oil life system may not
indicate that vehicle service is necessary for over a
year. However, your engine oil and lter must be
changed at least once a year and at this time the
system must be reset. Your GM Goodwrench
®
dealer has GM-trained service technicians who will
perform this work using genuine GM parts and reset
the system.
617

If the engine oil life system is ever reset
accidentally, you must service your vehicle within
3,000 miles (5 000 km) since your last service.
Remember to reset the oil life system whenever
the oil is changed. SeeEngine Oil Life System
(Gasoline Engine) on page 489for information on
the Engine Oil Life System and resetting the
system.
When the CHANGE ENGINE OIL message
appears, certain services, checks, and inspections
are required. Required services are described
in the following for “MaintenanceI” and
“MaintenanceII.” Generally, it is recommended
that your rst service be MaintenanceI, your
second service be MaintenanceII, and that you
alternate MaintenanceIand MaintenanceII
thereafter. However, in some cases,
MaintenanceIImay be required more often.MaintenanceI— Use MaintenanceIif the
CHANGE ENGINE OIL message comes on within
10 months since the vehicle was purchased or
MaintenanceIIwas performed.
MaintenanceII— Use MaintenanceIIif the
previous service performed was MaintenanceI.
Always use MaintenanceIIwhenever the message
comes on 10 months or more since the last
service or if the message has not come on at all
for one year.
618

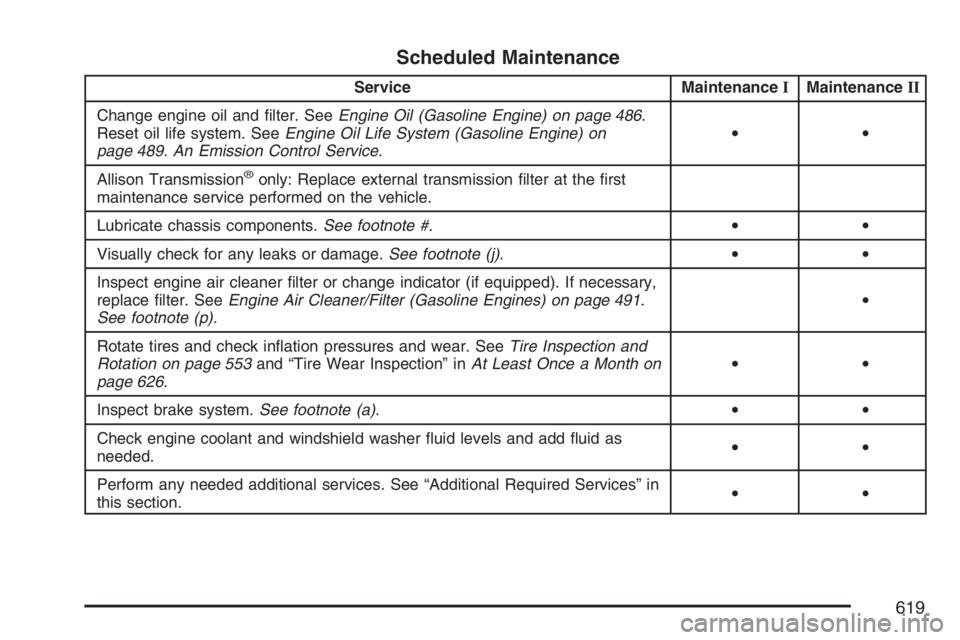

Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. SeeEngine Oil (Gasoline Engine) on page 486.
Reset oil life system. SeeEngine Oil Life System (Gasoline Engine) on
page 489.An Emission Control Service.••
Allison Transmission
®only: Replace external transmission lter at the rst
maintenance service performed on the vehicle.
Lubricate chassis components.See footnote #.••
Visually check for any leaks or damage.See footnote (j).••
Inspect engine air cleaner lter or change indicator (if equipped). If necessary,
replace lter. SeeEngine Air Cleaner/Filter (Gasoline Engines) on page 491.
See footnote (p).•
Rotate tires and check ination pressures and wear. SeeTire Inspection and
Rotation on page 553and “Tire Wear Inspection” inAt Least Once a Month on
page 626.••
Inspect brake system.See footnote (a).••
Check engine coolant and windshield washer uid levels and add uid as
needed.••
Perform any needed additional services. See “Additional Required Services” in
this section.••
619

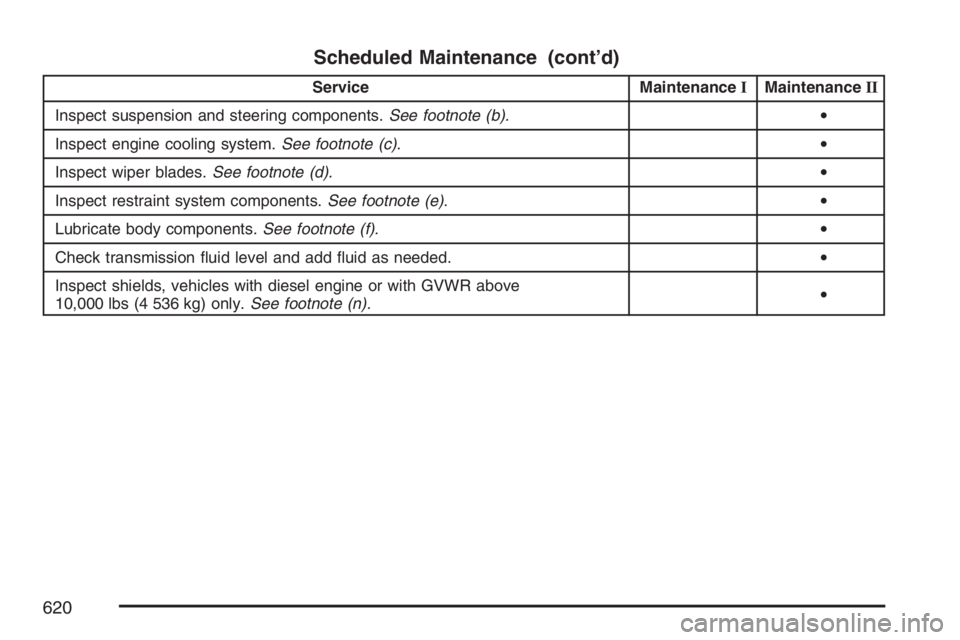

Scheduled Maintenance (cont’d)
Service MaintenanceIMaintenanceII
Inspect suspension and steering components.See footnote (b).•
Inspect engine cooling system.See footnote (c).•
Inspect wiper blades.See footnote (d).•
Inspect restraint system components.See footnote (e).•
Lubricate body components.See footnote (f).•
Check transmission uid level and add uid as needed.•
Inspect shields, vehicles with diesel engine or with GVWR above
10,000 lbs (4 536 kg) only.See footnote (n).•
620
