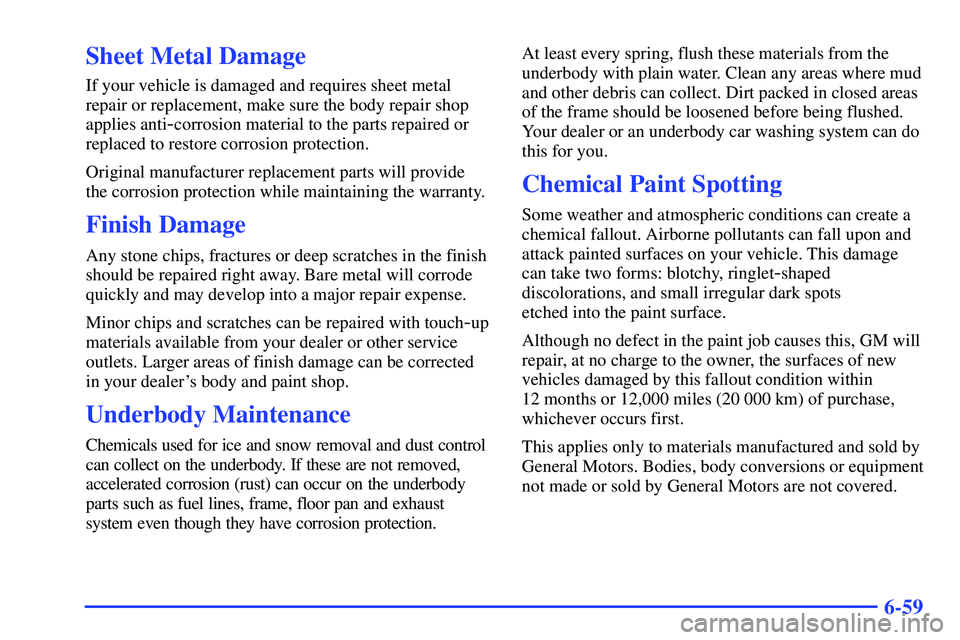

Sheet Metal Damage
If your vehicle is damaged and requires sheet metal
repair or replacement, make sure the body repair shop
applies anti
-corrosion material to the parts repaired or
replaced to restore corrosion protection.
Original manufacturer replacement parts will provide
the corrosion protection while maintaining the warranty.
Finish Damage
Any stone chips, fractures or deep scratches in the finish
should be repaired right away. Bare metal will corrode
quickly and may develop into a major repair expense.
Minor chips and scratches can be repaired with touch
-up
materials available from your dealer or other service
outlets. Larger areas of finish damage can be corrected
in your dealer's body and paint shop.
Underbody Maintenance
Chemicals used for ice and snow removal and dust control
can collect on the underbody. If these are not removed,
accelerated corrosion (rust) can occur on the underbody
parts such as fuel lines, frame, floor pan and exhaust
system even though they have corrosion protection.At least every spring, flush these materials from the
underbody with plain water. Clean any areas where mud
and other debris can collect. Dirt packed in closed areas
of the frame should be loosened before being flushed.
Your dealer or an underbody car washing system can do
this for you.
Chemical Paint Spotting
Some weather and atmospheric conditions can create a
chemical fallout. Airborne pollutants can fall upon and
attack painted surfaces on your vehicle. This damage
can take two forms: blotchy, ringlet
-shaped
discolorations, and small irregular dark spots
etched into the paint surface.
Although no defect in the paint job causes this, GM will
repair, at no charge to the owner, the surfaces of new
vehicles damaged by this fallout condition within
12 months or 12,000 miles (20 000 km) of purchase,
whichever occurs first.
This applies only to materials manufactured and sold by
General Motors. Bodies, body conversions or equipment
not made or sold by General Motors are not covered.

6-60

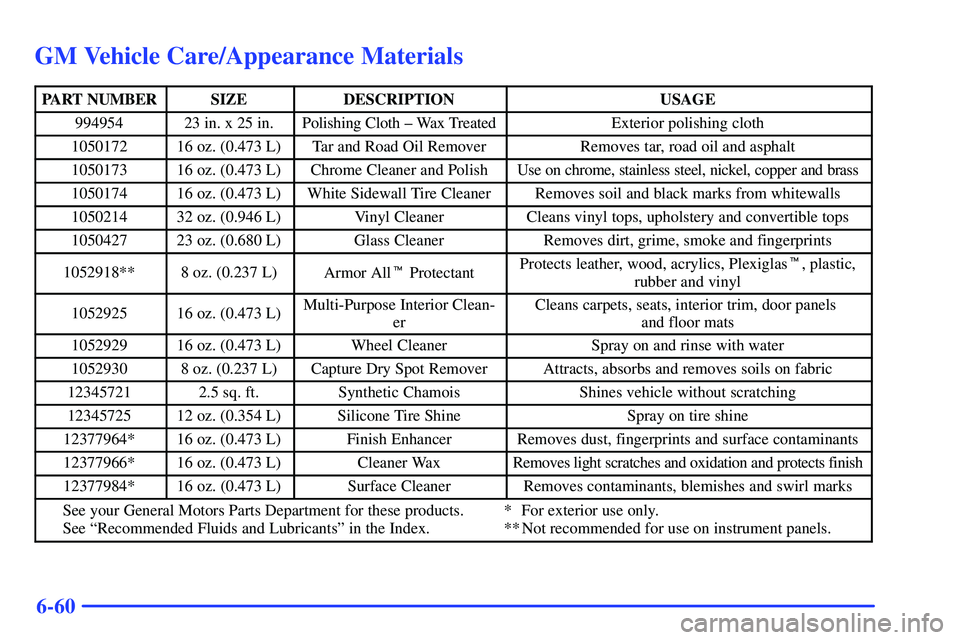

GM Vehicle Care/Appearance Materials
PART NUMBERSIZEDESCRIPTIONUSAGE
99495423 in. x 25 in.Polishing Cloth ± Wax TreatedExterior polishing cloth
105017216 oz. (0.473 L)Tar and Road Oil RemoverRemoves tar, road oil and asphalt
105017316 oz. (0.473 L)Chrome Cleaner and PolishUse on chrome, stainless steel, nickel, copper and brass
105017416 oz. (0.473 L)White Sidewall Tire CleanerRemoves soil and black marks from whitewalls
105021432 oz. (0.946 L)Vinyl CleanerCleans vinyl tops, upholstery and convertible tops
105042723 oz. (0.680 L)Glass CleanerRemoves dirt, grime, smoke and fingerprints
1052918**8 oz. (0.237 L)Armor All
ProtectantProtects leather, wood, acrylics, Plexiglas
, plastic,
rubber and vinyl
105292516 oz. (0.473 L)Multi-Purpose Interior Clean-
erCleans carpets, seats, interior trim, door panels
and floor mats
105292916 oz. (0.473 L)Wheel CleanerSpray on and rinse with water
10529308 oz. (0.237 L)Capture Dry Spot RemoverAttracts, absorbs and removes soils on fabric
123457212.5 sq. ft.Synthetic ChamoisShines vehicle without scratching
1234572512 oz. (0.354 L)Silicone Tire ShineSpray on tire shine
12377964*16 oz. (0.473 L)Finish EnhancerRemoves dust, fingerprints and surface contaminants
12377966*16 oz. (0.473 L)Cleaner WaxRemoves light scratches and oxidation and protects finish
12377984*16 oz. (0.473 L)Surface CleanerRemoves contaminants, blemishes and swirl marks
See your General Motors Parts Department for these products. * For exterior use only.
See ªRecommended Fluids and Lubricantsº in the Index. ** Not recommended for use on instrument panels.

6-61

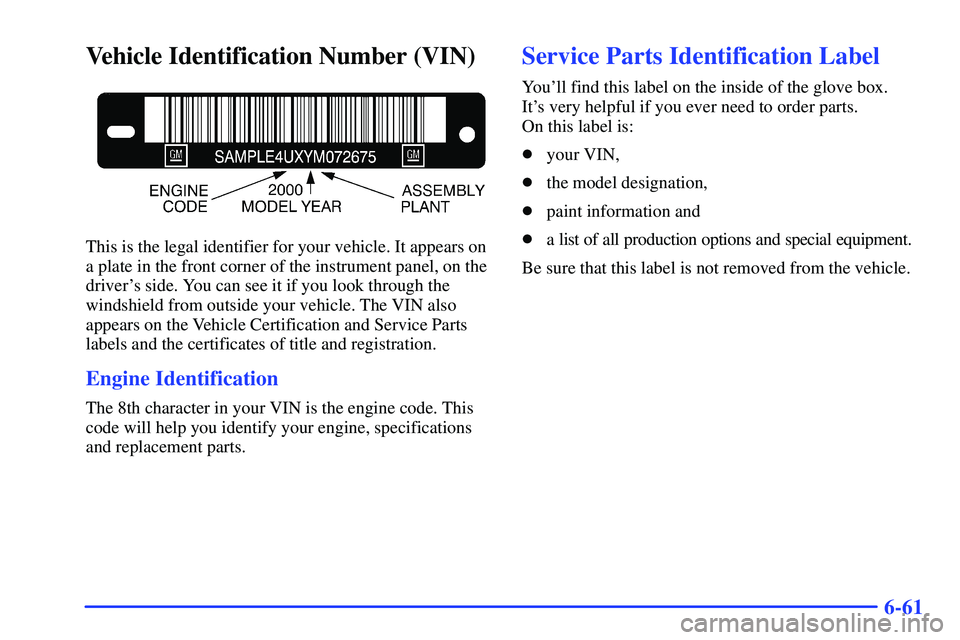

Vehicle Identification Number (VIN)
This is the legal identifier for your vehicle. It appears on
a plate in the front corner of the instrument panel, on the
driver's side. You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The 8th character in your VIN is the engine code. This
code will help you identify your engine, specifications
and replacement parts.
Service Parts Identification Label
You'll find this label on the inside of the glove box.
It's very helpful if you ever need to order parts.
On this label is:

your VIN,

the model designation,

paint information and

a list of all production options and special equipment.
Be sure that this label is not removed from the vehicle.

6-62

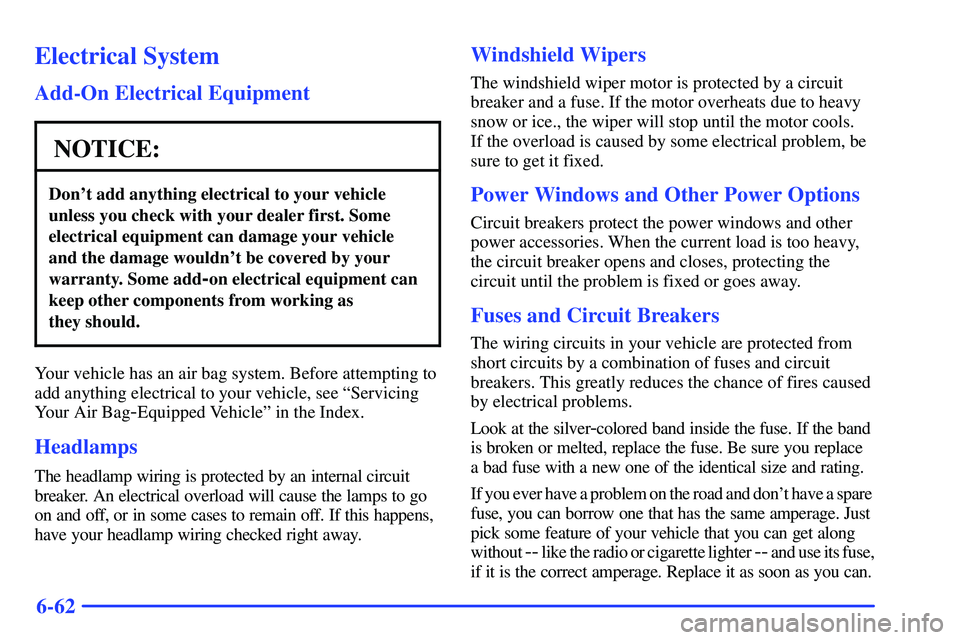

Electrical System
Add-On Electrical Equipment
NOTICE:
Don't add anything electrical to your vehicle
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn't be covered by your
warranty. Some add
-on electrical equipment can
keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your vehicle, see ªServicing
Your Air Bag
-Equipped Vehicleº in the Index.
Headlamps
The headlamp wiring is protected by an internal circuit
breaker. An electrical overload will cause the lamps to go
on and off, or in some cases to remain off. If this happens,
have your headlamp wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow or ice., the wiper will stop until the motor cools.
If the overload is caused by some electrical problem, be
sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When the current load is too heavy,
the circuit breaker opens and closes, protecting the
circuit until the problem is fixed or goes away.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers. This greatly reduces the chance of fires caused
by electrical problems.
Look at the silver
-colored band inside the fuse. If the band
is broken or melted, replace the fuse. Be sure you replace
a bad fuse with a new one of the identical size and rating.
If you ever have a problem on the road and don't have a spare
fuse, you can borrow one that has the same amperage. Just
pick some feature of your vehicle that you can get along
without
-- like the radio or cigarette lighter -- and use its fuse,
if it is the correct amperage. Replace it as soon as you can.

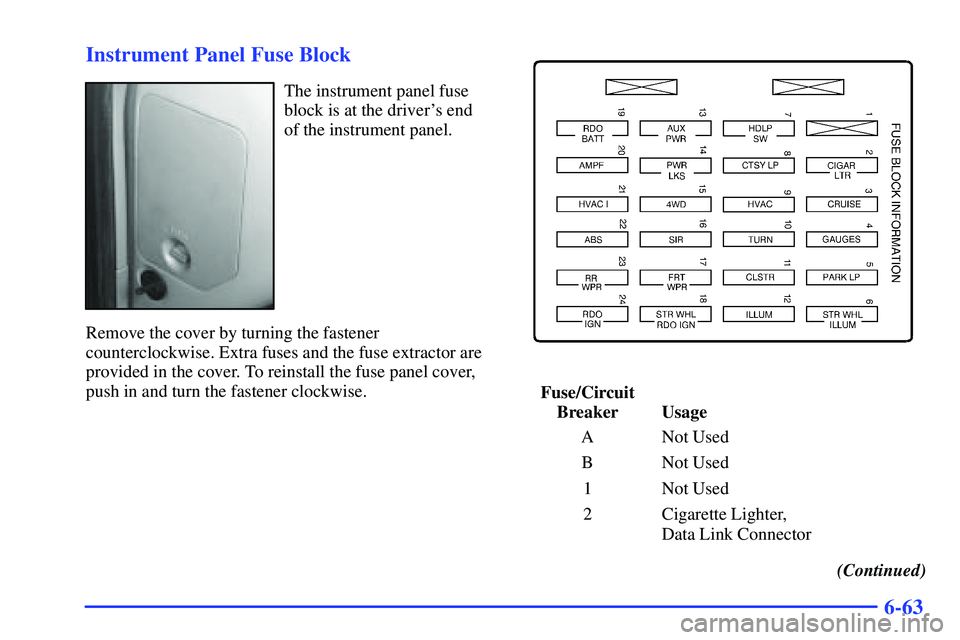

6-63 Instrument Panel Fuse Block
The instrument panel fuse
block is at the driver's end
of the instrument panel.
Remove the cover by turning the fastener
counterclockwise. Extra fuses and the fuse extractor are
provided in the cover. To reinstall the fuse panel cover,
push in and turn the fastener clockwise.
Fuse/Circuit
Breaker Usage
A Not Used
B Not Used
1 Not Used
2 Cigarette Lighter,
Data Link Connector
(Continued)

6-64

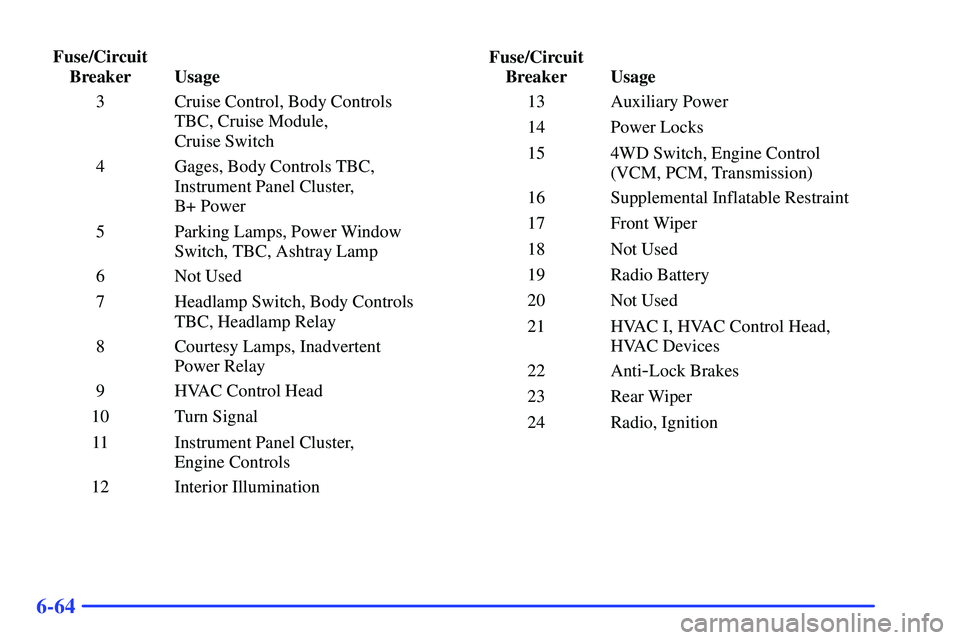

Fuse/Circuit
Breaker Usage
3 Cruise Control, Body Controls
TBC, Cruise Module,
Cruise Switch
4 Gages, Body Controls TBC,
Instrument Panel Cluster,
B+ Power
5 Parking Lamps, Power Window
Switch, TBC, Ashtray Lamp
6 Not Used
7 Headlamp Switch, Body Controls
TBC, Headlamp Relay
8 Courtesy Lamps, Inadvertent
Power Relay
9 HVAC Control Head
10 Turn Signal
11 Instrument Panel Cluster,
Engine Controls
12 Interior IlluminationFuse/Circuit
Breaker Usage
13 Auxiliary Power
14 Power Locks
15 4WD Switch, Engine Control
(VCM, PCM, Transmission)
16 Supplemental Inflatable Restraint
17 Front Wiper
18 Not Used
19 Radio Battery
20 Not Used
21 HVAC I, HVAC Control Head,
HVAC Devices
22 Anti
-Lock Brakes
23 Rear Wiper
24 Radio, Ignition

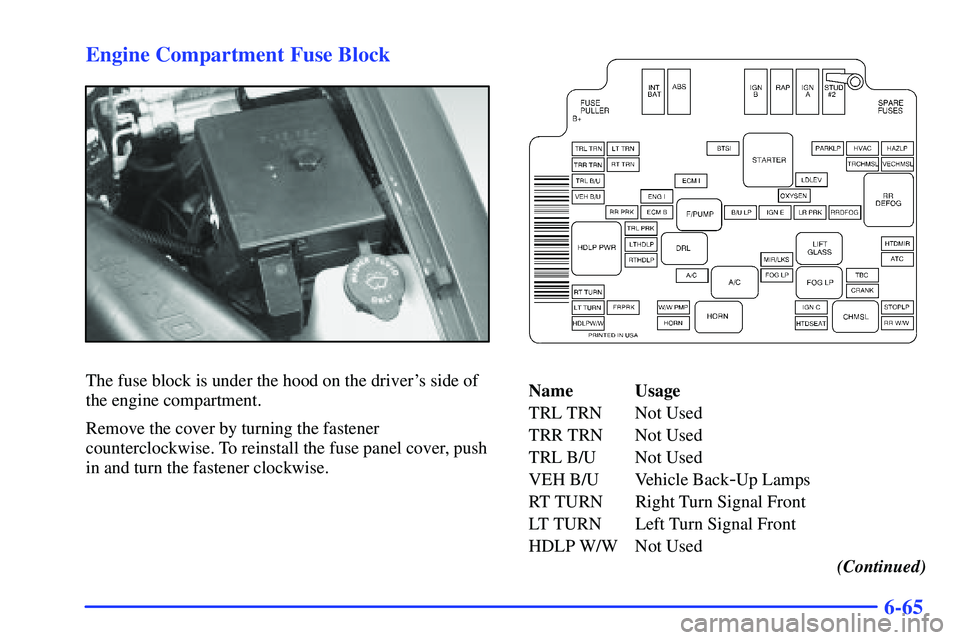

6-65 Engine Compartment Fuse Block
The fuse block is under the hood on the driver's side of
the engine compartment.
Remove the cover by turning the fastener
counterclockwise. To reinstall the fuse panel cover, push
in and turn the fastener clockwise.Name Usage
TRL TRN Not Used
TRR TRN Not Used
TRL B/U Not Used
VEH B/U Vehicle Back
-Up Lamps
RT TURN Right Turn Signal Front
LT TURN Left Turn Signal Front
HDLP W/W Not Used
(Continued)

6-66
Name Usage
LT TRN Left Turn Signal Rear
RT TRN Right Turn Signal Rear
RR PRK Right Rear Parking Lamps
TRL PRK Not Used
LT HDLP Left Headlamp
RT HDLP Right Headlamp
FR PRK Front Parking Lamps
INT BAT I/P Fuse Block Feed
ENG I Engine Sensors/Solenoids, MAF,
CAM, PURGE, VENT
ECM B Engine Control Module, Fuel Pump
Module, Oil Pressure
ABS Anti
-Lock Brake System
ECM I Engine Control Module Injectors
BTSI Automatic Transmission Shift Lock
Control System
B/U LP Back
-Up Lamps
A/C Air Conditioning
W/W PMP Not Used
HORN Horn
IGN B Column Feed, IGN 2, 3, 4
RAP Retained Accessory Power
LD LEV Not UsedName Usage
OXYSEN Oxygen Sensor
IGN E Engine
MIR/LKS Mirrors, Door Locks
FOG LP Fog Lamps
IGN A Starting and Charging IGN 1
STUD #2 Accessory Feeds, Electric Brake
PARKLP Parking Lamps
LR PRK Left Rear Parking Lamps
IGN C Starter Solenoid, Fuel Pump,
PRNDL
HTDSEAT Not Used
HVAC HVAC System
TRCHMSL Not Used
RRDFOG Not Used
TBC Truck Body Computer
CRANK Clutch Switch, NSBU Switch
HAZLP Hazard Lamps
VECHMSL Vehicle Center High
-Mounted
Stoplamp
HTDMIR Heated Outside Mirrors
ATC Transfer Case (Four
-Wheel Drive)
STOPLP Stoplamps
RR W/W Not Used

6-67

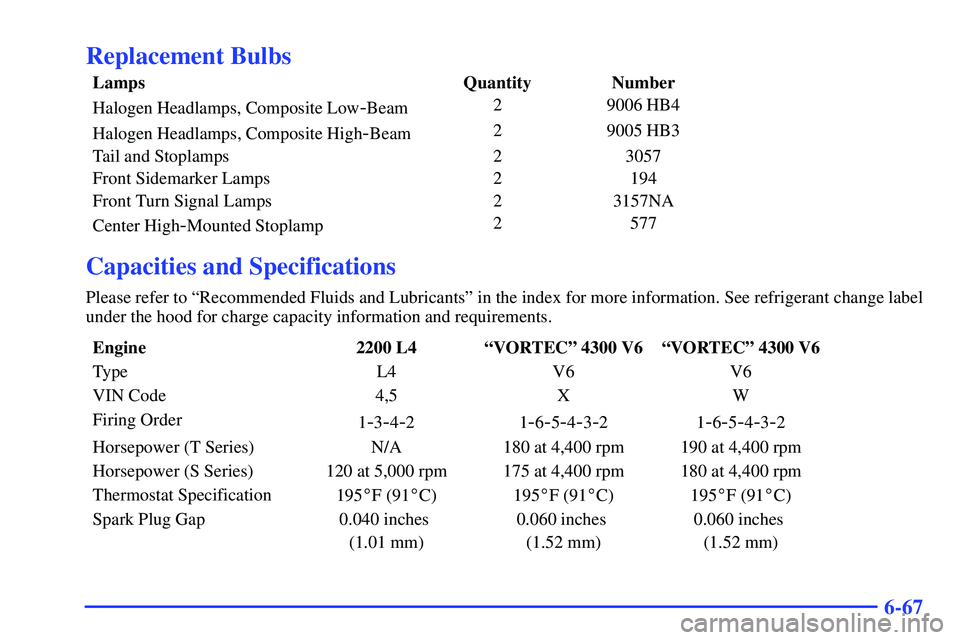

Replacement Bulbs
Lamps Quantity Number
Halogen Headlamps, Composite Low
-Beam2 9006 HB4
Halogen Headlamps, Composite High
-Beam2 9005 HB3
Tail and Stoplamps 2 3057
Front Sidemarker Lamps 2 194
Front Turn Signal Lamps 2 3157NA
Center High
-Mounted Stoplamp2 577
Capacities and Specifications
Please refer to ªRecommended Fluids and Lubricantsº in the index for more information. See refrigerant change label
under the hood for charge capacity information and requirements.
Engine 2200 L4 ªVORTECº 4300 V6 ªVORTECº 4300 V6
Type L4 V6 V6
VIN Code 4,5 X W
Firing Order
1
-3-4-21-6-5-4-3-21-6-5-4-3-2
Horsepower (T Series) N/A 180 at 4,400 rpm 190 at 4,400 rpm
Horsepower (S Series) 120 at 5,000 rpm 175 at 4,400 rpm 180 at 4,400 rpm
Thermostat Specification
195
F (91
C) 195
F (91
C) 195
F (91
C)
Spark Plug Gap 0.040 inches
(1.01 mm)0.060 inches
(1.52 mm)0.060 inches
(1.52 mm)

6-68 Wheels and Tires
Wheel Nut Torque 100 lb-ft (140 N´m) . . . . . . . . . . .
Tire Pressure See the Certification/Tire label.. . . . . .
See ªLoading Your Vehicleº in the Index.
Capacities (Approximate)
Cooling System Capacity*
Engine Quantity
2200 L4 Auto./Manual 11.5 quarts (11.0 L)
ªVORTECº 4300 V6 Auto. 11.7 quarts (11.1 L)
ªVORTECº 4300 V6 Manual 11.9 quarts (11.3 L)
Crankcase Capacity*
Engine Quantity with Filter
2200 L4 4.5 quarts (4.3 L)
ªVORTECº
4300 V64.5 quarts (4.3 L)Automatic Transmission Capacity*
Type Quantity (Drain and Refill)
4L60E 5.0 quarts (4.7 L)
*After refill, the level must be checked.
Differential Fluid
Axle Quantity
Rear 4.0 pints (1.9 L)
Front 2.6 pints (1.2 L)
Fuel Tank Capacity
Type Quantity
Standard Tank 18.5 U.S. gallons (70.0 L)
