Page 248 of 434
GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-12146071) - 2019 - crc - 7/27/18
Driving and Operating 247
Warning (Continued)
located below the bumper or that
are too close or too far from the
vehicle. It is not available at
speeds greater than 8 km/h
(5 mph). To prevent injury, death,
or vehicle damage, even with
Park Assist, always check the
area around the vehicle and
check all mirrors before moving
forward or backing.
The instrument cluster may have a
Park Assist display with bars that
show“distance to object” and object
location information for the Park
Assist system. As the object gets closer, more bars light up and the
bars change color from yellow to
amber to red.
When an object is first detected in
the rear, one beep will be heard
from the rear, or both sides of the
Safety Alert Seat will pulse two
times. When an object is very close
(<0.6 m (2 ft) in the vehicle rear,
or <0.3 m (1 ft) in the vehicle front),
five beeps will sound from the front
or rear depending on object
location, or both sides of the Safety
Alert Seat will pulse five times.
Beeps for FPA are higher pitched
than for RPA.
Rear Cross Traffic Alert (RCTA)
If equipped, when the vehicle is
shifted into R (Reverse), RCTA
displays a red warning triangle with
a left or right pointing arrow to warn
of traffic coming from the left or
right. This system detects objects
coming from up to 20 m (65 ft) from
the left or right side of the vehicle.
When an object is detected, either
three beeps sound from the left or
right or three Safety Alert Seatpulses occur on the left or right side,
depending on the direction of the
detected vehicle.
Use caution while backing up when
towing a trailer, as the RCTA
detection zones that extend out
from the back of the vehicle do not
move further back when a trailer is
towed.
Turning the Features On or Off
TheXbutton on the center
console is used to turn on or off the
Front and Rear Park Assist and the
Rear Cross Traffic Alert (RCTA).
The indicator light in the button
comes on when the features are on
and turns off when the features
have been disabled.
Turn off Park Assist and RCTA
when towing a trailer.
RCTA can be turned off through
“Collision/Detection Systems” under
Vehicle Personalization 0152.
Page 258 of 434
GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-12146071) - 2019 - crc - 7/27/18

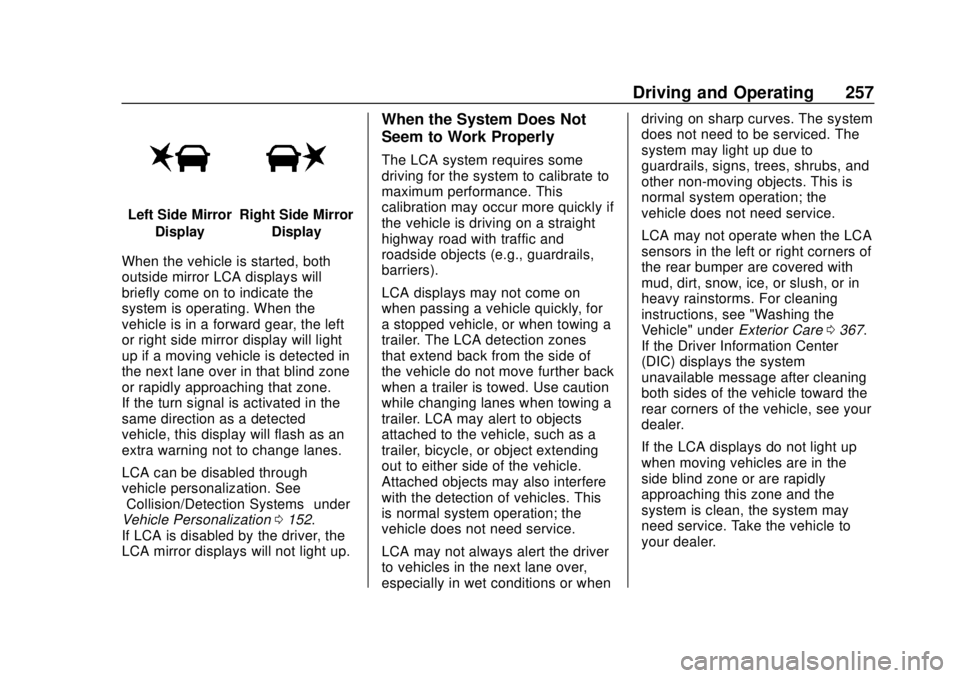

Driving and Operating 257
Left Side MirrorDisplayRight Side Mirror Display
When the vehicle is started, both
outside mirror LCA displays will
briefly come on to indicate the
system is operating. When the
vehicle is in a forward gear, the left
or right side mirror display will light
up if a moving vehicle is detected in
the next lane over in that blind zone
or rapidly approaching that zone.
If the turn signal is activated in the
same direction as a detected
vehicle, this display will flash as an
extra warning not to change lanes.
LCA can be disabled through
vehicle personalization. See
“Collision/Detection Systems” under
Vehicle Personalization 0152.
If LCA is disabled by the driver, the
LCA mirror displays will not light up.
When the System Does Not
Seem to Work Properly
The LCA system requires some
driving for the system to calibrate to
maximum performance. This
calibration may occur more quickly if
the vehicle is driving on a straight
highway road with traffic and
roadside objects (e.g., guardrails,
barriers).
LCA displays may not come on
when passing a vehicle quickly, for
a stopped vehicle, or when towing a
trailer. The LCA detection zones
that extend back from the side of
the vehicle do not move further back
when a trailer is towed. Use caution
while changing lanes when towing a
trailer. LCA may alert to objects
attached to the vehicle, such as a
trailer, bicycle, or object extending
out to either side of the vehicle.
Attached objects may also interfere
with the detection of vehicles. This
is normal system operation; the
vehicle does not need service.
LCA may not always alert the driver
to vehicles in the next lane over,
especially in wet conditions or when driving on sharp curves. The system
does not need to be serviced. The
system may light up due to
guardrails, signs, trees, shrubs, and
other non-moving objects. This is
normal system operation; the
vehicle does not need service.
LCA may not operate when the LCA
sensors in the left or right corners of
the rear bumper are covered with
mud, dirt, snow, ice, or slush, or in
heavy rainstorms. For cleaning
instructions, see "Washing the
Vehicle" under
Exterior Care0367.
If the Driver Information Center
(DIC) displays the system
unavailable message after cleaning
both sides of the vehicle toward the
rear corners of the vehicle, see your
dealer.
If the LCA displays do not light up
when moving vehicles are in the
side blind zone or are rapidly
approaching this zone and the
system is clean, the system may
need service. Take the vehicle to
your dealer.
Page 281 of 434
GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-12146071) - 2019 - crc - 7/27/18
280 Driving and Operating
Trailer Load Balance
The correct trailer load balance
must be maintained to ensure trailer
stability. Incorrect load balance is a
leading cause of trailer sway.
The trailer tongue weight (1) should
be 10–15% of the loaded trailer
weight (2). Some specific trailer
types, such as boat trailers, fall
outside of this range. Always refer
to the trailer owner’s manual for the
recommended trailer tongue weight
for each trailer. Never exceed the
maximum loads for your vehicle,
hitch and trailer. After loading the trailer, separately
weigh the trailer and then the trailer
tongue and calculate the trailer load
balance percentage to see if the
weights and distribution are
appropriate for your vehicle. If the
trailer weight is too high, it may be
possible to trasfer some of the
cargo into your vehicle. If the trailer
tongue weight is too high or too low,
it may be possible to rearrange
some of the cargo inside of the
trailer.
Do not exceed the maximum
allowable tongue weight for your
vehicle. Use the shortest hitch
extension available to position the
hitch ball closer to your vehicle. This
will help reduce the effect of the
trailer tongue weight on the trailer
hitch and the rear axle.
If a cargo carrier is used in the
trailer hitch receiver, choose a
carrier that positions the load as
close to the vehicle as possible.
Make sure the total weight,
including the carrier, is no more than
half of the maximum allowable
tongue weight for the vehicle or
227 kg (500 lb), whichever is less.
Ask your dealer for trailering
information or assistance.
Towing Equipment
Hitches
Always use the correct hitch
equipment for your vehicle.
Crosswinds, large trucks going by,
and rough roads can affect the
trailer and the hitch.
Proper hitch equipment for your
vehicle helps maintain control of the
vehicle-trailer combination. Many
trailers can be towed using a
weight-carrying hitch which has a
coupler latched to the hitch ball, or a
tow eye latched to a pintle hook.
Other trailers may require a
weight-distributing hitch that uses
spring bars to distribute the trailer
tongue weight between your vehicle
and trailer axles. See
“Maximum
Trailer Tongue Weight” underTrailer
Towing 0277 for weight limits with
various hitch types.
Page 428 of 434
GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico-12146071) - 2019 - crc - 7/27/18
Index 427
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 42
LightingEntry . . . . . . . . . . . . . . . . . . . . . . . . . 167
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Illumination Control . . . . . . . . . . . 166
LED . . . . . . . . . . . . . . . . . . . . . . . . . . 315
Lights
Airbag Readiness . . . . . . . . . . . . . 131
Antilock Brake System(ABS) Warning . . . . . . . . . . . . . . 136
Brake System Warning . . . . . . . 135
Charging System . . . . . . . . . . . . . 133
Check Engine (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . 133
Cruise Control . . . . . . . . . . . . . . . . 141
Diesel Exhaust Fluid (DEF) . . . 140
Electric Parking Brake . . . . . . . . 136
Engine Oil Pressure . . . . . . . . . . 139
Flash-to-Pass . . . . . . . . . . . . . . . . . 163
Front Fog Lamp . . . . . . . . . . . . . . 141
High-Beam On . . . . . . . . . . . . . . . . 141
High/Low Beam Changer . . . . . 163
Hill Descent Control . . . . . . . . . . 137
Lane Keep Assist . . . . . . . . . . . . . 137
Low Fuel Warning . . . . . . . . . . . . 140
Seat Belt Reminders . . . . . . . . . . 131
Security . . . . . . . . . . . . . . . . . . . . . . 141 Lights (cont'd)
Service Electric Parking
Brake . . . . . . . . . . . . . . . . . . . . . . . 136
StabiliTrak OFF . . . . . . . . . . . . . . . 138
Tire Pressure . . . . . . . . . . . . . . . . . 139
Tow/Haul Mode . . . . . . . . . . . . . . . 137
Traction Control System
(TCS)/StabiliTrak . . . . . . . . . . . . 138
Traction Off . . . . . . . . . . . . . . . . . . . 138
Wait to Start . . . . . . . . . . . . . . . . . . 139
Locks Automatic Door . . . . . . . . . . . . . . . . . 41
Delayed Locking . . . . . . . . . . . . . . . . 40
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Lockout Protection . . . . . . . . . . . . . . 41
Power Door . . . . . . . . . . . . . . . . . . . . . 40
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Loss of Control . . . . . . . . . . . . . . . . . 183
Low Fuel Warning Light . . . . . . . . . 140
Lower Anchors and Tethers
for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . . . . . 98
Lumbar Adjustment . . . . . . . . . . . . . . 61
Front Seats . . . . . . . . . . . . . . . . . . . . . 61
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . 390 Maintenance and Care
Additional . . . . . . . . . . . . . . . . . . . . . 384
Maintenance Schedule . . . . . . . . . 378 Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . 387
Malfunction Indicator Lamp . . . . . 133
Manual Mode . . . . . . . . . . . . . . . . . . . 217
Memory Features . . . . . . . . . . . . . . . . 12
Memory Seats . . . . . . . . . . . . . . . . . . . 62
Messages Engine Power . . . . . . . . . . . . . . . . 152
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 151
Vehicle Speed . . . . . . . . . . . . . . . . 152
Mirrors Automatic Dimming . . . . . . . . . . . . . 52
Automatic DimmingRearview . . . . . . . . . . . . . . . . . . . . . . 52
Convex . . . . . . . . . . . . . . . . . . . . . . . . . 51
Folding . . . . . . . . . . . . . . . . . . . . . . . . . 51
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 51
Manual Rearview . . . . . . . . . . . . . . . 52
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Tilt in Reverse . . . . . . . . . . . . . . . . . . 52
Mirrors, Interior Rearview . . . . . . . . 52
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 226 Driver Control . . . . . . . . . . . . . . . . . 226
Monitor System, Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 334
Page 430 of 434
GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico-12146071) - 2019 - crc - 7/27/18
Index 429
RecommendedFuel . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Recommended Fluids and Lubricants . . . . . . . . . . . . . . . . . . . . . 387
Records Maintenance . . . . . . . . . . . . . . . . . . 390
Recreational Vehicle Towing . . . . 364
Reimbursement Program,
GM Mobility . . . . . . . . . . . . . . . . . . . 399
Remote Keyless Entry (RKE) System . . . . . . . . . . . . . . . . . . . . . . . . . 30
Remote Vehicle Start . . . . . . . . . . . . 36
Replacement Parts Airbags . . . . . . . . . . . . . . . . . . . . . . . . . 91
Maintenance . . . . . . . . . . . . . . . . . . 388
Replacing Airbag System . . . . . . . . 91
Replacing LATCH System
Parts after a Crash . . . . . . . . . . . . 103
Replacing Seat Belt System Parts after a Crash . . . . . . . . . . . . . 78
Reporting Safety Defects
Canadian Government . . . . . . . . 406
General Motors . . . . . . . . . . . . . . . 406
U.S. Government . . . . . . . . . . . . . 405
Restraints
Where to Put . . . . . . . . . . . . . . . . . . . 97
Retained Accessory Power (RAP) . . . . . . . . . . . . . . . . . . 202 Reverse Tilt Mirrors . . . . . . . . . . . . . . 52
Roads
Driving, Wet . . . . . . . . . . . . . . . . . . 187
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . . . . 399
Roof Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 55
Roof Rack System . . . . . . . . . . . . . . 111
Rotation, Tires . . . . . . . . . . . . . . . . . . 339
Routing, Engine Drive Belt . . . . . . 394
Running out of Fuel . . . . . . . . . . . . . 267
Running the Vehicle While Parked . . . . . . . . . . . . . . . . . . . . . . . . 206
S
Safety Defects ReportingCanadian Government . . . . . . . . 406
General Motors . . . . . . . . . . . . . . . 406
U.S. Government . . . . . . . . . . . . . 405
Safety Locks . . . . . . . . . . . . . . . . . . . . . 41
Safety System Check . . . . . . . . . . . . 78
Scheduling Appointments . . . . . . . 401
Sealant Kit, Tire . . . . . . . . . . . . . . . . 347
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . 71 Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Extender . . . . . . . . . . . . . . . . . . . . . . . . 77
How to Wear Seat BeltsProperly . . . . . . . . . . . . . . . . . . . . . . . 72 Seat Belts (cont'd)
Lap-Shoulder Belt . . . . . . . . . . . . . . 74
Reminders . . . . . . . . . . . . . . . . . . . . 131
Replacing after a Crash . . . . . . . . 78
Use During Pregnancy . . . . . . . . . . 77
Seats Adjustment, Front . . . . . . . . . . . . . . . 60
Folding Seatback . . . . . . . . . . . . . . . 66
Head Restraints . . . . . . . . . . . . . . . . 58
Heated and Ventilated Front . . . . 65
Heated, Rear . . . . . . . . . . . . . . . . . . . 70
Lumbar Adjustment, Front . . . . . . 61
Memory . . . . . . . . . . . . . . . . . . . . . . . . . 62
Power Adjustment, Front . . . . . . . 60
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Reclining Seatbacks . . . . . . . . . . . . 61
Securing Child Restraints . . . . . . . . . . . . . . . . 104, 106
Security Light . . . . . . . . . . . . . . . . . . . . . . . . . . 141
OnStar . . . . . . . . . . . . . . . . . . . . . . . .411
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 48
Vehicle Alarm . . . . . . . . . . . . . . . . . . . 48
Service . . . . . . . . . . . . . . . . . . . . . . . . . 176 Accessories andModifications . . . . . . . . . . . . . . . . 286
Climate Control System . . . . . . . 170
Doing Your Own Work . . . . . . . . 286
