turn signal bulb GMC TERRAIN 2019 Owner's Manual

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-12146071) - 2019 - crc - 7/27/18

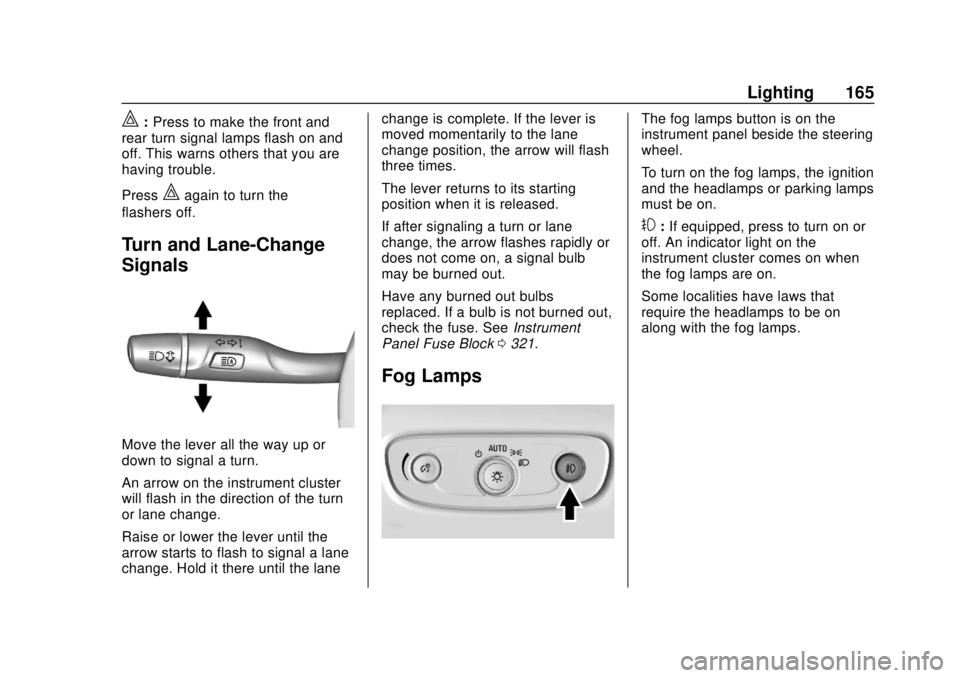

Lighting 165
|:Press to make the front and
rear turn signal lamps flash on and
off. This warns others that you are
having trouble.
Press
|again to turn the
flashers off.
Turn and Lane-Change
Signals
Move the lever all the way up or
down to signal a turn.
An arrow on the instrument cluster
will flash in the direction of the turn
or lane change.
Raise or lower the lever until the
arrow starts to flash to signal a lane
change. Hold it there until the lane change is complete. If the lever is
moved momentarily to the lane
change position, the arrow will flash
three times.
The lever returns to its starting
position when it is released.
If after signaling a turn or lane
change, the arrow flashes rapidly or
does not come on, a signal bulb
may be burned out.
Have any burned out bulbs
replaced. If a bulb is not burned out,
check the fuse. See
Instrument
Panel Fuse Block 0321.
Fog Lamps
The fog lamps button is on the
instrument panel beside the steering
wheel.
To turn on the fog lamps, the ignition
and the headlamps or parking lamps
must be on.
#:If equipped, press to turn on or
off. An indicator light on the
instrument cluster comes on when
the fog lamps are on.
Some localities have laws that
require the headlamps to be on
along with the fog lamps.

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-12146071) - 2019 - crc - 7/27/18

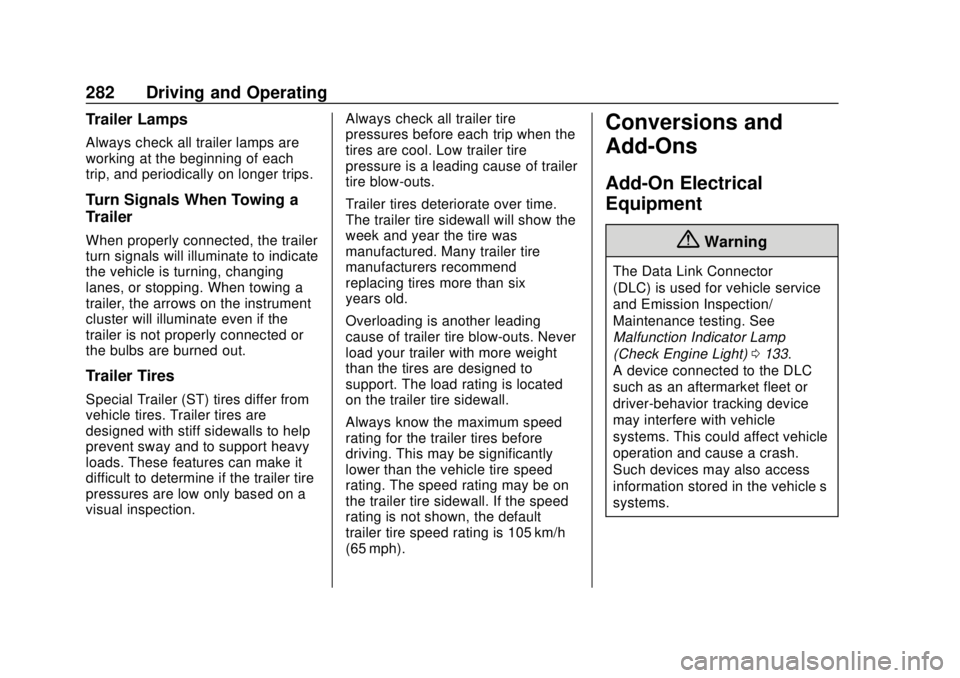

282 Driving and Operating
Trailer Lamps
Always check all trailer lamps are
working at the beginning of each
trip, and periodically on longer trips.
Turn Signals When Towing a
Trailer
When properly connected, the trailer
turn signals will illuminate to indicate
the vehicle is turning, changing
lanes, or stopping. When towing a
trailer, the arrows on the instrument
cluster will illuminate even if the
trailer is not properly connected or
the bulbs are burned out.
Trailer Tires
Special Trailer (ST) tires differ from
vehicle tires. Trailer tires are
designed with stiff sidewalls to help
prevent sway and to support heavy
loads. These features can make it
difficult to determine if the trailer tire
pressures are low only based on a
visual inspection.Always check all trailer tire
pressures before each trip when the
tires are cool. Low trailer tire
pressure is a leading cause of trailer
tire blow-outs.
Trailer tires deteriorate over time.
The trailer tire sidewall will show the
week and year the tire was
manufactured. Many trailer tire
manufacturers recommend
replacing tires more than six
years old.
Overloading is another leading
cause of trailer tire blow-outs. Never
load your trailer with more weight
than the tires are designed to
support. The load rating is located
on the trailer tire sidewall.
Always know the maximum speed
rating for the trailer tires before
driving. This may be significantly
lower than the vehicle tire speed
rating. The speed rating may be on
the trailer tire sidewall. If the speed
rating is not shown, the default
trailer tire speed rating is 105 km/h
(65 mph).
Conversions and
Add-Ons
Add-On Electrical
Equipment
{Warning
The Data Link Connector
(DLC) is used for vehicle service
and Emission Inspection/
Maintenance testing. See
Malfunction Indicator Lamp
(Check Engine Light)
0133.
A device connected to the DLC —
such as an aftermarket fleet or
driver-behavior tracking device —
may interfere with vehicle
systems. This could affect vehicle
operation and cause a crash.
Such devices may also access
information stored in the vehicle’s
systems.

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-12146071) - 2019 - crc - 7/27/18
284 Vehicle Care
Vehicle Care
General Information
General Information . . . . . . . . . . 285
California Proposition65 Warning . . . . . . . . . . . . . . . . . 285
California Perchlorate Materials Requirements . . . . . 286
Accessories and Modifications . . . . . . . . . . . . . . . . 286
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 286
Hood . . . . . . . . . . . . . . . . . . . . . . . . . 287
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . 289
Engine Oil . . . . . . . . . . . . . . . . . . . . 294
Engine Oil Life System . . . . . . . 298
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . 299
Engine Air Cleaner/Filter . . . . . . 299
Cooling System . . . . . . . . . . . . . . 301
Engine Overheating . . . . . . . . . . 305
Washer Fluid . . . . . . . . . . . . . . . . . 307
Brakes . . . . . . . . . . . . . . . . . . . . . . . 307
Brake Fluid . . . . . . . . . . . . . . . . . . . 308
Battery - North America . . . . . . 309
All-Wheel Drive . . . . . . . . . . . . . . . 310 Starter Switch Check . . . . . . . . . 310
Park Brake and P (Park)
Mechanism Check . . . . . . . . . . 311
Wiper Blade Replacement . . . . 311
Windshield Replacement . . . . . 313
Gas Strut(s) . . . . . . . . . . . . . . . . . . 313
Headlamp Aiming
Headlamp Aiming . . . . . . . . . . . . 314
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . 314
Halogen Bulbs . . . . . . . . . . . . . . . . 314
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . . . . . . . 315
LED Lighting . . . . . . . . . . . . . . . . . 315
Front Turn Signal Lamps . . . . . 315
Taillamps . . . . . . . . . . . . . . . . . . . . . 316
License Plate Lamp . . . . . . . . . . 316
Electrical System
Electrical System Overload . . . 317
Fuses and Circuit Breakers . . . 318
Engine Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 318
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 321
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 323
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 325
All-Season Tires . . . . . . . . . . . . . . 326
Winter Tires . . . . . . . . . . . . . . . . . . 326
Summer Tires . . . . . . . . . . . . . . . . 327
Tire Sidewall Labeling . . . . . . . . 327
Tire Designations . . . . . . . . . . . . . 329
Tire Terminology andDefinitions . . . . . . . . . . . . . . . . . . 330
Tire Pressure . . . . . . . . . . . . . . . . . 332
Tire Pressure Monitor System . . . . . . . . . . . . . . . . . . . . . . 334
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . 335
Tire Inspection . . . . . . . . . . . . . . . . 339
Tire Rotation . . . . . . . . . . . . . . . . . 339
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 340
Buying New Tires . . . . . . . . . . . . . 341
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . 342
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . . . 342
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 344
Wheel Replacement . . . . . . . . . . 344
Tire Chains . . . . . . . . . . . . . . . . . . . 345
If a Tire Goes Flat . . . . . . . . . . . . 345
Tire Sealant and Compressor Kit . . . . . . . . . . . . . 347

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-12146071) - 2019 - crc - 7/27/18
Vehicle Care 315
High Intensity Discharge
(HID) Lighting
{Warning
The High Intensity Discharge
(HID) lighting system operates at
a very high voltage. If you try to
service any of the system
components, you could be
seriously injured. Have your
dealer or a qualified technician
service them.
After an HID headlamp bulb has
been replaced, the beam might be a
slightly different shade than it was
originally. This is normal.
LED Lighting
This vehicle has several LED lamps.
For replacement of any LED lighting
assembly, contact your dealer.
Front Turn Signal Lamps
To replace one of these bulbs: 1. Open the hood. See Hood
0 287.
2. Remove the bulb access cap
from the top of the headlamp
assembly by turning it
counterclockwise.
3. Remove the bulb from the bulb
socket by pinching the tabs on
either side of the bulb and pull
straight out.
4. Install the new bulb in the bulb socket.
5. Install the bulb access cap onto the headlamp assembly by
turning clockwise.

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico-12146071) - 2019 - crc - 7/27/18
422 Index
Assistance Systems forParking and Backing . . . . . . . . . . 243
Auto Stop Stop/Start System . . . . . . . . . . . . 199
Automatic Dimming Mirrors . . . . . . . . . . . . . . . . 52
Door Locks . . . . . . . . . . . . . . . . . . . . . 41
Forward Braking . . . . . . . . . . . . . . 252
Headlamp System . . . . . . . . . . . . 164
Transmission . . . . . . . . . . . . . . . . . 213
Transmission Fluid . . . . . . . . . . . 299
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 217
B
BatteryExterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . 168
Load Management . . . . . . . . . . . . 168
Power Protection . . . . . . . . . . . . . 168
Battery - North America . . . . 309, 360
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . 263
Blade Replacement, Wiper . . . . . 311
Brake
Parking, Electric . . . . . . . . . . . . . . 219
System Warning Light . . . . . . . . 135
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 307 Antilock . . . . . . . . . . . . . . . . . . . . . . . 219 Brakes (cont'd)
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 221
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 308
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 181
Automatic Forward . . . . . . . . . . . 252
Braking System Front Pedestrian (FPB) . . . . . . . 253
Break-In, New Vehicle . . . . . . . . . . 195
Bulb Replacement Front Turn Signal Lamps . . . . . 315
Halogen Bulbs . . . . . . . . . . . . . . . . 314
Headlamp Aiming . . . . . . . . . . . . . 314
Headlamps . . . . . . . . . . . . . . . . . . . 314
High Intensity Discharge(HID) Lighting . . . . . . . . . . . . . . . 315
License Plate Lamps . . . . . . . . . 316
Taillamps . . . . . . . . . . . . . . . . . . . . . 316
Buying New Tires . . . . . . . . . . . . . . . 341
C
Calibration . . . . . . . . . . . . . . . . . . . . . . 116
California
Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 286 California
Proposition
65 Warning . . . . . . . . . .285, 309, 360,
Back Cover
Canadian Vehicle Owners . . . . . . . . 2
Capacities and Specifications . . . . . . . . . . . . . . . . . 392
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 206
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 42
Winter Driving . . . . . . . . . . . . . . . . 189
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . .110
Tie-Downs . . . . . . . . . . . . . . . . . . . . . 111
Caution, Danger, and Warning . . . . 3
Center Console Storage . . . . . . . . 109
Chains, Tire . . . . . . . . . . . . . . . . . . . . 345
Charging Wireless . . . . . . . . . . . . . . . . . . . . . . .118
Charging System Light . . . . . . . . . 133
Check Engine Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . 133
Child Restraints Infants and Young Children . . . . . 93
Lower Anchors and Tethers
for Children . . . . . . . . . . . . . . . . . . . 98
Older Children . . . . . . . . . . . . . . . . . . 91

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico-12146071) - 2019 - crc - 7/27/18
Index 425
Flashers, Hazard Warning . . . . . . 164
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 345Changing . . . . . . . . . . . . . . . . . . . . . 354
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 375
Fluid Automatic Transmission . . . . . . 299
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 308
Diesel Exhaust . . . . . . . . . . . . . . . . . 28
Washer . . . . . . . . . . . . . . . . . . . . . . . 307
Fog Lamps . . . . . . . . . . . . . . . . . . . . . 165
Folding Mirrors . . . . . . . . . . . . . . . . . . 51
Folding Seatback . . . . . . . . . . . . . . . . 66
Forward Automatic Braking . . . . . 252
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 250
Frequency Statement
Radio . . . . . . . . . . . . . . . . . . . . . . . . . 405
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Front Pedestrian Braking (FPB) System . . . . . . . . . . . . . . . . . 253
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . 60
Heated and Ventilated . . . . . . . . . . 65
Front Turn Signal Lamps . . . . . . . 315
Fuel
Additives . . . . . . . . . . . . . . . . 261, 262
Biodiesel . . . . . . . . . . . . . . . . . . . . . 263 Fuel (cont'd)
Cold Weather Operation . . . . . . 264
Diesel Engines . . . . . . . . . . . . . . . 262
Economy Driving . . . . . . . . . . . . . . . 27
Filling a Portable Fuel
Container . . . . . . . . . . . . . . 272, 273
Filling the Tank . . . . . . . . . . 268, 270
Filter Replacement . . . . . . . . . . . 268
Foreign Countries . . . . . . . . . . . . 261
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 129
Low Fuel Warning Light . . . . . . . 140
Prohibited Fuels . . . . . . . . . . . . . . 261
Recommended . . . . . . . . . . . . . . . 260
Running out of Fuel . . . . . . . . . . . 267
Top Tier . . . . . . . . . . . . . . . . . . . . . . 260
Water in Fuel . . . . . . . . . . . . . . . . . 264
Fuel for Diesel Engines . . . . . . . . . 262
Fuses Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 318
Fuses and Circuit Breakers . . . 318
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 321
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 323G
Garage Door Opener . . . . . . . . . . . 157Programming . . . . . . . . . . . . . . . . . 157
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 313
Gauges Engine CoolantTemperature . . . . . . . . . . . . . . . . 130
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Odometer . . . . . . . . . . . . . . . . . . . . . 128
Speedometer . . . . . . . . . . . . . . . . . 128
Tachometer . . . . . . . . . . . . . . . . . . . 128
Trip Odometer . . . . . . . . . . . . . . . . 128
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . 121
General Information Service and Maintenance . . . . . 376
Towing . . . . . . . . . . . . . . . . . . . . . . . . 273
Vehicle Care . . . . . . . . . . . . . . . . . . 285
Glove Box . . . . . . . . . . . . . . . . . . . . . . 109
GM Mobility Reimbursement
Program . . . . . . . . . . . . . . . . . . . . . . . 399
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 314
Hazard Warning Flashers . . . . . . . 164
Head Restraints . . . . . . . . . . . . . . . . . 58
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . 314

GMC Terrain/Terrain Denali Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico-12146071) - 2019 - crc - 7/27/18
426 Index
Headlamps (cont'd)Automatic . . . . . . . . . . . . . . . . . . . . . 164
Bulb Replacement . . . . . . . . . . . . 314
Daytime Running
Lamps (DRL) . . . . . . . . . . . . . . . . 163
Flash-to-Pass . . . . . . . . . . . . . . . . . 163
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . 315
High-Beam On Light . . . . . . . . . . 141
High/Low Beam Changer . . . . . 163
Lamps On Reminder . . . . . . . . . 141
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . 70
Steering Wheel . . . . . . . . . . . . . . . .114
Heated and Ventilated Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Heated Mirrors . . . . . . . . . . . . . . . . . . . 51
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . 200
Heating . . . . . . . . . . . . . . . . . . . . 170, 172
High-Beam On Light . . . . . . . . . . . . 141
Hill and Mountain Roads . . . . . . . . 188
Hill Descent Control (HDC) . . . . . 225
Hill Descent Control Light . . . . . . . 137
Hill Start Assist (HSA) . . . . . . . . . . 221
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114 How to Wear Seat Belts
Properly . . . . . . . . . . . . . . . . . . . . . . . . 72
HVAC . . . . . . . . . . . . . . . . . . . . . . 170, 172
I
Ignition Positions . . . . . . . . . . . . . . . 195
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 49
Indicator Pedestrian Ahead . . . . . . . . . . . . 137
Vehicle Ahead . . . . . . . . . . . . . . . . 137
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . 93
Information Publication Ordering . . . . . . . . . . 404
Infotainment . . . . . . . . . . . . . . . . . . . . 169
Infotainment System . . . . . . . . . . . . 408
Instrument Cluster . . . . . . . . . 122, 125
Interior Rearview Mirrors . . . . . . . . . 52
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . . . 360
K
Keyless EntryRemote (RKE) System . . . . . . . . . 30
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
L
Labeling, Tire Sidewall . . . . . . . . . . 327
Lamps
Courtesy . . . . . . . . . . . . . . . . . . . . . . 166
Daytime Running (DRL) . . . . . . 163
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 166
Exterior Controls . . . . . . . . . . . . . . 161
Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 168
Front Turn Signal . . . . . . . . . . . . . 315
License Plate . . . . . . . . . . . . . . . . . 316
Malfunction Indicator
(Check Engine) . . . . . . . . . . . . . 133
On Reminder . . . . . . . . . . . . . . . . . 141
Reading . . . . . . . . . . . . . . . . . . . . . . 167
Taillamps . . . . . . . . . . . . . . . . . . . . . 316
Lane Change Alert (LCA) . . . . . . . 256
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 258
Lane Keep Assist (LKA) . . . . . . . . 258
Lane Keep Assist Light . . . . . . . . . 137
Lap-Shoulder Belt . . . . . . . . . . . . . . . 74
LATCH System Replacing Parts after a
Crash . . . . . . . . . . . . . . . . . . . . . . . 103
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . 98
LED Lighting . . . . . . . . . . . . . . . . . . . . 315
