360 OnStar
Languages
The vehicle can be programmed to respond
in multiple languages. Press
Qand ask for
an Advisor. Advisors are available in English,
Spanish, and French. Available languages
may vary by country.
Potential Issues
OnStar cannot perform Remote Door Unlock
or Stolen Vehicle Assistance after the vehicle
has been off continuously for 10 days
without an ignition cycle. If the vehicle has
not been started for 10 days, OnStar can
contact Roadside Assistance or a locksmith
to help gain access to the vehicle.
Global Positioning System (GPS)
.Obstruction of the GPS can occur in a
large city with tall buildings; in parking
garages; around airports; in tunnels and
underpasses; or in an area with very
dense trees. If GPS signals are not
available, the OnStar system should still
operate to call OnStar. However, OnStar
could have difficulty identifying the exact
location.
.In emergency situations, OnStar can use
the last stored GPS location to send to
emergency responders. A temporary loss of GPS can cause loss of
the ability to send a Turn-by-Turn
Navigation route. The Advisor may give a
verbal route or may ask for a call back after
the vehicle is driven into an open area.
Cellular and GPS Antennas
Cellular reception is required for OnStar to
send remote signals to the vehicle. Do not
place items over or near the antenna to
prevent blocking cellular and GPS signal
reception.
Unable to Connect to OnStar Message
If there is limited cellular coverage or the
cellular network has reached maximum
capacity, this message may come on. Press
Qto try the call again or try again after
driving a few miles into another
cellular area.
Vehicle and Power Issues
OnStar services require a vehicle electrical
system, wireless service, and GPS satellite
technologies to be available and operating
for features to function properly. These
systems may not operate if the battery is
discharged or disconnected.
Add-on Electrical Equipment
The OnStar system is integrated into the
electrical architecture of the vehicle. Do not
add any electrical equipment. See Add-On
Electrical Equipment 0256. Added electrical
equipment may interfere with the operation
of the OnStar system and cause it to not
operate.
Vehicle Software Updates
OnStar or GM may remotely deliver
software updates or changes to the vehicle
without further notice or consent. These
updates or changes may enhance or
maintain safety, security, or the operation
of the vehicle or the vehicle systems.
Software updates or changes may affect or
erase data or settings that are stored in the
vehicle, such as saved navigation
destinations or pre-set radio stations.
Neither OnStar nor GM is responsible for
any affected or erased data or settings.
These updates or changes may also collect
personal information. Such collection is
described in the OnStar privacy statement or
separately disclosed at the time of
installation. These updates or changes may
also cause a system to automatically
communicate with GM servers to collect
information about vehicle system status,

GMC Terrain/Terrain Denali Owner Manual(GMNA-Localizing-U.S./Canada/
Mexico-14420055) - 2021 - CRC - 11/13/20
362 Connected Services
Connected Services
Connected Services
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 362
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 363
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . 364
Connected Services
Navigation
Navigation requires a specific OnStar or
connected service plan.
Press
Qto receive Turn-by-Turn directions
or have them sent to the vehicle’s
navigation screen, if equipped.
Turn-by-Turn Navigation
1. PressQto connect to an Advisor.
2. Request directions to be downloaded to the vehicle.
3. Follow the voice-guided commands.
Using Voice Commands During a
Planned Route
Functionality of the Voice Command button,
if equipped, may vary by vehicle and region.
For some vehicles, press
=to open the
OnStar app on the infotainment display. For
other vehicles press
=as follows.
Cancel Route 1. Press
=. System responds: “OnStar
ready,” then a tone. 2. Say
“Cancel route.” System responds:
“Do you want to cancel directions?”
3. Say “Yes.”System responds: “OK, request
completed, thank you, goodbye.”
Route Preview
1. Press
=. System responds: “OnStar
ready,” then a tone.
2. Say “Route preview.” System responds
with the next three maneuvers.
Repeat
1. Press
=. System responds: “OnStar
ready,” then a tone.
2. Say “Repeat.” System responds with the
last direction given, then responds with
“OnStar ready,” then a tone.
Get My Destination
1. Press
=. System responds: “OnStar
ready,” then a tone.
2. Say “Get my destination.” System
responds with the address and distance
to the destination, then responds with
“OnStar ready,” then a tone.
Send Destination to Vehicle
Directions can be sent to the vehicle’s
navigation screen, if equipped.

GMC Terrain/Terrain Denali Owner Manual(GMNA-Localizing-U.S./Canada/
Mexico-14420055) - 2021 - CRC - 11/13/20
Connected Services 363
PressQ, then ask the Advisor to download
directions to the vehicle’s navigation system,
if equipped. After the call ends, the
navigation screen will provide prompts to
begin driving directions. Routes that are sent
to the navigation screen can only be
canceled through the navigation system.
See www.onstar.com (U.S.) or www.onstar.ca
(Canada).
Connections
The following services help with staying
connected.
For coverage maps, see www.onstar.com
(U.S.) or www.onstar.ca (Canada).
Ensuring Security
.Change the default passwords for the
Wi-Fi hotspot and myGMC mobile
application. Make these passwords
different from each other and use a
combination of letters and numbers to
increase the security.
.Change the default name of the SSID
(Service Set Identifier). This is your
network’s name that is visible to other
wireless devices. Choose a unique name
and avoid family names or vehicle
descriptions. Wi-Fi Hotspot (If Equipped)
The vehicle may have a built-in Wi-Fi
hotspot that provides access to the Internet
and web content at 4G LTE speed. Up to
seven mobile devices can be connected.
A data plan is required. Use the in-vehicle
controls only when it is safe to do so.
1. To retrieve Wi-Fi hotspot information, press
=to open the OnStar app on the
infotainment display, then select Wi-Fi
Hotspot. On some vehicles, touch Wi-Fi
or Wi-Fi Settings on the screen.
2. The Wi-Fi settings will display the Wi-Fi hotspot name (SSID), password, and on
some vehicles, the connection type (no
Internet connection, 3G, 4G, 4G LTE), and
signal quality (poor, good, excellent). The
LTE icon shows connection to Wi-Fi. It is
possible that the icon may not illuminate
even though the vehicle has an active
connection.
3. To change the SSID or password, press
Qor call 1-888-4ONSTAR to connect
with an Advisor. On some vehicles, the
SSID and password can be changed in
the Wi-Fi Hotspot menu. After initial set-up, your vehicle’s Wi-Fi
hotspot will connect automatically to your
mobile devices. Manage data usage by
turning Wi-Fi on or off on your mobile
device, using the myGMC mobile app, or
by contacting an OnStar Advisor. On some
vehicles, Wi-Fi can also be managed from
the Wi-Fi Hotspot menu.
MyGMC Mobile App (If Available)
Download the myGMC mobile app to
compatible Apple and Android smartphones.
GMC users can access the following services
from a smartphone:
.Remotely start/stop the vehicle,
if factory-equipped.
.Lock/unlock doors, if equipped with
automatic locks.
.Activate the horn and lamps.
.Check the vehicle’s fuel level, oil life,
or tire pressure, if factory-equipped with
the Tire Pressure Monitor System.
.Send destinations to the vehicle.
.Locate the vehicle on a map (U.S.
market only).
.Turn the vehicle's Wi-Fi hotspot on/off,
manage settings, and monitor data
consumption, if equipped.
.Locate a dealer and schedule service.

GMC Terrain/Terrain Denali Owner Manual(GMNA-Localizing-U.S./Canada/-
Mexico-14420055) - 2021 - CRC - 11/13/20
Index 367
Climate Control Systems (cont'd)Dual Automatic . . . . . . . . . . . . . . . . . . . . . . . . 180
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Cluster, Instrument . . . . . . . . . . . . . . . . . . . 85, 88
Collision Damage Repair . . . . . . . . . . . . . . . . . 352
Compact Spare Tire . . . . . . . . . . . . . . . . . . . . . . . 315
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Compressor Kit, Tire Sealant . . . . . . . . . . . . . 305
Connected Services Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 363
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . 364
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 362
Connections
Connected Services . . . . . . . . . . . . . . . . . . . . 363
Control Hill Descent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Traction and Electronic Stability . . . . . . . 214
Control Light
Hill Descent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Control of a Vehicle . . . . . . . . . . . . . . . . . . . . . 188
Controls Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . 126
Convenience Net . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Coolant
Engine Temperature Gauge . . . . . . . . . . . . . 91
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178, 180
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Courtesy Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Courtesy Transportation Program . . . . . . . . . 351
Cover Cargo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Coverage Explanations . . . . . . . . . . . . . . . . . . . 150
Covers Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 220 Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Cruise Control, Adaptive . . . . . . . . . . . . . . . . . 222
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Customer Assistance . . . . . . . . . . . . . . . . . . . . . 348 Offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
Text Telephone (TTY) Users . . . . . . . . . . . . 348
Customer Information Publications Ordering Information . . . . . 353
Customer Satisfaction Procedure . . . . . . . . . 346
Cybersecurity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355
D
Damage Repair, Collision . . . . . . . . . . . . . . . . . 352
Danger, Warning, and Caution . . . . . . . . . . . . . .2
Data Collection
Infotainment System . . . . . . . . . . . . . . . . . . 356 Data Collection (cont'd)
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
Data Recorders, Event . . . . . . . . . . . . . . . . . . . 356
Database Coverage Explanations . . . . . . . . . 150
Daytime Running Lamps (DRL) . . . . . . . . . . . . 118
Defensive Driving . . . . . . . . . . . . . . . . . . . . . . . . .187
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142
Diagnostics Connected Services . . . . . . . . . . . . . . . . . . . . 364
Distracted Driving . . . . . . . . . . . . . . . . . . . . . . . . .187
Dome Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Door Ajar Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . 16
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Power Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Drive Belt Routing, Engine . . . . . . . . . . . . . . . 345
Drive Systems All-Wheel Drive . . . . . . . . . . . . . . . . . . . . 212, 274
Driver
Teen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Driver Assistance Systems . . . . . . . . . . . . . . . . 231
Driver Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Driver Information Center (DIC) . . . . . 100, 105
Driver Mode Control . . . . . . . . . . . . . . . . . . . . . .218
Driving Assistance Systems . . . . . . . . . . . . . . . . . . . . 237

GMC Terrain/Terrain Denali Owner Manual(GMNA-Localizing-U.S./Canada/-
Mexico-14420055) - 2021 - CRC - 11/13/20
Index 371
Lower Anchors and Tethers forChildren (LATCH System) . . . . . . . . . . . . . . . . 63
Lumbar Adjustment . . . . . . . . . . . . . . . . . . . . . . . .32 Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
Maintenance and Care Additional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . 331 Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339
Malfunction Indicator Lamp . . . . . . . . . . . . . . . 93
Manual Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Map Data Updates . . . . . . . . . . . . . . . . . . . . . . . 149
Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Media Avoiding Untrusted Devices . . . . . . . . . . . . 134
Memory Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Messages Engine Power . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Mirrors Automatic Dimming . . . . . . . . . . . . . . . . . . . . 25
Automatic Dimming Rearview . . . . . . . . . . 25
Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Mirrors (cont'd)
Folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Manual Rearview . . . . . . . . . . . . . . . . . . . . . . . 25
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Tilt in Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Mirrors, Interior Rearview . . . . . . . . . . . . . . . . . .25
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .218
Driver Control . . . . . . . . . . . . . . . . . . . . . . . . . 218
Monitor System, Tire Pressure . . . . . . . . . . . 294
Multi-band Antenna . . . . . . . . . . . . . . . . . . . . . . 133
N
Navigation Connected Services . . . . . . . . . . . . . . . . . . . . 362
Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Using the System . . . . . . . . . . . . . . . . . . . . . . 138
Navigation Symbols . . . . . . . . . . . . . . . . . . . . . . 141
Net, Convenience . . . . . . . . . . . . . . . . . . . . . . . . . 76
New Vehicle Break-In . . . . . . . . . . . . . . . . . . . . 199
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Off-Road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190 Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Oil Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262 Oil (cont'd)
Engine Oil Life System . . . . . . . . . . . . . . . . . 264
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Older Children, Restraints . . . . . . . . . . . . . . . . . .57
Online Owner Center . . . . . . . . . . . . . . . . . . . . 348
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
OnStar Additional Information . . . . . . . . . . . 358
OnStar Emergency . . . . . . . . . . . . . . . . . . . . . . . 358
OnStar Overview . . . . . . . . . . . . . . . . . . . . . . . . . 357
OnStar Security . . . . . . . . . . . . . . . . . . . . . . . . . . 358
OnStar System . . . . . . . . . . . . . . . . . . . . . . 137, 148
Operation Fog Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Overheating, Engine . . . . . . . . . . . . . . . . . . . . . 270
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124
Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . 4
P
ParkShifting Into . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Shifting Out of . . . . . . . . . . . . . . . . . . . . . . . . 205
Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Parking Brake and P (Park) Mechanism
Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Extended . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

GMC Terrain/Terrain Denali Owner Manual(GMNA-Localizing-U.S./Canada/-
Mexico-14420055) - 2021 - CRC - 11/13/20
374 Index
Storage Areas (cont'd)Center Console . . . . . . . . . . . . . . . . . . . . . . . . . 75
Convenience Net . . . . . . . . . . . . . . . . . . . . . . . . 76
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Roof Rack System . . . . . . . . . . . . . . . . . . . . . . . 76
Sunglasses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Storage Compartments . . . . . . . . . . . . . . . . . . . 74
Storing the Tire Sealant and
Compressor Kit . . . . . . . . . . . . . . . . . . . . . . . . . 310
Struts Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
Stuck Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Summer Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Sunglass Storage . . . . . . . . . . . . . . . . . . . . . . . . . 74
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
System Engine Air Filter Life . . . . . . . . . . . . . . . . . . . 265
Forward Collision Alert (FCA) . . . . . . . . . . . 237
Global Positioning . . . . . . . . . . . . . . . . . . . . . 148
Infotainment . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Roof Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Systems
Driver Assistance . . . . . . . . . . . . . . . . . . . . . . 231T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Taillamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Teen Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Text Telephone (TTY) Users . . . . . . . . . . . . . . 348
Theft-Deterrent Systems . . . . . . . . . . . . . . . . . . .23Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287 All-Season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . 300
Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310
Compact Spare . . . . . . . . . . . . . . . . . . . . . . . . 315
Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Different Size . . . . . . . . . . . . . . . . . . . . . . . . . . 301
If a Tire Goes Flat . . . . . . . . . . . . . . . . . . . . . 303
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Pressure Monitor Operation . . . . . . . . . . . 295
Pressure Monitor System . . . . . . . . . . . . . . 294
Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
Sealant and Compressor Kit . . . . . . . . . . . . 305
Sealant and Compressor Kit,
Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310
Sidewall Labeling . . . . . . . . . . . . . . . . . . . . . . 288
Terminology and Definitions . . . . . . . . . . . 291 Tires (cont'd)
Uniform Tire Quality Grading . . . . . . . . . . 301
Wheel Alignment and Tire Balance . . . . 302
Wheel Replacement . . . . . . . . . . . . . . . . . . . . 302
When It Is Time for New Tires . . . . . . . . . 299
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Top Tier Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Tow/Haul Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Tow/Haul Mode Light . . . . . . . . . . . . . . . . . . . . 96
Towing
Driving Characteristics . . . . . . . . . . . . . . . . . 249
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
General Information . . . . . . . . . . . . . . . . . . . 248
Recreational Vehicle . . . . . . . . . . . . . . . . . . . 320
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318
Traction Control System (TCS)/StabiliTrakLight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Off Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Traction Control/Electronic Stability
Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .214
Trademarks and License Agreements . . . . . 169
Trailer Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Transmission
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Fluid, Automatic . . . . . . . . . . . . . . . . . . . . . . . 265

GMC Terrain/Terrain Denali Owner Manual(GMNA-Localizing-U.S./Canada/-
Mexico-14420055) - 2021 - CRC - 11/13/20

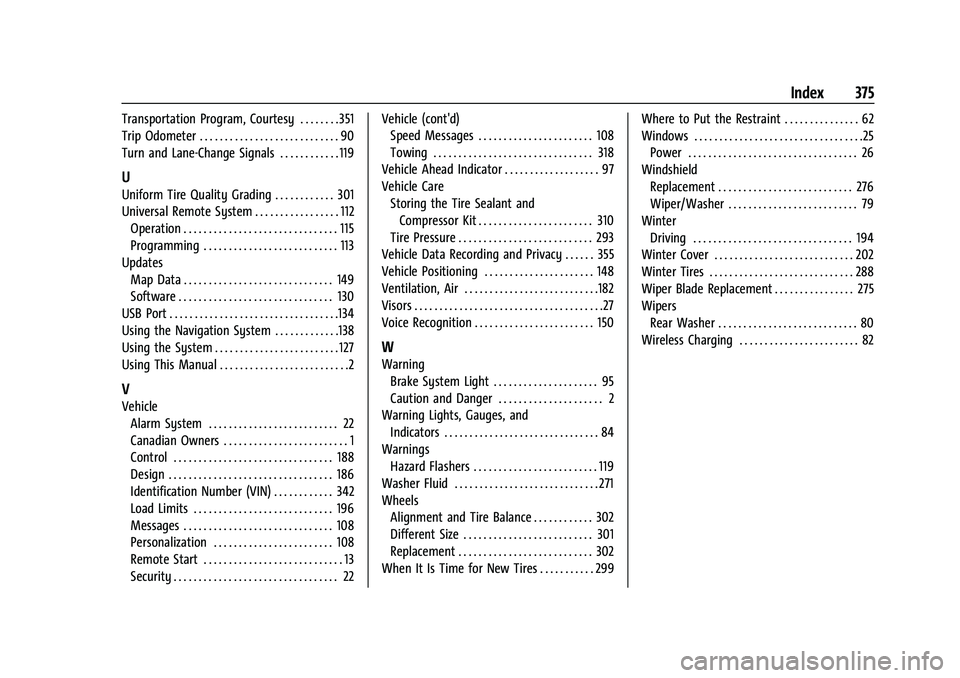

Index 375
Transportation Program, Courtesy . . . . . . . . 351
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Turn and Lane-Change Signals . . . . . . . . . . . . 119
U
Uniform Tire Quality Grading . . . . . . . . . . . . 301
Universal Remote System . . . . . . . . . . . . . . . . . 112Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Updates Map Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .134
Using the Navigation System . . . . . . . . . . . . .138
Using the System . . . . . . . . . . . . . . . . . . . . . . . . . 127
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . .2
V
Vehicle Alarm System . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Canadian Owners . . . . . . . . . . . . . . . . . . . . . . . . . 1
Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Identification Number (VIN) . . . . . . . . . . . . 342
Load Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Personalization . . . . . . . . . . . . . . . . . . . . . . . . 108
Remote Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Vehicle (cont'd)
Speed Messages . . . . . . . . . . . . . . . . . . . . . . . 108
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318
Vehicle Ahead Indicator . . . . . . . . . . . . . . . . . . . 97
Vehicle Care Storing the Tire Sealant andCompressor Kit . . . . . . . . . . . . . . . . . . . . . . . 310
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
Vehicle Data Recording and Privacy . . . . . . 355
Vehicle Positioning . . . . . . . . . . . . . . . . . . . . . . 148
Ventilation, Air . . . . . . . . . . . . . . . . . . . . . . . . . . .182
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Voice Recognition . . . . . . . . . . . . . . . . . . . . . . . . 150
W
Warning Brake System Light . . . . . . . . . . . . . . . . . . . . . 95
Caution and Danger . . . . . . . . . . . . . . . . . . . . . 2
Warning Lights, Gauges, and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Warnings Hazard Flashers . . . . . . . . . . . . . . . . . . . . . . . . . 119
Washer Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Wheels Alignment and Tire Balance . . . . . . . . . . . . 302
Different Size . . . . . . . . . . . . . . . . . . . . . . . . . . 301
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 302
When It Is Time for New Tires . . . . . . . . . . . 299 Where to Put the Restraint . . . . . . . . . . . . . . . 62
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Windshield Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
Wiper/Washer . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Winter
Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Winter Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Winter Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Wiper Blade Replacement . . . . . . . . . . . . . . . . 275
Wipers Rear Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Wireless Charging . . . . . . . . . . . . . . . . . . . . . . . . 82
