radio controls GMC YUKON 2004 User Guide

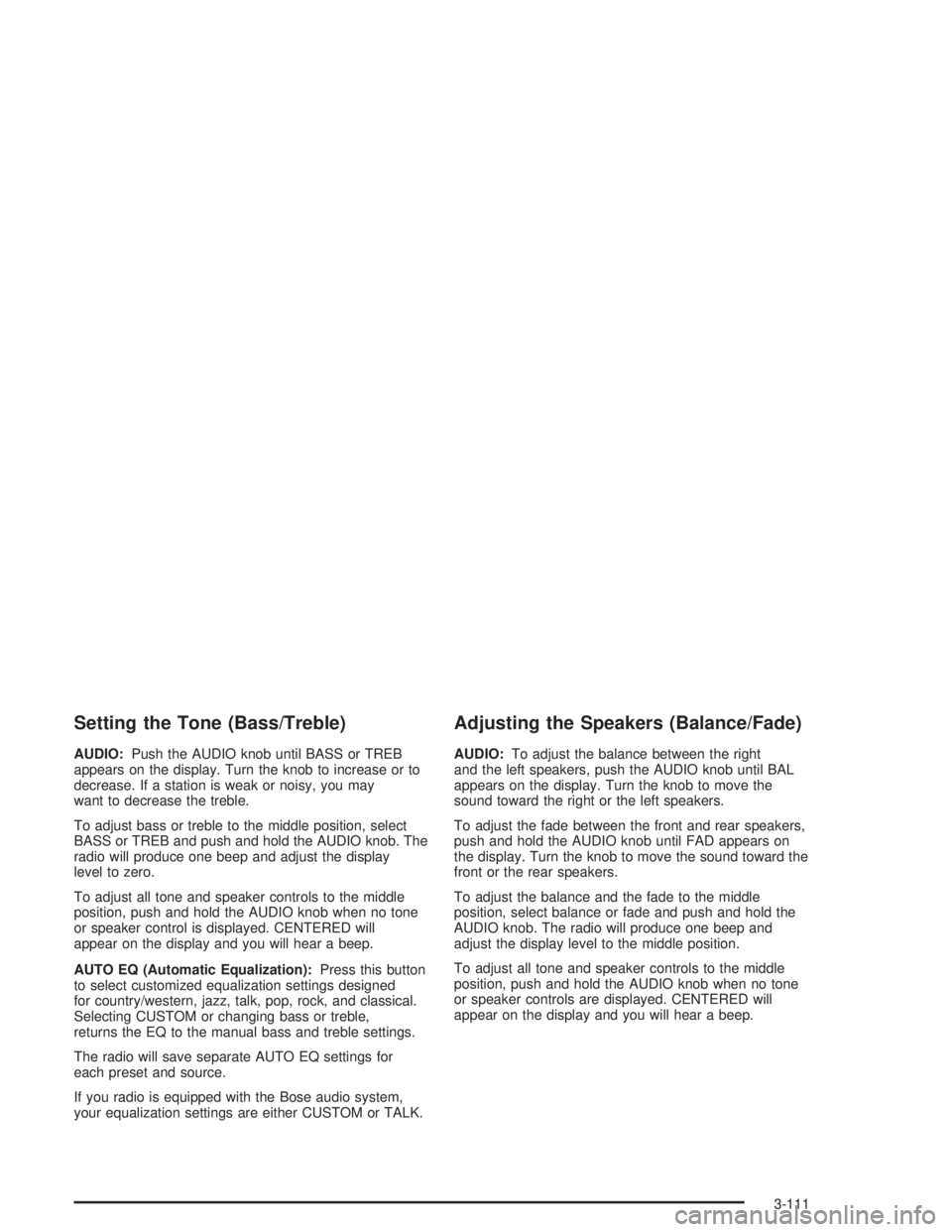

Setting the Tone (Bass/Treble)
AUDIO:Push the AUDIO knob until BASS or TREB
appears on the display. Turn the knob to increase or to
decrease. If a station is weak or noisy, you may
want to decrease the treble.
To adjust bass or treble to the middle position, select
BASS or TREB and push and hold the AUDIO knob. The
radio will produce one beep and adjust the display
level to zero.
To adjust all tone and speaker controls to the middle
position, push and hold the AUDIO knob when no tone
or speaker control is displayed. CENTERED will
appear on the display and you will hear a beep.
AUTO EQ (Automatic Equalization):Press this button
to select customized equalization settings designed
for country/western, jazz, talk, pop, rock, and classical.
Selecting CUSTOM or changing bass or treble,
returns the EQ to the manual bass and treble settings.
The radio will save separate AUTO EQ settings for
each preset and source.
If you radio is equipped with the Bose audio system,
your equalization settings are either CUSTOM or TALK.
Adjusting the Speakers (Balance/Fade)
AUDIO:To adjust the balance between the right
and the left speakers, push the AUDIO knob until BAL
appears on the display. Turn the knob to move the
sound toward the right or the left speakers.
To adjust the fade between the front and rear speakers,
push and hold the AUDIO knob until FAD appears on
the display. Turn the knob to move the sound toward the
front or the rear speakers.
To adjust the balance and the fade to the middle
position, select balance or fade and push and hold the
AUDIO knob. The radio will produce one beep and
adjust the display level to the middle position.
To adjust all tone and speaker controls to the middle
position, push and hold the AUDIO knob when no tone
or speaker controls are displayed. CENTERED will
appear on the display and you will hear a beep.
3-111

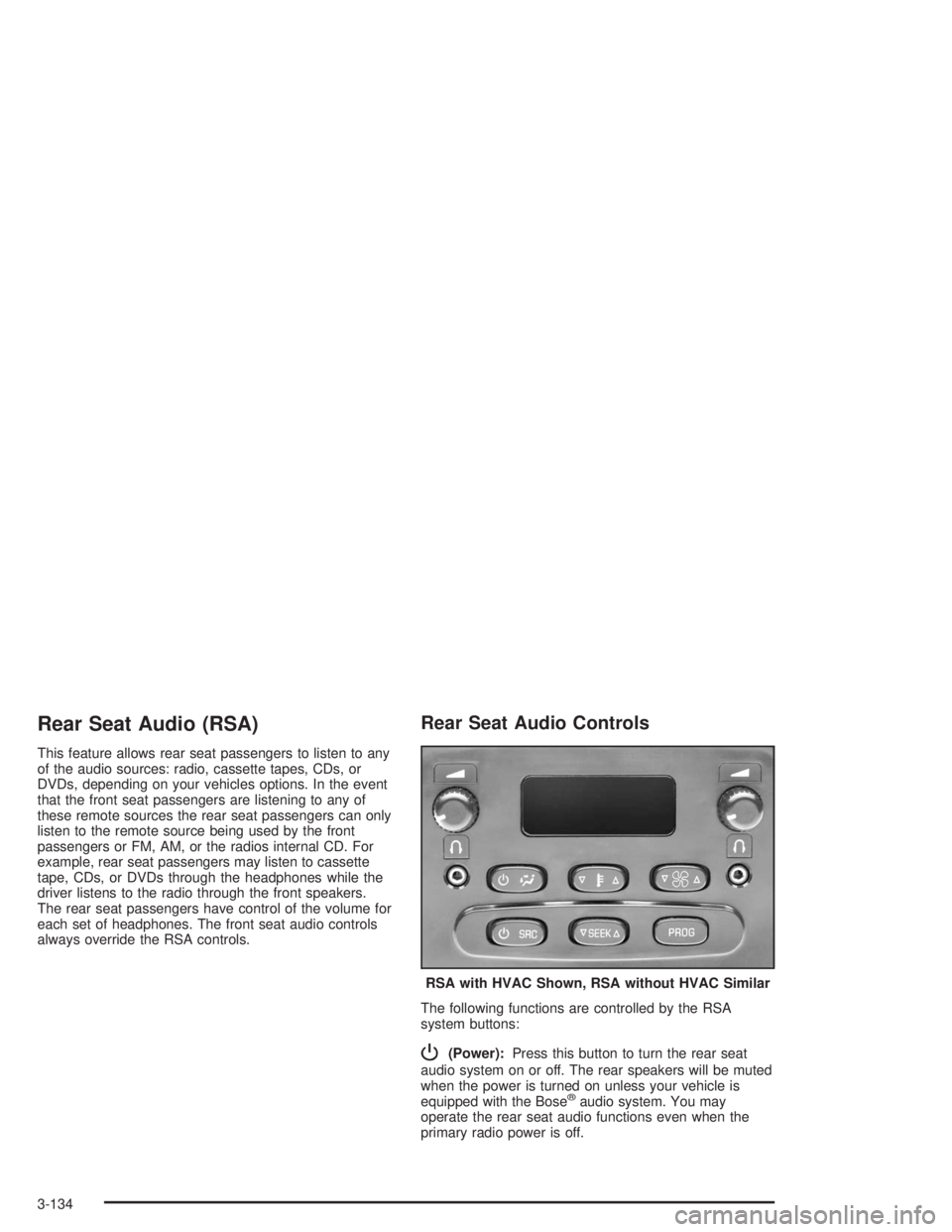

Rear Seat Audio (RSA)
This feature allows rear seat passengers to listen to any
of the audio sources: radio, cassette tapes, CDs, or
DVDs, depending on your vehicles options. In the event
that the front seat passengers are listening to any of
these remote sources the rear seat passengers can only
listen to the remote source being used by the front
passengers or FM, AM, or the radios internal CD. For
example, rear seat passengers may listen to cassette
tape, CDs, or DVDs through the headphones while the
driver listens to the radio through the front speakers.
The rear seat passengers have control of the volume for
each set of headphones. The front seat audio controls
always override the RSA controls.
Rear Seat Audio Controls
The following functions are controlled by the RSA
system buttons:
P(Power):Press this button to turn the rear seat
audio system on or off. The rear speakers will be muted
when the power is turned on unless your vehicle is
equipped with the Bose
®audio system. You may
operate the rear seat audio functions even when the
primary radio power is off.RSA with HVAC Shown, RSA without HVAC Similar
3-134

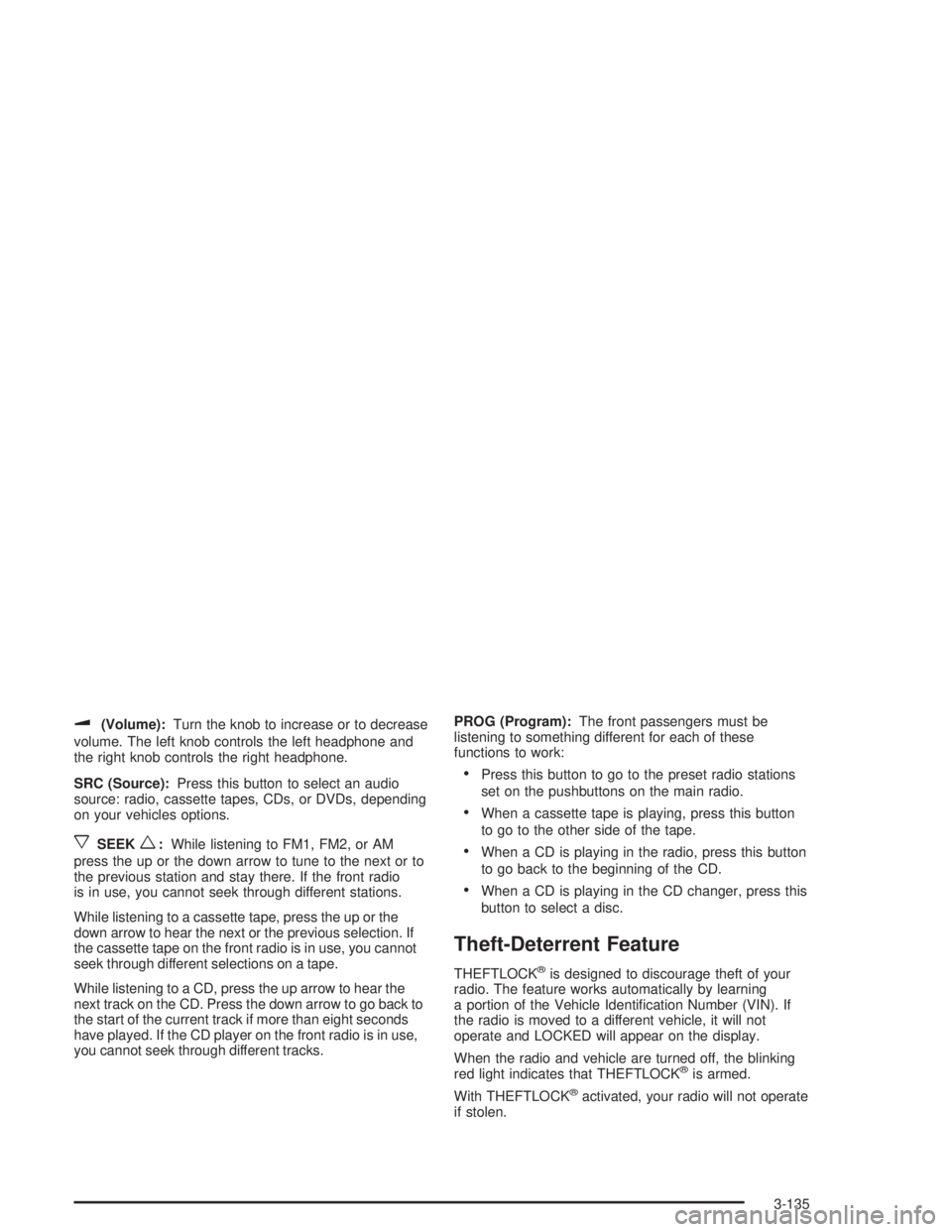

u(Volume):Turn the knob to increase or to decrease
volume. The left knob controls the left headphone and
the right knob controls the right headphone.
SRC (Source):Press this button to select an audio
source: radio, cassette tapes, CDs, or DVDs, depending
on your vehicles options.
xSEEKw:While listening to FM1, FM2, or AM
press the up or the down arrow to tune to the next or to
the previous station and stay there. If the front radio
is in use, you cannot seek through different stations.
While listening to a cassette tape, press the up or the
down arrow to hear the next or the previous selection. If
the cassette tape on the front radio is in use, you cannot
seek through different selections on a tape.
While listening to a CD, press the up arrow to hear the
next track on the CD. Press the down arrow to go back to
the start of the current track if more than eight seconds
have played. If the CD player on the front radio is in use,
you cannot seek through different tracks.PROG (Program):The front passengers must be
listening to something different for each of these
functions to work:
Press this button to go to the preset radio stations
set on the pushbuttons on the main radio.
When a cassette tape is playing, press this button
to go to the other side of the tape.
When a CD is playing in the radio, press this button
to go back to the beginning of the CD.
When a CD is playing in the CD changer, press this
button to select a disc.
Theft-Deterrent Feature
THEFTLOCK®is designed to discourage theft of your
radio. The feature works automatically by learning
a portion of the Vehicle Identication Number (VIN). If
the radio is moved to a different vehicle, it will not
operate and LOCKED will appear on the display.
When the radio and vehicle are turned off, the blinking
red light indicates that THEFTLOCK
®is armed.
With THEFTLOCK
®activated, your radio will not operate
if stolen.
3-135

Audio Steering Wheel Controls
You can control certain radio functions using the buttons
on your steering wheel.
g(OnStar/Voice Recognition):If your vehicle has
OnStar®, you can press this button to interact with
the OnStar®system. See the OnStar®manual provided
with your vehicle for more information.
If your vehicle does not have OnStar
®, pressing this
button will mute the audio system.PROG (Program):Press this button to play a station
you have programmed on the radio preset pushbuttons
on the selected band.
If a cassette tape is playing, press this button to play
the other side of the tape.
If a CD is playing in the CD changer, press this button
to go to the next available CD.
QSOURCER:Press this button to select FM1,
FM2, AM, or XM1 or XM2, (48 contiguous US states, if
equipped), or a cassette tape or CD. The cassette
or CD must be loaded to play. Available loaded sources
are shown on the display as a tape or a CD symbol.
QSEEKR:Press the up or the down arrow to go to
the next or to the previous radio station and stay there.
If a cassette tape or CD is playing, the player will advance
with the up arrow and reverse with the down arrow.
QVOLR(Volume):Press the up or the down arrow
to increase or to decrease volume.
3-136

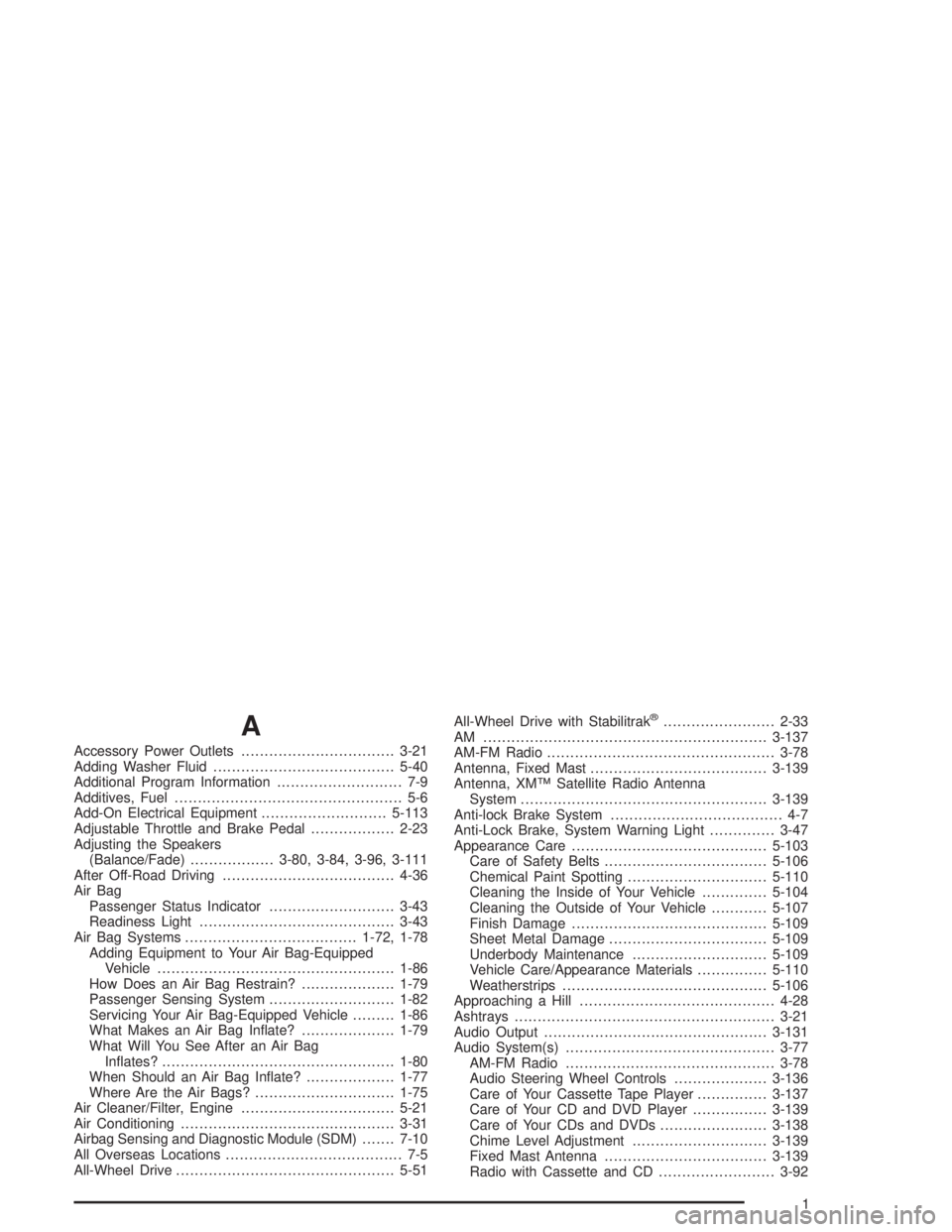

A
Accessory Power Outlets.................................3-21
Adding Washer Fluid.......................................5-40
Additional Program Information........................... 7-9
Additives, Fuel................................................. 5-6
Add-On Electrical Equipment...........................5-113
Adjustable Throttle and Brake Pedal..................2-23
Adjusting the Speakers
(Balance/Fade)..................3-80, 3-84, 3-96, 3-111
After Off-Road Driving.....................................4-36
Air Bag
Passenger Status Indicator...........................3-43
Readiness Light..........................................3-43
Air Bag Systems.....................................1-72, 1-78
Adding Equipment to Your Air Bag-Equipped
Vehicle...................................................1-86
How Does an Air Bag Restrain?....................1-79
Passenger Sensing System...........................1-82
Servicing Your Air Bag-Equipped Vehicle.........1-86
What Makes an Air Bag Inate?....................1-79
What Will You See After an Air Bag
Inates?..................................................1-80
When Should an Air Bag Inate?...................1-77
Where Are the Air Bags?..............................1-75
Air Cleaner/Filter, Engine.................................5-21
Air Conditioning..............................................3-31
Airbag Sensing and Diagnostic Module (SDM).......7-10
All Overseas Locations...................................... 7-5
All-Wheel Drive...............................................5-51All-Wheel Drive with Stabilitrak
®........................2-33
AM .............................................................3-137
AM-FM Radio.................................................3-78
Antenna, Fixed Mast......................................3-139
Antenna, XM™ Satellite Radio Antenna
System.....................................................3-139
Anti-lock Brake System..................................... 4-7
Anti-Lock Brake, System Warning Light..............3-47
Appearance Care..........................................5-103
Care of Safety Belts...................................5-106
Chemical Paint Spotting..............................5-110
Cleaning the Inside of Your Vehicle..............5-104
Cleaning the Outside of Your Vehicle............5-107
Finish Damage..........................................5-109
Sheet Metal Damage..................................5-109
Underbody Maintenance.............................5-109
Vehicle Care/Appearance Materials...............5-110
Weatherstrips............................................5-106
Approaching a Hill..........................................4-28
Ashtrays........................................................3-21
Audio Output................................................3-131
Audio System(s).............................................3-77
AM-FM Radio.............................................3-78
Audio Steering Wheel Controls....................3-136
Care of Your Cassette Tape Player...............3-137
Care of Your CD and DVD Player................3-139
Care of Your CDs and DVDs.......................3-138
Chime Level Adjustment.............................3-139
Fixed Mast Antenna...................................3-139
Radio with Cassette and CD.........................3-92
1

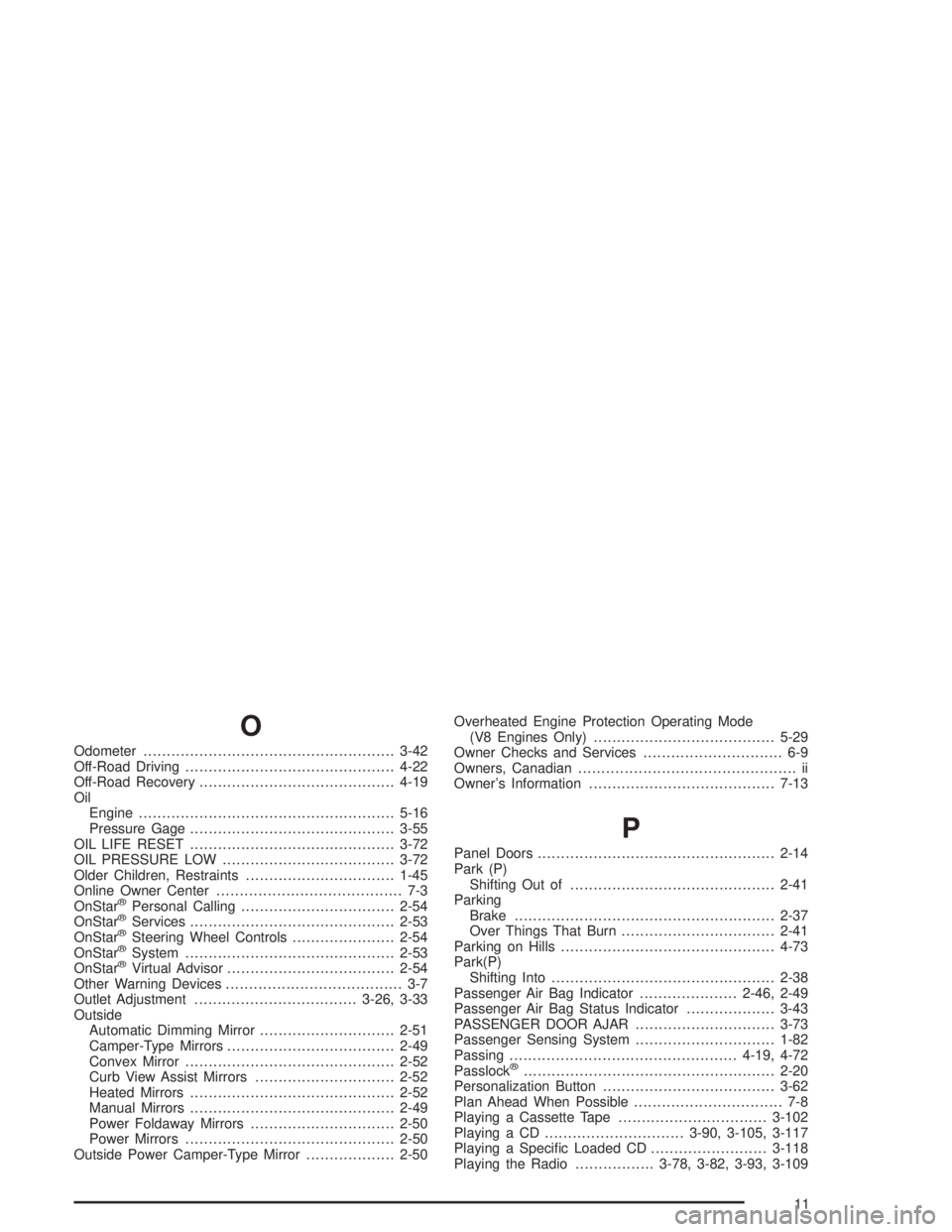

O
Odometer......................................................3-42
Off-Road Driving.............................................4-22
Off-Road Recovery..........................................4-19
Oil
Engine.......................................................5-16
Pressure Gage............................................3-55
OIL LIFE RESET............................................3-72
OIL PRESSURE LOW.....................................3-72
Older Children, Restraints................................1-45
Online Owner Center........................................ 7-3
OnStar
®Personal Calling.................................2-54
OnStar®Services............................................2-53
OnStar®Steering Wheel Controls......................2-54
OnStar®System.............................................2-53
OnStar®Virtual Advisor....................................2-54
Other Warning Devices...................................... 3-7
Outlet Adjustment...................................3-26, 3-33
Outside
Automatic Dimming Mirror.............................2-51
Camper-Type Mirrors....................................2-49
Convex Mirror.............................................2-52
Curb View Assist Mirrors..............................2-52
Heated Mirrors............................................2-52
Manual Mirrors............................................2-49
Power Foldaway Mirrors...............................2-50
Power Mirrors.............................................2-50
Outside Power Camper-Type Mirror...................2-50Overheated Engine Protection Operating Mode
(V8 Engines Only).......................................5-29
Owner Checks and Services.............................. 6-9
Owners, Canadian............................................... ii
Owner’s Information........................................7-13
P
Panel Doors...................................................2-14
Park (P)
Shifting Out of............................................2-41
Parking
Brake........................................................2-37
Over Things That Burn.................................2-41
Parking on Hills..............................................4-73
Park(P)
Shifting Into................................................2-38
Passenger Air Bag Indicator.....................2-46, 2-49
Passenger Air Bag Status Indicator...................3-43
PASSENGER DOOR AJAR..............................3-73
Passenger Sensing System..............................1-82
Passing.................................................4-19, 4-72
Passlock
®......................................................2-20
Personalization Button.....................................3-62
Plan Ahead When Possible................................ 7-8
Playing a Cassette Tape................................3-102
Playing a CD..............................3-90, 3-105, 3-117
Playing a Specic Loaded CD.........................3-118
Playing the Radio.................3-78, 3-82, 3-93, 3-109
11

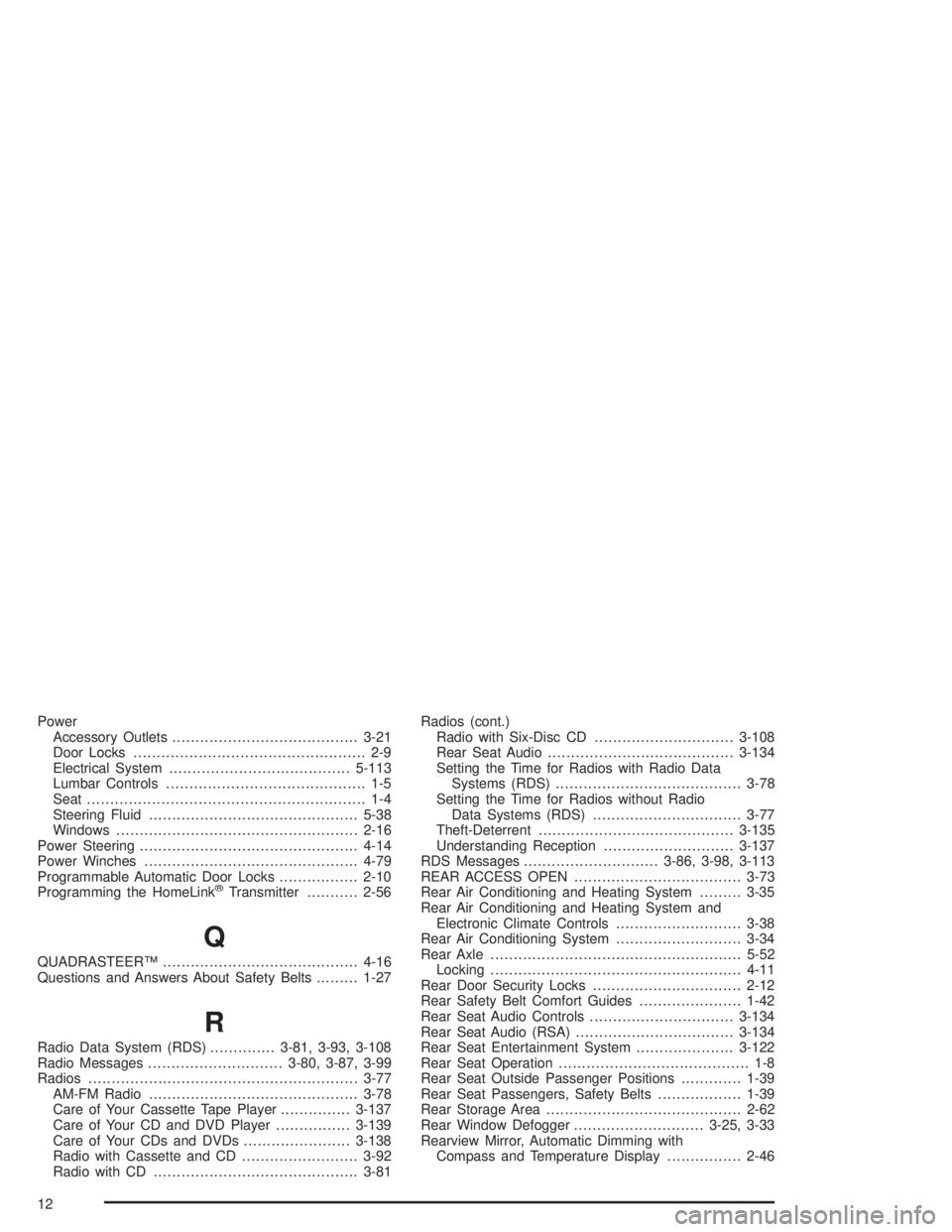

Power
Accessory Outlets........................................3-21
Door Locks.................................................. 2-9
Electrical System.......................................5-113
Lumbar Controls........................................... 1-5
Seat............................................................ 1-4
Steering Fluid.............................................5-38
Windows....................................................2-16
Power Steering...............................................4-14
Power Winches..............................................4-79
Programmable Automatic Door Locks.................2-10
Programming the HomeLink
®Transmitter...........2-56
Q
QUADRASTEER™..........................................4-16
Questions and Answers About Safety Belts.........1-27
R
Radio Data System (RDS)..............3-81, 3-93, 3-108
Radio Messages.............................3-80, 3-87, 3-99
Radios..........................................................3-77
AM-FM Radio.............................................3-78
Care of Your Cassette Tape Player...............3-137
Care of Your CD and DVD Player................3-139
Care of Your CDs and DVDs.......................3-138
Radio with Cassette and CD.........................3-92
Radio with CD............................................3-81Radios (cont.)
Radio with Six-Disc CD..............................3-108
Rear Seat Audio........................................3-134
Setting the Time for Radios with Radio Data
Systems (RDS)........................................3-78
Setting the Time for Radios without Radio
Data Systems (RDS)................................3-77
Theft-Deterrent..........................................3-135
Understanding Reception............................3-137
RDS Messages.............................3-86, 3-98, 3-113
REAR ACCESS OPEN....................................3-73
Rear Air Conditioning and Heating System.........3-35
Rear Air Conditioning and Heating System and
Electronic Climate Controls...........................3-38
Rear Air Conditioning System...........................3-34
Rear Axle......................................................5-52
Locking......................................................4-11
Rear Door Security Locks................................2-12
Rear Safety Belt Comfort Guides......................1-42
Rear Seat Audio Controls...............................3-134
Rear Seat Audio (RSA)..................................3-134
Rear Seat Entertainment System.....................3-122
Rear Seat Operation......................................... 1-8
Rear Seat Outside Passenger Positions.............1-39
Rear Seat Passengers, Safety Belts..................1-39
Rear Storage Area..........................................2-62
Rear Window Defogger............................3-25, 3-33
Rearview Mirror, Automatic Dimming with
Compass and Temperature Display................2-46
12

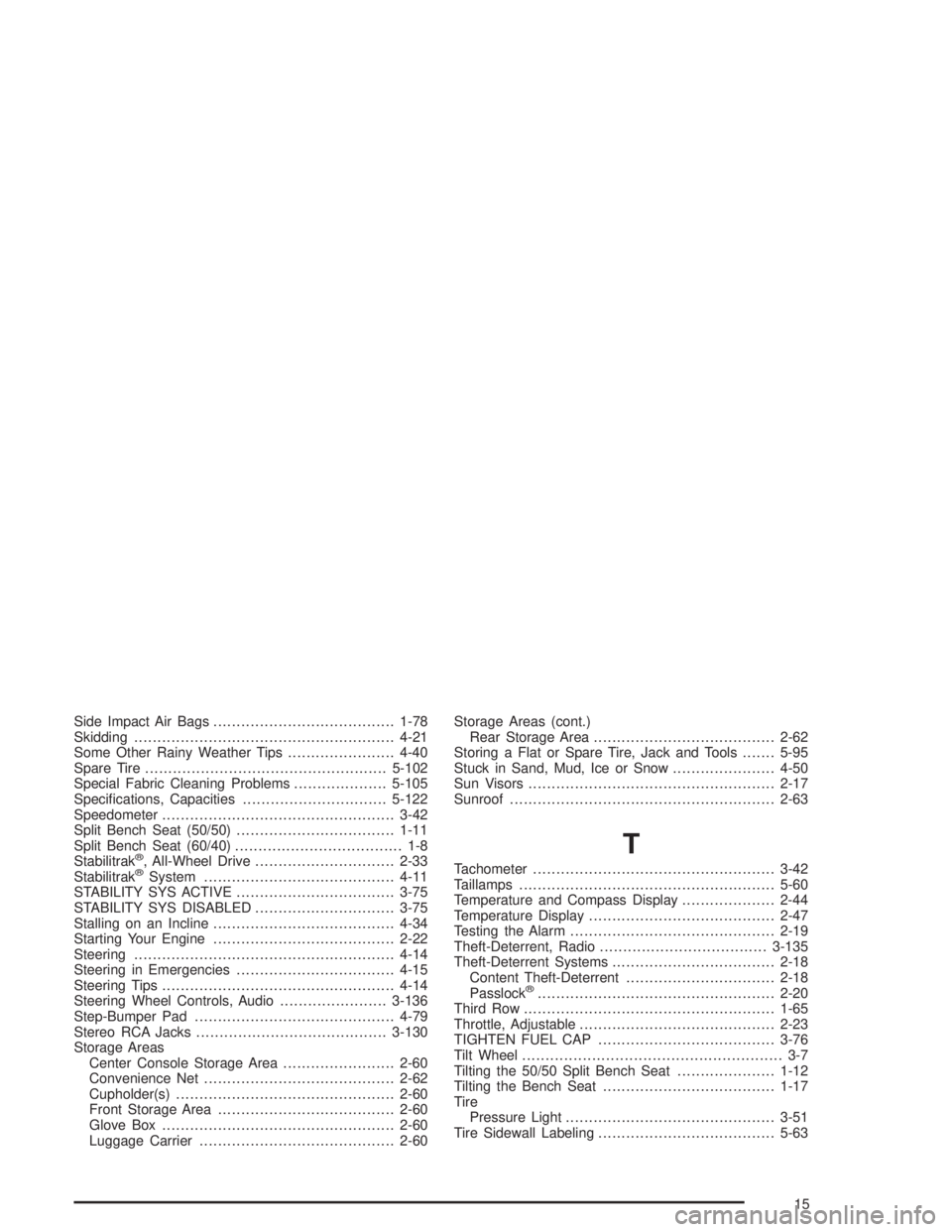

Side Impact Air Bags.......................................1-78
Skidding........................................................4-21
Some Other Rainy Weather Tips.......................4-40
Spare Tire....................................................5-102
Special Fabric Cleaning Problems....................5-105
Specications, Capacities...............................5-122
Speedometer..................................................3-42
Split Bench Seat (50/50)..................................1-11
Split Bench Seat (60/40).................................... 1-8
Stabilitrak
®, All-Wheel Drive..............................2-33
Stabilitrak®System.........................................4-11
STABILITY SYS ACTIVE..................................3-75
STABILITY SYS DISABLED..............................3-75
Stalling on an Incline.......................................4-34
Starting Your Engine.......................................2-22
Steering........................................................4-14
Steering in Emergencies..................................4-15
Steering Tips..................................................4-14
Steering Wheel Controls, Audio.......................3-136
Step-Bumper Pad...........................................4-79
Stereo RCA Jacks.........................................3-130
Storage Areas
Center Console Storage Area........................2-60
Convenience Net.........................................2-62
Cupholder(s)...............................................2-60
Front Storage Area......................................2-60
Glove Box..................................................2-60
Luggage Carrier..........................................2-60Storage Areas (cont.)
Rear Storage Area.......................................2-62
Storing a Flat or Spare Tire, Jack and Tools.......5-95
Stuck in Sand, Mud, Ice or Snow......................4-50
Sun Visors.....................................................2-17
Sunroof.........................................................2-63
T
Tachometer....................................................3-42
Taillamps.......................................................5-60
Temperature and Compass Display....................2-44
Temperature Display........................................2-47
Testing the Alarm............................................2-19
Theft-Deterrent, Radio....................................3-135
Theft-Deterrent Systems...................................2-18
Content Theft-Deterrent................................2-18
Passlock
®...................................................2-20
Third Row......................................................1-65
Throttle, Adjustable..........................................2-23
TIGHTEN FUEL CAP......................................3-76
Tilt Wheel........................................................ 3-7
Tilting the 50/50 Split Bench Seat.....................1-12
Tilting the Bench Seat.....................................1-17
Tire
Pressure Light.............................................3-51
Tire Sidewall Labeling......................................5-63
15
