GMC YUKON 2006 Get To Know Guide

11
Program HomeLink
1. Determine which of the three chan
Adjustable Pedals
(if equipped)
The buttons used to
adjust the pedals are
located on the driver’s
side door panel.
• Press the button
closest to you to
move the pedals closer to your body.
• Press the button farthest from you to
move the pedals away from your
body.
The vehicle must be in Park (P) for this
feature to operate.
SeeSection 2 of your Owner Manual.
Cruise Control (if equipped)
Cruise control allows you to maintain a
constant speed of 25 mph or more with
out keeping your foot on the accelerator
pedal.
Setting Cruise Control:
1. Move the cruise control switch to On ().
2. Attain the speed you want to
cruise at.
3.Press in the Set button
( )at the
end of the multifunction lever on the
left side of the steering column.
4. Take your foot off the accelerator
pedal.
5. The cruise symbol on the instrument
cluster will illuminate.
There are two ways to increase speed
while cruising:
•Use the accelerator pedal to get to a
higher speed. Press at the end of
the multifunction lever to set the
cruising speed. Release the accelera
tor pedal.
•Press the resume/accelerate switch
(
+)to get to a higher speed, and then
release the switch.
To reduce speed while cruising:
See Section 3 of your Owner Manual.
YukonYukonDenali 06 Beta3 5/19/05 10:04 AM Page 11

Activate the automatic headlamp
system
• Turn the exterior lamps knob to
AUTO. The automatic headlamp
system will turn on the front and
rear lamps.
Manually illuminate the parking
lamps, sidemarker lamps, taillamps,
instrument panel/radio lights, license
plate lamps and roof marker lamps
(if equipped)
• Turn the exterior lamps knob to the
parking lamp position ().
Manually activate the headlamps, all
exterior tail/sidemarker lamps and
the instrument panel/radio lights
• Turn the exterior lamps knob to this
position ( ).
Turn the fog lamps
(if equipped) on
or off
• Press the fog lamp
button located on
the left side of the
instrument panel.
An indicator lamp will illuminate when
the fog lamps are on.
See Section 3 of your Owner Manual.
Getting to Know YourYukon/Yukon Denali12
Automatic Headlamp Controls
Turn off Daytime Running Lamps
(DRL) and automatic headlamps
• Turn the exterior lamps knob (located
to the left of the steering wheel) to
Off ( ) and release.
Power Folding Mirrors
(if equipped)
Fold mirrors
• Move the
selector switch
located above
the mirror
control (“A”
right) to
the center
position.
• Press the right
side of the
fourway control pad (“B” above)
to fold in the mirrors.
• Press the left side of the fourway
control pad to fold out the mirrors.
If the mirrors have been folded manual
ly, they must be moved through the
power folding cycle three times to reset
them in their tracks.
See Section 2 of your Owner Manual.
A
B
Note:Your DRLs or automatic head
lamps will reengage at the next key
cycle.
YukonYukonDenali 06 Beta3 5/19/05 10:04 AM Page 12

Arm the system
• Lock the doors
using the Remote
Keyless Entry
transmitter. The
alarm is activated
when the symbol
shown above illuminates in the instru
ment panel cluster (approximately 30
seconds).
If your vehicle is equipped with a Driver
Information Center, you can program the
alarm to the following:
• Both Horn/Headlamps
• Horn only
• Lamps only
•Off
See Section 2 of your Owner Manual.
13
Daytime Running Lamps (DRL)
Disable the DRL when idling
• Shift the vehicle into Park.
See Section 3 of your Owner Manual.
Content TheftDeterrent System
(if equipped)
Note:Your vehicle’s factory default
setting is Horn and Lamps. See the
Memory Settings for Your Vehicle sec
tion of this booklet for more information.
Tire Pressure Monitor
(if equipped)
The Tire Pressure Monitor alerts you
when a significant reduction in pressure
occurs in one or more of your vehicle’s
tires by illuminating the low tire pressure
warning light ( ) on the instrument
panel. The low tire pressure warning
light will remain on until you correct the
tire pressure.
You may also have a CHECK TIRE
PRESSURE message appear on the
DIC (if equipped).
Correcting the Tire Pressure
When the low tire pressure warning light
illuminates, you must fill the tire to the
proper tire inflation pressure. The Tire
and Loading Information label shows the
correct inflation pressure for the tires
when they’re cold. “Cold” means your
vehicle has been sitting for at least three
hours or driven no more than one mile.
You can temporarily remove the DIC
message by acknowledging it with your
DIC controls. However, at the next vehi
cle startup, the DIC message will reap
pear if the tire pressure has not been
corrected.
You may notice during cooler conditions
that the low tire pressure warning light
will appear when the vehicle is first start
ed and then turn off as you start to drive
the vehicle. This could be an early indi
cator that your tire pressures are getting
low and need to be inflated to the proper
pressure.
See Section 5 of your Owner Manual.
Note:The Tire Pressure Monitor can
alert you about low tire pressure, but it
doesn’t replace normal monthly tire
maintenance.
YukonYukonDenali 06 Beta3 5/19/05 10:04 AM Page 13

Getting to Know YourYukon/Yukon Denali14
Memory Positions for Driver’s
Seat, Mirrors and Power
Adjustable Pedals (if equipped)
Use the driver’s
door mounted
controls to:
• Adjust driver
seat, including
lumbar
adjustment
• Adjust gas and brake pedals
• Adjust the outside rearview mirrors
• With the vehicle in Park, press and
hold Memory 1 or 2 until two chimes
sound (about four seconds)
To set up for another driver:
• Repeat the process with the other
memory button
SeeSection 2 of your Owner Manual.
Memory Settings for Your Vehicle
(Driver Information Center)
(if equipped)
To scroll though the features that can be
customized using the Driver Information
Center:
1. Press the (Personalization) button
located on the steering wheel.
2. Press the (Select) button to
choose your desired setting. The first
setting is the default setting from the
factory.
3. Press to move to the next feature.
Lock Doors
(Automatically locks the doors.)
•Lock Doors: In Gear
•Lock Doors: With Speed
Unlock Doors
(Automatically unlocks the doors.)
•Unlock Doors: In Park
•Unlock Driver: In Park
•Unlock Doors: Key Out
•Unlock Doors: Manually
Door Lock Delay
(Delays locking the doors and tailgate
until five seconds after the last door is
closed.)
•Door Lock Delay: Off
•Door Lock Delay: On
Lock Feedback
(The feedback received when locking
the vehicle with the Remote Keyless
Entry transmitter.)
•Lock Feedback: Both
•Lock Feedback: Lamps
•Lock Feedback: Horn
•Lock Feedback: Off
Unlock Feedback
(The feedback received when unlocking
the vehicle with the Remote Keyless
Entry transmitter.)
•Unlock Feedback: Lamps
•Unlock Feedback: Horn
•Unlock Feedback: Both
•Unlock Feedback: Off
Headlamp Delay
(The amount of time the headlamps will
stay on after the vehicle is turned off.)
•Headlamp Delay: 10 Sec
•Headlamp Delay: 20 Sec
•Headlamp Delay: 40 Sec
•Headlamp Delay: 1 Min
•Headlamp Delay: 2 Min
YukonYukonDenali 06 Beta3 5/19/05 10:04 AM Page 14

15
•Headlamp Delay: 3 Min
•Headlamp Delay: Off
Perimeter Lights
(The headlamps and backup lamps will
come on for 40 seconds, if it is dark
enough, when unlocking the vehicle with
the Remote Keyless Entry transmitter.)
•Perimeter Lights: On
•Perimeter Lights: Off
Easy Exit Seat
(The driver’s seat moves to the exit
position when the key is removed from
the ignition.)
•Easy Exit Seat: Off
•Easy Exit Seat: On
Curb View
(The outside rearview mirror(s) tilt down
when the vehicle is shifted into
Reverse.)
•Curb View: Off
•Curb View: Passenger
•Curb View: Driver
•Curb View: Both
Alarm Warning
(The feedback received when the alarm
is active.)
•Alarm Warning: Both
•Alarm Warning: Off
•Alarm Warning: Horn
•Alarm Warning: Lamps
Language
(The Driver Information Center display
language.)
•Language: English
•Language: Français (French)
•Language: Español (Spanish)
Display Units
(The units in which all information will be
displayed.)
•Display Units: English
•Display Units: Metric
See Section 3 of your Owner Manual.
Odometer/Trip Settings
(if equipped)
Press the trip information button
to scroll through the Odometer,Trip A,
Trip B, Tire Pressures, Timer and
Engine Hours choices on the Driver
Information Center.
Odometer
This mode shows the total distance the
vehicle has been driven in either miles
or kilometers. Pressing the reset stem
located on the instrument cluster with
the vehicle off will also display the
odometer.
Trip A
This mode shows the current distance
traveled since the last reset for TRIP A
in either miles or kilometers.
Trip B
This mode shows the current distance
traveled since the last reset for TRIP B
in either miles or kilometers.
YukonYukonDenali 06 Beta3 5/19/05 10:04 AM Page 15

Getting to Know YourYukon/Yukon Denali16
Fuel Information (if equipped)
Press the fuel information button
to scroll through the Fuel Range, Fuel
Used, Average Economy and Engine Oil
Life selections on the Driver Information
Center.
Fuel Range
This mode shows the range in miles that
the vehicle can travel with the current
amount of fuel.
Fuel Used
This mode shows the current amount of
fuel used in gallons since the last reset
for Fuel Used. This mode should be
reset after every fuel tank fillup.
Average Economy
This mode shows the average fuel econ
omy in miles per gallon since the last
reset for Average Economy.
Engine Oil Life
This mode shows the percentage of oil
life left until it is recommended to
change the engine oil. An oil and filter
change should be performed within 600
miles of the Change Oil message being
displayed.
See Section 3 of your Owner Manual.
Reset Trip Information
To reset TRIP A or TRIP B information,
press and hold the Select button ( )
for one second while in one of the trip
modes. This will reset the information for
TRIP A or TRIP B. You can also reset
TRIP A or TRIP B while they are dis
played by pressing the reset stem on
the cluster. If you press and hold the
reset stem or for four seconds, the
display will show the distance traveled
since the last ignition cycle for TRIP A
or TRIP B.
Timer
The DIC can be used as a timer. Press
while TIMER is displayed to start
the timer. The display will show the
amount of time that has passed since
the timer was last reset, not including
time the ignition is off, up to 99 hours,
59 minutes and 59 seconds (99:59:59).
Engine Hours
This mode shows the total number of
hours the engine has run. Pressing and
holding the reset stem located on the
instrument cluster for about four sec
onds will also display the engine hours
after the odometer is displayed when the
vehicle is off.
See Section 2 of your Owner Manual.
YukonYukonDenali 06 Beta3 5/19/05 10:04 AM Page 16

17
Vehicle Symbols Glossary
Following are examples of symbols you may find on your vehicle. It is important to
become familiar with them, as they alert you to various vehicle operating conditions.
Adjustable Pedals (if equipped)
Air Bag Readiness and
Warning Light
Air Conditioning (A/C)
Antilock Brake System
Warning Light
Auxiliary RoofMounted Lamp
Switch (if equipped)
Battery Warning Light
Brake System Warning Light
Content Theft Deterrent
Cruise Control Set
Dome Lamps Override Button
Driver Information Center Trip
Information Button (on steering
wheel)
Driver Information Center Fuel
Information Button (on steering
wheel)
Driver Information Center
Personalization/Menu Button
(on steering wheel)
Driver Information Center
Select Button (on steering wheel)Fog Lamps
Front and Side Window Defrost
Headlamps
Instrument Panel Brightness
Control
Malfunction Indicator Lamp
(Check Engine Light)
Off (for example, headlamp and
climate controls)
Off/On (for example, inside
rearview mirror)
On (for example, cruise control
lever)
Parking Lamps
Driver Safety Belt Reminder Light
(if equipped)
Rear Door Security Locks
Rear Window Defogger
StabiliTrak
®–Stability Control
System (if equipped)
Tire Pressure Monitor Light
(if equipped)
Tow/Haul Mode Light
YukonYukonDenali 06 Beta3 5/19/05 10:04 AM Page 17

Getting to Know YourYukon/Yukon Denali18
Notes
YukonYukonDenali 06 Beta3 5/19/05 10:04 AM Page 18

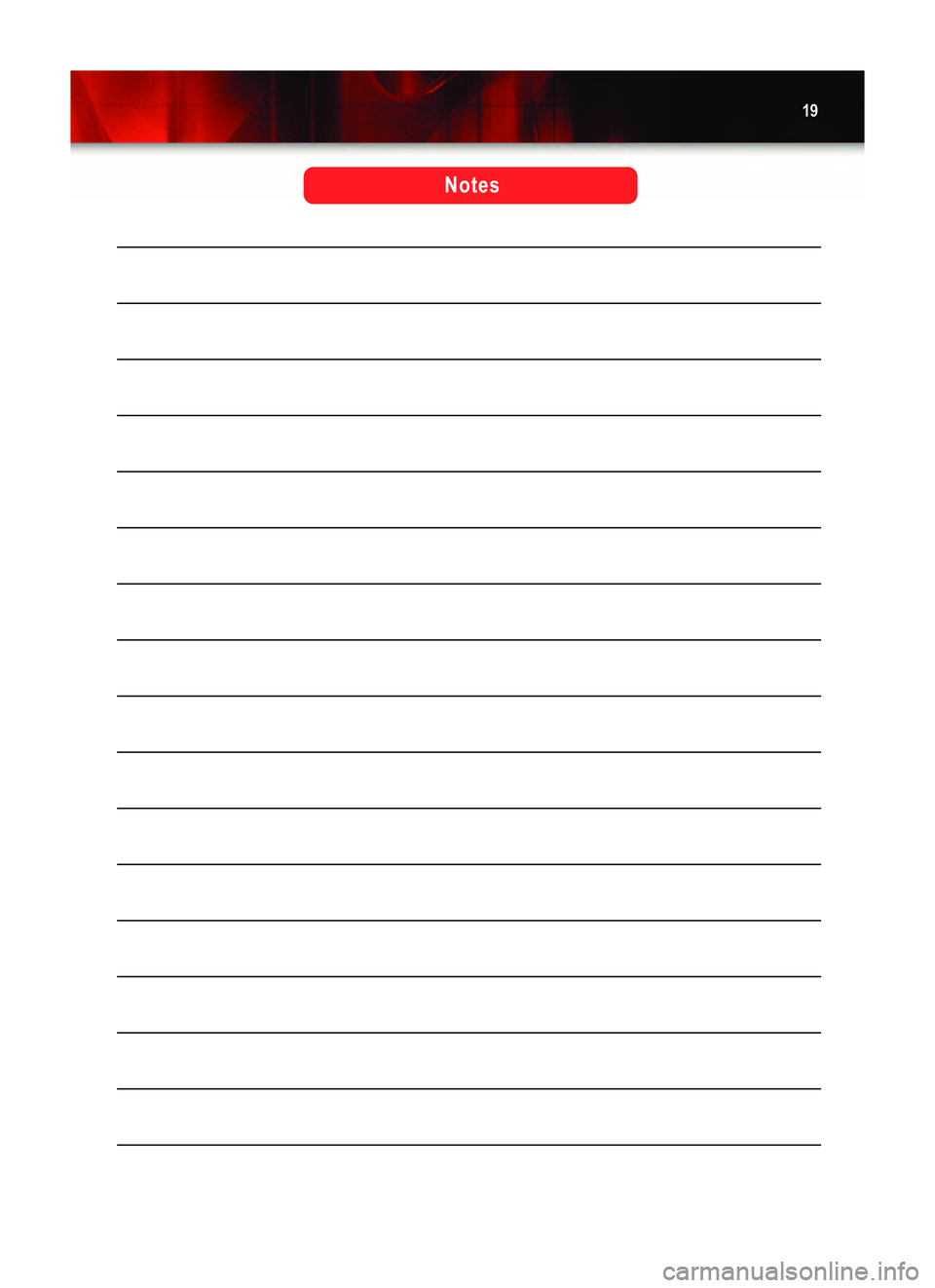

19
Notes
YukonYukonDenali 06 Beta3 5/19/05 10:04 AM Page 19

Getting to Know YourYukon/Yukon Denali20
06DENALIGTK A
Roadside Assistance
My GMLink
1800GMC8782
TTY: 18888892438
As the proud owner of a GMC Yukon or
Yukon Denali, you are automatically
enrolled in the GMC Roadside
Assistance program. This valueadded
service is intended to provide you with
peace of mind as you drive in the city or
travel the open road.
GMC’s Roadside Assistance tollfree
number is staffed by a team of techni
cally trained advisors, who are available
24 hours a day,365 days a year. We
take the anxiety out of uncertain situa
tions by providing minor repair informa
tion over the phone or making arrange
ments to tow your vehicle to the nearest
GMC dealer.
We will provide the following services for
3 years/36,000 miles (60,000 km), at no
expense to you:
•Fuel delivery
• Lockout service (identification
required)
• Tow to nearest dealership for
warranty service
• Flat tire assistance
• Jump starts
For prompt and efficient assistance
when calling, please provide the follow
ing information to the advisor:
The GMC Owner Center at My GMLink
is a complimentary service for GMC
owners, a onestop resource to enhance
your GMC ownership experience.
Exclusive member benefits include
online service reminders, vehicle main
tenance tips, online owner manual, spe
cial privileges and more. Sign up today
at www.mygmlink.com • Location of the vehicle
• Telephone number and your location
• Vehicle model, year and color
• Vehicle mileage
• Vehicle Identification Number (VIN)
• Vehicle license plate number
GMC reserves the right to limit services
or reimbursement to an owner or driver
when, in GMC’s judgment, the claims
become excessive in frequency or type
of occurrence.
Roadside Assistance and OnStar Press the blue OnStar button and the
vehicle will send your current GPS loca
tion to an OnStar Advisor who will speak
to you, assess your condition, contact
Roadside Assistance and relay your
exact location so you will get the help
you need.
Certain restrictions, precautions and safety procedures apply to your vehicle. Please read your Owner
Manual for complete instructions. All information contained herein is based on information available at the
time of printing and is subject to change without notice. Copyright 2005 by GM Corp. All rights reserved.
YukonYukonDenali 06 Beta3 5/19/05 10:04 AM Page 20
