display GMC YUKON 2007 Get To Know Guide

DRIVER INFORMATION
Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2Instrument Panel Cluster . . . . . . . . . . . . . . . . . . . . . . .3
Vehicle Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Driver Information Center . . . . . . . . . . . . . . . . . . . . . .4
SAFETY & SECURITY
Remote Keyless Entry . . . . . . . . . . . . . . . . . . . . . . . . . .6
Content TheftDeterrent System . . . . . . . . . . . . . . . . . .7OnStar
® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
COMFORT
Power Seat Controls . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Heated Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Memory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Adjustable Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9Sun Visor Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . .9
Manual Climate Controls . . . . . . . . . . . . . . . . . . . . . . . .9Automatic Climate Controls . . . . . . . . . . . . . . . . . . . .10
Rear Seat Climate Controls . . . . . . . . . . . . . . . . . . . . .10
ENTERTAINMENT
Audio System Features . . . . . . . . . . . . . . . . . . . . . . . .11MultipleDisc CD Player . . . . . . . . . . . . . . . . . . . . . . . .14
Touch Screen Navigation Entertainment System . . .14
XM Satellite Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Rear Seat Audio and DVD Rear Seat
Entertainment Systems . . . . . . . . . . . . . . . . . . . . . . . .15
Audio Steering Wheel Controls . . . . . . . . . . . . . . . . .16CONVENIENCE
Automatic Dimming Rearview Mirror with
Compass and Temperature Display . . . . . . . . . . . . . .16
Remote Vehicle Start . . . . . . . . . . . . . . . . . . . . . . . . . .17
Power Running Boards . . . . . . . . . . . . . . . . . . . . . . . .17Auto Turn Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Rainsense™ II Windshield Wipers . . . . . . . . . . . . . . .18
Heated Windshield Washer Fluid . . . . . . . . . . . . . . . .19
Rear Vision Camera . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Automatic Headlamp System . . . . . . . . . . . . . . . . . . .19Folding 2ndRow Seats . . . . . . . . . . . . . . . . . . . . . . . .20
Folding 3rdRow Seats . . . . . . . . . . . . . . . . . . . . . . . .20Liftgate and Liftglass Operation . . . . . . . . . . . . . . . . .21
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Ultrasonic Rear Parking Assist . . . . . . . . . . . . . . . . .22
Universal Home Remote . . . . . . . . . . . . . . . . . . . . . . .22
PERFORMANCE & MAINTENANCE
6Speed Automatic Transmission Controls . . . . . . .22StabiliTrak
®– Stability Control System . . . . . . . . . . .22
Tire Pressure Monitor . . . . . . . . . . . . . . . . . . . . . . . . .23
Resetting the Engine Oil Life System . . . . . . . . . . . .23
OWNER INFORMATION
Roadside Assistance . . . . . . . . . . . . . . . . . . . . . . . . . .24My GMLink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Congratulations on your purchase of a GMC Yukon or Yukon Denali. Please read this information about your vehicle’s
features and your Owner Manual to ensure an outstanding ownership experience. Note that your vehicle may not includeall the features described in this booklet. Keep this booklet with your Owner Manual for easy reference.

3
See Section 3 of your Owner Manual.
Instrument Panel Cluster
A
B
C
D
E
F
G
Your vehicle’s instrument panel is
equipped with this cluster or one verysimilar to it. The instrument panel
cluster includes these key features:
A.Oil Pressure Gauge
B.Fuel GaugeC.Driver Information Center
Display/Odometer
D.Tachometer
E.Speedometer
F.Voltmeter
G.Engine Coolant Temperature
Gauge
Note:
The instrument panel cluster is
designed to let you know about manyimportant aspects of your vehicle’s
operation. It is important to read yourOwner Manual and become familiarwiththe information being relayed to
youby the lights, gauges and indicators,
as well as what action can be taken toensure safety and to prevent damage.

Getting to Know YourYukon/Yukon Denali4
Vehicle Symbols
Following are examples of symbols you
may find on your vehicle. It is importantto become familiar with them, as theyalert you to various vehicle operatingconditions.
Air Bag Readiness Light
Air Conditioning (A/C)
Antilock Brake System
Warning Light
Brake System Warning Light
(Parking Brake Set)
Cruise Control SetHeadlamps
Malfunction Indicator Lamp
(Check Engine Light)
Off
Off/On
On
Rear Window Defogger
Safety Belt Reminder Light
2
Safety Belt Reminder Light,
Passenger
Security Light
StabiliTrak Warning Light
Tire Pressure LightTow/Haul Mode Light
Traction Control Off Light
Driver Information Center
Your vehicle’s Driver Information Center
(DIC) provides vehicle information, vehi
cle warning messages and vehicle fea
ture customization. The DIC messageswill be shown on your instrument panel
cluster display. To operate the DIC, theignition switch must be on.
DIC Buttons
The DIC buttons are located on the right
side of the instrument panel cluster.
(Trip/Fuel):Press this button to
display the odometer, trip odometer, fuel
range, average economy, fuel used,
timer, transmission temperature, instantaneous economy (if equipped) andActive Fuel Management™ indicator
(if equipped).

5
(Vehicle Information):Press
this button to display the oil life,English/Metric units, tire pressure andtire pressure system programming
(if equipped), engine hours and RemoteKeyless Entry programming.
(Customization):Press this button
to customize certain vehicle features toyour preference.
(Set/Reset):Press this button to set
or reset certain vehicle functions as wellas acknowledge DIC messages.
Customization Features
To customize features:
1. With the vehicle in Park, turn on the
ignition.
2. Press the (Customization) button
to display available customizationfeatures.
3. With the desired customization
feature displayed, press the (Set/Reset) button to access thefeature settings.
4.Press the button to scroll through
the available settings.
5. With the desired setting displayed,
press the button to select it.
6. To exit the Feature Settings menu,
press the button until EXITFEA
TURE SETTINGS is displayed and
then press , or press the button or thebutton.
Customization features include:
• Auto Door Lock — Automatically
locks the vehicle doors
• Auto Door Unlock — Automatically
unlocks the vehicle doors
• Remote Door Lock — Type of feed
back from Remote Keyless Entrylocking
• Remote Door Unlock — Type of feed
back from Remote Keyless Entryunlocking
• Delay Door Lock — Delays locking
doors and liftgate after exiting
• Exit Lighting — Amount of time the
exterior lamps remain on after exiting
• Approach Lighting — Exterior lamps
turn on when using Remote KeylessEntry
• Chime Volume — Increases the
volume level
• Park Tilt Mirrors (if equipped) —
Automatically tilts down the outsidemirrors when in Reverse
• Easy Exit Seat (if equipped) —
Automatically moves back the driver’s
seat when the key is removed from
the ignition
• Memory Seat Recall (if equipped) —
Automatically recalls the driver’s seatposition when using Remote KeylessEntry
• Remote Start (if equipped) —
Enables remote vehicle start
• Factory Settings — Sets all features
to the factory default
• Exit Feature Settings

Getting to Know YourYukon/Yukon Denali6
Warnings and Messages
The DIC provides a variety of vehicle
messages (depending on optional equipment) as well as warnings if a problemis sensed in a vehicle system.
To acknowledge a message and clear it
from the display, press any of the DICbuttons. Some urgent messages cannot
be cleared from the DIC display.
If your vehicle is equipped with OnStar
and a warning message appears, youcan press the blue OnStar button and
speak to an OnStar Advisor. In many
vehicles, OnStar Advisors can accesscertain diagnostic information and cantell you how serious the condition is andwhat you should do about it.
See Section 3 of your Owner Manual.
The Remote
Keyless Entry
(RKE) transmitter includes
the followingfunctions:
(Remote
Vehicle Start)
(if equipped): If
your vehicle hasthis feature, itcan be used tostart the engine.
(See Remote Vehicle Start.)
(Lock):Press this button to lock all
the doors. If enabled through the DriverInformation Center (DIC), the parkinglamps will flash once and/or the horn willchirp to indicate locking has occurred.
(Unlock):Press this button to unlock
the driver’s door. If the button is pressedagain within five seconds, all remainingdoors will unlock. If enabled through theDIC, the parking lamps will flash once toindicate unlocking has occurred.
(Liftglass):Press and hold this
button to open the liftglass.
(Power Liftgate) (if equipped):
Press and hold this button to open or
close the liftgate. The taillamps will flashand a chime will sound to indicate theliftgate is activated.
(Vehicle Locator/Panic Alarm):Press this button to locate your vehicle.
The parking lamps will flash and thehorn will sound three times.
Note:Your vehicle’s warnings and mes
sages provide critical information thatcan prevent damage to your vehicle.Review your Owner Manual to becomefamiliar with the information displayedand the action required.
Remote Keyless Entry
SAFETY & SECURITY

11
Rear Control Panel System
To operate the system, use the following
rear controls:
(Fan):Turn the fan control knob to
adjust fan speed.
Temperature Control:Turn the temper
ature control knob to adjust the temperature setting.
(Mode):Turn the airflow mode con
trol knob to adjust the direction of the
airflow.
Rear Controls with RSA
To operate the system, use the following
rear controls that are integrated with the
RSA controls:
AUTO:Press the (Mode) button until
AUTO is displayed to control temperature, airflow and fan speed.
(Fan):Press the up or down fan
arrow to manually adjust fan speed.
Temperature Control:Press the + or –
temperature button to adjust the temper
ature setting.
(Mode):Press the Mode button
tomanually adjust the direction of the
airflow.
See Section 3 of your Owner Manual.
While most of the features on your radio
will look familiar, following are some that
may be new.
(Power/Volume):Press this knob to
turn the system on or off. Turn the knobto adjust the volume.
(Information):Press this button to
display additional text information relat
ed to the current FMRDS or XM station,
or MP3 song.
(Tune):Turn this knob to select radio
stations or, when a CD is playing, toselect a track or MP3 file.
Press the knob to display the tone con
trol (bass/treble) or speaker control (balance/fade) label. Press the pushbutton
under the desired label. Turn the knob toadjust the setting. To adjust all tone and
speaker controls to the middle position,
press and hold the Tune knob for more
than two seconds. A beep will sound.
FAV (Favorite):Press this button to go
through up to six pages of any combina
tion (AM; FM; or XM, if equipped) ofpreset favorite radio stations. On eachpage, up to six stations are available byusing the six pushbuttons below theradio station frequency labels on the
radio display.
Audio System Features
(NonNavigation Radios only)
ENTERTAINMENT

Getting to Know YourYukon/Yukon Denali12
BAND:Press this button to switch to
AM; FM; or XM (if equipped). With a CD
loaded or a portable audio player connected, press this button to switchbetween radio and CD/portable audioplayer operation.
(Seek/Scan): Press the right or
left arrow button to go to the next or pre
vious radio station or, when a CD is
playing, to the next track or MP3 file, or
the start of the current track or MP3 file.
To enter the scan mode, press and hold
either arrow button for a few seconds (a
beep will sound). Radio stations will bescanned. Press either arrow buttonagain to stop scanning.
(Reverse):Press and hold this but
ton to reverse playback quickly within atrack or MP3 file.
(Forward):Press and hold this but
ton to advance playback quickly within atrack or MP3 file.
CD/AUX:Press this button to play a CD
instead of the radio. Press again and thesystem will automatically search for anauxiliary input device such as a portable
audio player.
EQ (Automatic Equalization):Press
this button to select preset equalizationsettings.
CAT (Category):Press this button to
find XM stations (if equipped) within a
desired category.
Auxiliary Input Jack:Aportable audio
player can be connected to the auxiliaryinput jack located on the radio.
Setting Favorite Stations
Before setting your favorite stations,
shift the vehicle into Park.
To set up the number of favorite station
pages:
1.Press the MENU button to display the
radio setup menu.
2. Press the pushbutton located below
the FAV 1– 6 label on the radiodisplay.
3.Select the desired number of favorite
station pages.
4. Press the FAV button. You may now
begin storing your favorite stations forthe chosen number of pages.
To store favorite stations:
1. Press the BAND button to select the
band (AM; FM; or XM, if equipped).
2.Tune to the desired radio station.
3. Press the FAV button to display the
page where the station is to bestored.
4. Press and hold one of the six push
buttons until a beep sounds.
5. Repeat the steps for each pushbutton
on each page.
Note:Choosing to engage in extended
searching for specific audio stations orsongs by using buttons and knobs — or
to give extended attention to entertainment tasks — can lead you to lookaway from the road frequently or longerthan usual. Looking away from the roadfor prolonged periods may cause you tomiss seeing things on the road that youneed to see. Be sure to keep your eyeson the road and mind on the drive —
and avoid engaging in extended searching for specific items while driving.

13
Setting the Speed Compensated
Volume (if equipped)
With Speed Compensated Volume, the
radio automatically adjusts the volumeto compensate for road noise as vehiclespeed changes.
To set Speed Compensated Volume:
1. Set the radio volume to the desired
level.
2. Press the MENU button to display the
radio setup menu.
3. Press the pushbutton below the auto
volume label on the radio display.
4.Press the pushbutton under the
desired setting (Off, Low, Medium
or High) to select the level ofcompensation.
The compensation will be set once the
display times out after 10 seconds.
Setting the Time
To set the time:
1.Press the (Clock) button. Or, if
equipped, press the MENU button
until the clock option is displayed;
and then press the pushbutton located under the clock option label. The
HR, MIN, MM, DD, YYYY labels will
appear on the display.
2. Press the pushbutton under any of
the labels to be changed.
3.Press the pushbutton again, the right
SEEK arrow or the FWD button toincrease the numbers. Press the leftSEEK arrow or the REV button todecrease the numbers. Rotating theTune knob also will increase or
decrease the selected label.
4. Press the Clock or MENU button
again to set the currently displayedtime and date.
MP3 Capability
Your audio system has MP3 playing
capability. A CDR containing MP3 audiotracks will play automatically when
inserted into the CD player. An MP3symbol will be displayed.
Portable Audio Player
A portable audio player, such as an MP3
player or cassette player, can be connected to the auxiliary input jack locatedon the radio. When connected, the radioautomatically begins playing audio fromthe player over the vehicle speakers.
Radio Data System (if equipped)
When you tune to a Radio Data System
(RDS) station, the station name and callletters will appear on the display instead
of the frequency. RDS stations may alsoprovide the time of day, a program type
for current programming and the nameof the program being broadcast.
RDS features are available for use only
on FM stations that broadcast RDSinformation. RDS relies on receivingspecific information from these stationsand will work only when the informationis available.
See Section 3 of your Owner Manual.

Getting to Know YourYukon/Yukon Denali14
With the indash 6Disc CD Player, note
that you cannot directly load a CD as insingleplay systems.
To load a single CD:
• Press and release the LOAD
button. Wait for the display promptbefore loading the CD.
To load multiple CDs:
• Press and hold the LOAD button
for two seconds. Follow the displayprompts to load each CD. Press theLOADbutton again to cancel
loading more CDs.
To play a specific CD:
• Press the pushbutton below the arrow
label on the display to select thedesired CD number.
To eject a CD:
• To eject the CD that is currently
playing, press the EJECT buttononce.
•To eject all CDs, press and hold the
EJECTbutton for two seconds.
If a CD is not removed after several sec
onds, it will automatically be pulled back
into the player.
See Section 3 of your Owner Manual.
Your vehicle’s Navigation Entertainment
System provides you with detailed mapsof all major highways and roadsthroughout the United States. After you
enter a destination, the system providesturnbyturn instructions for reachingyour destination. In addition, the systemcan help you locate a variety of points of
interest, such as banks, airports, restaurants and more.
See your Navigation Entertainment
System Owner Manual for operatinginstructions.
See Section 3 of your Owner Manual.
MultipleDisc CD Player
(if equipped)Note:CDs with any affixed labels may
jam in the CD player. Label a CD using
a permanent marker. If more than oneCD is inserted into the slot at one time,or if scratched or damaged CDs are
played, the CD player could be dam
aged. When using the CD player, useonly CDs in good condition withoutlabels; load one CD at a time; and keepthe CD player and the loading slot freeof foreign materials, liquids or debris.
Touch Screen Navigation
Entertainment System (if equipped)
XM Satellite Radio (if equipped)
XM Satellite Radio offers more than 170
channels of digitalquality sound thatgoes wherever you go — coast to coast.
XM displays song title, artist and entertainment genre.

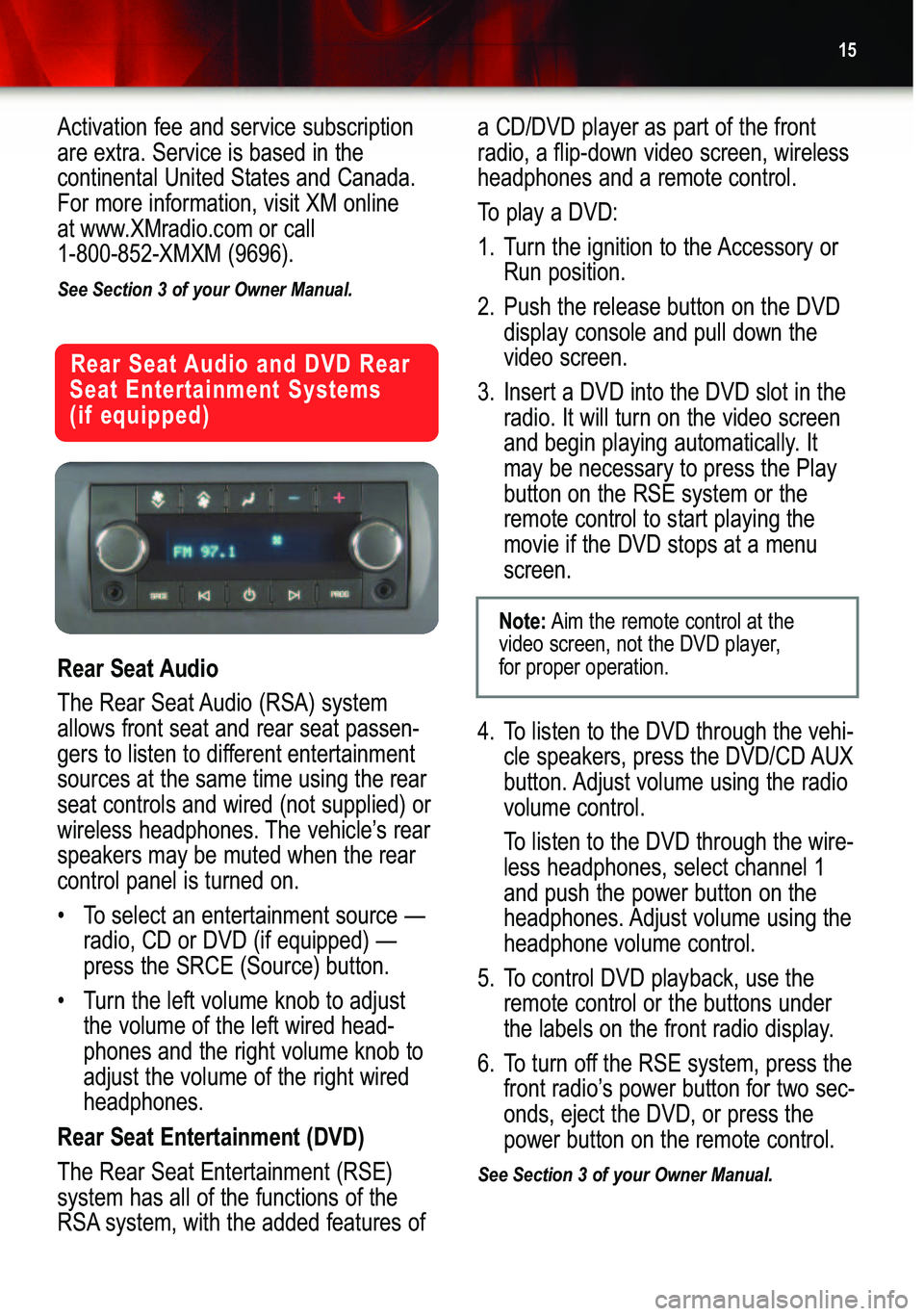

15
Rear Seat Audio
The Rear Seat Audio (RSA) system
allows front seat and rear seat passen
gers to listen to different entertainmentsources at the same time using the rearseat controls and wired (not supplied) orwireless headphones. The vehicle’s rear
speakers may be muted when the rear
control panel is turned on.
•To select an entertainment source —
radio, CD or DVD (if equipped) —
press the SRCE (Source) button.
• Turn the left volume knob to adjust
the volume of the left wired headphones and the right volume knob toadjust the volume of the right wiredheadphones.
Rear Seat Entertainment (DVD)
The Rear Seat Entertainment (RSE)
system has all of the functions of the
RSA system, with the added features ofa CD/DVD player as part of the front
radio, a flipdown video screen, wirelessheadphones and a remote control.
To play a DVD:
1. Turn the ignition to the Accessory or
Run position.
2. Push the release button on the DVD
display console and pull down thevideo screen.
3. Insert a DVD into the DVD slot in the
radio. It will turn on the video screen
and begin playing automatically. Itmay be necessary to press the Playbutton on the RSE system or theremote control to start playing themovie if the DVD stops at a menuscreen.
4. To listen to the DVD through the vehi
cle speakers, press the DVD/CD AUXbutton. Adjust volume using the radio
volume control.
To listen to the DVD through the wire
less headphones, select channel 1and push the power button on the
headphones. Adjust volume using theheadphone volume control.
5. To control DVD playback, use the
remote control or the buttons underthe labels on the front radio display.
6.To turn off the RSE system, press the
front radio’s power button for two seconds, eject the DVD, or press thepower button on the remote control.See Section 3 of your Owner Manual.
Rear Seat Audio and DVD Rear
Seat Entertainment Systems (if equipped)
Note:Aim the remote control at the
video screen, not the DVD player,
for proper operation.
Activation fee and service subscription
are extra. Service is based in thecontinental United States and Canada.For more information, visit XM online
at www.XMradio.com or call 1800852XMXM (9696).
See Section 3 of your Owner Manual.
