light GMC YUKON 2007 Get To Know Guide

3
See Section 3 of your Owner Manual.
Instrument Panel Cluster
A
B
C
D
E
F
G
Your vehicle’s instrument panel is
equipped with this cluster or one verysimilar to it. The instrument panel
cluster includes these key features:
A.Oil Pressure Gauge
B.Fuel GaugeC.Driver Information Center
Display/Odometer
D.Tachometer
E.Speedometer
F.Voltmeter
G.Engine Coolant Temperature
Gauge
Note:
The instrument panel cluster is
designed to let you know about manyimportant aspects of your vehicle’s
operation. It is important to read yourOwner Manual and become familiarwiththe information being relayed to
youby the lights, gauges and indicators,
as well as what action can be taken toensure safety and to prevent damage.

Getting to Know YourYukon/Yukon Denali4
Vehicle Symbols
Following are examples of symbols you
may find on your vehicle. It is importantto become familiar with them, as theyalert you to various vehicle operatingconditions.
Air Bag Readiness Light
Air Conditioning (A/C)
Antilock Brake System
Warning Light
Brake System Warning Light
(Parking Brake Set)
Cruise Control SetHeadlamps
Malfunction Indicator Lamp
(Check Engine Light)
Off
Off/On
On
Rear Window Defogger
Safety Belt Reminder Light
2
Safety Belt Reminder Light,
Passenger
Security Light
StabiliTrak Warning Light
Tire Pressure LightTow/Haul Mode Light
Traction Control Off Light
Driver Information Center
Your vehicle’s Driver Information Center
(DIC) provides vehicle information, vehi
cle warning messages and vehicle fea
ture customization. The DIC messageswill be shown on your instrument panel
cluster display. To operate the DIC, theignition switch must be on.
DIC Buttons
The DIC buttons are located on the right
side of the instrument panel cluster.
(Trip/Fuel):Press this button to
display the odometer, trip odometer, fuel
range, average economy, fuel used,
timer, transmission temperature, instantaneous economy (if equipped) andActive Fuel Management™ indicator
(if equipped).

5
(Vehicle Information):Press
this button to display the oil life,English/Metric units, tire pressure andtire pressure system programming
(if equipped), engine hours and RemoteKeyless Entry programming.
(Customization):Press this button
to customize certain vehicle features toyour preference.
(Set/Reset):Press this button to set
or reset certain vehicle functions as wellas acknowledge DIC messages.
Customization Features
To customize features:
1. With the vehicle in Park, turn on the
ignition.
2. Press the (Customization) button
to display available customizationfeatures.
3. With the desired customization
feature displayed, press the (Set/Reset) button to access thefeature settings.
4.Press the button to scroll through
the available settings.
5. With the desired setting displayed,
press the button to select it.
6. To exit the Feature Settings menu,
press the button until EXITFEA
TURE SETTINGS is displayed and
then press , or press the button or thebutton.
Customization features include:
• Auto Door Lock — Automatically
locks the vehicle doors
• Auto Door Unlock — Automatically
unlocks the vehicle doors
• Remote Door Lock — Type of feed
back from Remote Keyless Entrylocking
• Remote Door Unlock — Type of feed
back from Remote Keyless Entryunlocking
• Delay Door Lock — Delays locking
doors and liftgate after exiting
• Exit Lighting — Amount of time the
exterior lamps remain on after exiting
• Approach Lighting — Exterior lamps
turn on when using Remote KeylessEntry
• Chime Volume — Increases the
volume level
• Park Tilt Mirrors (if equipped) —
Automatically tilts down the outsidemirrors when in Reverse
• Easy Exit Seat (if equipped) —
Automatically moves back the driver’s
seat when the key is removed from
the ignition
• Memory Seat Recall (if equipped) —
Automatically recalls the driver’s seatposition when using Remote KeylessEntry
• Remote Start (if equipped) —
Enables remote vehicle start
• Factory Settings — Sets all features
to the factory default
• Exit Feature Settings

7
Press and hold the button to activate the
panic alarm. The parking lamps will flashand the horn will sound for 30 seconds.
Press the button again or turn the ignition to Run to cancel the panic alarm.
See Section 2 of your Owner Manual.
To arm the content theftdeterrent alarm
system, lock the doors using the RKE
transmitter. The security light on theinstrument panel cluster will flash forapproximately 30 seconds to indicate
the alarm is activated. To disarm thesystem, unlock the doors using the RKE
transmitter.
The alarm system will not be armed or
disarmed if the doors are locked or
unlocked with a key, the manual doorlock or the power door lock switch.
See Section 2 of your Owner Manual.
The OnStar system provides invehicle
safety, security and phone services,
available 24 hours a day, 7 days aweek. These services are easily
accessed using the three OnStar
buttons located on the inside rearview mirror.
For more information about OnStar
features, refer to the OnStar Owner’s
Guide and enclosed audio CD in yourglove box.
See Section 2 of your Owner Manual.
The power seat controls for the driver
and front passenger seats are locatedon the outboard side of the seats.
Power Seat: Use the control (A) to
move the seat forward/rearward andup/down as well as to raise/lower thefront or rear of the seat cushion.
Power Recline (if equipped): Use the
control (B) to recline/raise the seatback.
Power Lumbar (if equipped): Use the
control (C) to increase/decrease lumbarsupport and to raise/lower the height ofthe support.
See Section 1 of your Owner Manual.
Power Seat Controls
(if equipped)
A
B
C
Content TheftDeterrent System
OnStar®(if equipped)
COMFORT

Getting to Know YourYukon/Yukon Denali8
To operate the heated seats, the engine
must be on. The heated seat operation
turns off when the ignition is turned off.
Front Seats
The heated front seat controls are locat
ed on the front doors.
(Heated Seatback):Press the top
button to turn on the heated seatback.
(Heated Seat/Seatback):Press the
bottom button to turn on the heated seatand seatback.
Continue to press the desired button to
cycle through the temperature settingsof High (three indicator lights), Medium(two indicator lights), Low (one indicator
light) and Off (all indicator lights are off).
2ndRow Seats
The heated rear seat controls are on the
rear control panel, located on the backof the floor console.
(Heated Seat):Press the button
to turn on the heated seat and cyclethrough the temperature settings.
See Section 1 of your Owner Manual.
The memory buttons are located on
the driver’s door. Settings can be pro
grammed for the driver’s seat, outsidemirrors and the adjustable pedals (ifequipped) for two drivers.
To save memory settings:1.Adjust the driver’s seat, outside mir
rors and pedals to a comfortableposition.
2. Press and hold button 1 or 2 until two
beeps sound.
Repeat these steps for a second driver.
To recall the settings, press memory
button 1 or 2 with the vehicle in Park.
If the Remote Keyless Entry transmitteris used to enter the vehicle and thememory seat recall feature is on (seeCustomization Features), the settings
will be recalled automatically.
EasyExit Seat
The easyexit seat button is located
between the two memory buttons.Withthe vehicle in Park, press the
(EasyExit) button to move the driver’s
seat to the exit position.
If the easyexit seat feature is on (see
Customization Features), automatic seatmovement will occur when the key isremoved from the ignition.
See Section 1 of your Owner Manual.
Heated Seats (if equipped)Memory Settings (if equipped)

17
This feature allows you to start the
engine from outside the vehicle by using
the Remote Keyless Entry (RKE) trans
mitter. The remote start capability mustbe turned on using the Driver
Information Center.
The vehicle’s automatic climate control
system (if equipped) will default to aheating or cooling mode based onoutside temperature, and the manualclimate control system will turn on at
the same setting as when the vehicle
was last turned off.
Starting the Vehicle
To remote start the vehicle:
1.
Aim the RKE transmitter at the vehicle.
(Transmitter range is within approximately 200 feet of the vehicle.)
2. Press and release the (Lock)
button on the transmitter.
3. Immediately press and hold the
(Remote Start) button for about four
seconds. When the vehicle starts, theparking lamps will turn on. The engine
will continue running for 10 minutes.
4.Repeat these steps for a 10minute
time extension. Only two consecutive
remote starts are allowed.
When you enter the vehicle after a
remote start, the key must be insertedinthe ignition and turned to the Run
position before driving.
Canceling a Remote Start
To turn off the engine instead of driving
after a remote start:
• Press and hold the (Remote Start)
button until the parking lamps turn off.
• Press and release the Hazard
Warning Flashers button. Press it
again to turn off the flashers.
• Turn the key in the ignition switch to
the Run position and then off.
See Section 2 of your Owner Manual.
The power running boards extend from
beneath the vehicle when any side door
is open. The vehicle must be stationary
for the running boards to operate. Todisable the running boards, press the
(Running Boards) disable button on
the instrument panel. Press the button
again to turn the running boards back on.
See Section 2 of your Owner Manual.
The turn signal lever includes an auto
matic lane change signal feature.
To signal a lane change, raise or lower
the lever until the arrow on the instrument panel cluster starts to flash, and
then release the lever. The turn signalwill automatically flash three times. If the
Tow/Haul mode is selected, the turn signal will automatically flash six times.
See Section 3 of your Owner Manual.
Remote Vehicle Start
(if equipped)
Note: Remote Vehicle Start will not
operate if the key is in the ignition, thehood or liftgate is open, or the Check
Engine light is illuminated on the instru
ment cluster.
Auto Turn Signal
Power Running Boards
(if equipped)

Getting to Know YourYukon/Yukon Denali18
The cruise
control buttonsare located onthe steeringwheel.
(On/Off):Press this but
ton to turn the
cruise controlsystem on
or off.
+ RES (Resume):Press this button to
resume a set speed, or to increase thespeed if the system is set.
– SET (Set):Press this button to set a
speed, or to decrease the speed if thesystem is set. When the cruise control
speed is set, the cruise light will illuminate in the instrument cluster.
(Cancel): Press this button to can
cel the cruise control but retain the set
speed in memory.
See Section 3 of your Owner Manual.
The Rainsense II windshield wipers use
a moisture sensor to automatically operate the wipers when needed, depending
on driving conditions and the sensitivity
setting. If the system is left on for longperiods, an occasional wipe may occurwithout any moisture on the windshieldto indicate the system is activated.
The headlamps also will be turned on
automatically when the Rainsensewipers are active if the exterior lamp
control switch is in the AUTO position.
Windshield Wiper Controls
The controls for the windshield wipers
are located on the multifunction stalk on
the left side of the steering column. Theband can be rotated to the followingpositions:
(Mist):Rotate the wipers band
down to this position to turn the wiperson for one wipe.
(Off):Rotate the wipers band to this
position to turn the wipers off.
(Sensitivity Setting):Rotate the
control band up to one of the sensitivity
levels to activate the Rainsense func
tion. The position closest to Off is thelowest sensitivity level.
(Low):Rotate the wipers band up
to this position to turn on the wipers tothe Low speed setting.
(High):Rotate the wipers band
up to this position to turn on the wipersto the High speed setting.
(Washer):Push the paddle on top
of the multifunction lever to spray washer fluid on the windshield.
See Section 3 of your Owner Manual.
Cruise Control (if equipped)
Rainsense™ II Windshield
Wipers (if equipped)

19
Press the (Heated Washer Fluid)
button, located below the climate controls on the instrument panel, to sprayheated washer fluid on the windshield.This will help to clear ice, tree sap orbugs from the windshield. A light on the
switch will flash while the washer fluid is
heating, which may take up to 40 seconds. The wipers will automatically turn
on for four cycles or until the button ispressed again.
See Section 3 of your Owner Manual.
The rear vision camera displays a view
of the area behind the vehicle on thenavigation screen when the vehicle isshifted into Reverse. Once shifted out ofReverse, the navigation screen willreturn to the last screen displayed afterapproximately 10 seconds.
To turn the camera on or off:
1.Shift into Park.
2. Press the Menu hard key to enter the
Menu options.
3.Press the Menu hard key to select
Display, or touch the Display screenbutton.
4. Touch the Rear Camera Options
screen button.
5.Touch the Rear Camera Image in
Reverse screen button.
To clean the camera lens, located above
the license plate, rinse it with water andwipe it with a soft cloth.
See Section 2 of your Owner Manual.
Your vehicle is equipped with an
Automatic Headlamp System, which
turns on the Daytime Running Lamps
(DRL) during the day and the head
lamps and other exterior lamps at night
or when necessary.
The system uses a light sensor, located
on top of the instrument panel, to determine light conditions. For proper systemoperation, avoid placing any objects on
or near the sensor.
Exterior Lamp Controls
The exterior lamps control knob is locat
ed on the instrument panel to the left ofthe steering wheel.
(Off):When operating in the AUTO
position, a momentary turn of the knob
to the Off position will turn off theAutomatic Headlamp System and allexterior lights, excluding the DRLs.
AUTO (Automatic):Automatically turns
on the DRLs in the daytime and theAutomatic Headlamp System at night or
when necessary.
(Parking Lamps):Manually turns
on parking lamps and taillamps.
(Headlamps):Manually turns on
the headlamps and other exterior lamps.
(Fog Lamps)(if equipped): Press
this button to turn the fog lamps on or
off.
Heated Windshield Washer Fluid
(if equipped)
Rear Vision Camera
(if equipped)
Automatic Headlamp System

21

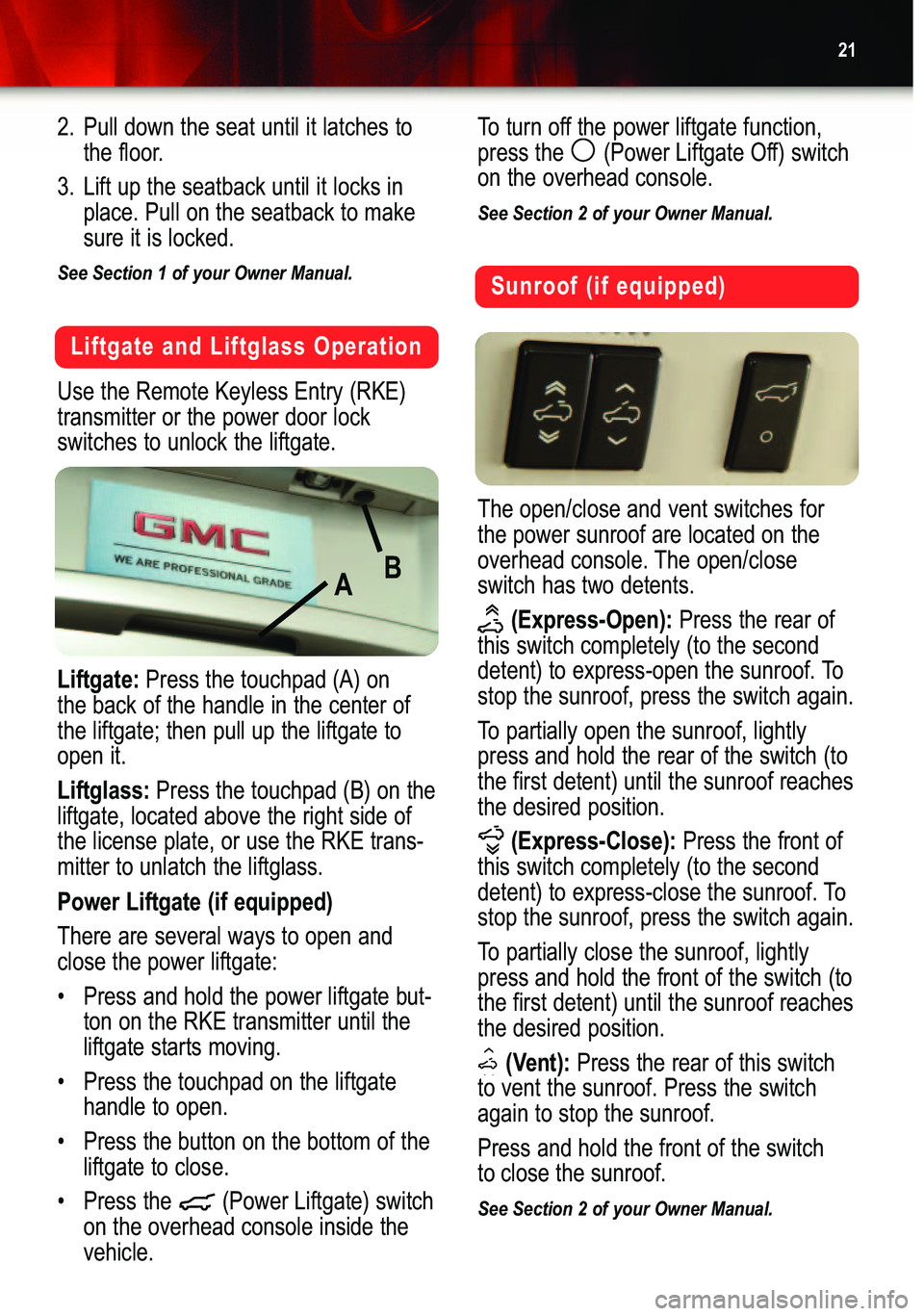

2. Pull down the seat until it latches to
the floor.
3. Lift up the seatback until it locks in
place. Pull on the seatback to makesure it is locked.
See Section 1 of your Owner Manual.
Use the Remote Keyless Entry (RKE)
transmitter or the power door lockswitches to unlock the liftgate.
Liftgate:Press the touchpad (A) on
the back of the handle in the center ofthe liftgate; then pull up the liftgate toopen it.
Liftglass:Press the touchpad (B) on the
liftgate, located above the right side ofthe license plate, or use the RKE trans
mitter to unlatch the liftglass.
Power Liftgate (if equipped)
There are several ways to open and
close the power liftgate:
• Press and hold the power liftgate but
ton on the RKE transmitter until theliftgate starts moving.
• Press the touchpad on the liftgate
handle to open.
• Press the button on the bottom of the
liftgate to close.
•Press the (Power Liftgate) switch
on the overhead console inside thevehicle.
To turn off the power liftgate function,
press the (Power Liftgate Off) switchon the overhead console.
See Section 2 of your Owner Manual.
The open/close and vent switches for
the power sunroof are located on the
overhead console. The open/closeswitch has two detents.
(ExpressOpen):Press the rear of
this switch completely (to the second
detent) to expressopen the sunroof. Tostop the sunroof, press the switch again.
To partially open the sunroof, lightly
press and hold the rear of the switch (tothe first detent) until the sunroof reachesthe desired position.
(ExpressClose):Press the front of
this switch completely (to the seconddetent) to expressclose the sunroof. To
stop the sunroof, press the switch again.
To partially close the sunroof, lightly
press and hold the front of the switch (tothe first detent) until the sunroof reachesthe desired position.
(Vent): Press the rear of this switch
to vent the sunroof. Press the switchagain to stop the sunroof.
Press and hold the front of the switch
toclose the sunroof.
See Section 2 of your Owner Manual.
Liftgate and Liftglass Operation
AB
Sunroof (if equipped)

Getting to Know YourYukon/Yukon Denali22
This feature uses ultrasonic sensors on
the rear bumpers to help you avoid col
liding with objects when parking the
vehicle. It operates only at speeds lessthan 3 mph.
The rear parking assist display is locat
ed near the rear window. The lights onthe display provide distance information.Lowtoned beeps play out of the rearspeakers (for objects near the rearbumper).
To turn off the system, press the disable
button located below the climate con
trols on the instrument panel. The indi
cator light will illuminate when the system is off.
See Section 3 of your Owner Manual.
The Universal Home Remote is a com
bined universal transmitter and receiverthat can activate up to three devices,such as garage door openers, entrydoor locks, gates and security systems.
It’s recommended that you read the
instructions in your Owner Manual com
pletely before attempting to program anyof the three channels on the Universal
Home Remote. The engine should be
turned off when programming theremote.
See Section 2 of your Owner Manual.
Ultrasonic Rear Parking Assist
(if equipped)
StabiliTrak is an advanced computer
controlled vehicle stability and tractionenhancement system that assists withdirectional control of the vehicle in
difficult driving conditions. It turns onautomatically every time you start your
vehicle.To limit wheelspin and help maintain directional control, you shouldalways leave the system on. However, if
your vehicle becomes stuck and rocking
StabiliTrak®– Stability Control
System (if equipped)
PERFORMANCE & MAINTENANCE
Universal Home Remote
(if equipped)
Note: Do not use the Universal Home
Remote with any garage door opener thatdoes not have the “stop and reverse” fea
ture or any opener manufactured beforeApril 1, 1982.
6Speed Automatic
Transmission Controls (Denali Models only)
The 6speed automatic transmission has
a unique gear range selection modecalled Driver Shift Control that enablesthe driver to select the range of gearsdesired for the current driving conditions,such as when driving on downhill grades.
To use this feature, move the shift lever
to the Manual (M) position and select alower or higher driving gear using the
+ / – button on the shift lever. The dis
play on the instrument panel cluster will
show the current gear selection.
Press the – (minus) side of the button to
downshift. When slowing to a stop, thevehicle will automatically downshift.
Press the + (plus) side of the button to
upshift. As vehicle speed increases, youwill need to manually upshift.
If current vehicle speed is too high or
too low for the requested gear, the shift
will not occur.
See Section 2 of your Owner Manual.
