window GMC YUKON 2007 Get To Know Guide

Getting to Know YourYukon/Yukon Denali4
Vehicle Symbols
Following are examples of symbols you
may find on your vehicle. It is importantto become familiar with them, as theyalert you to various vehicle operatingconditions.
Air Bag Readiness Light
Air Conditioning (A/C)
Antilock Brake System
Warning Light
Brake System Warning Light
(Parking Brake Set)
Cruise Control SetHeadlamps
Malfunction Indicator Lamp
(Check Engine Light)
Off
Off/On
On
Rear Window Defogger
Safety Belt Reminder Light
2
Safety Belt Reminder Light,
Passenger
Security Light
StabiliTrak Warning Light
Tire Pressure LightTow/Haul Mode Light
Traction Control Off Light
Driver Information Center
Your vehicle’s Driver Information Center
(DIC) provides vehicle information, vehi
cle warning messages and vehicle fea
ture customization. The DIC messageswill be shown on your instrument panel
cluster display. To operate the DIC, theignition switch must be on.
DIC Buttons
The DIC buttons are located on the right
side of the instrument panel cluster.
(Trip/Fuel):Press this button to
display the odometer, trip odometer, fuel
range, average economy, fuel used,
timer, transmission temperature, instantaneous economy (if equipped) andActive Fuel Management™ indicator
(if equipped).

9
Adjustable Pedals (if equipped)
The accelera
tor and brakepedals canbe adjusted
to a comfortable and safeoperatingposition byusing the switch located on the centerconsole below the climate controls.
Press the top arrow on the switch to
move the pedals away from you andpress the bottom arrow on the switch tomove the pedals toward you.
The pedals cannot be adjusted when the
vehicle is in Reverse or when cruisecontrol is activated.
See Section 3 of your Owner Manual.
To help block the glare of the sun, the
sun visor can be detached from the cen
ter mount and moved along the sliderod.
See Section 2 of your Owner Manual.
The climate control system includes the
following functions:
(Fan):Turn the fan control knob to
increase or decrease fan speed.
(Off):Turn the fan knob to the Off
position to turn off the system.
(Air Conditioning):Press this but
ton to turn the air conditioning system
on or off.
Sun Visor Adjustment
Manual Climate Controls(Recirculation):
Press this button
to recirculate inside air through the vehi
cle. This mode keeps outside air fromentering the vehicle.
Temperature Control:Rotate the
thumbwheels to raise or lower the temperature setting(s).
AUX (Rear Climate Control):Press this
button to turn the rear climate control
system on or off.
Airflow Modes
Turn the airflow control knob to change
the direction of the airflow. The knob canbe positioned between two modes for awide range of airflow adjustments.
(Vent):This mode directs air to the
instrument panel outlets.
(BiLevel):This mode directs air to
the instrument panel outlets and flooroutlets.
(Floor):This mode directs most of
the air to the floor outlets and some air
to the side window outlets and windshield. Recirculation cannot be selectedin this mode.
(Defog):This mode directs air to
the windshield, floor outlets and sidewindow outlets. Recirculation cannot beselected in this mode.
(Defrost):This mode directs most
of the air to the windshield and some airto the side window outlets. Recirculationcannot be selected in this mode.
(Rear Window Defogger):Press
this button to activate the rear window
defogger. The defogger will shut offautomatically or can be turned off by
pressing the button again.
See Section 3 of your Owner Manual.

Getting to Know YourYukon/Yukon Denali10
The automatic climate control system
maintains the desired individual temper
ature for the driver and front seat pas
senger. The system adjusts the airflowmode, fan speed, air conditioning andrecirculation functions to reach the settemperature(s) as quickly as possible.
Automatic Operation
To set the automatic mode:
1. Press the AUTO button.
2. Set the driver’s and front passenger’s
temperature using the + or – temperature buttons.
Manual Operation
To operate the system manually, use the
following controls:
(On/Off):Press this button to turn the
system on or off.
Temperature Control:Press the + or –
temperature button(s) to raise or lowerthe temperature setting(s).
(Fan):Press the up or down arrow
to increase or decrease fan speed.
(Mode):Press the up or down but
ton to change the direction of the airflowas well as to select the defog mode.
Automatic Climate Controls
(if equipped)PASS (Passenger Temperature
Control):Press this button to turn off
the passenger temperature setting.
(Recirculation):Press this button
to recirculate inside air through the vehi
cle. This mode keeps outside air fromentering the vehicle.
(Air Conditioning):Press this but
ton to turn the air conditioning system
on or off.
AUX (Rear Climate Control):Press this
button to turn the rear climate control
system on or off.
(Defrost):Press this button to
direct most of the air to the windshieldand some air to the side window outlets.
(Rear Window Defogger):Press
this button to activate the rear windowdefogger and the heated outsiderearview mirrors (if equipped). The
defogger and heated mirrors will shut
off automatically or can be turned off
by pressing the button again.
See Section 3 of your Owner Manual.
The rear seat climate control system can
be operated using the front climate con
trols on the instrument panel or the rearcontrol panel, located near the 2ndrowseats in the headliner or integrated withthe Rear Seat Audio (RSA) controls
(if equipped) on the back of the floorconsole.
To turn the rear system on or off, press
the AUX button on the front control
panel. The settings in the rear will be the
same as in the front until they arechanged using the rear controls.
Rear Seat Climate Controls
(if equipped)

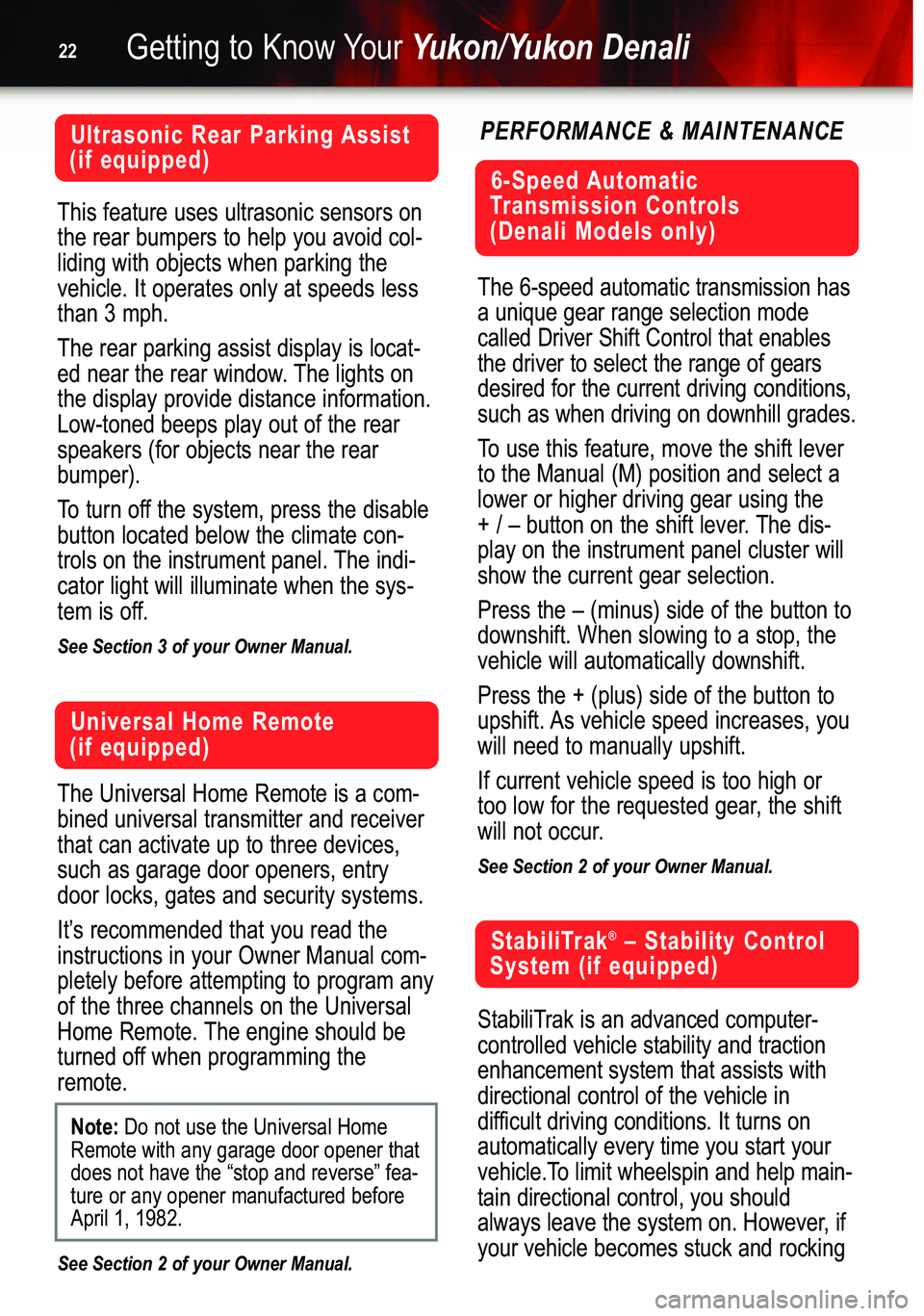

Getting to Know YourYukon/Yukon Denali22
This feature uses ultrasonic sensors on
the rear bumpers to help you avoid col
liding with objects when parking the
vehicle. It operates only at speeds lessthan 3 mph.
The rear parking assist display is locat
ed near the rear window. The lights onthe display provide distance information.Lowtoned beeps play out of the rearspeakers (for objects near the rearbumper).
To turn off the system, press the disable
button located below the climate con
trols on the instrument panel. The indi
cator light will illuminate when the system is off.
See Section 3 of your Owner Manual.
The Universal Home Remote is a com
bined universal transmitter and receiverthat can activate up to three devices,such as garage door openers, entrydoor locks, gates and security systems.
It’s recommended that you read the
instructions in your Owner Manual com
pletely before attempting to program anyof the three channels on the Universal
Home Remote. The engine should be
turned off when programming theremote.
See Section 2 of your Owner Manual.
Ultrasonic Rear Parking Assist
(if equipped)
StabiliTrak is an advanced computer
controlled vehicle stability and tractionenhancement system that assists withdirectional control of the vehicle in
difficult driving conditions. It turns onautomatically every time you start your
vehicle.To limit wheelspin and help maintain directional control, you shouldalways leave the system on. However, if
your vehicle becomes stuck and rocking
StabiliTrak®– Stability Control
System (if equipped)
PERFORMANCE & MAINTENANCE
Universal Home Remote
(if equipped)
Note: Do not use the Universal Home
Remote with any garage door opener thatdoes not have the “stop and reverse” fea
ture or any opener manufactured beforeApril 1, 1982.
6Speed Automatic
Transmission Controls (Denali Models only)
The 6speed automatic transmission has
a unique gear range selection modecalled Driver Shift Control that enablesthe driver to select the range of gearsdesired for the current driving conditions,such as when driving on downhill grades.
To use this feature, move the shift lever
to the Manual (M) position and select alower or higher driving gear using the
+ / – button on the shift lever. The dis
play on the instrument panel cluster will
show the current gear selection.
Press the – (minus) side of the button to
downshift. When slowing to a stop, thevehicle will automatically downshift.
Press the + (plus) side of the button to
upshift. As vehicle speed increases, youwill need to manually upshift.
If current vehicle speed is too high or
too low for the requested gear, the shift
will not occur.
See Section 2 of your Owner Manual.
