Page 1 of 608
Seats and Restraint Systems....................... 7
Front Seats
.............................................. 9
Rear Seats
............................................. 17
Safety Belts
............................................ 38
Child Restraints
...................................... 61
Airbag System
........................................ 90
Restraint System Check
....................... 108
Features and Controls.............................. 111
Keys
..................................................... 113
Doors and Locks
.................................. 122
Windows
............................................... 132
Theft-Deterrent Systems
....................... 134
Starting and Operating Your Vehicle
..... 139
Mirrors
.................................................. 158
OnStar
®System
................................... 164
Universal Home Remote System
.......... 166
Storage Areas
...................................... 178
Sunroof
................................................ 185Instrument Panel....................................... 187
Instrument Panel Overview
................... 190
Climate Controls
................................... 214
Warning Lights, Gages, and Indicators
... 225
Driver Information Center (DIC)
............ 244
Audio System(s)
................................... 272
Driving Your Vehicle................................. 341
Your Driving, the Road, and Your
Vehicle
.............................................. 342
Towing
................................................. 398
Service and Appearance Care.................. 417
Service
................................................. 420
Fuel
...................................................... 423
Checking Things Under the Hood
......... 428
All-Wheel Drive
..................................... 469
Rear Axle
............................................. 470
Front Axle
............................................ 471
Headlamp Aiming
................................. 473
2007 GMC Yukon Denali/Yukon XL Denali Owner ManualM
1
Page 13 of 608
To stop recall movement of the memory feature at
any time, press one of the power seat controls,
memory buttons, power mirror buttons, or
adjustable pedal switch.
If something has blocked the driver’s seat and/or
the adjustable pedals while recalling a memory
position, the driver’s seat and/or the adjustable
pedals recall may stop working. If this happens,
press the appropriate control for the area that
is not recalling for two seconds, after the
obstruction is removed. Then try recalling the
memory position again by pressing the appropriate
memory button. If the memory position is still
not recalling, see your dealer for service.Easy Exit Seat
The control for this feature is located on the
driver’s door panel between buttons 1 and 2.
With the vehicle in PARK (P), the exit position can
be recalled by pressing the exit button. You will
hear a single beep. The driver’s seat will
move back.
If the easy exit seat feature is on in the Driver
Information Center (DIC), automatic seat
movement will occur when the key is removed
from the ignition. See “EASY EXIT SEAT” under
DIC Vehicle Customization (With DIC Buttons)
on page 262for more information.
Further programming for the memory seat feature
can be done using the DIC. You can select or
not select the following:
The automatic easy exit seat feature
The remote memory seat recall feature
For programming information, seeDIC Vehicle
Customization (With DIC Buttons) on page 262.
13

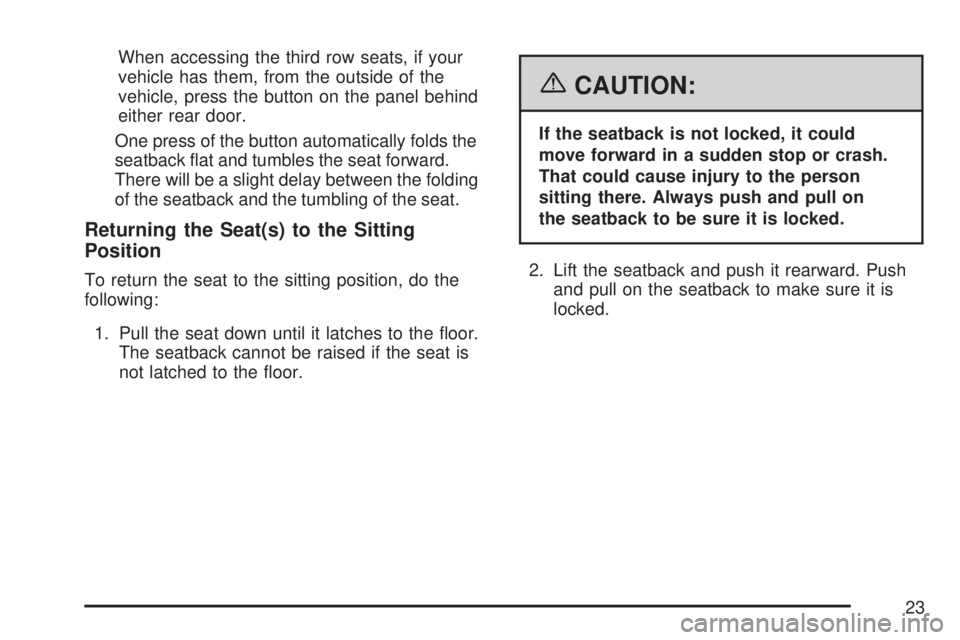

Page 23 of 608
When accessing the third row seats, if your
vehicle has them, from the outside of the
vehicle, press the button on the panel behind
either rear door.
One press of the button automatically folds the
seatback at and tumbles the seat forward.
There will be a slight delay between the folding
of the seatback and the tumbling of the seat.
Returning the Seat(s) to the Sitting
Position
To return the seat to the sitting position, do the
following:
1. Pull the seat down until it latches to the oor.
The seatback cannot be raised if the seat is
not latched to the oor.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on
the seatback to be sure it is locked.
2. Lift the seatback and push it rearward. Push
and pull on the seatback to make sure it is
locked.
23
Page 31 of 608
2. From the front
seats, press one of
the automatic
seat release buttons
located on the
overhead console.
When accessing the third row seats, if your
vehicle has them, from the outside of the
vehicle, press the button on the panel behind
either rear door.
One press of the button automatically folds the
seatback at and tumbles the seat forward.
There will be a slight delay between the folding
of the seatback and the tumbling of the seat.Returning the Seat(s) to the Sitting
Position
To return the seat to the sitting position, do the
following:
1. Pull the seat down until it latches to the oor.
The seatback cannot be raised if the seat is
not latched to the oor.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
2. Lift the seatback and push it rearward. Push
and pull on the seatback to make sure it is
locked.
Overhead Console
Buttons shown
31
Page 32 of 608
Folding and Tumbling the Second Row
Seat(s) from the Third Row Seats or
Outside
{CAUTION:
Using the third row seating position while
the second row is folded, or folded and
tumbled, could cause injury in a sudden
stop or crash. Be sure to return the seat
to the passenger seating position. Push
and pull on the seat to make sure it is
locked into place.
To fold and tumble the seat from the third row
seats, if your vehicle has them, do the following:
1. Make sure that there is nothing under, in front
of, or on the seat.
Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.2. Press the automatic
seat release button
located on the
panel behind the
rear doors.
One press of the button automatically folds the
seatback at and tumbles the seat forward.
There will be a slight delay between the folding
of the seatback and the tumbling of the seat.
Third Row Seat
If the vehicle has a third row seat, the seatback(s)
can be folded and the entire seat can be
tumbled, or removed from the vehicle.
Driver’s Side Rear Panel
Button shown
32

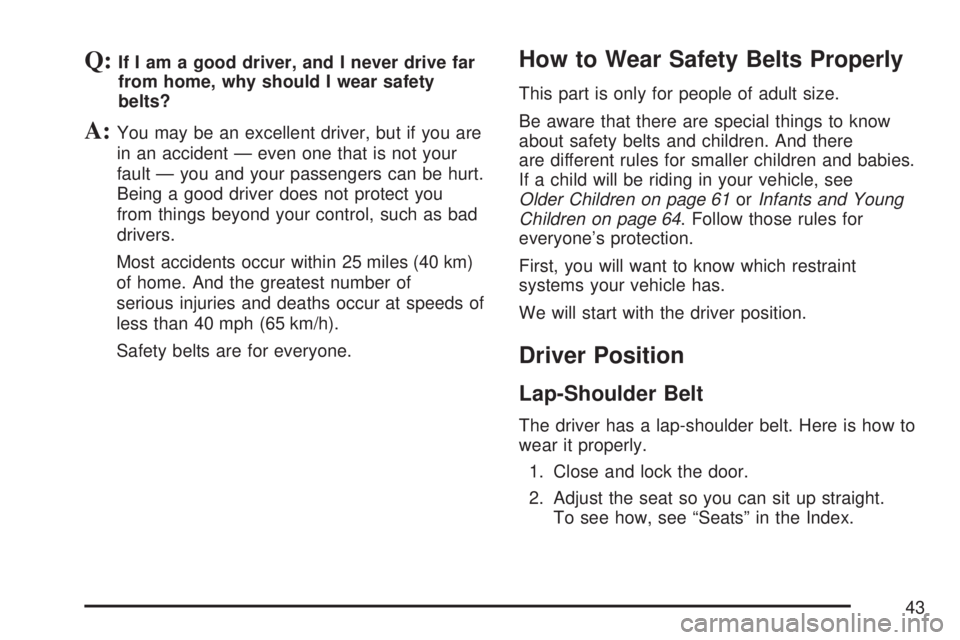

Page 43 of 608
Q:If I am a good driver, and I never drive far
from home, why should I wear safety
belts?
A:You may be an excellent driver, but if you are
in an accident — even one that is not your
fault — you and your passengers can be hurt.
Being a good driver does not protect you
from things beyond your control, such as bad
drivers.
Most accidents occur within 25 miles (40 km)
of home. And the greatest number of
serious injuries and deaths occur at speeds of
less than 40 mph (65 km/h).
Safety belts are for everyone.
How to Wear Safety Belts Properly
This part is only for people of adult size.
Be aware that there are special things to know
about safety belts and children. And there
are different rules for smaller children and babies.
If a child will be riding in your vehicle, see
Older Children on page 61orInfants and Young
Children on page 64. Follow those rules for
everyone’s protection.
First, you will want to know which restraint
systems your vehicle has.
We will start with the driver position.
Driver Position
Lap-Shoulder Belt
The driver has a lap-shoulder belt. Here is how to
wear it properly.
1. Close and lock the door.
2. Adjust the seat so you can sit up straight.
To see how, see “Seats” in the Index.
43
Page 50 of 608
To unlatch the belt, just push the button on the
buckle. The belt should go back out of the way.
Before you close the door, be sure the belt is out
of the way. If you slam the door on it, you can
damage both the belt and your vehicle.
Shoulder Belt Height Adjustment
Before you begin to drive, move the shoulder belt
adjuster to the height that is right for you.Adjust the height so that the shoulder portion of
the belt is centered on your shoulder. The
belt should be away from your face and neck,
but not falling off your shoulder. Improper
shoulder belt height adjustment could reduce
the effectiveness of the safety belt in a crash.
To move it down,
squeeze the buttons (A)
on the sides of the
height adjuster
and move the height
adjuster to the desired
position.
You can move the adjuster up just by pushing up
on the shoulder belt guide.
After you move the adjuster to where you want
it, try to move it down without squeezing the
buttons to make sure it has locked into position.
50
Page 95 of 608
If your vehicle has a third row seat, the
roof-mounted rollover airbag is located in the
ceiling above the rear windows for the outside
passenger positions.
{CAUTION:
If something is between an occupant and
an airbag, the bag might not in ate
properly or it might force the object into
that person causing severe injury or even
death. The path of an in ating airbag
must be kept clear. Do not put anything
between an occupant and an airbag, and
do not attach or put anything on the
steering wheel hub or on or near any
other airbag covering. And, if your vehicle
has roof-mounted rollover airbags, never
secure anything to the roof of your
vehicle by routing the rope or tie down
through any door or window opening. If
you do, the path of an in ating side
impact airbag will be blocked. The path of
an in ating airbag must be kept clear.
95
Page 100 of 608
What Will You See After an Airbag
In ates?
After a frontal airbag in ates, it quickly de ates, so
quickly that some people may not even realize
an airbag in ated. Roof-mounted rollover airbags
are designed to de ate more slowly and may
still be at least partially in ated minutes after the
vehicle comes to rest. Some components of
the airbag module — the steering wheel hub for
the driver’s airbag, the instrument panel for
the right front passenger’s airbag, and the area
along the ceiling of the vehicle near the side
windows for vehicles with roof–mounted side
impact airbags — may be hot for a short time.
The parts of the airbag that come into contact with
you may be warm, but not too hot to touch.
There will be some smoke and dust coming from
the vents in the de ated airbags. Airbag in ation
does not prevent the driver from seeing out of the
windshield or being able to steer the vehicle,
nor does it stop people from leaving the vehicle.
{CAUTION:
When an airbag in ates, there is dust in
the air. This dust could cause breathing
problems for people with a history of
asthma or other breathing trouble. To
avoid this, everyone in the vehicle should
get out as soon as it is safe to do so. If
you have breathing problems but cannot
get out of the vehicle after an airbag
in ates, then get fresh air by opening a
window or a door. If you experience
breathing problems following an airbag
deployment, you should seek medical
attention.
Your vehicle has a feature that may automatically
unlock the doors and turn the interior lamps on
when the airbags in ate. You can lock the
doors again and turn the interior lamps off by
using the controls for those features.
100
Page 111 of 608
Keys............................................................ 113
Remote Keyless Entry System.................. 114
Remote Keyless Entry System Operation ... 116
Doors and Locks........................................ 122
Door Locks................................................ 122
Power Door Locks..................................... 123
Delayed Locking........................................ 123
Programmable Automatic Door Locks........ 124
Rear Door Security Locks......................... 124
Lockout Protection..................................... 125
Liftgate/Liftglass......................................... 126
Power Liftgate........................................... 128
Power Running Boards.............................. 132
Windows...................................................... 132
Power Windows........................................ 133
Sun Visors................................................ 134
Theft-Deterrent Systems............................. 134
Content Theft-Deterrent............................. 135
PASS-Key
®III+......................................... 136
PASS-Key®III+ Operation......................... 137Starting and Operating Your Vehicle......... 139
New Vehicle Break-In................................ 139
Ignition Positions....................................... 140
Retained Accessory Power (RAP)............. 141
Starting the Engine.................................... 141
Adjustable Throttle and Brake Pedal.......... 143
Engine Coolant Heater.............................. 144
Automatic Transmission Operation............. 145
Tow/Haul Mode......................................... 150
Parking Brake........................................... 152
Shifting Into Park (P)................................. 153
Shifting Out of Park (P)............................. 154
Parking Over Things That Burn................. 155
Engine Exhaust......................................... 156
Running the Engine While Parked............. 157
Mirrors......................................................... 158
Automatic Dimming Rearview Mirror with
OnStar
®, Compass and Temperature
Display................................................... 158
Outside Power Foldaway Mirrors............... 161
Section 2 Features and Controls
111
