tow GMC YUKON 2008 Owner's Manual

Seats and Restraint Systems........................... 1-1
Front Seats
............................................... 1-2
Rear Seats
..............................................1-11
Safety Belts
.............................................1-30
Child Restraints
.......................................1-51
Airbag System
.........................................1-76
Restraint System Check
............................1-92
Features and Controls..................................... 2-1
Keys
........................................................ 2-3
Doors and Locks
......................................2-10
Windows
.................................................2-19
Theft-Deterrent Systems
............................2-22
Starting and Operating Your Vehicle
...........2-26
Mirrors
....................................................2-49
Object Detection Systems
..........................2-58
OnStar
®System
......................................2-60
Universal Home Remote System
................2-64
Storage Areas
.........................................2-71
Sunroof
..................................................2-74
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-23
Warning Lights, Gages, and Indicators
........3-37
Driver Information Center (DIC)
..................3-55
Audio System(s)
.......................................3-81Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
...................................................4-45
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
...............5-12
Rear Axle
...............................................5-52
Four-Wheel Drive
.....................................5-54
Front Axle
...............................................5-55
Headlamp Aiming
.....................................5-56
Bulb Replacement
....................................5-59
Windshield Wiper Blade Replacement
.........5-62
Tires
......................................................5-64
Appearance Care
...................................5-108
Vehicle Identication
...............................5-116
Electrical System
....................................5-117
Capacities and Specications
...................5-124
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance Information.................... 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-14
Vehicle Data Recording and Privacy
...........7-16
Index................................................................ 1
2008 GMC Yukon, Yukon XL Owner ManualM

A heated seat symbol will be shown in the RSA display
to indicate that the feature is on. Press the button to
cycle through the temperature settings of high, medium,
and low, and to turn it off. Indicator bars next to the
symbol will designate the level of heat selected: three for
high, two for medium, and one for low.
The heated seats are off when the ignition is off.
60/40 Split Bench Seat
(Second Row)
If your vehicle has a 60/40 split bench, the seat(s) can
be folded for additional cargo space or folded and
tumbled for easy entry and exit to the third row seats, if
your vehicle has them. These seats will have either
the manual fold and tumble feature or the automatic seat
release fold and tumble feature.
Manual Fold and Tumble Feature
Folding and Tumbling the Seat(s)
To fold and tumble the seat, do the following:
1. Make sure that there is nothing under, in front of, or
on the seat.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
2. Lift the lever, located on the outboard side of the
seat, to release the seatback.
1-12

Folding and Tumbling the Seat(s) from the
Third Row Seats
{CAUTION:
Using the third row seating position while the
second row is folded, or folded and tumbled,
could cause injury in a sudden stop or crash.
Be sure to return the seat to the passenger
seating position. Push and pull on the seat to
make sure it is locked into place.
To fold and tumble the seat from the third rows, if your
vehicle has them, do the following:
1. Make sure that there is nothing under, in front of, or
on the seat.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.2. Lift the lever(s), located on the bottom rear of the
second row seat(s) on the inboard side, to release
the seatback. The seatback will fold forward.
3. Lift the same lever again to release the rear of the
seat from the oor. The seat will tumble forward
automatically.
1-15

Automatic Release Fold and Tumble
Feature
The transmission must be in PARK (P) for this feature
to work.
Folding and Tumbling the Seat(s)
{CAUTION:
Automatically folding and tumbling the seat
when someone is sitting in the seat, could
cause injury to the person sitting there. Always
make sure there is no one sitting in the seat
before pressing the automatic seat release
button.
To fold and tumble the seat, do the following:
1. Make sure that there is nothing under, in front of, or
on the seat.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.2. From the front seats,
press one of the
automatic seat release
buttons located on
the overhead console.
When accessing the third row seats, if your vehicle
has them, from the outside of the vehicle, press
the button on the panel behind either rear door.
One press of the button automatically folds
the seatback at and tumbles the seat forward.
There will be a slight delay between the folding of
the seatback and the tumbling of the seat. Overhead Console
Buttons shown, Panel
Button similar
1-16

Folding and Tumbling the Second Row
Seat(s) from the Third Row Seats or
Outside
{CAUTION:
Using the third row seating position while the
second row is folded, or folded and tumbled,
could cause injury in a sudden stop or crash.
Be sure to return the seat to the passenger
seating position. Push and pull on the seat to
make sure it is locked into place.
To fold and tumble the seat from the third row seats, if
your vehicle has them, do the following:
1. Make sure that there is nothing under, in front of, or
on the seat.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.2. Press the automatic
seat release button
located on the
panel behind the
rear doors.
One press of the button automatically folds the
seatback at and tumbles the seat forward. There
will be a slight delay between the folding of the
seatback and the tumbling of the seat.
Bucket Seats (Second Row)
If your vehicle has bucket seats, the seatbacks can be
reclined, the seats can be folded for additional cargo
space, or folded and tumbled for easy entry and exit to
the third row seats, if your vehicle has them. These
seats will have either the manual fold and tumble feature
or the automatic seat release fold and tumble feature.Driver’s Side Rear Panel
Button shown
1-18

Manual Fold and Tumble Feature
Folding and Tumbling the Seat(s)
To fold and tumble the seat, do the following:
1. Make sure that there is nothing under, in front of, or
on the seat.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
2. Lift the lever, located on the outboard side of the
seat, to release the seatback.The seatback will fold forward. Leaving the seatback
in this position creates a at load oor.
If the seatback cannot fold at, try moving the front
seat forward and/or put the front seatback in the
upright position.
1-20

Folding and Tumbling the Seat(s) from the
Third Row Seats
{CAUTION:
Using the third row seating position while the
second row is folded, or folded and tumbled,
could cause injury in a sudden stop or crash.
Be sure to return the seat to the passenger
seating position. Push and pull on the seat to
make sure it is locked into place.
To fold and tumble the seat from the third row seats, if
your vehicle has them, do the following:
1. Make sure that there is nothing under, in front of, or
on the seat.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.2. Lift the lever, located
on the bottom rear of
the second row seat on
the inboard side, to
release the seatback.
The seatback will
fold forward.
3. Lift the lever again to release the rear of the seat
from the oor. The seat will tumble forward.
1-22

Automatic Release Fold and Tumble
Feature
The transmission must be in PARK (P) for this feature
to work.
Folding and Tumbling the Seat(s)
{CAUTION:
Automatically folding and tumbling the seat
when someone is sitting in the seat, could
cause injury to the person sitting there. Always
make sure there is no one sitting in the seat
before pressing the automatic seat release
button.
To fold and tumble the seat, do the following:
1. Make sure that there is nothing under, in front of, or
on the seat.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.2. From the front seats,
press one of the
automatic seat release
buttons located on
the overhead console.
When accessing the third row seats, if your vehicle
has them, from the outside of the vehicle, press
the button on the panel behind either rear door.
One press of the button automatically folds
the seatback at and tumbles the seat forward.
There will be a slight delay between the folding of
the seatback and the tumbling of the seat. Overhead Console
Buttons shown
1-23

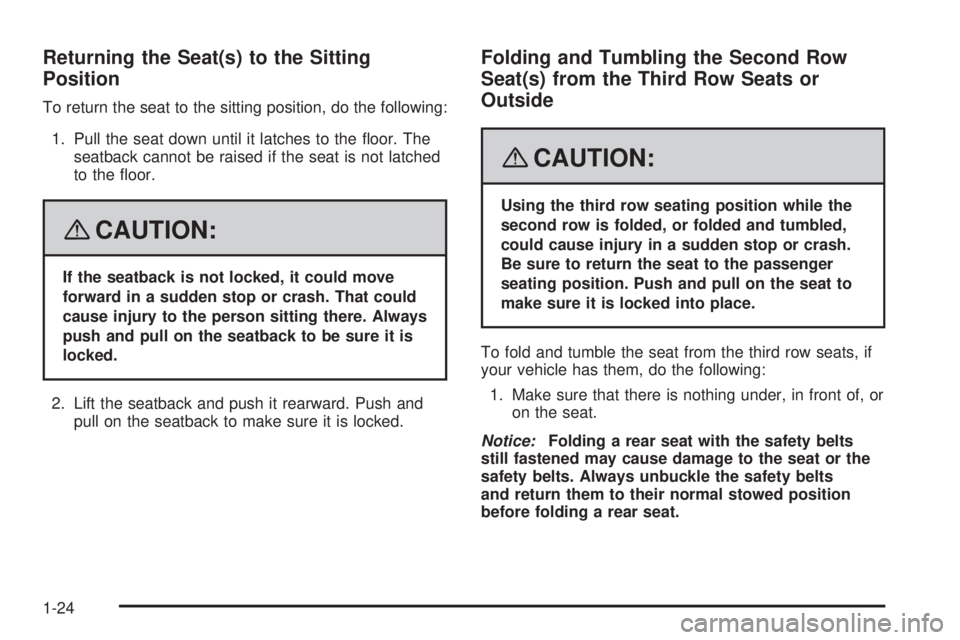

Returning the Seat(s) to the Sitting
Position
To return the seat to the sitting position, do the following:
1. Pull the seat down until it latches to the oor. The
seatback cannot be raised if the seat is not latched
to the oor.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
2. Lift the seatback and push it rearward. Push and
pull on the seatback to make sure it is locked.
Folding and Tumbling the Second Row
Seat(s) from the Third Row Seats or
Outside
{CAUTION:
Using the third row seating position while the
second row is folded, or folded and tumbled,
could cause injury in a sudden stop or crash.
Be sure to return the seat to the passenger
seating position. Push and pull on the seat to
make sure it is locked into place.
To fold and tumble the seat from the third row seats, if
your vehicle has them, do the following:
1. Make sure that there is nothing under, in front of, or
on the seat.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
1-24

2. Press the automatic
seat release button
located on the
panel behind the
rear doors.
One press of the button automatically folds the
seatback at and tumbles the seat forward. There
will be a slight delay between the folding of the
seatback and the tumbling of the seat.
Third Row Seat
If the vehicle has a third row seat, the seatback(s) can
be folded and the entire seat can be tumbled, or
removed from the vehicle.
Folding the Seatback(s)
To fold the seatback, do the following:
1. Open the liftgate to access the controls for the seat.
2. Remove all items on the seat cushion.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
3. Lift the release lever,
located on the bottom
rear of the seatback
on the outboard side of
the seat, and the
seatback will fold forward. Driver’s Side Rear Panel
Button shown
1-25
