When the STABILITY SYS ACTIVE message is on, you
should continue to steer in the direction you want to
go. The system is designed to help you in bad weather
or other difficult driving situations by making the most
of whatever road conditions will permit.
SERVICE STABILITY
If you ever see the SERVICE STABILITY message, it
means there may be a problem with your
Stabilitrak
žsystem. If you see this message try to reset
the system (stop; turn off the engine; then start the
engine again). If the SERVICE STABILITY message still
comes on, it means there is a problem. You should
see your dealer for service. The vehicle is safe to drive,
however, you do not have the bene®t of Stabilitrak
ž,
so reduce your speed and drive accordingly.
STABILITY SYS DISABLED
The STABILITY SYS DISABLED message will turn on
when you press the Stabilitrakžbutton, or when the
stability control has been automatically disabled. To limit
wheel spin and realize the full bene®ts of the stability
enhancement system, you should normally leave
Stabilitrak
žon. However, you should turn Stabilitrakžoff
if your vehicle gets stuck in sand, mud, ice or snow
and you want to ªrockº your vehicle to attempt to free it,
or if you are driving in extreme off-road conditions
and require more wheel spin. See
If You Are Stuck: In
Sand, Mud, Ice or Snow on page 4-41. To turn theStabilitrak
žsystem back on press the Stabilitrakžbutton
again. There are four conditions that can cause this
message to appear. One condition is overheating, which
could occur if Stabilitrak
žactivates continuously for
an extended period of time. The message will also be
displayed if the brake system warning light is on.
See
Brake System Warning Light on page 3-36. The
message could be displayed if the stability system takes
longer than usual to complete its diagnostic checks
due to driving conditions. Also, if an engine or vehicle
related problem has been detected, and the vehicle
needs service, the message will appear.
The message will turn off as soon as the conditions that
caused the message to be displayed are no longer
present.
TIGHTEN FUEL CAP
If the vehicle's fuel cap is not tightened properly this
message may appear along with the check engine light
on the instrument panel. See
Malfunction Indicator
Lamp on page 3-40. Reinstall the fuel cap fully. SeeFilling Your Tank on page 5-7. The diagnostic system
can determine if the fuel cap has been left off, or
improperly installed. A loose or missing fuel cap will
allow fuel to evaporate into the atmosphere. A few
driving trips with the cap properly installed should turn
this light and message off.
3-62

Anti-lock Brake System
Your vehicle has anti-lock brakes. ABS is an advanced
electronic braking system that will help prevent a
braking skid.
When you start your engine and begin to drive away,
your anti-lock brake system will check itself. You
may hear a momentary motor or clicking noise while
this test is going on. This is normal.
If there is a problem with
the anti-lock brake system,
this warning light will
stay on. See
Anti-Lock
Brake System Warning
Light on page 3-37
.
Along with ABS, your vehicle has a Dynamic Rear
Proportioning (DRP) system. If there is a DRP problem,
both the brake and ABS warning lights will come on
accompanied by a 10-second chime. The lights
and chime will come on each time the ignition is turned
on until the problem is repaired. See your dealer for
service.Let us say the road is wet and you are driving safely.
Suddenly, an animal jumps out in front of you. You slam
on the brakes and continue braking. Here is what
happens with ABS:
A computer senses that wheels are slowing down. If
one of the wheels is about to stop rolling, the computer
will separately work the brakes at each front wheel
and at both rear wheels.
4-7

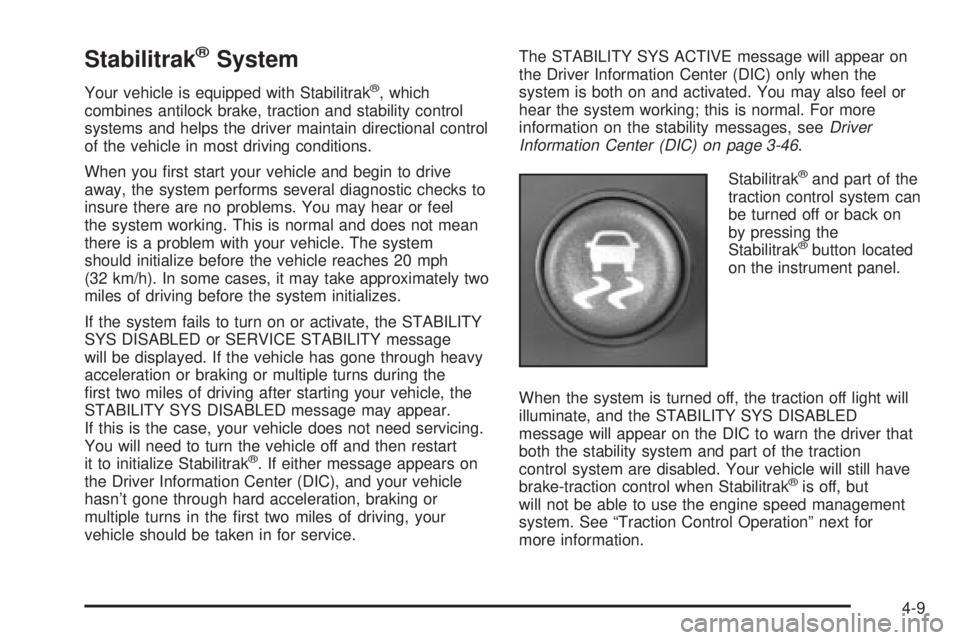

StabilitrakžSystem
Your vehicle is equipped with Stabilitrakž, which
combines antilock brake, traction and stability control
systems and helps the driver maintain directional control
of the vehicle in most driving conditions.
When you ®rst start your vehicle and begin to drive
away, the system performs several diagnostic checks to
insure there are no problems. You may hear or feel
the system working. This is normal and does not mean
there is a problem with your vehicle. The system
should initialize before the vehicle reaches 20 mph
(32 km/h). In some cases, it may take approximately two
miles of driving before the system initializes.
If the system fails to turn on or activate, the STABILITY
SYS DISABLED or SERVICE STABILITY message
will be displayed. If the vehicle has gone through heavy
acceleration or braking or multiple turns during the
®rst two miles of driving after starting your vehicle, the
STABILITY SYS DISABLED message may appear.
If this is the case, your vehicle does not need servicing.
You will need to turn the vehicle off and then restart
it to initialize Stabilitrak
ž. If either message appears on
the Driver Information Center (DIC), and your vehicle
hasn't gone through hard acceleration, braking or
multiple turns in the ®rst two miles of driving, your
vehicle should be taken in for service.The STABILITY SYS ACTIVE message will appear on
the Driver Information Center (DIC) only when the
system is both on and activated. You may also feel or
hear the system working; this is normal. For more
information on the stability messages, see
Driver
Information Center (DIC) on page 3-46.
Stabilitrak
žand part of the
traction control system can
be turned off or back on
by pressing the
Stabilitrak
žbutton located
on the instrument panel.
When the system is turned off, the traction off light will
illuminate, and the STABILITY SYS DISABLED
message will appear on the DIC to warn the driver that
both the stability system and part of the traction
control system are disabled. Your vehicle will still have
brake-traction control when Stabilitrak
žis off, but
will not be able to use the engine speed management
system. See ªTraction Control Operationº next for
more information.
4-9

Once you are moving on the freeway, make certain you
allow a reasonable following distance. Expect to
move slightly slower at night.
When you want to leave the freeway, move to the
proper lane well in advance. If you miss your exit, do
not, under any circumstances, stop and back up. Drive
on to the next exit.
The exit ramp can be curved, sometimes quite sharply.
The exit speed is usually posted.
Reduce your speed according to your speedometer, not
to your sense of motion. After driving for any distance
at higher speeds, you may tend to think you are
going slower than you actually are.
Before Leaving on a Long Trip
Make sure you are ready. Try to be well rested. If you
must start when you are not fresh Ð such as after
a day's work Ð do not plan to make too many miles that
®rst part of the journey. Wear comfortable clothing
and shoes you can easily drive in.
Is your vehicle ready for a long trip? If you keep it
serviced and maintained, it is ready to go. If it needs
service, have it done before starting out. Of course, you
will ®nd experienced and able service experts in GM
dealerships all across North America. They will be ready
and willing to help if you need it.Here are some things you can check before a trip:
·Windshield Washer Fluid:Is the reservoir full? Are
all windows clean inside and outside?
·Wiper Blades:Are they in good shape?
·Fuel, Engine Oil, Other Fluids:Have you checked
all levels?
·Lamps:Are they all working? Are the lenses clean?
·Tires:They are vitally important to a safe,
trouble-free trip. Is the tread good enough for
long-distance driving? Are the tires all in¯ated to the
recommended pressure?
·Weather Forecasts:What is the weather outlook
along your route? Should you delay your trip a
short time to avoid a major storm system?
·Maps:Do you have up-to-date maps?
4-34

You can run the engine to keep warm, but be careful.
{CAUTION:
Snow can trap exhaust gases under your
vehicle. This can cause deadly CO (carbon
monoxide) gas to get inside. CO could
overcome you and kill you. You can not see it
or smell it, so you might not know it is in your
vehicle. Clear away snow from around the
base of your vehicle, especially any that is
blocking your exhaust pipe. And check around
again from time to time to be sure snow does
not collect there.
Open a window just a little on the side of the
vehicle that is away from the wind. This will
help keep CO out.
Run your engine only as long as you must. This saves
fuel. When you run the engine, make it go a little
faster than just idle. That is, push the accelerator
slightly. This uses less fuel for the heat that you get and
it keeps the battery charged. You will need a
well-charged battery to restart the vehicle, and possibly
for signaling later on with your headlamps. Let the
heater run for a while.
4-40

Care of
Safety Belts................................................5-95
Your Cassette Tape Player............................3-97
Your CD and DVD Player.............................3-99
Your CD Changer........................................3-98
Your CDs and DVDs....................................3-98
Cargo Cover..................................................2-46
Cargo Tie Downs............................................2-47
Cassette Tape Messages.................................3-76
CD Adapter Kits.............................................3-77
CD Changer...................................................3-93
CD Changer Errors.........................................3-95
CD Functions.................................................3-94
CD Messages................................................3-79
Center Console Storage Area...........................2-44
Center High-Mounted Stoplamp (CHMSL)...........5-51
Center Instrument Panel Fuse Block................5-106
Center Passenger Position, Safety Belts.............1-39
Chains, Tires..................................................5-72
CHANGE ENGINE OIL....................................3-58
Charging System Light....................................3-35
Check
Engine Light...............................................3-40
Check Engine Light.........................................3-40
CHECK OIL LEVEL.........................................3-58
CHECK TIRE PRESSURE...............................3-58
CHECK WASHER FLUID.................................3-58
Checking Brake Fluid......................................5-37
Checking Coolant............................................5-24
Checking Engine Oil........................................5-13Checking Things Under the Hood......................5-10
Checking Your Restraint Systems......................1-86
Chemical Paint Spotting.................................5-100
Child Restraints
Child Restraint Systems...............................1-54
Infants and Young Children...........................1-50
Lower Anchorages and Top Tethers for
Children (LATCH System)..........................1-61
Older Children.............................................1-48
Securing a Child Restraint Designed for the
LATCH System........................................1-63
Securing a Child Restraint in a Center Rear
Seat Position...........................................1-65
Securing a Child Restraint in a Rear Outside
Seat Position...........................................1-63
Securing a Child Restraint in the Right Front
Seat Position...........................................1-68
Top Strap...................................................1-57
Top Strap Anchor Location............................1-59
Where to Put the Restraint...........................1-56
Chime Level Adjustment..................................3-99
Cigarette Lighter.............................................3-19
Cleaning
Inside of Your Vehicle..................................5-93
Outside of Your Vehicle................................5-96
Underbody Maintenance...............................5-99
Video Screen..............................................3-99
Weatherstrips..............................................5-95
Cleaning Aluminum Wheels..............................5-98
Cleaning Exterior Lamps/Lenses.......................5-96
3

Door (cont.)
Programmable Automatic Door Locks.............2-10
Rear Door Security Locks.............................2-12
Driver
Position, Safety Belt.....................................1-30
DRIVER DOOR AJAR.....................................3-58
Driver Information Center (DIC).........................3-46
DIC Operation and Displays..........................3-46
DIC Warnings and Messages........................3-57
Driving
At Night.....................................................4-28
City...........................................................4-32
Defensive..................................................... 4-2
Drunken....................................................... 4-2
Freeway.....................................................4-33
Hill and Mountain Roads..............................4-35
In Rain and on Wet Roads...........................4-29
Winter........................................................4-37
Driving Across an Incline..................................4-24
Driving Downhill..............................................4-23
Driving in Mud, Sand, Snow or Ice....................4-26
Driving in Water..............................................4-27
Driving On Grades..........................................4-60
Driving on Off-Road Hills.................................4-20
Driving on Snow or Ice....................................4-38
Driving Through Deep Standing Water...............4-31
Driving Through Flowing Water.........................4-31
Driving Uphill..................................................4-21
Driving with a Trailer.......................................4-58
Dual Automatic Climate Control System.............3-20DVD
Cleaning the Video Screen...........................3-99
Distortion....................................................3-97
Rear Seat Entertainment System...................3-80
DVD Player....................................................3-80
E
Easy Exit Seat...............................................2-50
Electrical System
Add-On Equipment.....................................5-103
Fuses and Circuit Breakers.........................5-103
Power Windows and Other Power Options....5-103
Windshield Wiper Fuses.............................5-103
Emissions Inspection and Maintenance
Programs...................................................3-42
Engine
Air Cleaner/Filter.........................................5-18
Battery.......................................................5-39
Check and Service Engine Soon Light............3-40
Coolant......................................................5-23
Coolant Heater............................................2-21
Coolant Temperature Gage...........................3-38
Engine Compartment Overview......................5-12
Exhaust.....................................................2-30
Fan Noise..................................................5-33
Oil .............................................................5-13
Overheating................................................5-25
Starting......................................................2-19
5

G
Gage
Engine Coolant Temperature.........................3-38
Fuel..........................................................3-45
Oil Pressure...............................................3-43
Speedometer..............................................3-32
Tachometer.................................................3-32
Transmission Temperature.............................3-39
Voltmeter Gage...........................................3-36
Garage Door Opener.......................................2-39
Gasoline
Octane........................................................ 5-4
Speci®cations............................................... 5-5
Gate Operator and Canadian Programming........2-42
Getting Familiar with Off-Road Driving................4-18
Glove Box.....................................................2-43
GM Mobility Program for Persons with
Disabilities.................................................... 7-5
H
Hazard Warning Flashers................................... 3-6
Head Restraints............................................... 1-6
Headlamp High/Low-Beam Changer.................... 3-8
Headlamps....................................................5-48
Bulb Replacement.......................................5-48
Front Turn Signal, Sidemarker and Daytime
Running Lamps........................................5-49
Halogen Bulbs............................................5-48Headphones...................................................3-87
Heated Seats................................................... 1-4
Heating.........................................................3-24
Highway Hypnosis...........................................4-35
Hill and Mountain Roads..................................4-35
Hitches..........................................................4-56
HomeLink
žTransmitter....................................2-39
HomeLinkžTransmitter, Programming................2-40
Hood
Checking Things Under................................5-10
Release.....................................................5-10
Horn............................................................... 3-7
How to Add Coolant to the Coolant Surge Tank......5-30
How to Add Fluid............................................5-22
How to Check........................................5-20, 5-63
How to Check Lubricant...................................5-46
How to Check Power Steering Fluid..................5-34
How to Inspect...............................................5-18
How to Use This Manual...................................... ii
How to Wear Safety Belts Properly...................1-30
Hydroplaning..................................................4-31
I
If No Steam Is Coming From Your Engine..........5-27
If Steam Is Coming From Your Engine...............5-26
If the Light is Flashing.....................................3-41
If the Light Is On Steady.................................3-42
If You Are Caught in a Blizzard.........................4-39
7

Replacing Brake System Parts..........................5-39
Replacing Restraint System Parts After a Crash.....1-87
Replacing the 50/50 Split Bench Seat................1-16
Replacing the Bench Seat................................1-21
Reporting Safety Defects
Canadian Government..................................7-10
General Motors...........................................7-11
United States Government............................7-10
Reprogramming a Single HomeLink
žButton.......2-43
Resetting Defaults...........................................2-43
Restraint System Check
Checking Your Restraint Systems...................1-86
Replacing Restraint System Parts After
a Crash..................................................1-87
Restraint Systems
Checking....................................................1-86
Replacing Parts...........................................1-87
Resynchronization............................................. 2-7
Retained Accessory Power (RAP)......................2-19
Returning the Seat to an Upright Position...........1-19
Returning the Seatbacks to an Upright Position......1-24
Returning the Seats to an Upright Position.........1-11
Returning the Seat(s) to an Upright Position.......1-13
Right Front Passenger Position, Safety Belts......1-39
RIGHT REAR DOOR AJAR..............................3-60
Roadside
Assistance Program....................................... 7-5
Rocking Your Vehicle To Get It Out...................4-42
Running Your Engine While You Are Parked.......2-31
S
Safety Belt
Reminder Light............................................3-32
Safety Belts
Care of......................................................5-95
Center Passenger Position............................1-39
Driver Position............................................1-30
How to Wear Safety Belts Properly................1-30
Questions and Answers About Safety Belts.....1-29
Rear Safety Belt Comfort Guides for Children
and Small Adults......................................1-44
Rear Seat Passengers.................................1-41
Right Front Passenger Position......................1-39
Safety Belt Extender....................................1-47
Safety Belt Use During Pregnancy.................1-38
Safety Belts Are for Everyone.......................1-25
Safety Chains.................................................4-57
Safety Warnings and Symbols.............................. iii
Scanning the Terrain.......................................4-19
Scheduled Maintenance..................................... 6-4
Seats
50/50 Split Bench Seat.................................1-11
60/40 Split Bench Seat.................................. 1-9
Bench Seat................................................1-17
Bucket Seats, Rear......................................1-22
Head Restraints............................................ 1-6
Heated Seats............................................... 1-4
Heated Seats, Rear....................................... 1-8
Memory.....................................................2-48
12
