GMC Yukon Denali/Yukon XL Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-9159308) - 2016 - crc - 6/2/15
168 Lighting
Hazard Warning Flashers
|(Hazard Warning Flashers) :
Press this button to make the front
and rear turn signal lamps flash on
and off. Press again to turn the
flashers off.
When the hazard warning flashers
are on, the vehicle's turn signals will
not work.
Turn and Lane-Change
Signals
An arrow on the instrument cluster
flashes in the direction of the turn or
lane change.
Move the turn signal lever all the
way up or down to signal a turn.
Raise or lower the lever for less
than one second until the arrow
starts to flash to signal a lane
change. This causes the turn
signals to automatically flash three
times. It will flash six times if Tow/
Haul Mode is active. Holding the
turn signal lever for more than
one second will cause the turn
signals to flash until the lever is
released. The lever returns to its starting
position whenever it is released.
If after signaling a turn or a lane
change the arrows flash rapidly or
do not come on, a signal bulb could
be burned out.
Replace any burned out bulbs. If a
bulb is not burned out, check the
fuse. See
Fuses0287.
Turn Signal On Chime
If the turn signal is left on for more
than 1.2 km (0.75 mi), a chime
sounds at each flash of the turn
signal. The message TURN
SIGNAL ON will also appear in the
Driver Information Center (DIC). To
turn the chime and message off,
move the turn signal lever to the off
position.

GMC Yukon Denali/Yukon XL Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-9159308) - 2016 - crc - 6/2/15
Driving and Operating 247
vehicle itself. Get acquainted with
the handling and braking of the rig
before setting out for the open road.
Before starting, check all trailer hitch
parts and attachments, safety
chains, electrical connectors, lamps,
tires, and mirrors. If the trailer has
electric brakes, start the
combination moving and then apply
the trailer brake controller by hand
to be sure the brakes work.
During the trip, check occasionally
to be sure that the load is secure
and the lamps and any trailer
brakes still work.
Following Distance
Stay at least twice as far behind the
vehicle ahead as you would when
driving the vehicle without a trailer.
This can help to avoid heavy
braking and sudden turns.
Passing
More passing distance is needed
when towing a trailer. The
combination will not accelerate as
quickly and is longer so it isnecessary to go much farther
beyond the passed vehicle before
returning to the lane.
Backing Up
Hold the bottom of the steering
wheel with one hand. To move the
trailer to the left, move that hand to
the left. To move the trailer to the
right, move your hand to the right.
Always back up slowly and,
if possible, have someone
guide you.
Making Turns
Caution
Making very sharp turns while
trailering could cause the trailer to
come in contact with the vehicle.
The vehicle could be damaged.
Avoid making very sharp turns
while trailering.
When turning with a trailer, make
wider turns than normal. Do this so
the trailer will not strike soft
shoulders, curbs, road signs, trees, or other objects. Avoid jerky or
sudden maneuvers. Signal well in
advance.
If the trailer turn signal bulbs burn
out, the arrows on the instrument
cluster will still flash for turns. It is
important to check occasionally to
be sure the trailer bulbs are still
working.
Driving on Grades
Reduce speed and shift to a lower
gear
before starting down a long or
steep downgrade. If the
transmission is not shifted down, the
brakes might get hot and no longer
work well.
Vehicles can tow in D (Drive). Shift
the transmission to a lower gear if
the transmission shifts too often
under heavy loads and/or hilly
conditions.
When towing, use the Tow/Haul
Mode to prevent damage to the
engine or transmission. See Tow/
Haul Mode 0212.
When towing at high altitude on
steep uphill grades, consider the
following: Engine coolant will boil at

GMC Yukon Denali/Yukon XL Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-9159308) - 2016 - crc - 6/2/15
260 Vehicle Care
Vehicle Care
General Information
General Information . . . . . . . . . . 261
California Proposition65 Warning . . . . . . . . . . . . . . . . . 261
California Perchlorate Materials Requirements . . . . . 261
Accessories and Modifications . . . . . . . . . . . . . . . . 262
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 262
Hood . . . . . . . . . . . . . . . . . . . . . . . . . 263
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . 264
Engine Oil . . . . . . . . . . . . . . . . . . . . 265
Engine Oil Life System . . . . . . . 267
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . 268
Engine Air Cleaner/Filter . . . . . . 269
Cooling System . . . . . . . . . . . . . . 270
Engine Coolant . . . . . . . . . . . . . . . 271
Engine Overheating . . . . . . . . . . 273
Engine Fan . . . . . . . . . . . . . . . . . . . 275
Washer Fluid . . . . . . . . . . . . . . . . . 275
Brakes . . . . . . . . . . . . . . . . . . . . . . . 276
Brake Fluid . . . . . . . . . . . . . . . . . . . 277
Battery - North America . . . . . . 278 Four-Wheel Drive . . . . . . . . . . . . . 278
Front Axle . . . . . . . . . . . . . . . . . . . . 279
Rear Axle . . . . . . . . . . . . . . . . . . . . 280
Noise Control System . . . . . . . . 280
Starter Switch Check . . . . . . . . . 281
Automatic Transmission Shift
Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 282
Park Brake and P (Park) Mechanism Check . . . . . . . . . . 282
Wiper Blade Replacement . . . . 282
Glass Replacement . . . . . . . . . . 283
Windshield Replacement . . . . . 284Headlamp Aiming
Headlamp Aiming . . . . . . . . . . . . 284
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . 284
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . . . . . . . 284
LED Lighting . . . . . . . . . . . . . . . . . 285
Fog Lamps . . . . . . . . . . . . . . . . . . . 285
Back-Up Lamps . . . . . . . . . . . . . . 285
License Plate Lamp . . . . . . . . . . 286
Replacement Bulbs . . . . . . . . . . . 287
Electrical System
Electrical System Overload . . . 287
Fuses . . . . . . . . . . . . . . . . . . . . . . . . 287
Engine Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 288 Instrument Panel Fuse
Block (Left) . . . . . . . . . . . . . . . . . 291
Instrument Panel Fuse Block (Right) . . . . . . . . . . . . . . . . . . . . . . 294
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 296
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 297
All-Season Tires . . . . . . . . . . . . . . 298
Winter Tires . . . . . . . . . . . . . . . . . . 298
Low-Profile Tires . . . . . . . . . . . . . 299
All-Terrain Tires . . . . . . . . . . . . . . . 299
Tire Sidewall Labeling . . . . . . . . 299
Tire Designations . . . . . . . . . . . . . 300
Tire Terminology andDefinitions . . . . . . . . . . . . . . . . . . 301
Tire Pressure . . . . . . . . . . . . . . . . . 303
Tire Pressure for High-Speed Operation . . . . . . . . . . . . . . . . . . . 305
Tire Pressure Monitor System . . . . . . . . . . . . . . . . . . . . . . 305
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . 306
Tire Inspection . . . . . . . . . . . . . . . . 309
Tire Rotation . . . . . . . . . . . . . . . . . 309
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 310
Buying New Tires . . . . . . . . . . . . . 311
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . 313

GMC Yukon Denali/Yukon XL Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-9159308) - 2016 - crc - 6/2/15
284 Vehicle Care
Windshield Replacement
HUD System
The windshield is part of the HUD
system. If the windshield must be
replaced, get one that is designed
for HUD or the HUD image may
look out of focus.
Driver Assistance Systems
When a windshield replacement is
needed and the vehicle is equipped
with a front-looking camera sensor
for the Driver Assistance Systems,
the windshield must be installed
according to GM specifications for
these systems to work properly. If it
is not, there may be unexpected
behavior and/or messages from
these systems. SeeObject
Detection System Messages 0148.
Headlamp Aiming
Headlamp aim has been preset and
should need no further adjustment.
If the vehicle is damaged in a crash,
the headlamp aim may be affected.
If adjustment to the headlamps is
necessary, see your dealer.
Bulb Replacement
For the proper type of replacement
bulbs, see Replacement Bulbs
0 287.
For any bulb-changing procedure
not listed in this section, contact
your dealer.
High Intensity Discharge
(HID) Lighting
{Warning
The high intensity discharge
lighting system operates at a very
high voltage. If you try to service
any of the system components,
you could be seriously injured.
Have your dealer or a qualified
technician service them.
After an HID headlamp bulb has
been replaced, the beam might be a
slightly different shade than it was
originally. This is normal.

GMC Yukon Denali/Yukon XL Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-9159308) - 2016 - crc - 6/2/15
Vehicle Care 285

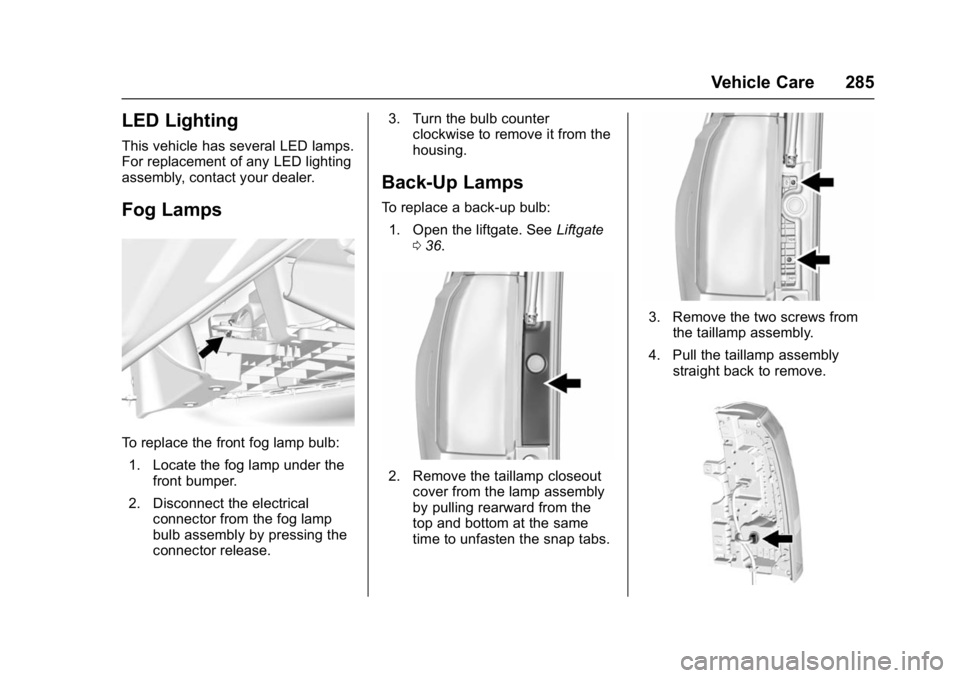

LED Lighting
This vehicle has several LED lamps.
For replacement of any LED lighting
assembly, contact your dealer.
Fog Lamps
To replace the front fog lamp bulb:1. Locate the fog lamp under the front bumper.
2. Disconnect the electrical connector from the fog lamp
bulb assembly by pressing the
connector release. 3. Turn the bulb counter
clockwise to remove it from the
housing.
Back-Up Lamps
To replace a back-up bulb:
1. Open the liftgate. See Liftgate
0 36.
2. Remove the taillamp closeout
cover from the lamp assembly
by pulling rearward from the
top and bottom at the same
time to unfasten the snap tabs.
3. Remove the two screws fromthe taillamp assembly.
4. Pull the taillamp assembly straight back to remove.

GMC Yukon Denali/Yukon XL Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-9159308) - 2016 - crc - 6/2/15
286 Vehicle Care
5. Turn the bulb socketcounterclockwise to remove it
from the taillamp assembly.
6. Pull the bulb straight out from the socket.
7. Press a new bulb into the socket, insert it into the taillamp
assembly, and turn the bulb
socket clockwise until it clicks.
8. Reinstall the taillamp assembly and tighten the screws.
9. Reinstall the taillamp cover by snapping it into place.License Plate Lamp

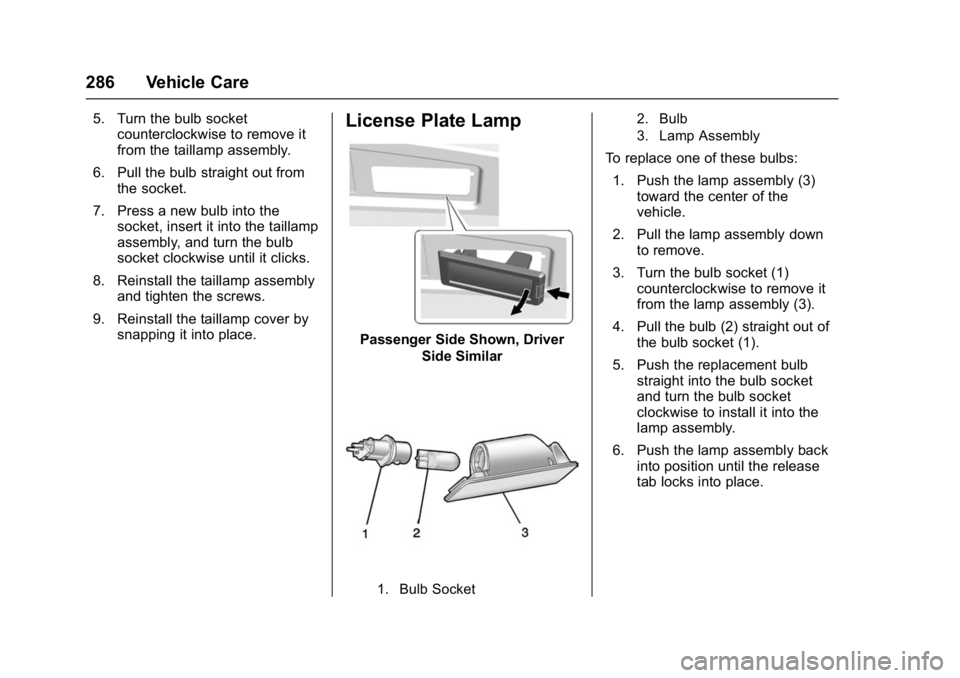

Passenger Side Shown, Driver
Side Similar
1. Bulb Socket 2. Bulb
3. Lamp Assembly
To replace one of these bulbs:
1. Push the lamp assembly (3) toward the center of the
vehicle.
2. Pull the lamp assembly down to remove.
3. Turn the bulb socket (1) counterclockwise to remove it
from the lamp assembly (3).
4. Pull the bulb (2) straight out of the bulb socket (1).
5. Push the replacement bulb straight into the bulb socket
and turn the bulb socket
clockwise to install it into the
lamp assembly.
6. Push the lamp assembly back into position until the release
tab locks into place.

GMC Yukon Denali/Yukon XL Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-9159308) - 2016 - crc - 6/2/15
Vehicle Care 287
Replacement Bulbs
Exterior Lamp BulbNumber
Back-up Lamp W16W
Fog Lamp PSX26W
License
Plate Lamp H11 LL
For replacement bulbs not listed
here, contact your dealer.
Electrical System
Electrical System
Overload
The vehicle has fuses to protect
against an electrical system
overload. Fuses also protect power
devices in the vehicle.
Replace a bad fuse with a new one
of the identical size and rating.
If there is a problem on the road and
a fuse needs to be replaced, there
are some spare fuses and a fuse
puller in the Instrument Panel Fuse
Block. The same amperage fuse
can also be borrowed. Choose
some feature of the vehicle that is
not needed to use and replace it as
soon as possible.
Headlamp Wiring
An electrical overload may cause
the lamps to go on and off, or in
some cases to remain off. Have the
headlamp wiring checked right away
if the lamps go on and off or
remain off.
Windshield Wipers
If the wiper motor overheats due to
heavy snow or ice, the windshield
wipers will stop until the motor cools
and will then restart.
Although the circuit is protected
from electrical overload, overload
due to heavy snow or ice may
cause wiper linkage damage.
Always clear ice and heavy snow
from the windshield before using the
windshield wipers.
If the overload is caused by an
electrical problem and not snow or
ice, be sure to get it fixed.
Fuses
The wiring circuits in the vehicle are
protected from short circuits by
fuses. This greatly reduces the
chance of fires caused by electrical
problems.
Look at the silver-colored band
inside the fuse. If the band is broken
or melted, replace the fuse. Be sure
you replace a bad fuse with a new
one of the identical size and rating.

GMC Yukon Denali/Yukon XL Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-9159308) - 2016 - crc - 6/2/15
Index 385
Assistance Systems forParking and Backing . . . . . . . . . . 231
Automatic Dimming Mirrors . . . . . . . . . . . . . . . . 45
Door Locks . . . . . . . . . . . . . . . . . . . . . 35
Headlamp System . . . . . . . . . . . . 167
Level Control . . . . . . . . . . . . . . . . . 221
Transmission . . . . . . . . . . . . . . . . . 207
Transmission Fluid . . . . . . . . . . . 268
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 209
Shift Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 282
Axle, Front . . . . . . . . . . . . . . . . . . . . . . 279
Axle, Rear . . . . . . . . . . . . . . . . . . . . . . 280
B
Battery Load Management . . . . . . . . . . . . 171
Power Protection . . . . . . . . . . . . . 172
Voltage and ChargingMessages . . . . . . . . . . . . . . . . . . . 143
Battery - North America . . . . 278, 326
Blade Replacement, Wiper . . . . . 282
Blind Spot Mirrors . . . . . . . . . . . . . . . 45
Brake Pedal and AdjustableThrottle . . . . . . . . . . . . . . . . . . . . . . 198
System Warning Light . . . . . . . . 130 Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 276
Antilock . . . . . . . . . . . . . . . . . . . . . . . 216
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 217
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Parking . . . . . . . . . . . . . . . . . . . . . . . 217
System Messages . . . . . . . . . . . . 144
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 183
Break-In, New Vehicle . . . . . . . . . . 198
Bulb Replacement . . . . . . . . . . . . . . 287
Back-up Lamps . . . . . . . . . . . . . . . 285
Fog Lamps . . . . . . . . . . . . . . 169, 285
Headlamp Aiming . . . . . . . . . . . . . 284
Headlamps . . . . . . . . . . . . . . . . . . . 284
High Intensity Discharge(HID) Lighting . . . . . . . . . . . . . . . 284
License Plate Lamps . . . . . . . . . 286
Buying New Tires . . . . . . . . . . . . . . . 311
C
Calibration . . . . . . . . . . . . . . . . . . . . . . 114
California Fuel Requirements . . . . . . . . . . . 243
Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 261
California Proposition
65 Warning . . . . . . . . . .261, 278, 326
Canadian Vehicle Owners . . . . . . . . 2 Capacities and
Specifications . . . . . . . . . . . . . . . . . 358
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 206
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 36
Winter Driving . . . . . . . . . . . . . . . . 191
Cargo
Cover . . . . . . . . . . . . . . . . . . . . . . . . . 108
Tie-Downs . . . . . . . . . . . . . . . . . . . . 108
Caution, Danger, and Warning . . . . 3
Center Console Storage . . . . . . . . 107
Chains, Tire . . . . . . . . . . . . . . . . . . . . 316
Charging Wireless . . . . . . . . . . . . . . . . . . . . . . .118
Charging System Light . . . . . . . . . 128
Check Malfunction IndicatorEngine Light . . . . . . . . . . . . . . . . 129
Child Restraints Infants and Young Children . . . . . 87
Lower Anchors and Tethersfor Children . . . . . . . . . . . . . . . . . . . 92
Older Children . . . . . . . . . . . . . . . . . . 86
Securing . . . . . . . . . . . . . . . . . 100, 103
Systems . . . . . . . . . . . . . . . . . . . . . . . . 90
Child-View Mirror . . . . . . . . . . . . . . . . 47
Cleaning Exterior Care . . . . . . . . . . . . . . . . . 334

GMC Yukon Denali/Yukon XL Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-9159308) - 2016 - crc - 6/2/15
Index 387
Dual Automatic ClimateControl System . . . . . . . . . . . . . . . . 174
E
Electrical Equipment,
Add-On . . . . . . . . . . . . . . . . . . . . . . . 259
Electrical System
Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 288
Fuses . . . . . . . . . . . . . . . . . . . . . . . . 287
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . 291, 294
Overload . . . . . . . . . . . . . . . . . . . . . 287
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 296
Emergency OnStar
®. . . . . . . . . . . . . . . . . . . . . . 375
Engine Air Cleaner/Filter . . . . . . . . . . . . . 269
Check and Service EngineSoon Light . . . . . . . . . . . . . . . . . . 129
Compartment Overview . . . . . . . 264
Coolant . . . . . . . . . . . . . . . . . . . . . . . 271
Coolant Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . 124
Coolant Temperature
Warning Light . . . . . . . . . . . . . . . 133
Cooling System . . . . . . . . . . . . . . . 270
Cooling System Messages . . . 146 Engine (cont'd)
Drive Belt Routing . . . . . . . . . . . . 359
Exhaust . . . . . . . . . . . . . . . . . . . . . . 206
Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Heater . . . . . . . . . . . . . . . . . . . . . . . . 202
Oil Life System . . . . . . . . . . . . . . . 267
Oil Messages . . . . . . . . . . . . . . . . . 146
Oil Pressure Gauge . . . . . . . . . . 123
Oil Pressure Light . . . . . . . . . . . . 134
Overheating . . . . . . . . . . . . . . . . . . 273
Power Messages . . . . . . . . . . . . . 147
Running While Parked . . . . . . . . 206
Starting . . . . . . . . . . . . . . . . . . . . . . . 201
Entry Lighting . . . . . . . . . . . . . . . . . . . 171
Equipment, Towing . . . . . . . . . . . . . 251
Event Data Recorders . . . . . . . . . . 372
Exit Lighting . . . . . . . . . . . . . . . . . . . . 171
Extender, Safety Belt . . . . . . . . . . . . 72
Exterior Lamp Controls . . . . . . . . . 165
Exterior Lamps Off Reminder . . . 166
F
Fan Engine . . . . . . . . . . . . . . . . . . . . . . . . 275
Features Memory . . . . . . . . . . . . . . . . . . . . . . . . . 11
Filter, Engine Air Cleaner . . . . . . . . . . . 269
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 166 Flashers, Hazard Warning . . . . . . 168
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 316
Changing . . . . . . . . . . . . . . . . . . . . . 317
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 342
Fluid Automatic Transmission . . . . . . 268
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 277
Four-Wheel DriveTransfer Case . . . . . . . . . . . . . . . 213
Washer . . . . . . . . . . . . . . . . . . . . . . . 275
Fog Lamps
Bulb Replacement . . . . . . . 169, 285
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 234
Four-Wheel Drive . . . . . . . . . . 213, 278
Four-Wheel-Drive Light . . . . . . . . . 131
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 370
Front Automatic Braking (FAB) System . . . . . . . . . . . . . . . . . 236
Front Axle . . . . . . . . . . . . . . . . . . . . . . 279
Front Fog Lamp
Light . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Front Seats Heated and Cooled . . . . . . . . . . . . . 57
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242 Additives . . . . . . . . . . . . . . . . . . . . . 243
Economy Driving . . . . . . . . . . . . . . . 24

GMC Yukon Denali/Yukon XL Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-9159308) - 2016 - crc - 6/2/15
388 Index
Fuel (cont'd)Filling a Portable Fuel
Container . . . . . . . . . . . . . . . . . . . 245
Filling the Tank . . . . . . . . . . . . . . . 244
Foreign Countries . . . . . . . . . . . . 243
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 122
Low Fuel Warning Light . . . . . . . 135
Management, Active . . . . . . . . . . 205
Requirements, California . . . . . 243
System Messages . . . . . . . . . . . . 147
Full-Size Spare Tire . . . . . . . . . . . . 325
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . 287 Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 288
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . 291, 294
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 296
G
Garage Door Opener . . . . . . . . . . . 162
Programming . . . . . . . . . . . . . . . . . 162
Gauges Engine Coolant
Temperature . . . . . . . . . . . . . . . . 124
Engine Oil Pressure . . . . . . . . . . 123
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Odometer . . . . . . . . . . . . . . . . . . . . . 122
Speedometer . . . . . . . . . . . . . . . . . 122 Gauges (cont'd)
Tachometer . . . . . . . . . . . . . . . . . . . 122
Transmission Temperature . . . . 125
Trip Odometer . . . . . . . . . . . . . . . . 122
Voltmeter . . . . . . . . . . . . . . . . . . . . . 125
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . .119
General Information Service and Maintenance . . . . . 343
Towing . . . . . . . . . . . . . . . . . . . . . . . . 246
Vehicle Care . . . . . . . . . . . . . . . . . . 261
Glass Replacement . . . . . . . . . . . . . 283
Glove Box . . . . . . . . . . . . . . . . . . . . . . 106
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 364
H
Hazard Warning Flashers . . . . . . . 168
Head Restraints . . . . . . . . . . . . . . . . . 52
Head-up Display . . . . . . . . . . . . . . . . 140
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . 284
Automatic . . . . . . . . . . . . . . . . . . . . . 167
Bulb Replacement . . . . . . . . . . . . 284
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . 166
Flash-to-Pass . . . . . . . . . . . . . . . . . 166
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . 284 Headlamps (cont'd)
High-Beam On Light . . . . . . . . . . 135
High/Low Beam Changer . . . . . 166
Lamps On Reminder . . . . . . . . . 136
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . 58
Steering Wheel . . . . . . . . . . . . . . . . 111
Heated and Cooled Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Heated Mirrors . . . . . . . . . . . . . . . . . . . 45
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . 202
High-Beam On Light . . . . . . . . . . . . 135
High-Speed Operation . . . . . . . . . . 305
Hill and Mountain Roads . . . . . . . . 191
Hill Start Assist (HSA) . . . . . . . . . . 218
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
How to Wear Safety Belts Properly . . . . . . . . . . . . . . . . . . . . . . . . 66
I
Ignition Positions . . . . . . . . . . . . . . . 199
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 43
IndicatorVehicle Ahead . . . . . . . . . . . . . . . . 132
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . 87
Infotainment . . . . . . . . . . . . . . . . . . . . 173
