Tire Sealant and Compressor Kit
Storage
The tire sealant and compressor kit is located under the
storage tray on the driver side trim panel (over the rear
wheelhouse).
To access the tire sealant and compressor kit:
1. Remove the tray by pulling up on the fingerdepression to access the tire sealant and
compressor kit .
2. Locate the tire sealant and compressor kit .
3. Remove the sealant and compressor kit without
a selector switch by pulling the velcro strip up
and back.
6-55
Page 112 of 120
Remove the sealant and compressor kit with a
selector switch by lifting upward on the yellow tab
to release the unit.
4. Remove the sealant and compressor kit from its plastic tray assembly.
To store the tire sealant and compressor kit, reverse the
steps.
Appearance Care
Vehicle Care/Appearance Materials
When scraping the windshield glass to remove ice and
snow, stay clear of the hybrid decal.
To have the hybrid decals removed from the vehicle,
please see your dealer/retailer.
6-56
Page 113 of 120

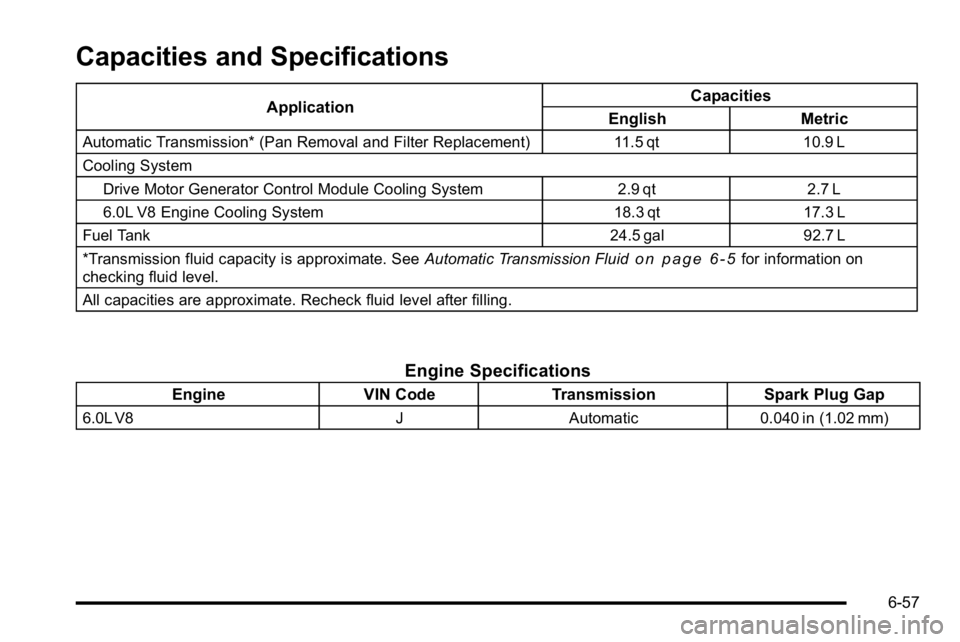

Capacities and Specifications
ApplicationCapacities
English Metric
Automatic Transmission* (Pan Removal and Filter Replacement) 11.5 qt10.9 L
Cooling System Drive Motor Generator Control Module Cooling System 2.9 qt2.7 L
6.0L V8 Engine Cooling System 18.3 qt17.3 L
Fuel Tank 24.5 gal92.7 L
*Transmission fluid capacity is approximate. See Automatic Transmission Fluid
on page 6‑5for information on
checking fluid level.
All capacities are approximate. Recheck fluid level after filling.
Engine Specifications
Engine VIN CodeTransmission Spark Plug Gap
6.0L V8 JAutomatic 0.040 in (1.02 mm)
6-57
Page 114 of 120
2NOTES
6-58
Page 115 of 120
Section 7 Maintenance Schedule
Maintenance Schedule. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
At Least Once a Year . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Recommended Fluids and Lubricants . . . . . . . . . . . 7-2
Engine Drive Belt Routing . . . . . . . . . . . . . . . . . . . . . . . 7-2
7-1
Page 116 of 120
Maintenance Schedule
At Least Once a Year
Tire Sealant and Compressor Kit
Check the sealant expiration date printed on the
instruction label of the Tire Sealant and Compressor Kit
at least once a year. See your dealer/retailer for a
replacement canister.
Recommended Fluids and
Lubricants
Fluids identified below are specific to the hybrid vehicle
and can be obtained from your dealer/retailer. See the
owner manual for the other fluids and lubricants
recommended for the vehicle.Usage Fluid/Lubricant
Drive Motor/Generator
Control Module
(DMCM) Cooling
System Always use the pre-mixed
50/50 mixture of de‐ionized water
and DEX-COOL®(silicate-free)
coolant available at your dealer/
retailer. See Drive Motor/Generator
Control Module (DMCM) Cooling
System on page 6‑9.
Engine Drive Belt Routing
7-2
