GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
Contents Introduction . . . . . . . . . . . . . . . . . . . . . . 2
In Brief . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Keys, Doors, and Windows . . . . . 27
Seats and Restraints . . . . . . . . . . . 60
Storage . . . . . . . . . . . . . . . . . . . . . . . 118
Instruments and Controls . . . . . . 122
Lighting . . . . . . . . . . . . . . . . . . . . . . . 170
Infotainment System . . . . . . . . . . 179
Climate Controls . . . . . . . . . . . . . . 180
Driving and Operating . . . . . . . . . 188
Vehicle Care . . . . . . . . . . . . . . . . . . 276
Service and Maintenance . . . . . 369
Technical Data . . . . . . . . . . . . . . . . 383
Customer Information . . . . . . . . . 386
Reporting Safety Defects . . . . . . 396
OnStar . . . . . . . . . . . . . . . . . . . . . . . . 400
Index . . . . . . . . . . . . . . . . . . . . 412

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
In Brief 5
In Brief Instrument Panel Instrument Panel . . . . . . . . . . . . . . . . 6
Initial Drive Information Initial Drive Information . . . . . . . . . . 8
Remote Keyless Entry (RKE)
System . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Vehicle Start . . . . . . . . . . . 9
Door Locks . . . . . . . . . . . . . . . . . . . . . 9
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . 10
Windows . . . . . . . . . . . . . . . . . . . . . . . 11
Seat Adjustment . . . . . . . . . . . . . . . 11
Memory Features . . . . . . . . . . . . . . 12
Second Row Seats . . . . . . . . . . . . 12
Third Row Seats . . . . . . . . . . . . . . . 13
Heated and Ventilated Seats . . . 13
Head Restraint Adjustment . . . . 13
Seat Belts . . . . . . . . . . . . . . . . . . . . . 13
Passenger Sensing System . . . 14
Mirror Adjustment . . . . . . . . . . . . . . 14
Steering Wheel Adjustment . . . . 15
Throttle and Brake Pedal
Adjustment . . . . . . . . . . . . . . . . . . . 15
Interior Lighting . . . . . . . . . . . . . . . . 16
Exterior Lighting . . . . . . . . . . . . . . . 16
Windshield Wiper/Washer . . . . . . 17
Climate Controls . . . . . . . . . . . . . . . 18
Transmission . . . . . . . . . . . . . . . . . . 18 Four-Wheel Drive . . . . . . . . . . . . . . 19
Vehicle Features Infotainment System . . . . . . . . . . . 20
Steering Wheel Controls . . . . . . . 20
Cruise Control . . . . . . . . . . . . . . . . . 20
Driver Information
Center (DIC) . . . . . . . . . . . . . . . . . 20
Forward Collision Alert (FCA)
System . . . . . . . . . . . . . . . . . . . . . . . 21
Forward Automatic
Braking (FAB) . . . . . . . . . . . . . . . . 21
Lane Keep Assist (LKA) . . . . . . . 21
Lane Change Alert (LCA) . . . . . . 21
Rear Vision Camera (RVC) . . . . 22
Rear Cross Traffic Alert (RCTA)
System . . . . . . . . . . . . . . . . . . . . . . . 22
Parking Assist . . . . . . . . . . . . . . . . . 22
Power Outlets . . . . . . . . . . . . . . . . . 22
Universal Remote System . . . . . 23
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . 23
Performance and Maintenance Traction Control/Electronic
Stability Control . . . . . . . . . . . . . . 24
Tire Pressure Monitor . . . . . . . . . . 24
Fuel (L83 5.3L V8 Engine) . . . . . 25
Fuel (L86 6.2L V8 Engine) . . . . . 25
E85 or FlexFuel . . . . . . . . . . . . . . . . 25
Engine Oil Life System . . . . . . . . 25 Driving for Better Fuel
Economy . . . . . . . . . . . . . . . . . . . . . 26
Roadside Assistance
Program . . . . . . . . . . . . . . . . . . . . . . 26

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
In Brief 71. Air Vents 0 185 .
2. Head-Up Display (HUD) 0 154
(If Equipped).
3.
g Traction Control/Electronic
Stability Control 0 229 .
j Power Assist Steps 0 48 (If
Equipped).
X Parking Assist Button (If
Equipped). See Assistance
Systems for Parking or Backing
0 243 .
A Lane Departure Warning
(LDW) 0 252 (If Equipped).
0 Pedal Adjust Switch (If
Equipped). See Adjustable
Throttle and Brake Pedal
0 205 .
4. Turn Signal Lever. See Turn
and Lane-Change Signals
0 174 .
Windshield Wiper/Washer
0 123 . 5. Favorite Switches (Out of
View). See “ Steering Wheel
Controls ” in the infotainment
manual.
Volume Switches (Out of View).
See “ Steering Wheel Controls ”
in the infotainment manual.
6. Hazard Warning Flashers
0 174 .
7. Instrument Cluster 0 133 .
8. Shift Lever. See Automatic
Transmission 0 216 .
Tow/Haul Selector Button. See
Tow/Haul Mode 0 222 .
Range Selection Mode (If
Equipped). See Manual Mode
0 218 .
9. Light Sensor. See Automatic
Headlamp System 0 173 .
10. Infotainment 0 179 .
11. Dual Automatic Climate Control
System 0 180 .
12. Heated and Ventilated Front
Seats 0 67 . 13. Rear Climate Control Buttons.
See Rear Climate Control
System 0 184 .
14. Ignition Positions (Key Access)
0 207 or Ignition Positions
(Keyless Access) 0 205 .
15. Steering Wheel Controls. See
the infotainment manual.
16. Horn 0 123 .
17. Steering Wheel Adjustment
0 123 .
18. Hood Release. See Hood
0 279 .
19. Cruise Control 0 233 .
Adaptive Cruise Control 0 235
(If Equipped).
Forward Collision Alert (FCA)
System 0 246 (If Equipped).
Heated Steering Wheel 0 123 .
20. Trailer Brake Control Panel (If
Equipped). See Towing
Equipment 0 267 .
21. Data Link Connector (DLC)
(Out of View). See Malfunction
Indicator Lamp (Check Engine
Light) 0 143 .

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
In Brief 11To disable the power liftgate
function, select OFF on the liftgate
switch. See Liftgate 0 43 .
Windows
Power windows work when the
ignition is on, in ACC/ACCESSORY,
or when Retained Accessory Power
(RAP) is active. See Retained
Accessory Power (RAP) 0 212 .
Using the window switch, press to
open or pull to close the window.
The windows may be temporarily
disabled if they are used repeatedly
within a short time. Seat Adjustment Power Seats
To adjust the seat:
.
Move the seat forward or
rearward by sliding the control
forward or rearward.
.
Raise or lower the front part of
the seat cushion by moving the
front of the control up or down.
.
Raise or lower the seat by
moving the rear of the control up
or down.
See Power Seat Adjustment 0 62 .Reclining Seatbacks
To recline the seatback:
.
Tilt the top of the control
rearward to recline.
.
Tilt the top of the control forward
to raise.
See Reclining Seatbacks 0 63 .

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
12 In Brief Lumbar Adjustment
To adjust the lumbar support:
.
Press and hold the control
forward to increase or rearward
to decrease upper and lower
lumbar support at the same time.
.
Press and hold the control up to
increase upper lumbar support
and decrease lower lumbar
support.
Press and hold the control down
to increase lower lumbar support
and decrease upper lumbar
support.
See Lumbar Adjustment 0 63 .Memory Features
If equipped, memory seats allow two
drivers to store and recall their
unique seat positions for driving the
vehicle, and a shared exit position
for getting out of the vehicle. Other
feature positions may also be set,
such as power mirrors, power
steering wheel, and adjustable
pedals, if equipped. Memory
positions are linked to RKE
transmitter 1 or 2 for automatic
memory recalls.
Before storing, adjust all available
memory feature positions. Turn the
ignition on and then press and release SET; a beep will sound.
Then immediately press and hold 1,
2, or
B (Exit) on the driver door
until two beeps sound. To manually
recall these positions, press and
hold 1, 2, or
B until the saved
position is reached.
When Auto Memory Recall is
enabled in vehicle personalization,
positions previously stored to
memory buttons 1 and 2 are
recalled when the ignition is
changed from off to on or ACC/
ACCESSORY.
When Easy Exit Options is enabled
in vehicle personalization, the
feature automatically recalls the
previously stored exit position when
exiting the vehicle. See Memory
Seats 0 64 .
Second Row Seats The second row seatbacks can be
folded for additional cargo space,
or the seats can be folded and
tumbled for easy entry/exit to the
third row seats. The seatbacks also
recline.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17

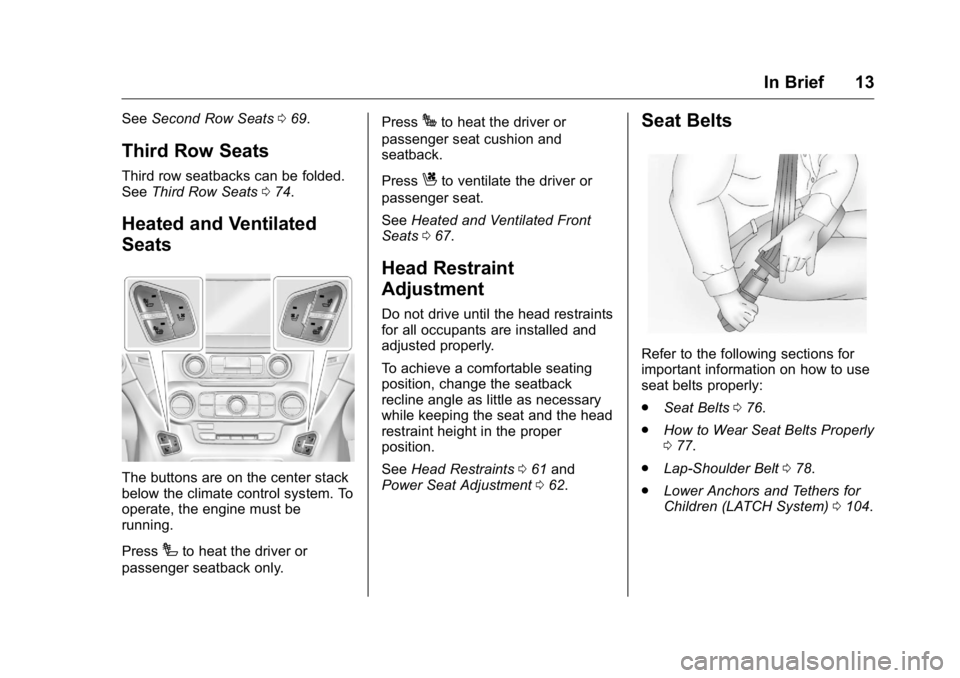

In Brief 13See Second Row Seats 0 69 .
Third Row Seats Third row seatbacks can be folded.
See Third Row Seats 0 74 .
Heated and Ventilated
Seats
The buttons are on the center stack
below the climate control system. To
operate, the engine must be
running.
Press
I to heat the driver or
passenger seatback only. Press
J to heat the driver or
passenger seat cushion and
seatback.
Press
C to ventilate the driver or
passenger seat.
See Heated and Ventilated Front
Seats 0 67 .
Head Restraint
Adjustment Do not drive until the head restraints
for all occupants are installed and
adjusted properly.
To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the head
restraint height in the proper
position.
See Head Restraints 0 61 and
Power Seat Adjustment 0 62 .Seat Belts
Refer to the following sections for
important information on how to use
seat belts properly:
.
Seat Belts 0 76 .
.
How to Wear Seat Belts Properly
0 77 .
.
Lap-Shoulder Belt 0 78 .
.
Lower Anchors and Tethers for
Children (LATCH System) 0 104 .

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17

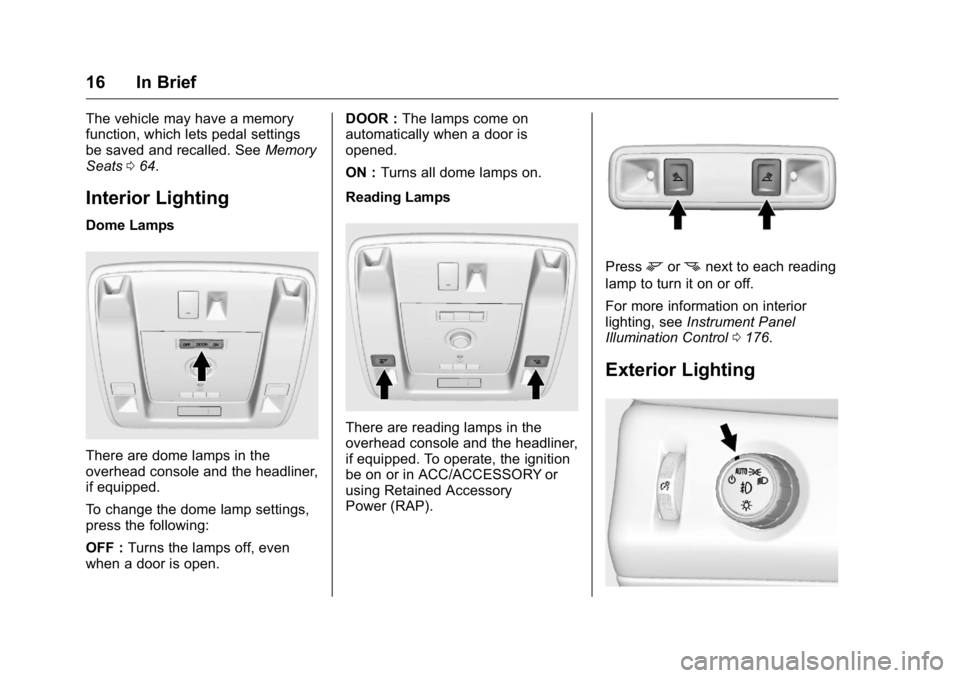

16 In Brief The vehicle may have a memory
function, which lets pedal settings
be saved and recalled. See Memory
Seats 0 64 .
Interior Lighting Dome Lamps
There are dome lamps in the
overhead console and the headliner,
if equipped.
To change the dome lamp settings,
press the following:
OFF : Turns the lamps off, even
when a door is open. DOOR : The lamps come on
automatically when a door is
opened.
ON : Turns all dome lamps on.
Reading Lamps
There are reading lamps in the
overhead console and the headliner,
if equipped. To operate, the ignition
be on or in ACC/ACCESSORY or
using Retained Accessory
Power (RAP). Press
m or
n next to each reading
lamp to turn it on or off.
For more information on interior
lighting, see Instrument Panel
Illumination Control 0 176 .
Exterior Lighting

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
22 In Brief
Rear Vision
Camera (RVC) If equipped, RVC shows a view of
the area behind the vehicle on the
infotainment display when the
vehicle is shifted into R (Reverse) to
aid with parking and low-speed
backing maneuvers.
See Assistance Systems for Parking
or Backing 0 243 .
Rear Cross Traffic Alert
(RCTA) System If equipped, the RCTA system uses
a triangle with an arrow on the
infotainment display to warn of
traffic behind your vehicle that may
cross your vehicle's path while in
R (Reverse). In addition, beeps will
sound, or the driver seat will pulse.
See Assistance Systems for Parking
or Backing 0 243 .
Parking Assist If equipped, Rear Parking
Assist (RPA) uses sensors on the
rear bumper to assist with parking and avoiding objects while in
R (Reverse). It operates at speeds
less than 8 km/h (5 mph). RPA may
show a warning triangle on the
infotainment display and a graphic
on the instrument cluster to provide
the object distance. In addition,
multiple beeps or seat pulses may
occur if very close to an object.
The vehicle may also have the Front
Parking Assist system.
See Assistance Systems for Parking
or Backing 0 243 .
Power Outlets Power Outlets 12-Volt Direct
Current Accessory power outlets can be
used to plug in electrical equipment,
such as a cell phone, MP3
player, etc.
The vehicle may have up to five
accessory power outlets:
Vehicles with a Center Console
.
One in front of the cupholders on
the center console .
One inside the center storage
console
.
One on the rear of the center
storage console
.
One in the third row seat on the
driver side
.
One in the rear cargo area on
the passenger side
Vehicles with Bench Seats
.
One on the center stack below
the climate control system
.
One in the storage area on the
bench seat
.
One on the rear of the center
armrest storage
.
One in the third row seat area on
the driver side
.
One in the rear cargo area on
the passenger side
Lift the cover to access and replace
when not in use.
See Power Outlets 0 127 .

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17

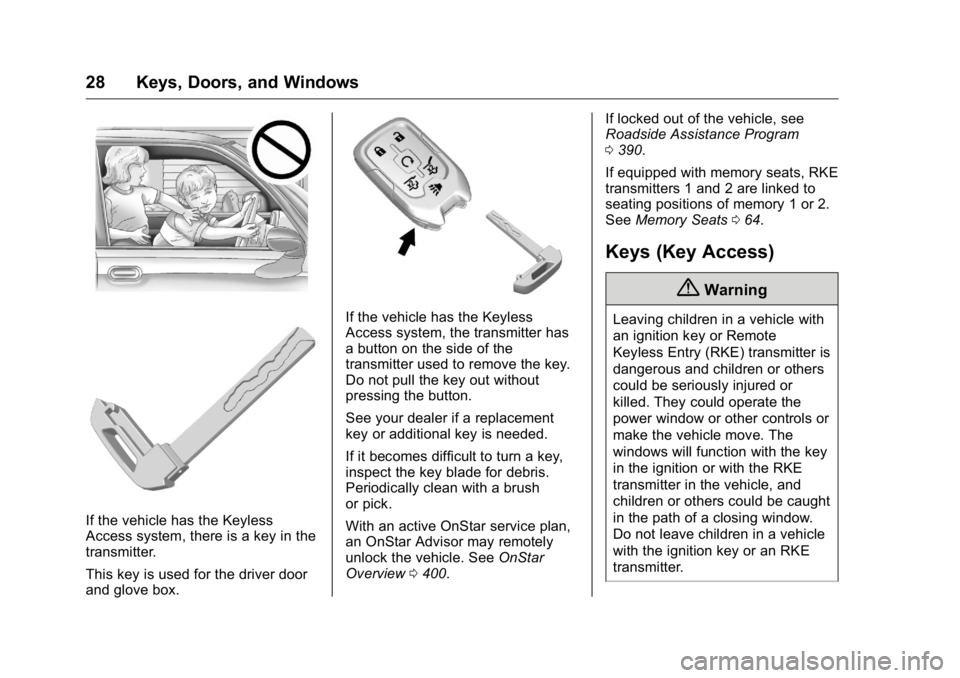

28 Keys, Doors, and Windows
If the vehicle has the Keyless
Access system, there is a key in the
transmitter.
This key is used for the driver door
and glove box. If the vehicle has the Keyless
Access system, the transmitter has
a button on the side of the
transmitter used to remove the key.
Do not pull the key out without
pressing the button.
See your dealer if a replacement
key or additional key is needed.
If it becomes difficult to turn a key,
inspect the key blade for debris.
Periodically clean with a brush
or pick.
With an active OnStar service plan,
an OnStar Advisor may remotely
unlock the vehicle. See OnStar
Overview 0 400 . If locked out of the vehicle, see
Roadside Assistance Program
0 390 .
If equipped with memory seats, RKE
transmitters 1 and 2 are linked to
seating positions of memory 1 or 2.
See Memory Seats 0 64 .
Keys (Key Access)
{ WarningLeaving children in a vehicle with
an ignition key or Remote
Keyless Entry (RKE) transmitter is
dangerous and children or others
could be seriously injured or
killed. They could operate the
power window or other controls or
make the vehicle move. The
windows will function with the key
in the ignition or with the RKE
transmitter in the vehicle, and
children or others could be caught
in the path of a closing window.
Do not leave children in a vehicle
with the ignition key or an RKE
transmitter.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
30 Keys, Doors, and Windows
Interference from radio-frequency
identification (RFID) tags may
prevent the key from starting the
vehicle. Keep RFID tags away from
the key when starting the vehicle.
The key is used for the driver door,
ignition, and glove box.
If equipped with memory seats,
keys 1 and 2 are linked to seating
positions of memory 1 or 2. See
Memory Seats 0 64 .
Programming Keys to the
Vehicle
Follow these procedures to program
up to eight keys to the vehicle. Programming with Two
Recognized Keys (Key
Vehicles Only)
To program a new key:
1. Insert the original, already
programmed key in the ignition
and turn the ignition on without
starting the engine.
2. Turn the ignition off and
remove the key.
3. Quickly, within five seconds,
insert the second original
already programmed key in the
ignition and turn the ignition on
without starting the engine.
4. Turn the ignition off and
remove the key.
5. Insert the new key to be
programmed, and within
five seconds, turn the ignition
on without starting the engine.
The security light will turn off
once the key has been
programmed.
6. Repeat Steps 1 – 5 if additional
keys are to be programmed. If a key is lost or damaged, see your
dealer to have a new key made.
Programming without Recognized
Keys (Key Vehicles Only)
Program a new key to the vehicle
when a recognized key is not
available. Canadian regulations
require that Canadian owners see
their dealer.
If two currently recognized keys are
not available, follow this procedure
to program the first key.
This procedure will take
approximately 30 minutes to
complete for the first key. The
vehicle must be off and all of the
keys must be with you.
1. Insert the new vehicle key into
the ignition.
2. Turn the ignition on without
starting the engine. The
security light will come on.
3. Wait 10 minutes until the
security light turns off.
4. Turn the ignition off.
